1. APPLICATION
The PCE-ND10 meter is a digital programmable panel
meter destined for the measurement of the 3-phase, 4-wire
power network parameters in balanced and
unbalanced systems. It is also capable of displaying
measured quantities and their simultaneous digital
transmission. The meter is also capable of controlling and
optimization of the power electronic devices, systems, and
industrial installations. The meter can be used for measuring:
RMS value of voltage and current; active, reactive and
apparent power; active and reactive energy, power
parameters; frequency, 15-, 30- and 60-minute mean active
power and THD. Additionally, a current in the neutral wire
is calculated from the phase current vectors . Voltage and
cur-rent values are multiplied by given voltage and current
ratios of measuring transformers. Power and energy
indications take into account all programmed ratio values. Any
and all measured values can be sent to the master via the
RS-485 interface. The relay outputs signal alarm when
selected parameters exceed set limits. Impulse output can
be used for consump-tion check of the 3-phase real energy.
This meter is also able to detect and signal incorrect phase
sequence. The meter is powered by the measuring
circuit, i.e. from the voltage output.
There is a galvanic separation between following units of
the meter:
- voltage and current inputs,
- RS-485 output,
- pulse output.

6
2. METER SET
Complete set of the meter includes:
1 pcs.
2pcs.
-PCE-ND10 Meter
-connection clamps
- user’s manual 1 pcs.
3. BASIC REQUIREMENTS AND
OPERATIONAL SAFETY
In the safety service scope, the transducer meets to
requirements of the EN 61010-1 standard.
Observations Concerning the Operational Safety:
•The meter should be installed and connected only
byaqualiedpersonnel.Allrelevantsafetymeasuresshould
be observed during installation.
•Always check the connections before turning the meter on.
•Removal of the meter housing during the warranty period
voids the warranty.
•This meter conforms to all requirements of the electromag-
netic compatibility in the industrial environment.
•Building power network should include switch or automatic
circuit breaker positioned in the convenient vicinity of the
meter. It should be properly marked and available to opera-
tor at all times.

7
4. INSTALLATION
PCE-ND10 Meter is adapted to be mounted to the panel
with mounting brackets (see Fig. 1). Meter housing is made
of plastic.
Housing dimensions: 96 x 96 x 77 mm. On the outer side of the
meter there are screw and tab terminal strips that can be used
for connecting external wires with diameter up to 2.5 mm2.
Prior to installation a 92.5+0.6 x 92.5+0.6 mm slot must be made
in the panel. The thickness of the panel material should not
exceed 15 mm. The meter must be placed in the panel from
the front. During installation the powering voltage must be
off. When the panel is inserted in the slot, mount it in place
with provided mounting brackets.
Fig. 1. Meter tting.

8
96 76,7
69
22
92

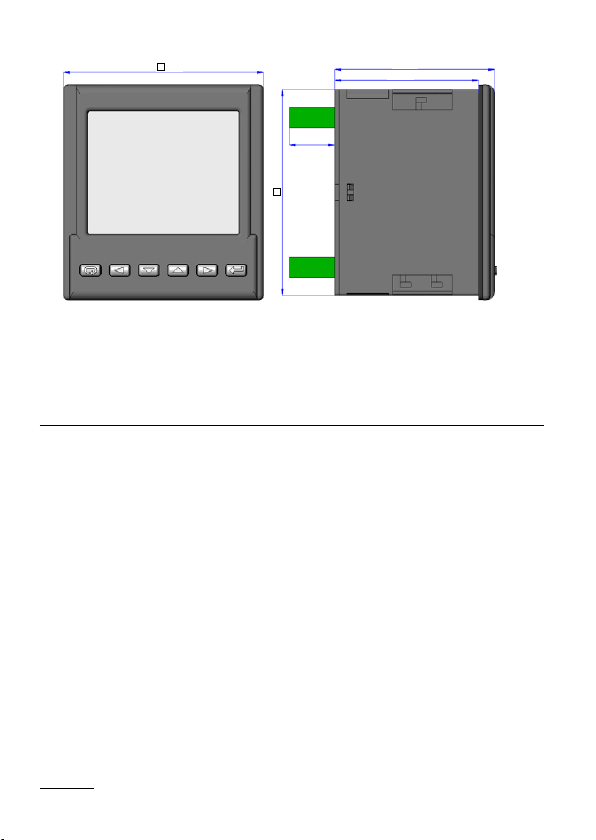

Fig. 2. Meter dimensions.
5. METER DESCRIPTION
5.1. Current inputs
All current inputs are galvanically isolated (internal current trans-
formers). The meter is suited to operate together with external
measuring current transformers. Displayed values of currents as
well as their derivative values are automatically calculated using
set ratio value of the external transformer. Current inputs are
speciedintheorderaseither1Aor5A.
5.2 Voltage inputs
Displayed values of voltages as well as their derivative values
are automatically calculated using set ratio value of the external
transformer.Voltageinputsarespeciedintheorderaseither
3 x 57,7/100 V, 3 x 230/400 V or 3 x 290/500 V.

9
5.3 Connection diagrams
OUT
Direct measurement
in a 4-wire network
PCE-ND10

10
OUTimp
Semi-indirect measurement
in a 4-wire network
PCE-ND10

11
OUT
Caution: It is recommended to connect PCE-ND10 meters
(RS-485) to a computer with a shielded wire. A shield should be
connected to ground in a single point. Shielded wire must be
used in case there are many interferences in the environment.
Fig 3. Connection diagrams of the meter in the 4‑wire
network.
Indirect measurement using
3 current transformers and 3 voltage
transformers in 4-wire network
PCE-ND10

12
6. PCE-ND10 METER PROGRAMMING
6.1 Front panel

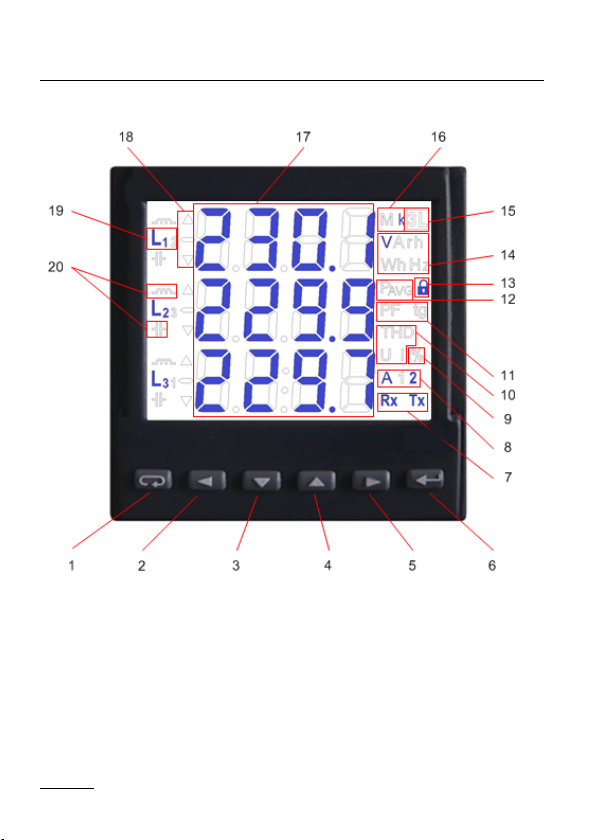

Fig. 4. Front panel.
Front panel description:
1 – cancel button (ESC)
2 – move left button
3 – decrease value button
4 – increase value button
5 – move right button
6–conrmbutton(ENTER)
7 – digital data transmission symbols
8 – connection / alarm symbols
9 – unit at displaying THD and power
guard
10 – THD value display symbols
11–powercoefcientandpower
tangent display symbol

13
8 – connection / alarm symbols
9 – unit at displaying THD and power
guard
10 – THD value display symbols
11 – power coefcient and power
tangent display symbol
12 – mean active power value
display symbol
13 – menu safety symbol
14 – units of the displayed values
15 – 3-phase values display
symbol
16 – base values ratios
17–eldfordisplayingbase
values, power, THD, date,
mean values, frequency,
time and power guard
6.2 Power-on messages
After connection of voltage inputs the meter performs a
display test and displays the PCE-ND10 meter name, build
and current software version.
where: r n.nn is a number of the current software version or special build number.
b n.nn is a bootloader version number.
Fig. 5. Meter start messages
Caution! If the display shows Err Cal or Err EE message,
please contact the maintenance service.
18 – min / max value symbols
19 – symbols of value-phase
connection
20 – power and energy characte-
ristics symbol

14
6.3 Parameter display
In the measurement mode, values are displayed
according to set tables. Pressing button or
allows user to switch between displayed base values (Table 1).
Pressing button displays minimal value and pressing
button displays maximal value. When these values
are displayed, pressing the button resets all minimal
or maximal values. When buttons and are pres-
sed simultaneously, respective mean 3-phase values are dis-
played, together with minimal and maximal values (see Table 2).
RS-485 interface allows setting the values that are to be
displayed.
Error display is described in section 8.
When reactive power is displayed, this indication is accompa-
nied by a symbol of the load: capacity load ( ) or inductive
load ( ).
Basevaluesdisplayedintheeld17(Fig.4.).Option(parameter)
shown in the Table 1 indicated that displaying of this parame-
ter may be turned off in register 4056 via RS485. Turning this
parameter off (from U to tg) disables displaying their respective
mean / 3-phase values.

15
Table 1
Displayed
symbols
L1, V
L2
L3
L1-2, V
L2-3
L3-1
L1, A
L2
L3
L1, W
L2
L3
L1, Var
L2
L3
L1, VA
L2
L3
L1, PF
L2
L3
L1, tg
L2
L3
kWh
Displayed values
row 1 U1 U12 I1 P1 Q1 S1 PF1 tg1
Imported
active
energy
row 2 U2 U23 I2 P2 Q2 S2 PF2 tg2
row 3 U3 U31 I3 P3 Q3 S3 PF3 tg3
Display xed optional xed optional
Displayed
symbols -, kWh kVarh kVarh
L1,THD U
L2,
L3
L1, THD I
L2,
L3
Displayed values
row 1
Exported
active
energy
reactive inductive
energy
/
reactive positive
energy
reactive capacitive
energy
/
reactive negative
energy
THD U1 % THD I1 %
row 2 THD U2 % THD I2 %
row 3 THD U3 % THD I3 %
Display optional
Mean values and corresponding minimal and maximal values
(when pressed ontherst8basevaluescreens,following
markers are highlighted: 3L, ,) .
Displayed
symbols Hz 3L, W PAVG A % Date/Time
Displayed values
row 1 f(L3) ΩP3-phase(15,30
or 60 min.) I(N) Ordered
power con-
sumption
(within 15, 30
or 60 min.)
Year
row 2 min min min Month. day
row 3 max max max Hours: minutes
Display optional

16
Displayed
symbols 3L, V 3L, V 3L, A 3L, W 3L, Var 3L, VA 3L, PF 3L, tg
Displayed values
row
1
ULNav.
3-phase
ULLav.
3-phase
Iav.
3-phase P Q S PF tg
row
2min
row
3max
Table 2
When upper limit of the indication range is exceeded, it is in-
dicated by two horizontal lines in upper part of the display.
Conversely, when lower limit is exceeded, it is indicated by two
horizontal lines in the lower part of the display. When mean
powerismeasuredΣP3-phase separate measurements are made
for 15-second quantum. Depending on chosen value (15 min, 30
min, 60 min) calculated mean value is based on 60, 120 or 240
measurements. After the meter is turned on or after the power is
reset,therstvaluewillbecalculatedin15secondsafterturning
meter on or resetting. Until all probed values of the active power
are acquired, mean power value is calculated from values already
measured. Current in the neutral wire I(N) is calculated from
phase current vectors.
When alarms are activated, symbols A1 and/or A2 are displayed.
When alarms are deactivated and alarm signalization latch is
turnedon,ashingsymbolsA1and/orA2aredisplayed.

17

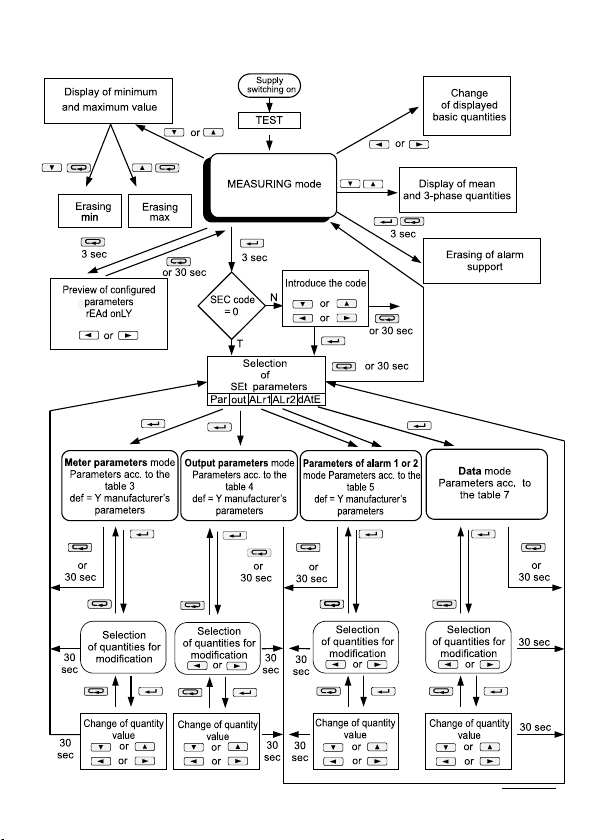

6.4 Operating modes
Fig. 6. PCE-ND10 meter operating modes.

18
6.5 Parameter setting
PCE-ND10 meters are configured with the use of LPCon
software available for free on the https://www.pce-
instruments.com/english/download-win_4.htm web site.
Fig 7. Setup menu.
Programming mode is enabled by pressing and holding
button for about 3 seconds. To enable the programming user
bust enter a correct access code. If there is not such a code,
the program transits into the programming option. Message SET
(inthe rst row)and rst parametergroup PAr are displayed.
User can view parameters at any time by pressing and holding
button for about 3 seconds.

19
6.5.1 Setting of Meter Parameters
In options menu choose PAr (using or
buttons)andconrmselectionwiththe button.
Item
Parameter
name
Marking
Range
Notes/
description
Manufacturer’s
value
1Access
code entry SEC oFF,
1 … 60000 0 – no code 0
2
Current
transformer
ratio
tr_I 1 … 10000 1
3
Voltage
transformer
ratio
tr_U 0.1 … 4000.0 1
4
Mean ac-
tive power
synchroni-
zation
Syn 15, c_15,
c_30, c_60
Mean active power synchro-
nization:
15 - 15-minute moving
window
c_15 – measurement synchr.
with clock every 15 min.
c_30 – measurement synchr.
with clock every 30 min.
c_60 – measurement synchr.
with clock every 60 min.
15
5
Recording
minimal
and maxi-
mal values
complete
with errors
erLi oFF, on
oFF – recording only correct
values (within measurement
range),
on – recording all errors
occurring in measurements
(values in 1e20 and -1e20
registers)
on
Table 3

20
6
Method of
reactive
energy
calculation
En_q cAP, sIGn
cAP – inductive and capacity
energy
sIGn – positive and negative
energy
cAP
7
Display
panel illumi-
nation diSP oFF,1…60,
on
off, on, 1..60 – illumination
time (in seconds) from pres-
sing the button on
8
Energy
counters
erasing En_0 no, EnP, Enq,
ALL
no – no activity,
EnP – erase active energy,
Enq – erase reactive,
ALL – erase all energies
no
9
Mean acti-
ve power
erasing PA_0 no, yES yES – erase power no
10 Ordered
power PAor 0 … 144.0 Power ordered to establish
power consumption in % of
rated power 100
11 Default
settings dEf no, yES Reverting to default (factory) group settings no
The automatic erasing of energy is carried out:
- for active energy when changing: voltage or current ratio;
- for reactive energy when changing: voltage or current ratio,
reactive energy calculation method;
Buttons and are used for setting the values while
buttons and are used for choosing position
of the number to be set. The active position is signaled by the
cursor. Set value can be accepted by pressing the button
or canceled by pressing the button. When value is to
be accepted, it is checked against the acceptable value range.
If the set value falls outside the allowable range, the meter
remains in parameter setting mode and the value is set to
the highest possible value (when entered value is too high)
or lowest possible value (when it is too low).

21
6.5.2 Setting of Output Parameters
In Options choose the out mode and conrm your choice by
pressing the button.
Item
Parameter
name
Marking
Range Notes/
description
Manufacturer’s
value
1 Number of
impulses
Io_n 5000 …
20000
Number of impulses
per kWh
5000
2 MODBUS Ne-
twork Address
Adr 1 … 247 1
3 Transmission
mode
trYb 8n2,
8e1,
8o1, 8n1
8n2
4 Transmission
speed
bAUd 4.8 k,
9.6 k,
19.2 k,
38.4 k
reverting to default
(factory) group
settings
9,6 k
5Default settings dEf no, yES reverting to default
(factory) group
settings
no
Table 4

22
6.5.3 Setting alarm parameters
In Options choose ALr1 or ALr2modeandconrmyourselection
by pressing the button.
Table 5
Item
Parameter
name
Marking
Range Notes/
description
Manufacturer’s
value
1Value on alarm
output (code as
in Tab. 6)
A1_n,
A2_n
table 6 P
2Alarm type A1_t,
A2_t
n-on,
n-oFF,
on,oFF,
H-on,
H-oFF
Fig. 8. n-on
3Lower value of
the input range
A1oF,
A2oF
-144.0…
144.0
in % of the rated quantity
value
99.0
4Upper value of
the input range
A1on,
A2on
-144.0…
144.0
in % of the rated quantity
value
101.0
5Time delay of the
switch reaction
A1dt,
A2dt
0…900 in seconds (for A1_n =
P_ord, delay occurs only
when alarm is activated)
0
