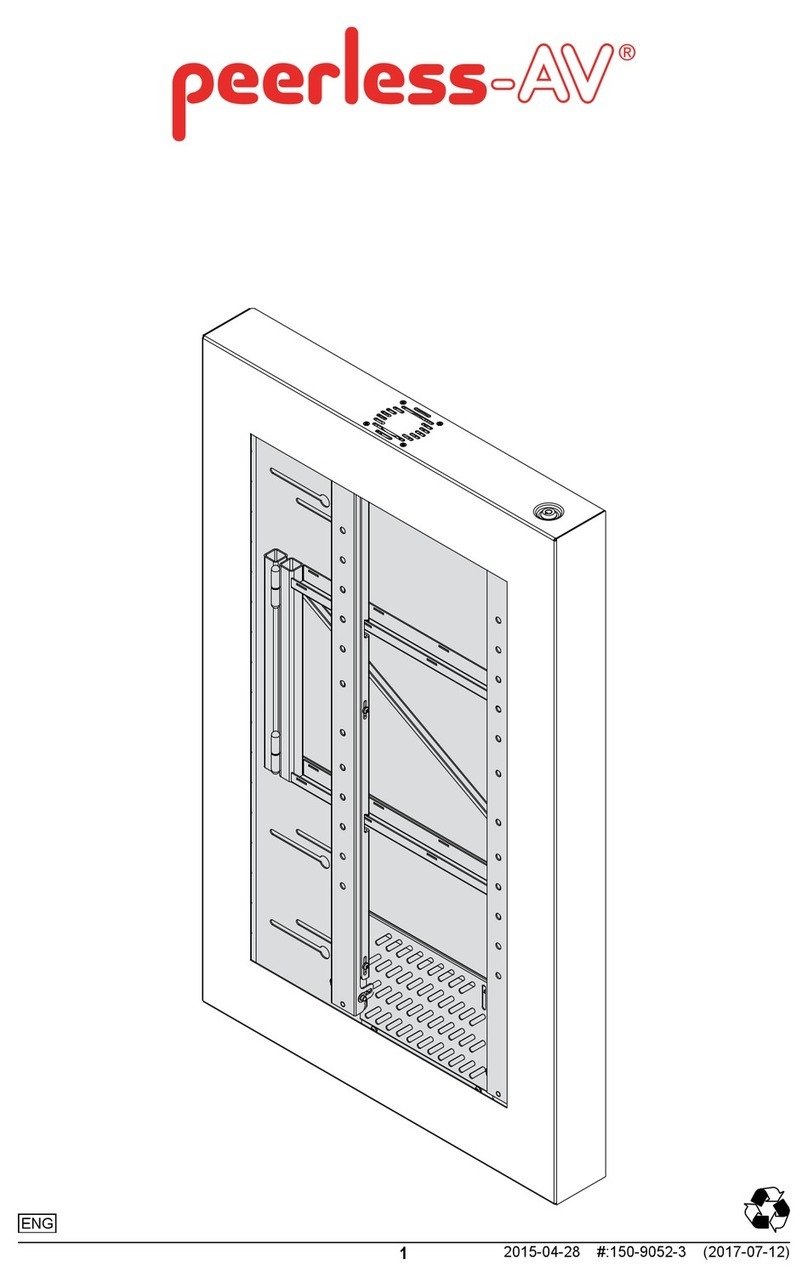

peerless-AV KIP640 User manual

12015-04-28 #:150-9052-4 (2020-04-01)
ENG

22015-04-28 #:150-9052-4 (2020-04-01)

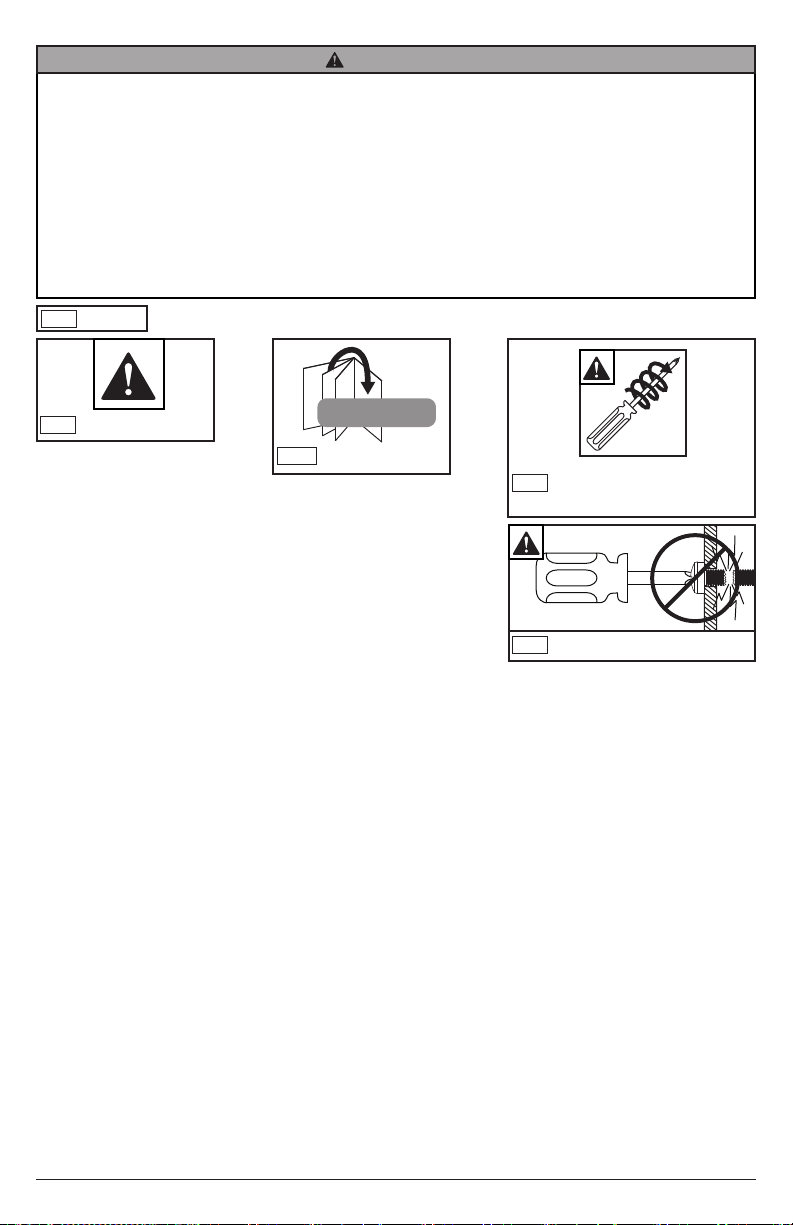

Symbols
ENG
WARNING
ENG #
Skip to step.
ENG x3
Screws must get at least three

ENG
Do not overtighten screws.
ENG
ENG - Do not begin to install product until you have read and understood the instructions and warnings
contained in this user guide. This product is designed to be installed on wood stud, solid concrete or cinder
block walls. Hardware is included for wood stud, solid concrete and cinder block installation. Before installing
make sure the supporting surface will support the combined load of the equipment and hardware. Screws must
be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the
Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position
equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product

Be sure power cord is routed so that it will not be tripped on, stepped on, or pinched by heavy items. Avoid
overloading electrical outlets or extension cords. Always disconnect the power cord from the power outlet when
installing, servicing, or not using the product for an extended period of time. Do not block ventilation slots or fan

product. Keep product away from direct sunlight or any source of heat. For support please call 1-800-865-2112.
WARNING

32015-04-28 #:150-9052-4 (2020-04-01)

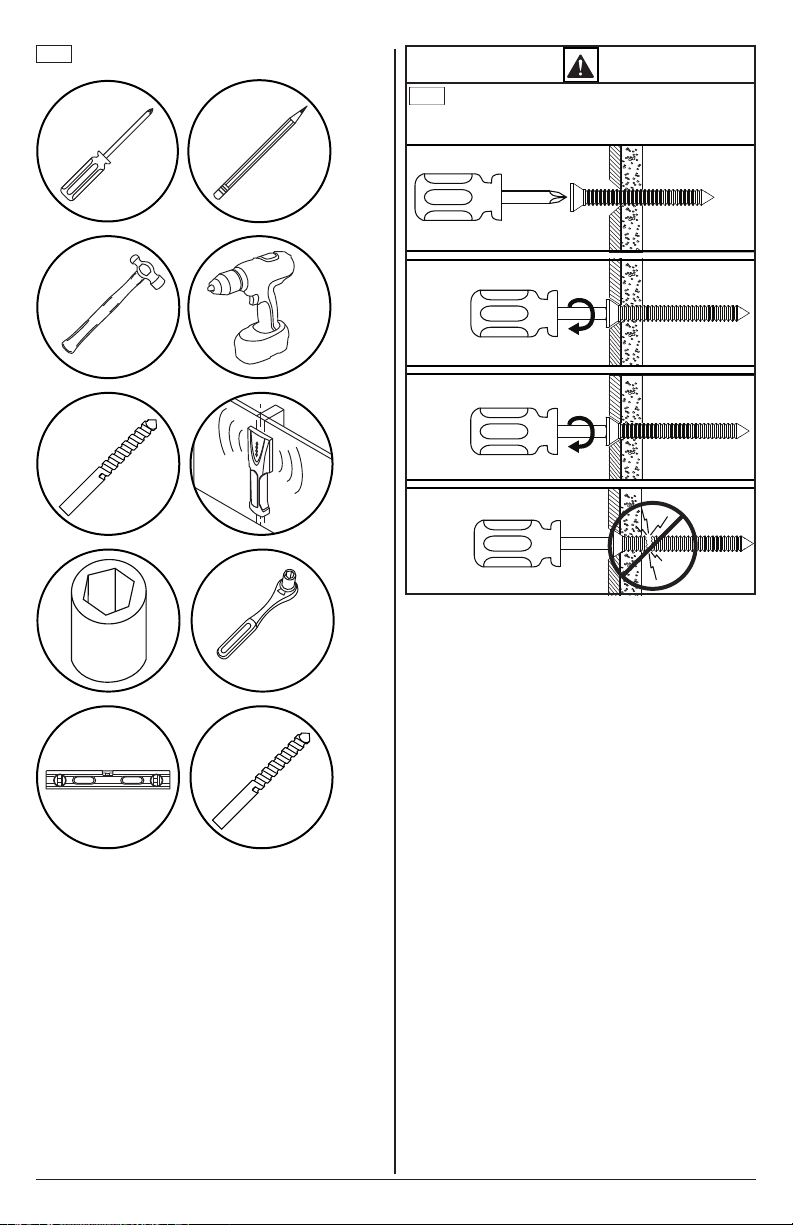

Tools Needed for Assembly.
ENG
5/16"
(8mm)
5/32"
(4mm)
3/8"
(10mm)
1
2
ENG To properly tighten screws: Tighten until screw
head makes contact, then tighten another 1/2
turn. Do not overtighten screws.
+1/2
4
3

42015-04-28 #:150-9052-4 (2020-04-01)
Parts (Before beginning, make sure you have all parts shown below).
ENG
Parts List KIP640
KIP640-S
Part #
KIP642
KIP642-S
Part #
KIP643
KIP643-S
Part#
KIP646
KIP646-S
Part #
KIP647
KIP647-S
Part #
Description Qty
Akiosk BLK
kiosk SLV
1 150-P1706
150-4706
150-P1707
150-4707
150-P1658
150-4658
150-P1702
150-4702
150-P1703
150-4703
BM5 x 12mm pan phl screw 4 520-1027 520-1027 520-1027 520-1027 520-1027
CM5 X 25mm pan phl screw 4 520-9543 520-9543 520-9543 520-9543 520-9543
DM6 x 12mm pan phl screw 4 520-1128 520-1128 520-1128 520-1128 520-1128
EM6 x 25mm pan phl screw 4 520-1208 520-1208 520-1208 520-1208 520-1208
FM8 x 12mm pan phl screw 4 520-9571 520-9571 520-9571 520-9571 520-9571
GM8 x 25mm pan phl screw 4 520-1031 520-1031 520-1031 520-1031 520-1031
HM5/M4/M6 multi washer 4 580-1398 580-1398 580-1398 580-1398 580-1398
I1/4"spacer 4 540-1059 540-1059 540-1059 540-1059 540-1059
Jkey 2 565-0049A 565-0049A 565-0049A 565-0049A 565-0049A
K4mm allen wrench 1 560-9646 560-9646 560-9646 560-9646 560-9646
L8mm concrete anchor 4 590-0320 590-0320 590-0320 590-0320 590-0320
M#14 x 2.5" wood screw 4 5S1-015-C03 5S1-015-C03 5S1-015-C03 5S1-015-C03 5S1-015-C03
Nadaptor bracket 2 150-T1689 150-T1689 150-T1689 150-T1689 150-T1689
Opower strip 1 600-0370 600-0370 600-0370 600-0370 600-0370
Pcable tie 6 560-1756 560-1756 560-1756 560-1756 560-1756
Parts List KIP648
KIP648-S
Part #
KIP649
KIP649-S
Part #
KIP655
KIP655-S
Part#Description Qty
Akiosk BLK
kiosk SLV
1 150-P1704
150-4704
150-P1815
150-4815
150-P1705
150-4705
BM5 x 12mm pan phl screw 4 520-1027 520-1027 520-1027
CM5 X 25mm pan phl screw 4 520-9543 520-9543 520-9543
DM6 x 12mm pan phl screw 4 520-1128 520-1128 520-1128
EM6 x 25mm pan phl screw 4 520-1208 520-1208 520-1208
FM8 x 12mm pan phl screw 4 520-9571 520-9571 520-9571
GM8 x 25mm pan phl screw 4 520-1031 520-1031 520-1031
HM5/M4/M6 multi washer 4 580-1398 580-1398 580-1398
I1/4"spacer 4 540-1059 540-1059 540-1059
Jkey 2 565-0049A 565-0049A 565-0049A
K4mm allen wrench 1 560-9646 560-9646 560-9646
L8mm concrete anchor 4 590-0320 590-0320 590-0320
M#14 x 2.5" wood screw 4 5S1-015-C03 5S1-015-C03 5S1-015-C03
Nadaptor bracket 2 150-T1689 150-T1689 150-T1689
Opower strip 1 600-0370 600-0370 600-0370
Pcable tie 6 560-1756 560-1756 560-1756

52015-04-28 #:150-9052-4 (2020-04-01)

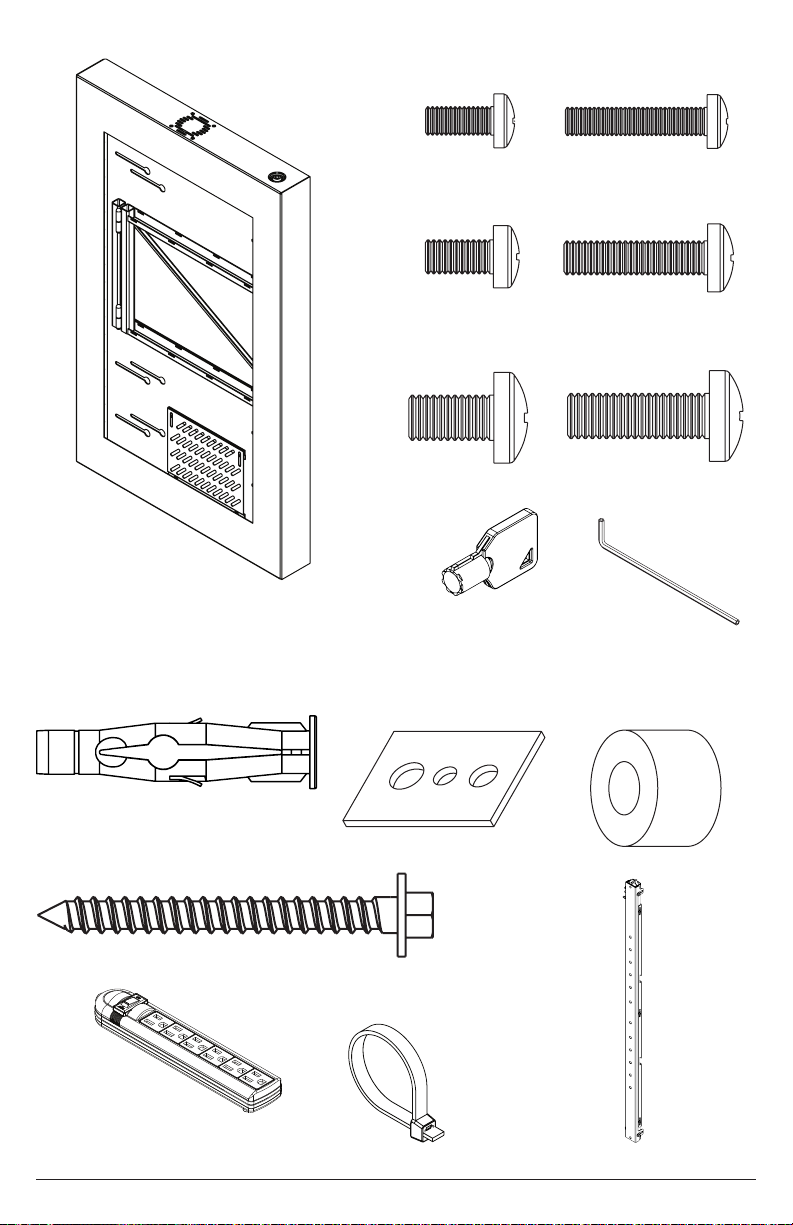

A (1)
kiosk
J (2)
key
B (4)
M5 x 12 mm
C (4)
M5 x 25 mm
D (4)
M6 x 12 mm
E (4)
M6 x 25 mm
M5/M4/M6 washer
H (4)
M8 x 12 mm
F (4)
M8 x 25 mm
G (4)
spacer
I (4)
M (4)
#14 x 2-1/2" wood screw
L (4)
8mm concrete anchor
N (2)
adaptor bracket
O (1)
power strip cable tie
P (6)
K (1)
allen
wrench

62015-04-28 #:150-9052-4 (2020-04-01)

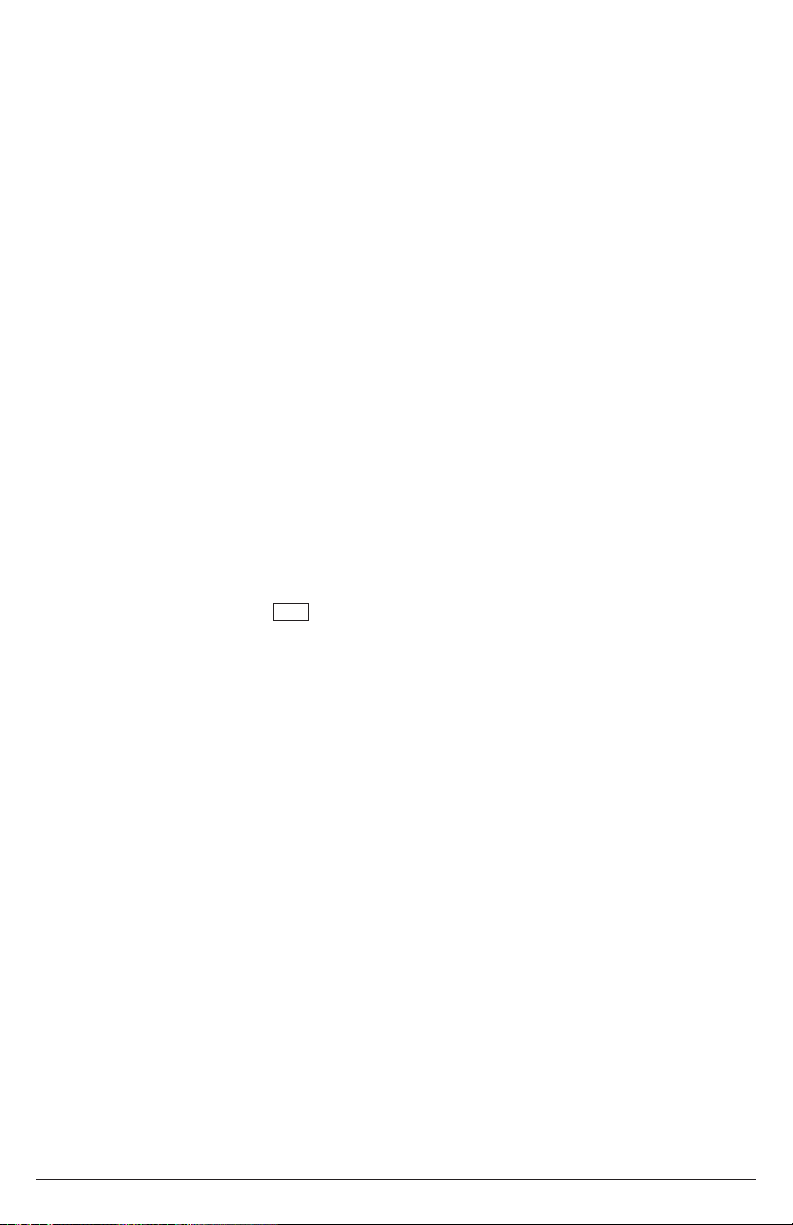

This page intentionally left blank.
ENG

72015-04-28 #:150-9052-4 (2020-04-01)

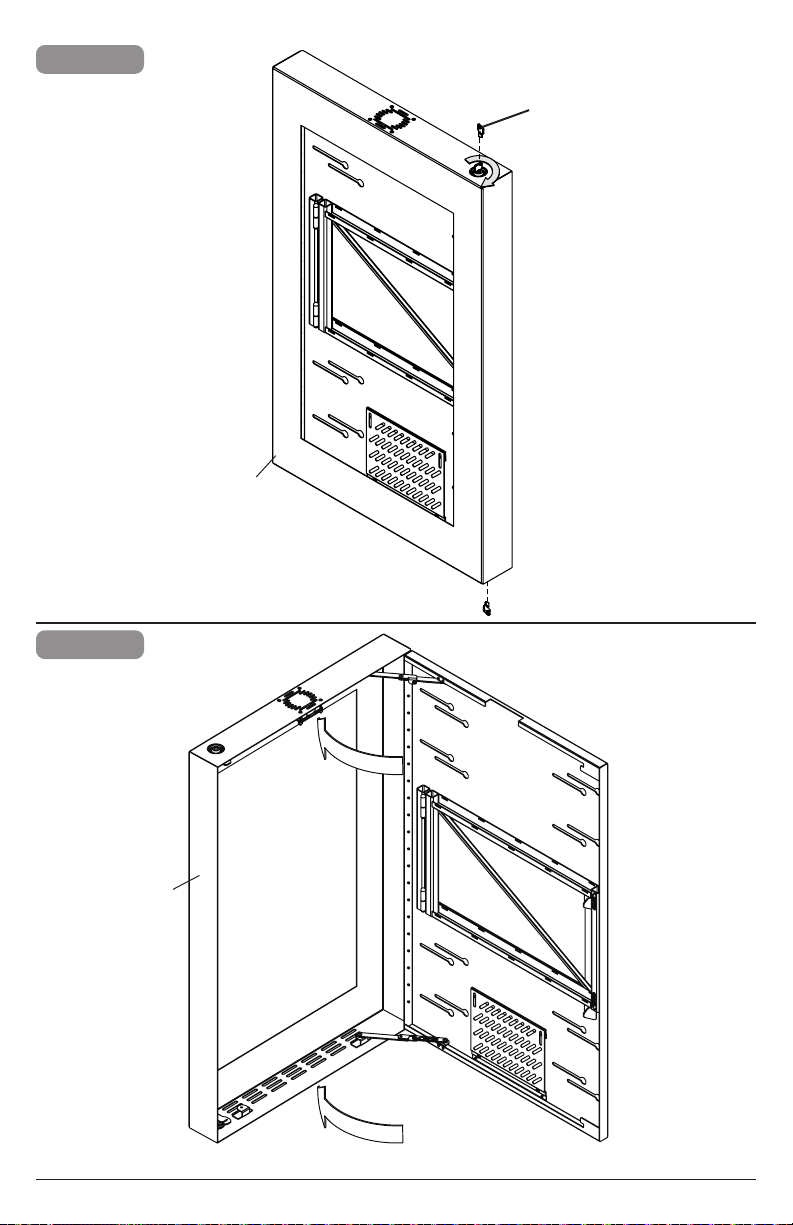

1
J (2)
A
A
2

82015-04-28 #:150-9052-4 (2020-04-01)

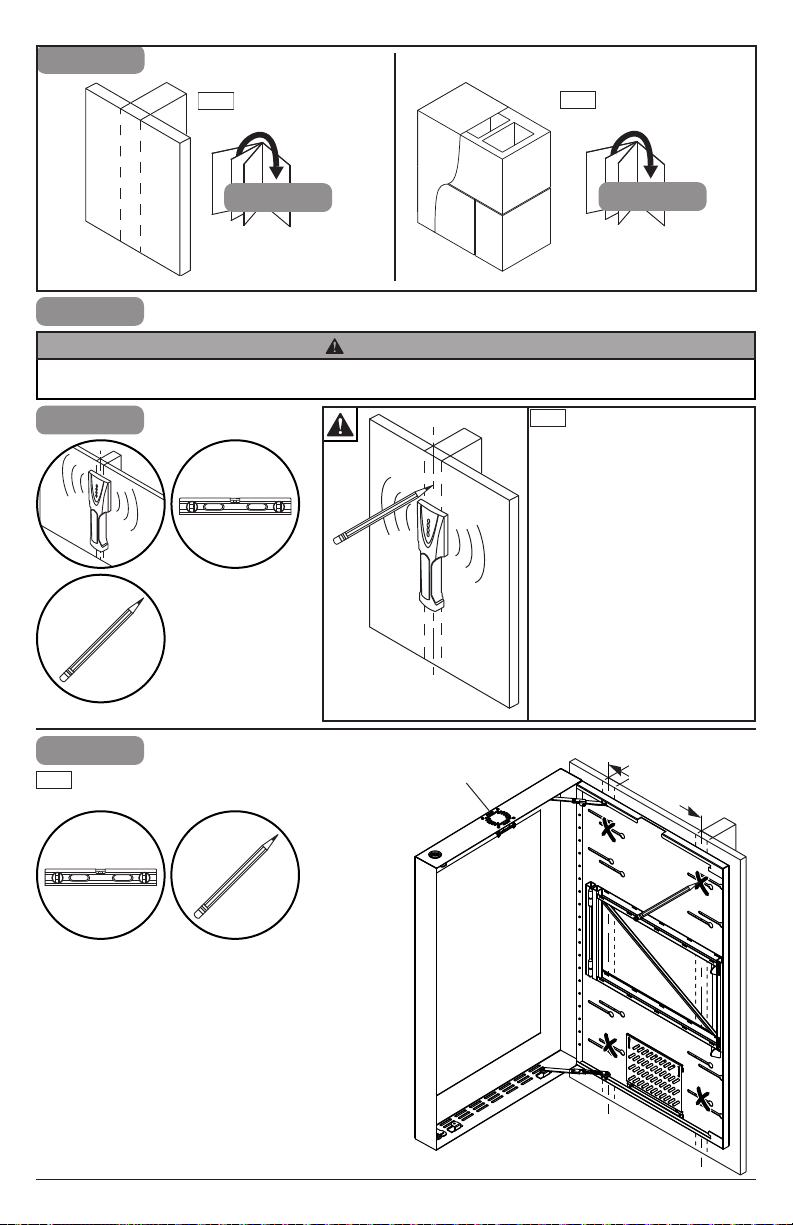

3

mark stud center lines.
ENG
3b
3a
Wood stud wall.
ENG Concrete/Cinder block.
ENG
3a-1
3a
ENG - When installing Peerless wall mounts on a wood stud wall covered with gypsum board (drywall), verify that
the wood studs are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8".
WARNING
3a-2
Level wallplate. Mark mounting holes on stud
center lines.
ENG A
16"
(41cm)

92015-04-28 #:150-9052-4 (2020-04-01)

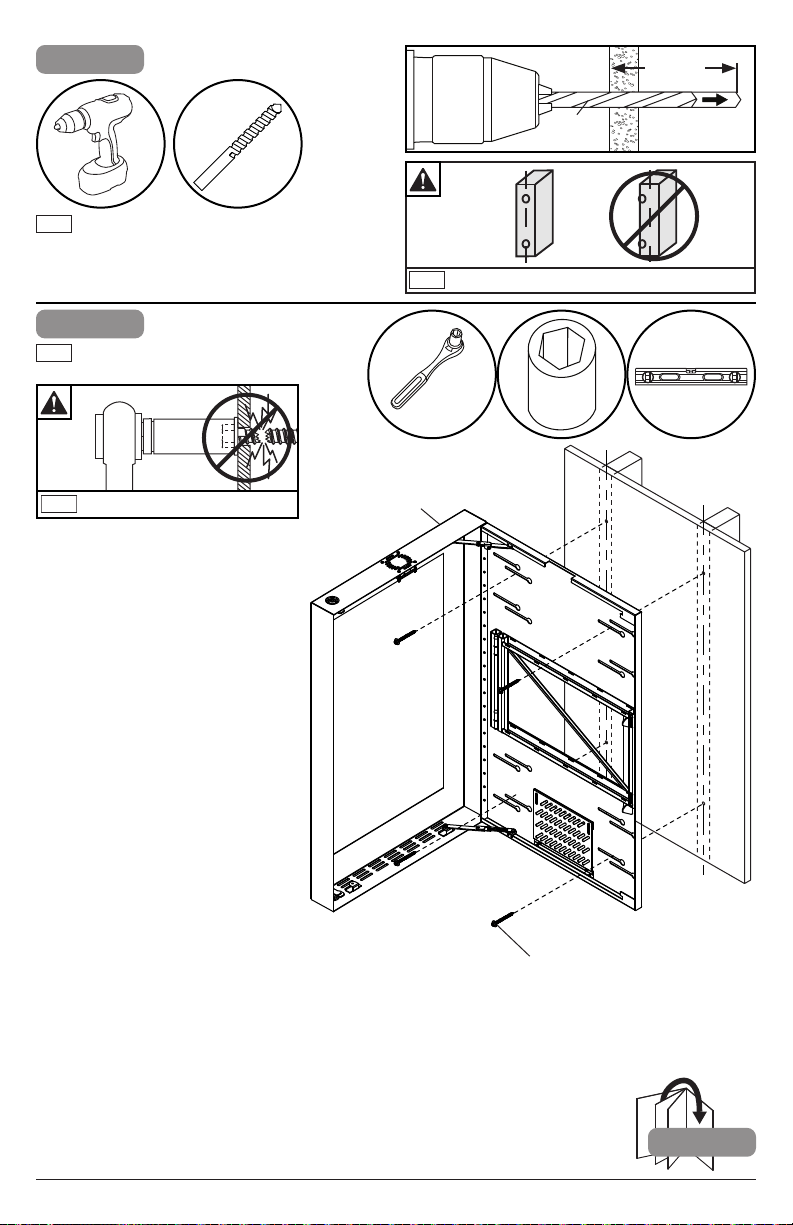

3a-3
Mounting hole must center on stud.
ENG
5/32"
(4mm)
Drill mounting holes into supporting surface
(2.5" (64 mm) minimum depth required).
ENG
Level wallplate. Install using wood screws
provided.
ENG
2.5"
(64mm)
5/32"
(4mm)
M (4)
4
3a-4
3/8"
(10mm)
A
Maximum 80 in. • lb (9 N.M.).
ENG

10 2015-04-28 #:150-9052-4 (2020-04-01)

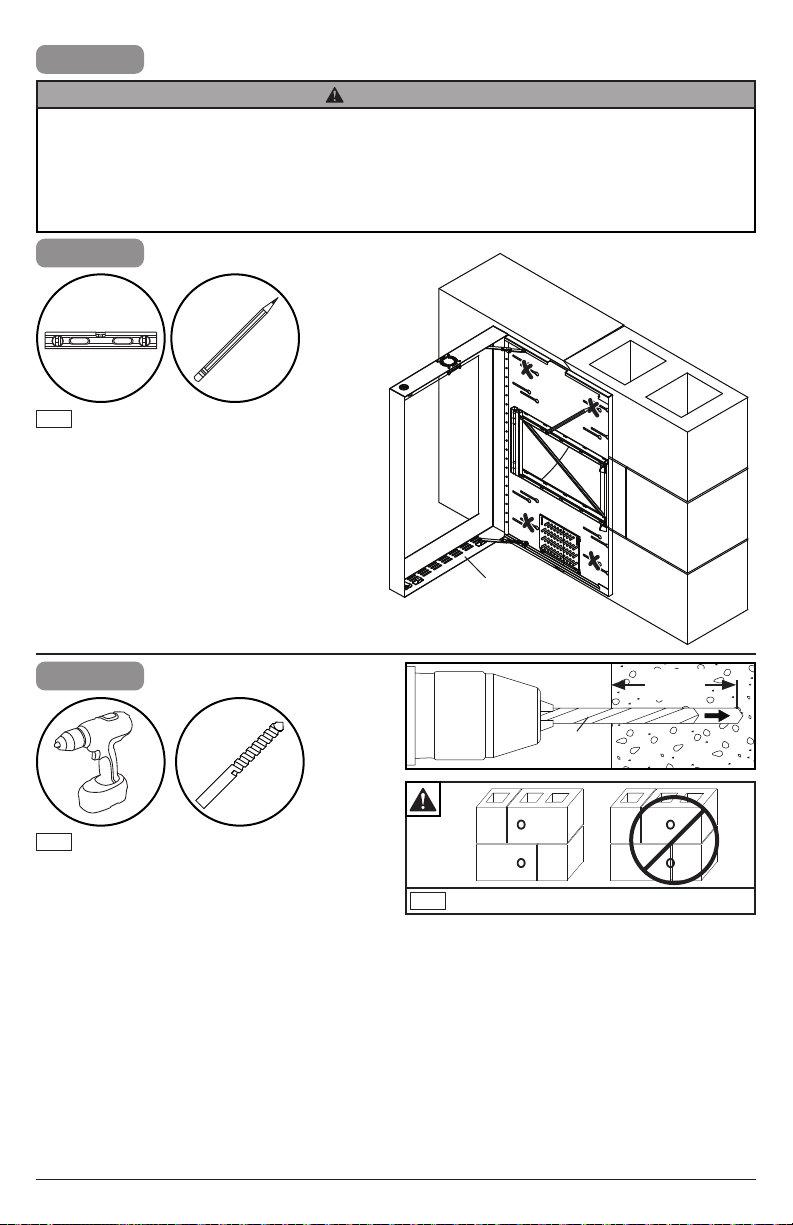

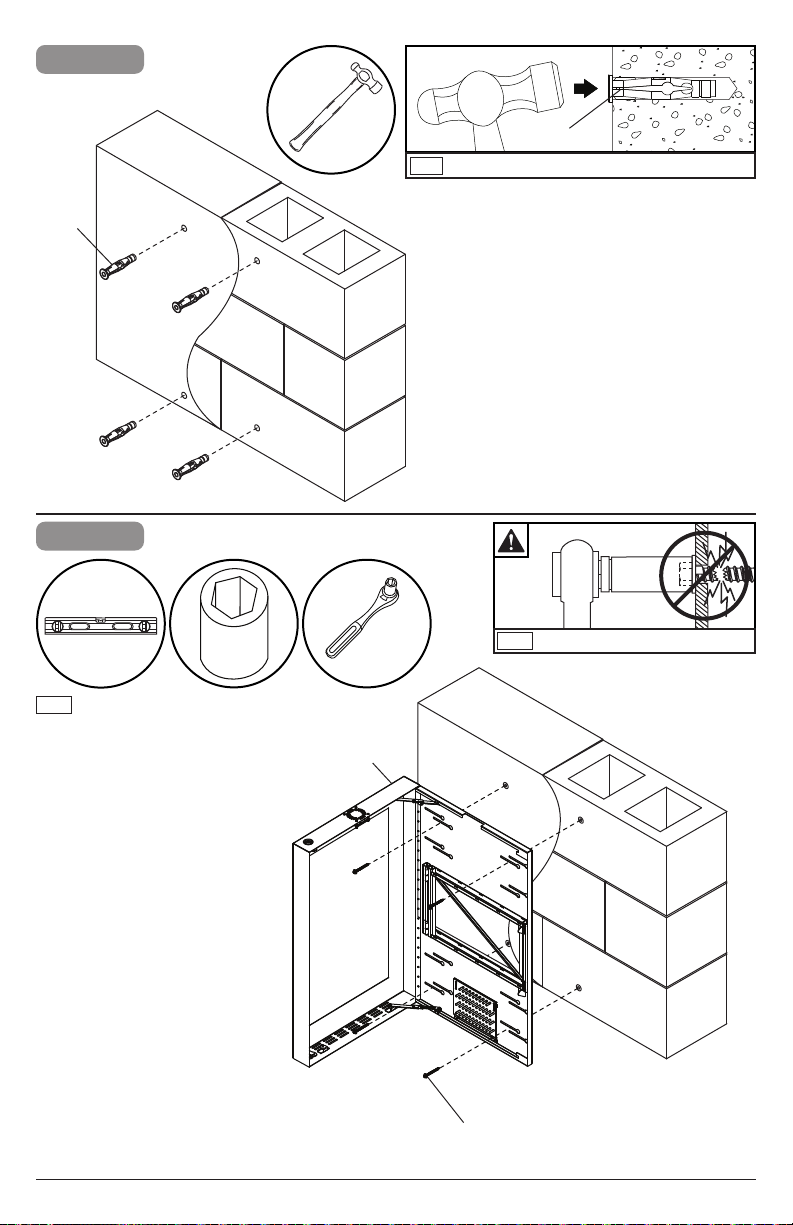

3b
ENG - When installing Peerless wall mounts on a concrete wall, the wall must be at least 8" thick with a minimum
compressive strength of 2000 psi. When installing Peerless wall mounts on a cinder block wall, the cinder blocks

Be sure to mount in a solid part of the block, generally 1" (25 mm) minimum from the side of the block. It is
suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid
breaking out the back of the hole when entering a void or cavity. Never attach concrete expansion anchors to

WARNING
3b-1
Level wallplate. Mark mounting holes.
ENG
A
2.5"
(64mm)
5/16"
(8mm)
3b-2
5/16"
(8mm)
Do not drill into mortar joints.
ENG
Drill mounting holes into supporting surface
(2.5" (64 mm) minimum depth required).
ENG

11 2015-04-28 #:150-9052-4 (2020-04-01)
L

ENG
L (4)
3b-3
3b-4
Level wallplate. Install using concrete
anchors and wood screws provided.
ENG
3/8"
(10mm)
Maximum 80 in. • lb (9 N.M.).
ENG
M (4)
A

12 2015-04-28 #:150-9052-4 (2020-04-01)
4
5
B (4)
I (4)
H (4)
C (4) D (4) H (4)
G (4)
I (4)
I (4)
H (4)
F (4)
X
X
x3

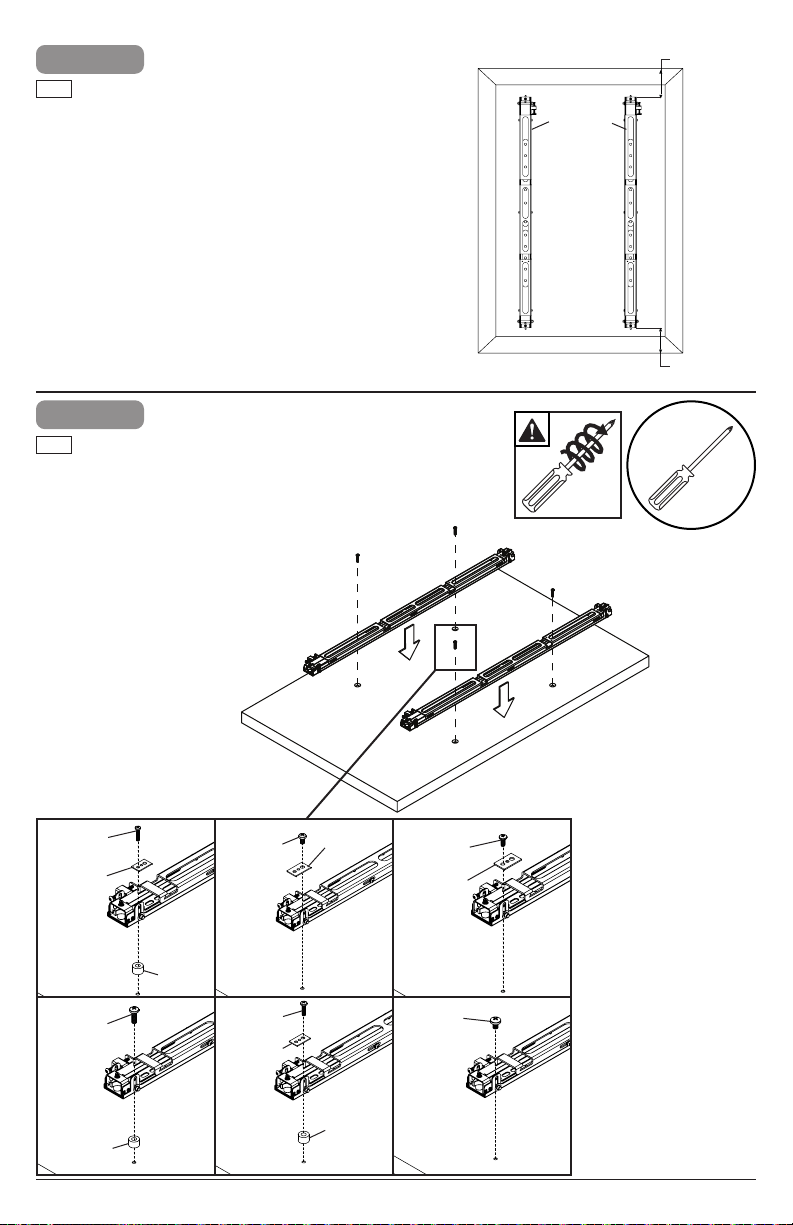

Center adaptor brackets vertically on back of screen.
ENG
E (4)
H (4)
N (2)
ENG If adapter brackets interfere with display
peripherals (plugs, etc.), use spacers provided.
Consider the depth of the display and spacer
when determining if the display will


13 2015-04-28 #:150-9052-4 (2020-04-01)
6
7

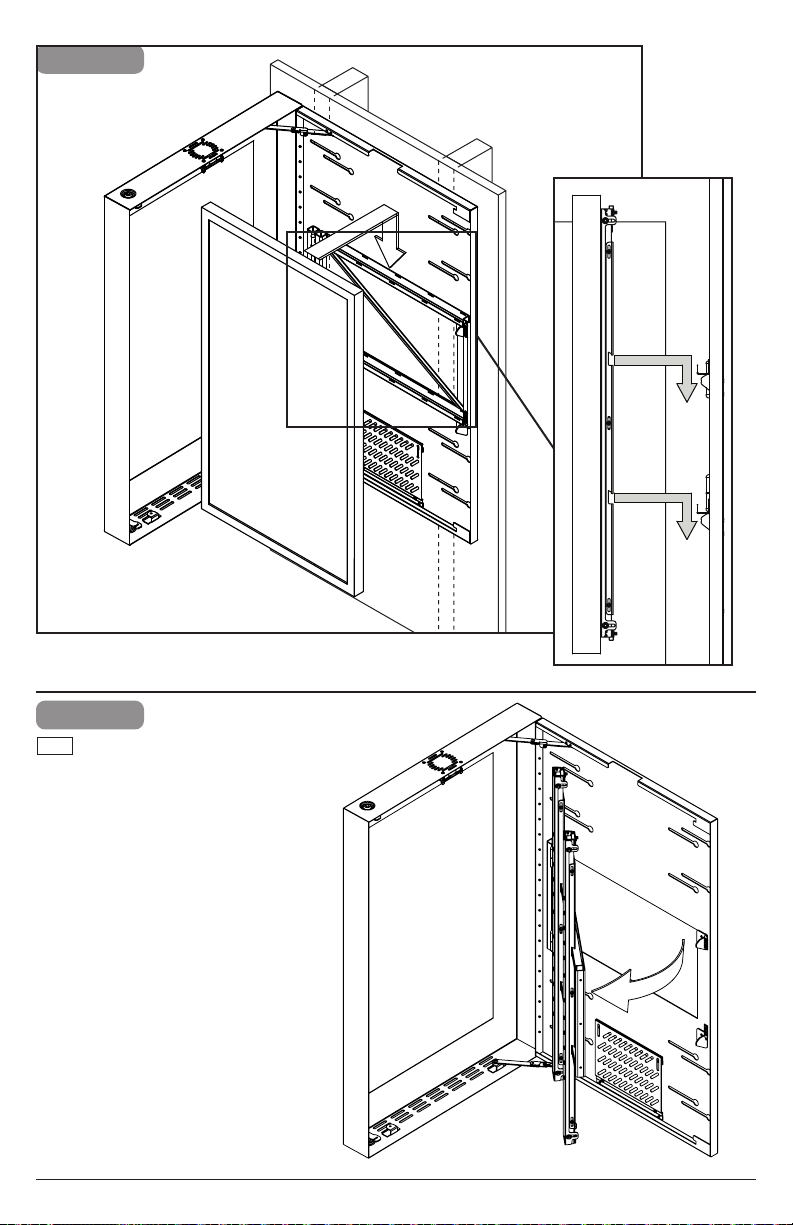

Note: Mounting Arm swings out to access
adapter brackets and behind display
ENG
SIDE VIEW

14 2015-04-28 #:150-9052-4 (2020-04-01)

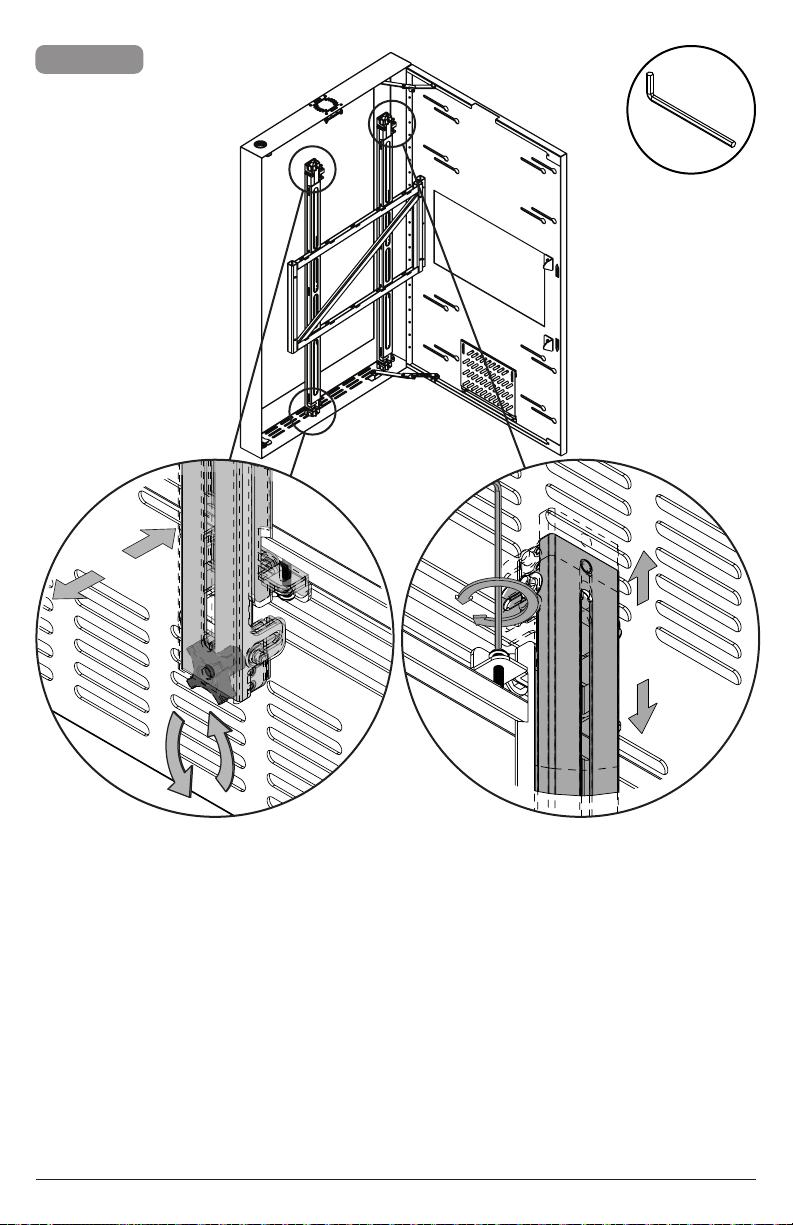

8
K

15 2015-04-28 #:150-9052-4 (2020-04-01)

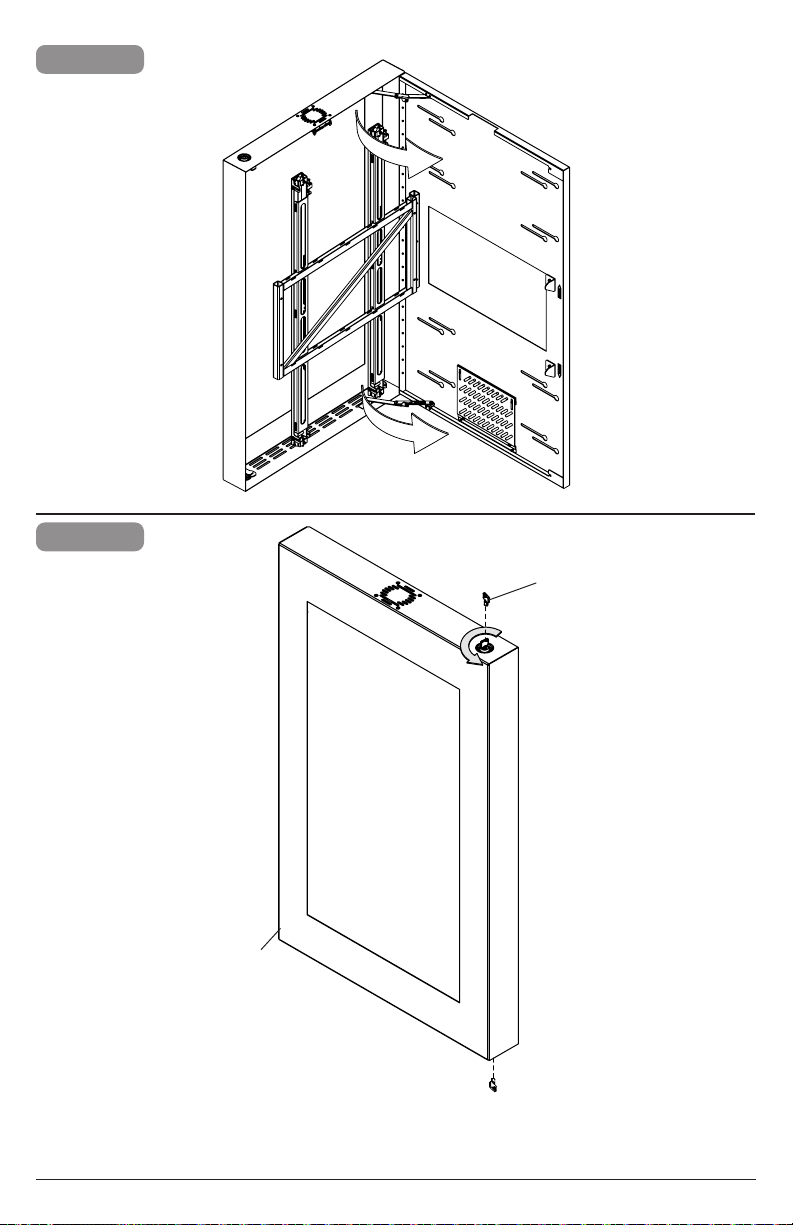

10
9
J (2)
A
KIP640, KIP640-S, KIP642, KIP642-S, KIP643, KIP643-S, KIP646, KIP646-S, KIP647, KIP647-S, KIP648,
KIP648-S, KIP649, KIP649-S, KIP655, KIP655-S
