PEERLESS Smartmount ST632 User manual

Universal Tilt Wall Mount
for 22" to 40" Flat Panel Displays
Small to medium displays are quick and easy to install with this pre-assembled mount. Just
mount the wall plate to the wall, attach the wall plate to the at panel display and hook on
the VESA®compliant adapter plate to the wall plate. Tilt can be adjusted without the use of
tools to guide the display to the ideal viewing angle.
Low-profile design holds display
only 1.66" (42mm) from the wall
Display size: 22"-40" Max load: 115lb (52kg)
ST632 / ST632-S
ST632P / ST632P-S
VESA®75 and 100, 200 x 100
and 200 x 200mm compliant
Additional display adapter
plates also available
+15°/-5°tilt adjustment
without the use of tools
Display adapter plate
simply hooks onto the wall
plate for quick and easy
installation
Mounts to wood stud,
concrete, cinder block
and metal stud (metal stud
accessory required)
UL listed
FEATURES
EASY INSTALLATION
Adapter plate hooks onto
wall plate for safe, simple
installation
STANDARDIZED COMPATIBILITY
VESA®75, 100, 200 x 100 and 200 x 200mm
compliant for reliable display compatibility
IDEAL VIEWING ANGLE
Tilt adjustment of +15°/-5°
without the use of tools
CLICK: www.peerless-av.com CALL: 800.865.2112 FAX: [phone]
* OSHPD Approval Pending

A R C H I T E C T S S P E C I F I C A T I O N S
The Smartmount®Universal Tilt Wall Mount shall be a Peerless-AV model ST632 and shall be located where indicated on the plans.
It shall be constructed of heavy gauge cold rolled steel and nished with scratch resistant Black or Sliver Fused Epoxy.
Assembly and installation shall be done according to instructions provided by the manufacturer.
LIT-0601 rev.2
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
ST632(P)(-S)
ST632(-S):
ST632P(-S):
12.75" x 9.5" x 2.5"
(128 x 95 x 25mm)
9.25" x 12.5" x 2.75"
(234 x 317 x 69mm)
4.4lb (1.99kg)
ST632:
ST632-S:
ST632P:
ST632P-S:
735029237242
735029237259
735029237266
735029237273
Tilting wall plate,
VESA®75/100 adapter
plate, additional
VESA®200 x 100 and
200 x 200mm adapter
plate, mounting and
display attachment
hardware
1
Package Specifications
Accessories
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
ST632(P)(-S) 8.75" x 9.35" x 1.66"
(222 x 237 x 42mm) 3.5lb (1.6kg) 115lb (52kg)
Scratch
resistant
fused
epoxy
ST632(P):
ST632(P)-S:
Black
Silver
Product Specifications
Model Numbers WARRANTY: Limited 5-year
ACC215: 2-pack Metal Stud Fastener Kit
All dimensions = inch (mm)
ST632(-S) Universal Tilt Wall Mount for 22" to 40" Flat Panel Displays - security models
ST632P(-S) Universal Tilt Wall Mount for 22” to 40” Flat Panel Displays - standard models
7.87"
(200mm)
3.94"
(100mm)
8.75"
(222mm)
9.35"
(237mm)
7.87"
(200mm)
3.94"
(100mm)
1.66"
(42mm)
15°
2.91"
(74mm)
6.61"
(168mm)
6.20"
(157mm)
3.94"
(100mm)
3.94"
(100mm)
4.50"
(114mm)
2.95"
(75mm)
2.95"
(75mm)
1.58"
(40mm)
15°
2.23"
(57mm)

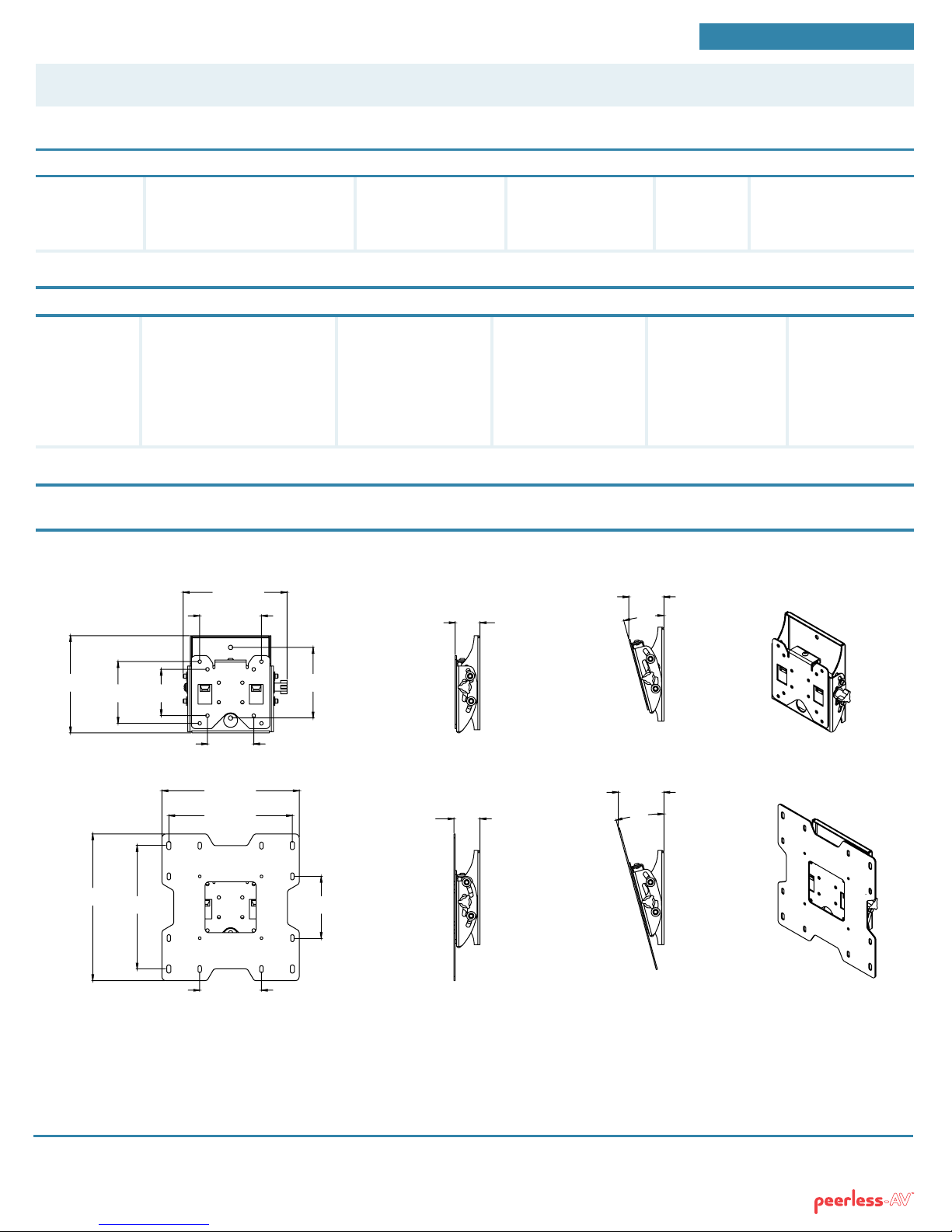

FRONT VIEW
ADAPTER PLATE
FRONT VIEW
ISOMETRIC VIEW
ADAPTER PLATE
SIDE VIEW
15° TILT
ISOMETRIC VIEW
SIDE VIEW
ADAPTER PLATE
SIDE VIEW
ADAPTER PLATE
15° TILT
SIDE VIEW
Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2011 Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 [phone] [phone] Fax: [phone] www.peerless-av.com
