ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
Installation and Assembly: 32" - 60" Flat Panel TV Cart
Models: SR1M, SR560M
Max UL Load Capacity:
150 lb (68 kg) screen
50 lb (22.7 kg) per shelf
This product is UL Listed. It must be
installed by a qualified professional
installer.
R

2 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
Note: Read entire instruction sheet before you start installation and assembly.
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please
callPeerlesscustomercareat1-800-729-0307.
• Thisproduct should only beinstalled by someone ofgood mechanical aptitude, andfully understands these instruc-
tions.
• NeverexceedtheMaximumULLoadCapacity.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tightenscrewsfirmly,butdonotovertighten.Overtighteningcan damage the items, greatly reducing their holding
power.
• The cart is not affixed or secured to the floor, and may therefore tip over and/or fall if screen and/or stand is shaken
or hit.Always monitor children and do not let children play alone around stand as they could get hurt by a falling
screen.Not recommended for usein areas with heavy traffic.
WARNING
Table of Contents
Parts List..........................................................................................................................................................................3, 4
AssemblingCart ...................................................................................................................................................................5
AttachingScreenUsingUniversalPlatewithAdapterBrackets .............................................................................................. 10
AttachingScreen with VESA 100 Mounting Pattern...............................................................................................................13
AttachingScreenUsingaDedicated plate ............................................................................................................................ 14
Tools Needed for Assembly
•level
•phillipsscrewdriver

3 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
Parts List SR1M SR560M
Description Qty. Part Number Part Number
Ascreen mount bracket 1 201-1156 201-1156
Bhook plate 1 201-1157 201-1157
Cshelf support 1 201-1158 201-1158
Dbase 1 009-1223 009-1223
Euniversal plate 1 N/A 201-1110
Fadapter bracket 2 N/A 200-0752
Gupright 1 580-1180 580-1180
Htop cover 1 590-1210 590-1210
I1/4-20 x 12mm decorative screw 14 520-2325 520-2325
J1/4-20mm nut 10 530-1022 530-1022
K5/16" flat washer 10 540-9406 540-9406
L3/8-16 x 2.5" socket screw 3 520-9550 520-9550
M7/32" allen wrench 1 560-9715 560-9715
N4mm allen wrench 1 560-9646 560-9646
O8/32 nylock nut 6 530-1038 530-1038
Pshelf pan 1 009-1225 009-1225
Q6mm allen wrench 1 N/A 560-9716
Rleft leg 1 009-0220 009-0220
Sright leg 1 009-0218 009-0218
Twheel caster 2 600-0044 600-0044
Uwheel caster/brake 2 600-0045 600-0045
Vjoint connector nut 4 530-1037 530-1037
W3/8-16 x 1.5" screw bolt 4 520-1329 520-1329
XM10 x .402 ID lock washer 3 540-9424 540-9424
Yend cap 4 590-1032 590-1032
Z3/16 allen wrench 1 560-0071 560-0071
AA M4 x 12 mm serrated washer head socket pin screw 6 N/A 510-1079
BB M4 x 25 mm serrated washer head socket pin screw 4 N/A 510-1082
CC M5 x 12 mm socket pin screw 4 N/A 520-1064
DD M5 x 25 mm socket pin screw 4 N/A 520-1122
EE M6 x 12 mm socket pin screw 4 N/A 520-1050
FF M6 x 25 mm socket pin screw 4 N/A 520-1211
GG M8 x 15 mm socket button screw 6 N/A 520-1068
HH M8 x 40 mm socket pin screw 4 N/A 520-1152
II .219 ID x .5 OD x .5 HT spacer 4 N/A 540-1057
JJ .344 ID x .75 OD x .5 HT spacer 4 N/A 540-1059
KK universal plasma tilt multi washer 6 N/A 580-1036
LL M6 x 20 mm socket pin screw 4 N/A 520-9554
MM M6 x 30 mm socket pin screw 4 N/A 520-1067
NN M8 x 25 mm socket pin screw 4 N/A 520-1101
OO M10 x 15 mm socket pin screw 4 N/A 520-9262
Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.

4 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
KK
Some parts may appear slightly different than illustrated.
G
D
A
B
C
E
JJ
II
V
U
TY
N
P
S
R
F
H
ZX
M
AA BB
CC HH
W
DD
LL
NN
GG
FF
L
EE
OO
I
MM
Q
K
J
O

5 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

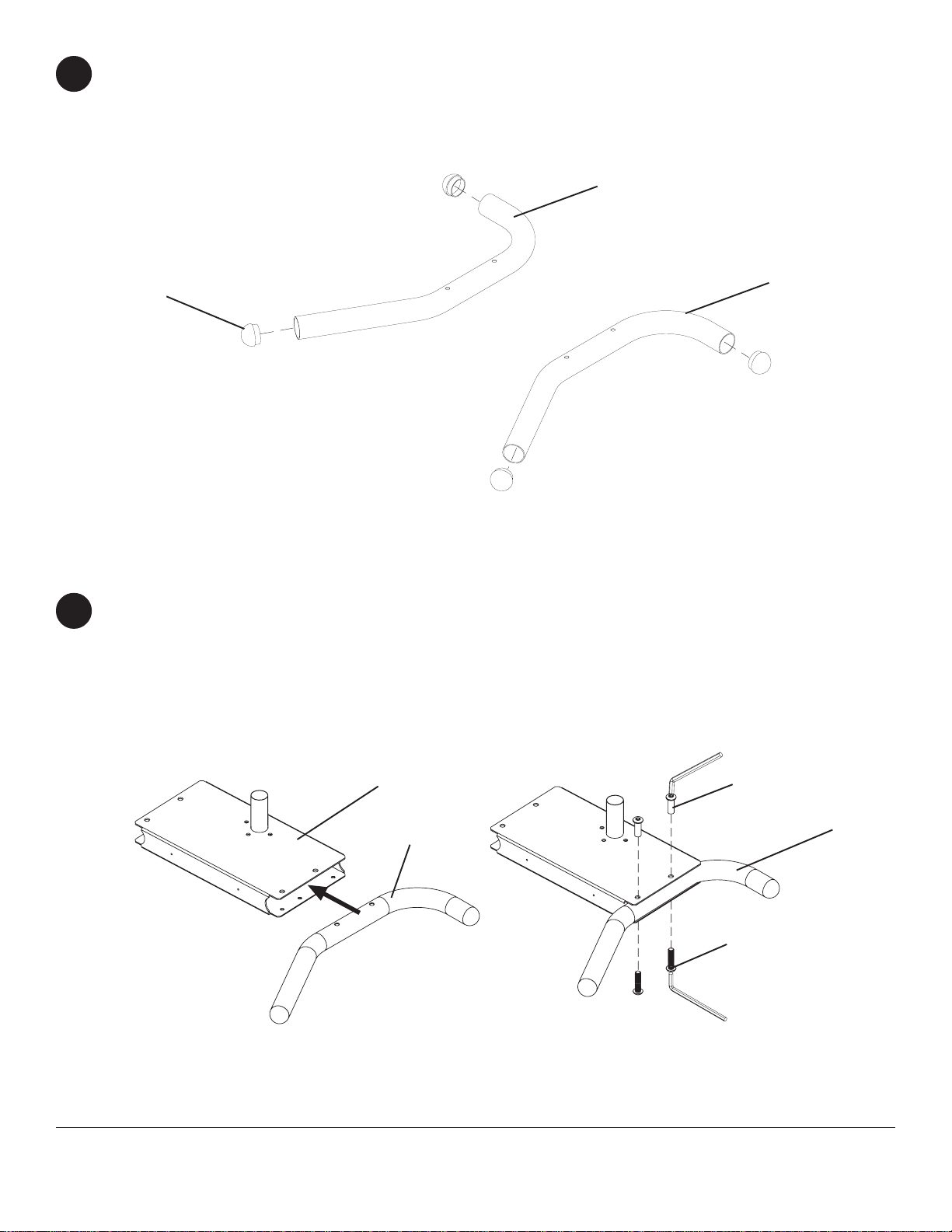

1Insert four end caps (Y) into ends of left and right support legs (R & S)as shown.
Guide left leg (R) towards base housing (D) as seen in fig.2.1. Then line up holes in base housing with holes in left leg. Fasten base housing
to left leg using two 3/8-16 x 1.5" screw bolts (W) and two joint connectors (V) tighten using 3/16"allen wrench (Z) and 7/32"allen wrench
(M) as shown in fig.2.2. Repeat for right side with right leg (S).
2
R
W
fig 2.2
V
fig 2.1
D
R
Y
S
R

6 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

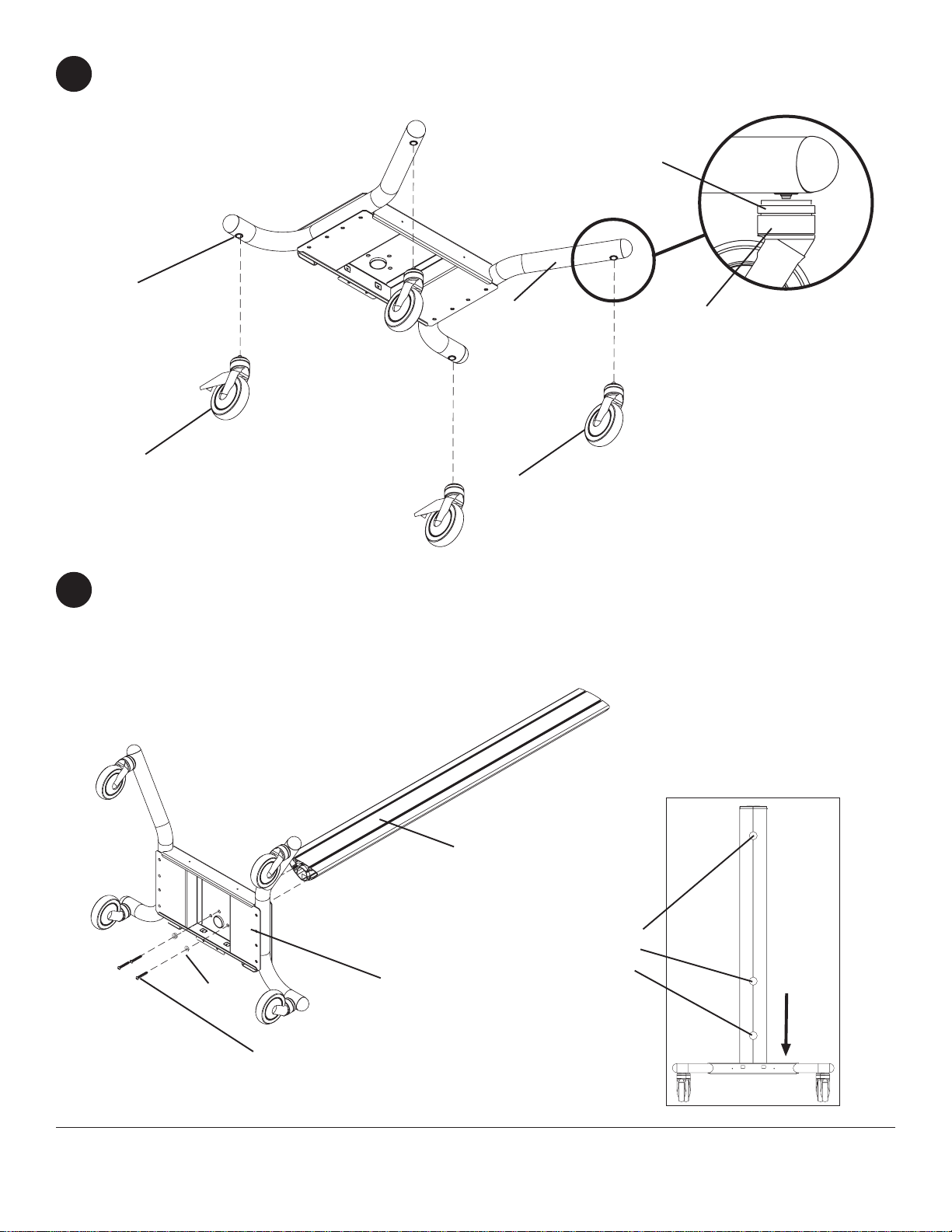

3Insert and screw casters (U & T) into holes of support legs (S & R). Attach casters with brake (U)to the back of left and right support legs.
Attach casters without brake (T)to front of support legs as shown.
NOTE: Lock brakes on casters to avoid sudden movements during installation.
R
UT
S
HANDTHREAD
HOLDWHEEL
4
L
D
G
X
fig 4.2
CHORDMANAGEMENT
HOLES
fig 4.1
Attach upright (G) to base (D), as shown in in fig 4.2 using three 3/8-16 x 2.5" socket screws (L) and M10 x .402ID
lock washers (X). Tighten screws using 7/32" allen wrench (M) shown in fig. 4.1.

7 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
Loosely attach four 1/4-20 x 12 mm screws (I), washers (K), and 1/4-20 nuts (J) to shelf support (C).
5
Slide shelf support (C) onto upright (G) so that 1/4-20 nuts (J) slide into slots of upright (G) as shown in figure 6 and
detail 1. Slide shelf support to desired position, level, then tighten 1/4-20 x 12 mm screws (I) using 4 mm allen
wrench(N).
NOTE: MAXIMUMOFTWOSHELVES
Max height of top shelf is 34" from base.
Max height of second shelf is 28" from base.
J
G
DETAIL 1
6
SLOT
fig 6
C
C
I
KJ

8 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
7-1
7A
7-2
7
AttachingMetal Shelf

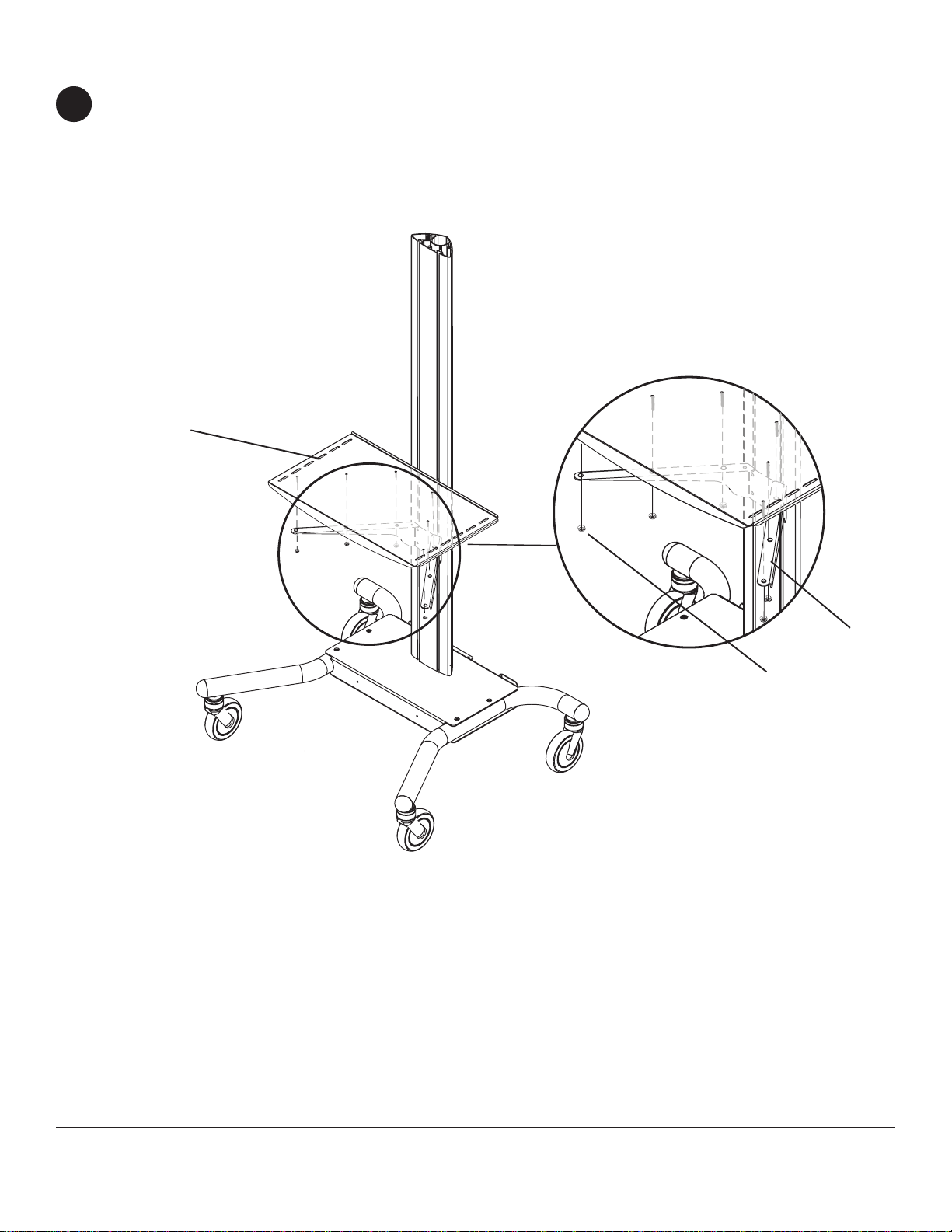

Attach shelf pan (P) to shelf support (C) using six 8/32 nylock nuts (O) as shown below. Use an adjustable wrench to
tighten six 8/32 nylock nuts (O).
O
P
C

9 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
Insert two 1/4-20 x 12 mm screws (I) into screen
mountbracket (A),leaving3/16"of exposed thread
as shown in figure 11 and detail 3.
H
G
Snaptopcover (H) onto upright (G). 11
10
3/16"
fig 11
DETAIL 3
I
A
Loosely attach six 1/4-20 x 12 mm screws (I),
washers (K), and 1/4-20 nuts (J) to screen mount
bracket(A).
8Slide screen mount bracket (A) onto upright (G) so
that 1/4-20 nuts (J) slide into slots of upright (G) as
shown in figure 9 and detail 2. Slide screen mount
bracket to desired position, level, then tighten 1/4-20
x 12 mm screws (I) using 4 mm allen wrench (N).
9
IKA
JA
G
SLOT
fig 9
I
DETAIL 2
J
G

10 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
Attach universal plate (E) to hook plate (B) using four
M10 x 15 mm socket screws (OO). Tighten screws
using 6 mm allen wrench (Q).
12
E
B
OO
Attaching Screen using Universal Plate withAdapter Brackets
For attaching screens with VESA 100 hole pattern, skip to page 13. For attaching Dedicated plate
skip to page 14.
13 Attach hook plate (B) to screen mount bracket (A).
B
A

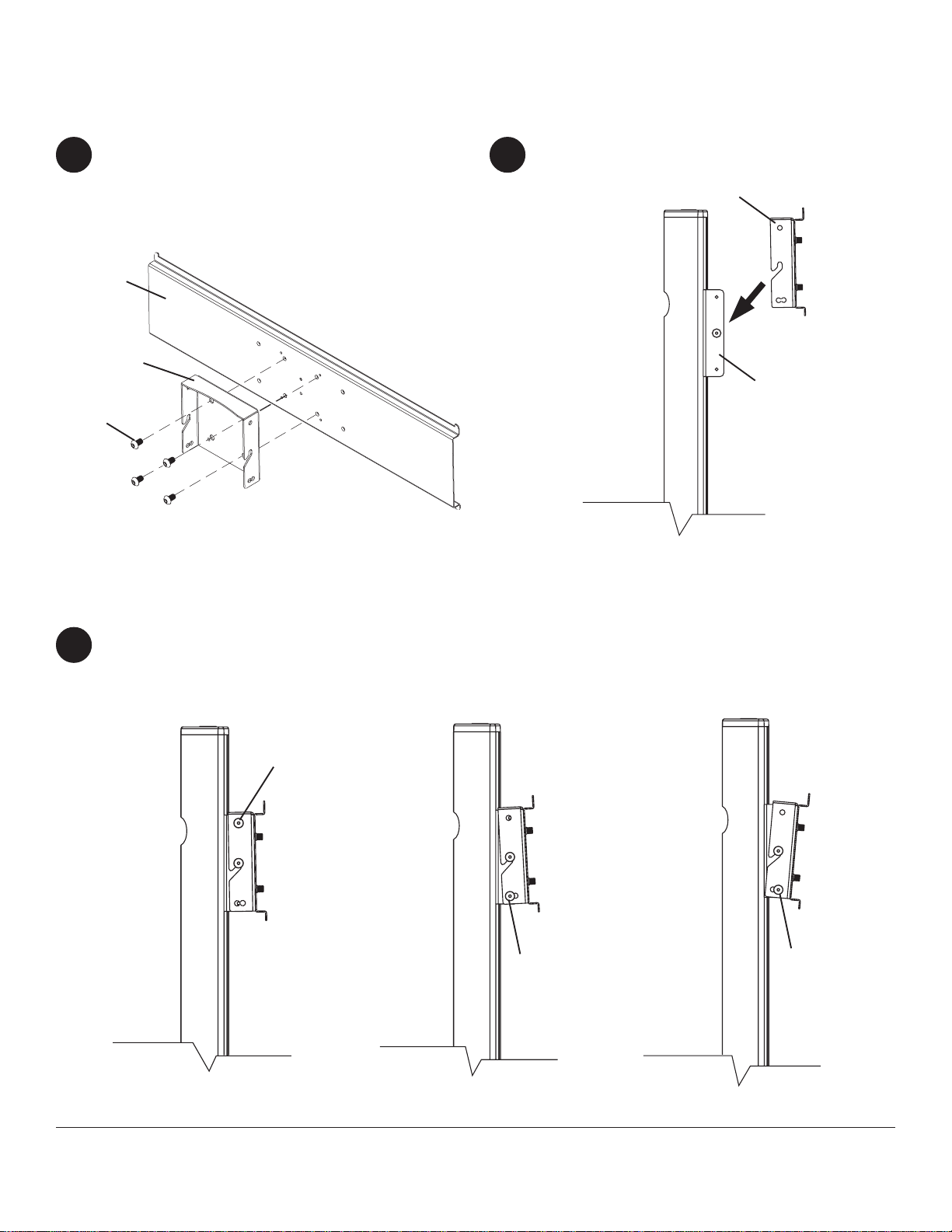

14 Insert two 1/4-20 x 12 mm screws (I) into holes indicated below for desired screen orientation. Tighten all screws
using 4 mm allen wrench (N).
I
II
2° Backward Tilt 5° Forward TiltNo Tilt

11 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
Note: "X"dimensionsshouldbeequal.
• Tightenscrewsso adapter brackets are firmly
attached. Do not tighten with excessive force.
Overtighteningcancausestressdamageto
screws,greatlyreducingtheirholdingpowerand
possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.)
maximumtorque.
WARNING

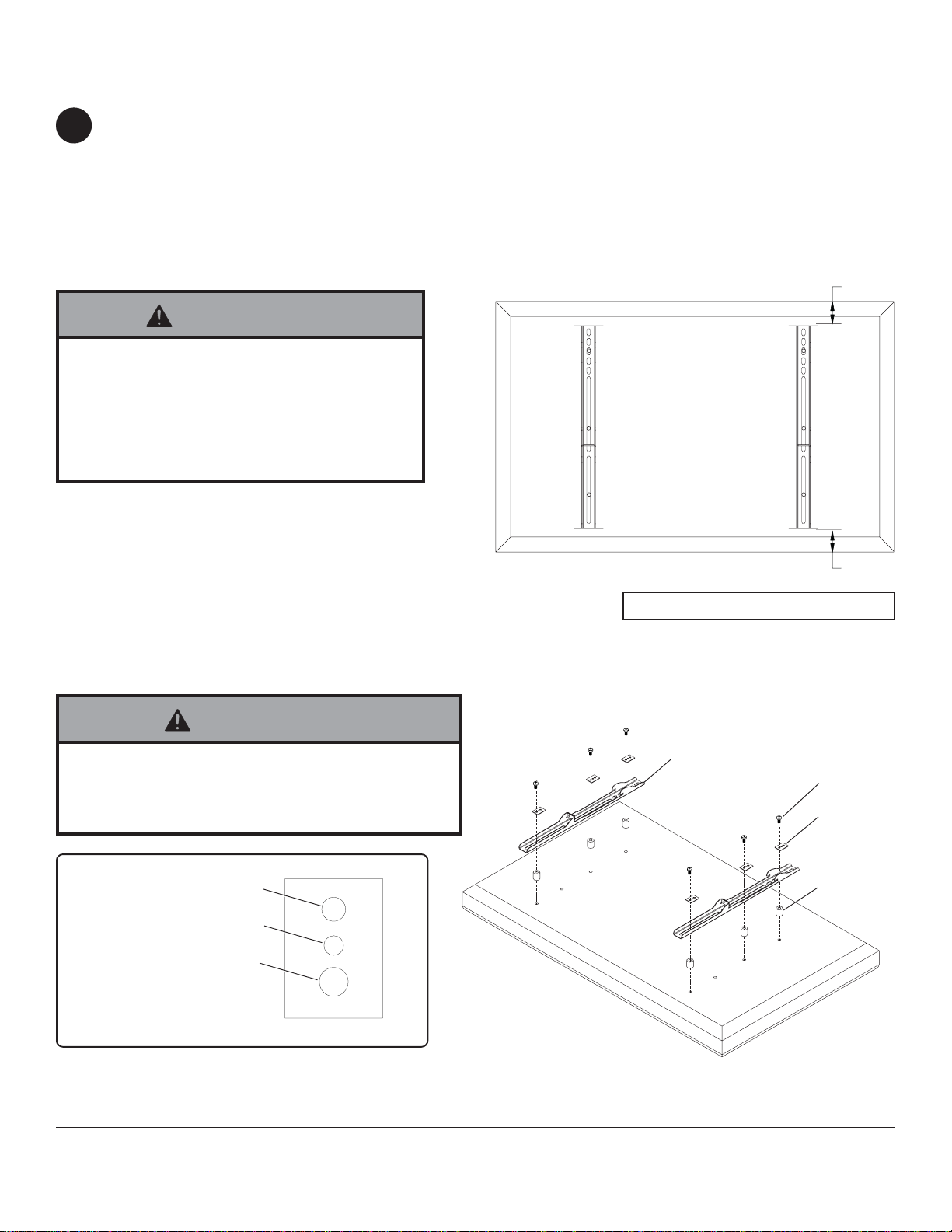

Installing Adapter Brackets
Refer to Screen Compatibility Chart to determine the proper fasteners to use.
To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place
screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.
Place adapter brackets (F) on back of screen, align to holes, and center on back of screen as shown in figure 15.1.
Attach the adapter brackets to the back of the screen using the appropriate combination of screws, multi-washers,
and spacers as shown in figure 15.3.
Note: Top and bottom holes must always be used.
Verify that all holes are properly aligned, and then tighten screws using a security allen wrench.
• If screws don't get three complete turns in the screen
inserts or if screws bottom out and bracket is still not
tightly secured, damage may occur to screen or
productmay fail.
WARNING
MEDIUMHOLEFORM5SCREWS
SMALLHOLEFORM4SCREWS
LARGEHOLEFORM6SCREWS
fig. 15.2
F
CENTERBRACKETS
VERTICALLYONBACKOF
SCREEN
X
X
fig 15.1
Notes:
• Thenumber of fasteners used will vary,
dependinguponthetypeofscreen.
• Multi-washers and spacers may not be
used,dependinguponthe type of screen.
• Use the corresponding hole in the multi-
washer that matches your screw size as
showninfigure 15.2.
SCREWS
SPACERS
F
fig 15.3
MULTI-
WASHER
MULTI-WASHER
15

12 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
Mounting and Removing Flat Panel Screen
Hook adapter brackets (F) onto universal plate (E), then slowly swing screen in as shown. Turnscrews (F)clockwise
atleast six times to preventscreen from being removed asshown in detail 4.
Note:Tightenusing4 mm allenwrench(N).
Screen can be adjusted horizontally if desired.
Note: It is important to lock screen down!To lock the screen down, fully tighten screws to adapter bracket as shown in
detail4.
Toremovescreenfrom mount,loosen screws,swingscreenawayfrom mount,andliftscreen offofmount.
16
F
DETAIL 4
SCREWS
E
F
• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.
WARNING
E

13 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
17
Attaching Screen with VESA100 Mounting Pattern
• If screws don't get three complete turns in the screen inserts or if screws bottom out and hook plate is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
Choose hole pattern as shown in figure 17. Attach hook
plate (B) to back of screen using four M4 x 12 mm
screws.Tighten screws using an allen wrench.
M4 X12 MMSCREWS
fig 17
Attach hook plate (B) to screen mount bracket (A).
B
A
19
I
II
2° Backward Tilt 5° Forward TiltNo Tilt
B
18
Insert two 1/4-20 x 12 mm screws (I) into holes indicated below for desired screen orientation. Tighten all screws
using 4 mm allen wrench (R).

14 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
Attaching Screen to a Dedicated Plate
CableManagement
Runcords through upright (G) usingcord management holes.
20
22
CORD
MANAGEMENT
G
fig. 21.1
Attach adapter bracket to back of plasma screen using
four socket pin screws, as shown. Tighten screws using
securityallenwrench.
Attach hook plate (B) to the back of adapter plate as
shown in fig. 21.1. Then attach hook plate (B) to
screen mount bracket (A) as shown in fig. 21.2.
21
fig. 21.2
B
A
©2007PeerlessIndustries,Inc.Allrightsreserved.
PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
