Pelsis Insect-O-Cutor Halo Curve User manual

Halo Curve
Please read these instructions carefully and store in a safe place for
future reference.
HALO CURVE
As part of the Insect-O-Cutor®brand of insect control products, Halo
Curve is a versatile professional flykiller which utilises highly effective UV
tubes and is designed for use with a high specification glupac®
glueboard. Halo Curve provides a discreet insect control solution, which
can be horizontally or vertically wall mounted.
CONTENTS OF PACKAGE
- 1 x Halo Curve flykiller
- 1 x Glupac®pheromone impregnated glueboard
- 1 x Mains cable (Type X)
- 2 x High powered UV tubes (Fitted)
- 2 x Screws and wall plugs
- 1 x Wall mounting template
WARNING - THIS APPLIANCE MUST BE EARTHED (CLASS 1)
INSECT CONTROL PRODUCTS
Halo Curve utilises high powered ultra violet tubes to attract flying insects
and retains the caught insects on a pheromone impregnated glueboard
for inspection or hygienic disposal.
WARNING
Halo Curve is not to be used by children or persons with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction.
Children should be supervised to ensure they do not play with the
appliance.
If the mains cable is damaged it must be replaced by a specialist mains
cable available from Pelsis Ltd or your supplier.
Not suitable for applications where potentially explosive environments
may exist.
POSITIONING AND GUIDANCE FOR USE
THIS UNIT IS FOR INDOOR USE ONLY.
Halo Curve should ideally be fixed around two meters above the ground,
preferably in the darkest place within the area to be protected. Do not
position the unit close to windows, skylights or other sources of light, or
where it may be obscured by furniture, doors or other obstacles. Ideally,
Halo Curve should be visible from every part of the area to be protected.
Halo Curve should ideally be in operation for 24 hours a day, ensuring
your premises are kept free of flying insects. Insects are most attracted
to Halo Curve at night when there is no competition from daylight or
other light sources.
GUARANTEE
Halo Curve has a two year guarantee and if maintained as
recommended in these instructions should continue to work for many
years.* Use of non-approved consumables may invalidate the
guarantee. Ensure genuine glupac®glueboards are used in conjunction
with this product.
*Excludes tubes, glueboards and starters. Does not cover breakdown due to misuse, incorrect
operation or use in an incorrect application
INSTALLATION
INSTALLATION SHOULD BE CARRIED OUT BY SERVICE PERSONNEL ONLY.
To ensure Halo Curve reaches you in perfect condition, a protective film
covers the aluminium guard. Remove this film before use.
Use the supplied wall mounting plugs and screws for wall mounting,
making sure correct wall plugs are used for specialist mounting materials,
such as plasterboard.
To install Halo Curve, mark the two fixing points on the mounting surface,
using the supplied wall mounting template. Drill two holes on the
marked fixing points, then insert the wall plugs. Insert the fixing screws,
leaving the head slightly proud from the wall. Slide Halo Curve into
position on the fixing screws, using the ‘V-Shape’ guides to help slide the
unit into position.
Once Halo Curve is installed in position, fit the glupac®glueboard in
place as described in the glueboard replacement section of this
document. Use the removable mains lead and plug to connect Halo
Curve to an appropriate power supply.
CLEANING
CLEANING SHOULD BE CARRIED OUT BY SERVICE PERSONNEL ONLY,
AFTER ENSURING THAT THE UNIT IS DISCONNECTED FROM THE MAINS
SUPPLY.
It is recommended that cleaning is carried out regularly when the
glueboard is replaced. Once the glueboard is removed, the unit should
be thoroughly wiped down with a damp cloth, removing any build up of
dirt. Ensure the unit is completely dry before reconnecting it to the
power supply.
Professional Glueboard Insect Control

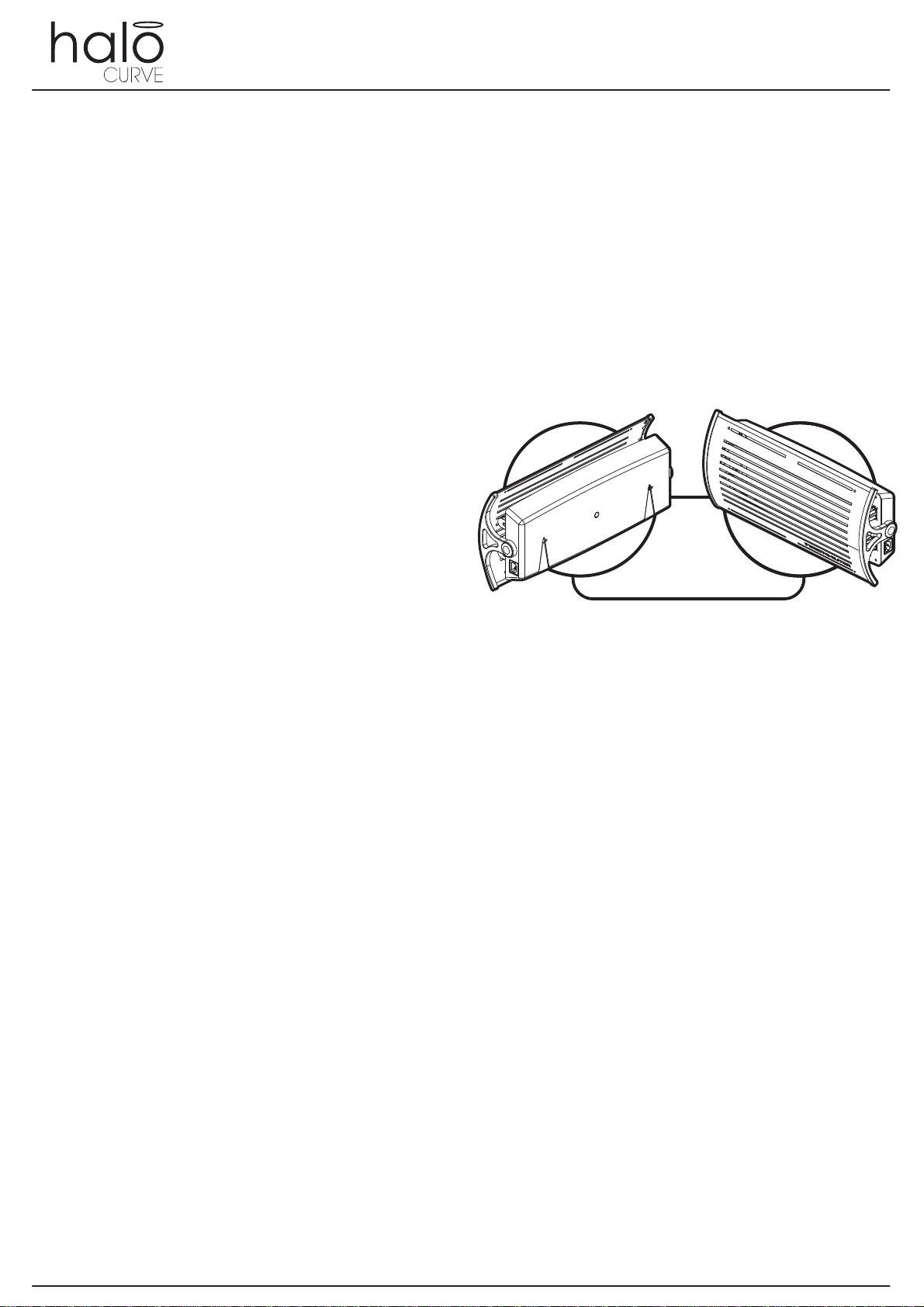

‘V-Shape’ Wall
Mount Guides

Tube Replacement
SPECIFICATION / REPLACEMENT PARTS
Unit Halo Curve
Voltage 230V ~ 50Hz
Dimensions(mm) 514 x 253 x 122
Coverage 60 Sq. Meters
Weight 1.9 Kg
Light Output 30W
Tubes 2 x TPX15-18
Starter 2 x I154
Glueboards (x6) GB005 (Black)
GLUEBOARD REPLACEMENT
GLUEBOARD REPLACEMENT SHOULD BE CARRIED OUT BY SERVICE PERSONNEL ONLY, AFTER
ENSURING THAT THE UNIT IS DISCONNECTED FROM THE MAINS SUPPLY.
The glueboard should be replaced every month with a genuine glupac®glueboard. Use of
non-approved glueboards may invalidate your guarantee. Halo Curve comes supplied with
discreet black glueboards with printed grids for simple insect evaluation and monitoring.
To replace the glueboard…
1. Remove the used glupac®glueboard by simply pulling it clear from the unit.
2. Tear the glueboard in half along the perforation line, retaining the second half for
the next service cycle.
3. Remove the protective release paper from the new glupac®glueboard.
4. Slowly slide the new glupac®glueboard into position.
Always ensure the selected genuine glupac®glueboards are compatible with your unit,
available from your pest control operator or Pelsis Ltd.
TUBE REPLACEMENT
TUBE REPLACEMENT SHOULD BE CARRIED OUT BY SERVICE PERSONNEL ONLY, AFTER ENSURING
THAT THE UNIT IS DISCONNECTED FROM THE MAINS SUPPLY.
To ensure the efficiency of Halo Curve in catching flying insects, the UV tubes should be
replaced annually. After twelve months the phosphor coating that emits the correct
wavelength of UV light has burnt away and the UV output is diminished substantially.
To replace the UV tubes…
1. Gently rotate the front guard ‘upwards,’ allowing access to the bottom tube.
2. Rotate the tube through 90°, freeing it from the tube holders.
3. Pull the tube away from the chassis, and insert the new tube.
4. Gently rotate the front guard ‘downwards,’ allowing access to the top tube.
5. Rotate and pull the tube away from the chassis, and insert the new tube.
6. Gently rotate the front guard ‘upwards,’ until it sits centrally.
7. Dispose of the used UV tubes in conjunction with local WEEE regulations.
STARTER REPLACEMENT
STARTER REPLACEMENT SHOULD BE CARRIED OUT BY SERVICE PERSONNEL ONLY, AFTER ENSURING
THAT THE UNIT IS DISCONNECTED FROM THE MAINS SUPPLY.
The starters provide an extra spark to initially light the UV tubes. Starters wear
out and should be replaced at the same intervals as the UV tubes.
To replace the starters…
1. Rotate the starter anti-clockwise.
2. Pull the starter free from the unit.
Glueboard Replacement
R1 07/15
C2015
Pelsis Ltd
Information provided on these instructions is modified and
updated from time to time. This is due to the constant
redevelopment of our products. As such, it is not intended that
you should rely on it or that it should form part of any contract.
Sterling House
Grimbald Crag Close
Knaresborough
North Yorkshire
HG5 8PJ UK
T [phone]
F [phone]
W www.pelsis.com
E [email protected]
WEEE Compliance No. WEE/GF0661QR
Starter Replacement
