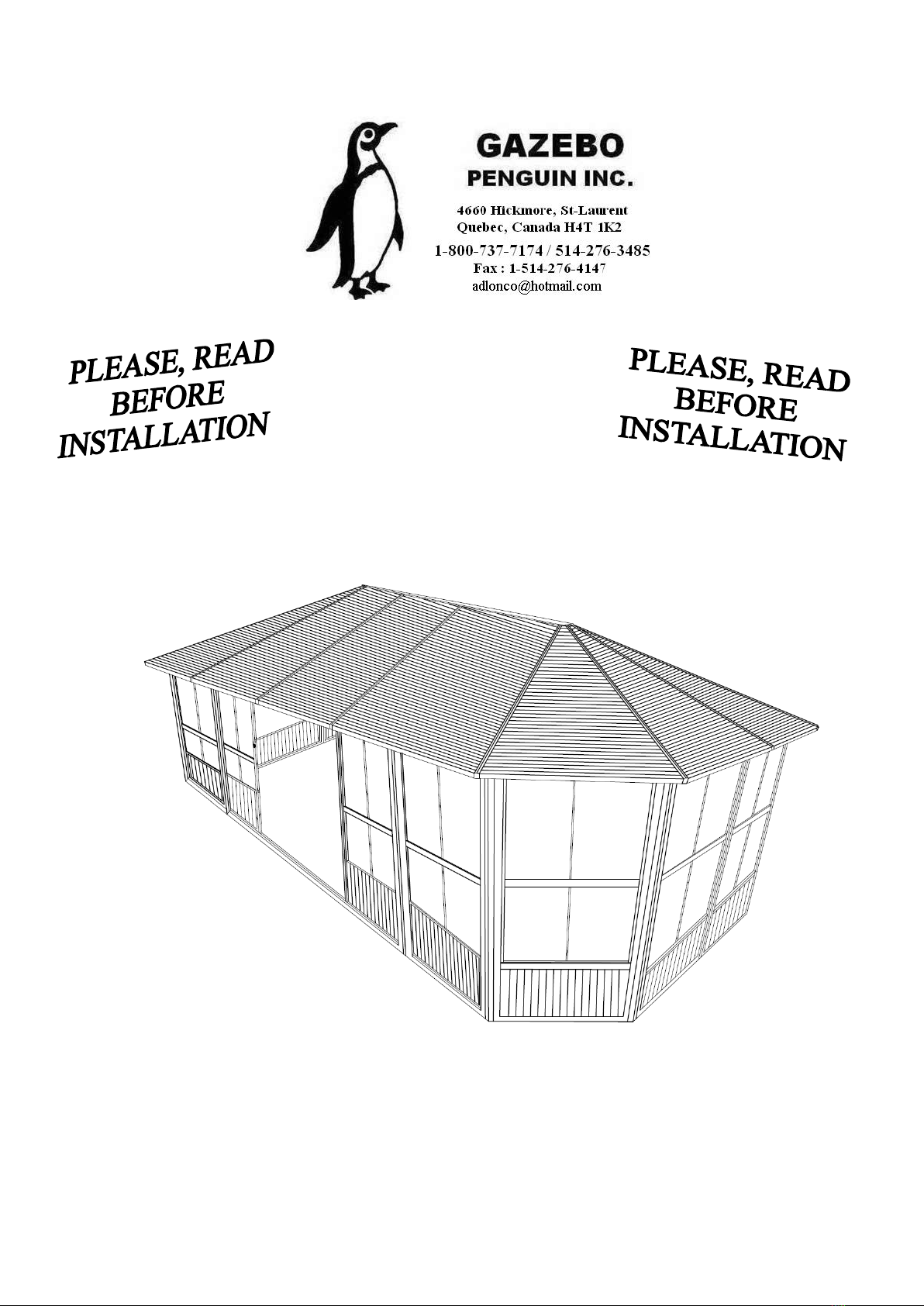

Penguin 41218 MR User manual

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 1
41218 MR
12 X 18 SOLARIUM
ASSEMBLY INSTRUCTIONS
Three adults required for assembly
Base Dimensions 12’ ½”x18’11”
Largest Dimensions 13’6”x20’4½”
Overall Height 110’’

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 2
Before you assemble the Solarium
Some jurisdictions may require permits for, or otherwise regulate, installation of
use of temporary structures. Consult with your governing authority or
municipality codes before assembly.
Please don't destroy boxes until completely assembled.
It is important that this solarium be installed on a solid base with the provided
screws. Otherwise, please ensure that you use anchors sufficient for your surface.
The solarium should not be installed adjacent to trees or a sloped roof. Snow and
ice may slide onto the solarium and cause it to collapse.
Tools needed:
Step ladder
#2 Phillips screwdriver (supplied)
Rubber mallet
Based on the location, decide where you would like to position the two (2) doors panels
which can slide open to the left or the right, your choice.

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 3
12x18 Solarium Assembly Instructions
Step 1:
Before starting to assemble, please decide where you would like to position the door panels.
1. Stand up two regular frames (A1), using two connecting pieces (E) and affix the panels (A1)
together.
2. Stand up a frame meant to be next to the door (A2) and a door frame (B2), placing the door frame
either on the left or right, then use two connecting pieces (E) to affix the panel and door frame.
3. When assembling angled panels (A1), you should put the two panels at 135 degree angle then use
the angled connecting pieces (I) and (J) to affix the panels together.

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 4
Step 2:
1. Slide top door rail (F) into wheels of sliding door.
2. Slide lower door rail (G) into the plastic guide of the sliding door (B1).
3. Use bold (Bb) to affix the plastic stoppers (H) one on each end of top door rail (F).

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 5

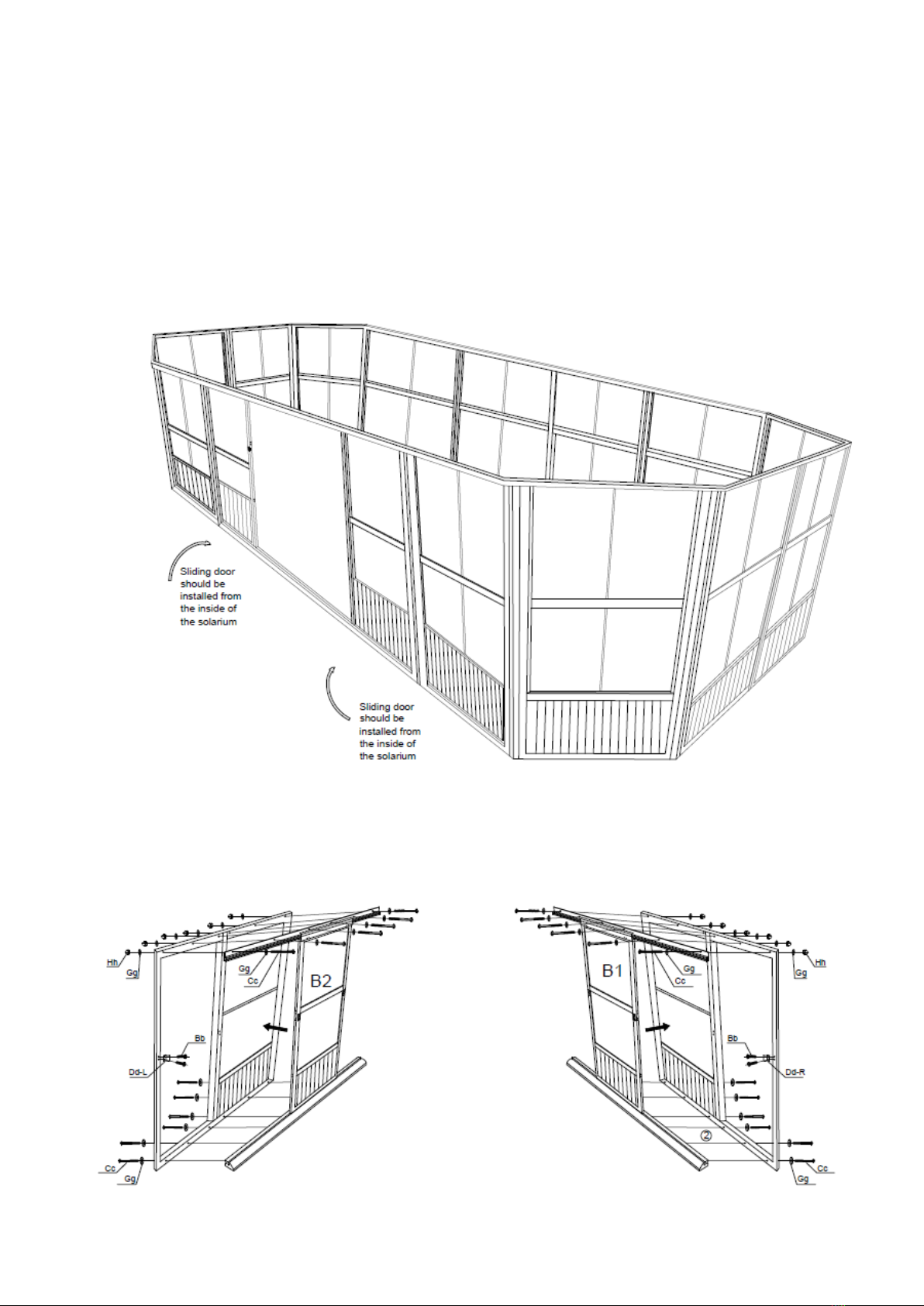

Step 3:
Please note the sliding door should be installed from the inside of the solarium.
1. Place a bolt (Hh) and washer (Gg) through the top door rail (F) and door frame, and place a female
bolt (Cc) from the other side. Once all are inserted, tighten them all securely.
2. Secure the bottom door rail (G), using a bolt (Cc) with a washer (Gg).
3. Paying careful attention to whether it is the left (Dd-L) or right (Dd-R) latch, use bolt (Bb) to affix
the door latch onto the frame.

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 6

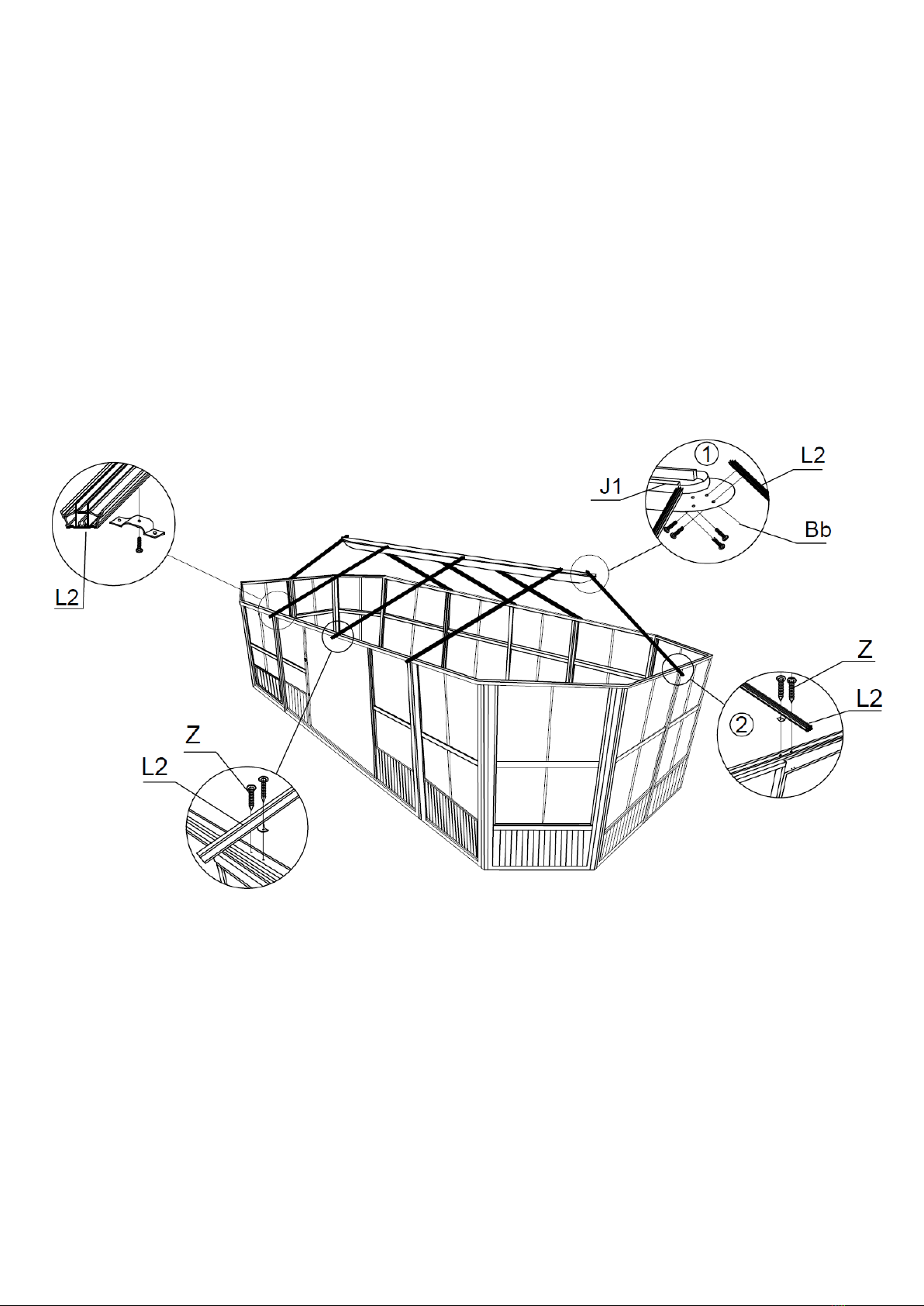

Step 4:
Note: Rafters must be affixed where panels connect to each other.
1. Attach roof rafters (L2) to the central hub (J1) using bolt (Bb).
2. Use screw (Z) to affix the rafters (L2) onto the top of panels going through the metal piece
attached to the rafter (L2).

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 7
Step 5:
Note: Do not tighten the bolts right away as you may have to adjust the angle when inserting the
roof panels.
Use the same method to assemble roof rafters (L1) for the angled panels.
The rafters (L1) should be affixed to the mounting bracket using the hole that will be furthest away from
the corner of the unit.

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 8
Step 6:
Use nut (Hh) and washer (Gg) to affix the top cap (K1) to the central hub (J1).

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 9

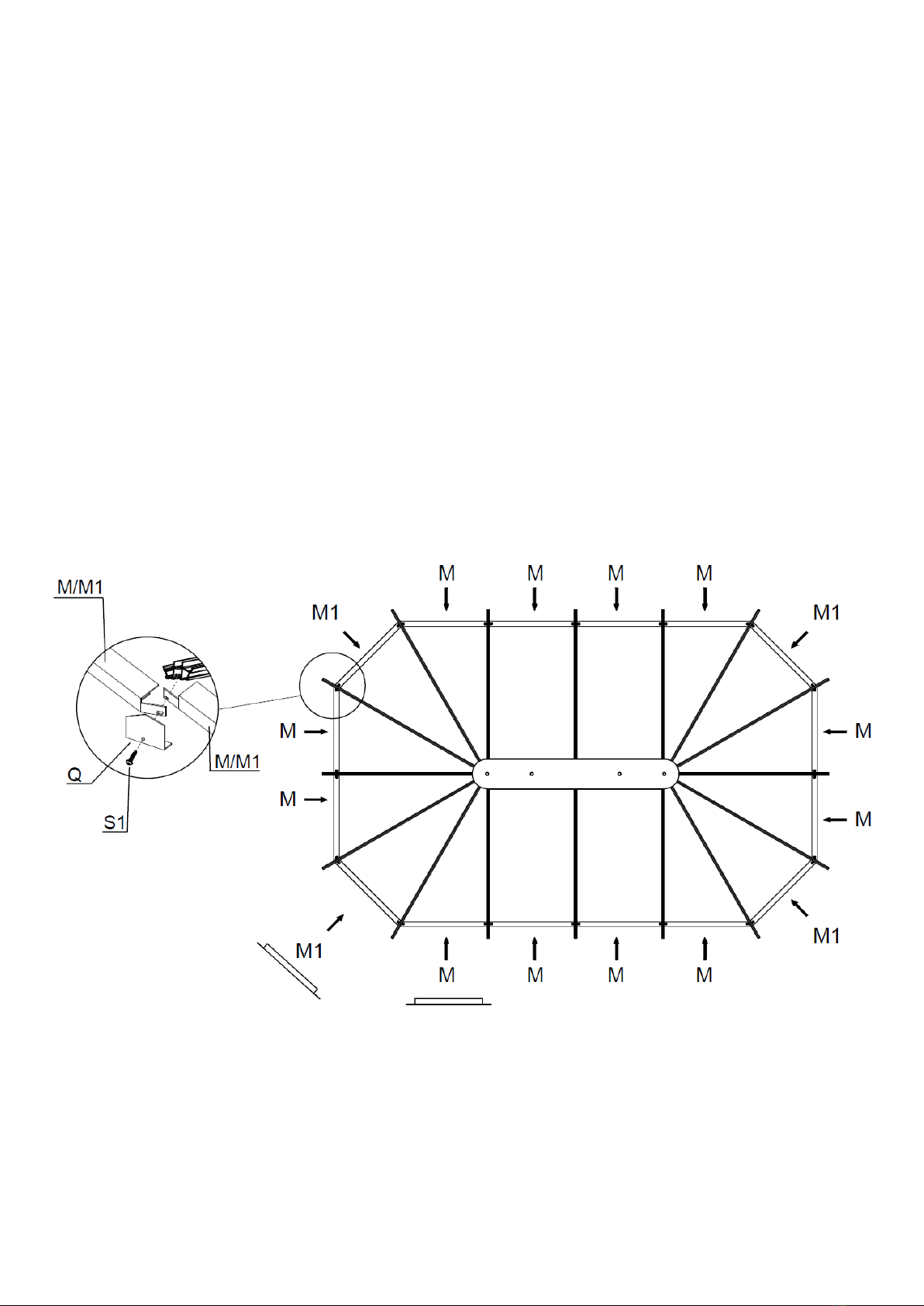

Step 7:
1. Secure the side of the roof with finishing bar (M) with a screw (S1).
2. Place a roof finishing bar (M) next to the right of the roof finishing bar (M) and align the
pre-drilled holes in each bar one on top of the other.
Place finishing end (Q) over the aligned holes and secure with screw (S1).
3. Repeat process with all finishing bars as illustrated.
4. In order to finish the installation of the last finishing bar (M1) you have to unscrew the first
screw (S1) at your starting point and place a finishing end (Q) then re-install the screw (S1).
Note: the finishing ends change depending on where you are along the unit.
Always refer to the illustration.

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 10

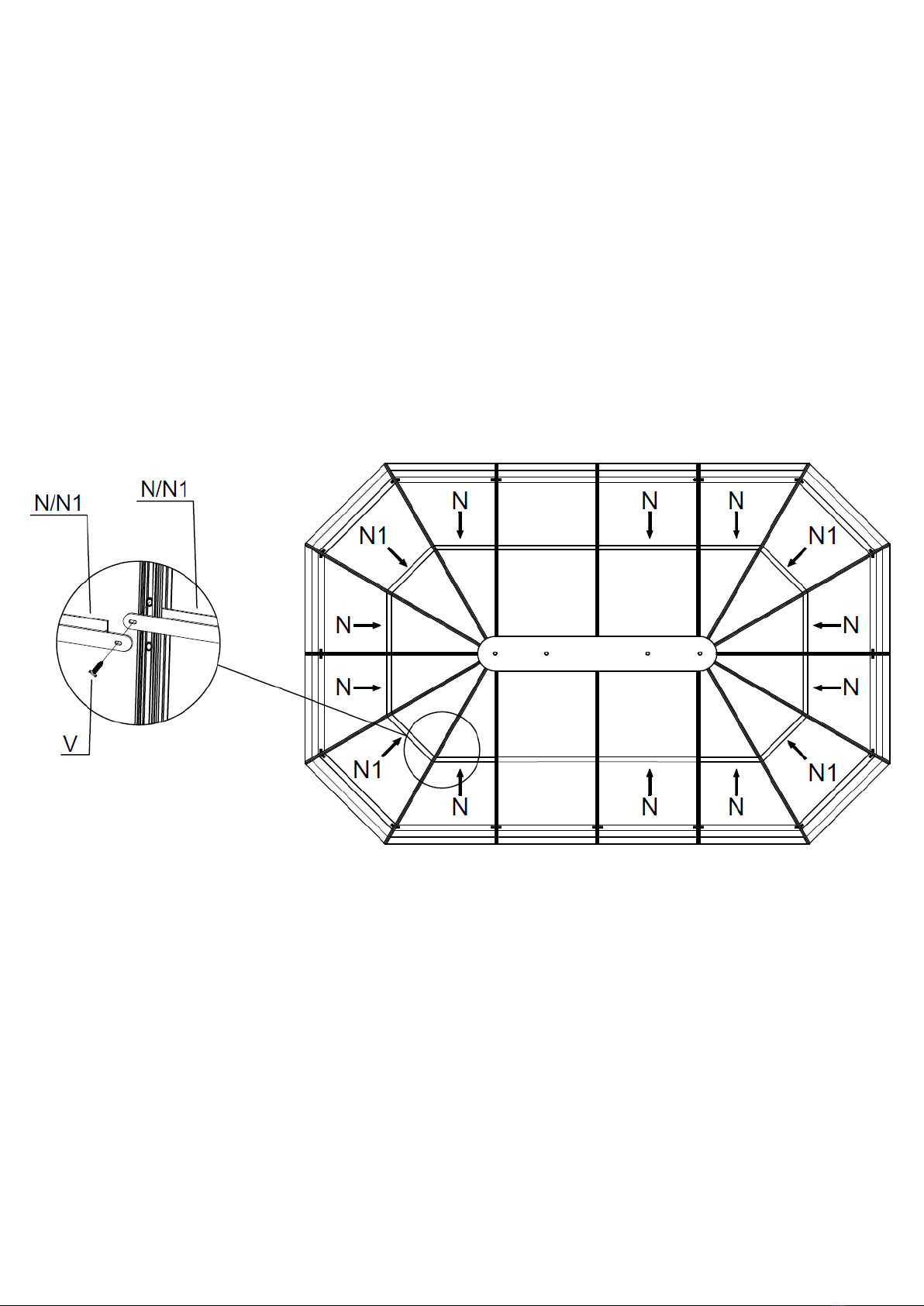

Step 8:
From the inside of the solarium, install the solidifying bar (N and N1) as illustrated using the screws (V).
Each screw (V) must be inserted into two pre-drilled holes prior to be screwed to the roof bars.

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 11
Step 9:
Insert the upper panels (Qq, R1a, Qa, Ra)

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 12

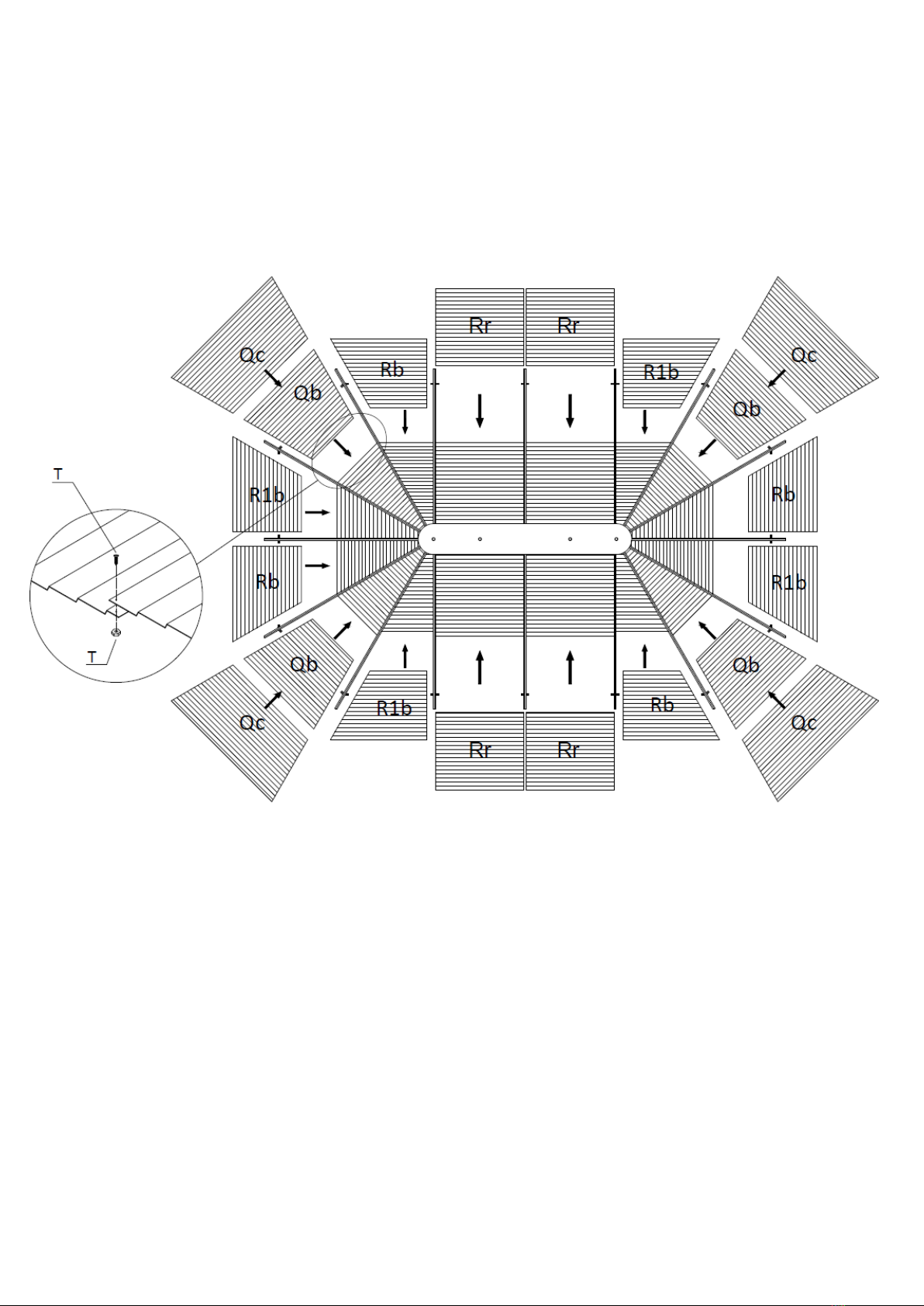

Step 10 :
After the installation on the upper roof panels, install the bottom roof panels (Rr, R1b, Qb, Qc, Rb)
according to below drawings.

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 13

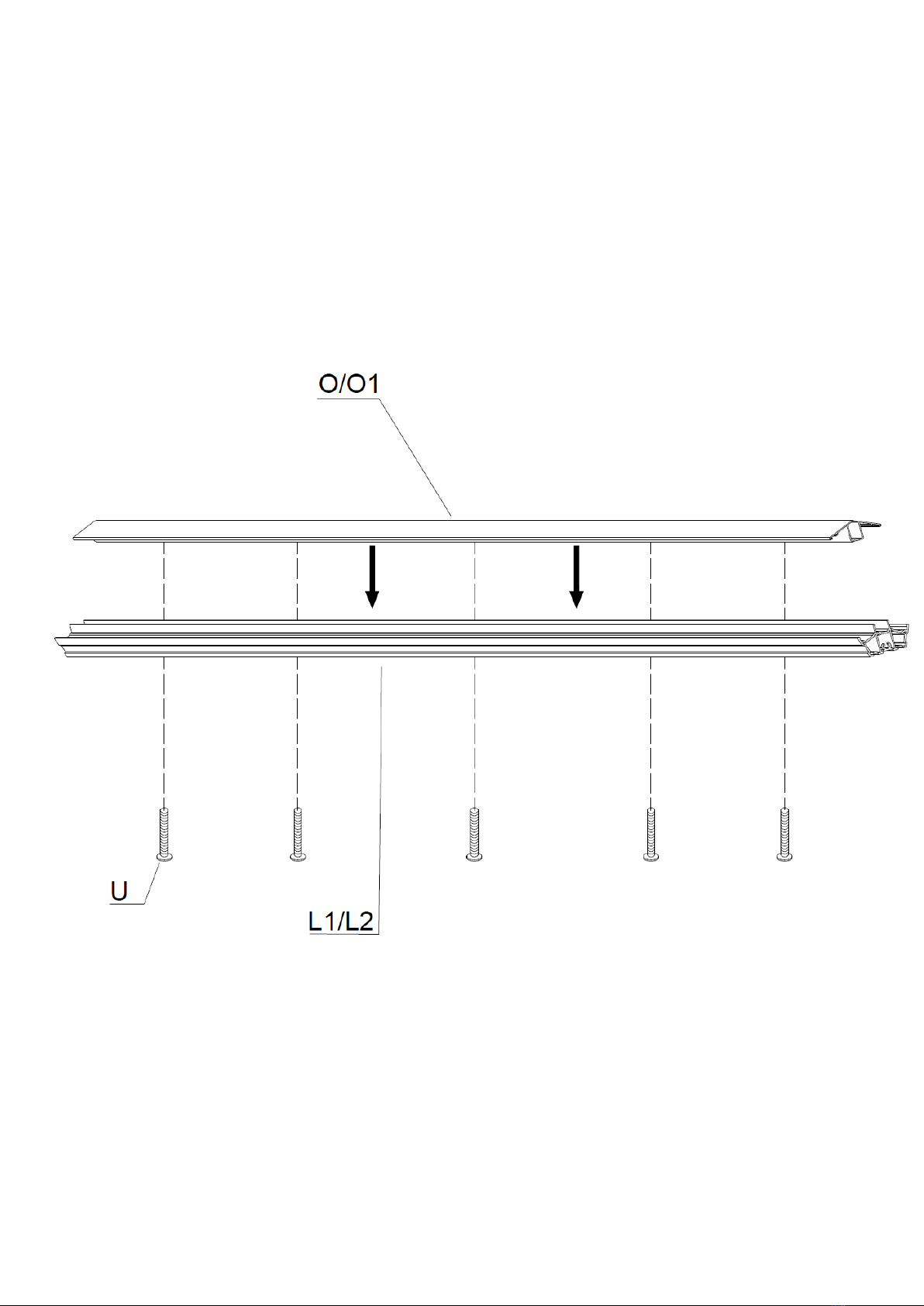

Step 11:
Once the installation of the panels is complete, screw cover roof bars (O/O1) to the roof bars
(L1/L2) with screw (U).

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 14

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 15

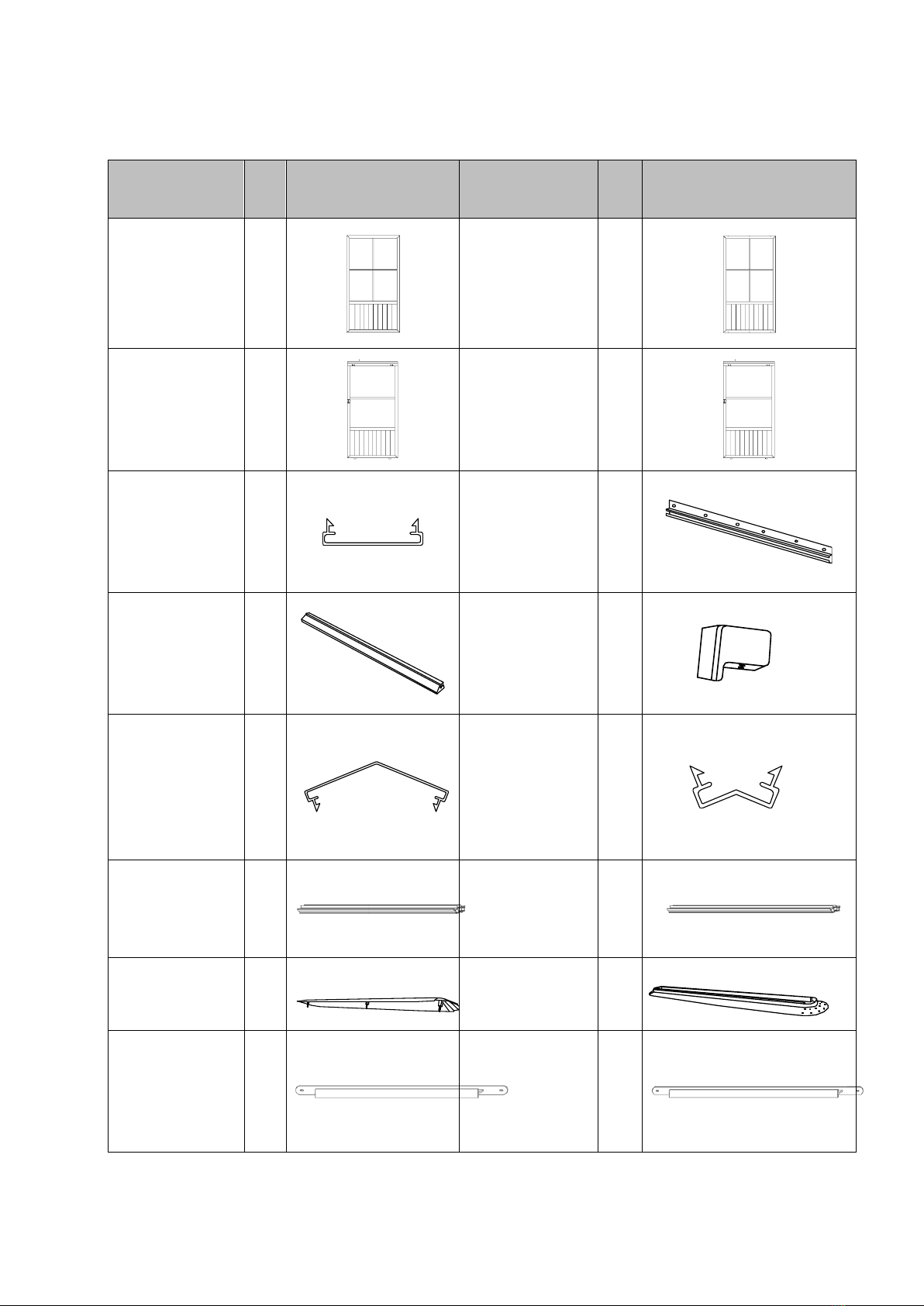

12X18 Solarium
DESCRIPTION
QT
DRAWING
DESCRIPTION
QT
DRAWING
17-081
REGULAR
FRAME
A1
12
17-083
FRAME NEXT
TO DOOR
A2
(with extra holes)
2
17-085
SLIDING DOOR
RIGHT
B1
2
17-086
SLIDING DOOR
LEFT
B2
1
08-133-12
CONNECTING
PIECE
E
Length 200.6 cm
14
08-136-12
TOP DOOR RAIL
F
Length 208 cm
2
08-137-12
BOTTOM DOOR
RAIL
G
Length 205.6 cm
2
08-138-12
PLASTIC
STOPPER
H
4
08-139-12
135° ANGLED
OUTSIDE
CONNECTOR
I
Length 200.6 cm
8
08-140-12
135° ANGLED
INSIDE
CONNECTOR
J
Length 200.6 cm
8
17-044-12
ROOF RAFTER
L2
Length 199 cm
8
17-043-12
ROOF RAFTER
L1
Length 224.4 cm
6
08-179-18
TOP CAP
K1
1
08-178-18
CENTRAL HUB
J1
1
17-047-12
MIDDLE
ROOF JOINT
N
Length 71 cm
4
17-048-12
MIDDLE ROOF
JOINT
N1
Length 72 cm
4

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 16
17-053
FINISHING END
Q
12
12-037-12
FEMALE BOLT
Cc-2
12
17-072
(24 ¼”X42 ¼”)
TOP ROOF
LEFT PANEL
R1a
4
08-156-12
SCREW
Z
56
17-068
(24 ½”x46 ½”)
TOP ROOF
CORNER
PANEL
Qa
4
08-158-12
BOLT
Bb
60
08-161-12
BOLT
Cc
24
08-165-12
RIGHT DOOR
LATCH
Dd-R
2
08-169-12
LEFT DOOR
LATCH
Dd-L
2
08-167-12
SCREW
Ee
28
08-168-12
BOLT
Ff
22
08-187
WASHER
Gg
41
08-189-12
ACORN NUT
Hh
17
08-193
PLASTIC PLUG
Ii
28
17-069
(47”x47 ½”)
BOTTOM ROOF
CORNER PANEL
Qb
4
17-073
(46 ¼”x43”)
BOTTOM ROOF
LEFT PANEL
R1b
4
17-070
(24 ¼”x42 ½”)
TOP RIGHT
ROOF PANEL
Ra
4
17-071
(46 ¼”x43”)
BOTTOM ROOF
RIGHT PANEL
Rb
4

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 17
08-135-12
SCREW
Oo
4
12-047-12
VIS
Ww
12
(M5*15mm)
17-076
(41 ¼”x43”)
BOTTOM ROOF
CENTER PANEL
Rr
4
17-075
(41 ¼”x42 ¼”)
TOP ROOF
CENTER PANEL
Qq
4
17-079
BOTTOM
ALUMINIUM
PANEL (for wall
panels)
-
17-080
BOTTOM
ALUMINIUM
PANEL (for
doors)
-

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 18

L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\41218 MR\ZZZ-184.41218MR.0926-16.GP.EN.doc SUN-HP 19
MAINTENANCE NOTES
1. Check all the screws for tightness before and during usage of the unit.
Tighten the screws at least twice a year.
2. If you wish to suspend products to the structure, ensure that the total weight of articles
does not exceed 6,8 kg (15 pounds). Suspend nothing from the structure in case of
strong winds as well as during the winter.
3. In case of a defective or damaged part, or for any other questions concerning the
product, please contact the manufacturer directly.
4. Please have the parts list and part numbers on hand when ordering or requesting
replacement parts.
5. The product should not be installed adjacent to trees or a sloped roof. Snow and ice
may slide onto the roof and cause it to collapse.
6. While the product is designed for 4 seasons use, the roof must be kept free of
accumulation of snow.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and
durability. Subject to the Conditions for Exercising the Warranty and the Limitations on the
Warranty set forth below, it is warranted to be free of material and manufacturing defects for a
period of one year from the date of purchase. Should the product become damaged, or the
warranty period has expired, please contact Adlonco Holdings Customer Service Department
for a complete schedule of replacement parts and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
The warranty only applies to the original purchaser with the bill.
In order to properly exercise your warranty, please comply with the following:
Carefully inspect the contents of the carton for missing or damaged components.
Should you discover damaged or missing parts, do not return the product to the
place of purchase, but contact Adlonco Holdings Customer Service Department at the
numbers listed below:
Montreal: [phone] Elsewhere: 1-800-737-7174
NOTE: Damages/missing parts must be reported within 30 days of delivery.
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, falling or
thrown objects, or accumulation of snow.
2. The product is not warranted against damages due to extreme weather conditions,
such as thunderstorms, hail, strong wind or snow storms, or any other acts of God.
3. The product is only warranted in the event it is installed in accordance with the A’s
written instructions enclosed with the product.
4. The product is not warranted in the event it has been improperly anchored.
5. We reserve the right to replace or repair any defective product or parts at our discretion.
