owner's Manual
CP, CB Series with TEFC Motors
Centrifugal Pump
© 2013 Pentair, Ltd. All Rights Reserved. BE873T (Rev. 02/22/13)
MODELS
Medium Head – Noryl®Impellers
Medium Head – Brass Impellers
High Head – Noryl®Impellers
High Head – Brass Impellers
1/3 H.P.: 115 Volt Single Phase
1/2 through 2-1/2 H.P.:
115/230 Volt Single Phase
230 Volt Single Phase
230/460 Volt Three Phase
575 Volt Three Phase

R
o
t
a
t
i
o
n
Support suction pipe
as required, so that
pump does not take
weight of pipe
Support discharge pipe
as required, so that
pump does not take
weight of pipe
As close
as possible
4 x "D"
minimum
submergence
Foot
Valve
Pipe diameter
"D"
Straight run, as short as
possible but at least 6
times pipe diameter ("D").
Slope pipe down from
pump to water
Short length of
straight pipe
after reducer
Important:
All connections must
be
air tight
Solid, level
base
Rotated Volute
Stop
Valve
Union
Discharge
to service
Recommended pump suction
and discharge connections
Vent
Plug
Priming
Plug
Street Elbow
Not recommended pump suction
and discharge connections
Elbow immediately
in front of pump
suction.
On the discharge avoid:
Quick closing valves.
Small I.D. pipe.
Numerous fittings.
Misalignment.
Sharp turns in piping run.
High
lift
Pipe diameter "D"
insufficient size
Pipe submerged
less than 4 x "D"
will cause vortexing
Long suction
run
Concentric
Reducer
Use of excess fittings
means potential air leaks
Valve
Unsupported
Pipe
Concentric Reducer causes high
spots along the suction line resulting
in
air pockets.
684 0294 TEFC BERK
Eccentric Reducer,
Straight side up
Tee and
Priming Plug
Figure 1
Figure 2
2

3
PIPING - GENERAL
Support both suction and discharge piping independently at
a point near the pump to avoid putting a strain on the pump
housing. Start all piping AT THE PUMP.
Increase pipe diameter at both the suction and discharge
by one (1) standard pipe size (minimum) to obtain desired
performance and flow rate. Refer to Table I when sizing pipe
for your pumping system.
NOTICE: Do not use pipe with smaller diameter on the
suction side of pump.
TABLE I
Pump Port Recommended
Size (NPT) Pipe Size
Suction Discharge Suction Discharge
1-1/4 1 1-1/2 1-1/4
1-1/2 1-1/4 2 1-1/2
2 1-1/2 3 2
SUCTION PIPE
Increase pipe size from pump suction port as shown in
Table I.
Figure 1 (Page 2) depicts a recommended run of pipe and
fittings for the suction side of a centrifugal pump. Please refer
to this illustration when choosing pipe and fittings for your
suction connection.
IMPORTANT: All connections must be air tight!
Figure 2 (Page 2) depicts conditions that are NOT
DESIRABLE on the suction side of a centrifugal pump and
may cause problems in flow rate and priming. Please look this
illustration over carefully before choosing pipe and fittings for
your suction connection.
DISCHARGE PIPING
Increase pipe size from pump discharge port as shown in
Table I. Figure 1 (Page 2) depicts a recommended run of pipe
and fittings for the discharge. Install tee with priming plug as
close to pump as possible. Figure 2 (Page 2) notes conditions
that should be avoided. Please read over carefully before
making discharge connection.
PRIMING THE PUMP
A pump is primed when all air in the suction line and pump
volute has been evacuated and replaced with water.
To Prime:
1. Close valve in discharge line.
2. Remove priming plug from tee and fill pump and suction
line with water until water is flowing back out of tee.
3. Replace priming plug.
4. Start pump and slowly open valve until desired water flow
is achieved.
NOTICE: If water is not being pumped, turn off pump,
close valve, and repeat steps 1 thru 4.
If pump volute is rotated as shown in Figure 1 (Page 2),
loosen vent plug when priming to evacuate air trapped inside
volute and tighten when volute is completely filled with water.
NOTICE: Do not run the pump dry. This will damage
mechanical seal and void warranty.
Burn hazard. Motor normally operates at high
temperature and will be too hot to touch. It is protected from
heat damage during operation by an automatic internal cutoff
switch. Before handling pump or motor, stop motor and allow
it to cool for 20 minutes.
TABLE II - RECOMMENDED FUSING AND WIRING DATA – 60 CYCLE TEFC MOTORS
DIAMETER IN FEET FROM MOTOR TO METER
BRANCH 0’ 101’ 201’ 301’ 401’
MOTOR MAX. LOAD FUSE* TO TO TO TO TO
HP AMPERES RATING 100’ 200’ 300’ 400’ 500’
AMPS WIRE SIZE
SINGLE PHASE - 115 VOLT
1/2 8.2/4.1 15/15 14/14 12/14 10/14 8/14 8/12
3/4 11.6/5.8 20/15 14/14 10/14 8/14 6/14 6/12
1 18.0/9.0 30/15 10/14 8/14 6/12 6/12 4/10
1-1/2 18.0/9.0 30/15 10/14 8/14 6/12 6/12 4/10
SINGLE PHASE - 230 VOLT
2 10.4 15 14 14 12 10 10
2-1/2 11.7 15 14 14 12 10 10
THREE PHASE - 230/460 VOLT
1/2 2.2/1.1 15/15 14/14 14/14 14/14 14/14 14/14
3/4 2.9/1.45 15/15 14/14 14/14 14/14 14/14 14/14
1 3.6/1.8 15/15 14/14 14/14 14/14 14/14 14/14
1-1/2 4.8/2.4 15/15 14/14 14/14 14/14 14/14 14/14
2 7.0/3.5 15/15 14/14 14/14 14/14 12/14 12/14
2-1/2 7.0/3.5 15/15 14/14 14/14 14/14 12/14 12/14
THREE PHASE - 575 VOLT
1/2 1.16 15 14 14 14 14 14
3/4 1.44 15 14 14 14 14 14
1 1.92 15 14 14 14 14 14
1-1/2 2.4 15 14 14 14 14 14
2 2.92 15 14 14 14 14 14
2-1/2 15 14 14 14 14 14
* Time delay fuse or circuit breakers are recommended in any motor circuit.

4
Hazardous voltage. Can shock, burn, or
cause death. Disconnect power to motor before working on
pump or motor. Ground motor before connecting to power
supply.
California Proposition 65 Warning
This product and related accessories contain
chemicals known to the State of California to cause cancer,
birth defects or other reproductive harm.
WIRING
Ground motor before connecting to electrical
power supply. Failure to ground motor can cause
severe or fatal electrical shock hazard.
Do not ground to a gas supply line.
To avoid dangerous or fatal electrical shock, turn
OFF power to motor before working on electrical
connections.
Supply voltage must be within ±10% of nameplate
voltage. Incorrect voltage can cause fire or damage
motor and voids warranty. If in doubt consult a licensed
electrician.
Use wire size specified in Wiring Chart (Page 3). If
possible, connect pump to a separate branch
circuit with no other appliances on it.
Wire motor according to diagram on motor
nameplate. If nameplate diagram differs from
diagrams above, follow nameplate diagram.
1. Install, ground, wire and maintain your pump in compliance
with the National Electrical Code (NEC) in the U.S., or the
Canadian Electrical Code (CEC), as applicable, and with
all local codes and ordinances that apply. Consult your
local building inspector for code information.
2. Provide a correctly fused disconnect switch for protection
while working on motor. For switch requirements, consult
your local building inspector for information about codes.
3. Disconnect power before servicing motor or pump. If the
disconnect switch is out of sight of pump, lock it open and
tag it to prevent unexpected power application.
4. Ground the pump permanently using a wire of the same
size as that specified in wiring chart (Page 3). Make
ground connection to green grounding terminal under
motor canopy marked GRD. or .
5. Connect ground wire to a grounded lead in the service
panel or to a metal underground water pipe or well casing
at least 10 feet long. Do not connect to plastic pipe or
insulated fittings.
6. Protect current carrying and grounding conductors from
cuts, grease, heat, oil, and chemicals.
7. Connect current carrying conductors to terminals L1 and
L2 under motor canopy. When replacing motor, check
wiring diagram on motor nameplate against Figure 3. If
the motor wiring diagram does not match either diagram
in Figure 3, follow the diagram on the motor.
IMPORTANT: 115/230 Volt single phase models are shipped
from factory with motor wired for 230 volts. If power supply
is 115 volts, remove motor canopy and reconnect motor as
shown in Figure 3. Do not try to run motor as received on 115
volt current.
8. Motor has automatic internal thermal overload protection.
If motor has stopped for unknown reasons, thermal
overload may restart it unexpectedly, which could cause
injury or property damage. Disconnect power before
servicing motor.
9. If this procedure or the wiring diagrams are confusing,
consult a licensed electrician.
ELECTRICAL
L2
Blue
Black Tracer
Red
Purple
Black
White L1
L2
Blue
Black Tracer
Red
Purple
Black
White L1
Low Voltage
115/230V Dual Voltage 230V Single Voltage
High Voltage
L2
Blue
White L1
3320 0998 WG
Figure 3 – 115/230V Dual Voltage and 230V Single Voltage TEFC Wiring Diagram

5
Seal Plate
Mechanical seal
rotating half
Mechanical seal
stationary half
A-Seal removal-rotating half B-Seal removal-stationary half C-Stationary half installation D-Rotating half installation
T
u
r
n
o
v
e
r
Polished
surface Rubber
surface
Cardboard
washer
(supplied w/seal)
3/4" socket
or pipe
Sealing
face
Rubber drive
ring
Impeller
Shaft
shoulder
5939 0109
FIGURE 4
PUMP SERVICE
This centrifugal pump requires little or no service other than
reasonable care and periodic cleaning. Occasionally, howev-
er, a shaft seal (Key No. 4, Page 6) may become damaged
and must be replaced. The procedure as outlined below will
enable you to replace the seal.
NOTICE: These mechanical seals are supplied with either
a rubber seat ring or a sealing O-Ring. They are com-
pletely interchangeable.
NOTICE: The highly polished and lapped faces of this seal
are easily damaged. Read instructions and handle the seal
with care.
Some models are equipped with an impeller screw, which has
a left hand thread. Before unscrewing the impeller, remove
the impeller screw.

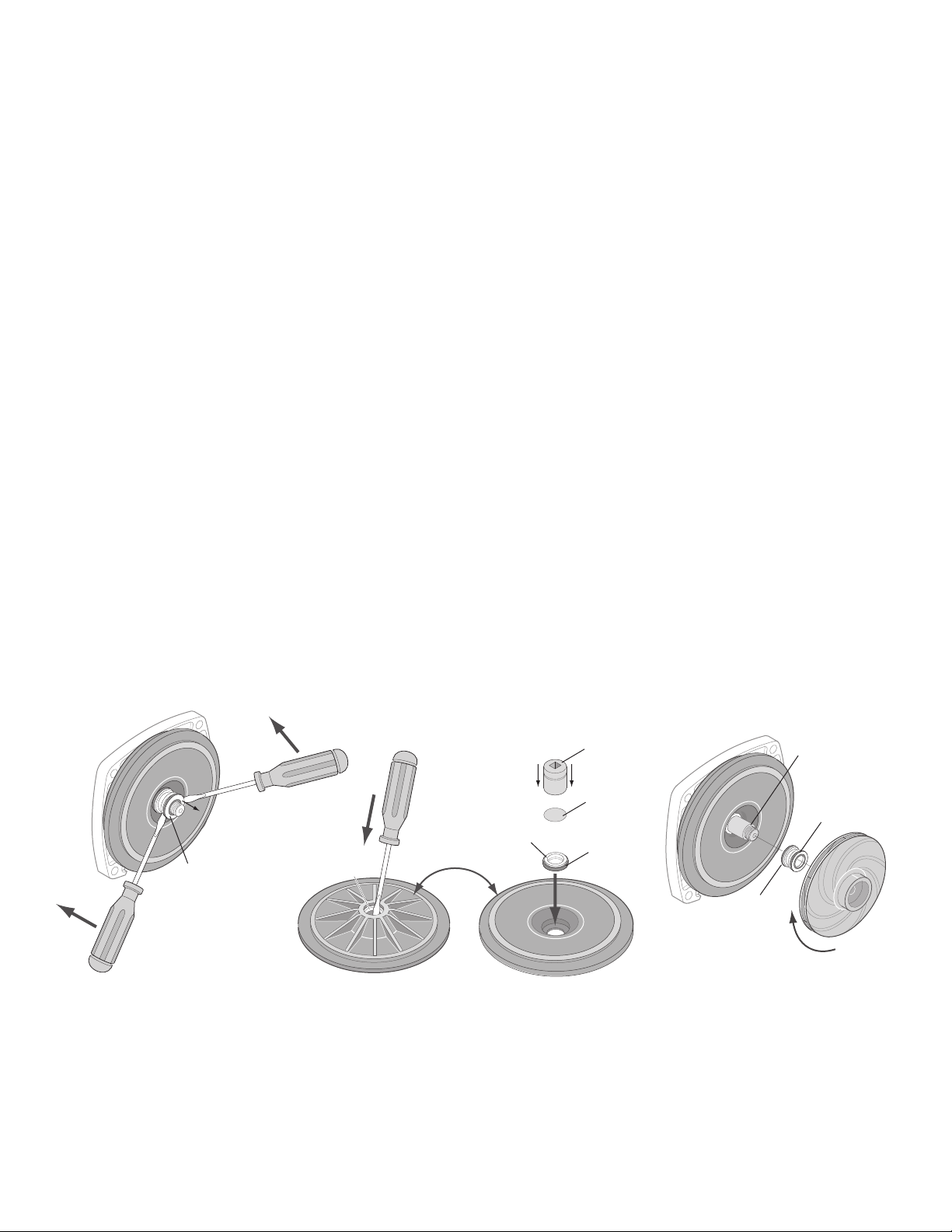

REMOVAL OF OLD SEAL
1. After unscrewing impeller (Key No. 5, Page 6), carefully
remove rotating part of seal by prying up on sealing wash-
er, using two screwdrivers (see Figure 4A). Use care not
to scratch motor shaft.
2. Remove seal plate (Key No. 3) from motor and place on
flat surface, face down. Use a screwdriver to push ceramic
seat out from seal cavity (see Figure 4B).
INSTALLATION OF FLOATING SEAT
(Figure 4C)
1. Clean polished surface of floating (ceramic) seat with
clean cloth.
2. Turn seal plate over so seal cavity is up; clean cavity thor-
oughly.
3. Lubricate outside rubber surface or O-Ring of ceramic
seat with soapy water and press firmly into seal cavity
with finger pressure. If seat will not locate properly in this
manner, place cardboard washer over polished face of
seat and press into seal cavity using a 3/4” socket or 3/4”
piece of standard pipe.
4. DISPOSE OF CARDBOARD WASHER. Be sure polished
surface of seat is free of dirt and has not been damaged
by insertion. Remove excess soapy water.
INSTALLATION OF ROTATING PART OF
SEAL UNIT (Figure 4D)
1. Reinstall seal plate using extreme caution not to hit ceram-
ic portion of seal on motor shaft.
2. Inspect shaft to make sure that it is clean.
3. Clean face of sealing washer with clean cloth.
4. Lubricate inside diameter and outer face of rubber drive
ring (see Figure 4D) with soapy water and slide assembly
on motor shaft (sealing face first) until rubber drive ring hits
shaft shoulder.
5. Screw impeller on shaft until impeller hub hits shaft
shoulder. This will automatically locate seal in place and
move the sealing washer face up against the facing seat.
Reinstall impeller screw (if used).
SERVICE

6
1
11
2
3
10
4
7
5A
5
6
8
9
9A
12
12A
11
1227T 0894
Stud Configuration
Capscrew Configuration
1
2
3
10
4
7
5A
5
6
9
9A
12
12A
8
1228T 0894
8A

7
REPAIR PARTS LIST – MEDIUM HEAD – NORYL®IMPELLER – TEFC MOTOR
MOTOR AND HORSEPOWER CP1MPS CP11/4XPS 1/2 HP 3/4 HP 1 HP 1-1/2 HP 2 HP Key Part No. 05CPM11T 07CPM11T 10CPM11T 15CPM11T 20CPM21T
No. Description Used 05CPM53T 07CPM53T 10CPM53T 15CPM53T 20CPM53T
1* Motor - 115/230V, 60 Cycle, Single Phase 1 A100CL-T A100DL-T A100EL-T A100FL-T – 1* Motor - 230V, 60 Cycle, Single Phase 1 – – – – AE100GL-T 1* Motor - 575V, 60 Cycle, Three Phase 1 J218-996AC J218-997AC J218-998AC J218-999AC J218-1000AC
2 Water Slinger 1 C69-2 C69-2 C69-2 C69-2 C69-2 3 Seal Plate 1 N3-8 N3-8 N3-8 C3-52 C3-52 4 Shaft Seal 1 U109-93SS U109-93SS U109-93SS U109-93SS U109-93SS 5 Impeller - Single Phase 1 J105-42PH J105-42PJ J105-42PP C105-114PC C105-114PNA 5 Impeller - Three Phase 1 J105-42PHA J105-42PJA J105-42PPA C105-114PCA C105-114PNA 5A Impeller Screw - Single Phase 1 – – – – C30-14 5A Impeller Screw - Three Phase 1 C30-20 C30-20 C30-20 C30-14 C30-14
6 Volute Assembly - Complete 1 – – – C201-123 C201-123 6 Volute Assembly - w/Wear Ring 1 C101-122E C101-122E C101-122 – – 7 Wear Ring (only) (1) N23-7 N23-7 N23-7 C23-19 C23-19 8 Studs - 3/8 - 16 x 2” Lg. (4) – – – U30-29 U30-29 9 Pipe Plug - 1/4” NPT (3) – – – U78-57CT U78-57CT 9A Drain Plug - 1/4” NPT (1) – – – U78-941ZPV U78-941ZPV 8 Capscrew - 3/8 - 16 x 1-1/2” Lg. 2 U30-76ZP U30-76ZP U30-76ZP – – 8A Capscrew - 3/8 - 16 x 1-1/4” Lg. 2 U30-75ZP U30-75ZP U30-75ZP – –
9 Pipe Plug - 1/4” NPT 3 U78-57CT U78-57CT U78-57CT – – 9A Drain Plug - 1/4” NPT 1 U78-941ZPV U78-941ZPV U78-941ZPV – –
10 Gasket - Volute 1 N20-26 N20-26 N20-26 C20-21 C20-21
11 Nuts - 3/8 - 16 Hex 4 – – – U36-38ZP U36-38ZP 12 Base 1 J4-9A J4-9A J4-9A J4-9A J4-9A
12A Motor Pad 1 C35-5 C35-5 C35-5 C35-5 C35-5
* For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate.

8
REPAIR PARTS LIST – MEDIUM HEAD – BRASS IMPELLER – TEFC MOTOR
MOTOR AND HORSEPOWER CB1MPS CB11/4XPS CB11/2XPS
1/2 HP 3/4 HP 1 HP 1-1/2 HP 2 HP 2-1/2 HP
Key Part No. 05CBM11T 07CBM11T 10CBM11T 15CBM11T No. Description Used 05CBM53T 07CBM53T 10CBM53T 15CBM53T 20CBM53T 25CBM53T 1* Motor - 115/230V, 60 Cycle, Single Phase 1 A100CL-T A100DL-T A100EL-T A100FL-T – –
1* Motor - 575V, 60 Cycle, Three Phase 1 J218-996AC J218-997AC J218-998AC J218-999AC J218-1000AC J218-1001AC
2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 N3-8 N3-8 N3-8 C3-52 C3-52 C3-52 4 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A U109-6A U109-6A
5 Impeller - Single Phase 1 J105-42CA J105-42BA J105-42HA C105-79 C105-73A C105-80BA 5 Impeller - Three Phase 1 J105-42CA J105-42BA J105-42HA C105-79 C105-73A C105-80BA 5A Impeller Screw - Single Phase 1 – – – – C30-14 C30-12 5A Impeller Screw - Three Phase 1 C30-20 C30-20 C30-20 C30-14 C30-14 C30-12
6 Volute Assembly - Complete 1 – – – C201-123 C201-123 C201-123B 6 Volute Assembly - w/Wear Ring 1 C101-122E C101-122E C101-122 – – –
7 Wear Ring (only) (1) N23-27 N23-27 N23-27 C23-19 C23-19 C23-19 8 Studs - 3/8 - 16 x 2” Lg. (4) – – – U30-29 U30-29 U30-29 9 Pipe Plug - 1/4” NPT (3) – – – U78-57CT U78-57CT U78-57CT 9A Drain Plug - 1/4” NPT (1) – – – U78-941ZPV U78-941ZPV U78-941ZPV 8 Capscrew - 3/8 - 16 x 1-1/2” Lg. 2 U30-76ZP U30-76ZP U30-76ZP – – –
8A Capscrew - 3/8 - 16 x 1-1/4” Lg. 2 U30-75ZP U30-75ZP U30-75ZP – – – 9 Pipe Plug - 1/4” NPT 3 U78-57CT U78-57CT U78-57CT – – –
9A Drain Plug - 1/4” NPT 1 U78-941ZPV U78-941ZPV U78-941ZPV – – – 10 Gasket - Volute 1 N20-26 N20-26 N20-26 C20-21 C20-21 C20-21
11 Nuts - 3/8 - 16 Hex 4 – – – U36-38ZP U36-38ZP U36-38C 12 Base 1 J4-9A J4-9A J4-9A J4-9A J4-9A J4-9A
12A Motor Pad 1 C35-5 C35-5 C35-5 C35-5 C35-5 C35-5
* For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate.

9
REPAIR PARTS LIST – HIGH HEAD – NORYL®IMPELLER – TEFC MOTOR
MOTOR AND HORSEPOWER CP1XPHS CP11/4TPHS CP11/2TPHS 1/2 HP 3/4 HP 1 HP 1-1/2 HP 2 HP 2-1/2 HP
05CPH11T 07CPH11T 10CPH11T 15CPH11T 20CPH21T 25CPH21T Key Part No. 05CPH53T 07CPH53T 10CPH53T 15CPH53T 20CPH33T 25CPH33T No. Description Used 20CPH53T 25CPH53T 1* Motor - 115/230V, 60 Cycle, Single Phase 1 A100CL-T A100DL-T A100EL-T A100FL-T – –
1* Motor - 230V, 60 Cycle, Single Phase 1 – – – – AE100GL-T AE100G5L-T
1* Motor - 230/460V, 60 Cycle, Three Phase 1 – – – – AP100GL-T AP100G5L-T
1* Motor - 575V, 60 Cycle, Three Phase 1 J218-996AC J218-997AC J218-998AC J218-999AC J218-1000AC J218-1001AC
2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 C3-1042P C3-1042P C3-1042P C3-1042P C3-181 C3-181
4 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A U109-93SS U109-93SS
5 Impeller - Single Phase 1 C105-92PN C105-92PM C105-92PL C105-92PB C105-214PCA C105-214PA 5 Impeller - Three Phase 1 C105-92PNA C105-92PMA C105-92PLA C105-92PBA C105-214PCA C105-214PA 5A Impeller Screw - Single Phase 1 – – – – C30-14 C30-14 5A Impeller Screw - Three Phase 1 C30-12 C30-12 C30-12 C30-12 C30-14 C30-14
6 Volute Assembly - Complete 1 C101-281E C101-281E C101-281E C101-281E C101-264E C101-264E 7 Wear Ring (only) (1) C23-27 C23-27 C23-27 C23-27 C23-19 C23-19 8 Capscrew - 3/8 - 16 x 1” ** 2 – – – – U30-74ZP U30-74ZP
8A Capscrew - 3/8 - 16 x 1-1/4” ** 2 U30-75ZP U30-75ZP U30-75ZP U30-104ZP U30-75ZP U30-75ZP
8 Capscrew - 3/8 - 16 x 1-1/2” 2 U30-76ZP U30-76ZP U30-76ZP U30-104ZP – – 9 Pipe Plug - 1/4” NPT (2) U78-57CT U78-57CT U78-57CT U78-57CT U78-57CT U78-57CT 9A Drain Plug - 1/4” NPT (1) U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
10 Gasket - Volute 1 C20-121 C20-121 C20-121 C20-121 C20-122 C20-122
12 Base 1 J4-9A J4-9A J4-9A J4-9A J4-9A J4-9A
12A Motor Pad 1 C35-5 C35-5 C35-5 C35-5 C35-5 C35-5 * For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate. ** Models 20CPH21T, 20CPH33T, 25CPH21T, 25CPH33T and 25CPH53T use (4) U30-104ZP Socket Head Capscrews.

10
REPAIR PARTS LIST – HIGH HEAD – BRASS IMPELLER – TEFC MOTOR
MOTOR AND HORSEPOWER CB1XPHS CB11/4TPHS CB11/2TPHS 1/2 HP 3/4 HP 1 HP 1-1/2 HP 2 HP 2-1/2 HP
05CBH11T 07CBH11T 10CBH11T 15CBH11T 20CBH21T 25CBH21T Key Part No. 05CBH53T 07CBH53T 10CBH53T 15CBH53T 20CBH33T 25CBH33T
No. Description Used 20CBH53T 25CBH53T
1* Motor - 115/230V, 60 Cycle, Single Phase 1 A100CL-T A100DL-T A100EL-T A100FL-T – – 1* Motor - 230V, 60 Cycle, Single Phase 1 – – – – AE100GL-T AE100G5L-T
1* Motor - 230/460V, 60 Cycle, Three Phase 1 – – – – AP100GL-T AP100G5L-T
1* Motor - 575V, 60 Cycle, Three Phase 1 J218-996AC J218-997AC J218-998AC J218-999AC J218-1000AC J218-1001AC
†2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 C3-1042P C3-1042P C3-1042P C3-1042P C3-181 C3-181
†4 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A U109-6A U109-6A
5 Impeller - Single Phase 1 C5-256BA C105-94B C5-254B C5-254BB C5-257BB C5-257B 5 Impeller - Three Phase 1 C5-256BA C105-256BAA C5-254BA C5-254BC C5-257BB C5-257B 5A Impeller Screw - Single Phase 1 – – – – C30-14 C30-14
5A Impeller Screw - Three Phase 1 C30-12 C30-12 C30-12 C30-12 C30-14 C30-14
6 Volute Assembly - Complete 1 C101-281E C101-281E C101-281E C101-281E C101-264E C101-264EB 7 Wear Ring (only) (1) C23-27 C23-27 C23-27 C23-27 C23-19 C23-19 8 Capscrew - 3/8 - 16 x 1” ** 2 – – – – U30-74ZP U30-74ZP 8A Capscrew - 3/8 - 16 x 1-1/4” ** 2 U30-75ZP U30-75ZP U30-75ZP U30-104ZP U30-75ZP U30-75ZP
8 Capscrew - 3/8 - 16 x 1-1/2” 2 U30-76ZP U30-76ZP U30-76ZP U30-104ZP U30-76ZP U30-76ZP 9 Pipe Plug - 1/4” NPT (3) U78-57CT U78-57CT U78-57CT U78-57CT U78-57CT U78-57CT 9A Drain Plug - 1/4” NPT (1) U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
†10 Gasket - Volute 1 C20-121 C20-121 C20-121 C20-121 C20-122 C20-122 12 Base 1 J4-9A J4-9A J4-9A J4-9A J4-9A J4-9A
12A Motor Pad 1 C35-5 C35-5 C35-5 C35-5 C35-5 C35-5
* For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate. ** Models 20CBH21T, 20CBH33T, 25CBH21T, 25CBH33T and 25CBH53T use (4) U30-104ZP Socket Head Capscrews. † Included in Seal and Gasket Kit.

11
TROUBLE - CAUSES AND REMEDY
TROUBLE AND CAUSE REMEDY
FAILURE TO PUMP
1. Pump not properly primed. 1. Make sure pump casing and suction line are full of water.
See priming instructions.
REDUCED CAPACITY AND/OR HEAD
1. Air pockets or leaks in suction line. 1. Check suction piping.
2. Clogged impeller. 2. Remove and clean.
PUMP LOSES PRIME
1. Air leaks in suction line. 1. Check suction piping
2. Excessive suction lift and operating 2. Move pump nearer to water level.
too near shut-off point.
3. Water level drops while pumping, 3. Check water supply. Add length of pipe to suction
uncovering suction piping. to keep submerged end under water.
MECHANICAL TROUBLES AND NOISE
1. Bent shaft and/or damaged bearings. 1. Take motor to authorized motor repair shop.
2. Suction and/or discharge piping not 2. See that all piping is supported to relieve strain
properly supported and anchored. on pump assembly.
Limited Warranty
BERKELEY warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material
and workmanship for the Warranty Period shown below.
Product Warranty Period
Water Systems:
Water Systems Products — jet pumps, small centrifugal pumps, submersible pumps and related accessories
whichever occurs first:
12 months from date of original installation, or
18 months from date of manufacture
Pro-Source®Composite Tanks 5 years from date of original installation
Pro-Source®Steel Pressure Tanks 5 years from date of original installation
Pro-Source®Epoxy-Lined Tanks 3 years from date of original installation
Sump/Sewage/Effluent Products 12 months from date of original installation, or
18 months from date of manufacture
Agricultural/Commercial:
Centrifugals – close-coupled motor drive, frame mount, SAE mount, engine drive, VMS, SSCX, SSHM,
solids handling, submersible solids handling
12 months from date of original installation, or
24 months from date of manufacture
Submersible Turbines, 6” diameter and larger 12 months from date of original installation, or
24 months from date of manufacture
Our limited warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper installation, or
improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase power through a phase converter will void the
warranty. Note also that three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of the recommended
size or the warranty is void.
Your only remedy, and BERKELEY’s only duty, is that BERKELEY repair or replace defective products (at BERKELEY’s choice). You must pay all labor and
shipping charges associated with this warranty and must request warranty service through the installing dealer as soon as a problem is discovered. No
request for service will be accepted if received after the Warranty Period has expired. This warranty is not transferable.
BERKELEY SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING LIMITED WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING LIMITED
WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an implied warranty, so the
above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and You may also have other rights which vary from state
to state.
This Limited Warranty is effective June 1, 2011 and replaces all undated warranties and warranties dated before June 1, 2011.
In the U.S.: BERKELEY, 293 Wright St., Delavan, WI 53115
In Canada: 269 Trillium Dr., Kitchener, Ontario N2G 4W5
