Pentair Berkeley SS1XN-1/2 User manual

293 WRIGHT STREET, DELAVAN, WI 53115 WWW.BERKELEYPUMPS.COM
PH: 888-782-7483
OWNER’S MANUAL
High Head Centrifugal Pump
© 2013 Pentair, Ltd. All Rights Reserved. BE495 (Rev. 03/21/13)
SSCX, SSCXS Series
Important
For best possible performance and continuous, satisfactory
operation, read these instructions before installing your new pump.
Should service be required, this manual can be a valuable guide. It
should be kept near the installation for ready reference.
HP Model Number ODP MOTORS TEFC MOTORS
115/230/60/1 208-230/460/60/3 115/230/60/1 208-230/460/60/3
1/2 SS1XN-1⁄2 B78635 B78636 B78647 B78648
3/4 SS1XN-3⁄4 B78637 B78638 B78649 B78650
3/4 SS1XS-3⁄4 B82411 B82412 B82413 B82414
1 SS1XN-1 B78639 B78640 B78651 B78652
1 SS1XS-1 B82415 B82416 B82417* B82418
1-1/2 SS1XN-11⁄2 B78641 B78642 B78653* B78654
1-1/2 SS1XS-11⁄2 B82419 B82420 B82421 B82422
2 SS11⁄4XN-2 B78643* B78644 B78655* B78656
2 SS1XS-2 B82423* B82424 B82425* B82426
2-1/2 SS11⁄4XN-21⁄2 B78645* B78646 B78657* B78658
2-1/2 SS1XS-21⁄2 B82427* B82428 B82429* B82430
* 230 Volt only.
3342 1198 ASB

Safety 2
Important Safety Instructions
SAVE THESE INSTRUCTIONS - This manual contains
important instructions that should be followed during
installation, operation, and maintenance of the product.
Save this manual for future reference.
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one of
the following signal words and be alert to the potential
for personal injury!
indicates a hazard which, if not avoided, will
result in death or serious injury.
indicates a hazard which, if not avoided,
could result in death or serious injury.
indicates a hazard which, if not avoided,
could result in minor or moderate injury.
NOTICE addresses practices not related to
personalinjury.
The manufacturer cannot anticipate every possible
circumstance that might involve a hazard. The warnings
in this manual, and the tags and decals affixed to the unit
are, therefore, not all-inclusive. If you use a procedure
or operating technique that the manufacturer does not
specifically recommend, you must satisfy yourself that it
is safe for you and others. You must also make sure that
the procedure or operating technique that you choose
does not render the system unsafe.
To avoid risk of serious bodily injury and property
damage, read and follow all safety instructions in this
manual and on equipment carefully before installing this
pump. Keep safety labels in good condition; replace if
missing or damaged.
Risk of explosion. The pump body
may explode if used to boost pressure above 100 psi
(689kPa). Do not use this pump with inlet pressure
greater than 70 psi (483 kPa). If not already in the
piping system, install a pressure relief valve in the pump
discharge line capable of passing the full pump flow at
100 psi (689 kPa). If local code requires installation of a
pressure relief valve capable of handling the full pump
flow at a pressure less than 100 psi (689 kPa), follow the
code requirements.
Risk of fire or explosion. To avoid risk of
fire and explosion, Pump Water Only with this pump. Do
not pump salt water, flammable liquids or chemicals. Do
not use the pump near gas pilot lights or where chemical
or gas fumes are present. Use of an electric pump with
liquids other than water or in an atmosphere containing
chemical or gas fumes may ignite those liquids or
gases and cause injury or death due to an explosion
and/orfire.
Burn hazard. If water is trapped in the
pump during operation it may turn to steam. Trapped
steam can lead to an explosion and burns. Never run the
pump with the outlet closed or obstructed.
California Proposition 65 Warning
This product and related accessories
contain chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm.

Warranty 3
Limited Warranty
BERKELEY warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free
from defects in material and workmanship for the Warranty Period shown below.
Product Warranty Period
Water Systems:
Water Systems Products — jet pumps, small centrifugal pumps, submersible pumps and
related accessories
whichever occurs first:
12 months from date of original installation, or
18 months from date of manufacture
Pro-Source™ Composite Tanks 5 years from date of original installation
Pro-Source™ Steel Pressure Tanks 5 years from date of original installation
Pro-Source™ Epoxy-Lined Tanks 3 years from date of original installation
Sump/Sewage/Effluent Products 12 months from date of original installation, or
18 months from date of manufacture
Agricultural/Commercial:
Centrifugals – close-coupled motor drive, frame mount, SAE mount, engine drive, VMS,
SSCX, SSHM, solids handling, submersible solids handling
12 months from date of original installation, or
24 months from date of manufacture
Submersible Turbines, 6” diameter and larger 12 months from date of original installation, or
24 months from date of manufacture
Our limited warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication,
improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase
power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg,
ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.
Your only remedy, and BERKELEY’s only duty, is that BERKELEY repair or replace defective products (at BERKELEY’s choice). You
must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing
dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has
expired. This warranty is not transferable.
BERKELEY SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING LIMITED WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. THE FOREGOING LIMITED WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION
PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an
implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and
You may also have other rights which vary from state to state.
This Limited Warranty is effective June 1, 2011 and replaces all undated warranties and warranties dated before June 1, 2011.
In the U.S.: BERKELEY, 293 Wright St., Delavan, WI 53115
In Canada: 269 Trillium Dr., Kitchener, Ontario N2G 4W5

Installation 4

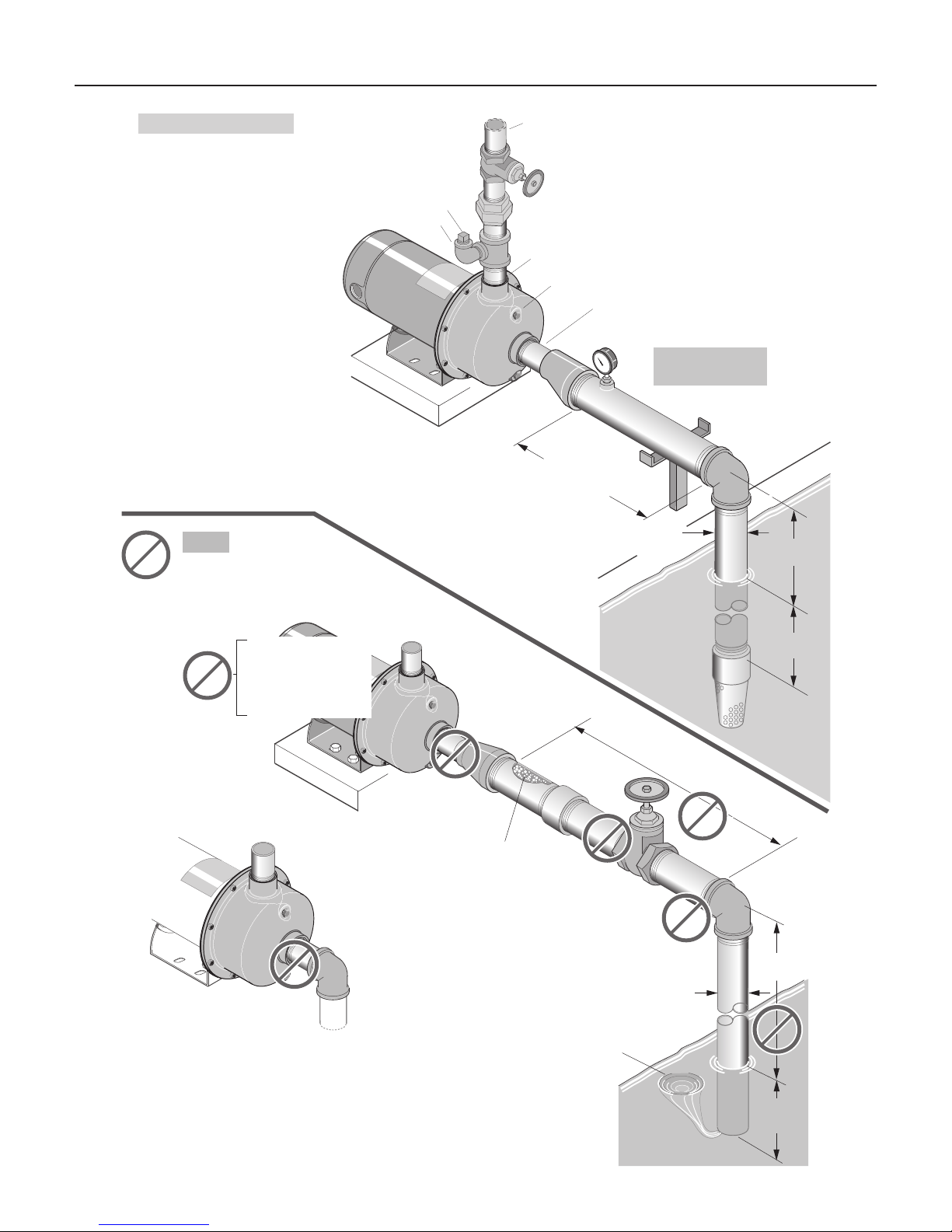

Support suction pipe
as required
Support discharge
pipe as required
As close
as possible
4 x "D"
minimum
Foot
Valve
Pipe diameter
"D"
Straight run, as short as possible
but at least 6 times pipe diameter ("D"),
sloping away from pump (pump inlet
is highest point).
Short length of
straight pipe
after reducer
Important:
All connections must
be air tight
Eccentric
Reducer
Solid, level
base
Gate
Valve
Union
Discharge
to service
Recommended pump suction
and discharge connections
Vent
Plug
Priming
Plug
Street Elbow
Not recommended
pump suction and
discharge connections
Elbow immediately
in front of pump
suction.
On the discharge avoid:
Quick closing valves.
Small I.D. pipe.
Numerous fittings.
Misalignment.
Sharp turns in piping run.
High
lift
Pipe diameter "D"
too small
Pipe submerged
less than 4 x "D"
will suck air
Long suction
run
Concentric
Reducer
Use of excess fittings
means potential
air leaks
Valve
Unsupported
Pipe
Concentric Reducer causes
high spots along the suction
line resulting in air pockets.
3343 1198
Do not rotate
discharge.
Figure 1
Figure 2

Installation 5
Piping - General
Support both suction and discharge piping independently
at a point near the pump to avoid putting a strain on the
pump housing. Start all piping AT THE PUMP.
Increase pipe diameter at both the suction and discharge
by one (1) standard pipe size (minimum) to obtain
desired performance and flow rate. Refer to Table I when
sizing pipe for your pumping system.
NOTICE Do not use pipe with smaller diameter on the
suction side of pump.
Table I
Pipe Tapping Size On Pump Recommended Pipe Size
Suction Discharge Suction Discharge
1-1/4 1 1-1/2 1-1/4
1-1/2 1-1/4 2 1-1/2
Suction Pipe
Increase pipe size from pump tapping as shown in
TableI.
Figure 1 depicts a recommended run of pipe and fittings
for the suction side of a centrifugal pump. Please refer to
this illustration when choosing pipe and fittings for your
suction connection.
NOTICE All connections must be air tight!
Figure 2 depicts conditions that are NOT DESIRABLE
on the suction side of a centrifugal pump and may
cause problems in flow rate and priming. Please look
this illustration over carefully before choosing pipe and
fittings for your suction connection.
Discharge Piping
Increase pipe size from pump tapping as shown in
TableI. Figure 1 depicts a recommended run of pipe and
fittings for the discharge. Install tee with priming plug
as close to pump as possible. Figure 2 notes conditions
that should be avoided. Please read over carefully before
making discharge connection.
Priming The Pump
A pump is primed when all air in the suction line
and pump volute has been evacuated and replaced
withwater.
To Prime:
1. Close valve in discharge line.
2. Remove priming plug from tee and fill pump and
suction line with water until water is flowing back
out of tee.
3. Replace priming plug.
4. Start pump and slowly open valve until desired water
flow is achieved.
NOTICE If no water is pumped after 5 minutes, turn
off pump, close valve, and repeat steps 1 thru 4.
Risk of explosion and scalding. Never run
pump against closed discharge. To do so can boil water
inside pump, causing hazardous pressure buildup and
possible explosion.
Risk of flooding. Can cause personal injury
and/or property damage. Do not run the pump dry. This
will damage mechanical seal and void warranty. It may
cause burns to person handling pump.
Risk of burns. Motor normally operates
at high temperature and will be too hot to touch. It is
protected from heat damage during operation by an
automatic internal cutoff switch. Before handling pump
or motor, stop motor and allow it to cool for 20 minutes.

Installation 6

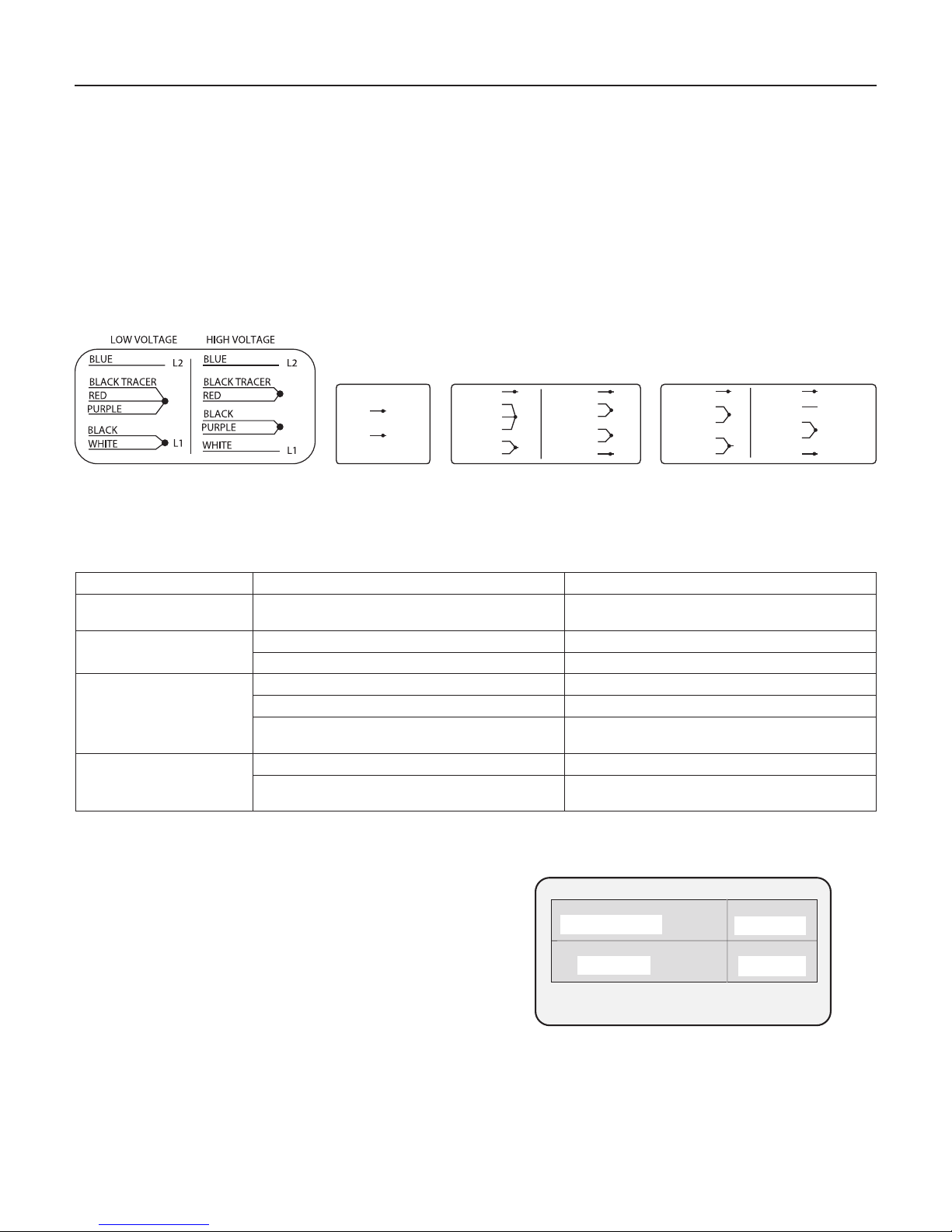

Connection Diagram For Dual Voltage,
Single-Phase Motors
Your dual-voltage motor’s terminal board (under the
motor end cover) will match one of the diagrams below.
Follow that diagram if necessary to convert motor to 115
Volt power. Connect power supply wires to L1 and L2.
For TEFC motors, see Figure 5.
For 3-phase motors, TEFC motors, and motors that do not
match these pictures, follow the connection diagram on
the motor nameplate, or in the connection box.
The motor is set for 230 volts when shipped.
To change the motor to use 115 volts:
1. Turn off power
2. Remove the back motor cover.
3. Use a 1/2” wrench to turn the voltage selector
dial counterclockwise until 115 shows in the
dialopening.
4. Reinstall the motor cover.
Wiring
Risk of electric shock. Can shock, burn
or kill. Disconnect power to motor before working on
pump or motor. Ground motor before connecting to
powersupply.
• Groundmotorbeforeconnectingtoelectricalpower
supply. Failure to ground motor can cause severe or
fatal electrical shock hazard.
• Donotgroundtoagassupplyline.
To avoid dangerous or fatal electrical shock,
turn OFF power to motor before working on
electricalconnections.
• Supplyvoltagemustbewithin±10%ofnameplate
voltage. Incorrect voltage can cause fire or damage
motor and voids warranty. If in doubt consult a
licensed electrician.
• UsewiresizespecifiedinTableII.Ifpossible,
connect pump to a separate branch circuit with no
other appliances on it.
• Wiremotoraccordingtodiagramonmotor
nameplate. If nameplate diagram differs from
diagrams above, follow nameplate diagram.
ODP Motors, Single Phase
1. Install, ground, wire and maintain your pump in
compliance with the National Electrical Code
(NEC) in the U.S., or the Canadian Electrical Code
(CEC), as applicable, and with all local codes and
ordinances that apply. Consult your local building
inspector for code information.
2. Provide a correctly fused disconnect switch for
protection while working on motor. For switch
requirements, consult your local building inspector
for information about codes.
3. Disconnect power before servicing motor or pump.
If the disconnect switch is out of sight of pump,
lock it open and tag it to prevent unexpected
powerapplication.
4. Ground the pump permanently using a wire of the
same size as that specified in wiring chart (Page 3).
Make ground connection to green grounding
terminal under motor canopy marked GRD. or .
5. Connect ground wire to a grounded lead in the
service panel or to a metal underground water pipe
or well casing at least 10 feet long. Do not connect
to plastic pipe or insulated fittings.
6. Protect current carrying and grounding conductors
from cuts, grease, heat, oil, and chemicals.
Figure 3: 230 Volt Setting
Figure 4: Motor Set for 115 Volt Operation

Installation 7
Table II - Recommended Fusing And Wiring Data - 60/50 Cycle Motors
Model Motor
Hp Voltage Max. Load Amperes
Branch Fuse*
Rating Amps
Distance In Feet From Motor To Meter
0’ To 100’ 101’ To 200’ 201’ To 300’ 301’ To 400’ 401’ To 500’
Wire Size
Single Phase - ODP Motors
SS1XN-1⁄2 1/2
115/230
9.9/4.95 15/15 14/14 10/14 10/14 6/14 6/12
SS1XN-3⁄4 3/4 12.4/6.2
20/15 12/14
8/14
6/12SS1XS-3⁄4 14.8/7.4
8/14
6/14
4/10
SS1XN-1 1
SS1XS-1 19.9/9.95 25/15
10/14 6/12
4/10
SS1XN-11⁄2 1-1/2
SS1XS-11⁄2 24.0/12.0 30/15
6/12 3/8
SS11⁄4XN-2 2
SS1XS-2
26.0/13.0 35/20 8/12 4/10SS11⁄4XN-21⁄2 2-1/2
SS1XS-21⁄2
Single Phase - TEFC Motors
SS1XN-1⁄2 1/2
115/230
8.2/4.1 15/15 14/14 12/14 10/14 8/14 8/12
SS1XN-3⁄4 3/4 11.6/5.8
20/15 10/14 8/14
6/14
6/12SS1XS-3⁄4 13.2/6.6 12/14 6/12
SS1XN-1 1
SS1XS-1
230
6.9
15 14
14
12
12
SS1XN-11⁄2 1-1/2
SS1XS-11⁄2 8.7
12 10
SS11⁄4XN-2 2
SS1XS-2
9.8 10SS11⁄4XN-21⁄2 2-1/2
SS1XS-21⁄2
Three Phase - ODP Motors
SS1XN-1⁄2 1/2
230/460
2.3/1.15
15 14/14
14/14
SS1XN-3⁄4 3/4 3.1/1.55
SS1XS-3⁄4 3.6/1.8
SS1XN-1 1
SS1XS-1 4.7/2.35
SS1XN-11⁄2 1-1/2
SS1XS-11⁄2 6.8/2.4
12/14
SS11⁄4XN-2 2
SS1XS-2
8.5/4.25SS11⁄4XN-21⁄2 2-1/2
SS1XS-21⁄2
Three Phase - TEFC Motors
SS1XN-1⁄2 1/2
208-230/460
2.2/1.1
15 14/14
14/14
SS1XN-3⁄4 3/4 2.9/1.45
SS1XS-3⁄4 3.6/6.8
SS1XN-1 1
SS1XS-1 4.8/2.4
SS1XN-11⁄2 1-1/2
SS1XS-11⁄2 6.0/3.0
SS11⁄4XN-2 214/14
12/14
SS1XS-2
7.0/3.5 12/14SS11⁄4XN-21⁄2 2-1/2
SS1XS-21⁄2
*Time delay fuse or circuit breakers are recommended in any motor circuit.

Installation • Troubleshooting 8
7. Connect current carrying conductors to terminals L1
and L2 under motor canopy. When replacing motor,
check wiring diagram on motor nameplate against
Figure 3. If the motor wiring diagram does not match
either diagram in Figure 3, follow the diagram on the
motor.
NOTICE 115/230 Volt single phase models are
shipped from factory with motor wired for 230 volts.
If power supply is 115 volts, remove motor canopy
and reconnect motor for 230 volts. Do not try to run
motor as received on 115 volt current.
8. Motor has automatic internal thermal overload
protection. If motor has stopped for unknown
reasons, thermal overload may restart it
unexpectedly, which could cause injury or property
damage. Disconnect power before servicing motor.
9. If this procedure or the wiring diagrams are
confusing, consult a licensed electrician.
Ordering Replacement Parts:
Locate the Berkeley nameplate on pump. This plate is
normally on the pump case or bracket. (Seal Plate). A
typical nameplate is shown in Figure 6.
To be sure of receiving correct parts, provide all
nameplate data when ordering. B.M. (Bill of Material)
number is most important.
Write the nameplate information below, as nameplates
can become worn or lost.
Model: _________________________________
S.N. or Date: _________________________________
Impeller Dia.: _________________________________
B.M. _________________________________
Figure 5:Wiring connection diagram for 115/230V Dual Voltage and 230V Single Voltage TEFC motors. Follow either
diagram if wire colors do not match.
BLUE
LOW VOLTAGESINGLE 230 V HIGH VOLTAGELOW VOLTAGE HIGH VOLTAGE
BLACK TR.
RED
BLACK
PURPLE
WHITE
BLUE L2
L2
L1
LINE
LINE
L1
L2
L1
BLACK TR.
RED
BLACK
PURPLE
WHITE
YEL/BLK
BROWN
ORANGE
WHITE
YELLOW
YEL/BLK
BROWN
ORANGE
INSULATE
NON
REVERSIBLE
WHITE
YELLOW
L2
L1
L2
L1
Troubleshooting
Symptom Possible Cause(s) Corrective Action
Failure to pump. Pump not properly primed. Make sure pump casing and suction line are full of water. See
priming instructions.
Reduced capacity and/or head. Air pockets or leaks in suction line. Check suction piping.
Clogged impeller. Remove and clean.
Pump loses prime.
Air leaks in suction line. Check suction piping.
Excessive suction lift and operating too near shut-off point. Move pump nearer to water level.
Water level drops while pumping, uncovering suction piping. Check water supply. Add length of pipe to suction to keep
submerged end under water.
Mechanical troubles and noise.
Bent shaft and/or damaged bearings. Take motor to authorized motor repair shop.
Suction and/or discharge piping not properly supported and
anchored.
Confirm that all piping is supported to relieve strain on pump
assembly.
MODEL S.N. OR DATE
IMPELLER DIA. B.M.
199 0993
Provide all nameplate data when
ordering repair parts.
Example only
B51516
G100893
B2XQKLS-3
4-19/32"
Figure 6 - Example nameplate

Maintenance 9
Pump Service
This centrifugal pump requires little or no service
other than reasonable care and periodic cleaning.
Occasionally, however, a shaft seal may become
damaged and must be replaced. The procedure as
outlined below will enable you to replace the seal.
NOTICE Pumps use mechanical seals with a rubber
seat ring or a sealing O-Ring. THESE SEALS ARE
COMPLETELY INTERCHANGEABLE.
NOTICE The highly polished and lapped faces of this
seal are easily damaged. Read instructions and handle
the seal with care.
Some models are equipped with an impeller screw,
which has a left hand thread. Before unscrewing the
impeller, remove the impeller screw.
Removal of Old Seal
1. After unscrewing impeller, carefully remove rotating
part of seal by prying up on sealing washer, using
two screwdrivers (see figure 7A). Use care not to
scratch motor shaft.
2. Remove seal plate from motor and place on flat
surface, face down. Use a screwdriver to push
ceramic seat out from seal cavity (see figure 7B).
Installation of Floating Seat
1. Clean polished surface of floating seat with clean
cloth (figure 7C).
2. Turn seal plate over so seal cavity is up, clean
cavitythoroughly.
3. Lubricate outside rubber surface of ceramic seat with
soapy water and press firmly into seal cavity with
finger pressure. If seat will not locate properly in this
manner, place cardboard washer over polished face
of seat and press into seal cavity using a 3/4” socket
or 3/4” piece of standard pipe.
4. Dispose of cardboard washer. Be sure polished
surface of seat is free of dirt and has not been
damaged by insertion. Remove excess soapy water.
Installation of Rotating Part of Seal
1. Reinstall seal plate (figure 7D) using extreme caution
not to hit ceramic portion of seal on motor shaft.
2. Inspect shaft to make sure that it is clean.
3. Clean face of sealing washer with clean cloth.
4. Lubricate inside diameter and outer face of rubber
drive ring with soapy water and slide assembly on
motor shaft (sealing face first) until rubber drive ring
hits shaft shoulder.
5. Screw impeller onto shaft until impeller hub hits
shaft shoulder. This will automatically locate seal in
place and move the sealing washer face up against
seat facing. Reinstall impeller screw (if used).
Seal Plate
Mechanical seal
rotating half
Mechanical seal
ceramic seat
A-Seal removal-rotating half B-Seal removal-ceramic seat C-Ceramic seat installation D-Rotating half installation
T
u
r
n
o
v
e
r
Polished
surface Rubber
surface
Cardboard
washer
(supplied w/seal)
3/4" socket
or pipe
Rubber drive
ring
Sealing
Face Impeller
3344 1198
Shaft
shoulder
Figure 7: Seal replacement

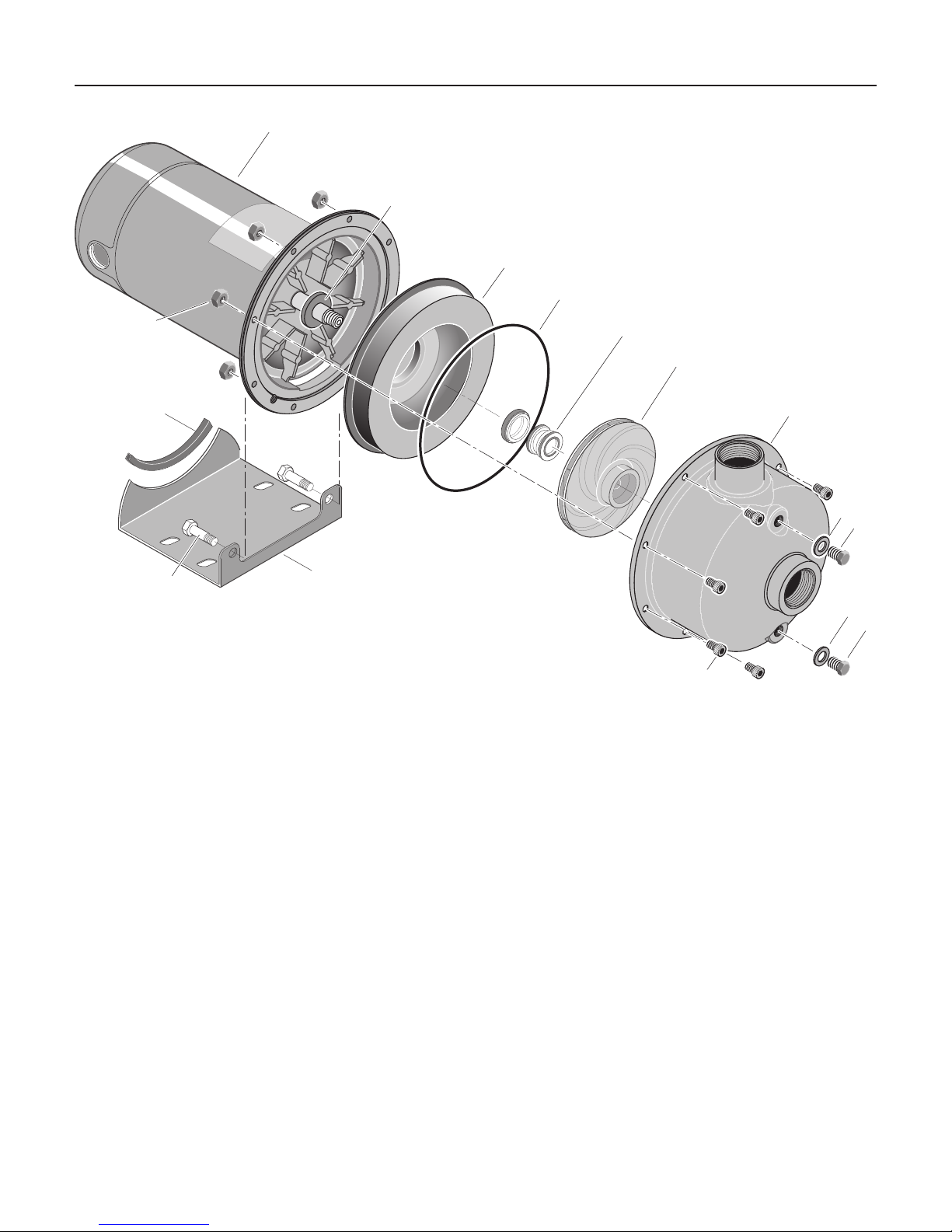

Repair Parts 10
1
12
10
12A
13
2
3
4
7
9
8
9
8
6
5
3342 1198
11
SSCX Series

Repair Parts 11
Motor and Horsepower SS1XN-1⁄2 SS1XN-3⁄4 SS1XN-1 SS1XN-11⁄2 SS11⁄4XN-2 SS11⁄4XN-21⁄2
B78635 B78647 B78636 B78648
B78637 B78649 B78638 B78650
B78639 B78651 B78640 B78652
B78641 B78653 B78642 B78654
B78643 B78655 B78644 B78656
B78645 B78646 B78657 B78658
B80427†
B80428††
B80429†
B80430††
Ref. Description Qty. 1/2 HP 3/4 HP 1 HP 1-1/2 HP 2 HP 2-1/2 HP
1*
Motor, 115/230V/60 Hz., 1 Phase, ODP 1 B80440 B80441 B80442 B80443 B80444 B80445
Motor, 115/230V/60 Hz., 1 Phase, TEFC 1 B80452 B80453 B80454 B80455 B80456 B80457
Motor, 208-230/460V/60 Hz., 3 Phase, ODP 1 B80446 B80447 B80448 B80449 B80450 B80451
Motor, 230/460V/60 Hz., 3 Phase, TEFC 1 B80458 B80459 B80460 B80461 B80462 B80463
2Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009
3Seal Plate 1 C3-200SS C3-200SS C3-200SS C3-200SS C3-200SS C3-200SS
4 O-Ring** 1 111P0490 111P0490 111P0490 111P0490 111P0490 111P0490
5Shaft Seal*** 1 U109-6A U109-6A U109-6A U109-6A U109-6A U109-6A
6Impeller - 1 Phase 1 C105-92PNS C105-92PMS C105-92PLS C105-92PBSS C105-214PCASS C105-214PASS
Impeller - 3 Phase 1 C105-92PNSA C105-92PMSA C105-92PLSA C105-92PBSSA C105-214PCASS C105-214PASS
•Impeller Screw - 1 Phase 1 – – – – C30-14SS C30-14SS
Impeller Screw - 3 Phase 1 C30-14SS C30-14SS C30-14SS C30-14SS C30-14SS C30-14SS
7Casing/Diffuser Assembly 1 723S2990 723S2990 723S2990 723S2990 723S3370 723S3370
8 Washer 2 111P0990 111P0990 111P0990 111P0990 111P0990 111P0990
9Stainless Steel Plug 2 121P3780 121P3780 121P3780 121P3780 121P3780 121P3780
10 Screw 8 121P0310 121P0310 121P0310 121P0310 121P0310 121P0310
11 Nut, M6x1 8 U36-207SS U36-207SS U36-207SS U36-207SS U36-207SS U36-207SS
12 Base 1 J104-9F J104-9F J104-9F J104-9F J104-9F J104-9F
Base (1 Phase, TEFC only) 1 J104-9A J104-9A J104-9A J104-9A J104-9A J104-9A
12A Motor Pad 1 C35-5 C35-5 C35-5 C35-5 C35-5 C35-5
13 Capscrews, 3/8-16x3/4” 2 U30-72SS U30-72SS U30-72SS U30-72SS U30-72SS U30-72SS
* For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate. ** Models B80427, B80428, B80429 and B80430 use Part Number U9-434. *** Models B80427 and B80428 use Shaft Seal Number U109-432SS.
Models B80429 and B80430 use Shaft Seal Number U9-437. † These models use Motor Number B80445. †† These models use Motor Number B80451. • Notillustrated.

Repair Parts 12
1
12
10
12A
13
2
3
4
7
9
8
9
8
6
5
3342 1198
11
SSCXS Series

Repair Parts 13
Motor and Horsepower SS1XS-3⁄4 SS1XS-1 SS1XS-11⁄2 SS1XS-2 SS1XS-21⁄2
B82414 B82413 B82412 B82411
B82418 B82417 B82416 B82415
B82422 B82421 B82420 B82419
B82426 B82425 B82424 B82423
B82430 B82429 B82428 B82427
Ref. Description Qty. 3/4 HP 1 HP 1-1/2 HP 2 HP 2-1/2 HP
1
Motor, 115/230V/60 Hz., 1 Phase, ODP 1 B80442 B80443 B80444 B80445 B80445 Motor, 115/230V/60 Hz., 1 Phase, TEFC 1 B80454 B80455 B80456 B80447 B80447 Motor, 208-230/460V/60 Hz., 3 Phase, ODP 1 B80448 B80449 B80450 B80451 B80451 Motor, 230/460V/60 Hz., 3 Phase, TEFC 1 B80460 B80461 B80462 B80463 B80463
2Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 3Seal Plate 1 C3-200SS C3-200SS C3-200SS C3-200SS C3-200SS 4 O-Ring 1 U9-434 U9-434 U9-434 U9-434 U9-434 5Shaft Seal* 1 U109-196A U109-196A U109-196A U109-196A U109-196A 6 Impeller 1 731S6230 731S6220 731S6210 731S6200 731S6190
•Impeller Screw - 1 Phase 1 – – – C30-14SS C30-14SS
Impeller Screw - 3 Phase 1 C30-14SS C30-14SS C30-14SS C30-14SS C30-14SS
7Casing/Diffuser Assembly 1 723S2990 723S2990 723S2990 723S2990 723S2990 8 Washer 2 111P0990 111P0990 111P0990 111P0990 111P0990 9Stainless Steel Plug 2 121P3780 121P3780 121P3780 121P3780 121P3780
10 Screw 8 121P0310 121P0310 121P0310 121P0310 121P0310 11 Nut, M6x1 8 U36-207SS U36-207SS U36-207SS U36-207SS U36-207SS 12 Base 1 J104-9F J104-9F J104-9F J104-9F J104-9F
Base (1 Phase, TEFC only) 1 J104-9A J104-9A J104-9A J104-9A J104-9A
12A Motor Pad 1 C35-5 C35-5 C35-5 C35-5 C35-5
13 Capscrews, 3/8-16x3/4” 2 U30-72SS U30-72SS U30-72SS U30-72SS U30-72SS
* Models B82413, B82414, B82417, B82418, B82421, B82422, B82425, B82426, B82429, B82430 use Part Number U9-437. •Notillustrated.

This page intentionally left blank

This page intentionally left blank
