Pentair ISO PRO User manual

ISO PRO
ISO 5199 Standard
Centrifugal Pumps
Installation, Operation and Maintenance Manual
These instructions must be read prior to installing, operating, using and maintaining
this equipment.

3
ISO PRO Centrifugal Pump
CONTENTS
SECTION 1
SECTION 2
SECTION 3
SECTION 4
SECTION 5
SECTION 6
SECTION 7
SECTION 8
Introduction and Safety .................................................. 4
Pump Construction ......................................................... 9
Pump Lubrication ...........................................................13
Transport and Storage ...................................................15
Installation ......................................................................18
Commissioning and Operation .................................... 24
Maintenance and Servicing .......................................... 28
Pump Troubleshooting ................................................. 37
INSTALLATION, OPERATION
AND MAINTENANCE MANUAL

4
Section 1................................................................Introduction and Safety
ISO PRO Centrifugal Pump
1. GENERAL
Pentair Southern Cross is committed to continual quality improvement. We are available at your
service to answer any technical question and provide further information about the product relating to
its Installation, Operation, Repair and Fault diagnostic services.
The instructions in this manual are intended to provide relevant information to the installer and
operator to work with the product. Operating the product in compliance with these instructions is
important to help ensure reliability in service and avoid risks.
Local regulations are not accounted for in these instructions. Ensure such local regulations are
observed by all, including those installing the product. Always coordinate repair activity with operations
personnel, and follow all plant safety requirements and applicable safety and health laws and
regulations.
2. DISCLAIMER
The information in this manual is considered to be reliable. In spite of all the efforts made by Pentair
Southern Cross to provide relevant information, not all circumstances can be accounted for. The
content in this manual may appear insufcient in some areas. Contact Pentair Southern Cross for
more information relating to your specic application if need be.
Pentair Southern Cross products are manufactured in compliance with ISO9001:2008 International
Quality Management System Standard. Parts and Accessories have been designed, tested and
incorporated into the products to help ensure their continued product quality and performance in
use. Use of Non-Pentair Southern Cross supplied parts and accessories may adversely affect the
performance and safety features of the products. Failure to properly select, install or use authorized
Pentair Southern Cross parts and accessories is considered as misuse.
Damage or failure caused by misuse is not covered by Pentair Southern Cross warranty. In addition,
any unauthorized modication to Pentair Southern Cross products or removal of original components
may impair the safety of these products in their use and will be unwarrantable.
3. PERSONNEL QUALIFICATION AND TRAINING
All personnel involved in the operation, installation, inspection and maintenance of the unit must
be qualied to carry out the work involved. If the personnel in question do not already possess the
necessary knowledge and skill, appropriate training and instruction must be provided.
Always coordinate repair activity with operations and health and safety personnel, and follow all plant
safety requirements and applicable safety and health laws and regulations.
These instructions must always be kept close to the product’s
operating location or directly with the product.

5
Section 1................................................................Introduction and Safety
ISO PRO Centrifugal Pump
4. SUMMARY OF SAFETY MARKINGS
This document contains specic safety markings relating to various user instructions. The specic
safety markings are:
A symbol to indicate safety instructions where non-compliance would affect personal
safety and could result in loss of life.
A symbol to indicate electrical safety instructions where non-compliance would affect
personal safety and could result in loss of life.
A symbol to indicate explosive atmosphere marking. It is used in safety instructions
where non-compliance in the hazardous area would cause the risk of an explosion.
A symbol to indicate safety instructions where non-compliance will involve some risk
to safe operation and personal safety and would damage the equipment or property.
A symbol to indicate “hazardous and toxic uid” safety instructions where non-
compliance would affect personal safety and could result in loss of life.
This sign indicates a Critical Instruction the Installer / Operator need to consider and
follow.

6
Section 1................................................................Introduction and Safety
ISO PRO Centrifugal Pump
5. MANDATORY SAFETY ACTION
DRAIN THE PUMP AND ISOLATE PIPEWORK BEFORE DISMANTLING THE PUMP
The appropriate safety precautions should be taken where the pumped liquids are hazardous.
NEVER DO MAINTENANCE WORK WHEN THE UNIT IS CONNECTED TO POWER
ENSURE CORRECT LUBRICATION
HAZARDOUS LIQUIDS
When the pump is handling hazardous liquids care must be taken to avoid exposure to the liquid
by appropriate setting of the pump, limiting personnel access and by operator training. If the
liquid is ammable and/or explosive, strict safety procedures must be applied.
Gland packing must not be used when pumping hazardous liquids.
START THE PUMP WITH OUTLET VALVE PARTLY OPENED
This is recommended to minimise the risk of overloading and damaging the pump and motor at
full or zero ow. The pump outlet control valve may need to be adjusted to comply with the duty
following the run-up process. (See section 5, Commissioning start-up, operation and shutdown.)
NEVER RUN THE PUMP DRY
INLET VALVES TO BE FULLY OPEN WHEN PUMP IS RUNNING
Running the pump at zero ow or below the recommended minimum ow continuously will cause
damage to the pump itself and to the seal. Restriction of suction may cause cavitation resulting in
damage to the pump.
PREVENT EXCESSIVE EXTERNAL PIPE LOAD
Do not use pump as a support for piping. Pipe supports and expansion couplings recommended.
DO NOT RUN THE PUMP AT ABNORMALLY HIGH OR LOW FLOW RATES
Operating at a ow rate higher than normal or at a ow rate with no back pressure on the pump
may overload the motor and cause cavitation. Low ow rates may cause a reduction in pump/
bearing life, overheating of the pump, instability and cavitation/ vibration.
HANDLING COMPONENTS
Many precision parts have sharp corners and the wearing of appropriate safety gloves and
equipment is required when handling these components. To lift heavy pieces above 25 kg (55 Ib)
use a crane appropriate for the mass and in accordance with current local regulations.
GUARDS MUST NOT BE REMOVED WHILE THE PUMP IS OPERATIONAL
The unit must not be operated unless coupling guard is in place. Failure to observe this warning
could result in injury to operating personnel.
THERMAL SHOCK
Rapid changes in the temperature of the liquid within the pump can cause thermal shock, which
can result in damage or breakage of components and should be avoided.
DO NOT APPLY HEAT TO REMOVE IMPELLER
Trapped lubricant or vapor could cause an explosion.

7
Section 1................................................................Introduction and Safety
ISO PRO Centrifugal Pump
6. SAFE NOISE LEVEL
ISO PRO pump noise level is dependent on a number of factors – the type of driver used, the
operating conditions, pipe-work design and acoustic characteristics of the building. The below table is
a guide to calculating the noise level for a pump unit with any given driver.
Approximate Noise Level Table
Driver Sound Level dB(A) Correction For Unit - Add to motor noise level dB(A)
60 - 64 12.0
65 - 69 10.0
70 - 74 8.0
75 - 79 6.5
80 - 84 5.0
85 - 89 4.0
If pump unit noise level exceeds 85 dBA attention must be given to prevailing Health and Safety
Legislation, to limit the exposure of plant operating personnel to the noise. The usual approach is
to control exposure time to the noise or to enclose the machine to reduce emitted sound. You may
have already specied a limiting noise level when the equipment was ordered, however if no noise
requirements were dened then machines above a certain power level will exceed 85 dBA. In such
situations consideration must be given to the tting of an acoustic enclosure to meet local regulations.
7. LEAKAGE PREVENTION
The pump must only be used to handle liquids for which it has been approved to have the correct
corrosion resistance. Avoid entrapment of liquid in the pump and associated piping due to closing of
suction and discharge valves, which could cause dangerous excessive pressures to occur if there is
heat input to the liquid. This can occur if the pump is stationary or running.
Bursting of liquid containing parts due to freezing must be avoided by draining or protecting the pump
and ancillary systems.
8. SAFETY NOTE
a. Read the instruction manual before installation, operation and maintenance of the equipment.
Check and conrm that the manual is relevant copy by comparing pump type on the nameplate and
with that on the manual.
b. The products supplied by Pentair Southern Cross have been designed with safety in mind. Where
hazards cannot be eliminated, the risk has been minimized by the use of guards and other design
features. Some hazards cannot be guarded against and the instructions below must be complied
with for safe operation. These instructions cannot cover all circumstances; You are responsible for
using safe working practices at all times.
c. Pentair Southern Cross products are designed for installation in designated areas, which are to
be kept clean and free of obstructions that may restrict safe access to the controls and maintenance

8
Section 1................................................................Introduction and Safety
ISO PRO Centrifugal Pump
access points. A Pump Duty Nameplate is tted to each unit and must not be removed. Loss of
this plate could make identication impossible. This in turn could affect safety and cause difculty in
obtaining spare parts.
d. Access to the equipment should be restricted to the personnel responsible for installation, operation
and maintenance of pump unit, adequately qualied and supplied with appropriate tools for their
respective tasks.
e. Pentair Southern Cross requires that, all personnel that are responsible for installation, operation or
maintenance of the equipment, have access to and study the product instruction manual before
any work is done and that they will comply with all local and industry based safety instructions and
regulations.
f. Hearing protection should be worn where the specied equipment noise level exceeds locally
dened safe levels. Safety glasses or goggles should be worn when working with pressurised
systems and hazardous substances. Other personnel protection equipment must be worn where
local rules apply.
g. Do not wear loose clothing or jewelry which could catch on the controls or become trapped in the
equipment.
h. Note the ‘Limits of product application – permissible use’ specied in the manual.
i. Operation of the equipment beyond these limits will increase the risk from hazards noted below and
may lead to premature and hazardous pump failure.
j. Clear and easy access to all controls, gauges and dials etc., must be maintained at all times.
Hazardous or ammable materials must not be stored in pump rooms unless safe areas or racking
and suitable containers have been provided.
k. Improper Installation, Operation or Maintenance of this Pentair Southern Cross Product could result
in Injury or Death.

9
Section 2.......................................................................Pump Construction
ISO PRO Centrifugal Pump
1. CONFIGURATIONS
Southern Cross ISO-PRO is a single stage, horizontal, end suction process pump with overhung
impeller and radially split casing. ISO-PRO is fully Compliant with ISO 5199. The range is designed for
continuous service in clean water pumping applications.
2. NOMENCLATURE AND NAME PLATE
A typical example of a Southern Cross Pump Name Plate is shown below.
2.1 Serial Number
The pump serial number is stamped on the name plate as shown above. A typical serial number is
described below.
2.2 Pump Size
2.3 Impeller Diameter (mm)
Actual outside diameter of the impeller in millimeters (if blank, the impeller is full-size)
Form No. QF-035
Date
Issue No. 03
eg:- 03K2010A03
01 to 31 A = January 2010 A = Toowoomba 3rd pump
B = February P = Perth assembled on this day
C = March etc
2. Size
eg:- 60x40-315
eg:- 310
eg:- MHB15C-F Starline
"Item Code" of pump (from work order)
PRHG3A ISO PRO
PSFA1A ISO Sovereign
AUSGD2E AUS ISO
eg:- CZ5CMW Materials pump constructed from
C Z 5 C M W X
29/05/2013
Actual outside diameter of the impeller in millimetres (If blank,
the impeller is full-size)
1. Serial Number
3. Impeller Diameter (mm)
4. Model
5. Construction Code
CENTRIFUGAL PUMP SPECIFICATION PLATE
Su flange
nominal bore
X
Discharge flange
nominal bore
-
Impeller nominal
outside diameter
STARLINE
AUS ISO
ISO SOV
ISO PRO
Day of Month
03 K2010 A 03
Month Year Assembly Loca on Pump Series Number
Casing/Backplate
C - Cast Iron
S - 316 Stainless
Z - Zinc Free Bronze
N - Ni Resist
A - ADI
M - SGI (Malleable)
P - Alum Bronze
R - 2RK65
X - Exotic Material
Impeller Material
C - Cast Iron
S - 316 Stainless
Z - Zinc Free Bronze
N - Ni Resist
A - ADI
M - SGI (Malleable)
P - Alum Bronze
R - 2RK65
X - Exotic Material
Shaft Material
2 - 420 Stainless
3 - 316 Stainless
4 - 431 Stainless
5 - 316 Cast Stainless
6 - SAF2205
X - Exotic Material
Seal Type
C - Nitrile Mech. Seal
V - Viton Mech. Seal
E - Empty Pack Gland
P - Packed Gland
H - Hard Faced Seal
S - Single Cartridge Seal
D - Double Cartridge Seal
X - Special
Bearing Type
G - Grease Lubed
M - Motor Pump
O - Oil Lubed
P - Prepacked
Wear Rings
W - Wear Rings Fitted
Leave blank if none fitted)
Bearing Housing
X - Denotes Mk2 bearing
housing of 2013
(leave blank for older housing)
03K2013A03
65X40-315
310
MHB15C-F CZ5CMW
03K2013A06
100X65-250
200
AUSGD2BE CZ2CPX
03K2013A09
50X32-200
180
PSFA1ACC4CPX
03K2013A01
150X125-315
304
PRHG3A CC4XOWX
bar
bar
bar
bar

10
Section 2.......................................................................Pump Construction
ISO PRO Centrifugal Pump
2.4 Model
“Item Code” of pump (from work order)
2.5 Construction Code
This code denes construction material of various components in the pump.
3. DESIGN OF MAJOR PARTS
3.1 Pump Casing (All Pump Types)
The Casing type is Foot Mounted, ISO vertical, Centerline, End Suction, Top Discharge, one piece
solid construction. A wear ring may be mounted in the casing to provide a close running clearance with
the impeller Neck ring.
3.2 Impeller (All Models)
The impeller is a single suction, radial / Mixed ow, closed design. The impeller is dynamically
balanced, keyed to the shaft. Renewable Neck rings can be press t onto the impeller hubs (front and
back) where needed. Double curvature impeller blades, provide highly efcient suction performance,
higher speed capabilities and greater performance for reduced running costs and maintenance.
Impeller is taper mounted and keyed to shaft and secured by Lock Washer and Impeller nut for
positive locking.
3.3 Lock Washer (All Pump Types)
Lock washers are assembled between impeller and impeller nut. These Lock washers are
manufactured by Nord-Lock. NORD-LOCK is a pair of washers with a wedge-locking action meeting
DIN 25201 which is a unique method using tension instead of friction. The NORD-LOCK bolt securing
system uses geometry to safely lock impeller onto the pump shaft.
3.4 Shaft (All Pump types)
The shaft is made of high grade stainless steel. It is precision machined over its entire length and has
generous llet radii at each change of section to reduce stress concentrations. Water slinger prevents
intrusion of pumped uid into shaft bearing.
3.5 Heavy Duty Bearing Housing
The pump has positively located dual bearings.
Form No. QF-035
Date
Issue No. 03
eg:- 03K2010A03
01 to 31 A = January 2010 A = Toowoomba 3rd pump
B = February P = Perth assembled on this day
C = March etc
2. Size
eg:- 60x40-315
eg:- 310
eg:- MHB15C-F Starline
"Item Code" of pump (from work order)
PRHG3A ISO PRO
PSFA1A ISO Sovereign
AUSGD2E AUS ISO
eg:- CZ5CMW Materials pump constructed from
C Z 5 C M W X
29/05/2013
Actual outside diameter of the impeller in millimetres (If blank,
the impeller is full-size)
1. Serial Number
3. Impeller Diameter (mm)
4. Model
5. Construction Code
CENTRIFUGAL PUMP SPECIFICATION PLATE
Su flange
nominal bore XDischarge flange
nominal bore
-
Impeller nominal
outside diameter
STARLINE
AUS ISO
ISO SOV
ISO PRO
Day of Month
03 K2010 A 03
Month Year Assembly Loca on Pump Series Number
Casing/Backplate
C - Cast Iron
S - 316 Stainless
Z - Zinc Free Bronze
N - Ni Resist
A - ADI
M - SGI (Malleable)
P - Alum Bronze
R - 2RK65
X - Exotic Material
Impeller Material
C - Cast Iron
S - 316 Stainless
Z - Zinc Free Bronze
N - Ni Resist
A - ADI
M - SGI (Malleable)
P - Alum Bronze
R - 2RK65
X - Exotic Material
Shaft Material
2 - 420 Stainless
3 - 316 Stainless
4 - 431 Stainless
5 - 316 Cast Stainless
6 - SAF2205
X - Exotic Material
Seal Type
C - Nitrile Mech. Seal
V - Viton Mech. Seal
E - Empty Pack Gland
P - Packed Gland
H - Hard Faced Seal
S - Single Cartridge Seal
D - Double Cartridge Seal
X - Special
Bearing Type
G - Grease Lubed
M - Motor Pump
O - Oil Lubed
P - Prepacked
Wear Rings
W - Wear Rings Fitted
Leave blank if none fitted)
Bearing Housing
X - Denotes Mk2 bearing
housing of 2013
(leave blank for older housing)
03K2013A03
65X40-315
310
MHB15C-F CZ5CMW
03K2013A06
100X65-250
200
AUSGD2BE CZ2CPX
03K2013A09
50X32-200
180
PSFA1ACC4CPX
03K2013A01
150X125-315
304
PRHG3A CC4XOWX
bar
bar
bar
bar

11
Section 2.......................................................................Pump Construction
ISO PRO Centrifugal Pump
Heavy duty roller bearings:
This pump is tted with heavy duty roller bearings running in oil lubricated housing with oil inger.
Housing is tted with breather and oil level plug and drain plugs. Available options include:
• Fitting deep groove grease nipple lubricated, regreasable bearings
• Oil coolers
• Labyrinth shaft seals
Positively located dual bearings:
These ISO-Pro Pumps are tted with positively located dual bearings at motor end and with a roller
bearing at pump end. These bearings are oil lubricated. Available options include:
• Fitting deep groove grease lubricated bearings, either sealed for life or grease nipple lubricated
• Oil coolers
• Labyrinth shaft seals
3.6 Pump Shaft Seals
As a standard, ISO-PRO Pumps are tted with single, unbalanced, on-shaft mechanical seal.
Other seal options are available but are not limited to:
• Single balanced Mechanical Seal
• Single Balanced cartridge seals
• Double Balanced cartridge seals
• Packed Gland Seals
External clean water ushing and cooling can be supplied for high temperature, abrasive or toxic
applications.
3.7 Driver
The driver is normally an electric motor. Different drive congurations may be tted such as internal
combustion engines, turbines, hydraulic motors etc driving via couplings, belts, gearboxes etc.
Upon customer request, Southern Cross ISO-PRO pumps maybe supplied
with an empty shaft seal cavity to allow the dealer/customer to t a seal to suit
a particular application. It is important that the shaft seal is tted according
to the manufacturer’s instructions. In the case of a packed gland, the gland
needs to be adjusted so a slow drip of water is evident when the pump is
operating. A drain hole is provided in the bearing housing (below the seal
cavity) for use with a packed gland.
If the gland in the pump is to be lubricated with water from the pump body,
ensure the plug (A) is tted and the passage from the pump body to the seal
cavity is clear. If the pump gland is to be lubricated from an external water
supply, plug (B) must be tted. Ensure passage from seal cavity to external
water supply is clear before connecting water supply line.

12
Section 2.......................................................................Pump Construction
ISO PRO Centrifugal Pump
3.8 Coupling and Coupling guards
The pump unit may be supplied with one type of the below three coupling:
Flexible Shaft Coupling – standard
Flexible Shaft Coupling - spacer
Flexible Tyre Coupling
Flexible couplings are provided in various makes and models to suit customer preference. Refer to the
relevant manufacturers Installation, Operation and Maintenance manual for coupling information.
As a standard, galvanised steel Guards and end shields are provided for safety.
3.9 Baseplate
Standard baseplates are made of Mild-steel plates folded galvanized. Non standard bases can be
supplied to suit individual installation circumstances.
3.10 Accessories
Accessories may be tted when specied by the customer at additional cost.
4. PERFORMANCE AND OPERATING LIMITS
This product has been selected to meet the specications of your purchase order. These pumps
are furnished for a particular service condition only. Changes in the hydraulic system or Operating
Condition may affect the pump’s performance adversely. This is especially true if the changes reduce
the pressure at the suction ange or if the liquid temperature is increased. Contact Pentair Southern
Cross if there is a major change in the operating conditions to verify existing pumps’ adequacy.

13
Section 3.........................................................................Pump Lubrication
ISO PRO Centrifugal Pump
1. PUMPS FITTED WITH OIL LUBRICATED BEARINGS
1.1 Oil Specication
HOUSING
MODULE
OIL LUBE OIL SPECIFICATION
QTY (ml)
Preferred oils are those that have non foaming properties.
Typically, turbine or hydraulic oils would be suitable.
Viscosity of SAE20 to SAE30 (ISO VG 46 to 100).
Automotive oils would be suitable in light duty cycles.
1 450 Light Duty - Less than 8 hours/day or intermittent
Tellus 46 or 68, or Turbo T46 or T68.
2 800 Heavy Duty - Greater than 8 hours/day or continuous
Tellus 68, Turbo T68 or Madrella AS68.
3 1200 High Temperature - 100 to 150 degrees Celsius
Turbo GT32 or Madrella AS68.
4 2300 Low Temperature - Less than 10 to -30 degrees Celsius
Refrigerator Oil 68K.
Bearing housing temperature should not exceed 80 degrees Celsius in normal circumstances. Where
higher temperatures are noted, use an oil of lower viscosity.
When pumping product of elevated temperature, it may be advisable to have oil cooling tted to
maintain an acceptable bearing housing temperature.
Consult dealer for maximum operating speeds
1.2 Change interval
TYPE OF SERVICE HOURS OF SERVICE
LIGHT DUTY Change oil after 2000 hours service
HIGH TEMPERATURE Change oil after 1000 hours service
HEAVY DUTY Change oil after 1000 hours service
1.3 Notes
• While Shell brand oils have been specied, equivalent oils manufactured by any reputable oil
company are suitable alternatives.
• When changing oil, inspect for metal particles or other foreign matter, and for any signs of
discolouration.
• The oils listed should not be taken as the only suitable oils. Any good quality oil possessing the
properties specied may be used.
• It is never good practise to mix different oils.
1.4 Maximum angle of Incline
ISO PRO pumps should be run in the horizontal position. However, some applications require that
the pump be run on an incline. For a standard oil lubricated pump, it is recommended that the pump
angle not exceed 5° from the horizontal. If the application requires a greater angle of incline, Pentair
Southern Cross recommend the use of regreasable bearings.
2. PUMPS FITTED WITH REGREASABLE BEARINGS

14
Section 3.........................................................................Pump Lubrication
ISO PRO Centrifugal Pump
2.1 Grease Specication
Recommended grease type is Shell Alvania R3 or an equivalent high quality Lithium-based grease.
2.2 Change interval
Grease replenishment intervals (running hours) specied below are relevant to a pump running at
70°C Operating temperature and 1450rpm.
BEARING HOUSING HOURS GREASE QTY (g)
Group 1 6000 10
Group 2 4500 14
Group 3 3700 19
Group 4 3000 26

15
Section 4..................................................................Transport and Storage
ISO PRO Centrifugal Pump
1. GOODS RECIEVING, UNPACKING AND INSPECTION
Check Equipment against delivery / shipping documents for its completeness. Check for any damages
caused due to transport. If any damage is found it should be reported to the carrier immediately.
Any shortage and/or damage must be reported immediately to Pentair Southern Cross and must be
received in writing within one month of receipt of the equipment. Later claims cannot be accepted.
Check any crate, boxes or wrappings for any accessories or spare parts that may be packed
separately with the equipment or attached to side walls of the box or equipment.
Inspect the preservative coating on various parts. If necessary, renew preservative in areas where it
has been rubbed or scraped.
Inspect all painted surfaces. If necessary, touch up the areas where paint has been chipped or
scraped. Paints and preservatives used are either Pentair Southern Cross standard or ‘special’ as
required by the contract specication. Refer to Pentair Southern Cross for the description of paints and
preservatives used on this order if needed.
Inspect all covers over pump openings and piping connections. If covers or seals for the covers are
damaged or lose, they are to be removed, and a visual inspection made of the accessible interior
areas for accumulation of foreign materials or water. If necessary, clean and preserve the interior parts
as noted above to restore the parts to the “as shipped” condition. Install or replace covers and fasten
securely.
2. HANDLING
Boxes, crates, pallets or cartons may be unloaded using fork-lift vehicles or slings dependent on their
size and construction.

16
Section 4..................................................................Transport and Storage
ISO PRO Centrifugal Pump

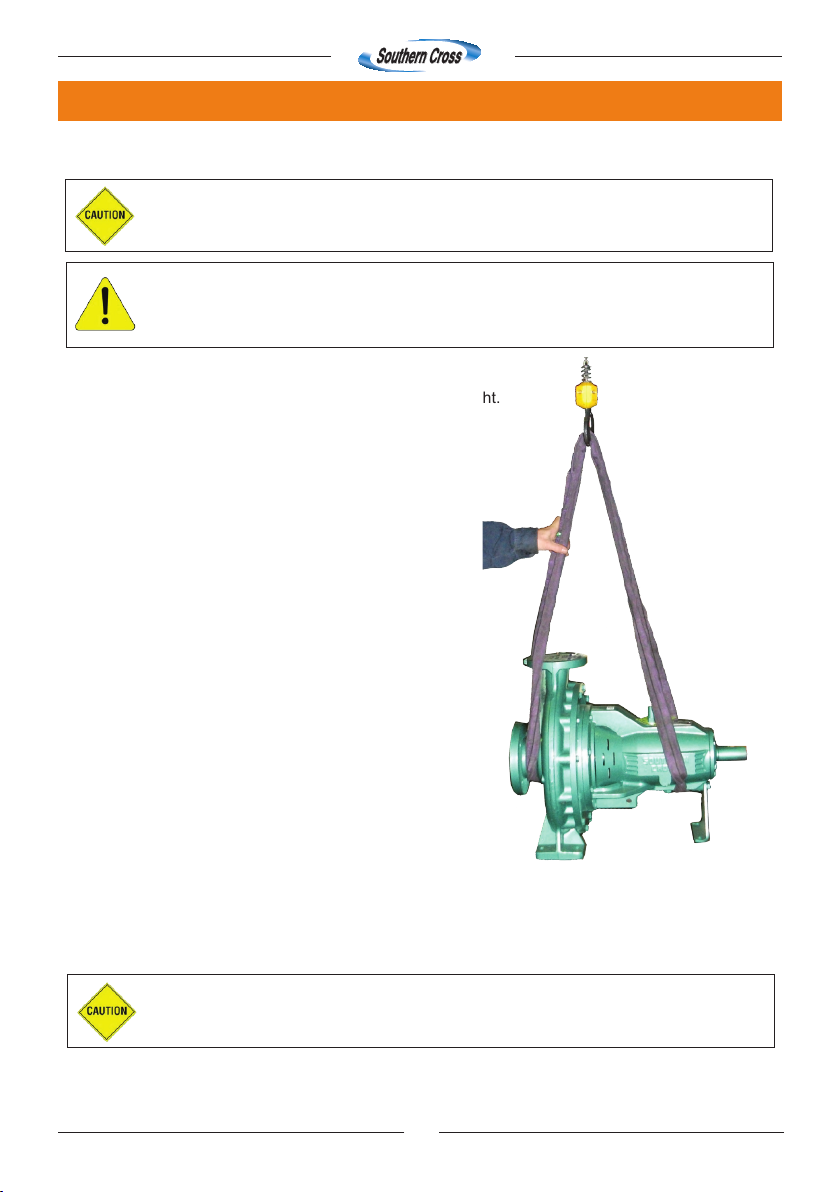

3. LIFTING
3.1 To Lift Complete Pump Only
Make sure the lifting equipment is rated to lift the pump weight.
Use certied slings and chains only. Rig lifting sling below
discharge ange as shown in the gure.
3.2 To Lift unit with Folded Base-Plate
Pump, driver and base-plate can be lifted as a unit. Sling
the unit from the eyelets provided in the base. Make sure
straps are adjusted to obtain an even lift.
3.3 To Lift Unit with Welded Base-Plate
Pump, driver and base-plate can be lifted as a unit. Sling from all four (4) eye bolts provided on base-
plate side rails. Failure to use all four (4) could result in permanent distortion of the base-plate. Use as
long a sling as possible, or use a spreader arrangement.
3.4 To Lift Driver
Refer to Manufacturer’s Instructions.
Coupling bolting and spacer piece must be removed from between pump and driver
half couplings before lifting base-plate with pumping element.
Mechanical Lifting device must be used for all pump sets in excess of 25 kg. Fully
trained personnel must carry out lifting, in accordance with local regulations. The
driver and pump weights are recorded on general arrangement drawing included into
the job user’s instruction.
Make sure that any equipment used to lift the pump or any of its components is
capable of supporting the weights encountered. Make sure that all parts are correctly
rigged before attempting to lift.

17
Section 4..................................................................Transport and Storage
ISO PRO Centrifugal Pump
4. STORAGE
Store the pump in location away from vibration and Dampness
4.1 Short Term Storage (Maximum 6 months)
If at all possible, the pump and its component parts should be stored indoors where they will be
protected from the elements. In no case should any pump element be subjected to extended periods
of submergence or wetting prior to start up. If it is not possible to store the pump and its components
indoors, precautions must be taken to protect them from the elements. Regardless of whether storage
is indoors or outside, the storage area should be vibration free. All boxes marked for indoor storage
should be stored indoors. When stored outdoors the pump and its components should be protected
from dirt, dust, rain, snow, or other unfavorable conditions by heavy plastic sheets, canvas, or other
suitable coverings. All equipment must be placed upon skids or blocks to prevent contact with the
ground and surface contaminants. Equipment must be adequately supported to prevent distortion and
bending. The pump shaft should be rotated, in the direction of rotation, at least 1 and 1/4 turns each
week during the storage period and any other periods of standby.
4.2 Long Term Storage
Depending on the length of time the equipment has been stored, and the type of storage provided
(i.e. Indoor: heated, unheated, earth oor, concrete oor. Outdoors: under roof, no roof, waterproof
coverings, on concrete, on earth), the pump will require a full inspection before the scheduled
installation date. This could include a visual inspection, partial or even a full dismantling of the
equipment. This should be carried out by qualied personnel, or a Pentair Southern Cross
representative. Dismantling the equipment may require the replacement of gaskets and seals. All
costs involved during the inspection, dismantling, replacement of parts and reassembly will be at
the expense of the customer. All necessary labour, tools and cranes required will be supplied by the
customer.
5. PACKAGING
Goods are packed for Interstate Land Transport only unless otherwise specied in the contract. If
transporting the goods overseas from buyers’ location, they should be repacked appropriately.
Store the pump in a clean, dry location away from vibration.
Leave piping connection covers in place to keep foreign
material out of pump casing. Turn pump at intervals to
prevent brinelling of the bearings and seal faces, if tted, from
sticking. Electric Motors (Pump Driver) should not be stored
in damp places without special protection (Refer to Motor
manufacturers instructions). The pump may be stored as
above for up to 6 months.

18
Section 5....................................................................................Installation
ISO PRO Centrifugal Pump
1. SAFETY INSTRUCTIONS FOR ASSEMBLY & INSTALLATION
• Do not place ngers or hands etc., into the suction or discharge pipe outlets and do not touch the
impeller, if rotated this may cause severe injury. To prevent ingress of any objects, retain the
protection covers or packaging in place until removal is necessary for installation.
• Do not touch any moving or rotating parts. Guards are provided to prevent access to these parts.
Where they have been removed for maintenance they must be replaced before operating the
equipment.
• Failure to support suction and delivery pipe work may result in distortion of the pump casing, with the
possibility of early pump failure.
2. LOCATION
• Install the unit close to the source of the liquid to be pumped.
• When selecting the location, be sure to allow adequate space for operation as well as for
maintenance operations involving dismantling and inspections of parts.
• Head room is an important consideration as an overhead lift of some type is required.
3. PART ASSEMBLIES
It is the responsibility of the installer to ensure that the motor is assembled to the pump and lined up.
4. FOUNDATION
The foundation should be level and sufciently rigid and substantial to prevent any pump vibration
and to permanently support the baseplate at all points. The most satisfactory foundations are made of
reinforced concrete. These should be poured well in advance of the installation to allow sufcient time
for drying and curing.
CHECK ALIGNMENT
Prior to grouting, an initial alignment check in accordance with the alignment section
of this document shall be performed to verify that coupling spacing and nal alignment
can be achieved without modifying the hold down bolts or the machine feet. This is
necessary to ensure that the baseplate was not damaged during the transportation.
PUMP INSTALLATION AND FOUNDATION
There are many methods of installing pump units to their foundations. The correct
method depends on the size of the pump unit, its location and noise vibration
limitations. Non-compliance with the provision of correct foundation and installation
may lead to failure of the pump and, as such, would be outside the terms of the
warranty.

19
Section 5....................................................................................Installation
ISO PRO Centrifugal Pump
5. INITIAL ALIGNMENT
Shaft alignment must be checked again after the nal positioning of the pump unit and connection to
pipe work, as this may have disturbed the pump or motor mounting positions. If hot liquids (above 80
Deg C) are being pumped, alignment should be checked and reset with the pump and motor at their
normal operating temperature.
5.1 Alignment Methods
Correct alignment is essential for the smooth operation of the pump. There are two types of
misalignment between the pump shaft and the drive shaft, which are:
Angular misalignment - Shaft with axis
concentric, but not parallel
Parallel misalignment - Shaft axis parallel, but
not concentric

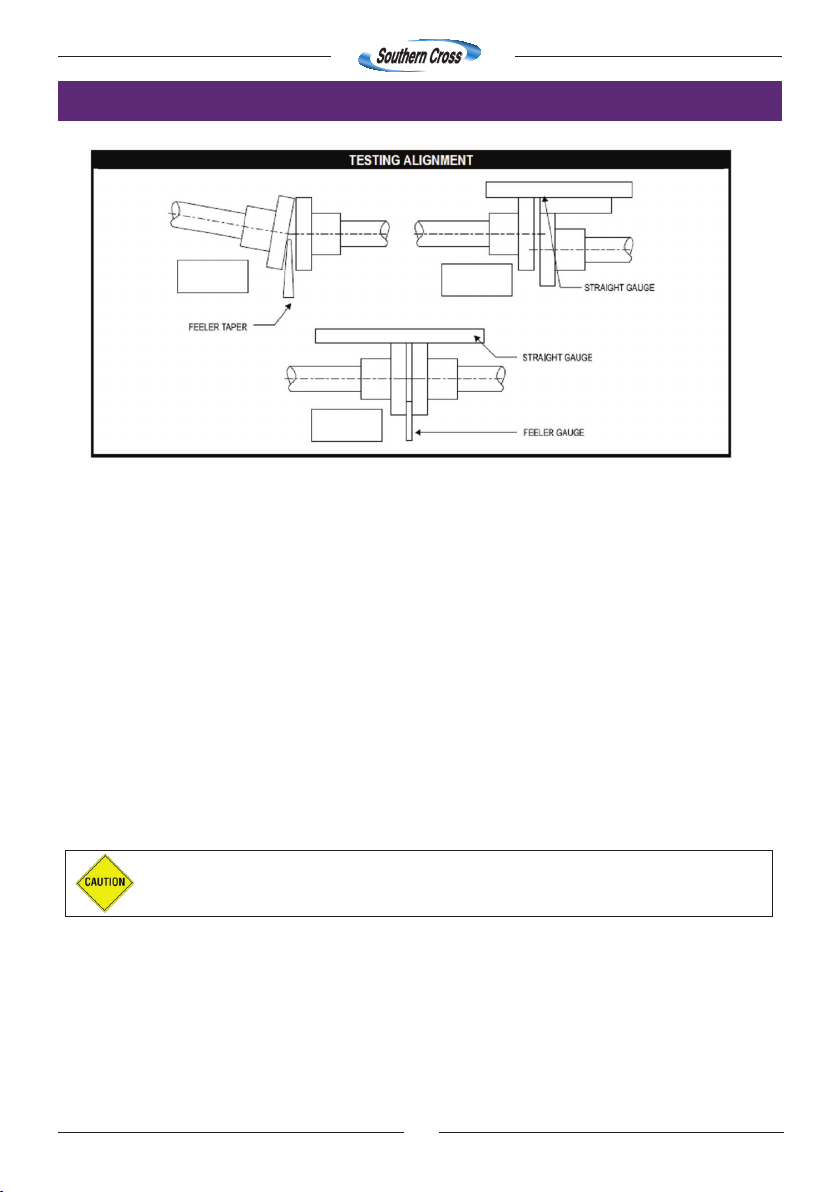

This misalignment is checked by using a straight edge or any other device as shown in gure given
below. A spacer type exible coupling is used to connect pump shaft to the driver. By using spacer
type of coupling, the complete rotating unit can be removed from the volute without removing pump
casing or rotor and without disconnecting piping connections. However other types of coupling can be
supplied on request.
Ensure pump and driver are isolated electrically and the half couplings are
disconnected
Align the motor to the pump, not the pump to the motor
PUMP ALIGNMENT AND THERMAL EXPANSION
The pump and motor will normally have to be aligned at ambient temperature and
should be corrected to allow for thermal expansion at operating temperature.
Adjustment to correct the alignment in one direction may alter the alignment in another
direction. Always check in all directions after making any adjustment.
ALWAYS REMEMBER “A FLEXIBLE COUPLING IS NOT A UNIVERSAL JOINT”

20
Section 5....................................................................................Installation
ISO PRO Centrifugal Pump
The alignment is achieved by adding or removing shims under the motor feet and also moving the
motor horizontally as required. In some cases where the alignment cannot be achieved it will be
necessary to move the pump before recommencing the above procedure.
5.2 Shims
The shims between the equipment feet and mounting surface should be clean and dry. This is
especially critical for pumps in service for some time and need to be realigned. Water, dirt and rust
may change the height of the shim pack over a period of time. Shims should be made large enough
to support the weight of the equipment on its mounting foot. Do not use many thin shims as this may
result in a spongy mounting. Move the equipment vertically by adding or removing the calculated
thickness of shims.
6. ASSEMBLE COUPLING
a) Assemble coupling as per the manufacturer’s instructions.
b) Install coupling guard
7. PIPING
7.1 Piping Good Practice
a) In order to minimise friction losses and hydraulic noise in the pipework it is a good practice to
choose pipework that is one or two sizes larger than the pump suction and discharge.
b) Typically main pipework velocities should not exceed 2 m/s suction and 3 m/s on the discharge.
7.2 Suction Piping
a) The inlet pipe should be one or two sizes larger than the pump inlet bore and pipe bends should be
as large radius as possible.
b) Double bends must be avoided in suction line and a straight run of pipe, equal to 8 or 10 times the
CORRECT
ALIGNMENT
ANGULAR
MISALIGNMENT PARALLEL
MISALIGNMENT
DO NOT USE PUMP AS A SUPPORT FOR PIPING
