Pentair NOCCHI SSH User manual

SSH
IT - ISTRUZIONI ORIGINALI IN LINGUA ITALIANA
1PAGE 33PAGE 49 65 81 97PAGE PAGE PAGE PAGED E NL RUSF17PAGEENIT

17
SUMMARY
CHAPTER DESCRIPTION PAGE
1GENERAL INFORMATION
1.1 Documentation supplied 18
1.2 Ownership of information 18
1.3 Machine identification data 18
1.4 EC compliance declaration 18
1.5 General safety information 19
1.6 Conventions 21
1.7 Recommended use 21
1.8 Non recommended use 22
1.9 Warranty 23
1.10 Assistance 23
1.11 How to use the documentation supplied 23
2 DESCRIPTION 2.1 Description 23
2.2 Technical characteristics 24
3 INSTALLATION
3.1 Lifting 24
3.2 Transportation 24
3.3 Storage 25
3.4 Preliminary inspections 25
3.5 Preparation of the installation site 25
3.6 Installations 27
4OPERATION
4.1 Priming 28
4.2 Start-up 29
4.3 Checking the frequency of starts and stops 30
5 MAINTENANCE
5.1 Lubrication 30
5.2 Temporary disabling 30
5.3 Periodical inspection 30
5.4 Extraordinary maintenance 31
6 OPERATING PROBLEMS Table 31
7 DEMOLITION 7.1 Machine disabling 32
7.2 Residual risks after disabling 32
- PRODUCT SPECIFICATION - 113
- GARANZIA - 116
GB

18
1.3 MACHINE IDENTIFICATION DATA
1.4 EC COMPLIANCE DECLARATION
MACHINE CODE DESCRIPTION
DHR Horizontal multi-stage centrifugal electropump.
4- Rated flow rate m3/h
50 Number of stages x 10
1.1.1 MANUAL
GENERAL INFORMATION
CHAPTER 1
This manual is addressed to the operators responsible for operating the machine during all the technical stages of its life.
CONTENTS
• Manufacturer’s declaration
• Safety information
• Commercial information
• Information on documentation
• Machine description
• Transportation information
• Storage information
• Installation information
• Information on adjustments
• Operational information
• Maintenance information
• Dismantling information
This manual contains the following information:
• Chapter 1: General information
• Chapter 2: Description
• Chapter 3: Installation
• Chapter 4: Operation
• Chapter 5: Maintenance
• Chapter 6: Operating problems
• Chapter 7: Dismantling
• Appendix: Product specifications
Le informazioni sono suddivise nei seguenti capitoli e appendici di questo manuale:
1.2 OWNERSHIP OF INFORMATION
The information contained in this manual is property of PENTAIR INTERNATIONAL Sarl.
It is forbidden to reproduce in whole or in part this manual without the explicit authorisation of PENT AIR INTERNATIONAL Sarl.
The information contained in this manual is related only to the machines indicated in section “Product Specifications”.
PENTAIR INTERNATIONAL reserves the right to make the changes deemed necessary to the machines not listed in the
“Machine identification data”.
See page 2
1.1 DOCUMENTATION SUPPLIED
GB

19
Failure to follow the safety procedures and precautions contained in the documentation supplied shall relieve PENTAIR
INTERNATIONAL from all liability thereof.
NOTE
Users should always follow the accident prevention laws in force in the country
where the product is installed.
WARNNG
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
DANGER
1.5 GENERAL SAFETY INFORMATION
Do not service, install or move the electropump while it is powered, because these operations can cause serious
accidents or even death.
DANGER
Before repairing or servicing the electropump, disconnect it from the socket and/or turn the main switch to Off (when
present) to interrupt the power supplied to the electropump. This prevents the electropump from accidentally restarting
and from causing accidents to people and/or damages to the people.
DANGER
Before using the electropump, always check that the cable and all electric devices are efficient, shielded and protected.
When starting the electropump (by inserting the plug into the socket and/or turning the main switch to on), always wear
shoes and make sure that the hands are dry.
DANGER
It is advisable to carefully follow the instructions contained in this manual with specific reference to notes, warnings and danger
signs.
During operation, do not remove or move the electropump.
WARNNG
DANGER
GB

20
1.5.1 PERSONNEL QUALIFICATIONS
Qualification and protection limits established for operators
PENTAIR INTERNATIONAL shall not be liable for accidents if the machine is used from non qualified or unauthorised
personnel and originating from the failure to follow the instructions contained in this manual and present on the
machine board.
NOTE
The machine operates in safety conditions if it is used by qualified personnel in accordance with the instructions and
information contained in this manual and present on board.
All the operations referred to in this manual should be performed by qualified personnel equipped with the protection
means described in this manual.
DANGER
GB
OPERATOR QUALIFICATION RECCOMENDED INDIVIDUAL PROTECTION MEAN
CARRIER
Knowledge and command of the chapters:
• General information
• Description
• Installation
Protective shoes and gloves.
INSTALLER
Qualification complying with the provisions of the Country of installation,
knowledge and command of the chapters:
• General information
• Description
• Installation
Protective shoes and gloves.
USER
Knowledge and command of the chapters:
• General information
• Description
• Use
Protective shoes and gloves, high temperature protecting overall and gloves.
MAINTENANCE MAN
Fitness acknowledged by PENTAIR INTERNATIONAL Sarl, knowledge and
command of the chapters:
• General information
• Description
• Maintenance
Protective shoes and gloves.
DEMOLISHER
Knowledge and command of the chapters:
• General information
• Description
• Dismantling
Protective shoes and gloves.

21
1.5.2 SPECIAL MEASURES
The use of personnel with a qualification differing from the one indicated can endanger the safety of people and/or damage the
property.
1.6.1 TERMINOLOGICAL CONVENTIONS
The following conventions have been adopted throughout the manual
• Machine: elettropompe specificate in
"Scheda prodotto"
• Authorised technician:
person authorised by PENTAIR
INTERNA TIONAL to perform even the
operations not specifically indicated
in this manual
• Specialised technician: person
authorised to perform even the
operations not specifically indicated
in this manual after being authorised
by PENTAIR INTERNATIONAL
Le indicazioni di pericolo indicano quelle procedure la cui mancata o parziale osservanza può produrre danni fisici
all'operatore.
DANGER
Le indicazioni di attenzione indicano quelle procedure la cui mancata o parziale osservanza può produrre danni alla
macchina o alle apparecchiature ad essa collegate.
WARNNG
1.6.2 TYPESETTING CONVENTIONS
Le indicazioni di nota contengono delle informazioni, importanti, evidenziate al di fuori del testo a cui si riferiscono.
NOTE
1.7.1 RECOMMENDED USE
• Water with temperature ranging
between +10 °C and 90 °C up to 6 bar,
50°C up to 10 bar
• Fluids with a viscosity similar to
water, neutral and non-explosive
fluids
• The machine has been designed,
manufactured and protected to
guarantee a flow rate of fluid that
changes according to the desired
head (see “Product specifications”)
The machine has been designed, manufactured and protected to allow the transfer, circulation and increase of pressure of the
following types of liquid:
CONVENTIONS
1.7 RECOMMENDED USE
GB

22
1.8.1 LIABILITY ARISING FROM NON RECOMMENDED USE
PENTAIR INTERNATIONAL shall not be liable for damages to people, animals or property deriving from non
recommended use
NOTE
1.8 NON RECOMMENDED USE
• Explosives
• Corrosive fluids
• Fluids derived from crude oil or
mixtures containing derivatives of
crude oil
• Mixtures containing materials or
suspended fibres
• Sea water
The machine has not been designed, manufactured or protected for the uses not specifically listed under section “Recommended
use”. In particular the machine has not been designed, manufactured or protected to transfer, circulate or increase the pressure of
the following fluids:
For special uses, contact our technical department
1.7.2 RECOMMENDED INSTALLATION
• Indoors
The machine has been designed, manufactured and protected to be installed in the following environments:
• Temperature range:
-10 °C and +50 °C
The machine has been designed, manufactured and protected to be used in the following atmospheric conditions:
• Outdoors with protection against
atmospheric agents
• Relative humidity range:
from 30% to 90%
• Installed horizontally on a flat
foundation with dimensions at least
equal to the maximum length and
width of the pump. For the pump
dimensions refer to the appendix
“Product specifications”, section
“Dimensions and weights”
The machine has been designed, manufactured and protected to be:
• Permanently fixed on the flat
foundation using the 4 bolt holes in
the motor support and corresponding
bolts with thread lock nuts in order
to avoid loosening due to vibrations
produced by the pump in service
• 230 V, 50 Hz, single-phase
The machine has been designed, manufactured and protected to be supplied with electric energy having the following
characteristics:
• 230 V, 50 Hz, three-phase • 400 V, 50 Hz, three-phase
GB
Different voltage and frequency values are available on request.
• Fixed to tubing able to sustain the
machine weight

23
1.9 WARRANTY
Installation, adjustment and maintenance operations that have not been authorised and/or performed by unskilled
personnel will invalidate the warranty.
NOTE
1.11 HOW TO USE THE DOCUMENTATION SUPPLIED
Operators should carefully read the documentation supplied before performing any operation on the machine.
The documentation supplied should be kept along with the machine until it is dismantled, so that it is available in case of need.
If the used machine is sold, it will be necessary to supply all the documentation enclosed.
For all assistance requests, contact:
PENTAIR INTERNATIONAL Sarl – Servizio Assistenza Via Masaccio, 13
56010 Lugnano - PISA - ITALY
Tel. [phone] - Fax [phone]
1.10 ASSISTANCE
DESCRIPTION
CHAPTER 2
2.1.1 ARCHITECTURE AND OPERATING PRINCIPLES
• DHR electropumps are horizontal
centrifugal multi-stage electropumps
with suction and delivery mouths
arranged at 90°
• The suction flange and the pump
casing of electropumps DHR are in
cast iron GG20
• The shaft, the impellers and the
diffusers of electropumps DHR are in
stainless steel AISI 304
2.1.2 MACHINE FRAME
2.1 DESCRIPTION
GB
• DHR electropumps are directly
coupled to an asynchronous electric
motor or to a three-phase motor with
closed casing and external ventilation
• The mechanical seals of electropump
DHR are constituted by sliding
backfaces in graphite/ceramics
• DHR electropumps are self-priming
and don’t require a priming procedure
• The gaskets of electropumps DHR are
in NBR rubber and paper
If the pump has been used with noxious or toxic fluids, the pump will be classified as polluted and PENTAIR
INTERNATIONAL Sarl will have the right to refuse offering its assistance for the pump.
WARNNG

24
2.2.1 NOISE
The maximum continuous noise equivalent to weighed noise A of acoustic vibrations generated by the machine: 82 dB (A)
2.2.2 LIABILITY
PENT AIR INTERNA TIONAL declines any liability in the event of failure to comply with the values indicated in this paragraph.
INSTALLATION
CHAPTER 3
3.1 LIFTING
The machine can be lifted in the following condition, machine packed in a cardboard box.
3.1.1 MACHINE WITHOUT ANY TYPE OF PACKING
It is possible to lift several machines packed in a cardboard box, depending on the machine weight.
2.2 TECHNICAL CHARACTERISTICS
• Dimensions and weights of machines:
See "Product Specifications”,
paragraph “Dimensions and weights”
• Electric data:
See "Product Specifications”,
paragraph “Electric suply” and
identification nameplate
• Pressure:
maximum operating pressure: 6 bar
(90°C) or 10 bar (50°C)
GB
3.2 TRANSPORTATION
The machine must be transported in the following conditions:
• Machine in horizontal position. • Machine in fixed position without
possibility of moving
• Machine protected from atmospheric
agents
Ascertain that the conditions referred to in the points above are met during transportation.
DANGER

25
3.3 STORAGE
The storage area should have the following physical characteristics:
• Sufficient extension to contain the
machine and the packing, when
present, and to enable its lifting by
means of the lifting devices provided
• Flat and horizontal resting surface
• Resting surface with a capacity above
the weight of the machines stored
• Protection against accidental impacts
3.3.1 CHARACTERISTICS OF THE STORAGE AREA
The storage area should have the following environmental characteristics:
• Acceptable temperature range:
+7 °C ÷ +50 °C
• Relative humidity range: 30 ÷ 90% • Protection from atmospheric agents
3.3.2 ENVIRONMENTAL CHARACTERISTICS OF THE STORAGE AREA
Mantenere la macchina in posizione orizzontale.
WARNNG
3.4 PRELIMINARY INSPECTIONS
• Check the integrity of the packing • Open the packing and extract the
machine
• Check that the received machine
complies with the characteristics
indicated in the order
3.4.1 ASSESSMENT OF DAMAGE
Keep the original packing in the event it were necessary to transport the machine in future.
WARNING
If non compliance characteristics or damages are detected, immediately report the problem to PENT AIR INTERNATIONAL or to the
distributor within and no later than 8 (eight) days from the date of purchase.
3.4.2 DAMAGE REPORTING
3.5 PREPARATION OF THE INSTALLATION SITE
The installation site should have the following characteristics:
• Simplify the positioning and access to
the machine
• Enable a safe connection to the
electric system
• Enable safe connections to tubing
• Offer an appropriate natural and/or
lighting designed to guarantee full
operational safety
• Offer a minimum distance of 150 m
from each point of the machine and
from obstacles
• Guarantee a sufficient ventilation for
the motor fan
3.5.1 CHARACTERISTICS OF THE INSTALLATION SITE
Check that the machine has not suffered damage, and verify in particular that the following components are integral:
• Motor fan cover
• Terminal block cover
• Intermediate chambers • Cast iron parts
GB
Do not cover or obstruct the motor fan cover grid.
WARNING

26
ENVIRONMENTAL CONDITIONS
• Acceptable temperature range:
+7 °C ÷ +50 °C
• Acceptable relative humidity range:
30 ÷ 90%
• Protection from atmospheric agents
CONNECTION
The pipes used to connect the machine should have the following characteristics:
• Minimum diameters with dimensions
suited to the machine
• The distance and position of the
two pipes should comply with the
indications given in
"Product specifications”, paragraph
“Dimensions and weights”
• Anchoring to fixed support in order
not to exert tension and/or vibrations
on the machine
• Lack of air locks, as shown in the
piping figure
• Suction pipe length reduced to a
minimum
• Load losses in the suction pipe
reduced to a minimum (if the machine
is used to suck fluid, see “Machines
installed above the water level”)
• Gates on the delivery and suction line
• If the machine is installed above
water level, a stop valve should be
fitted on the suction line
• If the machine supplies a boiler, a
stop valve should be fitted on the
delivery line
If the machine is designed to operate with a closed valve on the delivery line, a recirculation pipe should be provided for protection
purposes. The pipe should have the following characteristics:
Connection between:
• Delivery and suction line
• Delivery and drainage pipe
Controls should be performed by
means of:
• Thermostatic valve
• Solenoid valve driven by a pressure
switch or a thermostat
POWER SUPPLY
Electric power supply should have the following characteristics:
• Offer a differential protection
• Offer voltage and frequency values
compliant with the values indicated
on the motor nameplate
• Offer a power not below the value
indicated on the motor nameplate
• Be equipped with an appropriate
thermal protection
• Be equipped with a thermal relay
adjusted according to the actual
current absorbed
• Be equipped with a cut-off switch with
protective fuses
• Be equipped with cables with
a section suitable to the power
absorbed by the motor
ACCESS
Connect the machine so that it can be easily accessible for maintenance operations.
GB

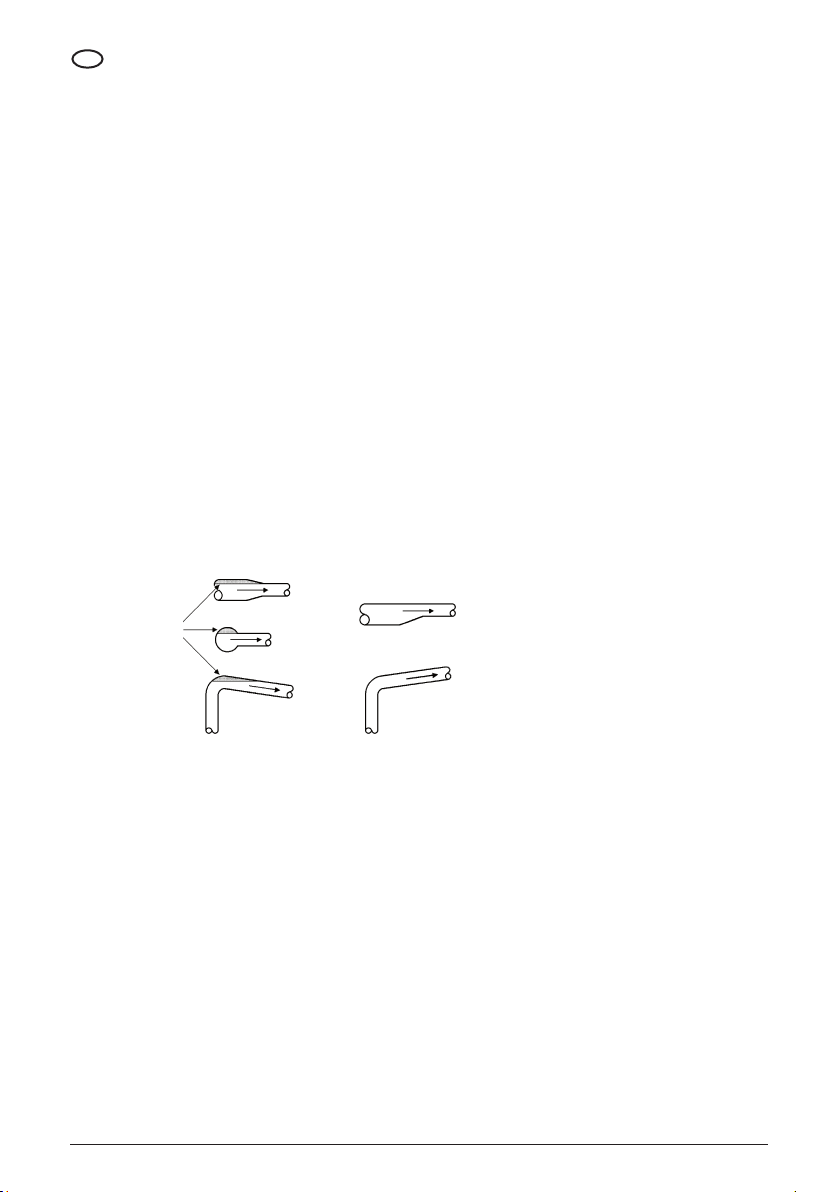

PIPE ASSEMBLY
Incorrect Correct
Accumulated air

27
SUPPORTING SYSTEM
The machine supporting system can correspond to one of the following configurations:
To connect the machine to the pipes, perform the following operations:
• The machine can be connected to
a fixed pipe able to maintain the
machine in position
• Position the machine so that
the arrows present on the base
correspond to the direction of the
fluid flow
• The machine can be connected to a
pipe and rested on a base having the
characteristics indicated in “Product
specifications” under paragraph
“Dimensions and weights”
• Tighten the threaded ends of the
pipes to the delivery/suction mouths
using T eflon as sealing material
• The machine can be connected to
a pipe and fixed, by means of nuts,
to a base having the characteristics
indicated in “Product specifications”,
paragraph “Dimensions and weights”
3.6 INSTALLATIONS
3.6.1 CONNECTION OF THE MACHINE TO THE PIPES
GB
All installation operations should be performed while the electropump is disconnected from the mains.
Electropumps are designed so that all the moving parts are rendered inoffensive by means of protections.
Do not use the electropump if these protections have been removed or are damaged, since this could cause serious
accidents to people.
DANGER
DANGER
Do not install the machine in environments containing gases and/or inflammable or explosive materials.
The machine supply line should always have a differential circuit breaker.
WARNING
WARNING
3.6.2 CONNECTION TO THE MAINS
MACHINES WITH THREE-PHASE MOTORS
The installer will have to make sure that the electric supply system has an adequate grounding compliant with the laws
in force.
DANGER
Check that the supply system has a differential switch with a degree of sensitivity of
Δ = 30 mA (EN 61008-1 / EN 61009-1).
WARNING
Before removing the cover from the terminal block of the motor and before performing operations on the machine,
make sure that the supply line has been cut-off.
DANGER
To connect the machine to the mains, perform the operations described here below:
• Make sure that the motor is suitable
to the mains voltage and frequency
• Cut the electric system off by using a
cut-off switch
• Loosen the screws that fix the cover
to the terminal block
• Insert the supply cable into the cable
holder
• Connect the phases and ground to the
terminals
• Reposition the cover of the terminal
block with the related gasket
• Tighten the screws that fix the cover
to the terminal block
• Supply the machine with the cut-off
switch
• Supply one current impulse and
check the direction of rotation of the
motor

28
A- If the direction of rotation complies with the direction of the rotation indicated by the arrows shown on the machine head, the
connections are correct
B- If the direction of rotation is opposed to the one shown by the arrows present on the machine head, perform the following
operations:
• Cut the electric system off by using
the cut-off switch
• Loosen the screws that fix the
terminal block cover in position
• Invert the connection of the two
phases
• Reposition the terminal block cover
with the related gasket
• Tighten the screws of the terminal
block cover
MACHINES WITH SINGLE-PHASE MOTORS
To connect the machine to the mains, perform the operations described here below:
• Make sure that the motor is suitable
to the mains voltage and frequency
• Cut the electric system off by using a
cut-off switch
• Loosen the screws that fix the cover
to the terminal block
• Insert the supply cable into the cable
holder
• Connect the lines to the grounding
system
• Reposition the cover of the terminal
block with the related gasket
• Tighten the screws that fix the cover
to the terminal block - Insert the
electric supply by using the cut-off
switch
• Supply one current impulse to the
machine
• Check the direction of rotation of
the motor
A- If the direction of rotation complies with the direction of the rotation indicated by the arrows shown on the machine head, the
connections are correct
B- If the direction of rotation is opposed to the one shown by the arrows present on the machine head, perform the following
operations:
• Cut the electric system off by using
the cut-off switch
• Loosen the screws that fix the
terminal block cover in position
• Use a bolt to temporarily short-circuit
the ends of the condenser
• Change the position of the bridges
• Remove the bolt
• Reposition the terminal block cover
with the related gasket
• Tighten the screws of the terminal
block cover
GB
Always start the machine after filling it with fluid, as explained under sections “Operation” and “Priming”.
WARNING
4.1 PRIMING
A machine is considered below the water level if the level of the fluid to pump is above the suction mouth of the
machine, both with closed or open loop systems.
NOTE
OPERATION
CHAPTER

29
To fill a machine below the water level, perform the following operations:
• Close the gate on the delivery line • Loosen the priming cap • Slowly open the gate on the suction
line
4.1.1 MACHINES INSTALLED BELOW THE WATER LEVEL
Make sure the priming cap is perfectly tightened.
DANGER
4.1.2 MACHINES INSTALLED ABOVE THE WATER LEVEL (ON THE SUCTION SIDE)
A machine is considered above the water level if the level of the fluid to pump is below the suction mouth of the
machine, both with closed or open loop systems.
NOTE
To fill a machine above the water level, perform the following operations:
• Open the gate on the suction line
• Close the gate on the delivery line
• Open the priming cap • Add the fluid through the priming
cap until it starts to come out from
the cap
Make sure the priming cap is perfectly tightened.
DANGER
When the fluid starts to exit from the priming cap, preform the following operations:
• Re-tighten the priming cap • Fully open the gate on the suction line • Open the gate on the delivery line
When it is no longer possible to add futher fluid, perform the following operations:
• Re-tighten the priming cap • Start the machine • Open the gate on the delivery line
GB
Perform the following operations to start the machine for the first time:
• Open the gate on the suction line
• Start the machine
• Slowly open the gate on the delivery
line to avoid water hammering on the
delivery line
• Adjust the thermal relay depending
on the current absorbed by the motor
• Adjust the enabling and disabling
pressure of the pressure switch that
controls the operation of the machine
4.2 START-UP

30
A - If check-ups do not reveal the presence of abnormal conditions, continue to use the machine until the next check-up
B- If check-ups reveal the presence of abnormal conditions, perform the operations described here below:
To check the frequency of starts and stops, perform the following operations (Check the operation of the machine for an hour):
4.3 CHECKING THE FREQUENCY OF STARTS AND STOPS
If the number of starts/stops is above 40, adjust the control equipment in order to reduce the frequency.
GB
Always check that the machine is filled. Never start the machine without fluid, as indicated under section “Operation”,
“Priming”
WARNING
Before restarting the machine, fill it as indicated under sections “Operation” and “Priming”
ATTENZIONE
Ad intervalli regolari effettuare i controlli seguenti:
5.3 PERIODICAL INSPECTION
• Hydraulic performances
• Lack of fluid leaks
• Motor overheating
• Relay tripping time
• Start-up frequency
• Correct operation of automatic
controls
• Vibrations
• Noise
MAINTENANCE
CHAPTER 5
• The gasket on the shaft is self-
adjusting. The sealing surfaces are
resistant to wear and are lubricated
by the pumped fluid
5.1 LUBRICATION
If the machines are installed, used and serviced in accordance with the instructions and directions given in this manual,
they do not require lubrication. Follow the instructions and directions given in this manual.
WARNING
To disable the machine for a long period of time, perform the following operations.
Cut the electric system off by using a cut-off switch, if ambient temperature falls below the freezing temperature
of the pumped fluid, perform the following operations:
5.2 TEMPORARY DISABLING
A - If the whole system has to be disabled, drain the system
B - If it is not necessary to drain the whole system:
• Close the gates on the delivery and
suction lines
• Remove the priming and drainage
caps
• Allow all the fluid to drain from the
machine
• Store the priming and drainage caps
for future use, without reassembling
them on the machine
• The bearings of the machine are
lubricated by the pumped fluid
• The ball bearings of the motor are
self-lubricated with grease resistant
to heat

31
GB
• Refer to table “Problems/Causes"
under "Operating problems"
• If the problem and cause is listed
in table
• “Problems/Causes” under “Operating
problems”, contact an authorised
technician or a specialised technician
and report the abnormal condition
found
• If the problem and the cause is not
listed in table “Problems/Causes”
under “Operating problems”, contact
an authorised technician or a
specialised technician.
Extraordinary maintenance operations performed after problems, failures, breakage or technical updates should be performed only
by authorised or specialised technicians.
5.4 EXTRAORDINARY MAINTENANCE
PENTAIR INTERNATIONAL declines any liability and cancels all warranty contracts in presence of:
• Operations not documented in this manual and performed on the machine.
• Extraordinary maintenance carried out by others than authorised or specialised technicians.
NOTE
OPERATING PROBLEMS
CHAPTER 6
PROBLEM CAUSES
THE MOTOR FAILS TO RUN WHEN STARTED
1) The line voltage has been interrupted.
2) Burnt fuse.
3) Tripped thermal relay.
4) No conduction in the starter contacts or faulty coil.
5) Burnt fuses in the auxiliary circuit.
6) Faulty motor.
THE STARTER THERMAL SWITCH TRIPS WHEN VOLTAGE IS APPLIED
1) Burnt fuse.
2) Faulty starter contacts.
3) Faulty electric connections.
4) Faulty motor windings.
5) The machine is mechanically blocked.
6) The thermal relay calibration is too low.
THE THERMAL RELAY TRIPS OCCASIONALLY
WITHOUT APPARENT REASON
1) The thermal relay calibration is too low.
2) The line voltage is periodically missing.
3) The line voltage in peak periods is too low.
THE THERMAL RELAY HAS NOT TRIPPED,
BUT THE MACHINE IS UNABLE TO RUN
1) The line voltage has been interrupted.
2) Burnt fuse.
3) No conduction in the starter contacts or faulty coil.
4) Burnt fuses in the auxiliary circuit.

32
GB
DEMOLITION
CHAPTER 7
7.1 MACHINE DISABLING
• Cut the system off using the cut-off
switch
• Close the gates on the suction and
delivery lines
• Loosen the screws that fix the
terminal block cover
• Disconnect the wires from the
terminal block
• Remove the supply cable from the
cable holder
• Remove the priming and drainage
caps
• Allow all the fluid to drain from the
machine
• Loosen the screws that fix the
machine to the base
• Lift the machine as described under
"Installation", "Lifting" -Transport
the machine as indicated under
"Installation", "Transportation"
To re-use the machine, perform the following operations:
• Reposition the priming and drainage
caps on the machine
• Reposition the terminal block cover
with the related gasket
• Tighten the screws that fix the
terminal block cover
• Close the delivery and suction holes
to prevent dirt from entering inside
the machine
• Store the machine as indicated in
“Installation”, “Storage”
The machine has been manufactured with non biodegradable materials. The machine should be dismantled only in a
deposit equipped for these operations.
WARNING
PENTAIR INTERNATIONAL shall not be liable of parts of the machine are recycled or re-used.
NOTE
7.2 RESIDUAL RISKS AFTER DISABLING
THE MACHINE FLOW RATE IS IRREGULAR
1) The suction pipe is undersized.
2) The availability of fluid to be sucked is insufficient.
3) The fluid level is too low.
4) The pressure on the suction side is insufficient.
5) The suction pipe is partially obstructed.
THE MACHINE RUNS BUT FAILS TO SUPPLY FLUID
1) The suction pipe or pump are obstructed.
2) The bottom (or stop) valve is blocked in closed position.
3) Leaks in the suction line.
4) Air in the suction line or pump.
WHEN STOPPED THE MACHINE RUNS IN OPPOSITE DIRECTION
1) Leaks in the suction pipe.
2) Faulty bottom (or stop) valve.
3) The bottom (or stop) valve is blocked in partially or fully opened position.
PROBLEM CAUSES
Distributed in NZ By:
Freephone 0508 634 34
1
7 Monier Pl, Mt Wellington, Auckland 1060, New
Zealand
