Pentair Myers 4V Series Manual

4V, 4R, 4VH, 6VH 4VC, 6VC
NOTE! To the installer: Please make sure you provide this manual to the owner of the equipment or to the responsible
party who maintains the system.
MODELS 4V, 4R, 4VH,
6VH, 4VC and 6VC
SOLIDS HANDLING PUMPS
INSTALLATION AND SERVICE MANUAL
For use with product built with GE®motor.
Part # 13800A908 | © 2017 Pentair plc | 05/25/17

2
PUMP MODELS
These instructions cover the installation of the 4V,
4VH, 6VH, 4R, 4VC and 6VC series of solids handling
pumps. All models are designed for handling raw
sewage and wastewater.
The 4R series is made with a recessed impeller. All other
models have 2 vane solids handling impellers. All models
will pass 3" dia. solids.
All models with 4 in the model number have a
4" std. flange discharge.
All models with 6 in the model number have a
6" std. flange discharge.
VOLTAGES
All single phase motors are for 230 volts only. All three
phase motors are either 200, 230, 460, or 575 volts. Most
4VC and 6VC models can be configured for 230 or 460
voltages. All 200 volt and 575 volt motors are single voltage.
DESCRIPTION OF PUMP
For the 4R, 4V and 4VH models, pressure connectors
are used on wire connections inside motor cover. The
4VC and 6VC series have terminal connections inside the
motor cover. Power cord and cap can be removed without
disturbing motor on 4VC and 6VC units.
WARNING: Only qualified persons shall conduct services
and installations of this pump. The pump must be wired by
a qualified electrician, using an approved starter box and
switching device.
DANGER: Sewage water gives off methane and hydrogen
sulfide gases, both of which are highly poisonous.
It is for this reason that Myers®recommends the lift-out
check valve so that no service is required in the basin.
Consult federal, state and local codes for confined space
entrance guidelines.
CALIFORNIA PROPOSITION 65 WARNING:
This product and related
accessories contain chemicals known to the
State of California to cause cancer, birth
defects or other reproductive harm.
SEAL FAILURE
All motors have a probe installed in seal chamber so
that any leakage past the lower seal into seal chamber
is detected.
A red warning light at the control panel comes on if water
enters seal chamber. This is an indicator only and does
not stop motor, but warns that seal should be replaced
immediately to prevent motor damage. Pump must go to
authorized service facility for seal replacement.
HEAT SENSOR
All motors have a heat sensing thermostat installed in
top winding of motor. Any motor winding temperature
above 248°F for 4R, 4V, 4VH, 6VH and 266°F for 4VC,
6VC will open thermostat and stop motor. Thermostat will
automatically reset as soon as it has cooled.
CAUTION: Automatic (reset) motor can start at any time
after thermostat is tripped so never do service work on
pump unless power supply is disconnected.
IMPORTANT: Be sure heat sensor wires and seal failure
wires are connected at panel terminal block. Warranty is
void if wires are not connected or are jumped.
MOTOR POWER CABLE AND
CONTROL CABLE
Each pump motor is furnished with a power and control
cable. Longer than standard cord lengths are available on
request.

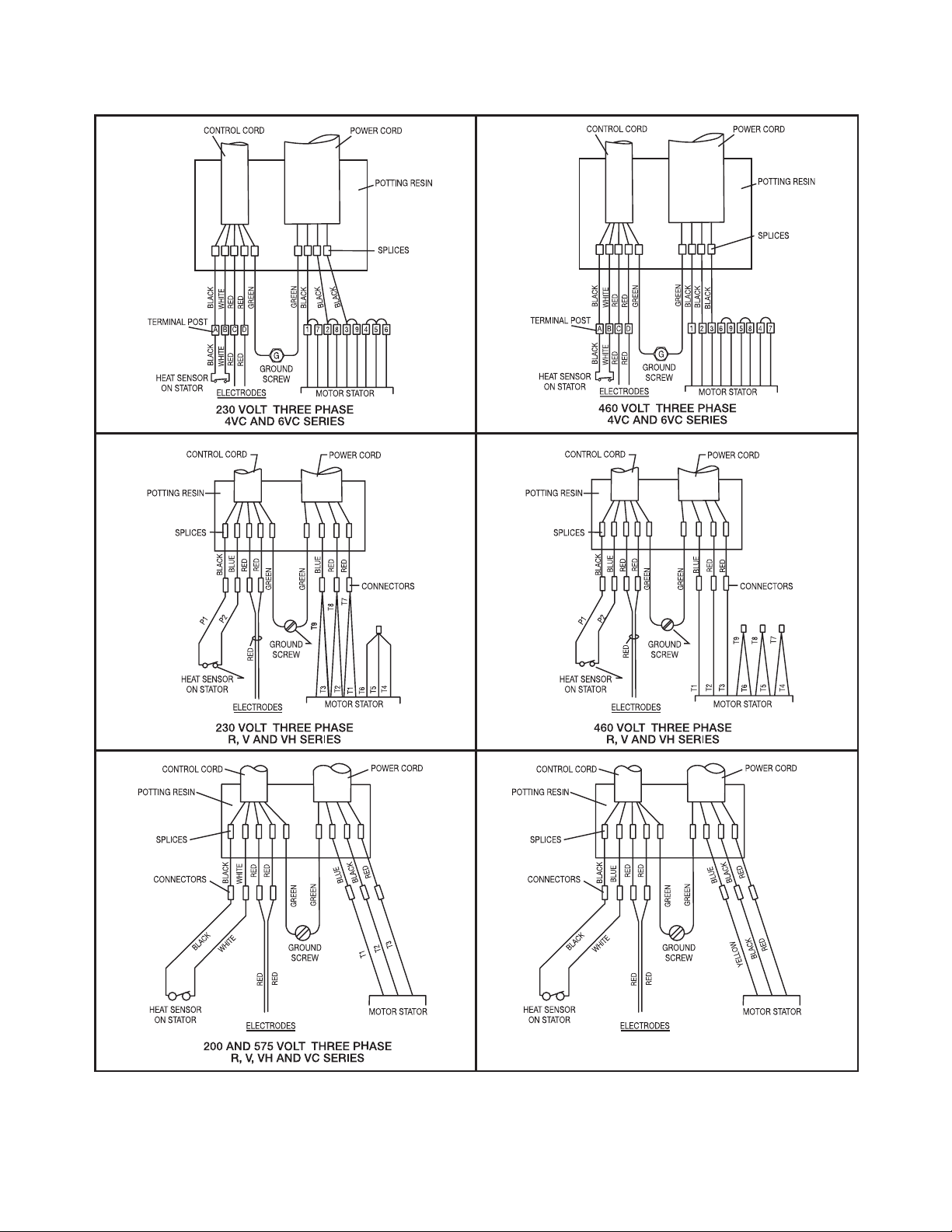

Each power cord has four conductors – white, black,
red and green. For 3 phase, the red, black and white
conductors connect to the three line leads and the green is
connected to a good outside ground. Interchanging any two
leads reverses the motor.
For single phase, the white and black leads connect to the
two line terminals and the red connects to the start winding
terminal. The green is for ground and must be connected
per NEC.
The control cable has five conductors – black, white,
red, orange and green. White and black connect to heat
sensor terminals; red and orange connect to the seal failure
terminals and green connects to the ground terminal.
APPLICATION
All Myers solids handling pumps can be used to pump raw
sewage, storm water and other wastewater. Do not use for
acid water. Maximum solid size for all units is 3" diameter.
SINGLE PHASE MOTORS
Single phase motors are for 230 volts only. A special
control panel with start and run capacitors and start relay is
required for these pumps.
These control panels must be obtained from Myers or must
be approved by Myers or warranty on pump is void.
OIL FILLED
Motor chamber and seal chamber are oil filled for coolest
running, best heat transfer and best lubrications for
bearings and seals. Motor requires no oiling or greasing.
Motor is sealed for life of bearings.

3
POWER CORD SIZES
Power cord gauge size is determined per NEC.
Motors are generally furnished for single voltage, but
the larger motors in the 4VC and 6VC pumps can be
configured for dual voltage. Dual voltage configuration
is for 230 or 460 volt only. When ordering a dual voltage
capable pump, the cord size for the lower voltage must
be used. 200 and 575 volt motors are single voltage only.
CAUTION: Never pull pump or work on control box
until incoming power is disconnected. Never run motor
until green ground conductor is connected per NEC at
control box.
MAKING ELECTRICAL CONNECTIONS
1. Level controls are held by support bracket
and cords are adjusted for proper depth.
a. Lower turnoff control should be set so
that pump stops when water level is
about at top of check valve or straight
through casting.
b. Upper turn-on control is set to start
pump when level is at height specified
above pump.
c. Override control is set at height
specified above upper turn-on control.
d. Alarm control is set about 6" to 12"
above override control.
e. No control should be set above
inlet invert.
2. If control panel is mounted directly on basin
top, the power and control wires are taken
directly to control box and are sealed in the
cord plate with cord grip connectors.
3. If panel is installed remote from basin
the cords can be taken through a conduit
to control panel, or junction box can be
used in the basin to make connections.
The Myers junction box has a built-in
sealing connector to seal the outgoing
wires. If other than Myers junction box
is used, a separate sealing connector
must be used where wires leave the basin.
CAUTION: If cords are taken directly through a
conduit to control box, a seal fitting must be used at
inlet of conduit to prevent gas vapors from getting to
control box. This type of installation is generally not
recommended because the sealing cement must be
broken to remove a cord.
SINGLE PHASE MOTORS
Single phase pumps have only one rotation and do not
need to be checked.
THREE PHASE MOTORS
Rotation for three phase motors must be checked. The
pump impeller should rotate counterclockwise when
looking at the suction end of pump. To reverse rotation,
interchange any two line leads to motor.
CAUTION: Pump motor is not to be taken apart in the
field. Motors under warranty must be serviced by a
Myers authorized repair facility or be sent to factory.
50 CYCLE PUMPS
All Myers 60 cycle solids handling, three phase pumps
can operate on 50 cycle power at reduced performance.
60 cycle, 460 volt pumps should operate on 380 volt,
50 cycle. Single phase, 60 cycle, 230 volt pumps can
operate on 220 volts, single phase, 50 cycle.
REMOVING PUMP CASE AND IMPELLER
In case of wear, damage due to dropping, plugged
pump, or replacing a defective motor, the pump volute
case and impeller can be removed in the field.
1. Remove bolts between seal housing flange and
volute case. The motor and impeller can now be
lifted off as a unit.
2. If necessary to remove impeller, lay pump on its side.
With a screwdriver bend the tabs of the lock washer
away from the head of the hex head bolt.
3. Loosen and remove the bolt by turning
counterclockwise. Since Loctite®is used to secure
the bolt and is applied to the shaft/impeller interface,
heating of the shaft end to 450° or 500°F will usually
be required.
4. Impeller is mounted by a straight fit with driving key.
Pry evenly on opposite impeller sides with two large
screwdrivers or small bars behind the impeller.
5. Set motor on end with shaft up after removing
impeller so that oil will not drain past the seal.
REPLACING IMPELLER AND PUMP CASE
1. Before reassembly, apply Loctite®#680 in keyway,
impeller bore (lower shaft O.D.), and on the threads
of the hex head cap screw.
2. Before placing the impeller on the shaft, be sure the
mechanical seal and its spring are in place.
3. Position retaining washer with long pin extension in
keyway.
4. Assemble hex head cap screw and tighten securely.

4

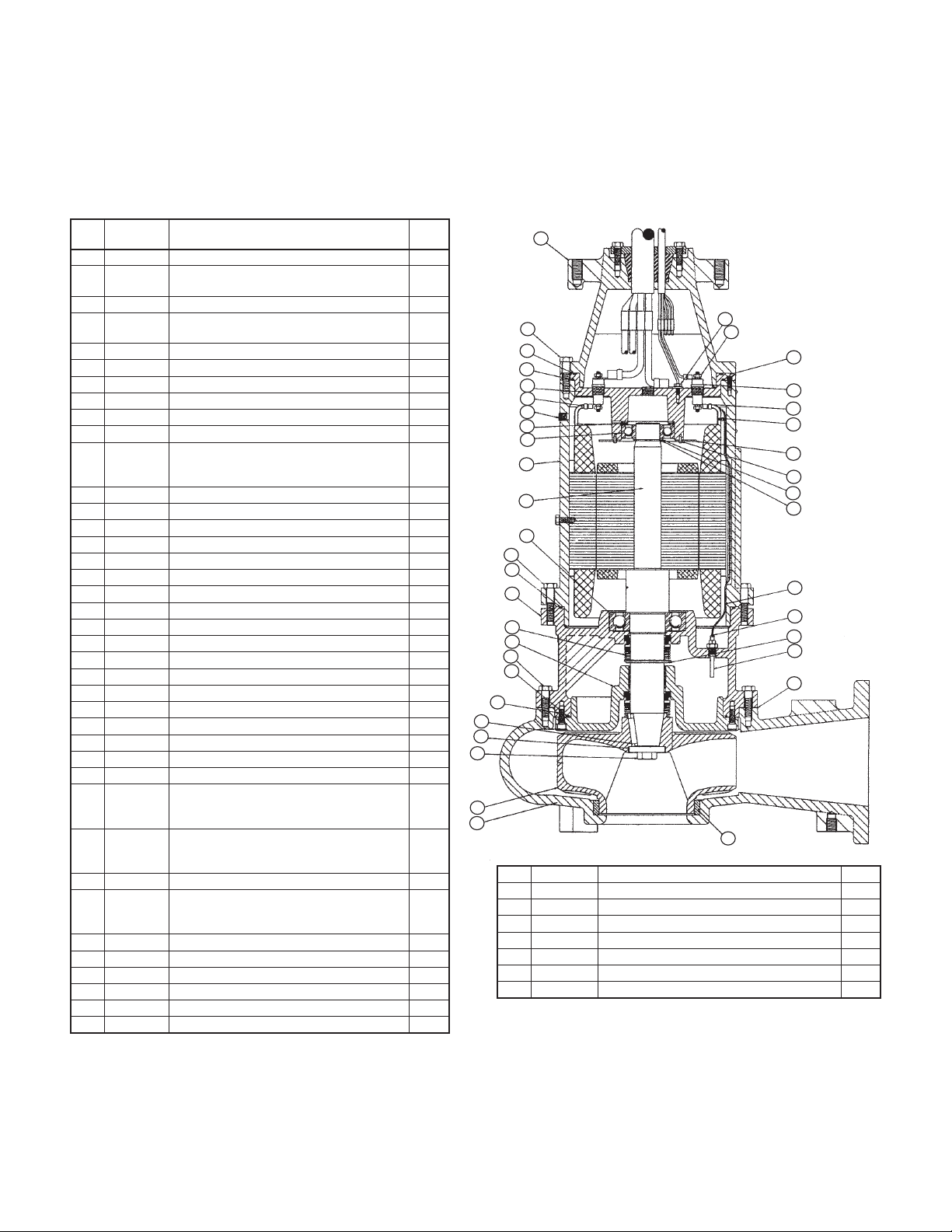

4R SERIES SUBMERSIBLE SOLIDS HANDLING PUMPS PARTS LIST
4 POLE (1750 RPM), 3 TO 10 HP – 3 PHASE AND 3 TO 5 HP – 230V, 1 PHASE
3 PHASE IN ALL VOLTAGES 200, 230, 460 & 575
1
2
3
4
5
6
7
8
9
10
11
34
12
13
14
15
16
17
18
19
20
21
23 25
22
2
33
32
31
26
29
28
24
30
27

5
Ref.
No. Part Number Description Qty.
1RTF 35' CORD ASSEMBLY 1
2 19102A006 CAP SCREW, HEX HD., 7/16"-14 x 1-1/2" 8
3 05876A123 O-RING, 4-7/8" x 4-5/8" x 1/8" 1
4 22590B000 CAP, UPPER BEARING 1
5 05876A112 O-RING, 5-1/2" x 5-1/4" x 1/8" 1
6 19331A006 WASHER, FINGER SPRING 2
7 08565A022 BEARING, BALL 1
8 SEE CHART ROTOR WITH SHAFT 1
9 22848C100 SHAFT ONLY (FOR ALL HP SIZES) 1
SEE CHART STATOR 1
10 22571D000 HOUSING, MOTOR 1
11 08565A023 BEARING, BALL 1
12 05876A114 O-RING, 7" x 6-3/4" x 1/8" 1
13 22576D010 HOUSING, SEAL 1
14 22577A000 SEAL, 1-1/4" SHAFT 2
15 12558A008 RING, RETAINING 1
16 22853C000 HOUSING, LOWER SEAL, WITH BEARING 1
17 05876A113 O-RING, 6" x 5-3/4" x 1/8" 1
18 06106A028 CAP SCREW, SOCKET HD., 3/8"-16 x 1" 4
19 05231A079 GASKET, VELLUMOID 1
20 22854D000 CASE, VOLUTE 1
21 22855C502 IMPELLER (SPECIFY O.D.) 1
22 05818A074 KEY, 1/4" SQUARE x 11/16" LG. 1
23 23609A001 WASHER, IMPELLER RETAINER WITH PIN 1
24 05030A126 WASHER, 7/16" x 13/64" x 1/32" 1
25 19101A010 CAP SCREW, HEX HD., 3/8"-16 x 1-1/4" 1
26 12672A003 CONNECTOR 3
27 10649A102 TUBE, PLASTIC, 1-1/4" LG. 2
10649A116 TUBE, PLASTIC, 3" LG. 2
28 07597A017 MACH. SCREW, SOCKET FLAT HD.,
5/16"-18 x 1" 2
29 05434A043 MACH. SCREW, #10-24 x 3/8" LG. 1
30 06107A015 LOCKWASHER, #10 1
31 22578A100 ELECTRODE, WIRE 2
32 05434A025 SCREW, MACH. #6-32 2
33 25343A100 PROBE, SEAL 2
22912A000 RESISTOR, SEAL PROBE (4RX ONLY) 1
34 19102A023 CAP SCREW, HEX HD., 7/16"-14 x 2-1/4" 4
Pump
Catalog Number
Rotor
w/Shaft
Stator
Only
Stator
w/Housing
4R10M6-21 22846C110 24407C227 22571D315K
4R10M6-03 22846C102 24407C228 22571D320K
4R10M6-23 22846C102 24407C229 22571D325K
4R10M6-43 22846C102 24407C229 22571D325K
4R10M6-53 22846C102 24407C230 22571D335K
4R15M6-21 22846C110 24407C227 22571D340K
4R15M6-03 22846C102 24407C228 22571D345K
4R15M6-23 22846C102 24407C229 22571D350K
4R15M6-43 22846C102 24407C229 22571D350K
4R15M6-53 22846C102 24407C230 22571D360K
4R20M6-21 22846C100 24407C231 22571D385K
4R20M6-03 22846C102 24407C232 22571D365K
4R20M6-23 22846C102 24407C233 22571D370K
4R20M6-43 22846C102 24407C233 22571D370K
4R20M6-53 22846C102 24407C234 22571D380K
4R30M6-21 22846C100 24407C231 22571D385K
4R30M6-03 22846C102 24407C232 22571D365K
4R30M6-23 22846C102 24407C233 22571D370K
4R30M6-43 22846C102 24407C233 22571D370K
4R30M6-53 22846C102 24407C234 22571D380K
4R30M4-21 22846C100 24407C200 22571D270K
4R30M4-03 22846C100 24407C201 22571D275K
4R30M4-23 22846C100 24407C202 22571D280K
4R30M4-43 22846C100 24407C202 22571D280K
4R30M4-53 22846C100 24407C203 22571D290K
4R50M4-21 22846C100 24407C204 22571D440K
4R50M4-03 22846C100 24407C205 22571D295K
4R50M4-23 22846C100 24407C206 22571D300K
4R50M4-43 22846C100 24407C206 22571D300K
4R50M4-53 22846C100 24407C207 22571D310K
4R75M4-03 22846C100 24407C208 22571D405K
4R75M4-23 22846C100 24407C209 22571D410K
4R75M4-43 22846C100 24407C209 22571D410K
4R75M4-53 22846C100 24407C210 22571D415K
4R100M4-03 22846C100 24407C208 22571D405K
4R100M4-23 22846C100 24407C209 22571D410K
4R100M4-43 22846C100 24407C209 22571D410K
4R100M4-53 22846C100 24407C210 22571D415K
NOTE: 25218A012 Repair Kit available. Kit includes shaft seals,
gasket, O-rings, seal leak wires, upper and lower ball bearings.
4R SERIES SUBMERSIBLE SOLIDS HANDLING PUMPS PARTS LIST
4 POLE (1750 RPM), 3 TO 10 HP – 3 PHASE AND 3 TO 5 HP – 230V, 1 PHASE
3 PHASE IN ALL VOLTAGES 200, 230, 460 & 575

6
4V SERIES SUBMERSIBLE SOLIDS HANDLING PUMPS PARTS LIST
4 POLE (1750 RPM), 3 TO 10 HP – 3 PHASE AND 3 TO 5 HP – 230V, 1 PHASE
6 POLE (1150 RPM), 1 TO 3 HP – 3 PHASE AND 1 TO 3 HP – 230V, 1 PHASE
3 PHASE IN ALL VOLTAGES 200, 230, 460 & 575
4
5
6
7
8
9
10
11
31
12
13
14
15
16
17
18
19
20
21
23 33
22
2
30
29
24
27
26
32
25
1
2
3
2
28

7
Ref.
No. Part Number Description Qty.
1RTF 35' CORD ASSEMBLY 1
2 19102A006 CAP SCREW, HEX HD., 7/16"-14 x 1-1/2" 8
3 05876A123 O-RING, 4-7/8" x 4-5/8" x 1/8" 1
4 22590B000 CAP, UPPER BEARING 1
5 05876A112 O-RING, 5-1/2" x 5-1/4" x 1/8" 1
6 19331A006 WASHER, FINGER SPRING 2
7 08565A022 BEARING, BALL 1
8 SEE CHART ROTOR WITH SHAFT 1
22881C101 SHAFT ONLY (FOR ALL HP SIZES) 1
9 SEE CHART STATOR 1
10 22571D000 HOUSING, MOTOR 1
11 08565A027 BEARING, BALL 1
12 05876A114 O-RING, 7" x 6-3/4" x 1/8" 1
13 22709D010 HOUSING, SEAL 1
14 009200011 SEAL, 1-1/2" SHAFT 2
15 12558A018 RING, RETAINING 1
16 22710C000 HOUSING, LOWER SEAL, WITH BEARING 1
17 05876A127 O-RING, 7-1/2" x 7-1/4" x 1/8" 1
18 05231A079 GASKET, VELLUMOID 1
19 22712D000 CASE, VOLUTE WITH WEAR RING 1
20 22711C500 IMPELLER (SPECIFY O.D.) 1
21 05818A066 KEY, 1/4" SQUARE x 13/16" LG. 1
22 23609A002 WASHER, IMPELLER RETAINER WITH PIN 1
23 19103A052 CAP SCREW, HEX HD., 1/2"-13 x 1-1/4" 1
24 12672A003 CONNECTOR 3
25 10649A102 TUBE, PLASTIC, 1-1/4" LG. 2
10649A116 TUBE, PLASTIC, 3" LG. 2
26 07597A017 MACH. SCREW, SOCKET FLAT HD.,
5/16"-18 x 1" 2
27 05434A043 MACH. SCREW, #10-24 x 3/8" LG. 1
28 06107A015 LOCKWASHER, #10 1
29 05434A025 SCREW, MACH. #6-32 2
30 25343A100 PROBE, SEAL 2
22912A000 RESISTOR, SEAL PROBE (4VX ONLY) 1
31 19102A023 CAP SCREW, HEX HD., 7/16"-14 x 2-1/4" 4
32 05030A126 WASHER, 7/16" x 13/64" x 1/32" 1
33 22712D001A WEAR RING, VOLUTE 1
05013A013 SCREW, WEAR RING 2
Pump
Catalog Number
Rotor
w/Shaft
Stator
Only
Stator
w/Housing
4V10M6-21 22875C105 24407C227 22571D315K
4V10M6-03 22875C110 24407C228 22571D320K
4V10M6-23 22875C110 24407C229 22571D325K
4V10M6-43 22875C110 24407C229 22571D325K
4V15M6-21 22875C105 24407C227 22571D340K
4V15M6-03 22875C110 24407C228 22571D345K
4V15M6-23 22875C110 24407C229 22571D350K
4V15M6-43 22875C110 24407C229 22571D350K
4V15M6-53 22875C110 24407C230 22571D360K
4V20M6-21 22875C105 24407C231 22571D385K
4V20M6-03 22875C110 24407C232 22571D365K
4V20M6-23 22875C110 24407C233 22571D370K
4V20M6-43 22875C110 24407C233 22571D370K
4V20M6-53 22875C110 24407C234 22571D380K
4V30M6-21 22875C105 24407C231 22571D385K
4V30M6-03 22875C110 24407C232 22571D365K
4V30M6-23 22875C110 24407C233 22571D370K
4V30M6-43 22875C110 24407C233 22571D370K
4V30M6-53 22875C110 24407C234 22571D380K
4V30M4-21 22875C105 24407C200 22571D270K
4V30M4-03 22875C105 24407C201 22571D275K
4V30M4-23 22875C105 24407C202 22571D280K
4V30M4-43 22875C105 24407C202 22571D280K
4V30M4-53 22875C105 24407C203 22571D290K
4V50M4-21 22875C105 24407C204 22571D440K
4V50M4-03 22875C105 24407C205 22571D295K
4V50M4-23 22875C105 24407C206 22571D300K
4V50M4-43 22875C105 24407C206 22571D300K
4V50M4-53 22875C105 24407C207 22571D310K
4V75M4-03 22875C105 24407C208 22571D405K
4V75M4-23 22875C105 24407C209 22571D410K
4V75M4-43 22875C105 24407C209 22571D410K
4V75M4-53 22875C105 24407C210 22571D415K
4V100M4-03 22875C105 24407C208 22571D405K
4V100M4-23 22875C105 24407C209 22571D410K
4V100M4-43 22875C105 24407C209 22571D410K
4V100M4-53 22875C105 24407C210 22571D415K
NOTE: 25218A013 Repair Kit available. Kit includes shaft seals,
gasket, O-rings, seal leak wires, upper and lower ball bearings.
4V SERIES SUBMERSIBLE SOLIDS HANDLING PUMPS PARTS LIST
4 POLE (1750 RPM), 3 TO 10 HP – 3 PHASE AND 3 TO 5 HP – 230V, 1 PHASE
6 POLE (1150 RPM), 1 TO 3 HP – 3 PHASE AND 1 TO 3 HP – 230V, 1 PHASE
3 PHASE IN ALL VOLTAGES 200, 230, 460 & 575

8
4VH & 6VH SERIES SUBMERSIBLE
SOLIDS HANDLING PUMPS PARTS LIST
4 POLE (1750 RPM), 5 TO 20 HP – 3 PHASE ONLY
6 POLE (1150 RPM), 3 TO 5 HP – 3 PHASE ONLY
3 PHASE IN ALL VOLTAGES 200, 230, 460 & 575
4
5
6
7
8
9
10
11
32
12
13
14
15
16
17
18
19
20
22
23
21
13
31
30
27
26
33
28
34
35
1
2
3
12
29
36
25
24

9
Ref.
No. Part Number Description Qty.
1RTF 35' CORD ASSEMBLY 1
2 19103A045 CAP SCREW, HEX HD.,
1/2"-13 x 1-3/4" 4
3 05876A119 O-RING, 5-7/8" x 5-5/8" x 1/8" 1
4 22873C000 CAP, UPPER BEARING 1
5 05876A120 O-RING, 6-1/2" x 6-1/4" x 1/8" 1
6 19331A007 WASHER, WAVE SPRING 2
7 08565A025 BEARING, BALL 1
8 SEE CHART ROTOR WITH SHAFT 1
22881D100 SHAFT ONLY (FOR ALL HP SIZES) 1
9 SEE CHART STATOR 1
10 22874D000 HOUSING, MOTOR 1
11 08565A026 BEARING, BALL 1
12 05876A121 O-RING, 8-1/4" x 8" x 1/8" 2
13 19103A043 CAP SCREW, HEX HD.,
1/2"-13 x 1-1/2" 8
14 22882D010 HOUSING, SEAL 1
15 22883A000 SEAL, 1-3/4" SHAFT 2
16 12558A017 RING, RETAINING 1
17 22884D000 HOUSING, LOWER SEAL,
WITH BEARING 1
18 05231A080 GASKET, VELLUMOID 1
19 22886D000 CASE, VOLUTE, 4" FLANGE
W/WEAR RING (4VH) 1
23035E000 CASE, VOLUTE, 6" FLANGE
W/WEAR RING (6VH) 1
20 22885D500 IMPELLER (SPECIFY O.D.)
4VH & 6VH 1
23498D000 IMPELLER, 9" O.D.,
4VHS & 6VHS ONLY 1
21 05818A067
KEY, 5/16" SQUARE x 25/32" LOG. 1
22 23609A003 WASHER, IMPELLER RETAINER
WITH PIN 1
23 19105A033 CAP SCREW, HEX HD.,
3/8"-11 x 1-1/4" 1
24 23394A001 CONNECTOR 3
25 10649A102 TUBE, PLASTIC, 1-1/4" LG. 2
10649A116 TUBE, PLASTIC, 3" LG. 2
26 07597A017 MACH. SCREW, SOCKET FLAT
HD., 3/16" x 1" 2
27 05028A002
MACH. SCREW, 1/4"-20 x 1/2" LG. 1
28 06107A016 LOCKWASHER, 1/4" 1
29 22578A100 ELECTRODE, WIRE 2
30 05434A025 SCREW, MACH. #6-32 2
31 25343A100 PROBE, SEAL 2
22912A000 RESISTOR, SEAL PROBE
(4VHX/6VHX) 1
32 19103A048 CAP SCREW, HEX HD.,
1/2"-13 x 2-1/2" 4
33 05030A091 WASHER, 7/16" x 9/32" THICK 1
34 05030A214 WASHER, SUPPORT 1
35 12558A024 RING, RETAINING 1
36 22712D001A WEAR RING, VOLUTE 1
05013A013 SCREW, WEAR RING 2
Pump
Catalog Number
Rotor
w/Shaft
Stator
Only
Stator
w/Housing
4VH30M6-03 6VH30M6-03 22875C203 142972031 22874D300K
4VH30M6-23 6VH30M6-23 22875C203 142970031 22874D305K
4VH30M6-43 6VH30M6-43 22875C203 142970031 22874D305K
4VH30M6-53 6VH30M6-53 22875C203 142976031 22874D315K
4VH50M6-03 6VH50M6-03 22875C203 142972031 22874D320K
4VH50M6-23 6VH50M6-23 22875C203 142970031 22874D325K
4VH50M6-43 6VH50M6-43 22875C203 142970031 22874D325K
4VH50M6-53 6VH50M6-53 22875C203 142976031 22874D335K
4VH50M4-03 6VH50M4-03 22875C203 141402031 22874D220K
4VH50M4-23 6VH50M4-23 22875C203 141440031 22874D225K
4VH50M4-43 6VH50M4-43 22875C203 141440031 22874D225K
4VH50M4-53 6VH50M4-53 22875C203 141406031 22874D235K
4VHS75M4-21 22875C212 141440011
4VH75M4-03 6VH75M4-03 22875C203 141402031 22874D240K
4VH75M4-23 6VH75M4-23 22875C203 141400031 22874D245K
4VH75M4-43 6VH75M4-43 22875C203 141400031 22874D245K
4VH75M4-53 6VH75M4-53 22875C203 141406031 22874D255K
4VH100M4-03 6VH100M4-03 22875C204 141412031 22874D260K
4VH100M4-23 6VH100M4-23 22875C204 141410031 22874D265K
4VH100M4-43 6VH100M4-43 22875C204 141410031 22874D2665K
4VH100M4-53 6VH100M4-53 22875C204 141416031 22874D275K
4VH150M4-03 6VH150M4-03 22875C204 141432031 22874D280K
4VH150M4-23 6VH150M4-23 22875C204 141430031 22874D285K
4VH150M4-43 6VH150M4-43 22875C204 141430031 22874D285K
4VH150M4-53 6VH150M4-53 22875C204 141436031 22874D295K
4VH200M4-03 6VH200M4-03 22875C204 141432031 22874D280K
4VH200M4-23 6VH200M4-23 22875C204 141430031 22874D285K
4VH200M4-43 6VH200M4-43 22875C204 141430031 22874D285K
4VH200M4-53 6VH200M4-53 22875C204 141436031 22874D295K
4VHS100M4-03 6VHS100M4-03 22875C204 141412031 22874D260K
4VHS100M4-23 6VHS100M4-23 22875C204 141410031 22874D265K
4VHS100M4-43 6VHS100M4-43 22875C204 141410031 22874D265K
4VHS100M4-53 6VHS100M4-53 22875C204 141416031 22874D275K
NOTE: 25218A015 Repair Kit available. Kit includes shaft seals,
gasket, O-rings, seal leak wires, upper and lower ball bearings.
4VH & 6VH SERIES SUBMERSIBLE
SOLIDS HANDLING PUMPS PARTS LIST
4 POLE (1750 RPM), 5 TO 20 HP – 3 PHASE ONLY
6 POLE (1150 RPM), 3 TO 5 HP – 3 PHASE ONLY
3 PHASE IN ALL VOLTAGES 200, 230, 460 & 575

10
Ref.
No. Part Number Description Qty.
1RTF 35' CORD ASSEMBLY 1
09859A793 JUMP WIRES WITH TERMINALS
(5 REQ’D. ON 230V & 3 REQ’D. ON 460V ONLY)
AS
NOTED
2 19099A003 CAP SCREW, HX. HD., 1/4"-20 x 1/2" 1
3 11904A005 LOCK NUT, 1/4"-20 (14 REQ'D. ON 200V & 575V,
26 REQ'D. ON 230V & 460V)
AS
NOTED
4 19103A047 CAP SCREW, HEX HD., 1/2"-13 x 2" 8
5 05876A135 O-RING 10" x 9-3/4" x 1/8" 1
6 23557D000 HOUSING, UPPER BEARING (FOR 200V & 575V) 1
23557D001 HOUSING, UPPER BEARING (FOR 230V & 460V) 1
7 05876A136 O-RING, 10-1/4" x 10" x 1/8" 1
8 149810011 PIPE PLUG, 1/4" SCKT HD 2
9SEE
CHART
TERMINAL, RING TONGUE, 1/4" STUD. 16-14 WIRE
(3 REQ’D. ON 200V & 575V,
9 REQ’D. ON 230V & 460V)
AS
NOTED
10 19331A008 WASHER, WAVE SPRING 2
11 08565A027 BEARING, BALL, UPPER 1
12 SEE CHART HOUSING WITH STATOR 1
13 RTF ROTOR WITH SHAFT 1
14 000650381 BEARING, BALL, LOWER 1
15 19103A049 CAP SCREW, HEX HD., 1/2"-13 x 2-1/4" 8
16 05876A137 O-RING, 11-3/4" x 11-1/2" x 1/8" 1
17 23604D010 HOUSING, UPPER SEAL 1
18 23605A000 SEAL, 2-1/4" SHAFT 2
19 19103A045 CAP SCREW, HEX HD., 1/2"-13 x 1-3/4" 8
20 RTF HOUSING, LOWER SEAL 1
21 05876A138 O-RING, 10-3/4" x 10-1/2" x 1/8" 1
22 06106A028 CAP SCREW, SOCKET HD., 3/8"-16 x 1" 8
23 05818A071 KEY, 3/8" SQUARE x 1-5/8" LG. 1
24 23609A004 WASHER, IMPELLER RETAINER WITH PIN 1
08001A009 WASHER, BEARING LOCK 1
25 19106A017 CAP SCREW, HEX HD., 3/4"-19 x 1-3/4" LG. 1
26 23608D500 IMPELLER, PUMP, SPECIFY O.D. 1
27 23606F010
CASE, VOLUTE, 4" FLANGE FOR 4VC ONLY
(INCLUDES WEAR RING 23607B000 AND
2 SET SCREWS 05013A015)
1
23606F000
CASE, VOLUTE, 6" FLANGE FOR 6VC ONLY
(INCLUDES WEAR RING 23607B000 AND
2 SET SCREWS 05013A015)
1
28 07597A017 MACHINE SCREW, FLAT SKT. HD., 5/16"-18 x 1" 2
29 23555A000
TERMINAL, ELECTRICAL
(7 REQ’D. ON 200V & 575V AND 13 REQ’D.
ON 230V & 460V)
AS
NOTED
23768A022 ACCESSORY – SUPPORT LEG-750 (NOT SHOWN) 1
30 12074A036 TERMINAL, RING TONGUE, 1/4" STUD, 22-16 WIRE 4
31 23600A000 GUARD, WIRE 1
32 05160A004 DRIVE SCREW, .138 x 5/16" 10
33 12558A020 RING, RETAINING 1
34 22578A101 WIRE, ELECTRODE 2
35 05434A025 SCREW, MACH. #6-32 2
36 25343A100 PROBE, SEAL 2
22912A000 RESISTOR, SEAL PROBE (4VCX ONLY) 1
37 05863A021 GASKET, VELLUMOID 1
38 17190A004 TIE, CABLE 10
39 05030A214 WASHER, SUPPORT 1
40 12558A024 RING, RETAINING 1
41 23607B000 WEAR RING, VOLUTE 1
NOTE: 25218A014 Repair Kit available. Kit includes shaft seals,
gasket, O-rings, seal leak wires, upper and lower ball bearings.
4VC & 6VC SERIES
SEWAGE PUMPS PARTS LIST
4 POLE (1750 RPM), 15 TO 60 HP – 3 PHASE ONLY
6 POLE (1150 RPM), 5 TO 20 HP – 3 PHASE ONLY
8 POLE (870 RPM), 2 TO 71⁄2HP – 3 PHASE ONLY
1
4
5
7
6
8
9
10
11
12
13
14
15
16
17
18
20
19
21
22
23
24
25
26
27
41
37
36
33
35
34
40
39
32
31
38
30
29
28
3
2

11
Pump
Catalog Number RPM Terminal Housing
w/Stator
4VC20M8-03 6VC20M8-03 870 12074A037 23558E343
4VC20M8-23 6VC20M8-23 870 12074A037 23558E344
4VC20M8-43 6VC20M8-43 870 12074A037 23558E344
4VC20M8-53 6VC20M8-53 870 12074A037 23558E345
4VC30M8-03 6VC30M8-03 870 12074A037 23558E343
4VC30M8-23 6VC30M8-23 870 12074A037 23558E344
4VC30M8-43 6VC30M8-43 870 12074A037 23558E344
4VC30M8-53 6VC30M8-53 870 12074A037 23558E345
4VC50M8-03 6VC50M8-03 870 12074A037 23558E343
4VC50M8-23 6VC50M8-23 870 12074A037 23558E344
4VC50M8-43 6VC50M8-43 870 12074A037 23558E344
4VC50M8-53 6VC50M8-53 870 12074A037 23558E345
4VC75M8-03 6VC75M8-03 870 12074A037 23558E371
4VC75M8-23 6VC75M8-23 870 12074A037 23558E372
4VC75M8-43 6VC75M8-43 870 12074A037 23558E372
4VC75M8-53 6VC75M8-53 870 12074A037 23558E373
4VC50M6-03 6VC50M6-03 1150 12074A037 23558E374
4VC50M6-23 6VC50M6-23 1150 12074A037 23558E375
4VC50M6-43 6VC50M6-43 1150 12074A037 23558E375
4VC50M6-53 6VC50M6-53 1150 12074A037 23558E376
4VC75M6-03 6VC75M6-03 1150 12074A037 23558E349
4VC75M6-23 6VC75M6-23 1150 12074A037 23558E350
4VC75M6-43 6VC75M6-43 1150 12074A037 23558E350
4VC75M6-53 6VC75M6-53 1150 12074A037 23558E351
4VC100M6-03 6VC100M6-03 1150 12074A037 23558E349
4VC100M6-23 6VC100M6-23 1150 12074A037 23558E350
4VC100M6-43 6VC100M6-43 1150 12074A037 23558E350
4VC100M6-53 6VC100M6-53 1150 12074A037 23558E351
4VC150M6-03 6VC150M6-03 1150 12074A027 23558E352
4VC150M6-23 6VC150M6-23 1150 12074A037 23558E353
4VC150M6-43 6VC150M6-43 1150 12074A037 23558E353
4VC150M6-53 6VC150M6-53 1150 12074A037 23558E354
4VC200M6-03 6VC200M6-03 1150 12074A037 23558E352
4VC200M6-23 6VC200M6-23 1150 12074A037 23558E353
4VC200M6-43 6VC200M6-43 1150 12074A037 23558E353
4VC200M6-53 6VC200M6-53 1150 12074A037 23558E354
4VC150M4-03 6VC150M4-03 1750 12074A027 23558E355
4VC150M4-23 6VC150M4-23 1750 12074A037 23558E358
4VC150M4-43 6VC150M4-43 1750 12074A037 23558E358
4VC150M4-53 6VC150M4-53 1750 12074A037 23558E359
4VC200M4-23 6VC200M4-23 1750 12074A037 23558E358
4VC200M4-43 6VC200M4-43 1750 12074A037 23558E358
4VC200M4-53 6VC200M4-53 1750 12074A037 23558E359
4VC250M4-23 6VC250M4-23 1750 12074A037 23558E362
4VC250M4-43 6VC250M4-43 1750 12074A037 23558E362
4VC250M4-53 6VC250M4-53 1750 12074A037 23558E363
4VC300M4-23 6VC300M4-23 1750 12074A037 23558E362
4VC300M4-43 6VC300M4-43 1750 12074A037 23558E362
4VC300M4-53 6VC300M4-53 1750 12074A037 23558E363
4VC400M4-23 6VC400M4-23 1750 12074A028 23558E364
4VC400M4-43 6VC400M4-43 1750 12074A028 23558E364
4VC400M4-53 6VC400M4-53 1750 12074A037 23558E365
4VC500M4-43 6VC500M4-43 1750 12074A028 23558E366
4VC500M4-53 6VC500M4-53 1750 12074A028 23558E367
4VC600M4-43 6VC600M4-43 1750 12074A028 23558E366
4VC600M4-53 6VC600M4-53 1750 12074A028 23558E367
4VC & 6VC SERIES SEWAGE PUMPS PARTS LIST
4 POLE (1750 RPM), 15 TO 60 HP –
3 PHASE ONLY
6 POLE (1150 RPM), 5 TO 20 HP –
3 PHASE ONLY
8 POLE (870 RPM), 2 TO 71⁄2HP –
3 PHASE ONLY

12
––
–
–
–230 VOLT – SINGLE PHASE
R AND V SERIES
WIRING DIAGRAMS

13
TROUBLE CHECK LIST
Troubles listed are generally caused by the pump. Other trouble can occur from faulty control box operation.
These will be listed with the control box instructions.
CONDITION PROBABLE CAUSE
Pump runs but does not pump
liquid from basin.
1. Pump impeller may be air locked. This occasionally occurs on
a new installation. Start and stop pump several times to purge air. Be
sure air vent hold in volute case is clean.
2. Run additional water into basin so that pump will be
submerged deeper to clear air.
3. If pump is three phase, rotation may be wrong. See
instructions for checking proper rotation.
4. If pump has been installed for some time and does not pump,
it may be clogged at inlet.
5. Discharge gate valve may be closed.
6. Discharge check valve may be clogged or have a broken
clapper or spring.
7. Discharge head may be too high. Check elevation.
8. If above checks do not locate trouble, motor rotor may be
loose on shaft which allows motor to run but will not turn
impeller or only at low RPM.
Checking for Moisture in Motor: Use ohmmeter
and set on highest scale. Readings on the large power
cord between any of the conductors red, black, white
to green conductor or motor housing should be more
than 500,000 ohms.
Readings should be taken with line leads
disconnected from terminal strip.
Resistance of Windings: Every motor winding has
a fixed resistance. Winding must check close to the
specification values to operate properly. This winding
resistance also shows if motor is connected for
voltage being used. Use ohmmeter for this test and
set on scale to read directly in ohms.
CHECK LIST IF PUMP DOES NOT OPERATE PROPERLY

14
TROUBLE CHECK LIST (Cont’d)
CONDITION PROBABLE CAUSE
Red light comes on at control box.
Overload trips at control box
and alarm buzzer or flashing
red light comes on due to high
water level in basin.
Yellow run light stays on
continuously.
Circuit breaker trips.
Pump is noisy and pump rate
is low.
Grease and solids have
accumulated around pump
and will not pump out
of basin.
This indicates some water has leaked past the lower seal
and has entered the seal chamber and made contact with
the electrode probe. Pump must be removed from basin
immediately for replacement of lower seal. This preventive
repair will save an expensive motor.
1. Push in on red reset button to reset overload. If overload
trips again after short run, pump has some damage and must
be removed from basin for checking.
2. Trouble may be from clogged impeller causing motor to
overload or could be from failed motor.
3. Trouble may be from faulty component in control box. Always
check control box before removing pump.
1. Indicates H-O-A switch may be in the Hand position.
2. Level control switch may have failed causing pump to
continue to operate when water is below lower control.
3. Impeller may be partially clogged causing pump to
operate at much reduced capacity.
4. Gate valve or check valve may be clogged causing low pump flow.
5. Pump may be air logged.
1. Reset breaker by pushing clear down on handle then back
to On position. If breaker trips again in few seconds it indicates
excessive load probably caused by a short in the motor or
control box. Check out instructions given with control box
before pulling pump.
2. If this condition happens after an electrical storm, motor or
control box may be damaged by lightning.
3. Resistance reading of the motor with lead wires disconnected
from the control box can determine if trouble is in motor or control box.
1. Impeller may be partially clogged with some foreign objects
causing noise and overload on the motor.
2. Impeller may be rubbing on wear ring due to bent shaft or misalignment.
3. Pump may be operating too close to shut-off. Check head.
1. Lower weight of level switch may be set too high.
2. Run pump on Hand operation for several minutes with small
amount of water running into basin to clean out solids and
grease. This allows pump to break suction and surge which
will break up the solids. If level switch is set properly this
condition generally will not occur.
3. Trash and grease may have accumulated around floats
causing pump to operate erratically.

THIS PAGE INTENTIONALLY LEFT BLANK

Warranty Rev. 12/13
STANDARD LIMITED WARRANTY
Pentair Myers® warrants its products against defects in material and workmanship for a period of 12 months from the
date of shipment from Pentair Myers or 18 months from the manufacturing date, whichever occurs first – provided
that such products are used in compliance with the requirements of the Pentair Myers catalog and technical manuals
for use in pumping raw sewage, municipal wastewater or similar, abrasive-free, noncorrosive liquids.
During the warranty period and subject to the conditions set forth, Pentair Myers, at its discretion, will repair or
replace to the original user, the parts that prove defective in materials and workmanship. Pentair Myers reserves the
right to change or improve its products or any portions thereof without being obligated to provide such a change or
improvement for prior sold and/or shipped units.
Start-up reports and electrical schematics may be required to support warranty claims. Submit at the time of start-
up through the Pentair Myers website: http://forms.pentairliterature.com/startupform/startupform.asp?type=m.
Warranty is effective only if Pentair Myers authorized control panels are used. All seal fail and heat sensing devices
must be hooked up, functional and monitored or this warranty will be void. Pentair Myers will cover only the lower
seal and labor thereof for all dual seal pumps. Under no circumstance will Pentair Myers be responsible for the cost
of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from the
factory or an authorized Pentair Myers service facility.
This limited warranty will not apply: (a) to defects or malfunctions resulting from failure to properly install, operate or
maintain the unit in accordance with the printed instructions provided; (b) to failures resulting from abuse, accident
or negligence; (c) to normal maintenance services and parts used in connection with such service; (d) to units that
are not installed in accordance with applicable local codes, ordinances and good trade practices; (e) if the unit is
moved from its original installation location; (f) if unit is used for purposes other than for what it is designed and
manufactured; (g) to any unit that has been repaired or altered by anyone other than Pentair Myers or an authorized
Pentair Myers service provider; (h) to any unit that has been repaired using non factory specified/OEM parts.
Warranty Exclusions: PENTAIR MYERS MAKES NO EXPRESS OR IMPLIED WARRANTIES THAT EXTEND BEYOND
THE DESCRIPTION ON THE FACE HEREOF. PENTAIR MYERS SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE.
Liability Limitation: IN NO EVENT SHALL PENTAIR MYERS BE LIABLE OR RESPONSIBLE FOR CONSEQUENTIAL,
INCIDENTAL OR SPECIAL DAMAGES RESULTING FROM OR RELATED IN ANY MANNER TO ANY PENTAIR MYERS
PRODUCT OR PARTS THEREOF. PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY RESULT FROM IMPROPER
INSTALLATION. PENTAIR MYERS DISCLAIMS ALL LIABILITY, INCLUDING LIABILITY UNDER THIS WARRANTY, FOR
IMPROPER INSTALLATION. PENTAIR MYERS RECOMMENDS INSTALLATION BY PROFESSIONALS.
Some states do not permit some or all of the above warranty limitations or the exclusion or limitation of incidental or
consequential damages and therefore such limitations may not apply to you. No warranties or representations at any
time made by any representatives of Pentair Myers shall vary or expand the provision hereof.
1101 MYERS PARKWAY 490 PINEBUSH ROAD, UNIT 4
ASHLAND, OHIO 44805 CAMBRIDGE, ONTARIO, CANADA N1T 0A5
PH: 855-274-8947 PH: 800-363-7867
WWW.FEMYERS.COM WWW.FEMYERS.COM
