Pentair STA-RITE D Series User manual

1362 1094ASBNF
“D” Series
Installation/Operation/Parts
For further operating, installation,
or maintenance assistance:
Call 1-888-782-7483
OWNER’S MANUAL
Self-Priming
Centrifugal Pumps
© 2013 Pentair Ltd. All Rights Reserved. S976 (REV 01/14/13)
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.STA-RITE.COM
PH: 888-782-7483
CLICK ANYWHERE on THIS PAGE to RETURN to WATER PUMP & TANK I&O & REPAIR MANUALS at InspectApedia.com

Safety 2
READ AND FOLLOW
SAFETY INSTRUCTIONS!
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one of
the following signal words and be alert to the potential
for personal injury:
warns about hazards that will cause
serious personal injury, death or major property
if ignored.
warns about hazards that can cause serious
personal injury, death or major property damage if
ignored.
warns about hazards that will or can cause
minor personal injury or property damage if ignored.
The label NOTICE indicates special instructions which
are important but not related to hazards.
Carefully read and follow all safety instructions in this
manual and on pump.
Keep safety labels in good condition.
Replace missing or damaged safety labels.
Make workshops childproof; use padlocks and master
switches; remove keys.
California Proposition 65 Warning
This product and related accessories
contain chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm.
GENERAL SAFETY
Do not touch an operating motor. Modern
motors are designed to operate at high temperatures. To
avoid burns when servicing pump, allow it to cool for 20
minutes after shut-down before handling.
Do not allow pump or any system component to freeze.
To do so will void warranty.
Pump water only with this pump.
Periodically inspect pump and system components.
Wear safety glasses at all times when working on pumps.
Keep work area clean, uncluttered and properly lighted;
store properly all unused tools and equipment.
Keep visitors at a safe distance from the work areas.
Pump body may explode if used as a
booster pump unless relief valve capable of passing full
pump flow at 75 psi is installed.
WARNING
Hazardous pressure!
Install pressure relief
valve in discharge pipe.
Release all pressure on
system before working on
any component.
WARNING
Hazardous voltage.
Can shock, burn, or
cause death.
Ground pump before
connecting to power
supply. Disconnect power
before working on pump,
motor or tank.
Wire motor for correct
voltage. See “Electrical”
section of this manual and
motor nameplate.
Ground motor before
connecting to power supply.
Meet National Electrical
Code, Canadian Electrical
Code, and local codes for all
wiring.
Follow wiring
instructions in this manual
when connecting motor to
power lines.

Table of Contents 3
Thank you for purchasing a top quality, factory tested pump.
Page
General Safety .....................................................................................................2
Warranty..............................................................................................................3
Installation........................................................................................................4-5
Electrical...........................................................................................................6-7
Service ...........................................................................................................8-10
Repair Parts .................................................................................................11-12
Limited Warranty
STA-RITE warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free
from defects in material and workmanship for the Warranty Period shown below.
Product Warranty Period
Water Systems Products — jet pumps, small centrifugal pumps,
submersible pumps and related accessories
whichever occurs first:
12 months from date of original installation,
or 18 months from date of manufacture
Pro-Source®Composite Tanks 5 years from date of original installation
Pro-Source®Steel Pressure Tanks 5 years from date of original installation
Pro-Source®Epoxy-Lined Tanks 3 years from date of original installation
Sump/Sewage/Effluent Products 12 months from date of original installation, or
18 months from date of manufacture
Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication,
improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase
power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg,
ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.
Your only remedy, and STA-RITE’s only duty, is that STA-RITE repair or replace defective products (at STA-RITE’s choice). You
must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing
dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has
expired. This warranty is not transferable.
STA-RITE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE FOREGOING WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION EXPRESSLY PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an
implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and
You may also have other rights which vary from state to state.
This Limited Warranty is effective June 1, 2011 and replaces all undated warranties and warranties dated before June 1, 2011.
STA-RITE INDUSTRIES
293 Wright Street • Delavan, WI U.S.A. 53115
Phone: [phone] • Fax: [phone] • Web Site: sta-rite.com

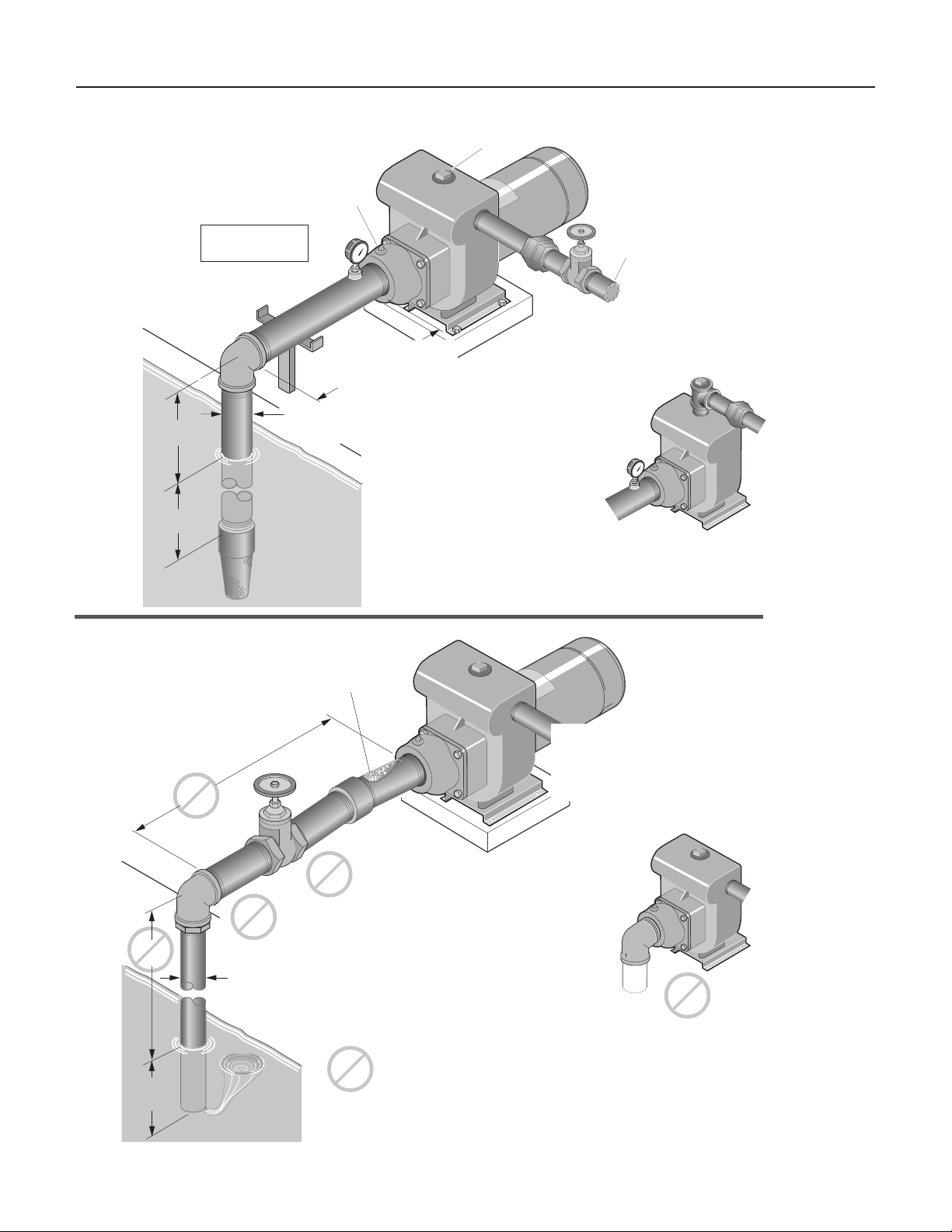

Installation 4
Support suction pipe
as required Support discharge
pipe as required
As close
as possible
4 x "D"
minimum
Pipe diameter "D"
at least as large as
pump suction connection
Important:
All connections must
be
air tight
Solid, level
base
Priming
Plug
Gate
Valve
Union
Discharge
to service
Recommended pump suction
and discharge connections
Not recommended pump suction
and discharge connections
Elbow immediately
in front of pump
suction.
High
lift
Pipe diameter "D"
insufficient size
Pipe submerged
less than 4 x "D"
will cause vortexing
Long suction
run
Valve
Unsupported
Pipe
Misaligned pipe causes air leaks;
high spots along the suction line
result in air pockets.
Offset suction flange adapter
keeps suction water level
above impeller eye to aid priming.
Use of excess fittings
means potential air leaks
Straight run, short as
possible but at least 6
times pipe diameter ("D");
slope is down going away
from pump.
1239 0894
Some models have top
discharge; these require
a priming tee.
On the discharge avoid:
Quick closing valves.
Small I.D. pipe.
Numerous fittings.
Misalignment.
Sharp turns in piping run.
Figure 1
Figure 2

Installation 5
LOCATION OF UNIT
Locate the pump as near the liquid source as possible, using a short, direct
suction pipe. Keep the static suction lift (vertical distance between the cen-
ter line of the pump and the liquid level) to a minimum. Mount the pump
on a solid, level foundation, which provides a rigid and vibration-free sup-
port. It should be located where the unit is readily accessible for service
and maintenance. The pump should be protected against flooding and
excessive moisture.
PIPING
Both suction and discharge piping should be independently supported at
a point near the pump to avoid strains being placed on the pump. Start all
piping at pump to avoid strains left by a gap at last connection.
SUCTION PIPING
The suction pipe must be kept free of leaks. The suction pipe must have a
gradual slope upward to the pump. Avoid any fittings which may cause an
air trap. On units that have a suction fitting, a check valve is a built-in fea-
ture and no foot valve is required.
DISCHARGE PIPING
A gate valve and union should be installed in the discharge line. For remov-
al of the pump for service, close the gate valve, and disconnect at union.

Electrical 6
Disconnect power at service panel before connecting motor.
Single phase motors come factory wired for 230 volt operation. Do not
alter wiring in single phase motors. Match motor voltage to power supply
voltage. Do not connect three phase motors to single phase power supply
or single phase motors to three phase power supply.
Ground motor before connecting to electrical power supply.
Failure to ground motor can cause severe or fatal electrical shock
hazard.
Do not ground to a gas supply line.
To avoid dangerous or fatal electrical shock, turn OFF power to
motor before working on electrical connections.
Supply voltage must be within ±10% of nameplate voltage.
Incorrect voltage can cause fire or seriously damage motor and
voids warranty. If in doubt consult a licensed electrician.
Use wire size specified in Wiring Chart. If possible, connect pump to
a separate branch circuit with no other appliances on it.
WIRING
Step 1. Install, ground, wire and maintain this pump in accordance with your
local electrical code and all other codes and ordinances that apply.
Consult your local building inspector for local code information.
Step 2. Ground the pump permanently using a wire of size and type speci-
fied by local or National Electrical Code.
Do not ground to a gas supply line.
Step 3. Connect ground wire first. Connect to ground first, then to green
grounding terminal provided (identified as GRD or ). Make
ground connection to this terminal. Do not con-
nect motor to electrical power supply until unit is permanently
grounded; otherwise serious or fatal electrical shock hazard may be
caused.
Step 4. For best ground connection, connect to a grounded lead in the
service panel or to a metal underground water pipe or well casing
at least 10 ft. long. If plastic pipe or insulated fittings are used, run
ground wire directly to the metal well casing or use ground elec-
trode furnished by the power company.
WARNING
Hazardous voltage.
Can shock, burn, or
cause death.
Ground pump before
connecting to power
supply.

Electrical 7
Before using pump, check your motor nameplate for volt-
age. Your electric supply voltage and the stamped nameplate voltage must
agree. Motors stamped 200 volts only or 230 volts only, must be used with
that voltage only. Motors stamped with two voltages (for example 230/460
volts), may be used with either supply voltage. For these motors check con-
nections against wiring diagram on motor nameplate and make any chang-
es necessary to agree with your supply voltage. If in doubt, call a licensed
electrician. Incorrect voltage will cause serious damage to the motor.
Some models are equipped with three phase motors. Three phase motors
require magnetic starters.
To check motors for proper rotation: The shaft can be seen through the
motor - pump adapter bracket. A mark can be made on the shaft to make
it easier to notice rotation. Jog the motor (start it briefly) and note the rota-
tion. It should rotate clockwise when viewed from the motor-end. If rotation
is not clockwise, see motor nameplate for hookup information. BE SURE
power is off to the motor when working on electrical connections.
Motor normally operates at high temperature and will be too
hot to touch. Before handling pump or motor, stop motor and allow it to
cool for 20 minutes.
TABLE I – Recommended Wire and Fuse Sizes
DIAMETER IN FEET FROM MOTOR TO METER
BRANCH 0’ 51’ 101’ 201’ 301’ 401’
MAX. FUSE* TO TO TO TO TO TO
MOTOR LOAD RATING 50’ 100’ 200’ 300’ 400’ 500’
HP PHASE VOLTS AMPS AMPS WIRE SIZE
3 1 230 17.0 25 12 12 12 10 8 8
3 1 200 19.6 30 10 10 10 10 8 8
3 3 200 11.0 15 14 14 14 12 10 10
3 3 230 9.6 15 14 14 14 12 12 10
3 3 460 4.8 15 14 14 14 14 14 14
5 1 230 28.0 40 8 8 8 8 6 6
5 1 200 32.2 50 8 8 8 8 6 6
5 3 200 17.5 25 10 10 10 10 8 8
5 3 230 15.2 20 12 12 12 10 10 8
5 3 460 7.6 15 14 14 14 14 14 14
* Time delay fuse or circuit breakers are recommended in any motor circuit.
IMPORTANT: BE SURE lead wire opening on end of motor is fully sealed
when conduit or a pressure switch is not used. Failure to seal it properly
will allow dirt, rain, bugs, etc. to enter back compartment of motor through
conduit opening and cause switch malfunction.

Service 8
Never run pump dry. Running pump without water may
cause pump to overheat, damaging seal and possibly causing burns to per-
sons handling pump. Fill pump with water before starting.
Never run pump against closed discharge. To do so can boil
water inside pump, causing hazardous pressure in unit, risk of explosion
and possibly scalding persons handling pump.
PRIMING THE PUMP
A tee installed in the discharge opening of the pump, and provided with a
priming plug at the top position, will enable you to fill the pump with liq-
uid. Once filled and the priming plug replaced, the pump will prime. The
pump should prime itself time after time, as long as the built-in check valve
functions.
MAINTENANCE
Little or no maintenance to pump is required other than possible replace-
ment of shaft seal after a reasonable period of operation (see Page 10).
Lubricate motor according to motor manufacturer’s in-structions. Periodic
greasing is required for most motors.
PUMP STORAGE
Drain pump to prevent freezing.
Keep motor dry and loosely covered. Do not wrap with plastic sheeting;
trapped moisture could cause corrosion or insulation deterioration.
NOTICE: A good rust inhibitor in the liquid end of cast iron pumps is rec-
ommended to prevent excessive corrosion.
PUMP START-UP AFTER STORAGE
Replace all drain plugs and close all drain valves in system.
Be sure all connections are tightly sealed.
After initial check is made, fill pump according to “Priming the
Pump,” above.
SHAFT SEAL REPLACEMENT
IMPORTANT: The highly polished and lapped faces of the seal are easily
damaged. Follow instructions and handle the seal with care.
Hazardous
voltage
Be sure unit is grounded and power disconnected before
attempting any work on pump or motor.

Stationary
Seat
Rotating
Seal
Spring
1419 1294
Figure 3
Service 9
REMOVAL OF OLD SEAL
Refer to Figure 3 for Mechanical Seal parts indentificaiton.
Step 1. Disconnect all power to pump.
Step 2. Close isolation valves to cut pump off from system.
Step 3. Drain pump; be sure to vent pump.
Step 4. Remove motor hold down bolts and bolts holding adapter/seal
plate (Key No. 6, Page 11) to pump body (Key No. 20). Slide
motor, adapter/ seal plate and impeller (Key No. 12) backward to
clear pump body.
Step 5. Remove impeller screw and washer from end of shaft and slide
impeller off of shaft.
Step 6. Unbolt adapter/seal plate from motor.
Step 7. Use two screwdrivers (Figure 4) or bearing puller to carefully sep-
arate motor from adapter/seal plate, bringing rotating half of seal
(Key No. 10) off with adapter/seal plate. Shaft sleeve (Key No. 2A)
may come off with seal.
Step 8. Use hammer, if necessary, to drive shaft sleeve out of seal. Clean
up shaft sleeve with emery paper if necessary.
Step 9. Place adapter/seal plate face down on bench and drive old sta-
tionary half of seal out of adapter/seal plate by carefully taping
with screwdriver and hammer (Figure 5).
Step 10. Use a wire brush to thoroughly clean adapter/seal plate cavity. Be
sure all dust and grime are out of seal cavity before installing new
seal.
1421 1294
Figure 5
If Gear Puller is used,
place jackscrew here.
Rotating Seat will come off
with adapter/sealplate.
1420 1294
Figure 4

Service 10
INSTALLING NEW SEAL
Step 1. IMPORTANT: Seal faces are highly polished and lapped. Handle
with care. Any mar, nick or scratch on seal face will cause it to
leak. BE SURE to install with polished faces toward each other.
Step 2. Clean polished surface of ceramic seat with clean cloth.
Step 3. Wet O-Ring around ceramic seat with liquid soap.
Step 4. Press stationary (ceramic) half of seal into cavity firmly and squarely
with thumb pressure. If it does not seal properly, remove and place
face up on bench. Re-clean adapter/seal plate cavity. Seal should
now seat correctly.
Step 5. If seal does not seat after recleaning adapter/seal plate cavity, place
a cardboard washer over polished face of seal and carefully press
into place using a piece of 1” standard pipe as a press. (Figure 6).
NOTICE: BE SURE you do not scratch seal face.
Step 6. Dispose of cardboard washer and recheck seal face to be sure it is
free of dirt, foreign particles, scratches and grease.
7. Inspect shaft and shaft sleeve to be sure they are clean.
8. Re-install O-Ring, shaft sleeve and slinger (Key No. 4) on shaft.
NOTICE: A small amount of grease or Never-Seez under shaft
sleeve will help prevent shaft and sleeve from freezing together
when pump is in service.
9. Remount adapter/seal plate to motor, being careful not to scratch
seal face.
Step 10. Apply liquid soap to inside diameter and outside face of rubber
drive ring on rotating half of seal.
Step 11. Slide seal assembly onto shaft sleeve (sealing face first) far enough
so that seal spring is located on shaft sleeve. NOTE: Be careful not
to nick carbon seal face when passing it over end of shaft sleeve.
Step 12. Slide impeller and gaskets (Key Nos. 12 and 11) onto shaft with
key (Key No. 3) in position. Be sure to maintain proper order as
shown in Exploded View, Page 11.
Step 13. Install washer, gaskets, and impeller screw (Key Nos. 14, 15, 16,
17) on end of shaft and tighten screw until it is snug. This should
locate seal in place and bring seal faces together.
Step 14. Re-install motor, adapter and impeller assembly on volute, using
new gasket (Key No. 7).
Step 15. Re-install motor hold-down bolts.
Step 16. Check all bolts for tightness.
Step 17. Pumps below water level: Close drains; open isolation valves to
fill pump. Pumps above water level: Prime pump. Open isolation
valves if they were closed at disassembly.
Step 18. When pump is full, close air vents.
Step 19. Reconnect power to pump and system is ready for operation.
1" Standard Pipe
Stationary Seat
Cardboard
Washer
(Supplied with seal)
1422 1294
Figure 6

1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
21
2
2A
1362 1094
Repair Parts 11
3 HP 5 HP 3 HP 5 HP
DMH-171 DHH-169
DMH3-171 DMJ-172 DHH3-169 DHJ-170
DM2H-171 DMJ3-172 DH2H-112 DHJ3-170
Key Part No. DM2H3-110 DM2J-172 DH2H3-112 DH2J-113
No. Description Used DM2H3-171 DM2J3-172 DH2H3-169 DH2J3-170
1 Motor - 60 Cycle - 230V, Single Phase 1 C218-177 C218-180 C218-177 C218-180
1 Motor - 60 Cycle - 230/460V, Three Phase 1 C218-179 C218-182 C218-179 C218-182
1 Motor - 60 Cycle - 200V, Single Phase 1 C218-191 C218-192 C218-191 C218-192
1 Motor - 60 Cycle - 200V, Three Phase 1 C218-178 C218-181 C218-178 C218-181
2 O-Ring 1 U9-265 U9-265 U9-265 U9-265
2A Sleeve 1 C23-58 C23-58 C23-58 C23-58
3 Key - Square 1 U65-42A U65-42A U65-42A U65-42A
4 Water Slinger - Single Phase 1 C69-15 C69-15 C69-15 C69-15
4 Water Slinger - 230/460V, Three Phase 1 C69-16 C69-15 C69-16 C69-15
4 Water Slinger - 200 V, Three Phase 1 C69-15 C69-15 C69-15 C69-15
5 Capscrew - 3/8 - 16 x 7/8” Lg. 8 U30-73ZP U30-73ZP U30-73ZP U30-73ZP
6 Adapter 1 C2-66 C2-66 C2-66 C2-66
7 Gasket - Adapter 1 C20-46 C20-46 C20-46 C20-46
8 Lockwasher - 3/8” 4 U43-12ZP U43-12ZP U43-12ZP U43-12ZP
9 Capscrew - 3/8 - 16 x 7/8” Lg. 4 U30-73ZP U30-73ZP U30-73ZP U30-73ZP
10 Shaft Seal 1 U109-220 U109-220 U109-220 U109-220
11 Gasket - Seal 1 C20-101 C20-101 C20-101 C20-101
12 Impeller 1 C5-246 C5-247 C5-248 C5-249
13 Wear Ring 1 J23-5 C23-14 J23-5 J23-5
14 Gasket 1 C20-100 C20-100 C20-100 C20-100
15 Washer - Impeller 1 C43-45SS C43-45SS C43-45SS C43-45SS
16 Gasket 1 C43-46 C43-46 C43-46 C43-46
17 Screw - Impeller - 3/8 - 16 x 3/4” Lg. 1 U30-72SS U30-72SS U30-72SS U30-72SS
18 Volute Diffuser (w/Wear Ring, Key No. 13) 1 C101-126 C101-126B C101-132 C101-132
19 Diffuser Ring 1 C21-2 C21-2 C21-2 C21-2
20 Pump Body 1 C76-12 C76-12C C76-12B C76-12
21 Pipe Plug - 1/4” NPT 2 U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
22 Capscrew - 5/16 - 18 x 3/4” Lg. 4 U30-60ZP U30-60ZP U30-60ZP U30-60ZP

Repair Parts 12
1238 0894
1
2
3
45
6
SUCTION FLANGE ASSEMBLY
Key Part No. Part
No. Description Used Symbol
1 Valve Plate 1 C61-5SS
2 Gasket - Flange 1 C20-15
3 Valve Washer 1 C43-15SS
4 Machine Screw 1/4-20 x 1/2” 1 U30-50SS
5 Pipe Plug - 1/4” NPT Sq. Hd. 1 U78-57SSS
6 Suction Flange 2” NPT 1 C3-22A
6 Suction Flange 2-1/2” NPT 1 C3-74
6 Suction Flange 3” NPT 1 C3-74B
 • Nut,1/4-20,Hex 1 BC120-15
Suction Flange Assembly-
Complete 1-1/2” NPT C203-22
Suction Flange Assembly-
Complete 2” NPT C203-22A
