OWNER’S MANUAL
Self-Priming Centrifugal Pump
3621 0714 ASB
“DS3” Series
Installation/Operation/Parts
For further operating, installation,
or maintenance assistance:
Call 888-782-7483
© 2014 Pentair Ltd. All Rights Reserved. S536 (07/07/14)
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.STA-RITE.COM
PH: 888-782-7483

Safety 2
READ AND FOLLOW
SAFETY INSTRUCTIONS!
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one of
the following signal words and be alert to the potential
for personal injury.
warns about hazards that will cause serious
personal injury, death or major property damage if
ignored.
warns about hazards that can cause serious
personal injury, death or major property damage if
ignored.
warns about hazards that will or can cause
minor personal injury or property damage if ignored.
The label NOTICE indicates special instructions which
are important but not related to hazards.
Carefully read and follow all safety instructions in this
manual and on pump.
Keep safety labels in good condition.
Replace missing or damaged safety labels.
California Proposition 65 Warning
This product and related accessories contain
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
GENERAL SAFETY
Do not touch an operating motor. Modern
motors can operate at high temperatures. To avoid burns
when servicing pump, allow it to cool for 20 minutes
after shut-down before handling.
Pump is designed as a lawn sprinkler only. To avoid heat
built-up, over pressure hazard and possible injury, do not
use in a pressure tank (domestic water) system. Do not use
as a booster pump; pressurized suction may cause pump
body to explode.
Do not allow pump or piping system to freeze. Freezing
can damage pump and pipe, may lead to injury from
equipment failure and will void warranty.
Pump water only with this pump.
Periodically inspect pump and system components.
Wear safety glasses at all times when working on pumps.
Keep work area clean, uncluttered and properly lighted;
store properly all unused tools and equipment.
Keep visitors at a safe distance from the work areas.
Make workshops childproof; use padlocks and master
switches; remove starter keys.
WARNING
Hazardous pressure!
Install pressure relief
valve in discharge pipe.
Release all pressure on
system before working on
any component.
WARNING
Hazardous voltage.
Can shock, burn, or
cause death.
Ground pump before
connecting to power
supply.
Wire motor for
correct voltage.
See “Electrical” section of
this manual and motor
nameplate.
Ground motor before
connecting to power
supply.
Meet National
Electrical Code,
Canadian Electrical Code, and
local codes for all wiring.
Follow wiring
instructions in this
manual when connecting
motor to power lines.
ELECTRICAL SAFETY

Table of Contents 3
Thank you for purchasing a top quality, factory tested pump.
Page
Safety...................................................................................................................2
Warranty..............................................................................................................3
Installation........................................................................................................4-5
Electrical..............................................................................................................6
Operation ............................................................................................................7
Maintenance...................................................................................................8-10
Troubleshooting................................................................................................. 11
Repair Parts ......................................................................................................12
Limited Warranty
STA-RITE warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free
from defects in material and workmanship for the Warranty Period shown below.
Product Warranty Period
Water Systems Products — jet pumps, small centrifugal pumps,
submersible pumps and related accessories
whichever occurs first:
12 months from date of original installation,
or 18 months from date of manufacture
Pro-Source™ Composite Tanks 5 years from date of original installation
Pro-Source™ Steel Pressure Tanks 5 years from date of original installation
Pro-Source™ Epoxy-Lined Tanks 3 years from date of original installation
Sump/Sewage/Effluent Products 12 months from date of original installation, or
18 months from date of manufacture
Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication,
improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase
power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg,
ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.
Your only remedy, and STA-RITE’s only duty, is that STA-RITE repair or replace defective products (at STA-RITE’s choice). You
must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing
dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has
expired. This warranty is not transferable.
STA-RITE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE FOREGOING WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION EXPRESSLY PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an
implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and
You may also have other rights which vary from state to state.
This Limited Warranty is effective June 1, 2011 and replaces all undated warranties and warranties dated before June 1, 2011.
STA-RITE INDUSTRIES
293 Wright Street • Delavan, WI U.S.A. 53115
Phone: [phone] • Fax: [phone] • Web Site: sta-rite.com

Installation 4
BEFORE YOU INSTALL YOUR PUMP
NOTICE: Well must not be more than 20’ depth to water.
1. Long runs and many fittings increase friction and reduce flow. Locate
pump as close to well as possible: use as few elbows and fittings as
possible.
2. Be sure well is clear of sand. Sand will plug the pump and void the
warranty.
3. Protect pump and all piping from freezing. Freezing will split pipe,
damage pump and void the warranty. Check locally for frost protection
requirements (usually pipe must be 12” below frost line and pump must
be insulated).
4. Be sure all pipes and foot valve are clean and in good shape.
5. No air pockets in suction pipe.
6. No leaks in suction pipe. Use PTFE pipe thread sealant tape to seal pipe
joints.
7. Unions installed near pump and well will aid in servicing. Leave room
use wrenches.
8. Pump body may explode if used as a booster pump.
DO NOT use in a booster application.
WELL PIPE INSTALLATION
NOTICE: Use the installation method below which matches your well type.
CASED WELL INSTALLATION
1. Inspect foot valve to be sure it works freely. Inspect strainer to be sure it
is clean.
2. Connect foot valve and strainer to the first length of suction pipe and
lower pipe into well. Add sections of pipe as needed, using PTFE pipe
thread sealant tape on male threads. Be sure that all suction pipe is
leakproof or pump will lose prime and fail to pump. Install foot valve
10 to 20 feet below the lowest level to which water will drop while
pump is operating (pumping water level). Your well driller can furnish
this information.
3. To prevent sand and sediment from entering the pumping system, the
foot valve/strainer should be at least 5 feet above the bottom of the
well.
4. When the proper depth is reached, install a sanitary well seal over the
pipe and in the well casing. Tighten the bolts to seal the casing.
5. When using a foot valve, a priming tee and plug as shown in Figure 1
are recommended.
DUG WELL INSTALLATION
Same as cased well installation.
DRIVEN POINT INSTALLATION
1. Connect the suction pipe to the drive point as illustrated in Figure 2.
Keep horizontal pipe run as short as possible. Use PTFE pip thread
sealant tape on male pipe threads. Multiple well points may be
necessary to provide sufficient water to pump.
2. Install a check valve in horizontal pipe. Flow arrow on check valve
must point toward pump.
Suction
pipe
Foot
Valve
Priming plug
Priming tee
Standing water
level (pump off)
Drawdown water
level (pump on)
10-20' (3-6 m)
20' (6 m) max.
At least 5 feet (1.5 m)
828 0993
Check valve
Steel drive pipe
Drive coupling
Driven point
745 0993
Figure 1: Cased/Dug Well Installation
Figure 2: Driven Point Installation

Installation 5
HORIZONTAL PIPING FROM WELL TO PUMP
1. Never install a suction pipe that is smaller than the suction port of the
pump.
2. To aid priming on well point installations, install a line check valve
as shown in Figure 2. Be sure check valve flow arrow points toward
pump.
DISCHARGE PIPE SIZES
1. If increasing discharge pipe size, install reducer in pump discharge
port. Do not increase pipe size by stages.
2. When the pump is set away from the points of water use, the discharge
pipe size should be increased to reduce pressure losses caused by
friction.
 •Upto100’run:Samesizeaspumpdischargeport.
 •100’to300’run:Increaseonepipesize.
 •300’to600’run:Increasetwopipesizes.
LAWN SPRINKLING APPLICATION
This pump is designed for lawn sprinkling. It is designed to deliver plenty
of water at full sprinkler pressure. It can pump from a pond, cistern or well
points.
Pump discharge can be divided to supply two (2) or more sprinkler
systems. A suggested multiple discharge to service is shown in Figure 3.
Do not use in a pressure tank or booster pump application.
PUMP INSTALLATION
NOTICE: Use only PTFE pipe thread sealant tape for making all threaded
connections to the pump itself. Do not use pipe joint compounds on
plastic pumps: they can react with the plastic in the pump components.
Make sure that all pipe joints in the suction pipe are air tight as well as
water tight. If the suction pipe can suck air, the pump will not be able to
pull water from the well.
1. Bolt pump to solid, level foundation.
2. Support all piping connected to the pump.
3. Wrap 1-1/2 to two layers of PTFE pipe thread sealant tape clockwise
(as you face end of pipe) on all male threads being attached to pump.
4. Tighten joints hand tight plus 1-1/2 turns. Do not overtighten.
NOTICE: Install pump as close to well head as possible. Long piping runs
and many fittings create friction and reduce flow.
NOTICE: For long horizontal pipe runs, install a priming tee between
check valve and well head as shown in Figure 1. For driven point
installations, install a check valve as shown in Figure 2. Be sure check
valve flow arrow points toward pump.
Use schedule 80 or iron pipe. See “Well Pipe Installation” for more
information.
Figure 3: Multiple Discharge

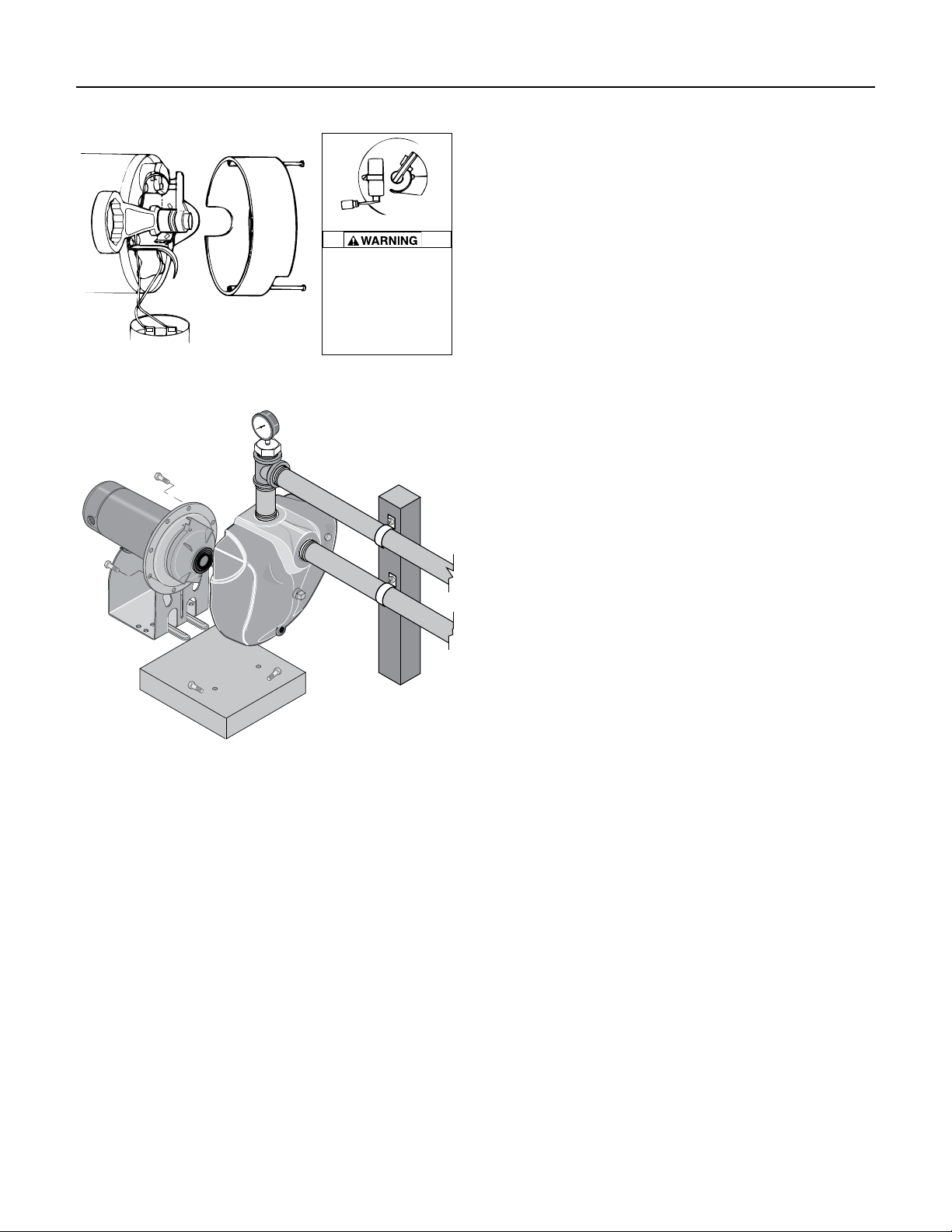

Figure 4: Bolt Pump Down
Figure 5: Independently Support All
Piping Attached to Pump
20 100
80
60
40
6894 0814
6895 0814
20 100
80
60
40
6896 0814

Electrical 6
Connection diagram for dual voltage, single-phase
motors. Your dual-voltage motor’s terminal board (under
the motor end cover) will match one of the diagrams
below. Follow that diagram if necesary to convert motor
to 115 Volt power.
Connect power supply wires to L1 and L2. For 3-phase
motors, or if motor does not match these pictures, follow
the connection diagram on the motor nameplate.
MOTOR SWITCH SETTINGS
Dual-voltage motors (motors that can operate at either
115 or 230 volts), are set at the factory to 230 volts. Do
not change motor voltage setting if line voltage is 230
volts, or if you have a single voltage motor.
NOTICE: Never wire a 115 volt motor to a 230 volt line.
REMOVE MOTOR END COVER
If you have a dual-voltage motor, and will connect it to
115 volts, follow the procedure below.
You will need to remove the motor end cover to change
the voltage setting.
Your motor terminal board (located under the motor end
cover) should look like one of those below.
PLUG TYPE VOLTAGE SELECTOR
To change to 115 volts:
1. Make sure power is off.
2. Pull the plug straight up.
3. Move and attach the plug at the 115 volt position.
The plug will now cover 2 metal tabs. The arrow on
the plug will point to 115V.
4. Attach the power lead wires to the power lead
terminals. Make sure the wires are secure.
5. Attach the ground wire to the green ground screw
6. Reinstall the Motor end cover
Go to Wiring Connections below.
DIAL TYPE VOLTAGE SELECTOR
To change to 115 volts:
1. Make sure power is off.
2. Turn the dial counter-clockwise until 115 shows in
the dial window.
3. Attach the power lead wires to the power lead
terminals. Make sure the wires are secure.
4. Attach the ground wire to the green ground screw
5. Reinstall the Motor end cover
Go to Wiring Connections below.
Hazardous voltage. Can shock, burn, or
cause death. Disconnect power to motor before
working on pump or motor. Ground motor before
connecting to power supply.
WIRING CONNECTIONS
Ground motor before connecting to electrical
power supply. Failure to ground motor can cause
severe or fatal electrical shock hazard.
Do not ground to a gas supply line.
To avoid dangerous or fatal electrical shock, turn
OFF power to motor before working on electrical
connections.
Supply voltage must be within ±10% of nameplate
voltage. Incorrect voltage can cause fire or damage
motor and voids warranty. If in doubt consult a licensed
electrician.
Use wire size specified in Wiring Chart, Page 7. If
possible, connect pump to a separate branch circuit
with no other appliances on it.
Wire motor according to diagram on motor
nameplate. If nameplate diagram differs from
diagrams above, follow nameplate diagram.
1. Install, ground, wire and maintain this pump in
accordance with electrical code requirements.
Consult your local building inspector for information
about codes.
Figure 6: Removing Motor End Cover
Figure 7: Voltage set to 230 volts, Plug Type
Motor
End Cover
End Cover Screws
4693
Voltage Change
Plug
Ground
Screw
Power Lead
Te rminals
4694
Figure 8: Voltage set to 230 volts, Dial Type
Voltage
Change Dial
Ground
Screw
Power Lead
Te rminals
4695

Electrical / Operation 7
2. Provide a correctly fused disconnect switch for protection while work-
ing on motor. Consult local or national electrical codes for switch
requirements.
3. Disconnect power before servicing motor or pump. If the disconnect
switch is out of sight of pump, lock it open and tag it to prevent unex-
pected power application.
4. Ground the pump permanently using a wire of the same size as that
specified in wiring chart, below. Make ground connection to green
grounding terminal under motor canopy marked GRD. or .
5. Connect ground wire to a grounded lead in the service panel or to a
metal underground water pipe or well casing at least 10 feet long. Do
not connect to plastic pipe or insulated fittings.
6. Protect current carrying and grounding conductors from cuts, grease,
heat, oil, and chemicals.
7. Connect current carrying conductors to terminals L1and L2under
motor canopy. When replacing motor, check wiring diagram on motor
nameplate against Figure 6. If the motor wiring diagram does not match
either diagram in Figure 6, follow the diagram on the motor.
IMPORTANT: 115/230 Volt single phase models are shipped from factory
with motor wired for 230 volts. If power supply is 115 volts, remove motor
canopy and reconnect motor as shown in Figure 6. Do not try to run motor
as received on 115 volt current.
8. Motor has automatic internal thermal overload protection. If motor has
stopped for unknown reasons, thermal overload may restart it unexpect-
edly, which could cause injury or property damage. Disconnect power
before servicing motor.
9. If this procedure or the wiring diagrams are confusing, consult a
licensed electrician.
PRIMING THE PUMP
NOTICE: ‘Priming’ refers to the pump expelling all air in the system and begin-
ning to move water from its source out into the system. It does not refer only to
pouring water into the pump (although pouring water in is usually the first step).
NOTICE: NEVER run pump dry. Running pump without water in it will
damage seals and can melt impeller and diffuser. To prevent damage, fill
pump with water before starting.
1. Remove priming plug (Figure 9).
2. Make sure suction and discharge valves and any hoses on discharge
side of pump are open.
Wiring Chart – Recommended Wire and Fuse Sizes
DISTANCE IN FEET(METERS) FROM MOTOR TO SUPPLY
0 - 50 51 - 100 101 - 200 201 - 300
Max. Load Volts/Hz Branch Fuse (0 - 15) (31 - 61) (62 - 91) (92 - 122)
Model HP Amp Phase Rating Amp AWG WIRE SIZE (mm2)
DS3HE-01 1 14.8/7.4 115/230/60/1 20/15 12/14 (3/2) 12/14 (3/2) 8/14 (8.4/2) 6/14 (14/2)
DS3HE3-01 1 3.6/1.8 230/460/60/3 15/15 14/14 (2/2) 14/14 (2/2) 14/14 (2/2) 14/14 (2/2)
DS3HF-01 1-1/2 20/10 115/230/60/1 25/15 10/14 (5.5/2) 10/14 (5.5/2) 8/14 (8.4/2) 6/12 (14/3)
DS3HF3-01 1-1/2 4.7/2.35 230/460/60/3 15/15 14/14 (2/2) 14/14 (2/2) 14/14 (2/2) 14/14 (2/2)
DS3HG-01 2 24/12 115/230/60/1 30/15 12/14 (3/2) 10/14 (5.5/2) 6/14 (14/2) 6/12 (14/3)
DS3HG3-01 2 5.8/2.9 230/460/60/3 15/15 14/14 (2/2) 14/14 (2/2) 14/14 (2/2) 14/14 (2/2)
DS3HHG-01 2-1/2 26/12 115/230/60/1 35/15 12/14 (3/2) 10/14 (5.5/2) 6/14 (14/2) 6/8 (14/8.4)
DS3HHG3-01 2-1/2 6.9/3.45 230/460/60/3 15/15 14/14 (2/2) 14/14 (2/2) 14/14 (2/2) 14/14 (2/2)
Figure 9: Remove Priming Plug and Fill
Pump Before Starting
750 0993
Figure 10: Run Ten Minutes or Less
Figure 11: Do Not Run Pump with
Discharge Shut-off
6897 0814
20 100
80
60
40
6898 0814
20 100
80
60
40

Maintenance 8
3. Fill pump and suction pipe with water.
4. Replace priming plug, using PTFE pipe thread sealant tape on thread;
tighten plug.
NOTICE: If a priming tee and plug have been provided for a long
horizontal run, be sure to fill suction pipe through this tee and replace
plug. (Don’t forget to PTFE pipe thread sealant tape the plug.)
5. Start pump: water should be produced in 10 minutes or less, the
time depending on depth to water (not more than 20’) and length of
horizontal run (10’ of horizontal suction pipe = 1’ of vertical lift due to
friction losses in the pipe).
If no water is produced within 10 minutes, stop pump, release all
pressure, remove priming plug, refill and try again.
Hazardous pressure and risk of explosion and scalding. If
pump is run continuously at no flow (that is, with discharge shut off or
without priming), water may boil in pump and piping system. Under
steam pressure, pipes may rupture, blow off of fittings or blow out of
pump ports and scald anyone near.
To prevent explosion, do the following:
A. Be sure discharge (valve, pistol grip hose nozzle, etc.) is open
whenever pump is running.
B. If pump fails to produce water when attempting to prime, release
all pressure, drain pump and refill with cold water after every two
attempts.
C. When priming, monitor pump and piping temperature. If pump or
piping begin to feel warm to the touch, shut off pump and allow
system to cool off. Release all pressure in system and refill pump and
piping with cold water.
Pump and piping need not be disconnected to repair or replace motor or
seal (see Figure 13). If motor is replaced, replace the shaft seal (Key No. 5,
Page 12). Keep one on hand for future use.
Be sure to prime pump before starting.
NOTICE: Check motor label for lubrication instructions. The mechanical
shaft seal in the pump is water lubricated and self-adjusting.
NOTICE: Drain pump when disconnecting from service or when it might
freeze.
PUMP DISASSEMBLY
1. Disconnect power to motor.
NOTICE: Mark wires for correct assembly.
2. Remove capscrews holding seal plate to pump body. Motor assembly
and seal plate can now be pulled away from pump body (Figure 13).
CAREFULLY remove gasket.
CLEANING/REPLACING IMPELLER
NOTICE: First, follow instructions under “Pump Disassembly”.
1. Remove screws fastening diffuser to seal plate; remove diffuser (see
Figure 14). Exposed impeller can now be cleaned.
2. If impeller must be replaced, loosen two machine screws and remove
motor canopy (see Figure 15).
3. Capacitor voltage may be hazardous. To discharge
capacitor, hold insulated handle screwdriver BY THE HANDLE and
short capacitor terminals together (see Figure 15). Do not touch metal
screwdriver blade or capacitor terminals. If in doubt, consult a
qualified electrician.
ON
OFF
1060B 0997
Figure 12: Disconnect Power
Figure 13: Slide Motor Back
3028 0997
Figure 14: Remove Diffuser
Figure 15: Hold Shaft
739 0993
To avoid electrical
shock hazard, use
insulated-handle
screwdriver to
short capacitor
terminals
as shown.
739 0993
20 100
80
60
40
6899 0814

Maintenance 9
4. Unscrew capacitor clamp and remove capacitor. Do not disconnect
capacitor wires to motor.
5. Slide 7/16” open end wrench in behind spring loaded switch on motor
end of shaft; hold motor shaft with wrench on shaft flats and unscrew
impeller screw (if used) by turning clockwise (left hand thread) when
looking into eye of impeller.
6. Unscrew impeller while holding shaft by turning counterclockwise
while looking into eye of impeller.
7. To reinstall, reverse steps 1 through 6.
8. See directions under “Pump Reassembly,” Page 10.
REMOVING OLD SEAL
1. Follow instructions under “Pump Disassembly”.
2. Follow steps 2 through 5 under “Cleaning/Replacing Impeller”.
3. Remove rotating half of seal by placing two screwdrivers under seal
ring and carefully prying up (Figure 16).
4. Remove nuts from studs holding seal plate to motor. Carefully slide
seal plate off of shaft.
NOTICE: Be sure you do not scratch or mar shaft; if shaft is marred,
it must be dressed smooth with fine emery or crocus cloth before
installing new seal. DO NOT reduce shaft diameter!
5. Place seal plate half face down on flat surface and tap out stationary
half of seal (see Figure 17).
INSTALLING NEW SEAL
1. Clean seal cavity in seal plate.
2. Wet outer edge of Rubber Cup on ceramic seat with liquid soap. Be
sparing!
3. Put clean cardboard washer on seal face. With thumb pressure, press
ceramic seal half firmly and squarely into seal cavity (See Figure 18).
Polished face of ceramic seat is up. If seal will not seat correctly,
remove, placing seal face up on bench. Reclean cavity. Seal should
now seat correctly.
4. If seal does not seat correctly after recleaning cavity, place a cardboard
washer over polished seal face and carefully press into place using a
piece of standard 3/4” pipe as a press.
NOTICE: Be sure you do not scratch seal face.
5. Dispose of cardboard washer and recheck seal face to be sure it is free
of dirt, foreign particles, scratches and grease.
6. Inspect shaft to be sure it is free of nicks and scratches.
7. Reassemble pump body half to motor flange. BE SURE it is right side
up.
8. Apply liquid soap sparingly (one drop is sufficient) to inside diameter
of rotating seal member.
9. Slide rotating seal member (carbon face first) onto shaft until rubber
drive ring hits shaft shoulder.
NOTICE: Be sure not to nick or scratch carbon face of seal when passing it
over threaded shaft end or shaft shoulder. The carbon surface must remain
clean or short seal life will result.
3029 0997
Figure 16: Remove Seal plate
3030 0997
Figure 17: Tap Out Seal
3031 0997
Figure 18: Press in New Seal
1072 0697
Ceramic
Face Carbon
Face
Be Careful That
Motor Shaft Shoulder...
...Does Not Damage
Seal Face
Figure 19: Protect Seal Faces

Maintenance 10
10. Hold motor shaft with 7/16” open end wrench on
shaft flats and screw impeller onto shaft. Be sure you
do not touch capacitor terminals with body or any
metal object. Tightening impeller will automatically
locate seal in correct position.
11. Replace impeller screw (if used) by turning
counterclockwise (left-hand thread) into end of shaft.
12. Remount diffuser on seal plate with two screws.
13. Follow instructions under “Pump Reassembly”.
PUMP REASSEMBLY
1. Clean gasket surfaces on pump body and seal plate;
install new gasket.
2. Slide motor/seal plate assembly into pump body.
Secure with capscrews.
3. Replace base mounting bolts.
4. Replace motor wiring; close draincock.
5. Prime pump according to instructions. See
“Operation.”
6. Check for leaks.
Figure 21: Assemble Pump
Figure 20: Hold Shaft
739 0993
To avoid electrical
shock hazard, use
insulated-handle
screwdriver to short
capacitor terminals
as shown.
20 100
80
60
40
6900-6999

Troubleshooting 11
SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION
Motor will not run Disconnect switch is off Be sure switch is on
Fuse is blown Replace fuse
Starting switch is defective Replace starting switch
Wires at motor are loose, Refer to instructions on wiring. Check and tighten all wiring.
disconnected, or wired incorrectly
Capacitor voltage may be hazardous. To discharge
capacitor, hold insulated handle screwdriver BY THE HANDLE and
short capacitor terminals together. Do not touch metal screwdriver
blade or capacitor terminals. If in doubt, consult a qualified
electrician.
Motor runs hot and Motor is wired incorrectly Refer to instructions on wiring
overload kicks off Voltage is too low Check with power company. Install heavier wiring if wire size is too small
(See Electrical, Page 6)
Motor runs but no *Pump in new installation did In new installation:
water is delivered not pick up prime through:
1. Improper priming 1. Re-prime according to instructions
2. Air leaks 2. Check all connections on suction line
3. Leaking foot valve 3. Replace foot valve
*Pump has lost prime through: In installation already in use:
1. Air leaks 1. Check all connections on suction line and shaft seal
2. Water level below suction of pump 2. Lower suction line into water and re-prime. If receding water level
in well exceeds suction lift, a deep well pump is needed
Impeller is plugged Clean impeller; see Maintenance
Check valve or foot valve is stuck Replace check valve or foot valve
in closed position
Pipes are frozen Thaw pipes. Bury pipes below frost line. Heat pit or pump house.
Foot valve and/or strainer are Raise foot valve and/or strainer above well bottom
buried in sand or mud
Pump does not Water level in well is lower than A deep well jet pump may be needed (over 20 ft. to water)
deliver water to full estimated
capacity (Also Steel piping (if used) is corroded or Replace with plastic pipe where possible, otherwise with new steel pipe
check point 3 limed, causing excess friction
immediately above) Offset piping is too small in size Use larger offset piping
*(Notice: Check
prime before
looking for other
causes. Unscrew
priming plug and
see if there is
water in priming
hole.)

Repair Parts 12
•Notillustrated.
* Model DS3HHG3-01 uses Base C4-82.
3621 1199SPC
1
2
3
13
14
15
12
7A
11
5

7

4

A
1

1
1
MODEL NUMBER
DS3HE-01 DS3HF-01 DS3HG-01 DS3HHG-01
Key Part DS3HE3-01 DS3HF3-01 DS3HG3-01 DS3HHG3-01
No. Description Qty. 1 HP 1-1/2 HP 2 HP 2-1/2 HP
1 Motor, 115/230V, 1 Phase 1 J218-596PKG J218-601PKG J218-883APKG J218-628A
1 Motor, 230/460V, 3 Phase 1 AP100EL AP100FL AP100GL AP100G5L
2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 C3-155 C3-155 C3-117 C3-117
4 Gasket - Seal Plate 1 C20-86 C20-86 C20-87 C20-87
5 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A
6 Impeller (1 Phase) 1 C105-92PKB C105-92PC C105-214PDA C105-214PA
6 Impeller (3 Phase) 1 C105-92PKBA C105-92PCA C105-214PDA C105-214PA
6A Impeller Screw (1 Phase) 1 — — C30-14SS C30-14SS
6A Impeller Screw (3 Phase) 1 C30-14SS C30-14SS C30-14SS C30-14SS
7 Diffuser 1 C101-276P C101-276P C101-182 C101-182
7A Screw 10-24 x1” Lg Hex Head 2 U30-696SS U30-696SS — —
7A Machine screw 8-32x7/8” Lg. 2 — — U30-53SS U30-53SS
8 Diffuser Ring 1 C21-10 C21-10 C21-2 C21-2
9 Pump Body Assembly 1 C76-67E C76-67E C76-68E C76-68E
10 Plug 1/4” NPT Hex Head 2 U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
11 Base 1 C4-82 C4-82 C4-82 C4-82A*
12 3/8-16x1-1/4” Lower Capscrew 2 U30-75ZP U30-75ZP U30-75ZP U30-75ZP
13 3/8-16x1” Upper Capscrew 2 U30-74ZP U30-74ZP U30-74ZP U30-99SS
14 Motor Pad 1 C35-5 C35-5 C35-5 C35-5
15 Capscrew 3/8-16x3/4” Lg 6 U30-72ZP U30-72ZP — —
15 Capscrew 5/16-18x3/4” Lg. 8 — — U30-60ZP U30-60ZP
16 Pipe Plug 3/4” NPT - Sq. Hd. 1 U78-60ZPS U78-60ZPS U78-60ZPS U78-60ZPS
 • Lockwasher3/8” 2 U43-12ZP U43-12ZP U43-12ZP U43-12ZP
 • Nut,3/16”-18HexHead 2 U36-37ZP U36-37ZP U36-37ZP U36-37ZP
