Pepperl+Fuchs OHV2000-F22-B15 User manual

OHV2000-F22-B15
Handheld Reader
FACTORY AUTOMATION
MANUAL

With regard to the supply of products, the current issue of the following document is ap-
plicable: The General Terms of Delivery for Products and Services of the lectrical Indus-
try, published by the Central Association of the lectrical Industry (Zentralverband
lektrotechnik und lektroindustrie (ZV I) e.V.) in its most recent version as well as the
supplementary clause: " xpanded reservation of proprietorship"
OHV2000-F22-B15

OHV2000-F22-B15
3
1 Introdu tion................................................................................. 5
1.1 Content of this Do ument ................................................................... 5
1.2 Target Group, Personnel...................................................................... 5
1.3 Symbols Used ...................................................................................... 6
2 Produ t Des ription ................................................................... 7
2.1 Use and Appli ation............................................................................. 7
2.2 Indi ators and Operating Elements ................................................... 8
2.3 Feedba k .............................................................................................. 8
2.4 S ope of Delivery................................................................................. 9
2.5 A essories .......................................................................................... 9
2.6 Storage and Disposal .......................................................................... 9
3 Installation................................................................................. 10
3.1 Inserting and Removing the Battery ................................................ 10
3.2 Mounting the Charger and Charging the Handheld Reader .......... 10
3.3 Installing Vision Configurator ........................................................... 11
3.4 Installing Devi e Drivers ................................................................... 12
4 Configuration ............................................................................ 13
4.1 Swit hing On the Handheld Reader ................................................. 13
4.2 Sele ting the Operating Mode .......................................................... 13
4.2.1 Docking Mode.................................................................................. 13
4.2.2 Bluetooth Mode ............................................................................... 14
4.2.3 Tablet Mode..................................................................................... 14
4.2.4 Configuration Mode ......................................................................... 15
4.2.5 Keyboard Layout.............................................................................. 16
4.3 Configuring the Handheld Reader.................................................... 17

4
OHV2000-F22-B15
4.4 Configuration Pro ess Using Vision Configurator..........................17
4.4.1 Layout of Application Window ..........................................................18
4.4.2 Image Display...................................................................................19
4.4.3 Device Data......................................................................................19
4.4.4 Test Statistics....................................................................................20
4.4.5 Image Transmission .........................................................................20
4.4.6 File Transmission..............................................................................21
4.4.7 1-D Codes........................................................................................22
4.4.8 2-D Codes........................................................................................23
4.4.9 DPM Codes...................................................................................... 24
4.4.10 Sensor Settings................................................................................ 25
4.4.11 Decoding Options ............................................................................26
4.4.12 Read Result .....................................................................................27
4.4.13 Script................................................................................................ 28
4.4.14 dited Parameters............................................................................ 33
4.5 Configuration with Control Codes ....................................................34
4.5.1 Operation ......................................................................................... 34
4.5.2 Read Operation ................................................................................ 36
4.5.3 Data Processing ...............................................................................39
4.5.4 Data Transfer ....................................................................................40
4.5.5 Restarting and Clearing....................................................................42
4.5.6 Setting the DPM Mode .....................................................................43
4.5.7 Code Types ......................................................................................44
4.6 Reading Firmware Version and Serial Number ...............................51
5 Operation................................................................................... 52
5.1 Reading Codes ...................................................................................52
6 Maintenan e.............................................................................. 53
7 Troubleshooting........................................................................ 54

OHV2000-F22-B15
Introduction
2016-05
5
1 Introduction
1.1 Content of this Document
This document contains information required to use the product in the relevant phases of the
product life cycle. This may include the following:
■ Product identification
■ Delivery, transport, and storage
■ Assembly and installation
■ Commissioning and operation
■ Maintenance and repair
■ Troubleshooting
■ Dismounting
■ Disposal
The documentation comprises the following parts:
■ Present document
■ Datasheet
In addition, the documentation may comprise the following parts, if applicable:
■ C-Type xamination Certificate
■ C Declaration of Conformity
■ Attestation of conformity
■ Certificates
■ Control drawings
■ Other documents
1.2 Target Group, Personnel
Responsibility for planning, assembly, commissioning, operation, maintenance, and
dismounting lies with the plant operator.
Only appropriately trained and qualified personnel may carry out mounting, installation,
commissioning, operation, maintenance, and dismounting of the product. The personnel must
have read and understood the instruction manual and the further documentation.
Prior to using the product make yourself familiar with it. Read the document carefully.

2016-05
6
OHV2000-F22-B15
Introduction
1.3 Symbols Used
This document contains symbols for the identification of warning messages and of informative
messages.
Warning Messages
You will find warning messages, whenever dangers may arise from your actions. It is mandatory
that you observe these warning messages for your personal safety and in order to avoid
property damage.
Depending on the risk level, the warning messages are displayed in descending order as
follows:
Informative Symbols
Action
This symbol indicates a paragraph with instructions. You are prompted to perform an action or
a sequence of actions.
Danger!
This symbol indicates an imminent danger.
Non-observance will result in personal injury or death.
Warning!
This symbol indicates a possible fault or danger.
Non-observance may cause personal injury or serious property damage.
Caution!
This symbol indicates a possible fault.
Non-observance could interrupt the device and any connected systems and plants, or result in
their complete failure.
Note!
This symbol brings important information to your attention.

OHV2000-F22-B15
Product Description
2016-05
7
2 Product Description
2.1 Use and Application
The OHV2000 handheld is a compact handheld reader for all common 1-D and 2-D codes
applied directly to the surface of a product. For example, the code may have been etched,
printed, or laser-engraved on the housing.
Special technology to prevent glare allows the device to accurately read codes on highly
reflective surfaces. With its patented dual lens and a resolution of 1.2 million pixels, it can read
both small and large codes from a wide range of distances. A different-colored target projection
makes it easier to see the relevant code. Feedback comes in the form of a visual or audible
signal or a vibration.
Using the Vision Configurator software, rule sets can be created for formatting read results
without the need for extensive programming work. This facilitates integration into RP systems.
The read data is transferred via the Bluetooth interface or by plugging the handheld reader into
the charger. With its robust housing and IP65 protection, the handheld reader is suitable for
outdoor use.
Type designations: OHV2000-F221-B15
The device is only approved for appropriate and intended use. Ignoring these instructions will
void any warranty and absolve the manufacturer from any liability.
Use the device only within the specified ambient and operating conditions.
Protection of the personnel and the plant is not ensured if the device is not used according to its
intended use.
Caution!
Irritation caused by optical radiation
The optical unit on the handheld reader is equipped with very bright L Ds that can cause
irritation in dark environments.
Do not point the handheld reader at people.
Do not look directly into the optical unit on the handheld reader.

2016-05
8
OHV2000-F22-B15
Product Description
2.2 Indicators and Operating lements
OHV2000-F221
2.3 Feedback
1Memory
2Bluetooth connection
3Function indicator
4Trigger buttons
341 2 4
Action L D Audible signal Vibration
Handheld reader
successfully
switched on
The function indicator on the
handheld reader briefly lights up red
then briefly lights up green.
Single audible
signal
Vibrates once
Handheld reader
ready
L Ds are off. No audible signal No vibration
Code reading
successful
The function indicator on the
handheld reader briefly lights up
green.
If a Bluetooth connection is
activated, the Bluetooth connection
on the charger flashes blue during
data transfer.
Single audible
signal
Vibrates once
Code reading
failed
Bluetooth connection flashes green
four times.
Four audible signals Vibrates four
times
Configuration
code reading
successful
The function indicator on the
handheld reader briefly lights up
green.
Two audible signals Vibrates twice
Configuration
code reading
failed
Configuration
code not
permitted
The function indicator on the
handheld reader lights up twice.
Five audible signals Vibrates five
times
The handheld
reader memory is
full
Memory flashes five times per
second. See chapter 4.5.5
No audible signal No vibration

OHV2000-F22-B15
Product Description
2016-05
9
2.4 Scope of Delivery
Check the packaging and contents for damage.
Check if you have received every item and if the items received are the ones you ordered.
■ Handheld reader
OHV2000-F221-B15
■ Lithium-ion battery, 1300 mAh
OHV-BAT
■ Quick reference guide
2.5 Accessories
2.6 Storage and Disposal
Keep the original packaging. Always store and transport the device in the original packaging.
Store the device in a clean and dry environment. The permitted ambient conditions must be
considered, see datasheet.
Disposing of device, packaging, and possibly contained batteries must be in compliance with
the applicable laws and guidelines of the respective country.
Connection
between charger
and PC
successfully
established
No Bluetooth
connection
between charger
and handheld
reader
The Bluetooth connection on the
charger flashes blue.
No audible signal No vibration
Connection
between charger
and PC
successfully
established
Bluetooth
connection
between charger
and handheld
reader
successfully
established
The Bluetooth connection on the
charger lights up blue. The Bluetooth
connection on the handheld reader
lights up green.
Single audible
signal
Vibrates once
Action L D Audible signal Vibration
Designation Description
OHV-CHARG R-B15 Charging station for OHV200 handheld readers with integrated
Bluetooth modem
incl. USB-G-1M-PVC-ABG-USBB-G connection cable
The connection cable can also be ordered separately later on.
OHV-BAT 1300 mAh lithium-ion battery for OHV200 handheld readers
OHV-BAT-CHARG R Charger for lithium-ion batteries
Vision Configurator Configuration software for camera-based sensors
When using OHV handheld readers, you can download the
software free of charge from www.pepperl-fuchs.com.

2016-05
10
OHV2000-F22-B15
Installation
3 Installation

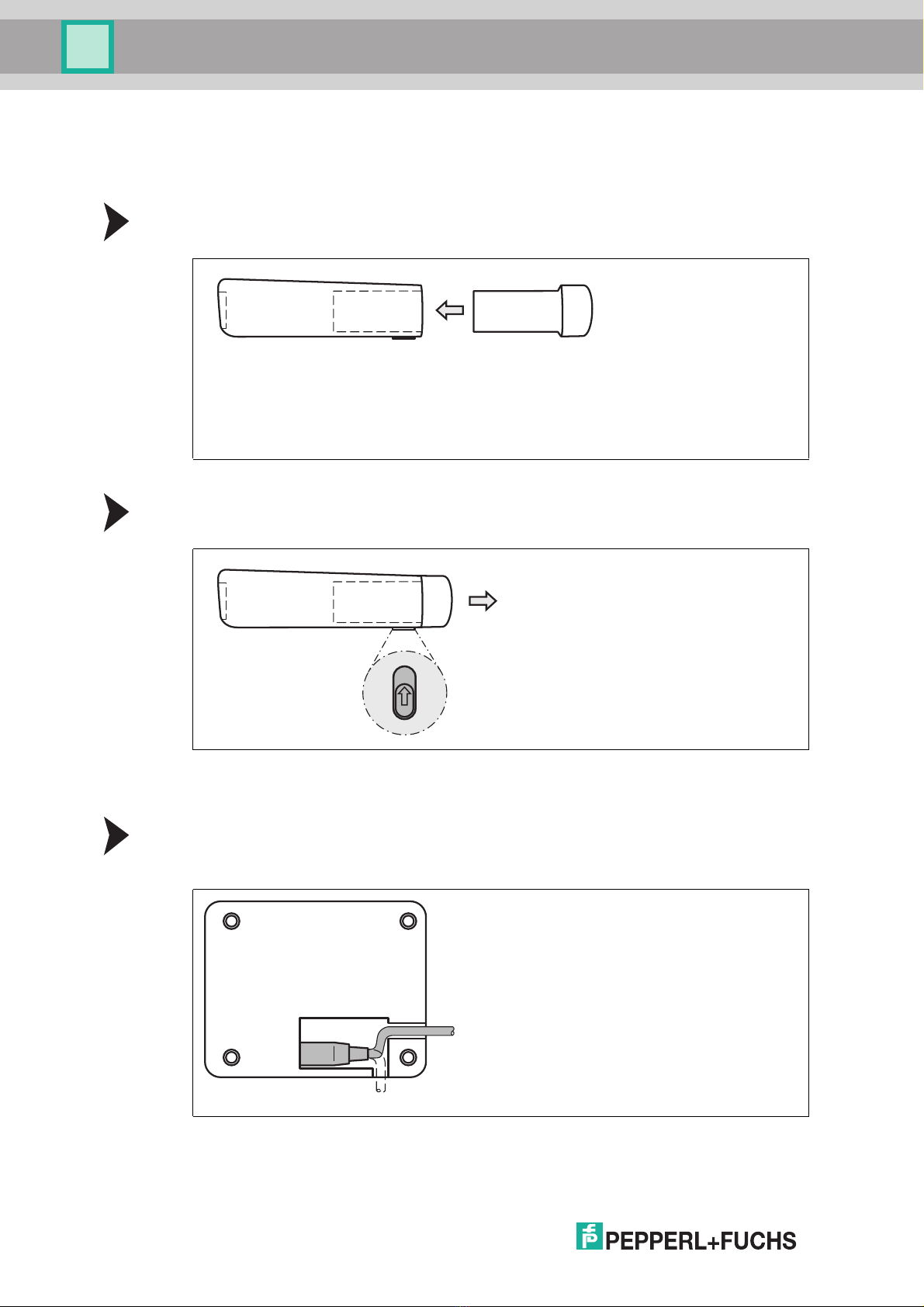

3.1 Inserting and Removing the Battery
Inserting the Battery
1. Insert the battery into the handheld reader.
2. Make sure that the battery audibly snaps into place.
Removing the Battery
1. Move the locking device on the bottom of the handheld reader in the direction of the arrow.
2. Remove the battery.
3.2 Mounting the Charger and Charging the Handheld Reader
Mounting the Charger
1. Insert the USB cable or the plug of the plug-in power supply into the socket provided on the
bottom of the charger.
2. Place the charger in the position you wish to mount it.
3. Screw the charger into place using the mounting holes provided.

OHV2000-F22-B15
Installation
2016-05
11
Charging the Handheld Reader
1. nsure that the charger is connected to the USB cable or the plug of the plug-in power sup-
ply.
2. Place the handheld reader in the charger.
3. When the handheld reader's battery is charging, the battery's charge status display flashes.
Charge Status Display
To check the charge status of the lithium-ion battery, press the button on the back of the battery.
3.3 Installing Vision Configurator
Vision Configurator is a piece of configuration software for camera-based sensors. The
software allows you to perform advanced configuration of the sensor using a clearly arranged
user interface. Standard tasks include parameterization of the handheld reader, saving data
sets, as well as the transfer and display of data and error diagnostics.
Installing Vision Configurator
1. Download the current version of Vision Configurator from http://www.pepperl-fuchs.com.
2. Open the installation file.
3. Select a language.
4. Follow the instructions on the setup wizard.
5. Before exiting the setup wizard, select Install OHV USB driver. A virtual COM port is
installed that Vision Configurator uses to communicate with OHV handheld readers.
Charge status L D 1 L D 2 L D 3 L D 4
75 % ... 100 % ON ON ON ON
50 % ... 75 % ON ON ON
25 % ... 50 % ON ON
10 % ... 25 % ON
0 % ... 10 % Flashing
Note!
As an alternative to configuration using Vision Configurator, you can configure the handheld
reader using control codes.

2016-05
12
OHV2000-F22-B15
Installation
3.4 Installing Device Drivers
The handheld reader registers itself as an input device or keyboard. Special device drivers are
not needed.
■ USB onne tion: The operating system automatically installs the drivers for input
devices (Human Interface Device). An active internet connection is required, depending
on the operating system.
■ Bluetooth onne tion: The handheld reader identifies itself as an external input device
during coupling.

OHV2000-F22-B15
Configuration
2016-05
13
4 Configuration
4.1 Switching On the Handheld Reader
To switch on the handheld reader, hold down any trigger button for approx. two seconds. The
function indicator on the handheld reader briefly lights up red then briefly lights up green. An
audible signal is emitted and the handheld reader vibrates.
4.2 Selecting the Operating Mode
The handheld reader has four different operating modes.
4.2.1 Docking Mode
Activating Docking Mode
1. Deactivate the charger's Bluetooth function. Move the slider on the back/underside of the
charger in the opposite direction to the arrow.
2. Read the following code using the handheld reader.
Docking mode is activated. Read codes are saved on the handheld reader. As soon as
the handheld reader is plugged into the charger, the codes are transferred to the PC and the
handheld reader's memory is cleared.
Mode Description
Do king Mode The charger is connected to a PC and the Bluetooth connection is
deactivated.
Read codes are saved on the handheld reader. As soon as the handheld
reader is plugged into the charger, the codes are transferred to the PC and
the handheld reader's memory is cleared.
Bluetooth Mode The charger is connected to a PC and the Bluetooth connection is
activated.
Read codes are transferred to the charger via Bluetooth immediately after
they are read. The charging tray then automatically transfers the codes to
the PC.
Tablet Mode The handheld reader is connected to a tablet PC or a smartphone (Android
version 4.1 or higher, iOS version 5.1 or higher) via Bluetooth.
Read codes are transferred to a tablet PC or smartphone via Bluetooth
immediately after they are read.
Configuration
Mode
The charger is connected to a PC and the Bluetooth connection is
deactivated.
Configuration mode is exclusively used for communication with Vision
Configurator. See chapter 4.4
Read codes are saved on the handheld reader. As soon as the handheld
reader is inserted into the charger, the codes are transferred to Vision
Configurator.
Once configuration has been completed, switch back to the original
operating mode.
CC002940_3
Note!
In docking mode, data is transferred as ASCII characters by default.
If data is not transferred correctly in docking mode, modify the keyboard layout. See chapter
4.2.5

2016-05
14
OHV2000-F22-B15
Configuration
4.2.2 Bluetooth Mode
Activating Bluetooth Mode
1. Activate the charger's Bluetooth function. Move the slider on the back/bottom of the charger
in the direction of the arrow.
2. If you switch to Bluetooth mode from some other operating mode, read the following code
using the handheld reader.
If the handheld reader was already in Bluetooth mode, you can skip this step.
3. Read the Qui k Conne t code on the front of the charger or the modem.
Bluetooth mode is activated. Read codes are transferred to the charger via Bluetooth
immediately after they are read. The charging tray then automatically transfers the codes to
the PC.
4.2.3 Tablet Mode
Activating Tablet Mode
1. Activate the Bluetooth function on the tablet PC or smartphone.
2. Read the following code using the handheld reader.
3. On the tablet PC or smartphone, search for Bluetooth devices within the detection range.
4. Select OHV2000 from the list of available devices.
Devices are visible in the list for a limited period of time only. If the handheld reader is no
longer displayed, read the code again.
A confirmation code appears on the tablet PC or smartphone.
5. Input the digits for the confirmation code by using the handheld reader to read in the codes
for each digit. Confirm the input by reading in the code for Enter.
CC002942_Reader_step1_2
Note!
In Bluetooth mode, data is transferred using a US nglish keyboard layout by default.
If data is not transferred correctly in Bluetooth mode, modify the keyboard layout. See chapter
4.2.5
OHV2000

OHV2000-F22-B15
Configuration
2016-05
15
The handheld reader is paired with the tablet PC or smartphone. Read codes are
transferred to a tablet PC or smartphone via Bluetooth immediately after they are read.
4.2.4 Configuration Mode
Activating Configuration Mode
1. Deactivate the charger's Bluetooth function. Move the slider on the back/underside of the
charger in the opposite direction to the arrow.
2. Read the following code using the handheld reader.
3. Insert the handheld reader into the charger to establish a connection with the PC.
Configuration mode is activated. This mode is exclusively used for communication with
Vision Configurator.
1
M10262_01
2
M10263_01
3
M10264_01
4
M10265_01
5
M10266_01
6
M10267_01
7
M10268_01
8
M10269_01
9
M10270_01
0
M10271_01
Enter
M10272_01
8
Note!
In tablet mode, data is transferred using a US nglish keyboard layout by default.
If data is not transferred correctly in tablet mode, modify the keyboard layout. See chapter 4.2.5
CC002939_3
Note!
In configuration mode, data is transferred as ASCII characters by default.
To select a different keyboard layout, see the Devi e Settings area in Vision Configurator.

2016-05
16
OHV2000-F22-B15
Configuration
4.2.5 Keyboard Layout
You can use the following control codes to modify the keyboard layout for the current operating
mode.
Mi rosoft Windows

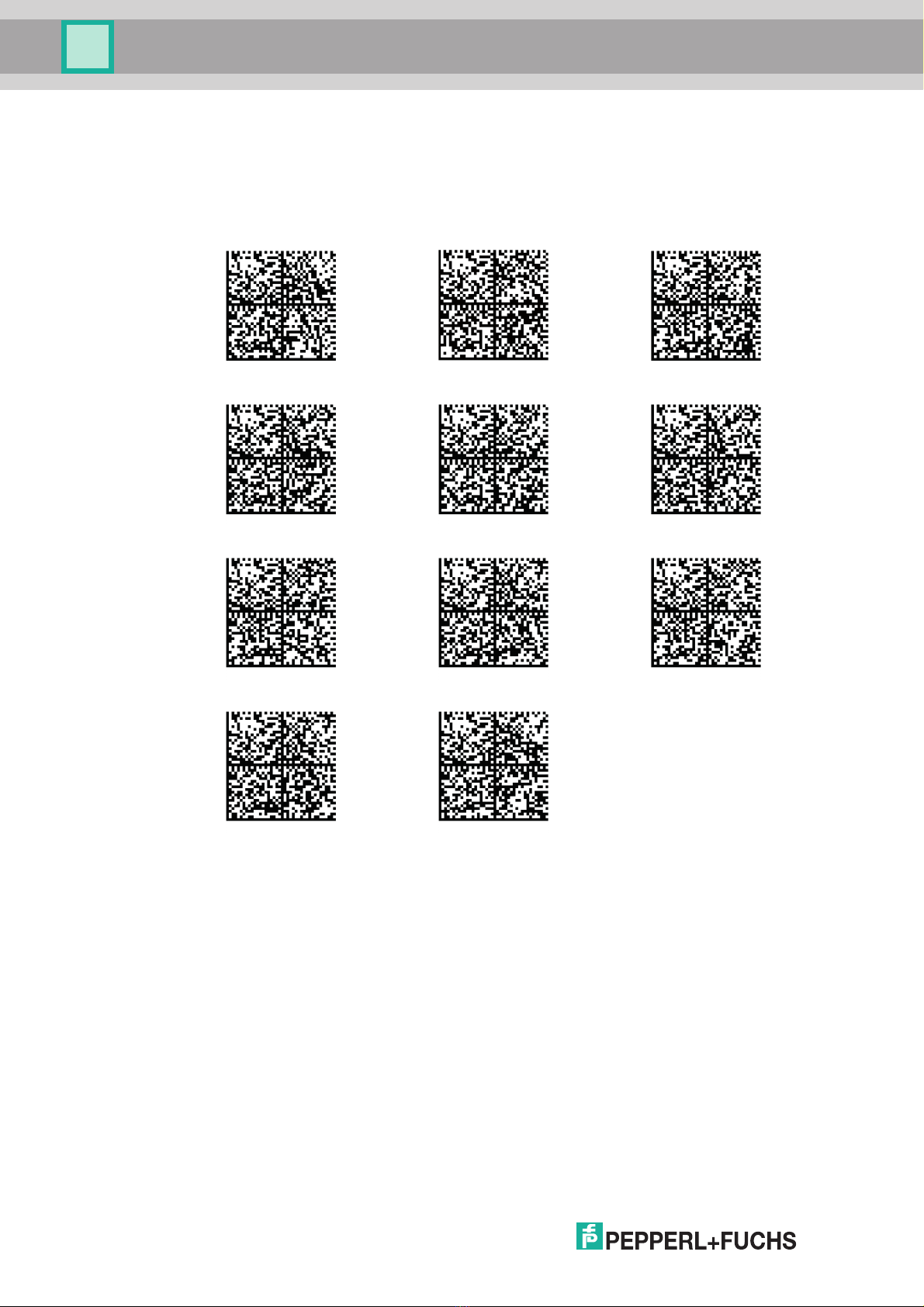

nglish (US) nglish (US International) nglish (GB)
German (Germany) German (Switzerland) French (France)
French (Belgium) Spanish (Spain) Spanish (Latin America)
Russian Japanese
M10460_02
M10469_01
M10471_01
M10463_02
M10466_02
M10462_02
M10461_02
M10472_01
M10465_02
M10418_02
M10464_02

OHV2000-F22-B15
Configuration
2016-05
17
Apple OS X and iOS
4.3 Configuring the Handheld Reader
There are two different ways to configure the handheld reader.
■ Vision Configurator: The software allows you to perform advanced configuration on a
PC using a clearly arranged user interface. Standard tasks include parameterization of the
handheld reader, saving data sets, as well as the transfer and display of data and error
diagnostics. See chapter 4.4
■ Control odes: Control codes allow direct configuration without using a PC. To adjust a
parameter, scan the appropriate control code using the handheld reader. See chapter 4.5
4.4 Configuration Process Using Vision Configurator
To configure the handheld reader using Vision Configurator, you must activate configuration
mode. This mode is exclusively used for communication with Vision Configurator. If you are
configuring the handheld reader using control codes, you do not need to switch to configuration
mode.
Starting Vision Configurator
Before working with Vision Configurator, ensure that the handheld reader is in configuration
mode. See chapter 4.2.4
1. Start Vision Configurator.
2. Select the user name Default in the User area. There are no different user rights for OHV
handheld readers.
3. Select Handheld readers in the Sensor family area.
4. Select the relevant model, the type of connection USB, and USB to Virtual COM Port.
5. Select a language in the Language area.
6. Click on OK.

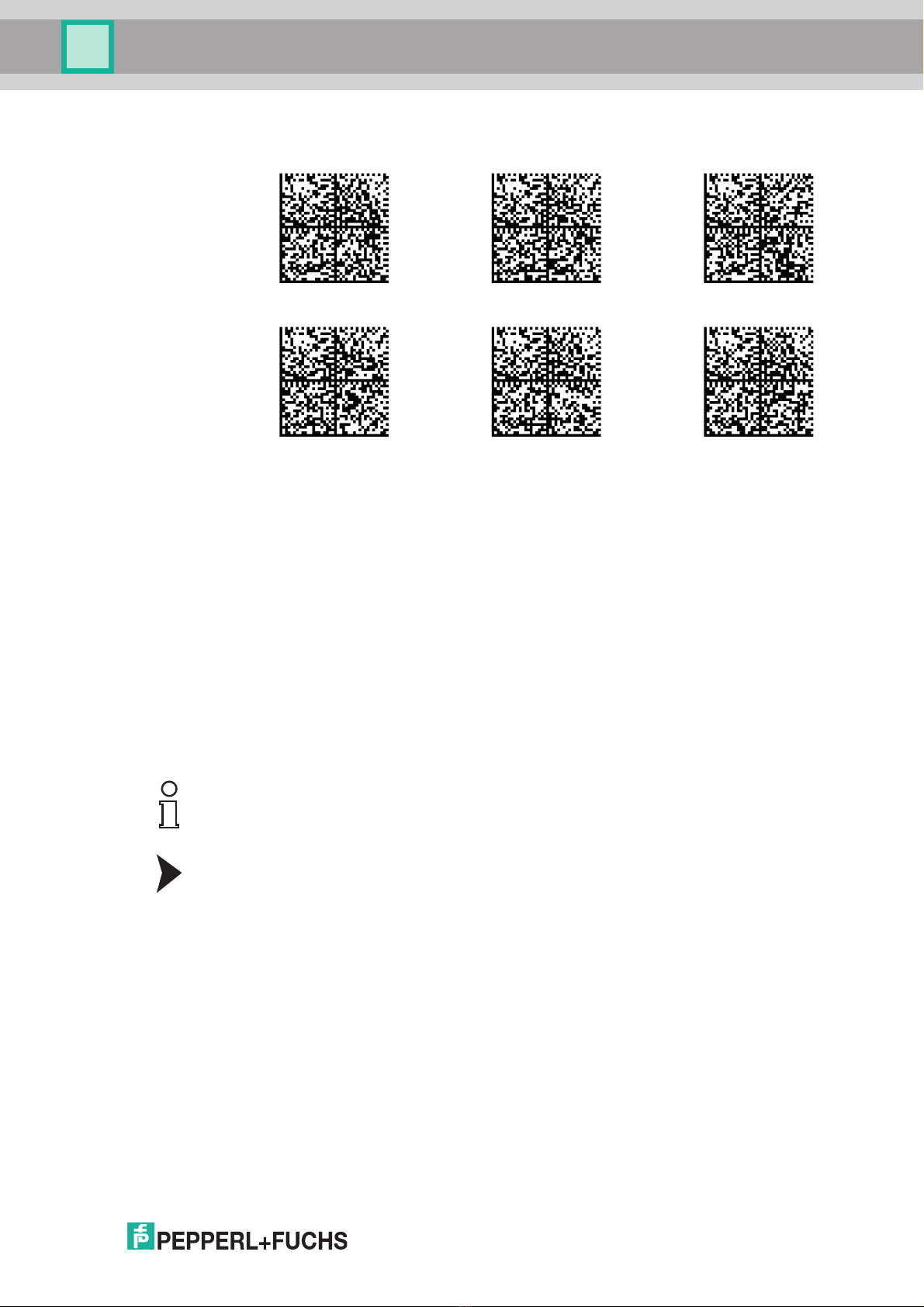

nglish German (Germany) German (Switzerland)
French Spanish Italian
M10419_02
M10421_02
M10422_02
M10420_02
M10424_02
M10423_02
Note!
Once configuration has been completed, switch back to an operating mode. See chapter 4.2

2016-05
18
OHV2000-F22-B15
Configuration
4.4.1 Layout of Application Window
Figure 4.1 Application screen
1The display area shows the read images and offers basic editing tools.
2The Sensor data area shows information about the connected sensor.
3The Test statisti s area shows information on the read codes.
4The status bar shows information about the user who is logged in as well as the sensor
connection status.
5The parameter area is split into several subareas und contains sensor-specific parame-
ters.
6The toolbar allows direct acess to selected menu items.
OHV2000 00201 43196
v1170
v1170
Rot
cd(15.2.1)
12
3
4
5
6

OHV2000-F22-B15
Configuration
2016-05
19
4.4.2 Image Display
Image display is not supported on OHV handheld readers in the OHV2000 series. However,
any images captured using the handheld reader in the near field and far field can be analyzed
and edited on your PC using a program of your choice.
Retrieving Images
1. Call up the Image transmission configuration window.
2. Select Save all images in the Image saving mode on sensor area.
3. Read a code.
4. Call up the File transmission configuration window.
5. Select the corresponding image file in the On sensor saved files area and click
Download sele ted file(s) from sensor.
The image is downloaded to your PC, where you can analyze or edit it using a program
of your choice.
6. Once you have finished analyzing the images, select Save no image in the Image saving
mode on sensor area to increase the reading speed of the handheld reader and use less
memory.
4.4.3 Device Data
This area shows information about the connected sensor. The following figure contains
example data.
OHV2000 00201 43196
v1170
v1170
Rot
cd(15.2.1)

2016-05
20
OHV2000-F22-B15
Configuration
4.4.4 Test Statistics
This area shows information about the read code.
4.4.5 Image Transmission
This is where you can define the settings for saving read codes.
Show ASCII value Activate this option to display the read result in ASCII characters.
Save reader results Activate this option to save read results locally. If you have activated this
option, you can select a location to save the results.
Single trigger Triggers a read operation.
Reset counter Clears the contents of the Test statisti s area.
Note!
Saving images when decoding increases the decoding time.
