Pepperl+Fuchs ODT-MAC400 Series User manual

Laser Class 2M
EN 60825-1
ODT-MAC400-* /
ODT-MAC401-* /
ODT-MAC403-*
Stationary reader for all
common 1D- and 2D-barcodes
FACTORY AUTOMATION
MANUAL

With regard to the supply of products, the current issue of the following document is applicable: The
General Terms of Delivery for Products and Services of the Electrical Industry, published by the
Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie
(ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation
of proprietorship"
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*

ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Contents
216677 2012-05
3
1 Introduction......................................................................... 4
2 Declaration of conformity .................................................. 5
3 Safety................................................................................... 6
3.1 Symbols relevant to safety ............................................................................6
3.2 Intended use .................................................................................................6
3.3 General safety instructions ............................................................................6
4 Product Description ........................................................... 8
4.1 Use and application of the
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-* -....................................8
4.2 Displays and controls....................................................................................8
4.3 Interfaces and connections ...........................................................................9
4.4 Contents .....................................................................................................10
4.5 Accessories ................................................................................................11
4.5.1 Cables....................................................................................................11
4.5.2 Other accessories ..................................................................................11
5 Installation......................................................................... 12
5.1 Preparation .................................................................................................12
5.2 Mounting.....................................................................................................12
5.3 Connecting the device ................................................................................13
5.4 Assigning an IP address to a network connection using Windows XP.........14
5.5 Storage and transport .................................................................................16
6 Commissioning................................................................. 17
6.1 Connecting the stationary reader ................................................................17
7 Operation........................................................................... 18
7.1 Web-based operator interface.....................................................................18
7.1.1 Settings Tab............................................................................................20
7.1.2 Communication Tab................................................................................50
7.1.3 Tab Gallery..............................................................................................51
7.1.4 Dialog box Language .............................................................................52
8 Troubleshooting................................................................ 53
8.1 What to do in the event of an error ..............................................................53
9 Appendix ........................................................................... 54
9.1 Command format ........................................................................................54
9.2 Command overview ....................................................................................56
9.3 Input of nonprintable characters..................................................................61

216677 2012-05
4
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Introduction
1Introduction
Congratulations
You have chosen a device manufactured by Pepperl+Fuchs. Pepperl+Fuchs
develops, produces and distributes electronic sensors and interface modules for
the market of automation technology on a worldwide scale.
Symbols used
The following symbols are used in this manual:
Handling instructions
You will find handling instructions beside this symbol
Contact
If you have any questions about the device, its functions, or accessories, please
contact us at:
Pepperl+Fuchs GmbH
Lilienthalstraße 200
68307 Mannheim
Telephone: [phone]
Fax: [phone]
E-Mail: [email protected]
Note!
This symbol draws your attention to important information.

ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Declaration of conformity
216677 2012-05
5
2 Declaration of conformity
This product was developed and manufactured under observance of the
applicable European standards and guidelines.
The product manufacturer, Pepperl+Fuchs GmbH, D-68307 Mannheim, has a
certified quality assurance system that conforms to ISO 9001.
Note!
A Declaration of Conformity can be requested from the manufacturer.
ISO9001

216677 2012-05
6
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Safety
3Safety
3.1 Symbols relevant to safety
3.2 Intended use
The ODT-MAC4**-LD-RD-MC stationary reader is intended to be used only for the
identification of objects by means of 1D- and 2D-codes.
Always operate the device as described in these instructions to ensure that the
device and connected systems function correctly. The protection of operating
personnel and plant is only guaranteed if the device is operated in accordance
with its intended use.
3.3 General safety instructions
Class 2 laser product
This device is a class 2 laser product:
Standards
IEC 60825-1:2007 certified. Complies with 21 CFR 1040.10 and 1040.11 except
for deviations pursuant to Laser Notice No. 50, dated 06-24-07.
Danger!
This symbol indicates a warning about an immediate possible danger.
In case of ignoring the consequences may range from personal injury to death.
Warning!
This symbol indicates a warning about a possible fault or danger.
In case of ignoring the consequences may cause personal injury or heaviest
property damage.
Caution!
This symbol indicates a warning about a possible fault.
In case of ignoring the devices and any connected facilities or systems may be
interrupted or fail completely.

ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Safety
216677 2012-05
7
Only use recommended original accessories.
The operating company bears responsibility for observing locally applicable
safety regulations.
Installation and commissioning of all devices must be performed by a trained
professional only.
User modification and or repair are dangerous and will void the warranty and
exclude the manufacturer from any liability. If serious faults occur, stop using the
device. Secure the device against inadvertent operation. In the event of repairs,
return the device to your local Pepperl+Fuchs representative or sales office.
Warning!
Visible red class 2 laser light
The irradiation can lead to irritation especially in a dark environment. Do not point
at people!
Caution: Do not look into the beam!
Maintenance and repairs should only be carried out by authorized service
personnel!
Attach the device so that the warning is clearly visible and readable.
Caution –Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure..

216677 2012-05
8
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Product Description
4 Product Description
4.1 Use and application of the ODT-MAC400-* / ODT-MAC401-* /
ODT-MAC403-* -
The stationary reader is an optical identification system for detection of up to 28
different code symbologies. With its high-performance signal processor, a partial
image capture function, and optimized decoding algorithms, the device features
extremely high reading speeds.
The stationary reading device can be configured easily and quickly using a
normal web browser, via the standard Ethernet interface or a series connection.
Support is also provided for the mechanical alignment of the reading device in the
form of an integrated laser pointer and a connected VGA monitor. The reading
device also features an integrated error image memory.
Typical areas of application are
■Document handling
■Printing machines
■Identification in the packaging and warehouse sector
■PCB identification
4.2 Displays and controls
1. Lightning unit
2. Laser diodes
3. CMOS camera
The stationary reader ODT-MAC403-* does not have laser diodes.
1
3
2

ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Product Description
216677 2012-05
9
Status LED
4.3 Interfaces and connections
15-pin D-sub connector
1RJ45 Ethernet network socket
2Video output VGA 640x480
315 pin D-Sub connector
4Status LED
LED color Description
Ye l l o w The LED turns to yellow for a short time after switching on.
Green The LED flashes green after a successful read (good read).
Red The LED flashes red after an unsuccessful read (bad read).
41
2
3
LAN
TCP/IP
ST
VGA
VCC/I-O/RS232
PIN Signal Description
1, 2 GND GND for device
3IO GND GND for inputs/ outputs
4, 5 +24 V Supply for device, 24 V DC PELV ±15%
6IO +24 V Supply for inputs/ outputs, 24 V DC PELV ±15%
7RTS Handshake signal, RS 232
8IN1 24 V DC input
9IO-OUT0 24 V DC "good read" output
10 IO-OUT1 24 V DC "bad read" output
11 IO-IN0 24 V DC "trigger" input
12 CTS Handshake signal, RS 232
13 TXD Transmission line, RS 232
14 RXD Receive line, RS 232
15 IN2 24 V DC input

216677 2012-05
10
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Product Description
Video output VGA 640x480 (7-pin cylindrical connector)
Network connection
Figure 4.1 Network connection pin assignments
4.4 Contents
■ODT-MAC4**-LD-RD-MC
■Quick start guide
PIN Signal Description
1OUT Vsync Vertical synchronization output
2GND RGB Red signal, green signal and blue signal ground
3OUT R Red signal output
4OUT G Green signal output
5GND Horizontal synchronization output ground and vertical
synchronization output ground
6OUT B Blue signal output
7OUT Hsync Horizontal synchronization output

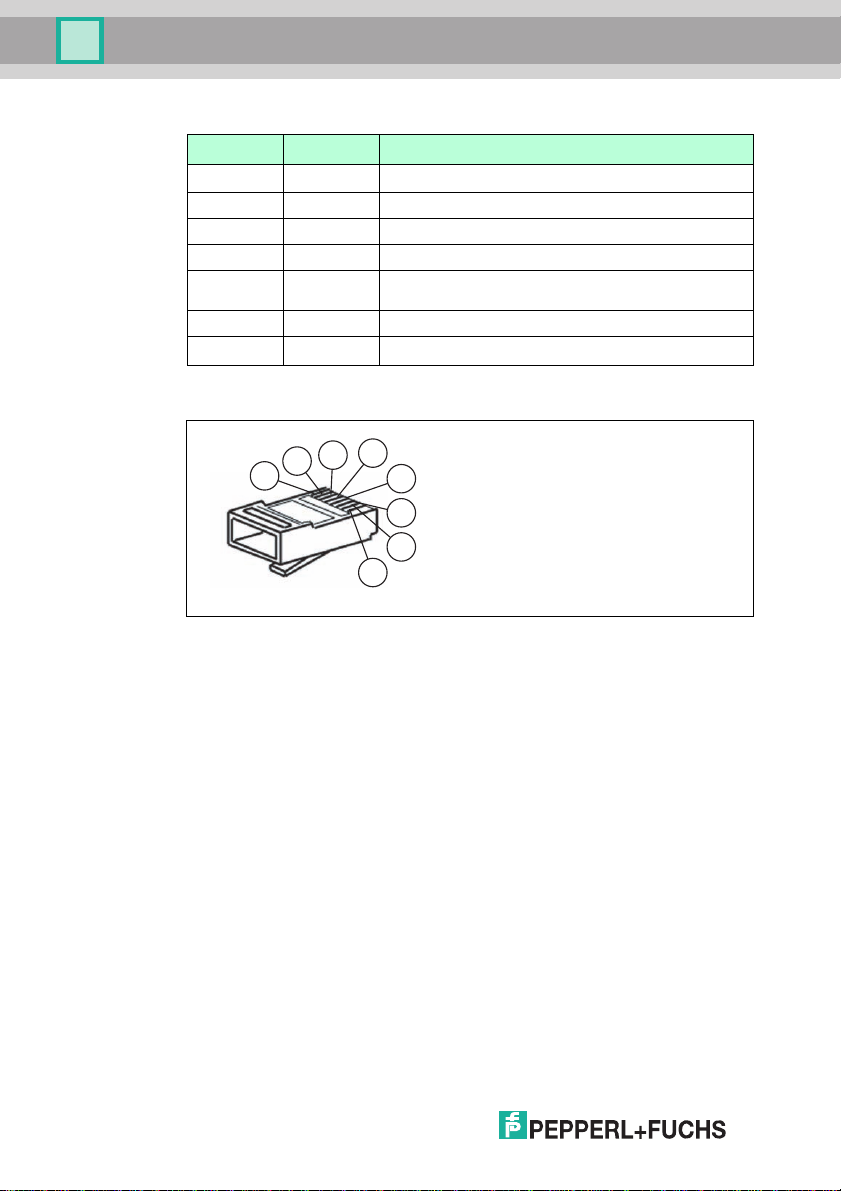

1Transmit data (+)
2Transmit data (-)
3Receive data (+)
4Not assigned
5Not assigned
6Receive data (-)
7Not assigned
8Not assigned
34
5
6
7
8
12

ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Product Description
216677 2012-05
11
4.5 Accessories
Various accessories are available.
4.5.1 Cables
The following cables are available as accessories.
4.5.2 Other accessories
Other products are available as accessories.
Model number Description
ODZ-MAC-CAB-VIDEO Video connection cable, cylindrical connector, 7-pin on SUB-
D socket, 15-pin VGA, 2 meters
ODZ-MAC-CAB-
15POL-2,5M-FEMALE
Connection cable, Sub-D socket, 15-pin, 2.5 meters, can be
pre-assembled
ODZ-MAC-CAB-
15POL-5M-FEMALE
Connection cable, Sub-D socket, 15-pin, 5 meters, can be
pre-assembled
ODZ-MAC-CAB-24V-
R2-2M
Connection cable for power supply, RS 232
V45-G-10M-V45-G Network cable RJ45, category 5, up to 100 MHz, 10 m
Model number Description
ODZ-MAC-PWR-24V Desk top power supply 24 V DC, 1.88 A

216677 2012-05
12
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Installation
5 Installation
5.1 Preparation
Unpacking the unit
1. Check that all package contents are present and undamaged.
If anything is damaged, inform the shipper and contact the supplier.
2. Check that all items are present and correct based on your order and the
shipping documents.
If you have any questions, please contact Pepperl+Fuchs.
3. Keep the original packing material in case you need to store or ship the unit at
a later time.
5.2 Mounting
Please refer to the technical data in the data sheet for the read distance.
ODT-MAC400-*
Figure 5.1 Dimensions of the straight housing
ODT-MAC401-*
Figure 5.2 Dimensions of the angle housing
Note!
Preventing reflection and glare
Reflection and glare from reflective surfaces can impair the captured image and
therefore lead to incorrect readings. To prevent reflection and glare, install the
stationary reading device at a slight angle.
Reading distance
60
60
M5
20 Code
52.7
20 ±0.1
36.85
6.5
Reading distance
11
60
60 65
M5
20 6
11
Code
52.7
20 ±0.1
72.5

ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Installation
216677 2012-05
13
ODT-MAC403-*
Figure 5.3 Dimensions of the angle housing
5.3 Connecting the device
Connecting the power supply
To connect a power supply to the device, proceed as follows.
1. Plug the 15-pin Sub-D socket into the connector provided for this purpose on
the back of the housing.
2. Screw in the two mounting screws as far as possible.
This ensures that the cable cannot be inadvertently pulled out.
3. Next connect the power supply to the appropriate pins on the Sub-D socket.
The power supply has now been connected.
To connect the power supply to the device quicker, the pre-configured connection
cable can also be used. Information can be found in the Accessories section.
Reading distance
11
60
60 65
M5
20 6
11
Code
52.7
20 ±0.1
54.5
Note!
Connection to ground
When installing the device, ensure that it is has a ground connection.
Note!
Record the network configuration
The device communicates with the connected machine control system using the
TCP/IP protocol. To ensure communication works correctly, you must note down
all the changes you make to the network configuration.

216677 2012-05
14
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Installation
Establishing a network connection
In order to establish a network connection, proceed as follows.
When delivered, the device has a fixed IP address (192.168.2.2). To facilitate
communication within the network, you must configure your network. The
configuration data can be found in the network configuration overview.
Connecting a trigger sensor
To connect a trigger sensor, proceed as follows.
Connect the trigger sensor to the cable previously connected for the power
supply.
5.4 Assigning an IP address to a network connection using Windows
XP
To assign an IP address to a network connection using Windows XP,
proceed as follows.
1. First select "Network Connections".
2. Then open the required connection by double clicking on it.
The Properties dialog box for the relevant connection will open.
Note!
Network cabling
Use a crossover network cable to connect the device directly to a PC. If the device
is being operated within a network, use a twisted-pair network cable to connect it
to the network.

ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Installation
216677 2012-05
15
3. Select the "Internet Protocol (TCP/IP)" element from the Properties dialog
box by double clicking on it.
The TCP/IP properties dialog box will open.
4. In the TCP/IP properties dialog box, activate "Use the following IP
address".

216677 2012-05
16
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Installation
5. Enter an IP address which only differs from the sensor IP address in the very
last segment.
6. Enter 255.255.255.0 as the subnet mask.
7. Then confirm your entries on the TCP/IP properties page and the LAN
connection properties page using "OK" and "Close".
This completes the network configuration and the sensor can be used.
5.5 Storage and transport
For storage and transport purposes, package the unit using shockproof
packaging material and protect it against moisture. The best method of protection
is to package the unit using the original packaging. Furthermore, ensure that the
ambient conditions are within allowable range.

ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Commissioning
216677 2012-05
17
6 Commissioning
6.1 Connecting the stationary reader
The reader has its own web server. You have the option of making settings on the
stationary reader using a standard web browser.
Aligning the stationary reader
To find the ideal alignment for the device, use the two laser diodes in the
stationary reader.
1. Supply power to the reader via the D-Sub connector.
2. Adjust the stationary reader so that both points generated by the laser diodes
are positioned on top of each other on the code to be read.
This sets the ideal reading distance between the stationary reader and the
code to be read.

216677 2012-05
18
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Operation
7Operation
7.1 Web-based operator interface
You have the option of configuring and operating the sensor via a web-based
operator interface and using it to display information. The web-based user
interface should be used only for setup and troubleshooting purposes when the
machine is shut down.
We recommend the following browser versions
Starting the operator interface
To start the operator interface, proceed as follows.
In the input field of a standard web browser, enter the IP address of the stationary
reader (192.168.2.2) and press return to confirm.
The following tab opens as the start page: Settings.
Note!
To start the operator interface of the sensor, you need a standard web browser
(e.g., Windows Internet Explorer or Mozilla Firefox) with Java script activated.
Firefox 3.6.8 or higher Communication between MAC and
PC via LAN interface
Internet
Explorer
6.0.2900.2180 or higher Communication between MAC and
PC via LAN interface

ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Operation
216677 2012-05
19
The following four tabs can be found on the left-hand side of the display:
■Settings
■Communication
■Gallery
■Language
Various information is displayed in the central section–depending on which tab is
active.
On the right-hand side, various status information (such as the software/firmware
version, the MAC address, the number of reads, etc.) is displayed, as well as the
last image captured and the decoded information. On the right of the
Pepperl+Fuchs company logo there is a pictorial representation of a status LED.
This status LED lights up green when a device is connected. Otherwise it is red.
Activating live image capture
To activate live image capture, click the Start Live Modebutton on the right-hand
side of the display screen.
The stationary reader starts to capture images. The captured images are
displayed in the results window. The decoded information is displayed beneath it
in a separate window.
Starting single image capture
On the right-hand side of the display screen, click on the button Single image.
Clicking the button triggers a single image capture.
Note!
By viewing the captured images on the operator interface during operation, the
image refresh rate reduces significantly.

216677 2012-05
20
ODT-MAC400-* / ODT-MAC401-* / ODT-MAC403-*
Operation
7.1.1 Settings Ta b
The Settings tab enables you to configure various parameters and send
commands to the sensor. In the left display area, you can navigate to the other
tabs Communication, Gallery and Language.
In the center of the screen, the following functions are available in different fields:
Sensor parameters
Settings Explanation
Flash duration This parameter is used to set the duration of the flash at
intervals of 10 µs.
Ga i n This parameter is used to set the electronic brightness gain. A
high value electronically increases the brightness of the
captured image and can improve the readability of the code
considerably in the event of poor ambient conditions.
Parameter set Load from Flash: Use this button to load parameter settings
from the internal memory (Flash EEPROM).
Save to Flash: Use this button to save your current parameter
settings in the internal memory (Flash EEPROM).
Command Send individual commands to the sensor.
Reset counter The trigger counter value can be reset to 0 here.
