Pepperl+Fuchs Ecom Tab-Ex 01 DZ2 Installation instructions

1
div 2 / Zone 2
TABLET COMPUTER FOR DIV 2 / ZONE 2
BASED ON
Hazardous Area Tablet Tab-Ex®01 DZ2
Safety Instructions
Sicherheitshinweise
Instructions de sécurité
Istruzioni di sicurezza
Instrucciones de seguridad
Instrucœes de seguranca

2
English Page 3
Deutsch Seite 24
Français Page 45
Italiano Page 66
Español Página 86
Portoguês Sida 106

3
Note:
The current safety instructions and operating instructions can be downloaded
from the relevant product page at www.ecom-ex.com, or alternatively they can
be requested directly from ecom instruments.
Content
1. Application .........................................................................................................4
2. Safety precautions .............................................................................................4
3. Faults and damage ............................................................................................4
4. Safety regulations .............................................................................................4
5. Ex-Data ..............................................................................................................6
6. Repair ................................................................................................................7
7. Inserting the SIM card (LTE model only) and microSD card ............................7
8. Charging the tablet computer ...........................................................................7
9. Safety precautions for the battery.....................................................................8
10. Cleaning, maintenance and storage ...............................................................9
11. Disposal............................................................................................................9
12. Warranty and liability .....................................................................................10
13. Getting started ...............................................................................................11

4
1. Application
Tab-Ex 01 DZ2 is a water-, dust- and impact resistant tablet computer for
industrial application in hazardous areas of Division 2 / Zone 2 with gaseous
atmospheres (Europe: according to Directive 1999/92/EC and 2014/34/EU)
2. Safety precautions
These safety instructions contain information and safety regulations which are
to be observed. Non-observance of this information and these instructions can
have serious consequences and may violate regulations. Please read these
safety instructions carefully before starting to use the device. In the event of
conicting information the details specied in the safety instructions shall
apply. In case of any doubt (in the form of translation or printing errors) the
English version shall apply.
3. Faults and damage
If there is any reason to suspect that the safety of the device has been com-
promised, it must be stopped from use and removed immediately from the
hazardous area. Measures must be taken to prevent it from being used within
the hazardous area accidentally.
The safety of the device maybe compromised, if for example:
• There is visible damage to the housing.
• The device has been subjected to excessive loads.
• The device has been improperly stored.
• The device has been damaged in transit.
• Device markings or inscriptions are illegible.
• Malfunctions occur.
• Permitted limit values have been exceeded.
4. Safety regulations
Use of the hazardous area tablet Tab-Ex 01 DZ2 assumes that the operator
observes the Control Drawing and conventional safety regulations in order to
eliminate malfunction of the device.

5
The following items are to be observed:
Operating conditions:
• It must be ensured that the device is not taken into hazardous locations
classied Class I Division 1, Class II, Class III and Zone 0, Zone 1 or any dust
hazardous locations.
• The device has to be protected against strong impacts.
• The device must be protected against excessive UV-radiation.
• Tab-Ex 01 Rear Cover and Tab-Ex 01 Protective Case must be attached before
entering the hazardous location.
• The device shall not be repaired or dismantled except by personnel as menti-
oned in section 6.
Electrostatic:
• The unit must not be used in close proximity to processes generating high
electrostatic charges.
• Friction of the housing should be avoided as far as possible for electrostatic
charging reasons.
• Under certain extreme circumstances, exposed plastic and unearthed metal
parts of the enclosure may store an ignition-capable level of electrostatic
charge. Therefore, the user/installer shall implement precautions to prevent
the buildup of electrostatic charge, e.g. locate the equipment where a charge-
generating mechanism (such as wind-blown dust) is unlikely to be present
and clean the equipment with a damp cloth.
Charging and data connections:
• The tablet computer may only be charged outside the hazardous area and only
by using ecom-approved chargers.
• The tablet computer may only be charged in a temperature range of +23 °F to
+131 °F (-5 °C to +55 °C).
• The data connection via USB is only allowed outside the hazardous areas to
Standard 5V USB Connections.
Accessories inside gaseous hazardous areas of Division 2 / Zone 2:
• No wired connections are allowed – see Control Drawing 100016EX17A.

6
5. Ex-Data
Ex-Marking:
NEC/CEC
CSA Certicate No: 70023212
NI Class I, Division 2, Groups ABCD T4
Class I, Zone 2, Group IIC, T4
IECEx
Ex ic IIC T5 Gc IP64
IECEx EPS 15.0003X
ATEX
†II 3G Ex ic IIC T5 Gc IP64
EPS 15 ATEX 1 793 X
-20 °C ≤ Ta ≤+55 °C
Common:
WARNING - OBSERVE CONTROL DRAWING 100016EX17A.
WARNING - MUST BE USED WITH TAB-EX 01 REAR COVER, TAB-EX 01
PROTECTIVE CASE AND BATTERY EB-BT365BB*.
WARNING - EXPLOSION HAZARD - DO NOT OPEN DEVICE UNLESS AREA IS
KNOWN TO BE NON-HAZARDOUS. SUBSTITUTION OF COMPONENTS MAY
IMPAIR SUITABILITY FOR DIVISION 2 / ZONE 2.
USA:
THIS APPARATUS IS SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS
ABCD, OR UNCLASSIFIED LOCATIONS.
WARNING: EXPLOSION HAZARD. DO NOT REMOVE OR REPLACE SD CARD OR
SIM CARD UNLESS THE AREA IS KNOWN TO BE FREE OF IGNITIBLE CONCEN-
TRATIONS OF FLAMMABLE GASES OR VAPORS.

7
Canada:
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A-D
OR NON-HAZARDOUS LOCATIONS ONLY.
WARNING - EXPLOSION HAZARD - DO NOT REPLACE SD CARD OR SIM CARD
UNLESS THE AREA IS KNOWN TO BE NON-HAZARDOUS.
WARNING - EXPLOSION HAZARD - BATTERIES MUST ONLY BE CHANGED IN
AN AREA KNOWN TO BE NON-HAZARDOUS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY
IMPAIR SUITABILITY FOR CLASS I, DIVISION 2
6. Repair
Repairs are to be conducted by ecom instruments GmbH or by personnel or
service centers authorized by ecom instruments GmbH only, due to the safety of
the device needs to be tested after repairs are implemented. The actual repair
report sheet can be downloaded from the service area at www.ecom-ex.com.
7. Inserting the SIM card (LTE model only) and microSD card
1. Remove the protective case and then the Rear Cover of the device.
2. Remove the battery from the battery compartment.
3. Insert the SIM card into the SIM card slot (LTE model only) and – if needed -
the microSD card into the SD card slot. Both slots are labeled.
4. Insert the battery again.
5. Attach the Rear Cover and make sure all mounts are rmly attached.
6. Attach the Protective Case.
8. Charging the tablet computer
Charging the tablet computer is allowed only outside hazardous areas!
The battery of the tablet computer is delivered not fully charged. It is recom-
mended to charge the tablet computer’s battery for ve hours before using it
for the rst time. The full capacity of the battery is reached after 3 - 4 complete
charge / discharge cycles.

8
Note:
• There is a risk of explosion if the device is exposed to a ame.
• Only use ecom-approved chargers.
At the end of its lifetime, the supplied lithium-ion battery must be recycled or
disposed of separately from household waste. Don’t incinerate the battery.
9. Safety precautions for the battery
Damaged batteries and chargers should be removed from use and sent to ecom
instruments GmbH for inspection.
Note:
• Extreme temperatures can have an adverse effect on charging the battery.
• Do not dispose of the device in a re.
• Dispose of the device in accordance with local regulations and not with normal
household waste.
A high quality lithium-ion battery is used in your Tab-Ex 01. These batteries
have numerous advantages in everyday use, such as a low weight and high
capacity in a nevertheless compact construction. In addition these batteries also
exhibit practically no memory effect. However, these batteries are susceptible to
a natural aging process which impairs their functionality.
Modern batteries today have a lifespan of around 500 charge cycles, which,
when used daily, corresponds to a service life of approximately two years.
The ageing process increases rapidly after this period, which means that the
batteries are deemed technically defective after 500 charge cycles. Moreover,
the battery cells could expand and cause irreparable damage to your device
in a worst case scenario. For this reason rechargeable batteries with lithium
cells should be replaced after two years at the latest or after reaching a battery
capacity that is 50% of its initial value.
Note:
The battery used in this unit poses a re hazard and can cause chemical injuries
if it is used improperly. Neither the battery nor the battery cells should be ope-
ned or disassembled and they should not be burned or exposed to temperatures
exceeding 212 °F (100 °C).

9
10. Cleaning, maintenance and storage
• Only use a suitable cloth or sponge to clean the tablet computer.
• Do not use any solvents or abrasive cleaning agents when cleaning.
• It is recommended that you have the functionality and accuracy of the phone
inspected by the manufacturer every two years.
• Do not exceed the permissible storage temperature range of -4 °F to +140 °F
(-20 °C to +60 °C)
11. Disposal
Old electrical devices by ecom instruments GmbH will be directed to disposal
at our expense and disposed of free of charge in accordance with European Di-
rective 2002/96/EC. Please follow local regulations for the disposal of electronic
products.
The costs associated with returning devices to ecom instruments GmbH are to
be borne by the sender.
In accordance with Article 1, Section 18 and Article 2 of the Act revising the law
of Waste-Related Product Responsibility for Batteries and Accumulators (Gesetz
zur Neuregelung der abfallrechtlichen Produktverantwortung für Batterien und
Akkumulatoren) dated 25 June 2009, we are obligated to provide the following
information.
Your device contains a rechargeable lithium battery.
Depleted batteries or rechargeable batteries that can no longer be recharged
should never be disposed of along with normal or household waste. Old batte-
ries can contain harmful substances that are hazardous to health and damaging
to the environment. Please return the batteries/rechargeable batteries. Return
is free of charge and required by law. Please only dispose of discharged batte-
ries in the designated containers and tape the terminals of lithium batteries.
Note: The battery used in this unit poses a re hazard and can cause chemical
injuries if it is used improperly. Neither the battery nor the battery cells should
be opened or disassembled and they should not be burned or exposed to tem-
peratures exceeding 100 °C.

10
If the battery needs to be disposed of, it can be removed as described under
point (7). The disposal regulations specied above are also applicable for old
devices. All batteries and rechargeable batteries can be recycled. Precious raw
materials such as iron, zinc and nickel can therefore be reused.
The symbol has the following meaning: Old electrical devices should not be
disposed of along with normal or household waste.
12. Warranty and liability
The warranty of this product follows the General Conditions of Delivery and
Payment of ecom instruments GmbH, which are available at www.ecom-ex.com,
or alternatively they can be requested directly from the manufacturer.
This warranty can be extended by the optional Service Level Agreement.
Pixel error
Your Tab-Ex 01 complies with the requirements of Error Class 2 according to the
ISO 9241-307 standard. This means that either 2 pixels / 10 subpixels are faulty
or 2 pixels / 5 subpixels are allowed to be permanently lit.
Claims in excess of this cannot be asserted.

11
13. Getting started

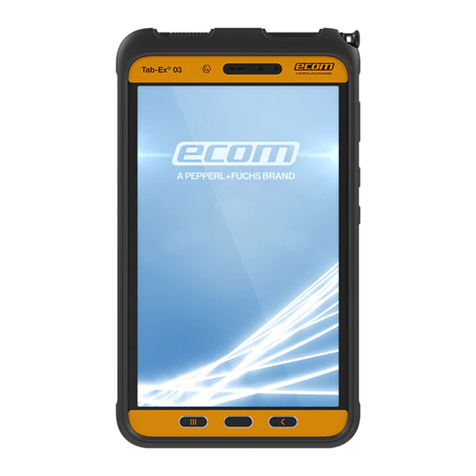

Device layout
Microphone
Earpiece (LTE Version)
Touch screen
Home button
Recent apps button
Proximity/Light sensor
Front camera
Power button
Volume button
Back button
Multipurpose jack

12
The microphone at the top of the device is active only when you use the spea-
kerphone or take videos.
• Do not cover the antenna area with your hands or other objects.
This may cause connectivity problems or drain the battery.
• Using a Ecom-approved screen protector is recommended.
Unapproved screen protectors may cause the sensors to malfunction.
Maintaining water and dust resistance
This device is resistant to water and dust when all compartments are closed
tightly. Follow these tips carefully to prevent damage to the device.
• Do not immerse the device in water for extended periods or use it in the rain.
• Do not expose the device to salt water or ionised water, or to high water
pressures.
• If the device gets wet, dry it thoroughly with a clean, soft cloth.
Rear camera
Flash
Back cover
Main antenna (LTE Version)
Microphone
GPS antenna
NFC antenna
Speaker
Headset jack

13
Buttons
Button Function
Power
• Press and hold to turn the device on or off.
• Press to lock or unlock the device. The device
goes into lock mode when the touch screen
turns off.
Recent apps • Press to open the list of recent applications.
Home • Press to return to the Home screen.
• Press and hold to launch Google search.
Back
• Pres s to return to the previous screen.
• Press and hold to activate or deactivate
Multi window.
Volume • Press to adjust the device volume.
Package contents
Check the product box for the following items:
• Device
• Battery
• Charger
• Quick start guide
• The items supplied with the device and any available accessories may vary
depending on the region or service provider.
• The supplied items are designed only for this device and may not be compatib-
le with other devices.
• Appearances and specications are subject to change without prior notice.
• You can purchase additional accessories from your local Ecom retailer. Make
sure they are compatible with the device before purchase.
• Other accessories may not be compatible with your device.

14
• Some accessories, such as docking devices, may not have the same water-
and dust-resistance certication.
• Use only Ecom-approved accessories. Using unapproved accessories may
cause the performance problems and malfunctions that are not covered by
the warranty.
• Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories,
refer to the Ecom website.
Installing the SIM or USIM card (LTE Version) and battery
Insert the SIM or USIM card provided by the mobile telephone service provider,
and the included battery.
• Only microSIM cards work with the device.
• Some LTE services may not be available depending on the service provider.
For details about service availability, contact your service provider.
1 Remove the back cover.
LBe careful not to damage your ngernails when you remove the back cover.
Do not bend or twist the back cover excessively.
Doing so may damage the cover.

15
2 Insert the SIM or USIM card with the gold-coloured contacts
facing downwards.
• Do not insert a memory card into the SIM card slot. If a memory card happens
to be lodged in the SIM card slot, take the device to a Ecom Service Centre to
remove the memory card.
• Use caution not to lose or let others use the SIM or USIM card. Ecom is not
responsible for any damages or inconveniences caused by lost or stolen
cards.
3 Insert the battery.

16
4 Replace the back cover.
• Ensure that the back cover is closed tightly.
• Use only Ecom-approved back covers and accessories with the device.
Removing the SIM or USIM (LTE Version) card and battery
1 Remove the back cover.
2 Pull out the battery.
3 Pull out the SIM or USIM card.
Align Press

17
Installing the protective case
Insert the top of the device into the case, and then press the other side of the
case rmly to install it.
To remove the protective case from the device, twist the top edge of the case
until the device protrudes from it. Then remove the device from the case.
Charging the battery
Use the charger to charge the battery before using it for the rst time.
L Use only Ecom-approved chargers, batteries, and cables. Unapproved char-
gers or cables can cause the battery to explode or damage the device.
• When the battery power is low, the battery icon appears empty.
• If the battery is completely discharged, the device cannot be turned on imme-
diately when the charger is connected. Allow a depleted battery to charge for a
few minutes before turning on the device.
• If you use multiple applications at once, network applications, or applications
that need a connection to another device, the battery will drain quickly. To avoid
disconnecting from the network or losing power during a data transfer, always
use these applications after fully charging the battery.

18
Charging with the charger
Connect the USB cable to the USB power adaptor and then plug the end of the
USB cable into the multipurpose jack.
Connecting the charger improperly may cause serious damage to the device.
Any damage caused by misuse is not covered by the warranty.
• The device can be used while it is charging, but it may take longer to fully
charge the battery.
• If the device receives an unstable power supply while charging, the touch
screen may not function. If this happens, unplug the charger from the device.
• While charging, the device may heat up. This is normal and should not affect
the device’s lifespan or performance. If the battery gets hotter than usual, the
charger may stop charging.
• If the device is not charging properly, take the device and the charger to a
Ecom Service Centre.
After fully charging, disconnect the device from the charger. First unplug the
charger from the device, and then unplug it from the electric socket.

19
To save energy, unplug the charger when not in use. The charger does not have
a power switch, so you must unplug the charger from the electric socket when
not in use to avoid wasting power. The charger should remain close to the elec-
tric socket and easily accessible while charging.
Checking the battery charge status
When you charge the battery while the device is off, the following icons will show
the current battery charge status:
Charging Fully charged
Reducing the battery consumption
Your device provides options that help you save battery power. By customising
these options and deactivating features in the background, you can use the
device longer between charges:
• When you are not using the device, switch to sleep mode by pressing the
Power button.
• Close unnecessary applications with the task manager.
• Deactivate the Bluetooth feature.
• Deactivate the Wi-Fi feature.
• Deactivate auto-syncing of applications.
• Decrease the backlight time.
• Decrease the brightness of the display.

20
Inserting a memory card
Your device accepts memory cards with maximum capacities of 64 GB. Depen-
ding on the memory card manufacturer and type, some memory cards may not
be compatible with your device.
• Some memory cards may not be fully compatible with the device. Using an
incompatible card may damage the device or the memory card, or corrupt the
data stored in it.
• Use caution to insert the memory card right-side up.
• The device supports the FAT and the exFAT le systems for memory cards.
When inserting a card formatted in a different le system, the device asks to
reformat the memory card.
• Frequent writing and erasing of data shortens the lifespan of memory cards.
• When inserting a memory card into the device, the memory card’s le directo-
ry appears in the SD card folder.
1 Remove the back cover and battery.
2 Insert a memory card with the gold-coloured contacts facing downwards.
3 Replace the battery and back cover.
