perixx PERICAM-902 User manual

IP Surveillance Camera
Wireless Pan & Tilt Remote Control /Night Vision
User’s Guide
Wireless Pan & Tilt
FCC ID: RUJ-LR802UWG
PERICAM-902

1
TABLE OF CONTENTS
1. OVERVIEW
1.1 PRODUCT DESCRIPTION.......................................................................................................2
1.2 PRODUCT FEATURE..............................................................................................................2
1.3 PRODUCT SPECIFICATION.....................................................................................................2
1.4 PRODUCT ACCESSORIES INCLUDE .......................................................................................3
1.5 SYSTEM REQUIREMENT .......................................................................................................3
1.6 EXTERIOR FUNCTION INTRODUCE .......................................................................................4
1.7 PRODUCT SET-UP..................................................................................................................4
2. UTILITIES AND TOOLS
2.1 IPCamFinder...................................................................................................................5
2.2 USE IP-CAM AND TEST THE IMAGE FUNCTION FOR THE FIRST TIME.....................................5
2.3 HOW TO SET UP IP CAM......................................................................................................6
2.4 SETTING THE WAY TO OBTAIN THE IP ADDRESS OF IP-CAM.................................................7
2.5 IP-CAM NETWORK FRAMEWORK INSTALLATION................................................................12
2.6 INSTALLATION FOR IP SHARE.............................................................................................19
2.7 INSTALLATION FOR WIRELESS IP SHARE.............................................................................21
3. GETTING STARTED
3.1 SYSTEM LOGIN...................................................................................................................24
3.2 LIVEVIEW ..........................................................................................................................25
3.3 TAKE A SHOT......................................................................................................................26
4. ADVANCED FUNCTION WITH LIVEVIEW.........................................................................................27
5. ADVANCED APPLICATION
5.1 IMAGE CONTROL ..............................................................................................................28
5.2 LAN SETUP.........................................................................................................................30
5.3 WLAN SETUP......................................................................................................................31
5.4 NETWORK STATUS.............................................................................................................32
5.5 SYSTEM LOG......................................................................................................................33
5.6 ADMIN SETUP.....................................................................................................................33
5.7 PPPOE – PPPOE..................................................................................................................35
5.8 DYNAMIC DNS – DYNAMIC DNS........................................................................................36
5.9 FTP – FTP SERVICE..............................................................................................................37
5.10 E-MAIL ..............................................................................................................................38
5.11 NTP – NTP...........................................................................................................................39
5.12 ACCOUNT MANAGER.........................................................................................................40
5.13 UPNP ................................................................................................................................41
APPENDIX
APPENDIX A. OPERATION EXAMPLE FOR USING A PPPOE DIAL-UP CONNECTION AND
DDNS……………....................................................................................................43
APPENDIX B. FAQ.........................................................................................................................47

2
OVERVIEW
1.1PRODUCT DESCRIPTION
This product is the most simple and efficient IP Camera product for remote monitoring/
administrating. The installation is very easy. With the build-in Web server, you can use web page
browser (e.g., Microsoft IE) and input the IP-Cam camera's IP address to execute remote image
monitoring and administration through either local or broadband network directly any time any
place. You can also remotely control the motor in the camera to change the monitor direction/
angle to quickly grasp the real-time image of the monitored location. Wireless transmission
capability is also provided for setting up through wireless network and avoiding damages to the
environment from the wiring.
In addition, many network protocols are supported, such as PPPoE, DHCP, STATIC IP, DDNS,
SMTP, FTP, and NTP. Moreover, IR LED lightening illumination is also included to strengthen the
night vision capability. The further recording and real-time photographing capabilities can reach
professional security and have great fun for the family use remote monitoring.
1.2 PRODUCT FEATURE
- Use standard Web Browser IE to monitor, record, and shoot remotely
- Maximum 640x480 Full screen
- Allow to view images from multi-cameras
- Allow on-line image viewing remotely for multi-users simultaneously
- Remote real-time recoding to the device and trigger to sending images to FTP & E-Mail & PC
- Support virtual IP and port switch in IP share
- Support several communication protocols, TCP/IP, DHCP, SMTP, FTP, PPPoE, DDNS,
- Use functional authority setting, name registration and password protection
- Support the dynamic IP network function of DHCP
- Support ADSL network of PPPoE user
- Standard RJ-45 network connector, support 10/100 BaseT network transmission
- Standard wireless IEEE 802.11 b/g or higher network transmission
1.3 PRODUCT SPECIFICATION
- Image Size: 176x144、320x240、640x480 adjustable
- Image Speed / Quality: Fast、Normal、slow adjustable
- Video Frequency: 50 Hz for PAL、60 Hz for NTSC
- Image Compression Format : M-JPEG
- Focal Distance Range : From 30mm to infinity adjustable
- Image Recording: Images sent to user defined path on PC
- Image capture: Images sent to FTP & E-Mail & PC
- Support TCP/IP、SMTP、FTP、PPPoE、DHCP Protocol
- Network DHCP or manual setting network IP, and support ADSL network of PPPoE user
- Build-in web server and the functions of Active-X
- Remote single picture captured with JPG file format, remote continuous screen recorded with
AVI format
- Night vision lightening illumination: Auto and Manual selection, IR LED x 6/ 5φ/850λ
- Monitoring angle: Vertical angle: Up/Down Tilt +180 to -35 degrees
Horizontal angle: Left / Right Pan +/- 175 degrees
- Standard RJ-45 network connector, support 10/100 BaseT network transmission
- Standard wireless IEEE 802.11 b/g or higher network transmission
- 5V/ 1.5A exterior switching power adaptor
- Power Consumption : 1100mA(max) / 5.5W(max)

3
- Operating environment : 5˚C~40˚C
- Storage temperture : -0˚C~55˚C
- Humidity : 5%~85%
1.4 PRODUCT ACCESSORIES INCLUDE
1. IP-Camera
2. Power adaptor, 5V/ 1.5A Switching Power adaptor
3. Ethernet Cable(red), used to connect to the network card of PC for testing and configuring the
product
4. Ethernet Cable (blue), used to connect to Hub, ADSL modem, IP Share
5. Setup CD
6. This User's Guide
7. Accessory for hanging and fastening
1.5 SYSTEM REQUIREMENT
PC:
- Processor: Intel Pentium 4® 1.4GHz or above is recommended
- RAM: 256MB or above
- Operation System: Windows 2000® or Windows XP®
- Hard Disk: Minimum 100MB or above
- Read only CD-ROM (for IPCamFinder installation)
Network:
- Network Card: 10/100 baseT/TX Fast Ethernet
- Wireless Network : I EEE 802.11 b/g or higher
- Network Setup: Accessing Internet normally
- Web Browser: ActiveX Enabled and Compliant (Microsoft Internet Explorer 6.0 or above)
- Connect Network Equipment: ADSL modem, Wireless IP Share or Hub

4
1.6 EXTERIOR FUNCTION INTRODUCE
※ Usage of Reset Switch:
During system normal operation, press and hold the Reset Switch for a short time (approximately
8 seconds) until the front Status Light goes out, the system will restart and return to the factory
default settings.
※ Power On description:
After inserting the included 5V/ 1.5A Switching Power adaptor into power outlet, you have to
wait for 40 seconds of power on time for IP Cam to confirm its software/hardware are normal.
The Status Light will light up and execute the motor homing action once power is on.
1.7 PRODUCT SET-UP
IR LED X 6 Focus
Adjustable
Status Light
DC JACK
Antenna
RJ-45 JACK
Anchor
Frame
P head M3.5X25
Reset Switch
Screw

5
2.1 IPCamFinder
IPCamFinder is the IP search application provided by this product. It can search all the IP
CAMs connected in LAN. Through sending out the inquiry of broadcasting packets and
receiving responses from IP CAMs, the window will display a list of all IP CAMs in the network.
Furthermore, it also provides modify functions for changing specified IP CAM's network settings,
e.g. IP Address change function.
IPCamFinder tools in detail (1):
2.2 USE IP-CAM AND TEST THE IMAGE FUNCTION FOR THE FIRST TIME
The following connection is suitable for IP-CAM test/fixed IP address change/program code
update (strongly recommended).
The operation steps are listed below:
A. Installing the Product for the first time:
- Your computer must be equipped with network card and RJ-45 network connector.
- Connect the RJ-45 terminator on the rear of IP-CAM with the red test network cable. One end
is connected to the network card of computer; the other end is connected to the rear side of
the IP-CAM.
- Connect the power adaptor to the power port (on the rear) of IP-CAM. Now, the status LED
on the front of IP-CAM will light up.
UTILITIES AND TOOLS
IP CAM
List
MAC address
Display PC's
Ethernet network
card
Renew List
Choose the way
to get IP
Wireless mode
setting
Show IP
CAM
Renew
executed to
obtain an IP
NOTEBOOK IP CAM
Figure 1
IP address
Subnet Mask
Default
Gateway
PPPoE Setting

6
B. Check if the IP addresses for PC network and IPCamFinder are on the same network section:
- Usually, static IP address will be used to access into Internet, so the IP address will vary. When
you want to change IP address, please write down the original IP address on your computer
first. Then you have to modify the IP address
of your computer for testing if the IP-CAM
can be operated normally . After finishing the
test, IP address for your computer should be
recovered to original settings.
- In general, the IP address for your computer
in LAN will be set with "Auto Obtain IP
address". To test if the IP-CAM is normal ,
the IP address of your computer must be
changed temporarily. After finishing the test,
it can be recovered to original settings.
C. Next, choose Control Panel->Network
Connections->choose the activated area
Network Connections---> right click of
your mouse --->select Properties(P)--->
Select Internet Protocol (TCP/IP)---> Select
Properties(R) , then you can check the
current IP address status for the computer.
The way to modify IP address is:

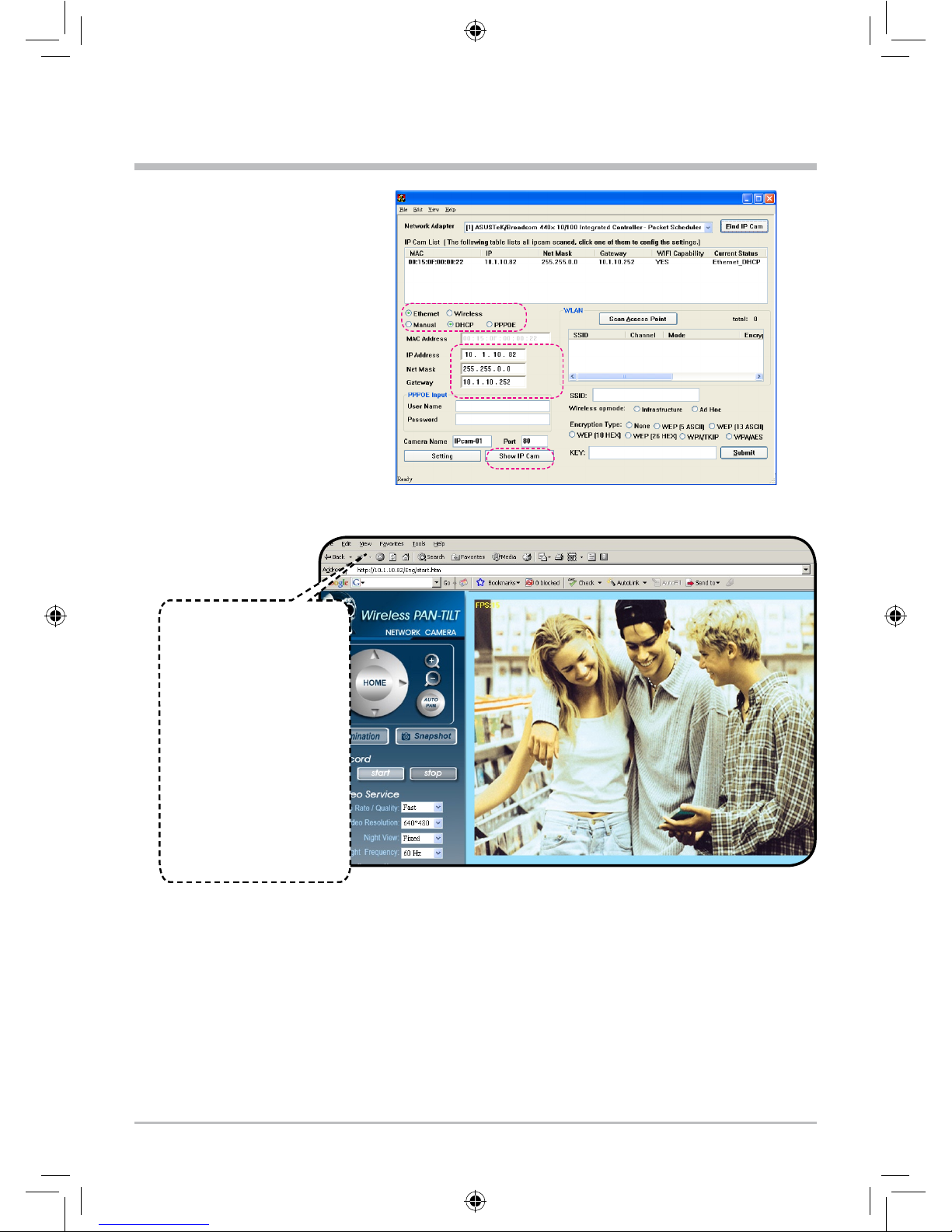

D. Open and execute IPCamFinder (as shown in Figure 2). The system will automatically scan the
IP-CAM that you just installed . Then, you will find 00:15:0F:00:00:22 192.168.1.100 in the
column of IP Cam List. Click 00:15:0F:00:00:22 192.168.1.100 with left mouse button. You
can see the default settings for IP-CAM.
Step 1.
Select your PC’s Ethernet network
card.
Step 2.
Click Find IP Cam with left
mouse button, you with will see
00:15:0F:00:00:22 192.168.1.100
Step 3.
Click 00:15:0F:00:00:22 with left
mouse button once, you will see
following information
IP Address: 192.168.1.100
Net Mask : 255.255.255.0
GateWay : 192.168.1.1
Step 4.
Click Show IP Cam with left mouse
button once which will start the
Browser automatically. Login using
Username/Password into network
monitor screen (refer to 3.1 for
details). If you can see the image
screen, the IP-CAM is ready to use.
Figure 2
1. 2.
3.
3.
4.

7
Step 1.
Select your PC’s Ethernet
network card.
Step 2.
Click Find IP Cam with left
mouse button, you will see
00:15:0F:00:00:22
192.168.1.100 ….
Step 3.
Click 00:15:0F:00:00:22 with
left mouse button once, you
will see following information
IP Address: 192.168.1.100
Net Mask: 255.255.255.0
GateWay: 192.168.1.1
2.3 HOW TO SET UP IP CAM
Before you set up IP CAM, you have to know the network environment and if the IP address
is fixed or float that provided by your ISP. If you do not know, please contact with your ISP.
Section 2.5 will list the common network structure (1 ~ 7 types). Users can refer to the structure
to find out what type is suitable for your computer and finish the setting up according to the
instructions. To set up IP-CAM and IP address, the common way that people use is to change the
obtaining of IP address of IP-CAM. Detailed information is listed as 2.4-1 ~ 2.4.3.
2.4 SETTING THE WAY TO OBTAIN THE IP ADDRESS OF IP-CAM
2.4-1 STATIC - IP Address Setting
- Your computer must be equipped with network card and RJ-45 network connector.
- Connect the RJ-45 terminator on the rear of IP-CAM to the red test network cable. One end is
connected to the network card of computer; the other end is connected to the rear side of the
IP-CAM.
- Connect the power adaptor to the power port (on the rear) of IP-CAM. Now, the status LED on
the front of IP-CAM will light up.
- Open and execute IPCamFinder (as shown in Figure 3),The system will automatically scan the IP-
CAM that you just installed . Then, you will find 00:15:0F:00:00:22 192.168.1.100 in the
column of IP Cam List. Click 00:15:0F:00:00:22 192.168.1.100 with left mouse button. You can
see the default settings for IP-CAM.
- Fill in Fixed IP Address as below. (If you do not know your fixed IP address, please contact with
your ISP. Below is an example of Fixed IP Address modification.)
1. 2.
3.
3.
NOTEBOOK IP CAM
Figure 3

8
Step 4.
Default connection mode selection is
Manual, i.e. STATIC.
Step 5.
Type in Fixed IP.
IP Address : 211.78.174.94
Net Mask: 255.255.255.248
GateWay : 211.78.174.89
Step 6.
HTTP Port:Http communication port.
The default setting is 80.
(If you have multiple IP-CAMs
installed in the same network, you
have to divide them with different
Port numbers, e.g, 1025、1026、
1039…..)
Step 7.
After finishing the settings, click
Setting to send. The network settings
for this IP-CAM are renewed.
4.
5.
6. 7.
Figure 3
Example:
1. Set up the IP CAM with
fixed IP address.
2. Turn on your computer
and open IE browser.
Type 211.78.174.94:(
1025、1026、1039....)
in the Address line.
Now you can access
into the monitoring
screen of network.
2.4-2 DHCP - IP Address Setting:
- Use RJ-45 Ethernet cable (red) to connect ADSL
host and switching hub. Then use RJ-45
Ethernet cable (blue) to connect PC and IP CAM
(as shown below). ADSL/
CABLE MODEM
LAN HUB
IP CAM
NOTEBOOK

9
- Connect the power adaptor to the power port
(on the rear) of IP-CAM. Now, the status LED on
the front of IP-CAM will light up.
- Set up the connection way inside the PC network:
Please go to
Control Panel ---> Network Connections ---> Choose
Activated LAN connection ---> right click your mouse
---> Select Properties(P)---> Select Internet Protocol
(TCP/IP)---> Select Properties(R)
--->Click Obtain an IP address automatically(O),
Obtain DNS server address automatically(B).
Step 1.
Select your PC’s
Ethernet network card.
Step 2.
Click Find IP Cam with
left mouse button, you
will see
00:15:0F:00:00:22
192.168.1.100
Step 3.
Click 00:15:0F:00:00:22
192.168.1.100 with left
mouse button.
- Open and execute IPCamFinder (as shown in
Figure 5). Press Update to automatically scan the IP-CAM that you just installed . Then, you will
find 00:15:0F:00:00:22 192.168.1.100 in the column of IP Cam List. Click 00:15:0F:00:00:22
with left mouse button. You can see the default settings for IP-CAM.
Figure 5
1. 2.
3.
- Change the default Manual connection mode to DHCP and click Setting once. After clicking
Setting and Find IP Cam once again, a new IP Address 00:15:0F:00:00:22 10.1.10.82 camera
appears in the IP Cam List column. Click on its MAC to make its address data fill in the lower
columns. Finally, click on Show IP Cam button to open Browser and access into network
monitoring screen (as shown in Figure 6).

10
Step 4.
After changing Manual into DHCP,
click on Setting and Find IP Cam once.
Step 5.
A new set of IP Address,
00:15:0F:00:00:22 10.1.10.82,
appears in the IP Cam List column.
Step 6. Click 00:15:0F:00:00:22 with
left mouse button once to fill in new
address data into following columns:
IP Address : 10.1.10.82
SubMask : 255.255.0.0
GateWay : 10.1.10.252
Step 7. Click on Show IP Cam button
twice to open Browser automatically
and access into network monitoring
screen.
Figure 6
5.
4.
6.
7.
2.4-3 PPPoE - IP Address Setting:
- Set up IP CAM according to 2.4-2 DHCP.
- Start IPCamFinder search application (as following figure). Click Find IP Cam to automatically
scan the IP-Cam camera you just installed. You will find a 00:15:0F:00:00:22 192.168.1.100
camera in the IP Cam List column. Click 00:15:0F:00:00:22 with left mouse button once and the
IP-CAM default values are filled into the lower columns.
- After changing the connection mode to PPPoE and filling in User Name and Password, click the
Setting button again. A new set of IP Address 00:15:0F:00:00:22 125.225.2.202 appears in
the upper search column. Select 00:15:0F:00:00:22 to fill the new IP Address into the lower
columns. Finally, click on Show IP Cam button to open Browser and access into network
monitoring screen (as shown in Figure 7).
Example:
1. Now, IP-CAM is set
up with the IP address
in LAN.
2. Or, use IPCamFinder
to access into
monitoring screen of
network according
to the instructions in
Figure 5 and 6.
3. Or, turn on your PC
and open IE Browse.
Type 10.1.10.82 in
Address line to access
into monitoring screen
of network.

11
Step 1.
Start IPCamFinder search application.
Select your PC’s network card. Click Find
IP Cam to automatically scan the IP-Cam
camera you just installed.
Step 2.
A default IP Address 00:15:0F:00:00:22
192.168.1.100 appears in the IP Cam List
column.
Step 3.
Click 00:15:0F:00:00:22 with left mouse
button once to fill the new address data
into lower columns.
Step 4.
After changing the connection mode
to PPPoE and filling in User Name
and Password, click the Setting
button again. A new set of IP Address
00:15:0F:00:00:22 125.225.2.202
appears in the upper search column.
Click 00:15:0F:00:00:22 again to fill the
new Address data into the following
columns.
Step 5.
Click Show IP Cam with left mouse
button once to automatically open
Browser and access into network
monitoring screen.
Example:
1.Now, IP-CAM is set up with
the IP address in LAN.
2.Or, use IPCamFinder
search application to access
into network monitoring
screen according to the
instructions in Figure 7.
3.Or, turn on your PC and
open Browser. Type in IP=>
125.225.2.202 to access into
network monitoring screen.
Figure 7
1.
2.
3.
4.
5.
********

12
2.5 IP-CAM NETWORK FRAMEWORK INSTALLATION
A. IP-CAM Network Framework Installation 1
Way to access Internet Use Permanent ADSL or Cable Modem
Physical IP Address Owns several physical IP addresses
IP Share or LAN Hub General model is OK.
Network Setup for IP -CAM LAN Enable / Manually
Suitable Objects Users with several physical fixed IP addresses and several
IP-CAMs installed
1. Connect the RJ-45 terminator on the rear of IP-CAM to the red test network cable. One end is
connected to the network card of computer; the other end is connected to the rear side of the
IP-CAM.
2. Refer to 2.4-1 STATIC - IP Address Settings to type the IP address properly.
3. Set a physical IP address for each IP-CAM.
4. Set up the IP-CAM with fixed IP address.
5. For viewing images in IP-CAM from remote computer: Open IE browser and type in the
physical IP address of the IP-CAM, e.g., http://211.78.174.03.
ADSL/
CABLE MODEM
PC FOR IP CAM SETUP
211.78.174.02
IP CAM
211.78.174.03
IP CAM
211.78.174.04
IP CAM
211.78.174.05
IP SHAREING
OR LAN HUB
211.78.174.01
DESKTOP PC PDA
NOTEBOOK
3G MOBILE
PHONE

13
B. IP-CAM Network Framework Installation 2
Way to access Internet Use Permanent ADSL or Cable Modem
Physical IP Address Owns several physical IP addresses
IP Share or LAN Hub Must be equipped with DHCP function
Network Setup for IP -CAM LAN Enable / Manually Web Server Port Number, need to be adjusted
Suitable Objects Users with one physical fixed IP addresses, IP Share and several
IP-CAMs installed
1. Set a real physical IP address (e.g., 211.78.174.01) for the public IP of IP Share. Then, set
another private IP address and activate the DHCP server function of IP Share.
2. In the IP configuration for each IP-CAM, please assign different virtual IP address internally and
respectively. In the Http Port setting, please specify different port parameters. (Please refer to 2.4-
1 STATIC - IP Address Settings to type the IP address properly.)
3. For the port transformation in IP Share, please refer to IP and port settings of camera to
configure accordingly.
4. For viewing images in IP-CAM from remote computer: Open IE browser and type
in the physical IP address of the IP Share and the port number of IP-CAM, e.g., http://
211.78.174.01:1025.
ADSL/
CABLE MODEM
PC FOR IP CAM SETUP
192.168.0.1
IP CAM
192.168.0.2:1025
IP CAM
192.168.0.3:1026
IP CAM
192.168.0.4:1027
IP SHAREING
(With DHCP)
Public:211.78.174.01
Private:192.168.0.254
DESKTOP PC PDA 3G MOBILE
PHONE
NOTEBOOK

14
C. IP-CAM Network Framework Installation 3
Way to access Internet Use Permanent ADSL or Cable Modem
Physical IP Address Owns one float IP address (dispatched by ISP dynamically)
IP Share or LAN Hub Must be equipped with DHCP and NAT functions
Network Setup for IP -CAM LAN Enable / Manually Web Server Port Number, need to be adjusted
Suitable Objects Users with dial-up ADSL, one float IP address and several IP-CAMs
installed
1. Activate PPPoE function of IP share. Then, set another private IP address and activate the
DHCP server function of IP Share. When the dial-up of ADSL is success, you will get an float IP
address from your ISP.
2. In the IP configuration for each IP-CAM, please assign different virtual IP addresses internally
and
respectively. In the Http Port setting, please specify different port parameters. (Please refer to
2.4-1 STATIC - IP Address Settings to type the IP address properly.)
3. For the port transformation in IP Share, please refer to IP and port settings of camera to
configure accordingly.
4. For viewing images in IP-CAM from remote computer: Open IE browser and type in the float IP
address of ADSL and the port number of IP-CAM, e.g., http:// 211.78.174.01:1025.
ADSL/
CABLE MODEM
PC FOR IP CAM SETUP
192.168.0.1
IP CAM
192.168.0.2:1025
IP CAM
192.168.0.3:1026
IP CAM
192.168.0.4:1027
IP SHAREING
(With DHCP+PPPoE)
Public IP:Connect success than got IP address from ISP
Private IP:192.168.0.254
DESKTOP PC PDA 3G MOBILE
PHONE
NOTEBOOK

15
D. IP-CAM Network Framework Installation 4
Way to access Internet Permanent ADSL or Cable Modem
Physical IP Address Owns one physical IP address
IP Share or LAN Hub Not necessary
Network Setup for IP -CAM LAN Enable / Manually Web Server Port Number, no need to be adjusted
Suitable Objects Users with permanent ADSL, one fixed physical IP address and one
IP-CAM installed
1. Connect the RJ-45 terminator on the rear of IP-CAM to the red test network cable. One end is
connected to the network card of computer; the other end is connected to the rear side of the
IP-CAM.
2. Refer to 2.4-1 STATIC - IP Address Settings to type the IP address properly.
3. Set up the IP-CAM with fixed IP address.
4. For viewing images in IP-CAM from remote computer: Open IE browser and type in the
physical IP address of the IP-CAM, e.g., http://211.78.174.94.
ADSL/
CABLE MODEM
IP CAM
211.78.174.94
DESKTOP PC
PDA 3G MOBILE
PHONE
NOTEBOOK

16
E. IP-CAM Network Framework Installation 5
Way to access Internet Use dial-up ADSL or Cable Modem
Physical IP Address Owns one float IP address (dispatched by ISP dynamically)
IP Share or LAN Hub Not necessary
Network Setup for IP -CAM PPPoE function should be set, LAN Enable Web Server Port Number, no
need to be adjusted
Suitable Objects Users with dial-up ADSL, and one IP-CAM installed
1. Please acquire the necessary information of ADSL dial-up from your ISP.
ISP related information: ADSL dial-up account name and password
2. Connect the RJ-45 terminator on the rear of IP-CAM to the red test network cable. One end is
connected to the network card of computer; the other end is connected to the rear side of the
IP-CAM.
3. Refer to 2.4-3 PPPoE - IP Address Settings for typing account name and password.
4. Please type the Mail server setup information of IP-CAM.
5. Set up the IP-CAM to Dial-up ADSL Modem.
6. When the dial-up is success, IP-CAM will send a notification e-mail of float IP Address to the
users.
7. Open IE browser and type in the physical IP address (such float IP is dispatched by ISP) of the
IP-CAM, e.g., http://211.78.174.94.
ADSL/
CABLE MODEM
IP CAM
PPPoE Function enable
DESKTOP PC
PDA 3G MOBILE
PHONE
NOTEBOOK

17
F. IP-CAM Network Framework Installation 6
Way to access Internet Use dial-up ADSL or Cable Modem
Physical IP Address Owns several float IP addresses (dispatched by ISP dynamically)
IP Share or LAN Hub Must be equipped with DHCP and NAT functions
Network Setup for IP -CAM LAN Enable / Manually Web Server Port Number,
need to be adjusted
Suitable Objects Users with several float IP addresses and several IP-CAMs installed
1. Please acquire the necessary information of ADSL dial-up from your ISP.
ISP related information: ADSL dial-up account name and password
2. Connect the RJ-45 terminator on the rear of IP-CAM to the red test network cable. One end is
connected to the network card of computer; the other end is connected to the rear side of the
IP-CAM.
3. Refer to 2.4-3 PPPoE - IP Address Settings for typing account name and password.
4. Please type the Mail server setup information of IP-CAM.
5. Install IP-CAM on LAN Hub.
6. Use CAM_EZ Search tool to find out the float IP address assigned by ISP for the ADSL currently.
7. Open IE browser and type in the physical IP address (such float IP is dispatched by ISP) of the
IP-CAM, e.g., http://211.78.174.94.
8. Follow the steps above to configure for each IP-CAM.
PC FOR IP CAM SETUP
IP CAM
PPPoE FUNCTION ENABLE
LAN HUB
DESKTOP PC PDA 3G MOBILE
PHONE
NOTEBOOK
IP CAM
PPPoE FUNCTION ENABLE
IP CAM
PPPoE FUNCTION ENABLE

18
G. IP-CAM Network Framework Installation 7
Way to access Internet Use Permanent ADSL or Cable Modem
Physical IP Address Owns one physical IP address
IP Share or LAN Hub Must be equipped with DHCP and NAT functions
Network Setup for IP -CAM LAN Enable / Manually Web Server Port Number, need to be configured
Suitable Objects Users with one fixed physical IP, IP Share and several IP-CAMs installed
1. Set a real physical IP address (e.g., 211.78.174.01) for the public IP of IP Share. Then, set
another private IP address and activate the DHCP server function of IP Share.
2. In the IP configuration for each IP-CAM, please assign different virtual IP address internally and
respectively. In the Http Port setting, please specify different port parameters. (Please refer to
2.4-1 STATIC - IP Address Settings to fill in the IP address properly.)
3. For the port transformation in IP Share, please refer to IP and port settings of camera to
configure accordingly.
4. For viewing image in IP-CAM from remote computer: Open IE browser and type in the IP
address of IP Share and the port number of IP-CAM, e.g., http:// 211.78.174.01:1025.
DIAL UP
ADSL MODEM
LAN HUB
LAN HUB
3G MOBILE
PHONE
NOTEBOOK
PDA
DESKTOP PC
ADSL/
CABLE MODEM
IP SHAREING
Public IP:211.78.174.01
Private IP:192.168.0.254
IP CAM
192.168.0.2:1025
IP CAM
192.168.0.2:1026
IP CAM
192.168.0.2:1027
IP CAM
192.168.0.2:1028
IP CAM
192.168.0.2:1029
IP CAM
192.168.0.2:1030
PC FOR IP CAM SETUP
192.168.0.1
