PERMASTEEL PG-50404S0L User manual

TM
All STAINLESS STEEL GAS BBQ GRILL USER’S MANUAL
MODEL NUMBER: PG-50404S0L
CUSTOMER SERVICE: (888)-287-0735
FOR OUTDOOR USE ONLY

LIMITED WARRANTY
TM
Model Number: PG-50404S0L
PermaSteel All Stainless Steel BBQ Grill
We warrant to the original consumer purchaser (“Purchaser”) of the PermaSteel All Stainless Steel
BBQ Grill (“Product”) that each Product shall be free from defects in workmanship and materials
for a period of the years listed below from the date of original purchase. Our obligation under this
warranty shall be limited to repair or replacement of, or adequate compensation for, the Product, at
the option of us, during the warranty period. Our liability shall not extend beyond repair or
replacement, or the cost equivalent thereto.
This warranty excludes normal wear and tear of the Product and its parts or components, and any
damage arising from any of the following: negligent use or misuse of the Product, use contrary to
this User’s Manual, or alteration by any one other than us. The warranty period of the years listed
below shall not be extended or renewed by the repair or replacement of, or compensation for, the
Product.
If your Product is defective or otherwise requires service or parts, please first call PermaSteel
Customer Service toll-free at (888)-287-0735, between 8:00 a.m. and 5:00 p.m., PST. Please tell
us which model you purchased, the date of purchase, and the problem with your Product. We will
use our very best efforts to honor this warranty, and repair, replace or compensate you for your
Product through your original place of purchase. A copy of your original purchase receipt must
accompany your service request.
Component Warranty Period:
Burners: 1 Year
Stainless Steel Flame Tamer: 1 Year
Cast Iron Cooking Grids: 1 Year
Valves: 1 Year
Frame, Housing, Cart, Control Panel,
Igniter, and Related Parts: 1 Year
All Stainless Steel Parts: 1 Year
LIMITATION OF REMEDIES AND LIABILITY
We shall not be liable for any incidental or consequential damages for breach of any express or
implied warranty on its Product. Except to the extent prohibited by applicable law, any implied
warranty or merchantability or fitness for a particular purpose on this Product shall be limited to the
duration of the above warranty. Neither us nor anyone else who has been involved in the creation,
production, or delivery of the Product shall be liable for damages of any type, including but not
limited to any lost profits, lost savings, loss of anticipated benefits, or other incidental or
consequential damages which may arise out of the purchase, use, or inability to use the Product,
whether arising out of contract, negligence, strict tort, or under any warranty, or otherwise, even if
you have been advised of the possibility of such damage or any other claim by any other party.
Our liability for any breach of warranty shall be limited to repair or replacement of the defective part
or parts as described above. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you. The above
warranty gives you specific legal rights, and you may have other rights which vary from state to
state.

TABLE OF CONTENTS
TM
BEFORE YOU BEGIN
MESSAGE TO OUR USERS PAGE 1
SAFETY SYMBOLS PAGE 1
INSTALLATION & SAFETY PRECAUTIONS PAGE 2
PROPANE & GAS WARNING PAGE 2
ASSEMBLY
PARTS PAGE 3
STEP I PAGE 5
STEP II & STEP III PAGE 6
STEP IV & STEP V PAGE 7
STEP VI & STEP VII PAGE 8
STEP VIII & STEP VIIII PAGE 11
POST ASSEMBLY
GAS CONNECTION PAGE 12
LEAK TESTING PAGE 15
FINAL INSTALLATION CHECK LIST PAGE 16
GRILL LIGHTING INSTRUCTION PAGE 17
OPERATING INSTRUCTION PAGE 19
CARE & MAINTENANCE PAGE 21
GRILL STORAGE PAGE 22
TROUBLE SHOOTING PAGE 23

1
Thank you for your purchase of our All Stainless Steel BBQ Gas Grill. We sincerely
wish you will enjoy using our fine products.
Please read this User’s Manual in its entirety before using the grill.
Please contact our customer service at (888)-287-0735 if you have any questions.
Please read this User’s Manual carefully. Failure to follow the provided instruction
can result in seriously bodily injury and/or property damage.
Some parts of this grill may have sharp edges. Please wear suitable protective gloves.
IMPORTANT: This grill is intended for outdoor use only and is not intended to be
installed in or on recreational vehicles or boats.
NOTE TO INSTALLER: Leave this User’s Manual with the customer after delivery
and/or installation.
NOTE TO CONSUMER: Leave this User’s Manual in a convenient place for future
reference.
The symbols listed here are being used through out this User’s Manual. Please pay
special attention to them. The meaning of each of the symbols is listed here:
DANGER–this symbol indicates an imminently hazardous situation which
will result in death or serious bodily injury if not properly followed.
WARNING– this symbol indicates a warning of potential serious
bodily injury if the instructions are not strictly followed. Please be sure to read and
follow all these messages carefully.
CAUTION– this symbol indicates a potentially hazardous situation which
may result in minor or moderate bodily injury if the instructions are not properly
followed.
SAFETY SYMBOLS
MESSAGE TO OUR USERS

2
WARNING
READ THIS SECTION FIRST BEFORE INSTALLING THE GRILL
This grill is designed to use LP gas only. Please use the grill with the regulator
supplied by PermaSteel.
The installation of this appliance must conform with local codes or, in the absence
of local codes, with either the National Fuel Gas Code, ANSI Z223. 1, or
CAN/CGA B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane
Installation Code.
The LP-gas supply cylinder is to be constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S. Department of Transportation
(DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres and Tubes for the Transportation of Dangerous Goods.
If an external electrical source is utilized, the outdoor cooking gas appliance, when
installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70-1990,
or the Canadian Electrical Code, CSA C22.1. Keep the power cord of the motor
away from the hot surfaces of the grill while in use. Remove and store the motor in
a dry place when not in use.
This grill is safety certified for use in the United States and Canada only. Never
modify to use in other places. Modification may cause serious bodily injury or
property damage. PermaSteel is not responsible for any modifications, and all
warranties will be void.
WARNING
FOR YOUR SAFETY, PLEASE READ THIS SECTION FIRST
If you smell gas:
Shut off gas to the grill.
Extinguish any open flames immediately.
Open the grill lid.
If the odor persists, please call your gas supplier or your fire department
immediately.
Do not store or use gasoline or other flammable items in the vicinity of this grill.
Any LP cylinder that is not connected for use should not be stored in the vicinity
of this grill.
PROPANE & GAS WARNING
INSTALLATION/SAFETY PRECAUTIONS

3
GRILL PARTS LIST
REF# DESCRIPTION Q’TY REF# DESCRIPTION Q’TY
01 Double-layer Lid 1 34 Lighting Rod 1
02 Temp.Gauge 1 35 Door Hinges 2
03 Name Plate 1 36 Right Door 1
04 Lid Handle Seats 2 37 Casters without Brake 2
05 Lid Handle 1 38 Casters with Brake 2
06 Warming Rack 1 39 Bottom Panel 1
07 Cooking Grids with hole 2 40 Leg-LF 1
08 Flame Tamers 4 41 Side Panels 2
09 Rear Panel 1 42 Door Bracket 1
10 Gemel Plates 2 43 Leg-LB 1
11 Gemel Rotary Shafts 2 44 Door Magnets 2
12 Gemel Bases 4 45 Leg-RF 1
13 Gemel Brackets 2 46 Right Transom 1
14 Right Slide Plate 1 47 Hole Bushing 1
15 Rotisserie Brackets 2 48 Leg-RB 1
16 Firebox 1 49 Tank Holder Rubber Strap 1
17 Left Slide Plate 1 50 Tank Holder 1
18 Left Side Shelf 1 51 Tank Holder Brackets 2
19 Left Side Angle Iron 1 52 Back Panel 1
20 Grease Tray 1 53 Ignition Electrode, Side Burner 1
21 Left Tube main Burner 1 54 Bracket C, Side Burner 1
22 Tube Main Burners 3 55 Side Burner 1
23 Grease Tray Handle 1 56 Side Burner Base 1
24 Heat Shield 1 57 Side Burner Manifold 1
25 Valve Bracket 1 58 Side Burner Valve 1
26 Regulator 1 59 Right Side Angle Iron 1
27 Main Burner Manifold 1 60 Right Side Shelf 1
28 Main Burner Valves 4 61 Side Burner Lid Hinge 1
29 Control Panel 4 62 Side Burner Lid 1
30 Knob Seats 4 63 Side Burner Brass Ring 1
31 Control Knobs 4 64 Side Burner Cooking Grid 1
32 Left Door 1 65 Lid handle, Side Burner 1
33 Door Handles 2

4
GRILL PARTS DIAGRAM

5
PLEASE READ AND FOLLOW THE INSTRUCTIONS CAREFULLY
STEP BY STEP
Tools Required:
#2 Philips head screwdriver (not provided)
Hexagon/Allen wrench (provided).
The following hardware kit is provided in casters carton:
STEP I:
Remove side panel (marked “L”) , two legs (marked “LF” and “LB”) and two 3”
casters without brake from the carton. Assemble two legs to Left side panel with
four 5/32-32x1/2” screws. Screw one caster to each bottom end of leg.
ASSEMBLY INSTRUCTIONS
Item Description Specification Quantity
1 Truss head screw (With Split lock And
Gasket) 1/4-20x1-1/2” 16 pcs
2 Truss head screw (With Split lock And
Gasket) 1/4-20x1/2” 18 pcs
3 Truss head screw
(With Split lock And Gasket) 5/32-32x1/2” 14 pcs
4 HexagonWrench 1 pc

6
STEP II:

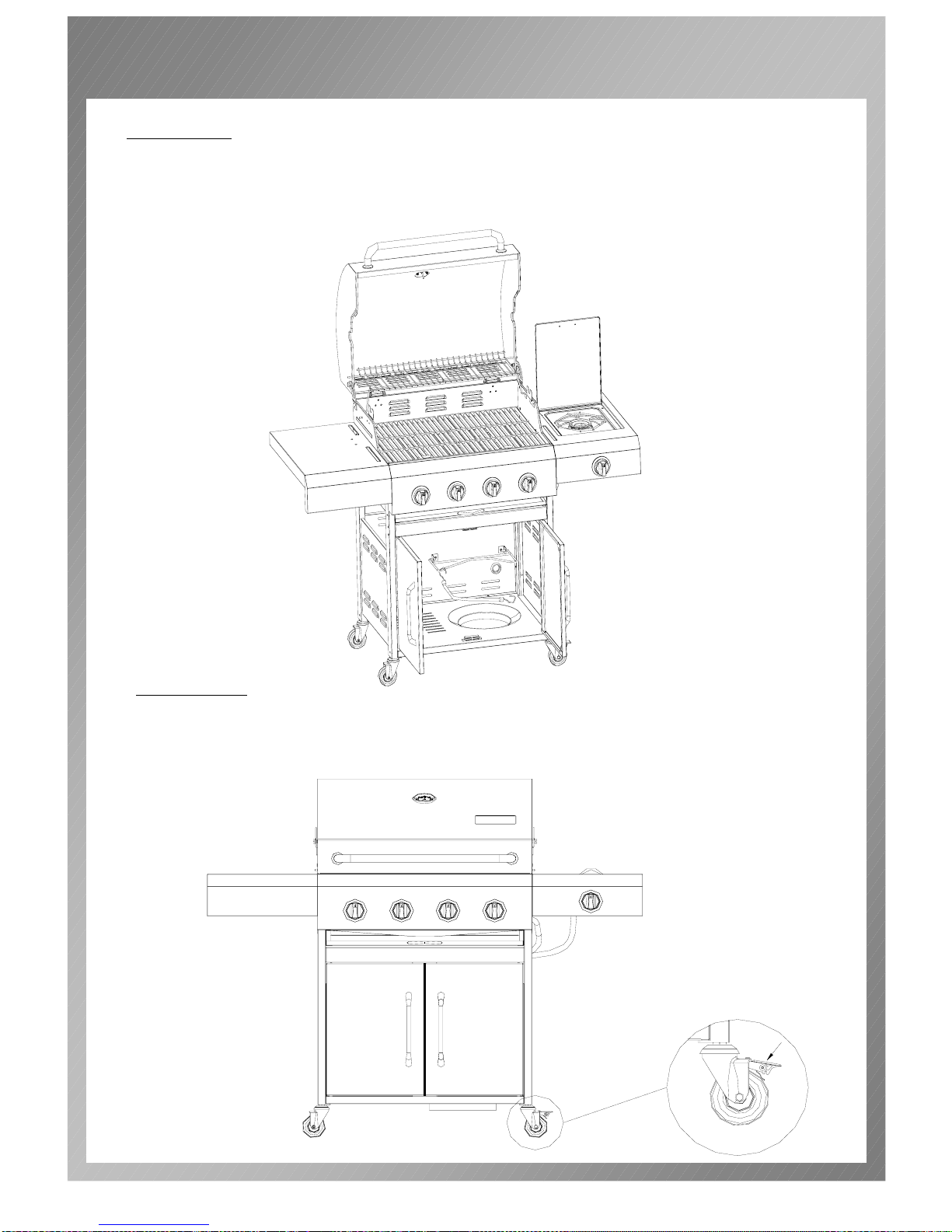

Remove side panel (marked “R”) , two legs (marked “RF” and “RB”), Right
Transom and two 3” casters with brake from the carton. Assemble two legs to
Right side panel with four 5/32-32x1/2” screws.Also attach right transom to right
side panel with four 5/32-32x1/2” screws.Then screw one caster to each bottom
end of leg.
ASSEMBLY INSTRUCTIONS
STEP III:
Assemble bottom panel and door bracket to side panel assemblies with eight
1/4-20x1-1/2” screws.
Note: Attach only two upper screws on the door bracket, set aside the other two
screws for STEP IV.
Assemble back panel to bottom panel and side panel assemblies with six 1/4-
20x1/2” screws.

7

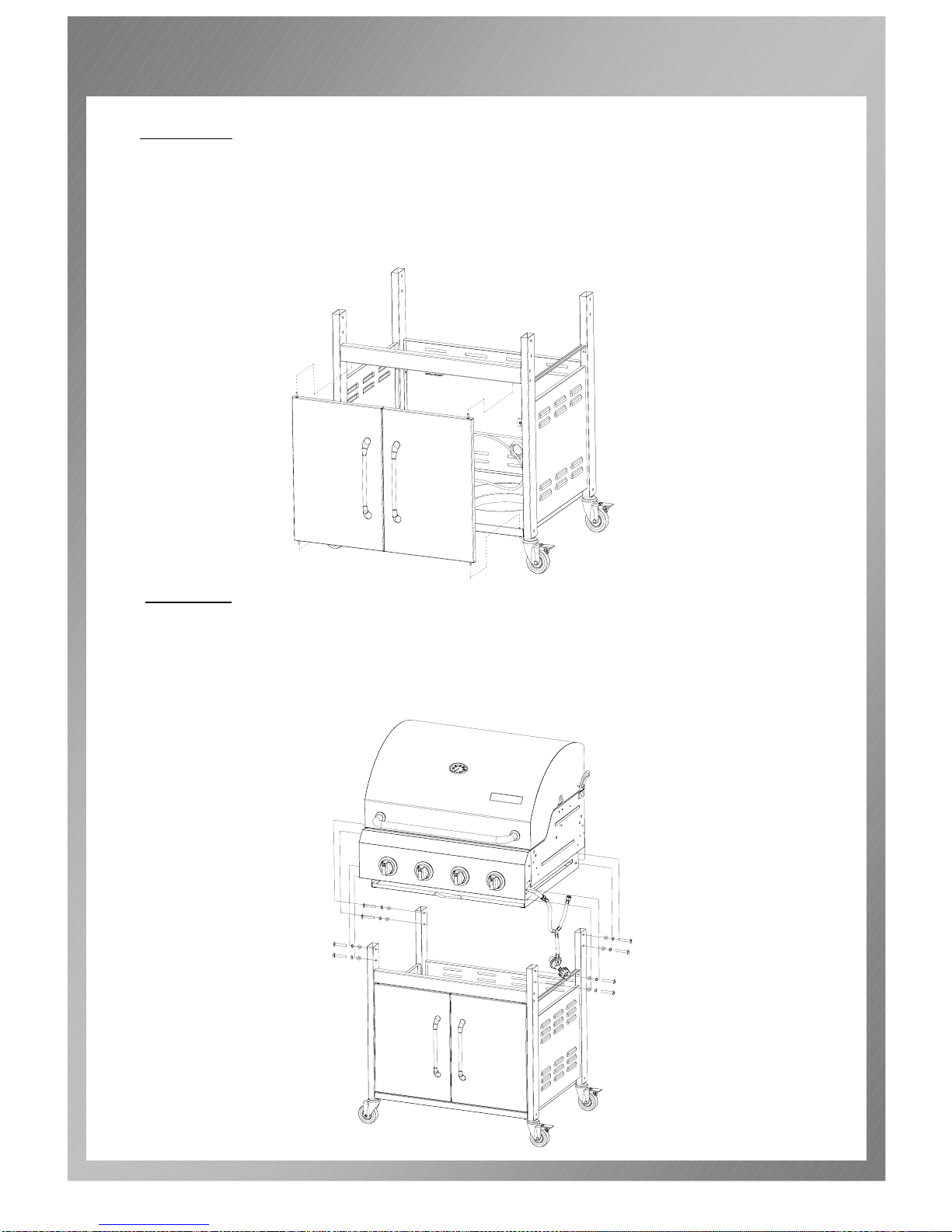

STEP IV:
Place door hinge rods through door spine holes, insert bottom end of door
hinges(flared end) into predrilled holes on bottom panel. Swivel the door
bracket out and align upper side of door hinge with holes on door bracket.
Insert into predrilled holes, swivel the door bracket back to the upright
position and secure with two screws left over from STEP III.
ASSEMBLY INSTRUCTIONS
STEP V:
Take out grill head from carton, and place it onto the cart. Make sure all
up end of four legs insert into grill head.
Use eight 1/4-20x1-1/2” screws to screw grill head to legs from outside of
firebox.

8
ASSEMBLY INSTRUCTIONS
STEP VI:
Use five 1/4-20x1/2” screw to attach left side shelf from inside of firebox.
Use one 1/4-20x1/2” screw to attach left side shelf from outside of firebox.
Underneath the left side shelf, use one 5/32-32x1/2” screw to fix left side
angle iron to control panel.
Repeat above steps to attach right side shelf and right side angle iron.
Install side burner handle on side burner lid.
Unwrap & then place the flame tamers over the burners.
Slide grease tray under firebox, place cooking grids onto firebox.
STEP VII:
1. Put regulator and hose assembly inside the cart, make sure to place under
right transom.
2. Remove packing materials.
3. Use the provided hexagon wrench to loosen (don’t remove) the setscrew
from control knob, and pull of the control knob.
4. Unscrew two M4*6 screws from front of side burner valve.
5. Unscrew the four screws on side burner bracket A,B & C which attach burner.
6. Open side burner lid, remove the cooking grid.
7. Remove side burner from side burner shelf through top of side burner shelf.
8. Beneath side burner shelf, place side burner valve steam comes through
large opening of side burner control panel.

9
ASSEMBLY INSTRUCTIONS
56
4
1
3
2
78
Bracket C
Bracket B

10
STEP VII(continued):
9. Secure gas valve to control panel using the M4*6 screws.
10. Insert side burner into shelf, make sure valve tip inserts into burner shaft.
Note: It will only insert about ¼”.
11. Replace and tighten screws of side burner brackets C & A .
12. Replace side burner cooking grid.
13. Attach igniter wire to valve and place red sleeve over connection.
14. Press control knob onto valve steam, and tighten knob setscrew.
Very Important: Regulator and hose must pass UNDER right transom before
connecting to LP tank.
ASSEMBLY INSTRUCTIONS
13
11
910
12
14
Bracket A

11
ASSEMBLY INSTRUCTIONS
STEP VIII:
Place tank into tank hole in bottom panel. Make sure tank valve is facing front of
grill.
Hook the end of tank strap to tank holder bracket.
STEP VIIII:
When the grill is in the desired location, lock the caster brakes.This will keep
the grill unit in place for safe operation.

12
ONLY USE THE REGULATOR AND HOSE ASSEMBLY PROVIDED
WITH THIS GRILL. REPLACEMENT PRESSURE REGULATORS AND
HOSE ASSEMBLIES MUST BE THOSE SUPPLIED BY THE
MANUFACTURER
This is a LP (Liquefied Petroleum Gas) configured grill. Do not attempt to use a natural
gas supply unless the grill has been reconfigured for natural gas use.
The installation of this appliance must conform with local codes or, in the absence of
local codes, with either the National Fuel Gas Code, ANSI Z223. 1, or CAN/CGA-
B149.2 Propane Installation Code.
LP TANK REQUIREMENTS – THE LP TANK USED WITH YOUR GRILL MUST
MEET THE FOLLOWING
1) Measurement: 12’’(30.5cm) (Diameter) X 18’’ (45.7cm) (Tall) .
2) Maximum Capacity: 20lbs(9Kg).
3) Constructed and marked in accordance with the specification for LP-gas
cylinders of the U.S. Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods. See LP tank collar for marking.
4) Is arranged for vapor withdrawal.
5) Includes a collar to protect the tank valve.
6) Has no dents or rust. A dented or rusty LP tank may be hazardous,and
should be checked by your supplier.
7) Provides a shut-ff valve terminating in an LP gas tank valve outlet specified, as
applicable for connection type QCC1 in the standard for compressed gas tank
valve outlet and inlet connection ANSI/CGA-V-1.
LP TANK VALVE USED MUST MEET THE FOLLOWING
1) Have type I outlet compatible with regulator provided.
2) Have safety relief valve.
3) UL listed Overfill Protection Device (OPD), This OPD safety feature is
identified by a unique triangular hand wheel. Only use tanks equipped with this
type of valve. (As the figure shown on the next page)
FOR YOUR SAFETY
Ensure that the black plastic grommets of the regulator provided are in place and
that the hose does not come into contact with the heat shield or the grill head.
GAS CONNECTION

13
CONNECT THE REGULATOR TO THE LP TANK
VERY IMPORTANT:
- THE REGULATOR SHALL NOT BE IN A LOCATION THAT WILL ATTAIN A
TEMPERATURE ABOVE 140℉（60℃）.
- THE REGULATOR SHALL INCORPORATE A PRESSURE RELIEF VALVE
OR OVERPRESSURE DEVICE.
- THE INLET OF THE PRESSURE REGULATOR SHALL BE FITTED TO
CONNECT THE TYPE I CONNECTION OF THE TANK VALVE PER
ANSIZ21.81.
1) Make sure tank valve is in its full off position (turn clockwise to stop).
2) Check tank valve to assure it has proper external male threads (type I
connection per ANSIZ21.81).
3) Make sure all burner knobs are in their off position.
4) Remove the protective cap from LP tank valve. Always use cap and strap
supplied with valve.
5) Inspect valve connection port and regulator assembly. Look for any damage or
debris. Remove any debris. Inspect hose for damage. Never attempt to use
damaged or plugged equipment. Contact your local LP gas dealer for repair.
6) When connecting regulator assembly to the valve, hand tighten nut clockwise
to a positive stop. Do not use a wrench to tighten. Use of a wrench may
damage quick coupling nut and result in a hazardous condition. (As figure
shown below)
7) Open tank valve fully (counterclockwise). Use a soapy water solution to check
all connections for leaks before attempting to light grill. If a leak is found, turn
tank valve off and do not use grill until a local LP gas dealer can make repairs.
OPD HAND WHEEL
OPEN
g
CLOSE
GAS CONNECTION

14
WARNING
Never insert any foreign objects into the valve outlet. It may damage the valve
and cause leak, leaking gas may result in fire, explosion, heavy body injury, or
even death.
Do not connect this grill to the self-contained LP gas system of a motor home or
camper trailer.
Do not use this grill until leak tested.
STOP and call the fire department if any leaks are detected.
If you cannot stop a gas leak, close the LP tank valve IMMEDIATELY, call LP gas
supplier or the fire department.
DANGER
NEVER store a spare LP tank under or near grill or in an enclosed area.
NEVER fill the tank beyond 80% full. An overfilled spare LP tank is dangerous
because surplus gas may leak from safety relief valve. The safety relief valve on
a LP tank could activate to release gas and cause a fire.
The spare LP tank must have safety caps installed on the LP tank outlet.
If any gas leaks are found on the spare LP tank, immediately step away from the
grill, and call the fire department.
VERY IMPORTANT:
DISCONNECT THE TANK WHEN THIS GRILL IS NOT IN USE.
To disconnect LP gas tank:
1) Turn all the knobs off.
2) Turn the tank valve off fully (turn clockwise to stop).
3) Detach the regulator assembly from tank valve by turning the quick coupling
nut counterclockwise.
4) Install the protective cap back onto the LP tank valve.
GAS CONNECTION

15
GENERAL
Although all gas connections on the grill are leak tested at the factory prior to
shipment, a complete gas tightness check must be performed at the installation
site due to possible mishandling in shipment, or excessive pressure unknowingly
being applied to the unit. Periodically check the whole system for leaks, or
immediately check if the smell of gas is detected.
BEFORE TESTING
1) Make sure that all packing material is removed from the grill including the burner
tie-down straps.
2) Do not smoke while leak testing.
3) Never leak test with an open flame.
4) Make a soap solution with one part liquid detergent and another part water.
Prepare a spray bottle, brush, or rag to apply the solution to the connections. For
the initial leak test, make sure the LP cylinder is full.
5) Grill must be leak tested outdoors in a well-ventilated area, away from ignition
sources such as gas fired or electrical appliances, and flammable materials.
6) Keep grill away from open flames and/or sparks while testing.
TO TEST
1) Make sure all control knobs are in the “OFF” position.
2) Make sure the regulator is connected to the LP tank tightly.
3) Completely open LP tank valve by turning counter clockwise. If you hear a “POP”
sound, turn gas off IMMEDIATELY, as it indicates a heavy leak at the connection.
Call your gas dealer or fire department.
4) Check every connection from the LP tank up to and including the connection to
the manifold pipe assembly (the pipe that goes to the burner) by brushing or
spraying the soapy solution on the connections.
5) If soap bubbles appear, there is a leak. Turn off LP tank valve IMMEDIATELY
and retighten connections, Open LP tank valve again, and recheck.
6) If leaks cannot be stopped, DO NOT ATTEMPT TO REPAIR. Call our service
center at (888)-287-0735 for help.
7) Always close the LP tank valve after leak testing by turning clockwise.
Only those parts recommended by the manufacturer should be used on the grill.
Substitution will void the warranty. Do not use the grill until all connections have
been checked and do not leak.
LEAK TESTING

16
SAFETY TIPS:
1) ALWAYS CHECK FOR LEAKS AFTER EVERY LP TANK CHANGE.
2) ALWAYS CHECK FOR LEAKS BEFORE EACH USE.
3) USE LONG BBQ TOOL TO AVOID BURNS.
4) CHECK ALL GAS SUPPLY FITTINGS FOR LEAKS BEFORE EACH USE. IT
IS HANDY TO KEEP A SPRAY BOTTLE OF SOAPY WATER NEAR THE
SHUT-OFF VALVE OF THE GAS SUPPLY LINE. SPRAY ALL THE FITTINGS.
BUBBLES INDICATE LEAKS.
5) DISCONNECTED LP CYLINDERS MUST HAVE THREADED VALVE PLUGS
TIGHTLY INSTALLED, AND MUST NOT BE STORED IN A BUILDING,
GARAGE, OR ANY OTHER ENCLOSED AREAS.
6) TURN OFF ALL CONTROL KNOBS AND LP TANK VALVE WHEN THE
GRILL IS NOT IN USE.
7) IF THE APPLIANCE IS STORED INDOORS, THE LP TANK MUST BE
DISCONNECTED AND REMOVED FROM THE GRILL.
8) LP TANKS MUST BE STORED OUTDOORS IN A WELL-VENTILATED AREA.
DISCONNECTED LP TANKS IN STORAGE OR BEING TRANSPORTED
MUST HAVE A SAFETY CAP.
9) NEVER LEAVE A LP TANK IN A RECREATIONAL VEHICLE OR BOAT
WHICH MAY BECOME OVERHEATED BY THE SUN.
10) DO NOT STORE LP TANK IN OR NEAR AN AREA WHERE CHILDREN
PLAY.
11) FOR ANY OTHER PROBLEMS, SEE “TROUBLESHOOTING” OR CONTACT
OUR SERVICE CENTER AT (888)-287-0735.
At least 36” clearance maintained from combustible constructions to the sides
and back of this grill.
There is no combustible construction material over the grill.
All internal packaging removed.
Burners are sitting properly on orifices.
Knobs turn freely.
The regulator & hose connected to grill are provided by the manufacturer. (Pre-
set for 11.0” water column).
Unit tested and free of leaks.
User informed of gas supply shut off valve location.
FINAL INSTALLATION CHECKLIST
LEAK TESTING

17
VERY IMPORTANT: ALWAYS INSPECT THE HOSE PRIOR TO EACH USE.
BEFORE LIGHTING:
Inspect the gas supply hose before turning the gas “ON”. If there is evidence
of cuts, wear, or abrasion, it must be replaced before use. The replacement hose
assembly must be that specified by the manufacturer.
VERY IMPORTANT: TO LIGHT MAIN AND SIDE BURNERS OF THE GRILL:
1) Read instructions before lighting.
2) Turn all knobs to “OFF” then open the LP tank valve. Always keep your face
and body as far from the grill as possible when lighting.
3) Open lid during lighting.
4) Push and turn any control knob slowly to “HI” position. The built-in igniter will
click and spark simultaneously to light the pilot and burner in sequence.Turn
the control knob to “OFF” IMMEDIATELY if the burner does not light within 5
seconds. Wait 5 minutes for gas to dispel, then repeat the lighting procedure.
5) Follow match lighting instructions if burner can’t be lit after repeating 3-4 times.
TO LIGHT THE MAIN AND SIDE BURNERS BY MATCH: (AS THE
FOLLOWING FIGURE SHOWS)
If the burner will not light after several attempts then the burner can be match lit.
Tools: Lighting rod (hanging behind the right door)
Usage:
1) Read instructions before lighting.
2) Open the lid during lighting.
3) Simply place a lighted match between the coils on the end of the lighting
rod and hold next to the burner to ignite.
4) Push and turn the knob to “HI” position, make sure the burner lights
and stays lighted.
5) Repeat 3.4 to light other burners.
6) Keep a spray bottle of soapy water near the gas supply valve and
check the connections before each use. Do not light the grill if odor
of gas is present, call out service center at (888)-287-0735.
GRILL LIGHTING INSTRUCTION
