Peter electronic VersiStart p III Series Training manual

electronic
Quality is our Drive.
Assembly and Commissioning Instructions
Soft Starters
VS pIII

User Manual
VersiStart p III
Quality is our Drive.
Qualität ist unser Antrieb.
Contents
1About This Manual..................................................................................................4
1.1 Disclaimer.................................................................................................................4
2Caution Statements ................................................................................................5
2.1 Electrical shock risk...................................................................................................5
2.2 Unexpected Operation..............................................................................................6
2.3 Avertissements à l'attention des clients canadiens...................................................7
3Declaration of conformity.......................................................................................9
4System Design ......................................................................................................10
4.1 Feature List.............................................................................................................10
4.2 Model Code.............................................................................................................11
4.3 Model Selection.......................................................................................................11
4.4 Current Ratings.......................................................................................................11

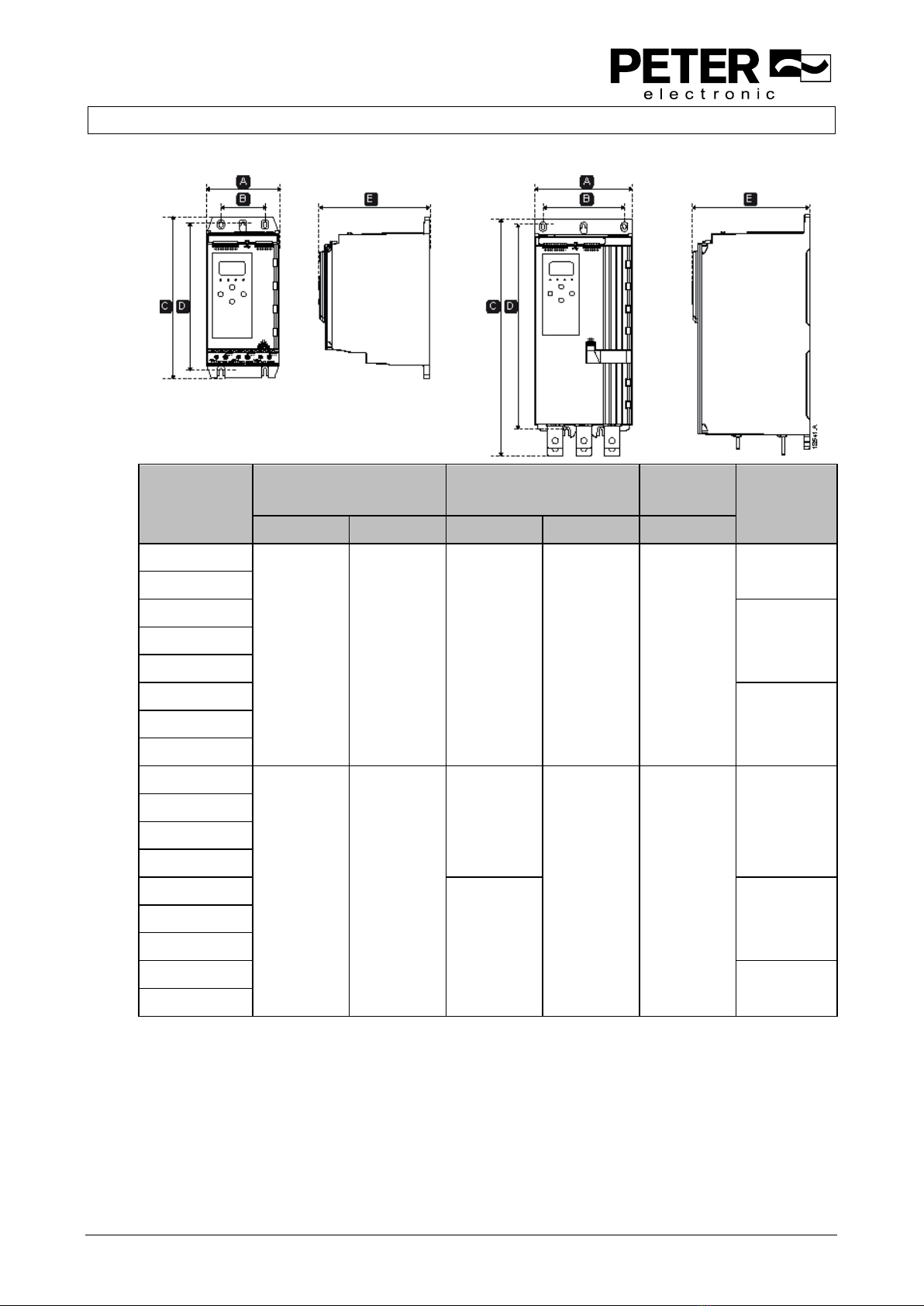

4.5 Dimensions and Weights ........................................................................................14
4.6 Physical Installation.................................................................................................15
4.7 Accessories.............................................................................................................15
4.8 Main Contactor........................................................................................................16
4.9 Circuit Breaker ........................................................................................................16
4.10 Power Factor Correction.........................................................................................16
4.11 Short Circuit Protection Devices (SCPD)................................................................17
4.12 IEC Coordination with Short Circuit Protection Devices..........................................18
4.13 UL Coordination with Short Circuit Protection Devices ...........................................19
4.14 Fuse Selection for Type 2 Coordination..................................................................22
4.15 Specifications..........................................................................................................23
4.16 Disposal Instructions...............................................................................................24
5Installation.............................................................................................................25
5.1 Command Source...................................................................................................25
5.2 Basic Setup.............................................................................................................25
5.3 Inputs......................................................................................................................26
5.4 Outputs ...................................................................................................................28
5.5 Control Voltage .......................................................................................................29
5.6 Power Terminations................................................................................................30
5.7 Typical Installation...................................................................................................32
5.8 Quick Setup ............................................................................................................33
6Setup Tools............................................................................................................34
6.1 Set Date and Time..................................................................................................34
6.2 Command Source...................................................................................................34
6.3 Commissioning........................................................................................................34
6.4 Run simulation ........................................................................................................35

VersiStart p III
2
6.5 Load/Save Settings.................................................................................................36
6.6 USB Save & Load...................................................................................................36
6.7 Auto-Start/Stop........................................................................................................37
6.8 Network Address.....................................................................................................38
6.9 Digital I/O State.......................................................................................................39
6.10 Analog I/O State......................................................................................................39
6.11 Serial Number & Rating ..........................................................................................39
6.12 Software Versions...................................................................................................40
6.13 Thermistor Reset.....................................................................................................40
6.14 Reset Thermal Model..............................................................................................40
7Logs .......................................................................................................................41
7.1 Event Log................................................................................................................41
7.2 Counters .................................................................................................................41
8Keypad and Feedback ..........................................................................................42
8.1 The Keypad.............................................................................................................42
8.2 Remote Keypad ......................................................................................................43
8.3 Starter status LEDs.................................................................................................43
8.4 Displays ..................................................................................................................44
9Operation...............................................................................................................46
9.1 Start, Stop and Reset Commands...........................................................................46
9.2 Command Override.................................................................................................46
9.3 Scheduled Start/Stop..............................................................................................46
9.4 PowerThrough.........................................................................................................46
9.5 Emergency Mode....................................................................................................47
9.6 Auxiliary Trip ...........................................................................................................48
9.7 Typical Control Methods .........................................................................................48
9.8 Soft Start Methods ..................................................................................................49
9.9 Stop Methods..........................................................................................................52
9.10 Jog Operation..........................................................................................................56
9.11 Inside Delta Operation ............................................................................................57
9.12 Secondary Motor Set ..............................................................................................57
10 Programmable Parameters ..................................................................................58
10.1 Programming Menu.................................................................................................58
10.2 Altering Parameter Values......................................................................................58
10.3 Adjustment Lock......................................................................................................58
10.4 Parameter List.........................................................................................................58
10.5 1 Motor Details........................................................................................................64
10.6 2 Motor Start/Stop...................................................................................................65
10.7 3 Motor Start/Stop-2................................................................................................67
10.8 4 Auto-Start/Stop.....................................................................................................70
10.9 5 Protection Levels..................................................................................................72
10.10 6 Protection Action..................................................................................................74

3
VersiStart p III
10.11 7 Inputs...................................................................................................................77
10.12 8 Relay Outputs ......................................................................................................79
10.13 9 Analog Output......................................................................................................81
10.14 10 Display...............................................................................................................82
10.15 11 Communications Card........................................................................................84
10.16 12 Pump Input Configuration ..................................................................................87
10.17 13 Flow Protection ..................................................................................................89
10.18 14 Pressure Protection............................................................................................90
10.19 15 Pressure Control................................................................................................91
10.20 16 Depth Protection ................................................................................................92
10.21 17 Thermal Protection.............................................................................................92
10.22 20 Advanced...........................................................................................................93
11 Application Examples...........................................................................................94
11.1 Smart Card - Pump Control and Protection.............................................................94
11.2 Smart Card - Level Controlled Pump Activation......................................................96
12 Troubleshooting....................................................................................................97
12.1 Protection Responses.............................................................................................97
12.2 Trip Messages.........................................................................................................97
12.3 General Faults.......................................................................................................104

VersiStart p III
4
1 About This Manual
WARNING
Indicates a hazard that may cause personal injury or death.
CAUTION
Indicates a hazard that may damage the equipment or installation.
NOTE
Provides helpful information.
1.1 Disclaimer
The examples and diagrams in this manual are included solely for illustrative
purposes.
The information contained in this manual is subject to change at any time and
without prior notice. In no event will responsibility or liability be accepted for direct,
indirect or consequential damages resulting from the use or application of this
equipment.

5
VersiStart p III
2 Caution Statements
Caution Statements cannot cover every potential cause of equipment damage but
can highlight common causes of damage. It is the installer's responsibility to read
and understand all instructions in this manual prior to installing, operating or
maintaining the equipment, to follow good electrical practice including applying
appropriate personal protective equipment and to seek advice before operating this
equipment in a manner other than as described in this manual.
NOTE
The VersiStart p III
soft starter is not user serviceable. The unit should only
be serviced by authorised service personnel. Unauthorised tampering with
the unit will void the product warranty.
2.1 Electrical shock risk
WARNING – ELECTRICAL SHOCK RISK
The voltages present in the following locations can cause severe electric
shock and may be lethal:
•AC supply cables and connections
•Output cables and connections
•Many internal parts of the starter
The AC supply must be disconnected from the starter using an approved
isolation device before any cover is removed from the starter or before any
servicing work is performed.
SHORT CIRCUIT
The VersiStart p III is not short circuit proof. After severe overload or short
circuit, the operation of the VersiStart p III should be fully tested by an
authorised service agent.
GROUNDING AND BRANCH CIRCUIT PROTECTION
It is the responsibility of the user or person installing the VersiStart p III to
provide proper grounding and branch circuit protection according to local
electrical safety codes.
FOR YOUR SAFETY
§The STOP function of the soft starter does not isolate dangerous
voltages from the output of the starter. The soft starter must be
disconnected by an approved electrical isolation device before accessing
electrical connections.
§Soft starter protection features apply to motor protection only. It is the
user’s responsibility to ensure safety of personnel operating machinery.
§The soft starter is a component designed for integration within an
electrical system; it is therefore the responsibility of the system
designer/user to ensure the system is safe and designed to comply with
relevant local safety standards.

VersiStart p III
6
2.2 Unexpected Operation
WARNING – ACCIDENTAL STARTS
In some installations, accidental starts may pose an increased risk to safety
of personnel or damage to the machines being driven. In such cases, it is
recommended that the power supply to the soft starter is fitted with an
isolating switch and a circuit-breaking device (eg power contactor)
controllable through an external safety system (eg emergency stop, fault
detector).
WARNING – STARTER MAY START OR STOP UNEXPECTEDLY
The VersiStart p III
will respond to control commands from various sources,
and could start or stop unexpectedly. Always disconnect the soft starter
from mains voltage before accessing the starter or load.
WARNING – DISCONNECT MAINS BEFORE ACCESSING STARTER
OR LOAD
The soft starter has built-in protections which can trip the starter in the
event of faults and thus stop the motor. Voltage fluctuations, power cuts
and motor jams may also cause the motor to trip.
The motor could restart after the causes of shutdown are rectified, which
may be dangerous for personnel. Always disconnect the soft starter from
mains voltage before accessing the starter or load.
CAUTION – MECHANICAL DAMAGE FROM UNEXPECTED RESTART
The motor could restart after the causes of shutdown are rectified, which
may be dangerous for certain machines or installations. In such cases, it is
essential that appropriate arrangements are made against restarting after
unscheduled stops of the motor.

7
VersiStart p III
2.3 Avertissements à l'attention des clients canadiens
AVERTISSEMENT
L'icône AVERTISSEMENT ci-contre signale les informations concernant
des risques pouvant entraîner des blessures graves, voire mortelles. Pour
votre sécurité, veuillez consulter les avertissements sur cette page ou
demander une copie du présent manuel en français auprès de votre
distributeur local.
AVERTISSEMENT – RISQUE DE CHOC ÉLECTRIQUE
Les zones suivantes sont soumises à des tensions pouvant provoquer des
risques de chocs électriques graves, voire mortels :
•Raccordement et câbles d'alimentation AC
•Câbles et raccordements de sortie
•De nombreuses pièces internes du démarreur
L'alimentation AC doit être déconnectée du démarreur au moyen d'un
dispositif d'isolation agréé avant de retirer des capots ou avant de procéder
à des travaux d'entretien.
PAR SÉCURITÉ
§La fonction STOP du démarreur progressif n'isole pas des tensions
dangereuses de la sortie du démarreur. Le démarreur progressif doit
être déconnecté par un dispositif d'isolement électrique approprié avant
d'accéder aux connexions électriques.
§Les fonctions de protection du démarreur progressif ne concernent que
la protection du moteur. Il relève de la responsabilité de l'utilisateur
d'assurer la sécurité des personnes travaillant sur les machines.
§Le démarreur progressif est un appareil conçu pour s'intégrer dans un
système électrique ; il relève donc de la responsabilité du concepteur ou
de l'utilisateur de veiller à ce que ce système soit sûr et conçu selon les
normes de sécurité locales en vigueur.
AVERTISSEMENT – DÉMARRAGES ACCIDENTELS
Dans certaines installations, des démarrages accidentels peuvent
provoquer un risque supplémentaire pour la sécurité des personnes ou
endommager les machines contrôlées. Dans de tels cas, il est
recommandé de doter l'alimentation du démarreur progressif d'un
interrupteur d'isolement et d'un coupe-circuit (par exemple, un disjoncteur)
contrôlable à partir d'un système de sécurité externe (par exemple, un arrêt
d'urgence, un détecteur de défaut).
AVERTISSEMENT – LE DÉMARREUR PEUT DÉMARRER OU
S'ARRÊTER À TOUT MOMENT
Le VersiStart p III répond aux commandes de contrôle de différentes
origines et peut par conséquent démarrer ou s'arrêter à tout moment.
Toujours déconnecter le démarreur de la tension secteur avant d'accéder
au démarreur ou à la charge.

VersiStart p III
8
AVERTISSEMENT – DÉCONNECTER L'ALIMENTATION PRINCIPALE
AVANT D'ACCÉDER AU DÉMARREUR OU À LA CHARGE
Le démarreur progressif comporte des protections intégrées qui peuvent
déclencher des mises en sécurité dans l'éventualité de défauts et ainsi
arrêter le moteur. Des fluctuations de tension, des coupures d'alimentation
et des blocages du moteur peuvent produire des mises en sécurité de
celui-ci.
Le moteur pourrait redémarrer une fois que les causes de l'arrêt ont été
résolues, ce qui pourrait mettre en danger le personnel. Toujours
déconnecter le démarreur de la tension secteur avant d'accéder au
démarreur ou à la charge.
AVERTISSEMENT
Ne pas appliquer la tension du secteur au démarreur tant que tout le
câblage n'est pas terminé.
AVERTISSEMENT
Toujours appliquer la tension de commande avant (ou en même temps
que) la tension secteur.
AVERTISSEMENT
Lors du raccordement du VersiStart p III en connexion 6 fils, toujours
installer un contacteur principal ou un disjoncteur magnéto-thermique à
bobine de déclenchement.

9
VersiStart p III
3 Declaration of conformity
In industrial linguistic usage the drive controllers of the type series VersiStart p III
are called "devices", however, in the sense of the "law on the safety of equipment",
the "EMC-law" or the "EC-machinery directive" they are not devices or machines
ready for use or connection but they are components. It is only possible to define
their final function, when these components are integrated into the design and
construction of the user.
To be able to use the devices to their intended purpose, it requires power
supply networks according to DIN EN 50160 (IEC 60038).
The user takes the responsibility that the user's design and construction comply
with the applicable legal provisions.
The commissioning is strictly forbidden as long as the conformity of the final system
with the guidelines 2006/42/EC (Machinery directive) and 2014/35/EU (Low voltage
directive) is not proved.
The devices of the VersiStart p III series are electrical equipment that is used in
industrial electrical power installations. They are designed for application in
machines, in order to reduce the starting torque and starting current peaks as well
as the tripping torque of drives with three-phase induction motors. With due regard
to the installation guidelines they meet the following requirements:
Emitted interference: Continuous duty EN 61000-6-3:2005
Acceleration, decel. EN 60947-4-2
Immunity to interference: EN 61000-6-2:2005
VersiStart p III has been designed to meet the standards specified in EN 60947-4-2:
Low voltage switchgear – Part 4-2 Contactors and motor-starters – AC
Semiconductor motor controllers and starters, for low voltage safety, operation and
EMC.
This product has been designed as Class B equipment. Use of this product in
domestic environments may cause radio interference, in which case the user may
be required to employ additional mitigation methods.
Dr. Thomas Stiller
Managing director

VersiStart p III
10
4 System Design
4.1 Feature List
Streamlined setup process
•Configuration profiles for common
applications
•Built-in metering and inputs/outputs
Easy to understand interface
•Multi-language menus and displays
•Descriptive option names and feedback
messages
•Real-time performance graphs
Supports energy efficiency
•IE3 compatible
•99% energy efficient when running
•Internal bypass
•Soft start technology avoids harmonic
distortion
Extensive range of models
•24 A to 580 A (nominal)
•200 VAC to 525 VAC
•380 VAC to 690 VAC
•Inside delta installation
Versatile starting and stopping options
•Adaptive Control
•Constant Current
•Current Ramp
•Timed voltage ramp soft stop
•Coast To Stop
•DC Brake
•
Soft Brake
Customisable protection
•Motor overload
•Excess Start Time
•Undercurrent
•Overcurrent
•Current imbalance
•Input Trip
•Motor thermistor
Extensive input and output options
•Remote control inputs
(2 x fixed, 2 x programmable)
•Relay outputs
(1 x fixed, 2 x programmable)
•Analog output
Optional features for advanced
applications
•Smart cards
•Communication options:
DeviceNet, Ethernet/IP, Modbus
RTU, Modbus TCP, Profibus,
Profinet

11
VersiStart p III
4.2 Model Code
VS p III
–
–
Control voltage
C1 = 110~120 VAC or 220~240 VAC
C2 = 24 VAC/VDC
Bypass
B = internally bypassed
Nominal current rating
Mains voltage
525 = 200 ~ 525 VAC
690 = 380 ~ 690 VAC
4.3 Model Selection
Starter sizing
The soft starter must be the correct size for the motor and the application.
Select a soft starter that has a current rating at least equal to the motor's full load
current (nameplate) rating, at the start duty.
The soft starter's current rating determines the maximum motor size it can be used
with. The soft starter's rating depends on the number of starts per hour, the length
and current level of the start, and the amount of time the soft starter will be off (not
passing current) between starts.
The soft starter's current rating is only valid when used in the conditions specified in
the AC53b code - the soft starter may have a higher or lower current rating in
different operating conditions.
4.4 Current Ratings
For operating conditions not covered by these ratings charts, download Peter
Electronic's free WinStart selection application, or contact your local supplier.
•AC53b format
80 A
:
AC-53b 3.5
- 15
:
345
Off time (seconds)
Start time (seconds)
Start current (multiple of motor full load
current)
Starter current rating (amperes)
All ratings are calculated at altitude of 1000 metres and ambient temperature of
40 ºC.

VersiStart p III
12
•In-line installation
3.0-10:350
3.5-15:345
4.0-10:350
4.0-20:340
5.0-5:355
VS p III 24
24
20
19
16
17
VS p III 42
42
34
34
27
32
VS p III 52
52
42
39
35
34
3.0-10:590
3.5-15:585
4.0-10:590
4.0-20:580
5.0-5:595
VS p III 64
64
63
60
51
54
VS p III 69 69 69 69 62 65
VS p III 105
105
86
84
69
77
VS p III 115
115
108
105
86
95
VS p III 135
135
129
126
103
115
VS p III 184
184
144
139
116
127
VS p III 200
200
171
165
138
150
VS p III 229
229
194
187
157
170
VS p III 250
250
244
230
200
202
VS p III 352
352
287
277
234
258
VS p III 397
397
323
311
263
289
VS p III 410
410
410
410
380
400
VS p III 550
550
527
506
427
464
VS p III 580
580
579
555
470
508

13
VersiStart p III
•Inside delta installation
3.0-10:350
3.5-15:345
4.0-10:350
4.0-20:340
5.0-5:355
VS p III 24
36
30
28
24
25
VS p III 42
63
51
51
40
48
VS p III 52
78
63
58
52
51
3.0-10:590
3.5-15:585
4.0-10:590
4.0-20:580
5.0-5:595
VS p III 64
96
94
90
76
81
VS p III 69 103 103 103 93 97
VS p III 105
157
129
126
103
115
VS p III 115
172
162
157
129
142
VS p III 135
202
193
189
154
172
VS p III 184
276
216
208
174
190
VS p III 200
300
256
247
207
225
VS p III 229
343
291
280
235
255
VS p III 250
375
366
345
300
303
VS p III 352
528
430
415
351
387
VS p III 397
595
484
466
394
433
VS p III 410
615
615
615
570
600
VS p III 550
825
790
759
640
696
VS p III 580
870
868
832
705
762

VersiStart p III
14
4.5 Dimensions and Weights
Width
mm (inch)
Height
mm (inch)
Depth
mm (inch)
Weight
kg (lb)
A
B
C
D
E
VS p III 24
4.8
VS p III 42 (10.7)
VS p III 52 4.9
VS p III 64 152 92 336 307 231 (10.9)
VS p III 69
(6.0)
(3.6)
(13.2)
(12.1)
(9.1)
VS p III 105
5.5
VS p III 115
(12.1)
VS p III 135
VS p III 184
VS p III 200
495
12.7
VS p III 229
216
180
(19.5)
450
243
(28.0)
VS p III 250
(8.5)
(7.1)
(17.7)
(9.6)
VS p III 352
15.5
VS p III 397
523
(34.2)
VS p III 410
(20.6)
VS p III 550 19.0
VS p III 580 (41.9)

15
VersiStart p III
4.6 Physical Installation
D
D
18542.A
C
C
B
A
2/T1 4/T2 6/ T3
B4 B5 1011 12 13 14 15 21 22 33 34 41 42 44 53 54
A3 A1A2
2/T1 4/T2 6/ T3
B4 B5 1011 12 13 14 15 21 22 33 34 41 42 44 53 54
A3A1 A2
2/T1 4/ T2 6/ T3
B4 B5 10
11 12 13 14 15 21 22 33 34 41 42 44 53 54
A3 A1A2
2/T1 4/ T2 6/ T3
B4 B5 101
1 12 13 14 15 21 22 33 34 41 42 44 53 54
A3 A1A2
2/T1 4/ T2 6/ T3
B4 B5 1011 12 13 14 15 21 22 33 34 41 42 44 53 54
A3 A1 A2
2/T1 4/ T2 6/T3
Between starters
Solid surfaces
A
B
C
D
> 100 mm (3.9 inch)
> 10 mm (0.4 inch)
> 100 mm (3.9 inch)
> 10 mm (0.4 inch)
4.7 Accessories
Expansion Cards
The VersiStart p III offers expansion cards for users requiring additional inputs and
outputs or advanced functionality. Each VersiStart p III can support a maximum of
one expansion card.
•Smart Card
The smart card has been designed to support integration with pumping applications
and provides the following additional inputs and outputs:
•3 x digital inputs
•3 x 4-20 mA transducer inputs
•1 x RTD input
•1 x USB-B port
•Remote keypad connector
•Communication Expansion Cards
VersiStart p III soft starters support network communication via easy-to-install
communications expansion cards. Each communications card includes a remote
keypad connector port.
Available protocols:
DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, Profibus, Profinet.
Remote Keypad
VersiStart P starters can be used with a remote keypad, mounted up to 3 metres
away from the starter. Each expansion card includes a keypad connection port, or a
dedicated keypad connector card is available.

VersiStart p III
16
Finger Guard Kit
Finger guards may be specified for personnel safety. Finger guards fit over the soft
starter terminals to prevent accidental contact with live terminals. Finger guards
provide IP20 protection when used with cable of diameter 22 mm or greater.
Finger guards are compatible with models VS p III 184 ~ VS p III 580.
WinMaster Starter Management Software
WinMaster PC software can provide real-time or offline management of all Peter
Electronic soft starters.
•For real-time management in a network of up to 254 starters, WinMaster
must connect to the VersiStart p III via a Modbus TCP or Modbus RTU card.
WinMaster can monitor, control and program the starter across the network.
•WinMaster can be used to program the VersiStart p III via the USB port on
the pumping smart card.
•For offline management, a configuration file generated in WinMaster can be
loaded into the starter via the USB port.
4.8 Main Contactor
A main contactor is recommended to protect the soft starter from voltage
disturbances on the network, while stopped. Select a contactor with an AC3 rating
greater than or equal to the full load current rating of the connected motor.
Use the main contactor output (33, 34) to control the contactor.
WARNING
When connecting the VersiStart p III in inside delta configuration, always
install a main contactor or shunt trip circuit breaker.
4.9 Circuit Breaker
A shunt trip circuit breaker may be used instead of a main contactor to isolate the
motor circuit in the event of a soft starter trip. The shunt trip mechanism must be
powered from the supply side of the circuit breaker or from a separate control
supply.
4.10 Power Factor Correction
If power factor correction is used, a dedicated contactor should be used to switch in
the capacitors.
To use the VersiStart p III to control power factor correction, connect the PFC
contactor to a programmable relay set to Run. When the motor reaches full speed,
the relay will close and power factor correction will be switched in.
CAUTION
Power factor correction capacitors must be connected to the input side of
the soft starter. Connecting power factor correction capacitors to the output
side will damage the soft starter.

17
VersiStart p III
4.11 Short Circuit Protection Devices (SCPD)
Fuses may be installed to protect the soft starter or the installation.
Type 1 Coordination
Type 1 coordination requires that, in the event of a short circuit on the output side of
a soft starter, the fault must be cleared without risk of injury to personnel. There is
no requirement that the soft starter must remain operational after the fault.
HRC fuses (such as Ferraz/Mersen AJT fuses) can be used for Type 1 coordination
according to IEC 60947-4-2 standard.
Type 2 Coordination
Type 2 coordination requires that in the event of a short circuit on the output side of
a soft starter, the fault must be cleared without risk of injury to personnel or damage
to the soft starter.
Semiconductor fuses for Type 2 circuit protection are additional to HRC fuses or
MCCBs that form part of the motor branch circuit protection.
CAUTION
DC Brake: A high brake torque setting can result in peak currents up to
motor DOL
being drawn while the motor is stopping. Ensure protection fuses
installed in the motor branch circuit are selected appropriately.
CAUTION
Integral solid state short circuit protection does not provide branch circuit
protection. Branch circuit protection must be provided in accordance with the
National Electrical Code and any additional local codes.

VersiStart p III
18
4.12 IEC Coordination with Short Circuit Protection Devices
These fuses were selected based on start current of 300% FLC for 10 seconds.
Nominal
Rating (A) SCR I2t (A2s)
Type 1
coordination
480 VAC, 65 kA
Bussmann NH
fuse links
Type 2
coordination
690 VAC, 65 kA
Bussmann
DIN 43 653
VS p III 24
24
1150
40NHG000B
170M3010
VS p III 42
42
7200
63NHG000B
170M3013
VS p III 52
52
80NHG000B
VS p III 64
64
15000 100NHG000B 170M3014
VS p III 69
69
VS p III 105 105 80000 160NHG00B 170M3015
VS p III 115 115
VS p III 135 135 125000 170M3016
VS p III 184
184
320000
250NHG2B 170M3020
VS p III 200
200
VS p III 229
229
315NHG2B
VS p III 250
250
170M3021
VS p III 352
352
202000
355NHG2B
170M6009
VS p III 397
397
400NHG2B
VS p III 410
410
320000
425NHG2B
170M6010
VS p III 550
550
781000 630NHG3B 170M6012
VS p III 580
580

19
VersiStart p III
4.13 UL Coordination with Short Circuit Protection Devices
Standard Fault Short Circuit Current Ratings
Suitable for use on a circuit capable of delivering not more than the stated level of
amperes (symmetrical rms, refer ##1 in table), 600 VAC maximum.
•Maximum fuse rating (A) – Standard fault short circuit current
Model Nominal Rating (A)
3 cycle short cct rating
@600 VAC ##1 †
VS p III 24 24 5 kA
VS p III 42
42
VS p III 52
52
10 kA
VS p III 64
64
VS p III 69
69
VS p III 105
105
VS p III 115
120
VS p III 135
135
VS p III 184
184
18 kA
VS p III 200
225
VS p III 229
229
VS p III 250
250
VS p III 352
352
VS p III 397 397
VS p III 410
410
30 kA
VS p III 550
550
VS p III 580
580
† Suitable for use in a circuit with the prospective current noted, when protected by
any Listed fuses or Listed circuit breakers sized according to the NEC.
