OPERATING INSTRUCTIONS
EN
Translation of the Original
OME 40S
Oil Mist Eliminator

Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/22

Table of contents
1 About this manual 5
1.1 Validity 5
1.1.1 Applicable documents 5
1.1.2 Products concerned 5
1.2 Target group 5
1.3 Conventions 5
1.3.1 Instructions in the text 5
1.3.2 Pictographs 5
1.3.3 Abbreviations 6
1.3.4 Trademark proof 6
2 Safety 7
2.1 General safety information 7
2.2 Intended use 7
2.3 Foreseeable misuse 7
3 Product description 9
3.1 Product identification 9
3.1.1 Scope of delivery 9
3.1.2 Function 9
3.2 Storage 9
4 Installation 10
4.1 Fitting direction 10
4.2 Installation on the pump 11
5 Operation 12
5.1 Filter element saturation 12
6 Maintenance 13
6.1 Maintenance safety instructions 13
6.2 Disassembly 13
6.3 Cleaning 14
6.4 Reassembly 14
6.5 Disposal 15
7 Service solutions by Pfeiffer Vacuum 16
8 Spare parts 18
9 Technical data and dimensions 19
9.1 Technical data 19
9.2 Dimensions 19
Declaration of incorporation of partly completed machinery 20
Table of contents
3/22

List of figures
Fig. 1: Fitting direction on the pump 10
Fig. 2: Installation of OME40S on pump 11
Fig. 3: Filtration element replacement 13
Fig. 4: Filtration element replacement 14
Fig. 5: Dimensions OME 40S 19
List of figures
4/22

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de-
scribe the functions of the named product and provide the most important information for the safe use of
the device. The description is written in accordance with the valid directives. The information in this op-
erating instructions refers to the product's current development status. The document shall remain valid
provided that the customer does not make any changes to the product.
1.1.1 Applicable documents
Operating instructions Part number
Rotary Vane Pump, Pascal series 1033, 1063, 2033, 2063 m3/h 1055271)
Rotary Vane Pump, DuoLine type, models Duo 35, Duo 35 M, Duo 65, Duo 65 M PK01681)
1) also available at www.pfeiffer-vacuum.com
1.1.2 Products concerned
This document applies to products with the following part numbers:
Part number Description
104887 OME 40 S Standard Oil Mist Eliminator
1.2 Target group
This user manual is intended for all persons in charge of transport, installation, commissioning/decom-
missioning, use, maintenance or storage of the product.
The work described in this document must only be carried out by persons with suitable technical training
(specialized staff) or persons who have undergone Pfeiffer Vacuum training.
1.3 Conventions
1.3.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
1.3.2 Pictographs
Pictographs used in the document indicate useful information.
About this manual
5/22

Note
Tip
1.3.3 Abbreviations
Exh. Exhaust
IN Inlet flange
OME Oil Mist Eliminator
1.3.4 Trademark proof
●Axarel® is a trademark of DuPont de Nemours and Company, Wilmington, Delaware, USA..
●CareClean® is a trademark of Castrol Ltd.
●PremaClean® is a trademark of Lenntech BV
●Naphtesol® is a trademark of Nippon Oil Corporation
About this manual
6/22

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.2 Intended use
Use the OME exclusively to separate oil mist from gas flow at the exhaust of a rotary vane pump.
●Use the OME exclusively with compatible Rotary Vane Pumps (see « Applicable Documents »
chapter).
●Install the OME at the exhaust of the Rotary Vane Pumps, Pascal series, model SD.
●Install the OME at the exhaust of the Rotary Vane Pumps, DuoLine series, models Duo 35,
Duo 65, Duo 35 M, Duo 65 M.
2.3 Foreseeable misuse
Improper use will cause all claims for liability and warranties to be forfeited.
Improper use is defined as usage for purposes deviating from those mentioned above, especially:
●connection to Rotary Vane Pumps, Pascal series 1033, 1063, 2033, 2063, models C1, C2.
●connection to Rotary Vane Pumps, DuoLine type, models Duo 35 MC, Duo 65 MC.
●connection to pumps and devices for which it is not intended.
●connection to devices uninsulated electrically.
●use of accessories or spare parts, which are not named in this manual.
●use of the OME on corrosive pumping applications.
●use of the OME on pumping applications with flammable products such as oxygen, silane.
●use for applications :
─Drying
─Freeze drying
─Pumping condensable vapors
Safety
7/22

─Impregnation with polymesirable resins
─Debubbling monomers
Safety
8/22

3 Product description
3.1 Product identification
To correctly identify the product when communicating with our service center, always have the informa-
tion from the product rating plate available.
3.1.1 Scope of delivery
●1 OME 40S Oil Mist Eliminator
●1 centering ring equipped with O-Ring DN40 ISO-KF
●1 quick connect clamp DN40 ISO-KF
●1 operating instructions
3.1.2 Function
The OME is mounted at the exhaust of a rotary vane pump and separates oil droplets and vapors from
gases emitted at the exhaust. Stopped by the filter element, they are transformed into liquid.
The OME must be mounted vertically above the pump, the condensed oil is recovered by flowing back
through the filter element into the oil case, if the inlet pressure is less than 1 hPa for a sufficiently long
time.
The OME has a safety valve set to 500 hPa relative pressure which prevents overpressure in the pump
oil case when the filter element is saturated. Do not allow solid or pasty deposits created by pumped
vapors to stick the valve to the filter element.
3.2 Storage
The filter elements inserted in the OME can absorb moisture.
If the new product must be stored:
►Store the product in a dry place in its original packaging.
►Store the product at storage temperatures (+5 – +65 °C).
►Make sure that the filter element is not crushed during storage.
Before using the OME, make sure that the valve is not stuck on the filter element.
If the product was unpacked, used, or stored for a long period (> 1 an) :
►Proceed to its maintenance by replacing the filter element (see « Maintenance » chapter).
Product description
9/22

4 Installation
WARNING
Poisonous substances exit from the exhaust
There is a poisoning hazard from discharged gases or vapors that can be hazardous and/or polluting
during use.
►Install and run the exhaust line so that overpressure cannot build up inside it.
►Follow the vacuum pump installation instructions in the respective operating instructions.
To allow the oil return in the pump oil case and avoiding all risk of seizing, it is mandatory to
take off the vent valve located at the exhaust port of the pump.
General instructions for installing the pump in the pumping line in accordance with industry
best practices
1. Perform the installation on the pump stopped and off.
2. Use connection accessories provided with the OME.
3. Use accessories on the inlet and exhaust lines whose materials and sealing properties are com-
patible with gases being used.
4. Provide in the pumping line, accessories to isolate the pump from the vacuum and exhaust line, to
make the maintenance easier (inlet and exhaust isolation valves, purges,…).
5. Remove the blanking plates blocking the inlet and exhaust ports.
In case of distance installation of the OME from the pump:
●Use the same diameter tube between the pump and the OME.
●Install the OME to a level higher than the pump’s exhaust.
4.1 Fitting direction
A label indicates the fitting direction of the filter on the pump.
►Install the OME on the pump's exhaust respecting the assembly direction.
The side on which the filter element is visible must be mounted on the pump.
The side where the spring is visible must be connected to a chimney or an exhaust duct.
P
U
M
P
P
U
M
P
Exh.
IN

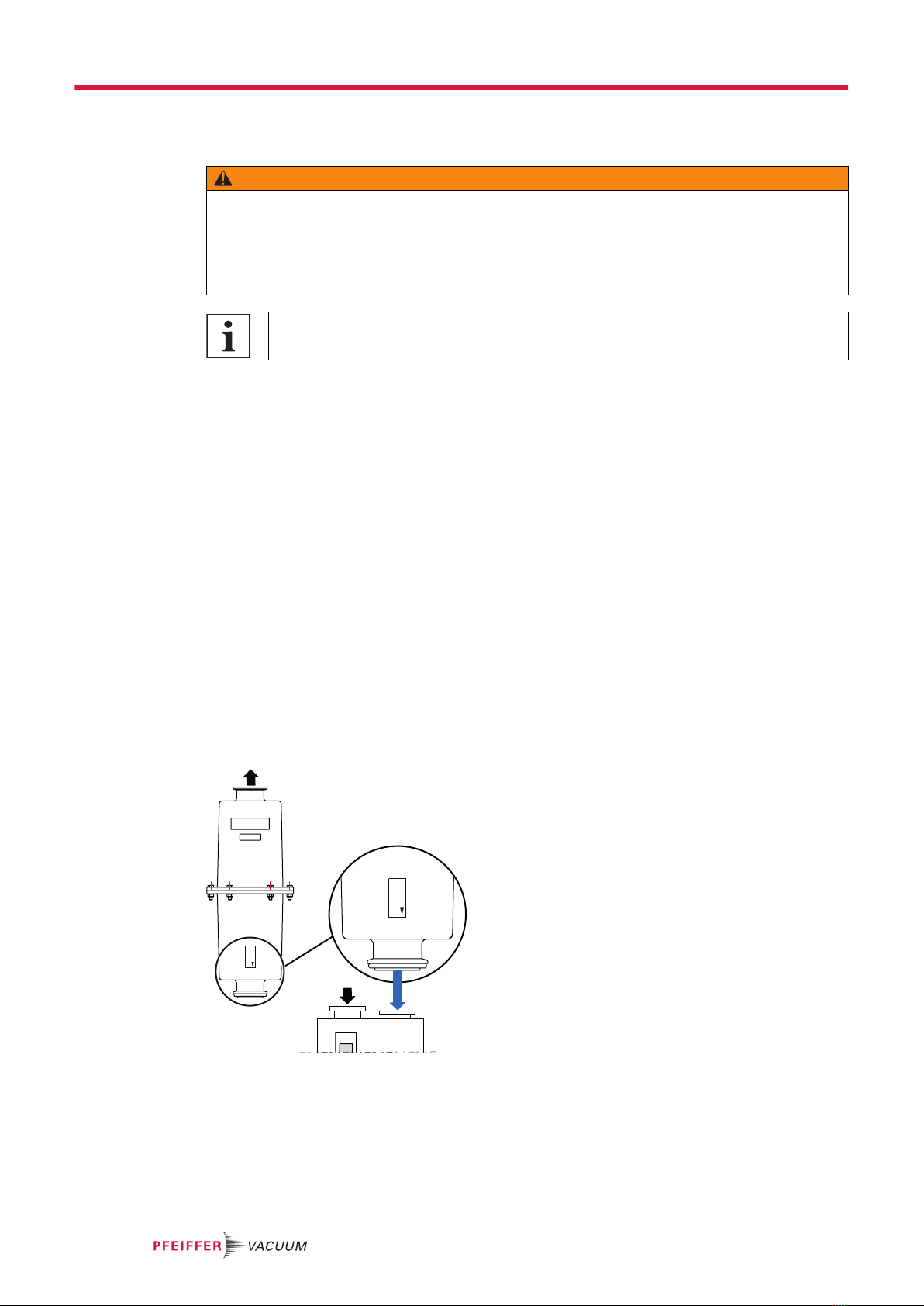

Fig. 1: Fitting direction on the pump
Installation
10/22

4.2 Installation on the pump
1
4
5
2
3
IN
Exh.
P
U
M
P

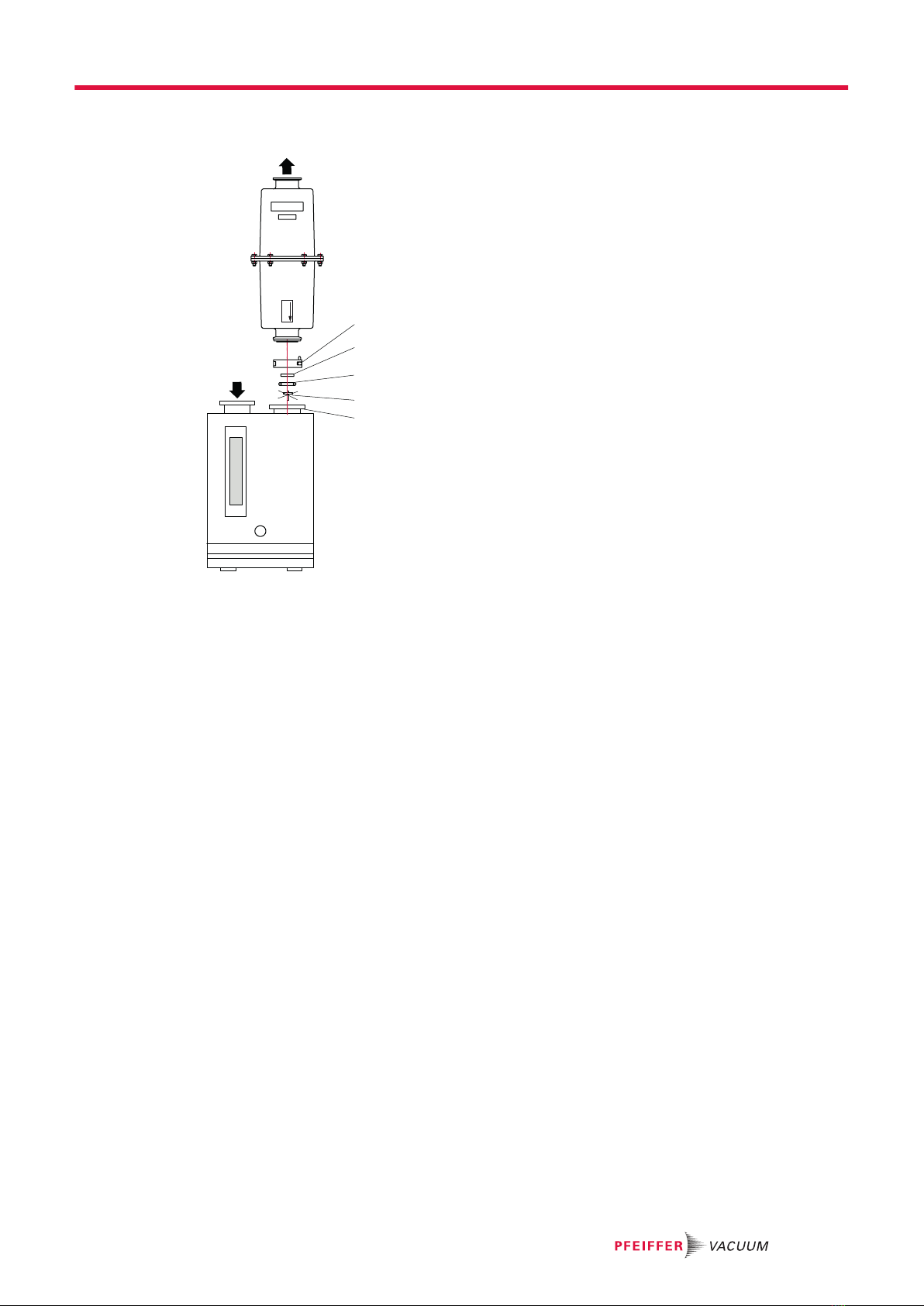

Fig. 2: Installation of OME40S on pump
1 Quick connect clamp 3 Centering ring 5 Exhaust port
2 O-Ring 4 Vent valve
1. Remove the vent valve assembled in the pump’s exhaust port
2. Assemble as shown in (see « Product description »chapter) using the connection accessories pro-
vided with the OME or ordered separately (see Pfeiffer Vacuum products catalogue).
3. Insure the assembly tightness.
Installation
11/22

5 Operation
WARNING
Risk of overpressure
At the pump exhaust, the discharge circuit must be such that the resulting overpressure in the oil
case is as low as possible. The maximum overpressure recommended for correct pump operation is
500 hPa. A slight negative pressure in the oil case (100–200 hPa), at the exhaust, will prevent gases
from accumulating and reduce pump corrosion and pollution.
When the OME is installed to a pump exhaust, check periodically that:
►The exhaust valve is not clogged and does not prevent the operation of the OME’s valve.
►The exhaust valve operates to avoid overpressure in the oil case
WARNING
Emission of toxic substances from the exhaust
Danger of poisoning from emitted gases or vapours, which can be detrimental to health and/or can
pollute the environment, depending on the particular application.
►The exhaust valve is not clogged and does not prevent the operation of the OME’s valve.
►The exhaust valve operates to avoid overpressure in the oil case.
Do not reuse an OME that has been stored for a long duration (> 1 year).
Perform maintenance and replace the filtration element before use.
Commissioning
►Turn the pump on.
During operation, oil and vapors are trapped by the filter element until it becomes clogged/saturated. In
this case, the relief valve should open when the internal pressure exceeds atmospheric pressure by
500 hPa.
Decommissioning
1. Stop the pump.
2. Bring the pump back to the atmospheric pressure and let the pump cool down.
3. Make sure the exhaust pipe is not under pressure.
5.1 Filter element saturation
The time taken to reach saturation point depends on the number of pumping cycles, the volume of
pumped gas and the kind of operating fluid used.
The signs of a saturated filter element are :
●Excess of smokes or droplets, or puffs of stream at the OME exhaust
●Rapid or significant drop in the oil level
●Increase of the pump oil case temperature
●Valve noise
When the filter element is saturated, proceed to its replacement (see « Maintenance » chapter)
Operation
12/22

6 Maintenance
6.1 Maintenance safety instructions
DANGER
Risk to the health in the event of contact with toxic substances
During pump disconnection, operator could be in contact with process residues on the exhaust that
could cause severe injury or death.
►Take the appropriate safety measures to prevent injury. Consult the department manager for in-
structions and safety information.
►Wear gloves, goggles, a respirator or other appropriate safety equipment.
►Ventilate well the premises or work under an extract hood.
►Do not dispose of residues in the usual network and, if necessary, seek a competent agency for
their destruction.
►Do not discard the used filter element in the usual network, seek a competent agency for its de-
struction.
►Set up the blanking plates at the inlet and exhaust of the pump (supplied with the product).
6.2 Disassembly
2
1
4
3
5
9
6
7
8

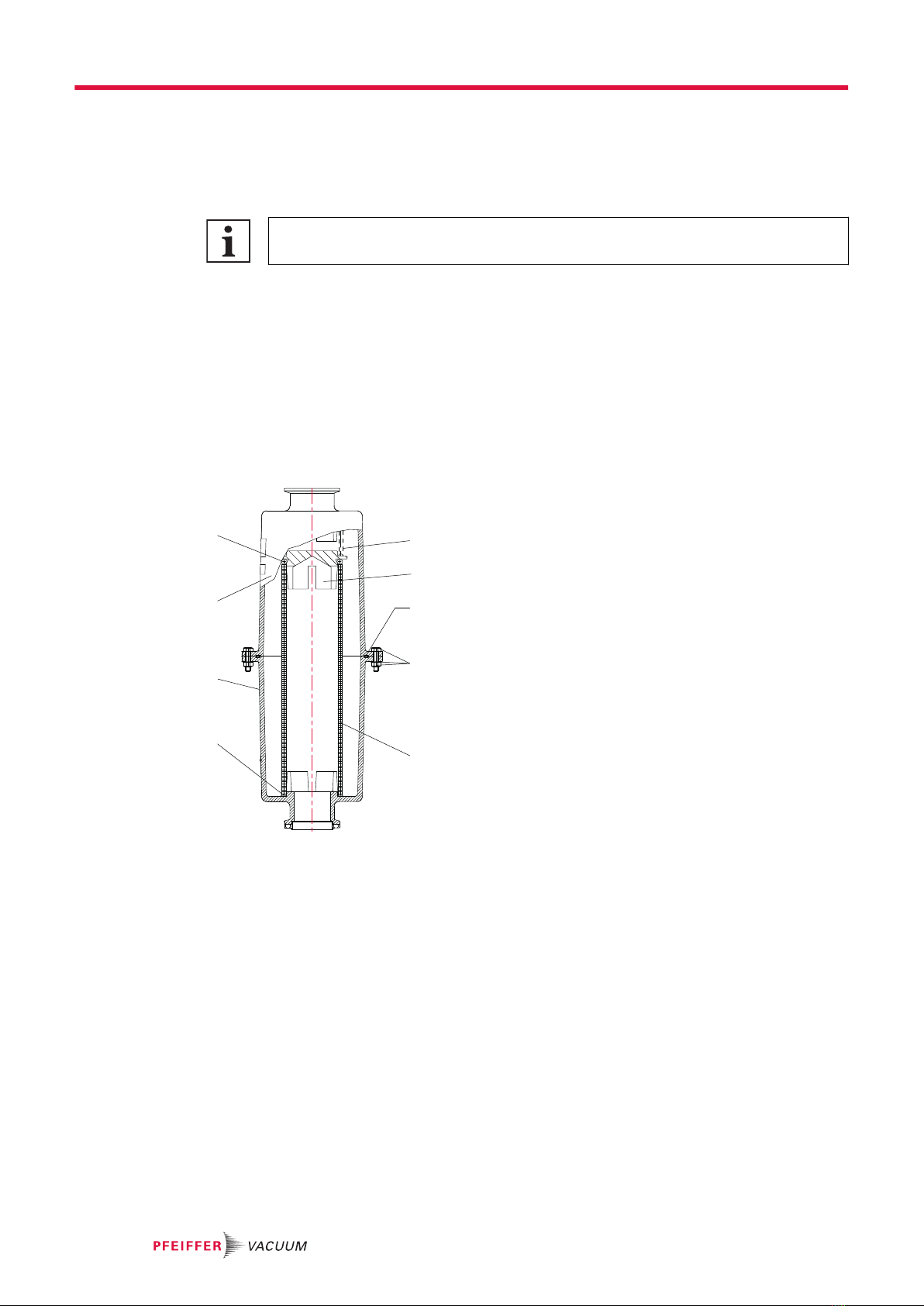

Fig. 3: Filtration element replacement
1 Spring 6 Flat ring
2 Valve 7 Bottom of the body
3 O-ring 8 Upper nipple
4 Nuts 9 O-ring
5 Filter element
When the filter element is saturated, proceed to its change as follows:
1. Remove the OME from the pump (possible oil leak), and disassemble it on a workbench.
2. Loosen the 6 nuts by pressing manually on each end of the OME (to avoid sudden release of the
spring), and remove them.
3. Remove the upper nipple and the O-ring.
4. Remove the spring.
5. Remove the valve equipped with the O-ring.
6. Remove the filter element and the flat ring in the bottom of the body.
If when disassembling, the filter element appears very clogged, filled with condensable products or gels,
or is filled with very blackish, strong-smelling oil, pump's oil quality must be checked and probably must
Maintenance
13/22

be changed. In this case, drain and rinse the pump, replace the oil before installing an OME equipped
with a new filter element (see Rotary Vane Pump Maintenance Manual).
6.3 Cleaning
Never clean a filtration element!
Always replace the filtration element with a new one.
►Always replace the O-rings with new O-rings.
After using mineral or synthetic oil, clean the parts with a mineral-based solvent, in accordance with the
legislation in force, for example, the type AXAREL, CARECLEAN, PREMACLEAN, NAPHTESOL.
Proceed as follows:
1. Clean when cold or hot (max. 45 °C) by dipping or using lintfree cloth.
2. Vacuum dry in a ventilated heating chamber then.
3. The component must be cleaned a second time with alcohol.
6.4 Reassembly
2
1
4
3
5
9
6
7
8
Fig. 4: Filtration element replacement
1 Spring 6 Flat ring
2 Valve 7 Bottom of the body
3 O-ring 8 Upper nipple
4 Nuts 9 O-ring
5 Filter element
1. Install the flat ring in the base of the body.
2. Position the filter element so that it rests on the flat ring in the body.
3. Mount a new O-ring on the valve and install the unit on the filter element, with the O-ring resting
on the filter element.
4. Place the spring on the valve and the O-ring in the groove.
5. Position the upper body on the lower body using the connectors.
6. Tighten and 4.1 N·m of torque.
7. Connect the OME to the pump’s exhaust using the supplied accessories (see « Product descrip-
tion » chapter).
Maintenance
14/22

6.5 Disposal
Environmental protection
The product and its components must be disposed of in accordance with the applica-
ble regulations relating to environmental protection and human health, with a view to
reducing natural resource wastage and preventing pollution.
Our products contain various materials which must be recycled. Take special care for:
●fluoroelastomers which may breakdown if they are subjected to high temperatures
●components in contact with the products resulting from the processes which may have been con-
taminated
●a used filtration element should not be disposed of in the usual manner: call a qualified organiza-
tion for disposal
Maintenance
15/22

7 Service solutions by Pfeiffer Vacuum
We offer first-class service
High vacuum component service life, in combination with low downtime, are clear expectations that you
place on us. We meet your needs with efficient products and outstanding service.
We are always focused on perfecting our core competence – servicing of vacuum components. Once
you have purchased a product from Pfeiffer Vacuum, our service is far from over. This is often exactly
where service begins. Obviously, in proven Pfeiffer Vacuum quality.
Our professional sales and service employees are available to provide you with reliable assistance,
worldwide. Pfeiffer Vacuum offers an entire range of services, from original replacement parts to service
contracts.
Make use of Pfeiffer Vacuum service
Whether preventive, on-site service carried out by our field service, fast replacement with mint condition
replacement products, or repair carried out in a Service Center near you – you have various options for
maintaining your equipment availability. You can find more detailed information and addresses on our
homepage, in the Pfeiffer Vacuum Service section.
You can obtain advice on the optimal solution for you, from your Pfeiffer Vacuum representa-
tive.
For fast and smooth service process handling, we recommend the following:
1. Download the up-to-date form templates.
─Explanations of service requests
─Service requests
─Contamination declaration
a) Remove and store all accessories (all external parts, such as valves, pro-
tective screens, etc.).
b) If necessary, drain operating fluid/lubricant.
c) If necessary, drain coolant.
ANFORDERUNG SERVICE
ERKLÄRUNG KONTAMINIERUNG
2. Complete the service request and contamination declaration.
3. Send the forms by email, fax, or post to your local Service Center.
4. You will receive an acknowledgment from Pfeiffer Vacuum.
Submission of contaminated products
No microbiological, explosive, or radiologically contaminated products will be accepted. Where products
are contaminated, or the contamination declaration is missing, Pfeiffer Vacuum will contact you before
starting service work. Depending on the product and degree of pollution, additional decontamination
costs may be incurred.
Service solutions by Pfeiffer Vacuum
16/22

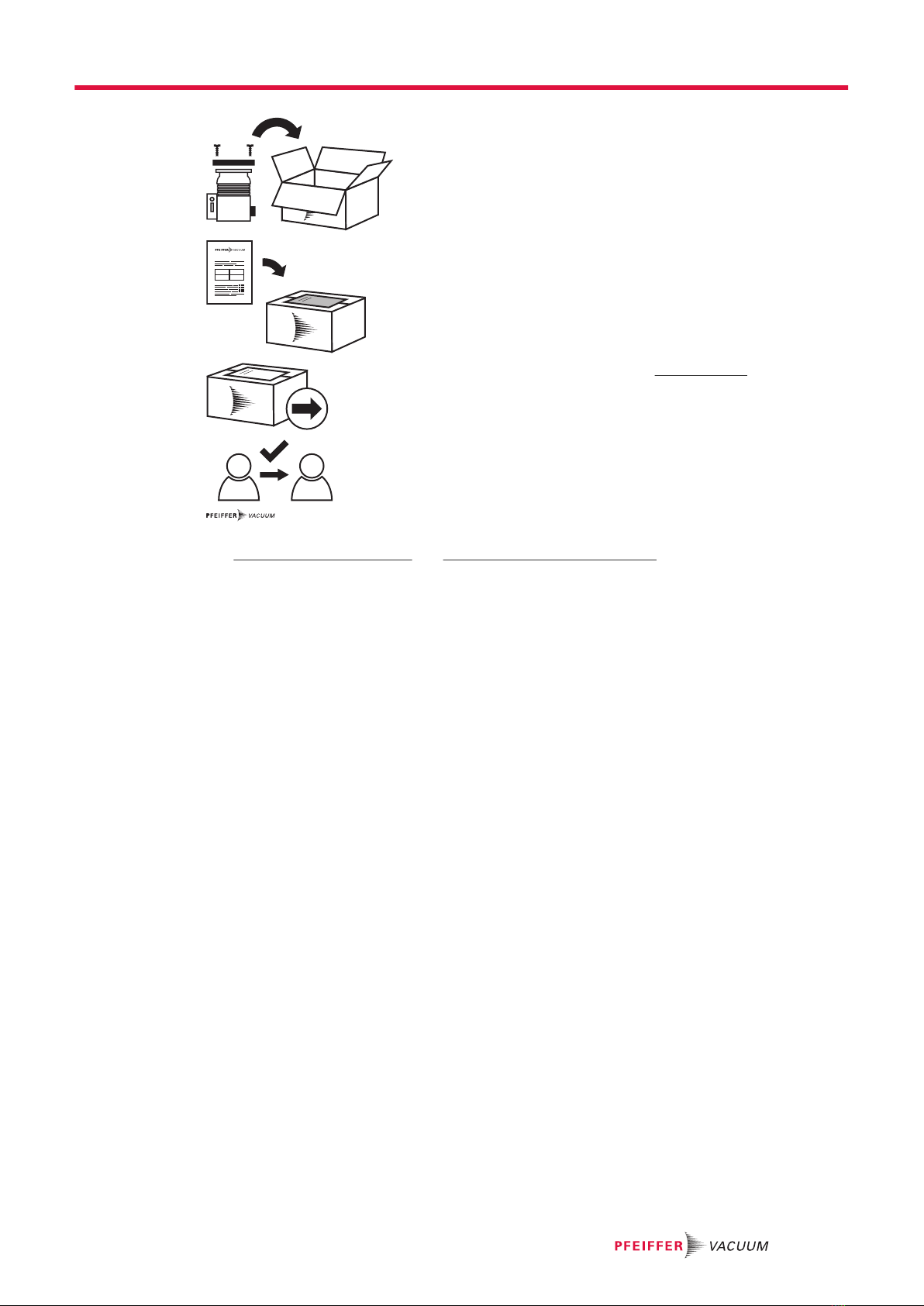

5. Prepare the product for transport in accordance with the provisions
in the contamination declaration.
a) Neutralize the product with nitrogen or dry air.
b) Seal all openings with blind flanges, so that they are airtight.
c) Shrink-wrap the product in suitable protective foil.
d) Package the product in suitable, stable transport containers only.
e) Maintain applicable transport conditions.
ERKLÄRUNG KONTAMINIERUNG
6. Attach the contamination declaration to the outside of the packag-
ing.
7. Now send your product to your local Service Center.
8. You will receive an acknowledgment/quotation, from Pfeiffer Vac-
uum.
Our sales and delivery conditions and repair and maintenance conditions for vacuum devices and com-
ponents apply to all service orders.
Service solutions by Pfeiffer Vacuum
17/22

8 Spare parts
1
11
10
9
8
7
6
5
4
3
2
Item Description Material Quantity Part number
1 Spring Stainless steel 1 -
2 Valve Aluminium 1 -
3O-ring 2) Elastomer NBR 1) 1079248
4 Screw CHC M4 x 10 Steel 6 -
5 Washer Steel 6 -
6 Nut Steel 6 -
7Filter element 2) Filter element (glass microfibers + epoxy resine) 1 068443
8Flat ring2) Elastomer NBR 1) 1068446
9 Grey body Aluminium 1 -
10 White body Aluminium 1 -
11 O-ring 2) Elastomer NBR 1) 1082131
1) See standard : ISO 2230: Rubber products — Guidelines for storage
2) Replacement parts for each maintenance
Spare parts
18/22

9 Technical data and dimensions
9.1 Technical data
OME 40S
Weight 2 kg
Connection DN 40 ISO-KF
Tightness 1 · 10-6 hPa l/s
Filtration level Trapping:
99.99% of vapor droplets greater than 0.6 µm in diameter
Maximum working pressure 1500 hPa
Maximum flow through the OME 17500 hPa l/s (with pump 63 m3/h)
9.2 Dimensions
DN40 ISO-KF
DN40 ISO-KF
P
U
M
P
Ø140
338
Fig. 5: Dimensions OME 40S
Technical data and dimensions
19/22

Declaration of incorporation of
partly completed machinery
Declaration for product(s) of the type:
Oil Mist Eliminator
OME 40S
We hereby declare that the listed product satisfies all relevant provisions of the following
European Directives.
Machinery 2006/42/EC (Annex II, no. 1 B)
Restriction of the use of certain hazardous substances 2011/65/EU
This product should not be put into service before the machine that they will ultimately be
incorporated into has been deemed compliant with Machinery Directive 2006/42/EC.
The undersigned also undertake to pass on pertinent information on the partly completed
machinery, in response to any reasoned request properly formulated by a national authority.
The person authorized to compile the technical file is Mr. d'Harboullé Philippe, Pfeiffer Vac-
uum SAS (Simplified joint stock company), 98, avenue de Brogny B.P. 2069, 74009 Ann-
ecy cedex.
Signature:
Pfeiffer Vacuum SAS
98, avenue de Brogny
74009 Annecy cedex
France
B.P. 2069
Nicolas Krzyzelewski
Head of Global Group Dry Pumps
Pfeiffer Vacuum SAS
Annecy, le 2022/08/26
