PFT RITMO XL FU User manual

Table of Contents
2019-12-11
Operating Instructions

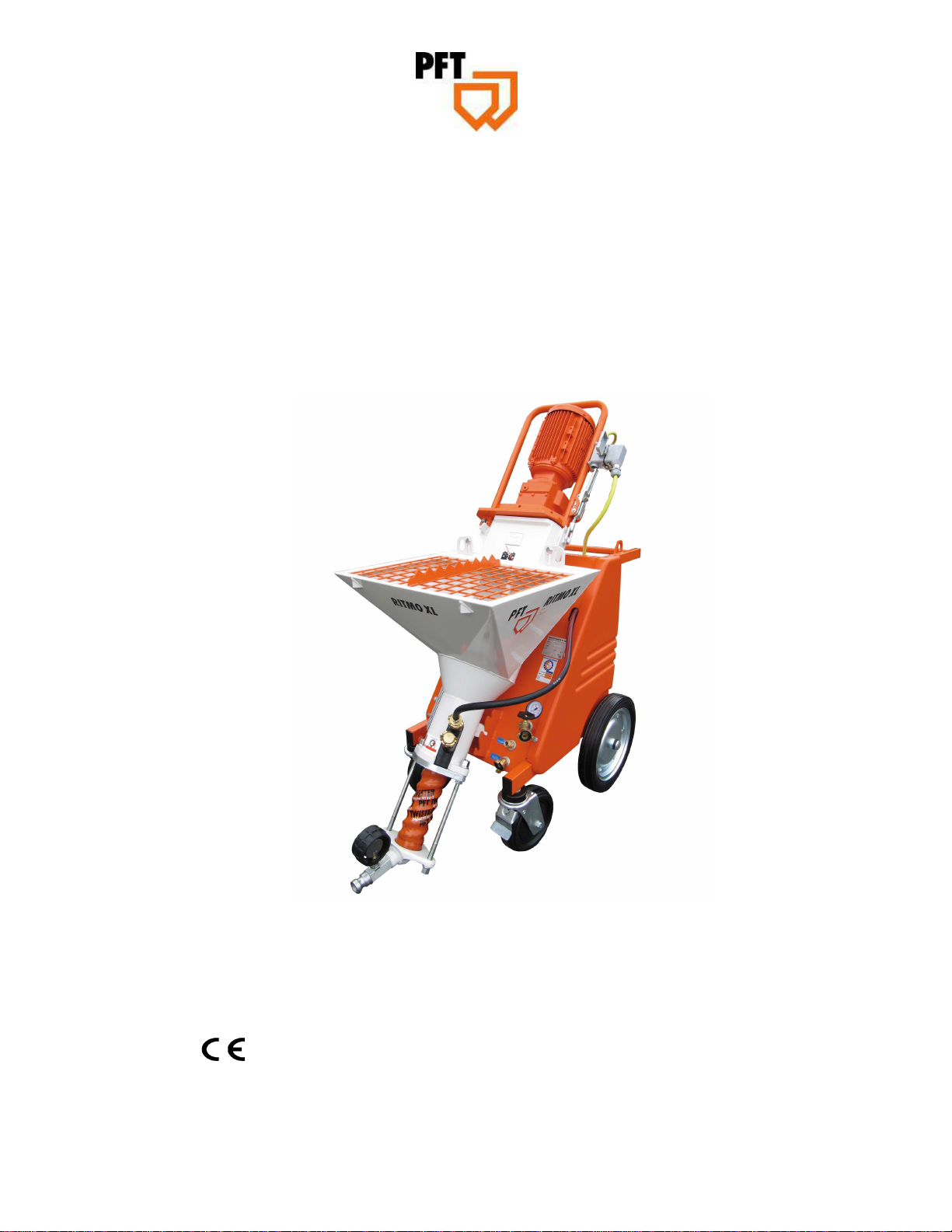

Mixing Pump RITMO XL FU 230V
Overview – Operation
Article number of operating instructions: 00 23 52 02
Article number of parts list machine: 00 19 78 19
Article number of parts list machine: 00 27 14 54 60Hz
Please read the operating instructions before starting work!

2 2019-12-11
© Knauf PFT GmbH & Co.KG
Postfach 60 97343 Iphofen
Einersheimer Straße 53 97346 Iphofen
Germany
Tel. [phone]
Fax: [phone]
Technical hotline [phone]
[email protected]
www.pft.net

Mixing Pump RITMO XL FU 230V Overview – Operation
Table of Contents
2019-12-11 3
1 EC Declaration of Conformity..................... 6
2 Examination.................................................. 7
2.1 Examination by machine operator....... 7
2.2 Periodic inspection .............................. 7
3 General notes............................................... 8
3.1 Information about operating
instructions........................................... 8
3.2 Please retain the instructions for
later use............................................... 8
3.3 Division................................................ 8
3.4 Spare parts lists................................... 8
4 Spare part lists............................................. 9
5 Accessories................................................ 10
6 Technical data............................................ 11
6.1 General data...................................... 11
6.2 Connection values............................. 11
6.3 Electrical 230V................................... 12
6.4 Operating conditions.......................... 12
6.5 Performance values........................... 13
6.6 Performance values........................... 13
6.7 Noise level......................................... 13
6.8 Vibrations........................................... 13
7 Dimension sheet........................................ 14
8 Name plate.................................................. 14
9 Quality Control sticker .............................. 14
10 Installation and function ........................... 15
10.1 Overview............................................ 15
10.2 Overview............................................ 16
11 Module description.................................... 16
11.1 Mixing tube with material container... 16
11.2 Air compressor K2 pressure switch-
off....................................................... 16
11.3 Undercarriage with compressor and
control cabinet ................................... 17
12 Connections................................................17
12.1 Connections of water and air .............17
12.2 Connection of material hose ..............17
13 Overview of control cabinet 230V 50Hz ...18
14 Overview of control cabinet 230V 60Hz ...18
15 Operating modes........................................19
15.1 Selector switch pump motor...............19
15.2 Selector switch pressure booster
pump ..................................................19
16 Accessories ................................................20
16.1 PFT - remixer for RITMO XL..............20
16.2 Covers................................................20
16.3 Power cable / water-/air hose.............20
17 Brief description.........................................21
18 Material........................................................21
18.1 Flow ability / conveying property........21
19 Mortar pressure manometer......................21
20 Safety rules.................................................22
21 Transport, packing and storage................22
21.1 Safety instructions for transport .........22
21.2 Transport inspection...........................23
21.3 Transport in single parts.....................23
21.4 Transportation with crane...................24
22 Packaging....................................................25
23 Operation.....................................................25
23.1 Safety.................................................25
24 Preparation..................................................26
24.1 Connection of power supply...............27
24.2 Connection of power supply 230V
3Ph. 60Hz...........................................27
24.3 Check the individual connectors ........27
24.4 Connection of water supply................28

Mixing Pump RITMO XL FU 230V Overview – Operation
Table of Contents
4 2019-12-11
24.5 Water from water barrel.....................28
25 Activation....................................................29
25.1 Default of water flow volume..............29
25.2 Soaking of the mixing section............30
26 Mortar pressure manometer .....................30
27 Hazardous dusts ........................................30
28 Feeding machine with factory dry
material .......................................................31
29 Monitoring the machine.............................31
30 Operating the machine..............................32
30.1 Checking mortar consistency.............32
30.2 Machine "flying start" .........................32
31 Mortar hoses...............................................33
31.1 Preparing mortar hoses .....................33
31.2 Connecting mortar hose ....................33
32 Spraying gun ..............................................34
32.1 Connecting spraying gun...................34
32.2 Connecting the spraying gun.............34
33 Applying mortar .........................................34
33.1 Switch on air compressor ..................35
33.2 Open the air tap at the spraying gun .35
33.3 Interruption of work............................35
33.4 In case of longer interruption of
work/break .........................................36
33.5 Switch off air compressor ..................36
34 Remote control...........................................37
34.1 Working with the remote control........37
35 Stopping in case of emergency
Emergency-stop switch.............................37
35.1 Emergency-stop switch......................37
36 Measures in case of power cut.................38
36.1 Main switch to position “0“.................38
36.2 Relieve mortar pressure ....................38
37 Work on troubleshooting ..........................39
37.1 Reaction in the event of faults ...........39
37.2 Fault displays..................................... 40
37.3 Faults................................................. 40
37.4 Safety ................................................ 40
37.5 Faults table........................................ 41
37.6 Signs for hose blockages: ................. 43
37.7 Causes for this can be:...................... 43
37.8 Earlier damage to the mortar hose.... 44
38 Removal of blockages in the hose........... 44
38.1 Change the direction of rotation of
the mixing pump motor in case of
blockages in the hose 50Hz.............. 44
38.2 Change the direction of rotation of
the mixing pump motor in case of
blockages in the hose 60Hz.............. 45
38.3 Blockage does not dislodge .............. 45
38.4 Switch the machine back on after
the blockage has been removed
50Hz .................................................. 46
38.5 Switch the machine back on after
the blockage has been removed
60Hz .................................................. 46
39 Cleaning the machine after work ............. 46
39.1 Secure against restarting .................. 46
39.2 Cleaning the RITMO XL .................... 47
39.3 Decouple mortar hose....................... 47
39.4 Clean mortar hose............................. 47
39.5 Remove the water hose .................... 48
39.6 Cleaning the mixing tube................... 48
39.7 Insert the mixing tube cleaner........... 49
39.8 Close motor tilt flange........................ 49
39.9 Cleaning the hopper.......................... 50
39.10 Cleaning rubber mixing zone............. 50
39.11 Inserting mixing coil........................... 51
40 Measures against danger of frost............ 51
40.1 Blowing water fitting dry .................... 52
41 Maintenance............................................... 53
41.1 Safety ................................................ 53
41.2 Remove connection cable................. 53
41.3 Environmental protection................... 54
41.4 Maintenance plan.............................. 54
41.5 Maintenance work ............................. 55

Mixing Pump RITMO XL FU 230V Overview – Operation
Table of Contents
2019-12-11 5
41.6 Dirt trapping sieve.............................. 56
41.7 Dirt trapping sieve.............................. 56
41.8 Setting value pressure switch water.. 56
41.9 Setting value pressure switch air....... 56
41.10 Safety valve air compressor.............. 57
41.11 Measures after maintenance............. 57
42 Dismantling ................................................ 58
42.1 Safety................................................. 58
42.2 Dismantling.........................................59
42.3 Disposal..............................................59
43 Checklist for annual expert testing
(master copy)..............................................60
44 Index ............................................................61

Mixing Pump RITMO XL FU 230V Overview – Operation
EC Declaration of Conformity
6 2019-12-11
1 EC Declaration of Conformity
Company: Knauf PFT GmbH & Co. KG
Einersheimer Straße 53
97346 Iphofen
Germany
declares under our sole responsibility that the product:
Type of machine: G 4 X
Type of equipment: Mixing pump
Serial number:
Guaranteed sound power level: 78 dB 95 dB
is in conformity with the following CE directives:
•Outdoor directive (2000/14/EC),
•Machine directive (2006/42/EC),
•Electromagnetic Compatibility Directive (2004/108/EC).
Operative Conformity Assessment according to Outdoor Directive 2000/14/EC:
Internal production control as per article 14 paragraph 2 in connection with annex V.
This declaration only refers to the machine in the state in which it has been placed on the market. Parts
subsequently added by the user and/or subsequent interventions are not covered. This declaration ceases
to be valid if the product is converted or changed without consent.
Person authorised to compile the relevant technical documentation:
Diploma in industrial engineering (FH) Michael Duelli, Einersheimer Straße 53, 97346 Iphofen.
The technical documentation is available from:
Knauf PFT GmbH & Co.KG, Technical Department, Einersheimer Straße 53, 97346 Iphofen.
Iphofen Dr. York Falkenberg
Managing director
Place, date of issue Name and signature Details of signatory

Mixing Pump RITMO XL FU 230V Overview – Operation
Examination
2019-12-11 7
2 Examination
2.1Examination by machine operator
Prior to each shift, the machine operator has to examine the
effectiveness of the control and safety devices as well as
the proper fitting of the protection devices.
The safe working condition of construction machinery has to
be checked by the machine operator during operation.
If the safety devices show any defects or if any other
defects are detected that compromise a safe operation, the
supervisor has to be informed immediately.
In case of defects that cause harm to persons, the operation
of the construction machine has to be stopped to eliminate
the defects.
2.2Periodic inspection
Construction machinery has to be inspected for their safe
working condition in accordance with the operating
conditions and the operational requirements as needed,
however at least once a year by an expert.
Pressure vessels have to undergo the prescribed expert
inspections.
The inspection results have to be documented and kept at
least until the next inspection.

Mixing Pump RITMO XL FU 230V Overview – Operation
General notes
8 2019-12-11
3 General notes
3.1Information about operating instructions
This operating instructions document provides instructions
about handling the device. Compliance with all the specified
safety instructions and operational directions is a
precondition for safe working.
Furthermore, the local accident prevention rules and
general safety provisions applicable to the use area of the
device must also be observed.
Please go through the operating instructions manual
carefully before starting work It is an integral part of the
product and must be kept in the immediate vicinity of the
device so that it can be accessed easily by the personnel.
If the device is handed over to a third party, please hand
over the operating instructions document too.
The figures in this operating instructions document are not
necessarily made to scale for better display and may
deviate marginally from the actual design of the device.
3.2Please retain the instructions for later use
The operating instructions must be available during the
entire life span of the product.
3.3Division
The operating instructions consist of two books:
Part 1 Safety
General safety instructions of mixing/delivery pumps
Article No. 00 17 27 09
Part 2 Overview, operation, service and spare part lists
(this book).
All three sections must be read and observed for safe
operation of the device. They are to be treated as one
operating instructions document.
3.4Spare parts lists
Spare parts lists for the machine can be found on the
Internet at www.pft.eu.

Mixing Pump RITMO XL FU 230V Overview – Operation
Spare part lists
2019-12-11 9

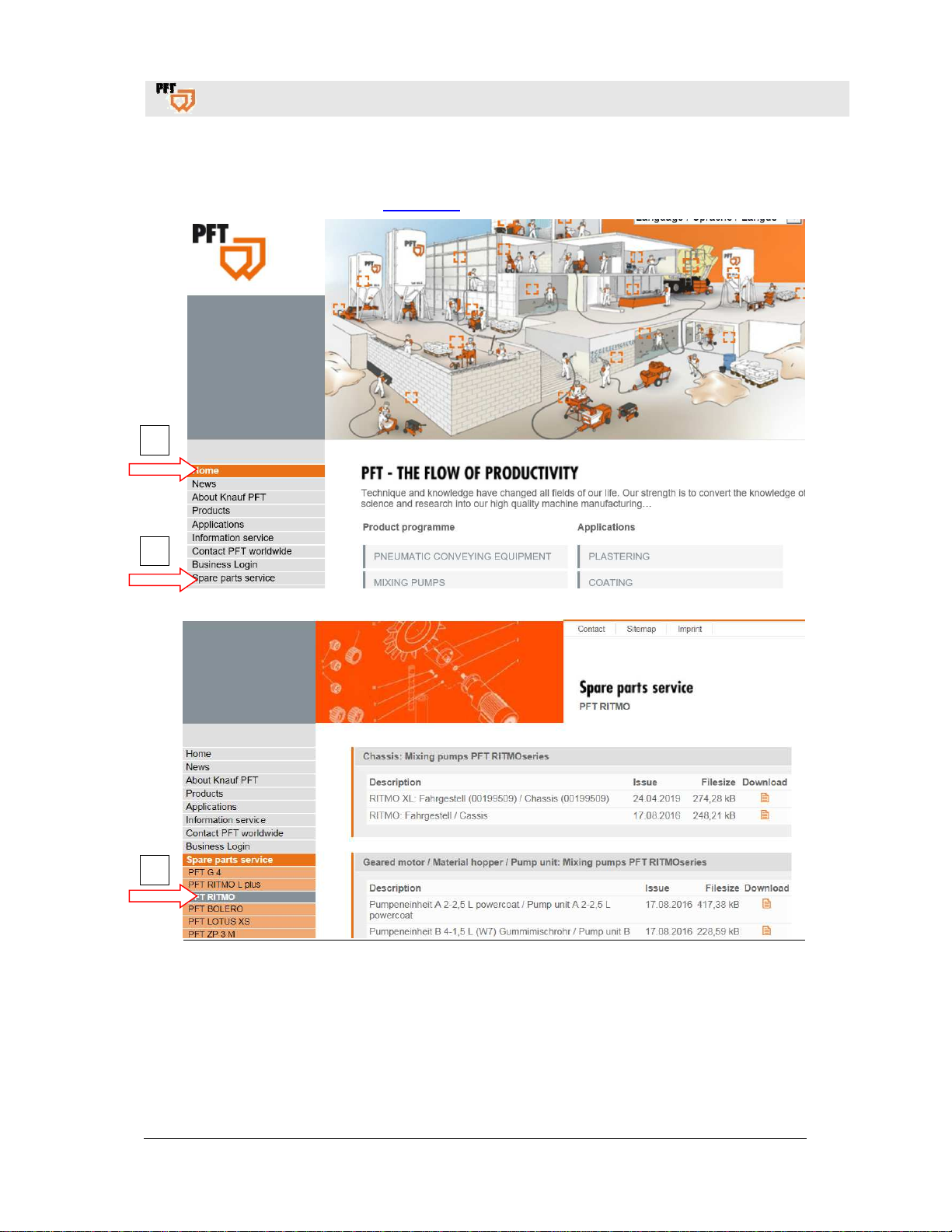

4 Spare part lists
You can find spare part lists for the machine in the Internet
under www.pft.net.
1
2
3

Mixing Pump RITMO XL FU 230V Overview – Operation
Accessories
10 2019-12-11
5 Accessories
For recommended accessories/equipment, see PFT Machine and Equipment Catalogue or
www.pft.net.

Mixing Pump RITMO XL FU 230V Overview – Operation
Technical data
2019-12-11 11
6 Technical data
6.1General data
Data Value Unit
Weight approx. 224 kg
Weight approx. 253 kg
Length including pump 1300 mm
Length without pump 1065 mm
Width 700 mm
Height 1510 mm
Individual weights
Data Value Unit
Weight of pump motor with
material container and pump
complete
91 kg
Weight of undercarriage with
compressor 105
kg
Weight of control cabinet 21 kg
Hopper mass
Data Value Unit
Filling level 910 mm
Hopper content 70 l
Content of hopper 90 l
6.2Connection values
Fig. 1: Water connection tube
Data Value Unit
Operating pressure, min. 2,5 bar
Connection 3/4 Inch

Mixing Pump RITMO XL FU 230V Overview – Operation
Technical data
12 2019-12-11
6.3Electrical 230V
RITMO XL FU 230V
RITMO XL 230V 60Hz 3Phasen
RITMO XL FU 230V
RITMO XL 230V 60Hz 3Phasen
RITMO XL FU 230V
RITMO XL 230V 60Hz 3Phasen
RITMO XL FU 230V
RITMO XL 230V 60Hz 3Phasen
RITMO XL FU 230V
RITMO XL 230V 60Hz 3Phasen
RITMO XL FU 230V
RITMO XL 230V 60Hz 3Phasen
RITMO XL FU 230V
RITMO XL 230V 60Hz 3Phasen
Data Value Unit
Voltage, AC 50 Hz 230 V
Voltage, AC 60 Hz 230 V
Current intake, maximum 16 A:
Current intake, maximum 26 A:
Power intake, maximum 5 kW
Power intake, maximum 7,15 kW
Fuse Min. 1 x 16 A:
Fuse Min. 3 x 32 A:
Pump motor drive 4 kW
Pump motor drive 5,5 kW
Approx. pump motor speed 400 rpm
Approx. pump motor speed 385 rpm
Pump motor current intake 14 A:
Pump motor current intake 19 A:
Air compressor DELTA 2 0,5 kW
Air compressor K2 230V 0,9 kW
6.4Operating conditions
Environment
Data Value Unit
temperature range 2-45 °C
Relative humidity, maximum 80 %
Duration
Data Value Unit
Maximum operating duration on
piece
8 Hours

Mixing Pump RITMO XL FU 230V Overview – Operation
Technical data
2019-12-11 13
6.5Performance values
Pump capacity SD6-3
For compressor capacity, please
see BAL Art. No. 00 19 96 67 LK
DELTA 2
Data Value Unit
Approx. pumping capacity 5 - 20 l/min at
400 rpm
Operating pressure, max. 20 bar
Grain size max. 2 mm
Pumping width *, max. at 25 mm
∅
15 m
Pumping width *, max. at 35 mm 20 m
Compressor capacity 0,180 Nm³/min
* Standard value depending on pumping height, pump condition and design,
mortar quality, - composition and -consistency
6.6Performance values
Pump capacity D7-2,5
Data Value Unit
Approx. pumping capacity 24 l/min at
385 rpm
Operating pressure, max. 25 bar
Grain size max. 3 mm
Pumping width *, max. at 25 mm 20 m
Compressor capacity 0,250 Nm³/min
* Standard value depending on pumping height, pump condition and design,
mortar quality, - composition and -consistency
6.7Noise level
Guaranteed noise level L WA 78dB (A)
6.8Vibrations
Weighted effective value of acceleration to which the upper body parts are exposed <2,5 m/s²

Mixing Pump RITMO XL FU 230V Overview – Operation
Dimension sheet
14 2019-12-11
7 Dimension sheet
Fig. 2: Dimension sheet
8 Name plate
Fig. 3: Name plate
The type plate contains the following information:
Manufacturer
Type
Year of manufacture
Machine number
Permissible operating pressure
9 Quality Control sticker
Fig. 4: Quality Control sticker
The following details can be found on the Quality Control
sticker:
CE confirmed as per EU directives
Serial no / serial number
Controller / signature
Date of control
645
700
1300
1510

Mixing Pump RITMO XL FU 230V Overview – Operation
Installation and function
2019-12-11 15
10 Installation and function
10.1 Overview
10 9 8 7 6
Fig. 5: Overview of Ritmo XL
1 Tilt flange with motor protection clamp
2 Geared motor
3 Handle
4 Plastic side lining
5 Wheel with steel rim
6 Water removal valve
7 Compressed air from air compressor to spraying
gun
8 Water inlet, water connection from water supply line
9 Water inlet in mixing tube / rubber mixing zone
10 Pump unit
11 Connection for material hose
12 Mortar pressure manometer
13 Mixing tube with material container
14 Protection grid with sack splitter
1
2
3
4
5
14
13
12
11

Mixing Pump RITMO XL FU 230V Overview – Operation
Module description
16 2019-12-11
10.2 Overview
1. Compressor
2. Control cabinet
3. Water flow gauge (water fitting)
Fig. 6View without side lining
11 Module description
11.1 Mixing tube with material container
Fig. 7: Material container module
The mixing pump PFT RTIMO XL consists of the following
main components:
Mixing tube with material container, pump and geared
motor.
The geared motor with tilt flange can be removed from the
mixed tube during transportation.
11.2 Air compressor K2 pressure switch-off
Abb.8: Air compressor
Air compressor K2 pressure switch-off.
2
3
1

Mixing Pump RITMO XL FU 230V Overview – Operation
Connections
2019-12-11 17

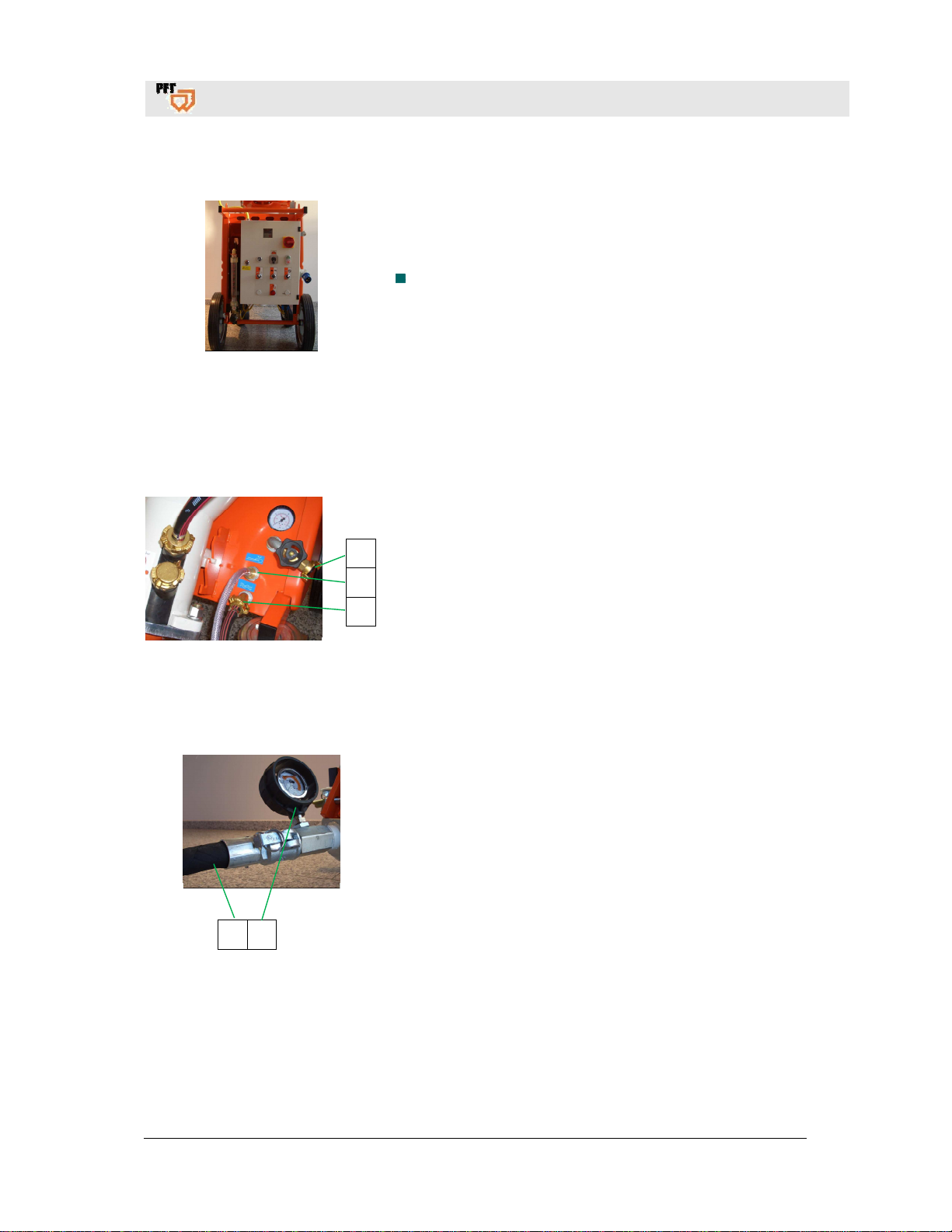

11.3 Undercarriage with compressor and control cabinet
Fig. 9: Undercarriage
Undercarriage with control cabinet.
12 Connections
12.1 Connections of water and air
Fig. 10: Connection, water and air
1. Water extraction (1).
2. Connection of air to spraying device (2).
3. Connection of water from supply line (3).
12.2 Connection of material hose
1 2
Fig. 11: Connection of material hose
1. Connection of material hose (1) on mortar pressure
manometer (2).
1
2
3

Mixing Pump RITMO XL FU 230V Overview – Operation
Overview of control cabinet 230V 50Hz
18 2019-12-11
13 Overview of control cabinet 230V 50Hz
Fig. 12: Control cabinet module
Fig. 13: Control cabinet connections
1. Dummy connector / remote control connection.
2. Main switch is simultaneously emergency-stop switch.
3. Pushbutton Control voltage "ON / OFF".
4. Connection for main current 230V, 1Phase, 16A.
5. Selector switch Operation with water (as mixing pump),
without water (only as pump).
6. Red control lamp Motor fault.
7. Selector switch Release pump (reverse flow).
8. Motor speed / material volume.
9. Pushbutton upstream water flow.
10.Selector switch Compressor "ON / OFF".
11.Sight glass for frequency converter.
12.Connection for air compressor 230V, 1 Phase.
14 Overview of control cabinet 230V 60Hz
Fig. 14: Control cabinet module
Fig. 15: Control cabinet connections
1. Pushbutton Control voltage "ON / OFF".
2. Pushbutton upstream water flow.
3. Red control lamp Motor fault.
4. CEE-Panel mounted socket.
5. Yellow pilot lamp, for wrong direction of rotation.
6. Selector switch Compressor "ON / OFF".
7. Push button reverse direction of rotation.
8. Selector switch water pump.
9. Main switch is simultaneously emergency-stop switch.
1
2
3
4
5
11
10
9
8
7
6
12
1
2
3
4
9
8
7
6
5

Mixing Pump RITMO XL FU 230V Overview – Operation
Operating modes
2019-12-11 19
15 Operating modes
15.1 Selector switch pump motor
Fig. 16: Operating modes pump motor
The pump motor can be operated in three operating modes:
Selector switch position “0”:
The machine is switched off.
Selector switch right (toggle):
The machine starts when the main switch and the control
voltage is switched on:
Selector switch left (momentary contact):
The pump motor runs backwards, thus the pump is relaxed
while all other functions are locked.
15.2 Selector switch pressure booster pump
Fig. 17: Operating modes
water pump
The pressure booster pump can be operated in three different operating
modes:
Selector switch position “0”:
Water pump is switched off, e.g. if the water pressure is continuously at
2.5 bar.
Selector switch right:
Water pump is running in sync with the mixing pump (automatic mode).
Selector switch left:
The water pump runs continuously in position “manual” (e.g. for
cleaning the hoses).

Mixing Pump RITMO XL FU 230V Overview – Operation
Accessories
20 2019-12-11
16 Accessories
16.1 PFT - remixer for RITMO XL
Fig. 18: ROTOMIX
ROTOMIX D pumps complete with 35x coupling
(Article
No. 20 11 80 00)
Remixer for better inclusion and mixing of the material.
Direct drive through the pin of the rotor.
Content approx. 1.2 l.
Uniform consistency.
Removable mixing wing.
Remixer can be opened for cleaning.
Fig. 19: ROTOQUIRL
Complete ROTOQUIRL II with 35x coupling (Article No.
20 11 84 00)
Remixer for better inclusion and mixing of the material.
Direct drive through the pin of the rotor.
Content approx. 4.2 l.
Uniform consistency.
Removable mixing wing.
Remixer can be opened for cleaning.
16.2 Covers
Fig. 20: HOPPER
Art. No.00201870
Fig. 21: INJECTION HOOD (only in
connection with hopper )
Art. No. 20600213
Fig. 22: TRANSFER HOOD
Art. No. 00201620
16.3 Power cable / water-/air hose
Fig. 23: Power cable 3x2.5mm², 25m Schuko-
CEE 16A Art.No.20423420
Fig. 24: Water-/air hose 1/2“ 11m Art. No.20211100
