Phil & Teds lobster User manual
lobster
instructions - gebrauchsanweisung
instrucciones - instructies
Congratulations on choosing
the lobster!
Features / Caractéristiques / Produkteigenschaften / Características / Kenmerken
Instructions / Gebrauchsanweisung / Instrucciones / Instructies
Product Care / Conseils d’entretien / Produktpflege / Cuidado del producto /
Productverzorging
Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwingen
01 Shoulder adjustment
clips (inside shoulder padding)
02 Rubber support pads
03 Harness buckle
04 Handles
05 Claws
06 Fabric seat
07 Food tray
08 Storage bag
LOBSTER FEATURES / CARACTÉRISTIQUES / PRODUKTEIGENSCHAFTEN / CARACTERÍSTICAS / KENMERKEN
05
06
07
08
01
02
03
04
01 Clips zum Einstellen
des Schultergurts (in der
Schulterpolsterung)
02 Gummierte Stützkissen
03 Gurtschnalle
04 Griffe
05 Klammern
06 Stoffsitz
07 Tablett
08 Packtasche
01 Boucles de réglage
des bretelles
(situées sous le rembourrage)
02 Supports recouverts d’un
revêtement caoutchouc
03 Boucle de harnais
04 Poignées
05 Pinces
06 Assise en toile
07 Plateau
08 Pochette de rangement
01 Ganchos para ajuste de
los hombros (dentro del
acolchado de los hombros)
02 Almohadillas plásticas de
soporte
03 Hebilla del arnés
04 Manijas
05 Pinzas
06 Tela del asiento
07 Charola
08 Bolsa de almacenamiento
01 Clips van verstelbare
schouderbanden (aan
binnenzijde schoudervoering)
02 Rubber steunen
03 Gesp van veiligheidsharnas
04 Handvatten
05 Klauwen
06 Stoffen zitje
07 Eetblad
08 Reistas
LOBSTER INSTRUCTIONS / GEBRAUCHSANWEISUNG / INSTRUCCIONES / INSTRUCTIES
LOBSTER INSTRUCTIONS / GEBRAUCHSANWEISUNG / INSTRUCCIONES / INSTRUCTIES

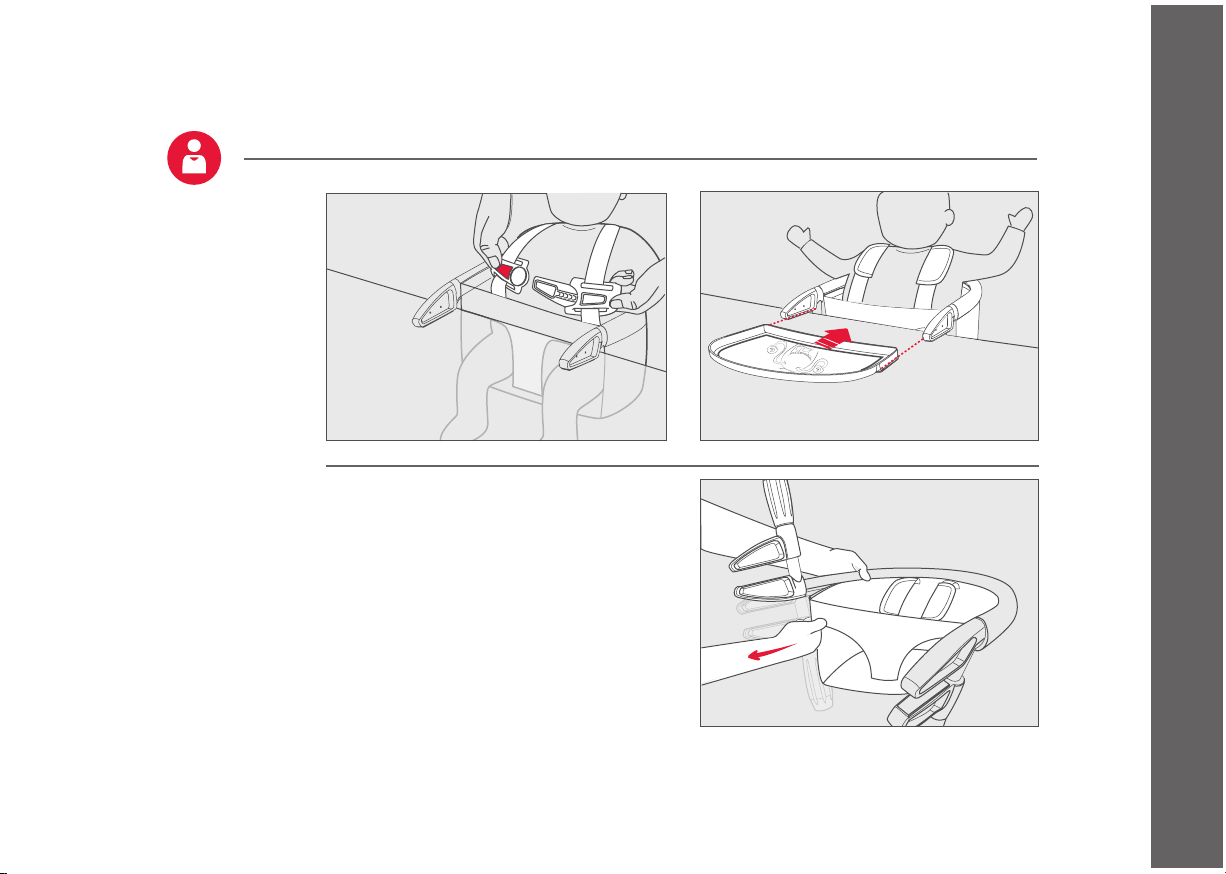

To remove the fabric.
Pour enlever l’assise en tissu.
Um den Stoff zu entfernen.
Para quitar la tela.
De stof verwijderen.
cleaning & caring
The once over
Check the product for cuts & bruises. If your product is
damaged in any way, or you’re not sure how to use it,
contact your retailer immediately.
Caring for lobster
Unlike children, your lobster likes to stay clean.
Wipe the lobster down with a damp sponge.•
Fabrics can be washed with warm water, using a mild•
natural soap. Air dry out of direct sunlight.
Do not store the lobster when wet. Do not wash fabric•
with harsh soap, solvents, bleach or detergents which
may harm the lobster materials.
To remove the fabric, fully invert one claw by•
rotating through 180º (outwards, away from seat, and
until pointing upwards). Slide fabric out of the exposed
frame slot. Reverse process to reattach.
Store in a well ventilated space, away from direct•
sunlight (which can harm and fade fabric), and moisture.
Improper care will void any warranties. Do not use the•
lobster if deterioration is detected or suspected.
rights & remedies
We want to give owners confidence in the quality of our
products. They are fully warranted against defects in
materials & workmanship for one year from the date of
purchase.
What is the warranty? If we determine that the product has
a manufacturing fault we will repair it free of charge. If not
practical to repair it we will, at our discretion, replace the
faulty part in question*.
What if it’s outside the warranty terms? If the product fails
due to wear & tear, accident, neglect or negligence, or if it
is outside the 1 year warranty period, we will happily repair
it for a reasonable charge.
Who do I contact? If your product is less than a year old
and subject to a warranty claim please file one through the
support section of the ` website:
www.philandteds.com/support. If you are unsure if the
product is subject to a warranty claim, or it is outside the
one year warranty period, please consult our web support
(www.philandteds.com/support) and access a local
customer care team. You will need to provide proof of
purchase. They will inform you of the next step.
IMPORTANT! KEEP FOR FUTURE REFERENCE.
The lobster has attained the following safety
standards:
•EN1272:1998 - 15kg
•ASTMF1235-03(2008)-37lbs(17kg)
EN
Who is covered? The original purchaser buying product
from an authorised dealer. Proof of purchase is required.
What is covered? Workmanship or materials that are
deemed faulty by `, providing the product has
at all times been used in normal conditions, used in
accordance with the instructions & been properly
maintained.
What is not covered? Second hand product; modified
product; poorly maintained product; normal wear, fading
& fabric cuts; improper use or care: (by way of example)
abnormal use; not following instructions; excessive load;
transport damage i.e. airline or freight damage.
Customer costs within warranty The customer is
responsible for any inwards freight charge to return
product to a phil&teds representative for warranty & or
service.
Customer costs outside warranty Where proof of purchase
is not provided or product is outside of the one year
warranty period, ` reserves the right to charge
a service fee and/or charge for parts replaced/repaired.
A return freight charge may apply.
Exclusions Any consequential loss or damage to any
person or property directly or indirectly as a result of using
a ` product.
WORLDWIDE COVERAGE: If you file a warranty claim
outside of the country of purchase we reserve the right to
charge freight and/or service fees.
log on & relax
Please register your product purchase through our online
warranty registration by visiting:
www.philandteds.com/register
Purchase replacement parts such as seat fabric and food
tray, from our online shop: www.philandteds.com/shop
* Consumers may have extra rights in some countries
or states.
Important: Before loading a child for the first time
familiarise yourself with all fittings and straps.
Do not use tablecloths, place mats or other objects on
the ‘table’ surface as these might interfere with the
effectiveness of the lobster’s claws.

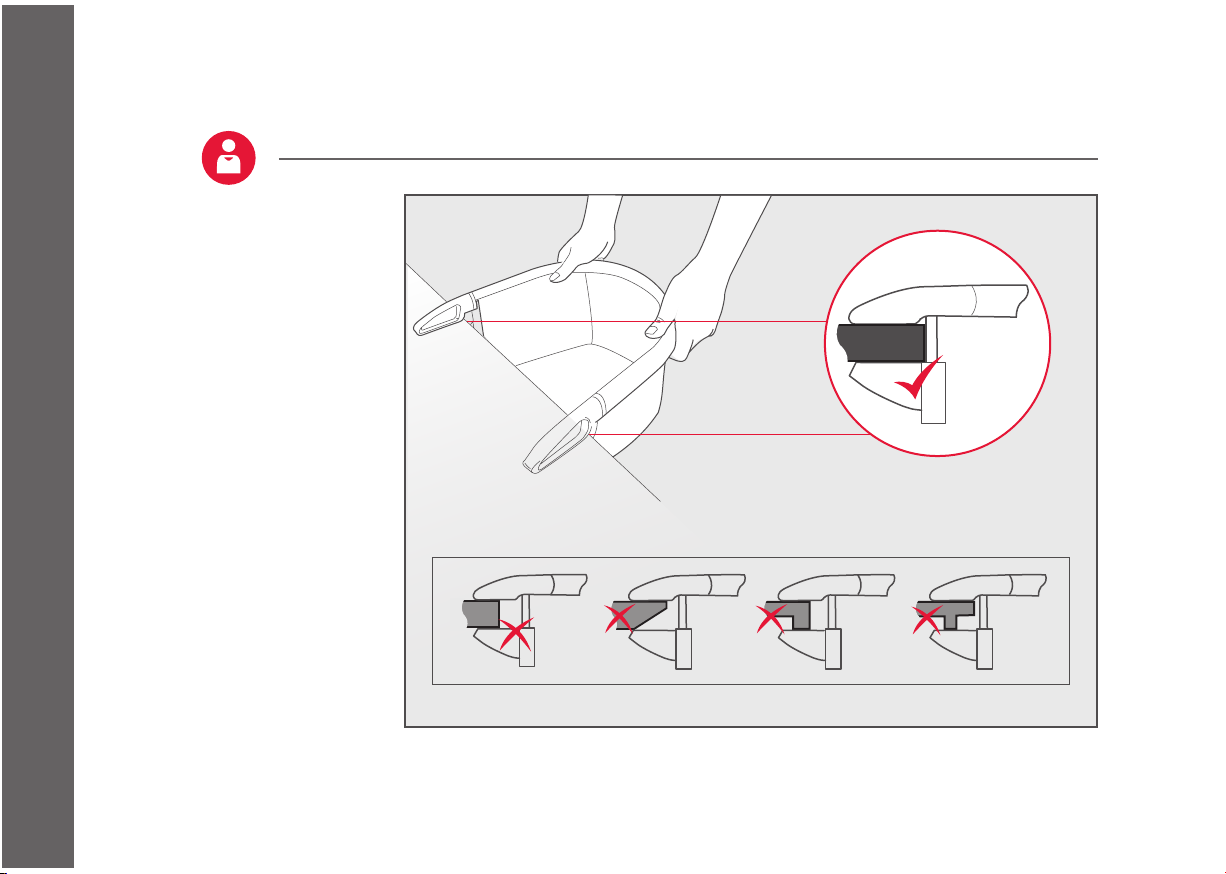

Only use on tables where both the upper and lower parts
of the claws make full contact with the table surfaces.
The person in charge bears the responsibility for
attaching the lobster seat firmly to a safe and stable
structure, and securely fastening the child safety harness
buckle.
The lobster seat is designed for children who are sitting
up on their own unaided, up to approx three years of age
and weighing no more than those weights stipulated by
European (EN) and American (ASTM) standards:
•EN1272:1998 - 15kg (33lbs)
•ASTMF1235-03(2008)-37lbs(17kg)
WARNINGS
European Safety Standard
EN 1272:1998 states:
Read the instructions carefully before use and
keep them for future reference. Your child’s
safety may be affected if you do not follow
these instructions.
The table mounted chair is not suitable for•
children who cannot sit unaided.
Check that the table will not tip when the•
table mounted chair, attached to it, is in use.
Minimum thickness of support surface•
20mm (approx 0.8 inches).
Maximum thickness of support surface•
95mm (approx 3 3/4inches).
Do not use tablecloths or other objects on•
the support surface which might interfere
with the proper functioning of the anchoring
elements.
Keep the table structure and surface clean•
and dry.
The table mounted chair shall not be used•
by children weighing more than 15kg.
EN
Routinely check any clamping screws and•
re-tighten them, if required. Check also the
suction pads.
We recommend that you routinely check•
the lobster claws (clamping devices) and
re-tighten them, we also recommend
checking the lobster’s rubber support pads
regularly.
Do not attach the table mounted chair•
where the child might use its feet to push
against a part of the table, another chair or
any other structure, as this could cause the
table mounted chair to come off the table.

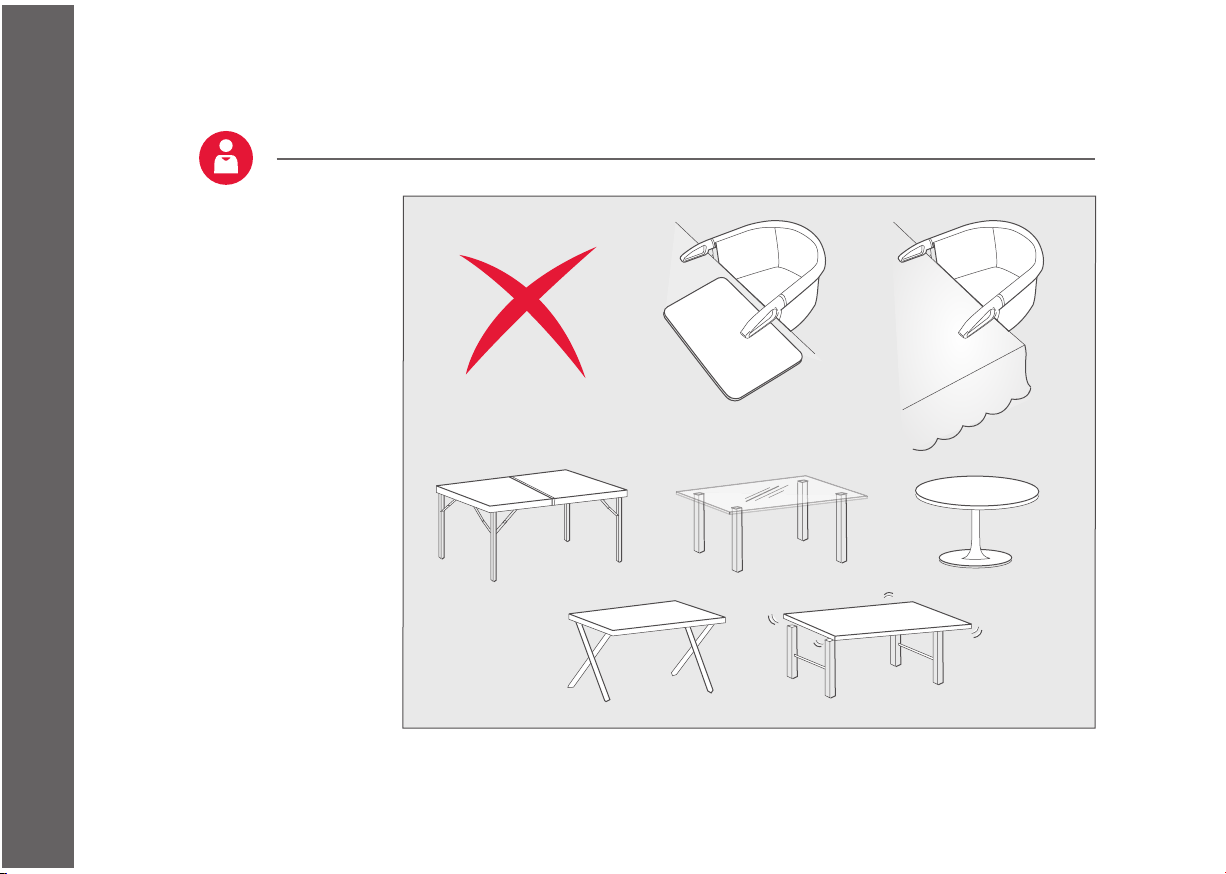

Do not use on glass topped tables, tables•
with loose table tops, table leaves, single
pedestal tables, card tables or camping
tables.
Do not use replacement parts other than•
those approved by the manufacturer or
distributor.
WARNING! Keep coverings away from
children to avoid suffocation.
WARNING! Never leave the child
unattended in this table mounted chair.
WARNING! Do not use the table mounted
chair if any components are broken or
missing.
WARNINGS
American Safety Standard
ASTM F1235 - 03 (2008) states:
Read all instructions before assembly and use
of chair. KEEP INSTRUCTIONS FOR FUTURE USE.
Recommended only for children•
capable of sitting upright unassisted.
Do not place ordinary chair under this•
hook-on chair or position this hook-on
chair on counters or tables that are near
structures which could be used by the child
to push the hook-on chair off or up from the
table or counter.
Use only for children up to 37lbs (17kg).•
Use only for tables 0.8 to 3• 3/4inches thick
(20 to 95mm).
Keep table and seat clean and dry to•
prevent slipping.
Discontinue use if hook-on chair is•
broken. Contact manufacturer immediately
for replacement parts or service.
Do not use without all tips (suction cups•
or other locking/latching mechanisms)
attached securely to table surface.
Discontinue use if child, when seated in•
hook-on chair, is able to move the hook-on
chair arms on the table top.
Do not allow other children to play near or•
walk under hook-on chair while in use.
Before removing child from hook-on chair,•
be sure child’s legs are free from hook-on
chair supports.
WARNING! Failure to follow all warnings
and instructions could result in serious injury
or death.
WARNING! Always secure child with the
restraints.
WARNING! Never leave child unattended.
Always keep child in view while in hook-on
chair.
WARNING! Do not use on a glass table top,
loose table top, single pedestal table, card
table, table leaf, or with table cloths or
placemats.
WARNING! Check stability of table before
and after seating child.
www.philandteds.com
102 -112 Daniell St, Newtown, Wellington, NZ/Nouvelle-Zélande
call/appelez +64 4 380 0833
fax/faxez +64 4 380 0137
Designed in New Zealand. Made in China
Concu en Nouvelle-Zélande. Fabriqué en Chine
Model LB issue July 2010
8008-0
