DISHWASHER

OWNER’S MANUAL

PD 1466 DBIT

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all

the instructions in this user’s manual.

EN - 1

CONTENTS

PART 1: SAFETY PRECAUTIONS......................................................................................................................3

PART 2: PRODUCT OVERVIEW ........................................................................................................................6

PART 3: USING YOUR DISHWASHER...............................................................................................................7

LOADING THE SALT INTO THE SOFTENER................................................................................................................................7

PART 4: BASKET LOADING TIPS......................................................................................................................9

LOADING THE BASKETS................................................................................................................................................................11

PART 5: QUICK USER GUIDE..........................................................................................................................13

CONTROL PANEL .............................................................................................................................................................................14

WATER SOFTENER ...........................................................................................................................................................................15

PREPARING AND LOADING DISHES.........................................................................................................................................16

FUNCTION OF THE RINSE AID AND DETERGENT................................................................................................................18

FILLING THE RINSE AID RESERVOIR .........................................................................................................................................19

FILLING THE DETERGENT DISPENSER.....................................................................................................................................20

WASH CYCLE TABLE........................................................................................................................................................................22

SAVING ENERGY...............................................................................................................................................................................23

STARTING A PROGRAM.................................................................................................................................................................23

CHANGING THE PROGRAM MIDCYCLE.................................................................................................................................23

FORGET TO ADD A DISH?.............................................................................................................................................................23

AUTO OPEN........................................................................................................................................................................................24

PART 6: MAINTENANCE AND CLEANING.....................................................................................................25

EXTERNAL CARE...............................................................................................................................................................................25

INTERNAL CARE ...............................................................................................................................................................................25

CARING FOR THE DISHWASHER................................................................................................................................................27

PART 7: INSTALLATION INSTRUCTION ........................................................................................................29

ABOUT POWER CONNECTION ...................................................................................................................................................29

WATER SUPPLY AND DRAIN........................................................................................................................................................30

CONNECTION OF DRAIN HOSES...............................................................................................................................................31

POSITIONING THE APPLIANCE...................................................................................................................................................31

BUILTIN INSTALLATION................................................................................................................................................................32

PART 8: TROUBLESHOOTING TIPS ...............................................................................................................36

AVAILABILITY OF SPARE PARTS..................................................................................................................................................38

PART 9: ERROR CODES...................................................................................................................................39

PART 10: TECHNICAL INFORMATION...........................................................................................................40

PART 11: PRODUCT INFORMATION SHEET .................................................................................................41

This appliance has been tested in accordance with the directives in force in the European Union.

This appliance conforms to the relevant safety provisions for electrical appliances in force in the

European Union.

EN - 2

Dear Customer,

Please read this manual carefully before using the dishwasher.

Keep this manual for future reference.

EN - 3

PART 1: SAFETY PRECAUTIONS

WARNING! Please adhere to the precautions below when using

the dishwasher:

t 5IJTBQQMJBODFDBOCFVTFECZDIJMESFOBHFEGSPNZFBSTBOE

above and by persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instructions concerning use of the

appliance in a safe way and if they understand the hazards

involved.

t $IJMESFONVTUOPUQMBZXJUIUIFBQQMJBODF

t $MFBOJOHBOEVTFSNBJOUFOBODFDBOOPUCFQFSGPSNFECZDIJMESFO

without supervision.

t 5IFEJTIXBTIFSJTEFTJHOFEGPSQMBDFTFUUJOHT

The correct placement of dishes in the dishwasher can be found

on page 11.

t *GUIFTVQQMZDBCMFHFUTEBNBHFEIBWFJUSFQMBDFECZB

specialized service center in order to avoid dangerous situations.

It is prohibited to use an appliance with the supply cable

damaged.

t %POPUMFBWFUIFEPPSJOUIFPQFOQPTJUJPOUPQSFWFOUUIFSJTLPG

tripping.

When storing dishes into the dishwasher:

- WARNING: Knives and other utensils with sharp points

and edges must be placed in the basket with points facing

downwards or stored horizontally.

- Sharp items should be placed so that they cannot damage the

door gasket.

EN - 4

This appliance is intended to be used only in households and not

in similar premises, such as:

– kitchenettes in shops, oces and other workplaces;

– appliances used appliances used by guests in hotels, motels,

andother accommodation facilities;

– appliances used in bed and breakfast facilities;

– appliances used in catering and other similar non-

vendingenvironments.

- Do not use the dishwasher to wash plastic items that have

not been labeled as dishwasher safe by the manufacturer. The

presence of plastic dishes in the dishwasher causes worsening

of drying process results. Please adhere to the manufacturer’s

recommendations regarding plastic items that have not been

labeled as dishwasher safe.

- For dishwashers that are equipped with ventilation openings in

their bottom section, these openings must not be covered with a

carpet.

t %POPUTJUPSTUBOEPOUIFEPPSBOEEJTICBTLFUTPGUIF

dishwasher and to not use force during operation.

t %POPUQMBDFBOZIFBWZJUFNTPOUIFBQQMJBODFBOEEPUPTUBOE

on the door when it is open. The appliance might tip over

towards the front.

Use only detergents and polishing agents intended to be used with

automatic dishwashers. Never use soap, detergents or washing

agents for manual dish washing.

Make sure to prevent children from accessing detergents and

polishing agents and also open door of the dishwasher that might

contain residues of the agents as they are strongly alcaline and

might be very dangerous.

EN - 5

The appliance, the power cord or the electric outlet must not lie

in, tough or be submerged in water or any other liquid to avoid

electrical hazards.

If the power cord gets damaged, it must be replaced by the

manufacturer, its service technician or another person with similar

qualication so that safety is not jeopardized.

The appliance must not stand on the power cord.

The appliance should be connected to the water supply using a

new hose, not using a hose that has already been used.

Dispose of packaging in a proper manner.

The power cord must not be excessively or dangerously bent or

compressed during installation.

The controls are not to be played with.

Make sure that the openings in the bottom part of the appliance

are not blocked by the carpet.

The dishwasher should be used only for the purpose it was

intended for - for washing dishes.

This dishwasher is for interior use only.

PLEASE READ THOSE SAFETY PRECAUTIONS CAREFULLY AND

STORE THEM FOR FUTURE REFERENCE.

EN - 6

PART 2: PRODUCT OVERVIEW

IMPORTANT:

To get the best performance from your dishwasher, read all operating instructions before using it for

the rst time.

Inner pipe

Salt container

Dispenser

Lower spray arm

Filter assembly

Filter assembly Lower basketUpper basket

Cutlery rack Upper spray

arm

Cup rack

NOTE:

Pictures are only for reference, dierent models may be dierent.

EN - 7

PART 3: USING YOUR DISHWASHER

Before using your dishwasher:

Inside Outside

1. Set the water softener

2. Loading the salt Into the softener

3. Loading the basket

4. Fill the detergent dispenser.

Please check the “Water Softener”, if you need to set the water softener.

Loading The Salt Into The Softener

NOTE:

If your model does not have any water softener, you may skip this section.

Always use salt intended for dishwasher use.

The salt container is located beneath the lower basket and should be lled as explained in the following:

WARNING:

xOnly use salt specically designed for dishwashers use!

Every other type of salt not specically designed for dishwasher use, especially table salt, will damage the

water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give

any warranty nor is liable for any damages caused.

xOnly ll with salt before running a cycle.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of

the machine for any period of time, which may cause corrosion.

EN - 8

Please follow the steps below for adding dishwasher salt:

1. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg of dishwasher salt.

3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water to come

out of the salt container.

4. After lling the container, screw back the cap tightly.

5. The salt warning light will turn o after the salt container has been lled with salt.

6. Immediately after lling the salt into the salt container, a washing program should be started (We

suggest to use a short program). Otherwise the lter system, pump or other important parts of the

machine may be damaged by salty water. This is out of warranty.

NOTE:

xThe salt container must only be relled when the salt warning light (

) in the control panel comes on.

Depending on how well the salt dissolves, the salt warning light may still be on even though the salt

container is lled.

xIf there is no salt warning light in the control panel (for some models), you can estimate when to ll the

salt into the softener by the cycles that the dishwasher has run.

xIf salt has spilled, run a soak or quick program to remove it.

EN - 9

PART 4: BASKET LOADING TIPS

Adjusting the upper basket

Type 1:

The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or

lower basket.

To adjust the height of the upper rack, follow these steps:

1. Pull out the upper basket. 2. Remove the upper basket.

3. Re-attach the upper basket to upper or lower

rollers.

4. Push in the upper basket.

lower position

upper position

EN - 10

Type 2

1. To raise the upper basket, just lift the upper

basket at the center of each side until the basket

locks into place in the upper position. It is not

necessary to lift the adjuster handle.

2. To lower the upper basket, lift the adjust handles

on each side to release the basket and lower it

to the lower position.

Folding back the cup shelves

To make room for taller items in the upper basket, raise the cup rack upwards.

You can then lean the tall glasses against it.

Folding back the rack shelves

The spikes of the lower basket are used for holding plates and a platter.

They can be lowered to make more room for large items.

raise upwards fold backwards

EN - 11

Loading the baskets according to EN60436

Loading the dishwasher to its full capacity will contribute to energy and water savings.

1. Upper basket:

1Cups

2Saucers

3Glasses

4Mugs

5Oven pot

6Small pot

2. Lower basket:

11 7

12 7 9

11 8

7Dessert plates

8Dinner plates

9Soup plates

10 Oval platter

11 Melamine dessert plates

12 Melamine bowls

13 Glass bowl

14 Dessert bowls

15 Cutlery basket

EN - 12

3. Cutlery rack:

NOTE:

Please place the light at wares on the shelf. The maximum loading weight is 1.5kg.

4. Cutlery basket:

1 1 1 1

1 1 1

1 1 1 1 1

2 2 2 2

3 3 3 3

4 4 4

4 4 4 4

44444

5 5

5 5 5 5 5 5 55 5 5

1 32 6444 5 7 8

1Soup spoons

2Forks

3Knives

4Tea spoons

5Dessert spoons

6Serving spoons

7Serving fork

8Gravy ladle

Information for comparability tests in accordance with EN60436

Capacity: 14 place settings

Position of the upper basket: lower position

Program: ECO

Rinse aid setting: Max

Softener setting: H3

EN - 13

PART 5: QUICK USER GUIDE

Please read the corresponding content on the instruction manual for detailed operating method.

1. Install the dishwasher

(Please check the section INSTALLATION INSTRUCTION.)

2. Remove larger residue from dishes.

Avoid pre-rinsing.

3. Load the baskets.

Inside Outside

4. Fill the dispenser with detergent and rinse aid. 5. Select a suitable program and start the

dishwasher.

EN - 14

Control Panel

  ( )

3 

Operation (Button)

Power Press this button to turn on your dishwasher.

Program Select the appropriate washing program, the selected program indicator will

be lit.

Half-load

When you have about or less than half of full place settings dishware to wash,

you can choose this function to save energy and water. (It can not be used

with Rapid.)

Delay

Press the Delay button to increase the delay start time. Delay a cycle for up to

24 hours in one-hour increments. After setting the delay time, press the Start/

pause button to start.

Display

Screen To show the remaining program time and delay time, error code etc.

Program indicator

Intensive

Heavily soiled items include pots and pans. With dried on food.

Universal

For normally soiled loads, such as pots, plates, glasses and lightly soiled

pans.

ECO

This is standard program, it is suitable to clean normally soiled

tableware and it is the most ecient program in terms of its combined

energy and water consumption for that type of tableware.

Glass

For lightly soiled crockery and glass.

90 min

For normally soiled loads that need quick wash.

Rapid

A shorter wash for lightly soiled loads that do not need drying.

EN - 15

Warning indicator

Rinse Aid

If the “ ”indicator is lit, it means the dishwasher is low on dishwasher

rinse aid and requires a rell.

Salt

If the “ ”indicator is lit, it means the dishwasher is low on dishwasher

salt and needs to be relled.

Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental

or adverse eect on the operation of the appliance.

The more minerals there are, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area.

Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting salt consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness

of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Openthe door, switch on the appliance.

2. Within 60 seconds after the appliance was switched on press the Program button for more than 5

seconds to enter the water softener setting mode.

3. Press the Program button again to select the proper set according to your local environment, the setting

will change in the following sequence: H1->H2->H3->H4->H5->H6.

4. Press the Power button to end the setting mode.

WATER HARDNESS

Water softner

level

Regeneration

occurs every

X program

sequence 1)

Salt

consumption

(gram/cycle)

German

°dH French °fH British

°Clarke Mmol/l

0 - 5 0 - 9 0 - 6 0 - 0.94 H1 No regeneration 0

6 - 11 10 - 20 7 - 14 1.0 - 2.0 H2 10 9

12 - 17 21 - 30 15 - 21 2.1 - 3.0 H3 5 12

18 - 22 31 - 40 22 - 28 3.1 - 4.0 H4 3 20

23 - 34 41 - 60 29 - 42 4.1 - 6.0 H5 2 30

35 - 55 61 - 98 43 - 69 6.1 - 9.8 H6 1 60

1°dH = 1.25 °Clarke = 1.78 °fH = 0.178 mmol/l

The factory setting: H3

1) Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy

consumption increases by 0.02 kWh and the program extents by 4 minutes.

EN - 16

Please check the section Loading The Salt Into The Softener, If your dishwasher lacks salt.

NOTE:

If your model does not have any water softener, you may skip this section: Water Softener

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will

form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specically designed to

eliminate lime and minerals from the water.

Preparing And Loading Dishes

xConsider buying utensils which are identied as dishwasher-proof.

xFor particular items, select a program with the lowest possible temperature.

xTo prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program

has ended.

For washing the following cutlery/dishes

Are not suitable

xCutlery with wooden, horn china or mother-of-pearl handles

xPlastic items that are not heat resistant

xOlder cutlery with glued parts that are not temperature resistant

xBonded cutlery items or dishes

xPewter or cooper items

xCrystal glass

xSteel items subject to rusting

xWooden platters

xItems made from synthetic bres

Are of limited suitability

xSome types of glasses can become dull after a large number of washes

xSilver and aluminum parts have a tendency to discolor during washing

xGlazed patterns may fade if machine washed frequently

Recommendations for loading the dishwasher

Scrape o any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to

rinse the dishes under running water.

For best performance of the dishwasher, follow these loading guidelines.

(Features and appearance of baskets and cutlery baskets may vary from your model.)

Place objects in the dishwasher in the following way:

xItems such as cups, glasses, pots, pans, etc. must face downwards.

xCurved items, or ones with recesses, should be loaded aslant so that water can run o.

xAll utensils are stacked securely and can not tip over.

xAll utensils are placed in the way that the spray arms can rotate freely during washing.

xLoad hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water

cannot collect in the container or a deep base.

xDishes and items of cutlery must not lie inside one another, or cover each other.

EN - 17

xTo avoid damage, glasses should not touch one another.

xThe upper basket is designed to hold more delicate and lighter dishware such as glasses, coee and tea

cups.

xLong bladed knives stored in an upright position are a potential hazard!

xLong and sharp items of cutlery such as carving knives must be positioned horizontally in the upper

basket.

xPlease do not overload your dishwasher. This is important for good results and for reasonable consumption

of energy.

NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the

lower basket rst, followed by the upper basket.

WARNING

Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15

minutes after the program has ended.

Loading the upper basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coee and tea cups

and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the

dishes and cookware so that they will not get moved by the spray of water.

Loading the lower basket

We suggest that you place large and dicult to clean items into the lower basket: such as pots, pans, lids,

serving dishes and bowls, as shown in the gure below. It is preferable to place serving dishes and lids on the

side of the racks in order to avoid blocking the rotation of the top spray arm.

The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper

the opening of it.

EN - 18

Loading the cutlery basket

Cutlery should be placed in the cutlery basket separate from each other in the appropriate positions. Avoid

nesting of the cutlery to prevent insucient cleaning performance.

WARNING

Do not let any item extend through the bottom.

Always load sharp utensils with the sharp point down!

For the best washing eect, please load the baskets refer to standard loading options.

Function Of The Rinse Aid And Detergent

The rinse aid is released during the nal rinse to prevent water from forming droplets on your dishes, which

can leave spots and streaks. It also improves drying by allowing water to run o the dishes. Your dishwasher is

designed to use liquid rinse aids.

WARNING

Only use branded rinse aid for dishwasher. Never ll the rinse aid dispenser with any other substances (e.g.

Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to rell the rinse aid

The regularity of the dispenser needing to be relled depends on how often dishes are washed and the rinse

aid setting used.

xThe Low Rinse Aid indicator (

) will be lit when more rinse aid is needed.

Do not overll the rinse aid dispenser.

Function of detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt

out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

WARNING

xProper Use of Detergent

Use only detergent specically made for dishwashers use. Keep your detergent fresh and dry.

Do not ll detergent into the dispenser until you are ready to start the dishwasher.

xDishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

This manual suits for next models

Table of contents

Other Philco Dishwasher manuals

Philco

Philco PD 860 User manual

Philco

Philco PDA 1291 BIX User manual

Philco

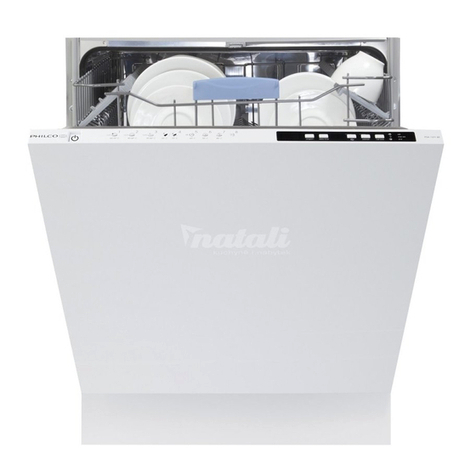

Philco PDA 1291 BIT User manual

Philco

Philco PDT 66 F User manual

Philco

Philco PD 1562 W User manual

Philco

Philco PD 1070 User manual

Philco

Philco PD 1062 BiS User manual

Philco

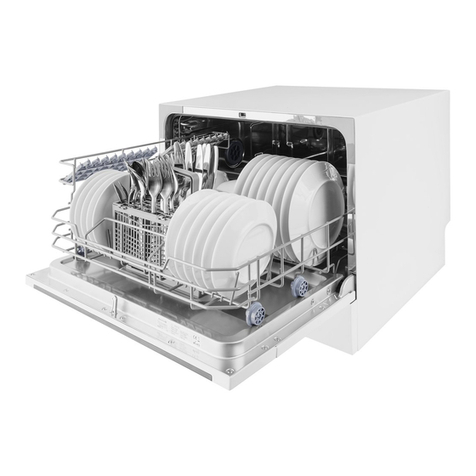

Philco PDT 671 User manual

Philco

Philco PDI 1568 DTBISX User manual

Philco

Philco PD 1142 X User manual

Philco

Philco 204276237 User manual

Philco

Philco PD 1052 BiT User manual

Philco

Philco PDI 1468 BBIT User manual

Philco

Philco PDP 4 WH User manual

Philco

Philco PDA 1482 BiT User manual

Philco

Philco PD 1080 User manual

Philco

Philco PD 1046 ET User manual

Philco

Philco PD 1060 BIT User manual

Philco

Philco PDI 1568 DTBIS User manual

Philco

Philco PD 125 IQ User manual

Philco

Philco PD 1462 BiS User manual

Philco

Philco PDA 1281 User manual

Philco

Philco PD 1273 BiT User manual

Philco

Philco PD 1045 EA User manual

Popular Dishwasher manuals by other brands

Kenmore

Kenmore Kenmore 665.16512 Use & care guide

Blanco

Blanco BDW 203 instructions

Sharp

Sharp QW-NA31F45EIO-EN user manual

LG LSDT9908ST owner's manual

GE CDWT980RSS - Cafe 24" Tall Tub Dishwasher Energy guide

AEG

AEG FAVORIT 348 operating instructions

Smeg

Smeg Dishwashwer Instructions for installation and use

Esatto

Esatto EDWI605S user manual

DeLonghi

DeLonghi DW97AU instruction manual

Zline

Zline DW7714-18 manual

Kuppersberg

Kuppersberg GL4505 Technical Passport

KitchenAid

KitchenAid KUDS23HB Use and care guide

LG LDF8574ST Specifications

KitchenAid

KitchenAid KDFM404KPS owner's manual

AEG

AEG FSE76727P user manual

LG D1450WLFB1 owner's manual

Hotpoint Ariston

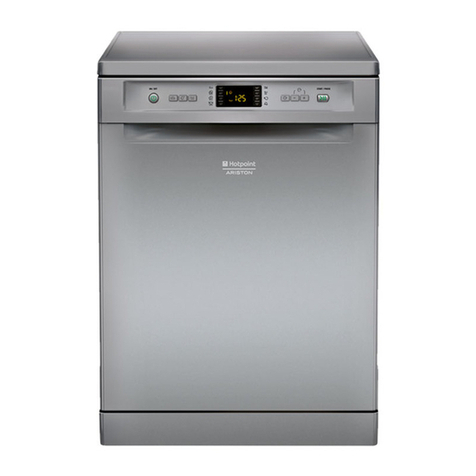

Hotpoint Ariston LFF 8M121 operating instructions

Hobart

Hobart ET-20 instruction manual

Philco PD 1466 DBIT User manual

Popular Dishwasher manuals by other brands
