Alarm/Action Box
Table of contents
Page
Introduction .................................................................................................................4
Installation....................................................................................................................6
Mounting the box
Installation and setting of an optional
Passive Infra-Red (PIR) detector
Location of the PIR
Installation of the PIR
PIR settings
Walk test LED
Pulse counter
System cable
Action output
Alarm input
Settings..........................................................................................................................13
Designating the box (CAMERA # switch)
Box number
Tamper switch active
Last in line switch
Double addressing error
English
g
Read these instructions, before putting your system in operation
English
3
g

Introduction
Thank you for buying this accessory for your observation system.

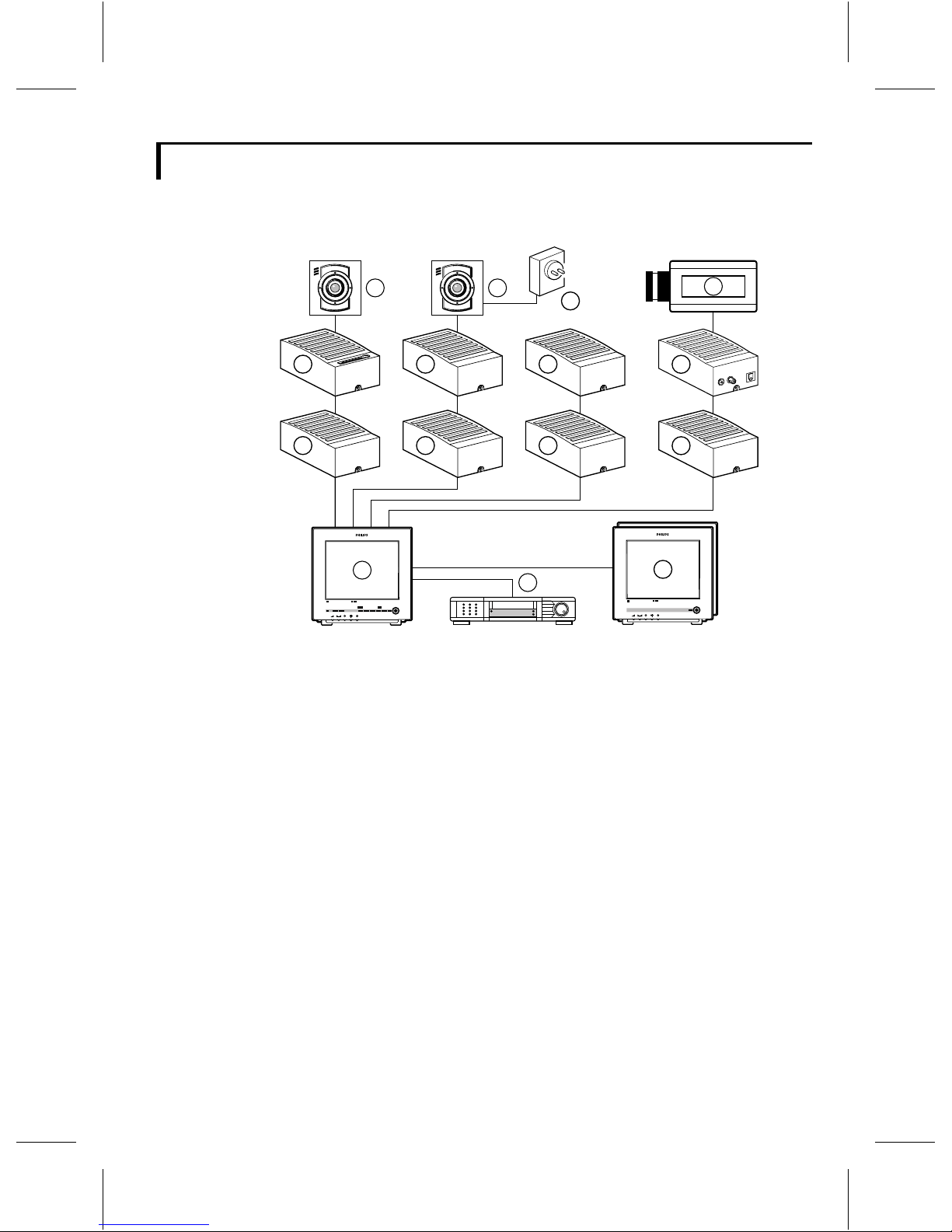

1 System monitor
2 Video recorder (VCR)
3 Slave monitor
4 Accessory boxes (0-2 per cable)
5 Interface box
6 System cameras
7 Non system cameras (CVBS)
8 Mains power adapter
The following items are included in this kit:
1 Alarm/action box
1 System cable (5m/15ft)
1 User manual
1 PIR unit (for version with PIR)
1 Cable (50 cm) for interconnection between alarm/action box and
PIR (for version with PIR)
Colour Observation Monitor
CL 66610005_005b.AI
4
6 6 7
2
talk action menu _+next
auto view
Colour Observation system
Colour Observation Monitor
4 4
4
4
4
4
5
3
1
R
A
E
N
>
<
R
A
F
R
A
E
N
>
<
R
A
F
8
g
4

N.O. = Normally Open
N.C. = Normally Closed
The alarm/action box performs two distinct functions:
1 Action
This function, for example, opens a door remotely.
Pressing the action button of the system monitor activates a relay contact.
This contact (N.O., N.C.) can activate, for instance, a door opener.
Note that the action button only activates the action box designated to
the camera input whose picture is shown on the monitor screen.
2 Alarm
This function provides alarm inputs to the security system. All kinds of
detectors having a N.O. or N.C. contact are supported, for example:
•infrared detectors
•smoke detectors
•magnetic door/window contacts
When a detector triggers the alarm/action box, the system monitor
automatically switches to the camera input the alarm/action box is
designated to. The system monitor produces an alarm and activates its
alarm contact.
There are two versions of the alarm/action box: one with a Passive
InfraRed (PIR) motion detector and one without. The description in this
manual applies to both versions.
If the automatic camera sequence is active, it stops at the camera input in
question.
CL 66610005_511.AI
N.O.
N.C.
common
5
g

Installation
Remark: When the system configuration is altered, the system monitor needs to check
and memorize the configuration of the cameras and accessories connected to its inputs.
This is done automatically when the power is switched on. Use the power switch to
switch off. Operating the power save key is not sufficient.
If switching off is impracticable, use the auto install option of the system monitor's
install menu.
Mounting the box
1 Loosen the screw holding the cover and remove the cover.
2 Remove the circuit board 1.
3 Fasten the bottom plate of the box with two screws.
CL 66610005_501.AI
CL 66610005_502.AI
CL 66610005_504.AI
g
6

4 Fit the circuit board.
5 Now make the connections as described in section 'Action output'.
Remark: See section 'Installation and setting of an optional Passive
Infra-Red (PIR) detector', for installation and connection of an PIR-detector.
6IMPORTANT: Adjust the settings of the circuit board switches to
configure the box according to your system. See section 'settings'.
7 Fit the cover and secure the screw holding it.
Installation and setting of an optional Passive Infra-Red
(PIR) detector
Location of the PIR
The position of the PIR determines its view.
Select a location where an eventual burglar is most likely to be detected.
Place the sensor at a height of ± 2.2 m to accomplish the largest field of
view (see figure below).
Sensor range (lens position 0°)
Side view Top view
Be aware of the following before mounting the PIR:
•Avoid a location of the PIR near to radiators, heating/cooling ducts or
air conditioners.
•Do not point the sensor's field of view to windows subject to direct
sunlight or drafts.
•Do not block the sensor's field of view by placing large objects in its line
of sight (e.g. curtains, potted plants, furniture).
4M
13.15Ft 8M 26.3Ft 14M 46Ft
2.2M
7.2Ft
110
O
CL 76610006_001.AI
7
g

Installation of the PIR

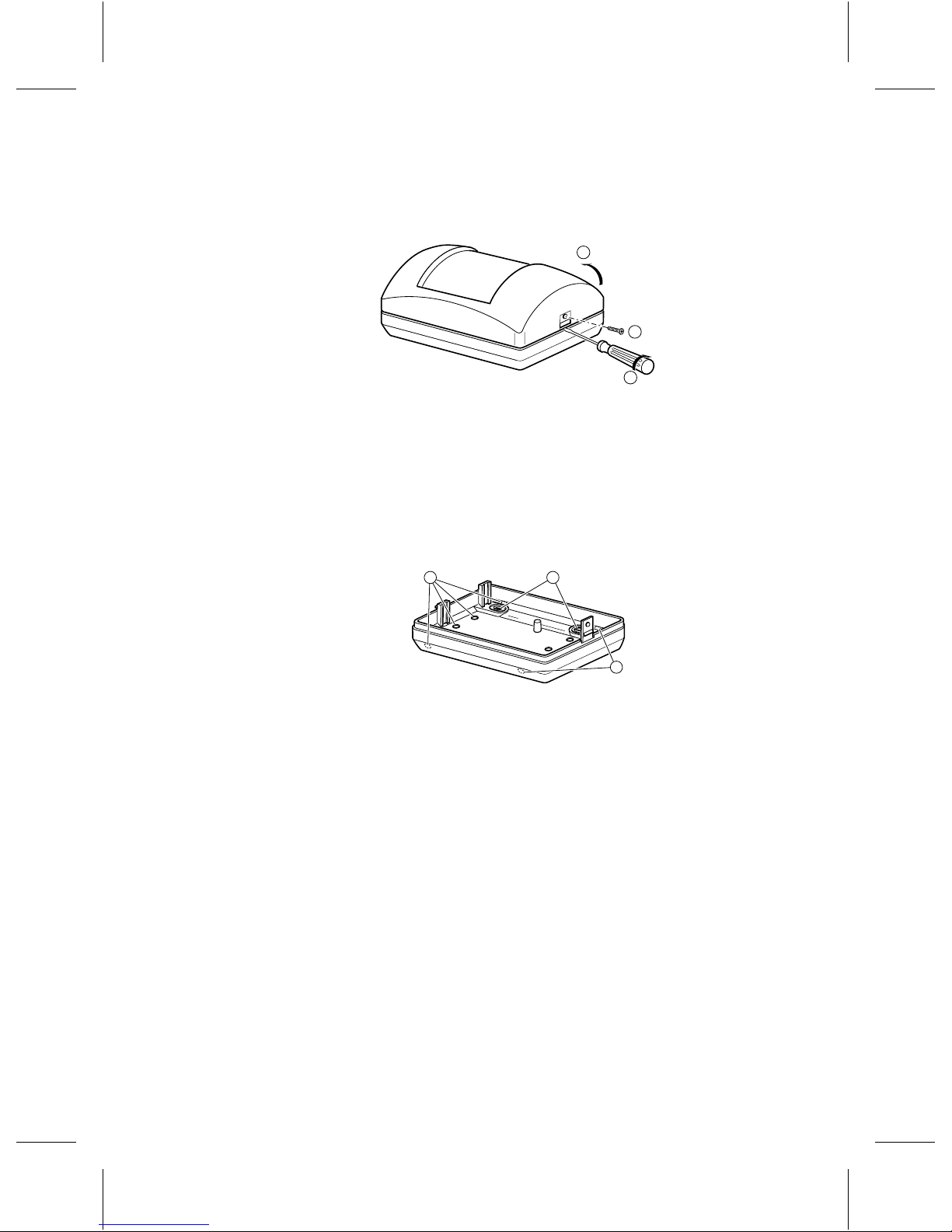

1 Remove the fixation-screw (1) and open the housing by releasing the
locking latch (2). Both are located at the bottom of the unit.
2 Remove the circuit board by loosening the fixation-screw (1).
Warning: Never touch the face of the PYRO sensor (refer to lay out drawing
next page).
3 Knock out the desired mounting holes (1) and wiring holes (2) in the
bottom plate.
4 Thread the wires through the knocked out wiring hole(s).
5 Fasten the bottom plate with two screws, using the mounting holes.
6 Fit the circuit board.
CL 76610006_002.AI
3
1
2
CL 76610006_003.AI
1
1 2
g
8

Adjust lens position (0°, -5° or -10°) according to desired maximum
sensor range (see table below).
Remark: Do not use positions +5° or +10° as they do not apply to this PIR.
Sensor height Maximum sensor range (m) / Lens position (°)
0° -5° -10°
2.5 m 14 m 12.5 m 11 m
2.0 m 12 m 10.5 m 9.5 m
1.5 m 10 m 8.5 m 8 m
7 Make the interconnections between the PIR and the alarm/action box
with the cable supplied (see figure below).

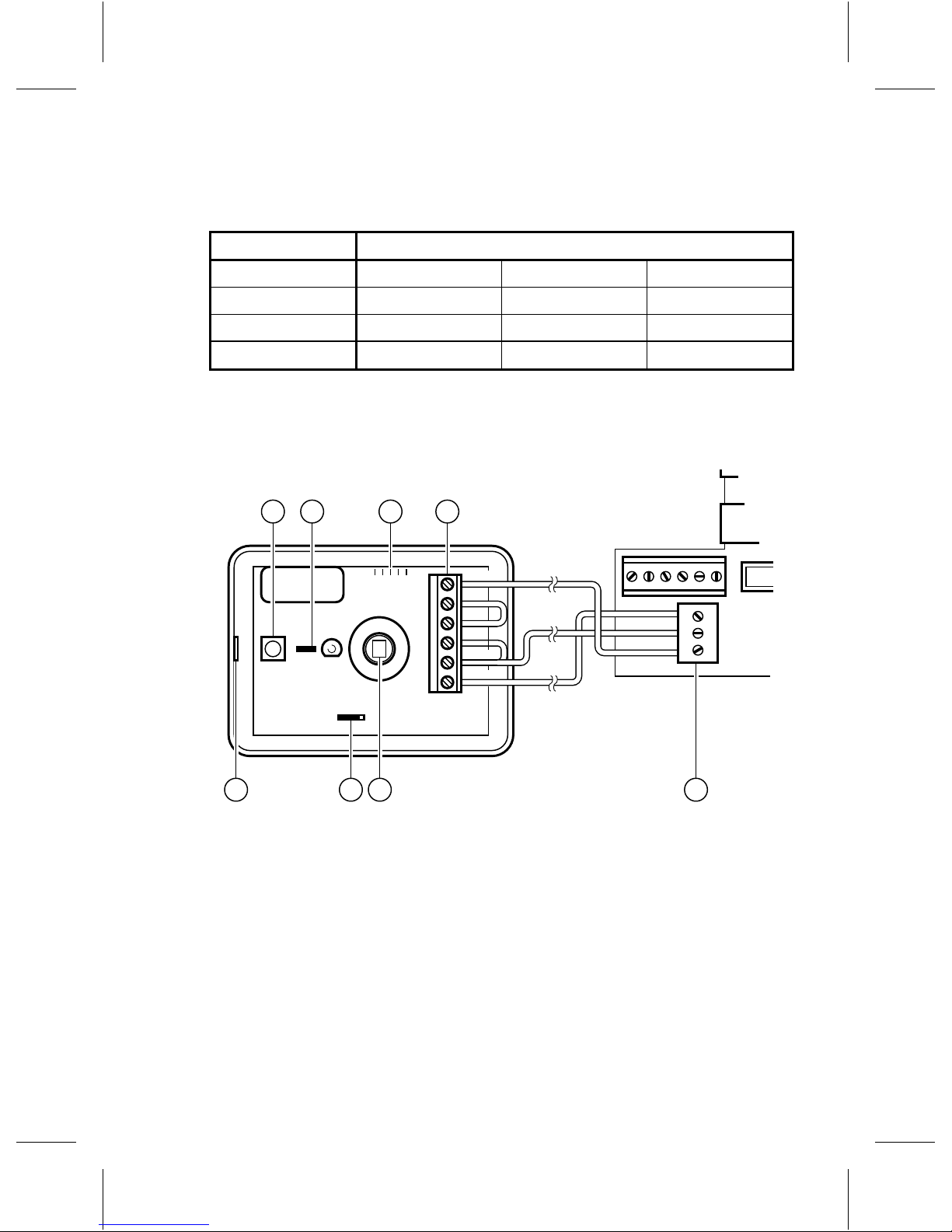

1 Terminal block (for interconnection with alarm/action box)
2 Lens position (sensor range adjustment)
3 Jumper (walk test LED activated/deactivated)
4 Tamper switch
5 PYRO sensor
6 Jumper (1, 2 or 3 pulse count)
7 Locking latch
8 Terminal block in alarm/action box
CL 76610006_004.AI
5 87 6
2 14 3
GND
NC
+12V
+10
+5
0
-5 -10
+_NC
PIR
9
g

8 Adjust settings of walk test LED and/or pulse counter, if required.
See section 'PIR settings'.
9 Fit the front cover. Check if it is locked to the bottom side.
10 Fasten the fixation-screw.
Remark: The PIR detector will start detecting movement approximately 2 minutes
after mains power-on.
PIR settings
There are 2 jumpers to set the PIR to your own requirements:
•Walk test LED
•Pulse counter (1, 2 or 3)
See previous figure for the location of the jumpers.
Walk test LED
•jumper installed:
Walk test LED is activated. When the PIR sensor is triggered, the LED
will light.
•jumper not installed:
Walk test LED is deactivated.
Pulse counter

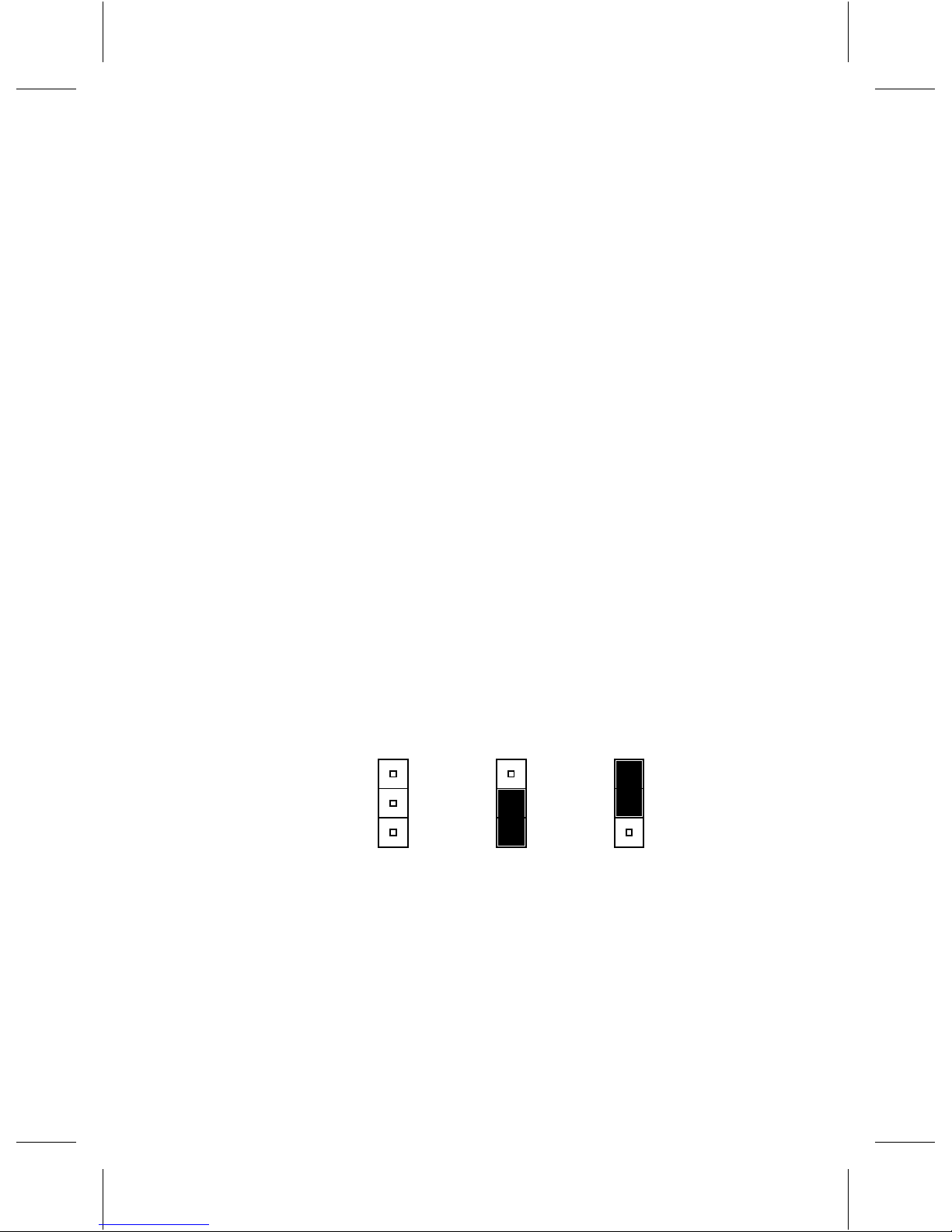

Set this jumper to select the number of times the sensor must be triggered
(1, 2 or 3 times) before an alarm is generated.
The following jumper settings are possible:
Remark: The PIR detector is equiped with a 'detection window'. In case of an
alarm, 15 seconds after the last movement has been detected, a new alarm can be
generated.
CL 76610006_005.AI
2X 3X1X
3P
2P
3P
2P
3P
2P
g
10

System cable
For the interconnections between the monitor, accessories and camera a
system cable is supplied. For optimum picture and sound quality you
should always use 4-wire dual twisted-pair cable when extending the
connection (max. 300m/900ft). The cable and plugs are available in the
hobby and professional trade. Pay attention that the connectors are fixed
to the cable corresponding to the figure below.
If the cable length between monitor and camera exeeds 200m/600ft after
an accessory is inserted in the line a mains power adapter should be used
to power the camera (see accessories).
Caution: The plugs used for the observation system have the same dimensions as
standard telephone plugs.
Never connect the security system with telephone equipment!
The two sockets for the system cable are interchangeable. One socket
connects the box to the system component previous in the cable, the
other to the next (if any).
CL 66610005_006.AI
5
4
3
2
4-5
2-3
5
4
3
2
4-5
2-3
5
4
3
2
5
4
3
2
11
g

Action output

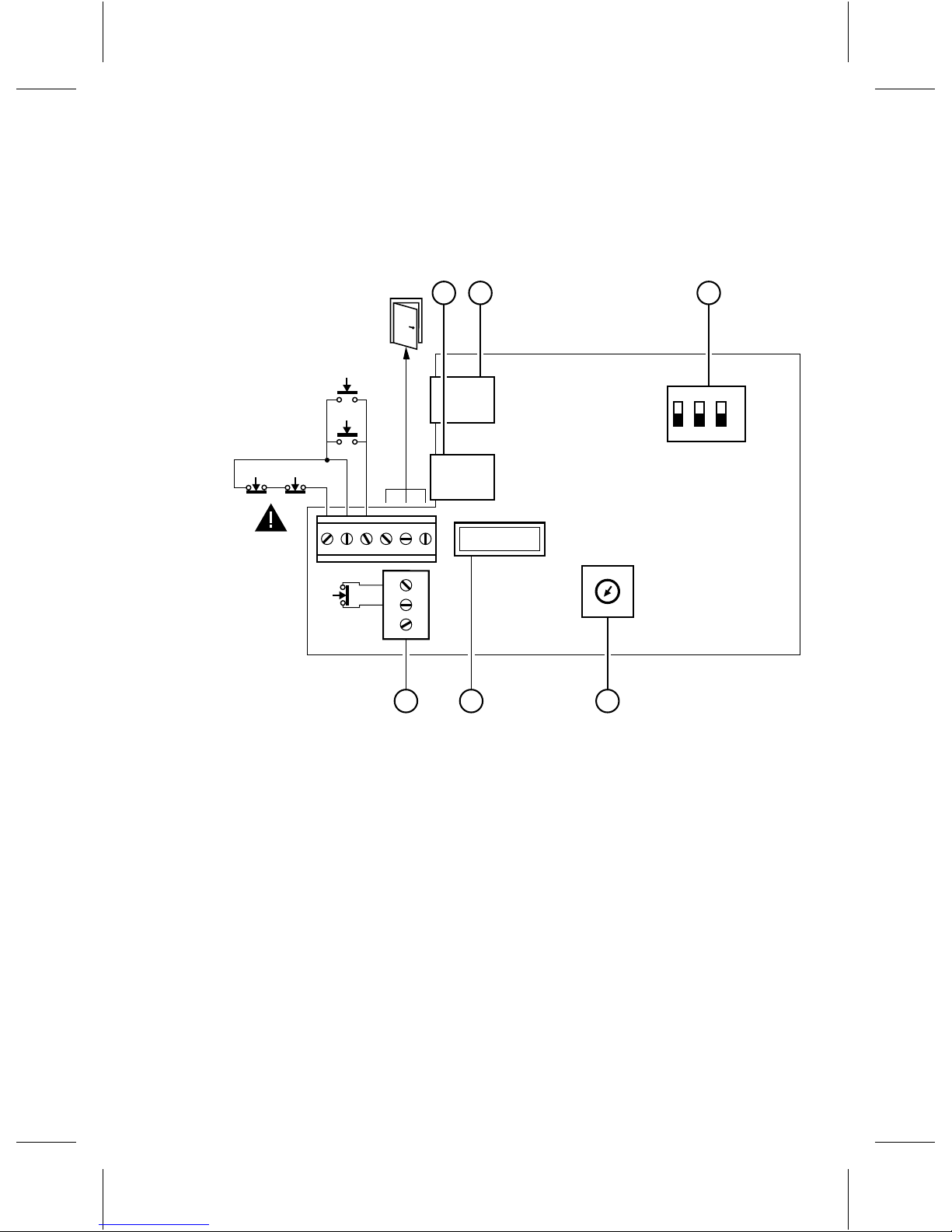

The figure below shows the screw terminals to which, for example, a
door-opener circuit can be connected.
1 System-cable input
2 System-cable output
3 Switches 1, 2 & 3
4 Rotary switch (designates the box to a camera input)
5 Tamper switch
6 Terminal block for optional Passive Infra-Red detector
6CL 66610005_505.AI
123
7
68
9
40
1
23
5
45
21 3
CAMERA #
1 BOX TAMPER N LAST
ON OFF
2
Y
OFF
+_NC
PIR
g
12

Alarm input
The alarm/action box provides inputs for detectors with N.O. and N.C.
contacts. The figure above shows how they are connected to the screw
terminals of the box.
Note: - When no detectors with N.C. contacts are used terminals 1and 2must be
interconnected with a wire.
- When no PIR detector is used terminals NC and –of terminal block (6)
must be interconnected with a wire.
Settings
Four switches - located inside the case, on the circuit board - are used to
configure the circuit according to the system.
•The rotary switch designates the box to a particular camera input.
•The three small slide switches have the following functions:
Switch Off On Description
1 BOX 1 2 number of accessories
2 TAMPER TAMPER OFF tamper-switch override
3 LAST N Y last accessory box
Designating the box (CAMERA # switch)
Designating a box to a camera input means that system monitor
associates the box with a certain camera input (the designated input)
although it is physically connected to another. This causes the system
monitor to switch to the camera connected to that input when for
example an alarm is triggered or the doorbell button pressed. This gives
you the opportunity to use the shortest route when wiring a box.
The figure below shows for example a two camera system with three
accessory boxes. The switches CAMERA # are set according to the camera
(input) to which the boxes are designated.
13
g

Note: Switch positions 0 and those beyond the maximum number of inputs have no
function.
When two alarm/action boxes are addressed to the same camera input,
both boxes will activate the action relay when the action button on the
system monitor is pressed.
Remark: The maximum amount of accessories on one camera input is two intercom
boxes and two alarm/action boxes.
CL 66610005_510b.AI
2
1
2
7
689
40 1
23
5
CAMERA #
7
689
40 1
23
5
7
689
40 1
23
5
CAMERA #
CAMERA #
talk action menu _+next
auto view
Colour Observation system
R
A
E
N
>
<
R
A
F
1
R
A
E
N
>
<
R
A
F
g
14

Box number
This switch (BOX) informs the circuit about the accessory number when
two boxes are designated to the same camera input of the system
monitor. A maximum of two alarm/action boxes can be designated to
one camera input.
Switch 1 (BOX)
position description
1 first box which is designated to the camera input set
by CAMERA #
2 second box which is designated to the camera input
set by CAMERA #
Tamper switch active
On the circuit board a tamper switch secures the box. When opening the
box this switch triggers an alarm on the monitor. To suppress a
continuous alarm message while servicing the system, the tamper-switch
override is set in the OFF position.
Caution: Don't forget to reactivate the tamper switch by switching the override to
the TAMPER position!
Last in line switch
Set this switch to Y(es) if this alarm/action box is the last accessory box
in the system cable (seen from the system monitor).
15
g

Double addressing error
Two alarm/action boxes or intercom boxes, which are designated to the
same camera input, have the same 'box-number'.
Remark: Although the cameras will work, none of the accessories in any camera line
will be functioning.
If the system monitor detects two boxes with the same designation and
box number, it shows the following error message:
DOUBLE ADDRESSING
“Accessory name”
INPUT X/X
Change from one alarm/action box the BOX switch or the CAMERA #
switch.
Explanation:
INPUT X/X
the physical camera input numbers to
which the double addressed boxes are
connected.
g
16

Technical specifications
Power supply through the system cable (24VDC)
Contact ratings action relay 30V, 5A AC/DC
Alarm input trigger threshold > 150Ω(N.C. input)
< 150Ω(N.O. input)
System connectors RJ11E modular ('telephone' connectors)
System cable 4-wire dual twisted-pair telephone cable
PIR angle of sight
•horizontal 110°
•vertical 20°
Dimensions
•without PIR 119 x 77 x 40 mm
Ambient conditions ammonia resistant
Temperature
•operating +10...+45°C
•storage -25...+70°C
Humidity
•operating 20...90%RH
•storage 20...99%RH
Specifications may change without notice.
171
