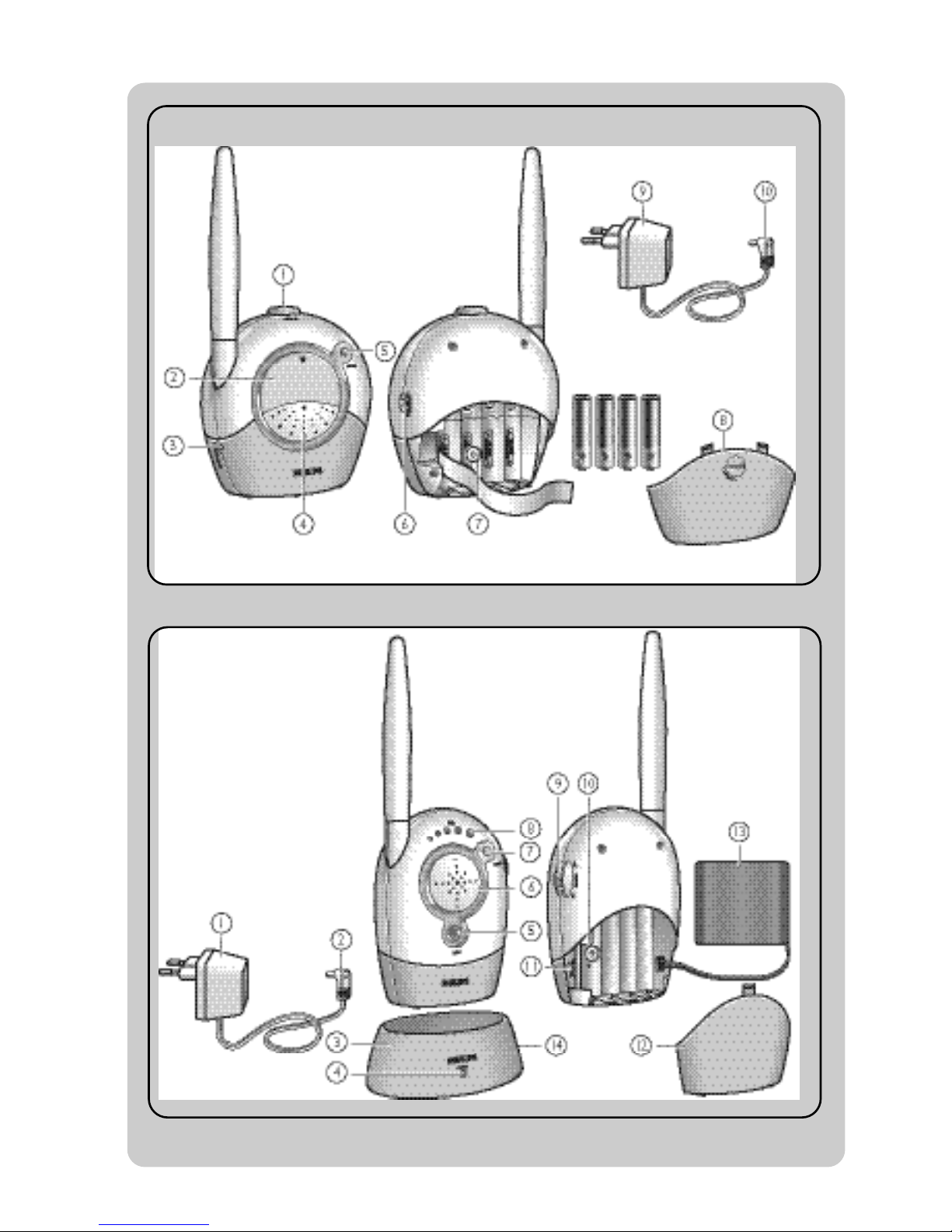

A. Baby unit
B. Parent unit

A. Baby unit
A-1 ON/OFF button
A-2 Night light
A-3 DC 9V ——<<++power supply jack
A-4 Microphone
A-5 POWER light
A-6 Microphone sensitivity switch
A-7 Channel selection switch
A-8 Battery compartment cover
A-9 AC power adapter
A-10 Power plug
B. Parent Unit
B-1 AC power adapter
B-2 Power plug
B-3 Charging base
B-4 Charging light
B-5 LINK light
B-6 Loudspeaker
B-7 POWER light
B-8 Sound level lights
B-9 ON/OFF switch / VOLUME control
B-10 Channel selection switch
B-11 LINK alarm switch
B-12 Battery compartment cover
B-13 Rechargeable battery pack
B-14 DC 9V ——<<++power supply jack
C.What else you’ll need
– Coin (to open the battery compartment of baby unit)
– Small, flat screwdriver (to set the channel selection switches
and to open battery compartment of parent unit)
EN Legend of functions
4

EN
5
3 Illustrations
4 Legend of functions
4 Baby unit
4 Parent unit
4 What else you need
5 Contents
6 Welcome
6 Safety information
7 Getting your baby monitor ready
7 Baby unit
7 Parent unit
8 Using your baby monitor
9 Features
9 Avoiding interference
10 Adjusting microphone sensitivity
10 Monitoring baby silently
11 Switching the nightlight on and off
11 Switching the LINK alarm on and off
12 Troubleshooting
13 Frequently asked questions
14 Technical specifications
15 Important information
15 Replacing the battery packs
16 Environmental information
16 Maintenance
16 Need help?
Contents

Philips is dedicated to produce caring, reliable products to give
parents the reassurance they need.With this baby monitor you
can hear your baby from wherever you are in and around your
house.With sixteen different channel options you will
experience minimal interference.
Philips Baby Care, taking care together
Safety information
Please read this user manual carefully before using your baby
monitor and keep it for future reference.This baby monitor is
intended as an aid. It is not a substitute for responsible and
proper adult supervision and should not be used as such.
• Make sure the baby unit and adapter cable are always out of
reach of the baby (at least 1 meter / 3 feet away).
• Never place the baby unit inside the baby’s bed or playpen.
• Never cover the baby monitor (with a towel, blanket, etc.).
• Never use the baby monitor in moist places or close to
water.
• Check if the voltage indicated on the type plate of the
adapters (A-10, B-1) correspond to the local power voltage
before connecting to the AC power supply.
• Do not expose the baby monitor to extreme cold, heat or
light (e.g. direct sunlight).
• To prevent electric shock, do not open the inside of the baby
unit and parent unit (except for the battery compartment
cover)
• The antennas on both units are fixed; do not try to extend
them.
EN Welcome
6

EN
7
Baby unit
The baby unit can be mains or battery operated.When batteries
are installed, you have an automatic back up in case of mains
failure.
Mains operated use
1Connect the power adapter cord to the power supply jack
(DC 9V ——<<++- A-3) of the baby unit.
2Connect the AC power adapter (A-9) to a wall outlet.
➜The baby unit is now ready for mains operated use.
Battery operated use
1Remove the battery compartment cover (A-8) of the baby
unit, using a coin.
2
Insert four 1,5V AA batteries, noting the + and – configuration
inside the battery compartment (batteries are not supplied, we
recommend Philips Alkaline batteries).
3Close the battery compartment cover (A-8), using a coin.
➜The baby unit is now ready for battery operated use.
Parent unit
A rechargeable battery pack has already been installed in the
parent unit.
1Connect the power adapter cord (B-2) to the power supply
jack (DC 9V ——<<++- B-14) of the charging base (B-3).
2Connect the AC power adapter (B-1) to a wall outlet.
3Place the parent unit in the charging base (B-3).
> The charging light (B-4) lights up red.
4Leave the parent unit in the charging base (B-3) until the
batteries are fully charged (at least 14 hours).
>
When the batteries are fully charged, the charging light (B-4)
will gradually dim.The parent unit can now be taken out of
the charging base and used cordlessly for up to 10 hours.
Getting your baby monitor ready

> When the POWER light (B-7) flashes red, battery power is
low. Place the parent unit in the charging base (B-3) to
recharge the batteries.
➜The parent unit is now ready for use!
Using your baby monitor
1Position both units in the same room to test the connection.
Make sure the baby unit is at least 1 meter / 3 feet away from
the parent unit.
2Press the ON/OFF button (A-1) to switch on the baby unit.
> The POWER Light (A-5) lights up green.
3Switch on the parent unit using the ON/OFF switch (B-9) and
adjust the volume to the level you prefer using the VOLUME
control (B-9).
> The POWER light (B-7) lights up green.
> When connection has been established between the units,
the LINK light (B-5) on the parent unit lights up green.
4Position the baby unit at least 1 meter / 3 feet away from
your baby.
5Position the parent unit at the desired place within the
operating range of the baby unit but at least 1 meter / 3 feet
away from the baby unit. For more information on the
operating range see ‘Technical specifications’.
➜Your can now monitor you baby!
EN Getting your baby monitor ready
8

EN
9
Avoiding interference (channel selection)
Always make sure that the channel selection switches (A-7,
B-10) inside the battery compartments on both units are set to
the same position!
With the channel selection switches (A-7, B-10) you can select
sixteen different channel positions. If you experience
interference from other baby monitors, radio devices, etc. select
a different channel.
1Open the battery compartment covers (A-8, B-12) of both
units.
• Parent unit: use a screwdriver and slide down the cover.
• Baby unit: use a coin.
2
Lift up the rechargeable battery pack (B-13) of the parent unit.
If you are operating the baby unit on battery power, remove
the batteries from the unit.
3Use a small, flat screwdriver to rotate the inner circle of the
channel selection switches (A-7, B-10) to the desired position.
Make sure both units are set to the same channel.
4Put batteries and battery pack back in place.
5Close the battery compartment covers (A-8, B-12).
Features

Adjusting microphone sensitivity
With the microphone sensitivity switch (A-6) on the baby unit,
you can set the sound, coming from the baby unit, to the
desired level: low, mid or high.When set to the maximum level,
the baby unit monitors almost all sounds.You can only change
the microphone sensitivity if the connection between the baby
unit and the parent unit is established (when the LINK light
(B-5) lights continuously green).
• Use the microphone sensitivity switch (A-6) to adjust the
baby unit microphone sensitivity to the desired level.
You can use your own voice as a sound reference.
> The POWER light (A-5) on the baby unit lights up yellow
when a sound is picked up.
Monitoring baby silently
• Use the ON/OFF switch / VOLUME control (B-9) on the
parent unit to set the volume to the lowest level.
Do not switch off the parent unit completely!
> The sound level lights (B-8) on the parent unit visually alert
you to baby’s sounds.The more sounds your baby makes,
the more lights you will see.
> When no sound is detected all sound level lights (B-8) will
be off.
EN Features
10

EN
11
Switching the night-light on and off
1Press the baby unit night light (A-2) to switch it on and off.
Switching the LINK alarm on and off
You can switch on the LINK alarm on the parent unit.The LINK
alarm will beep when connection between the units is lost.
1Open the parent unit’s battery compartment, using a
screwdriver and slide down the cover (B-12).
2Set the switch (B-11) inside the compartment to the
ON ( ) position.
3Slide the battery compartment cover (B-12) back in place
until it clicks in position and close the compartment, using a
screwdriver.
• To switch off the alarm, set the switch (B-11) to the
OFF ( ) position.
Features

Problem Possible cause Solution
No sound on parent unit. Volume off or too low. Turn VOLUME control (B-9) on
parent unit downwards.
Units out of range. Move parent unit closer to baby
unit.
No connection Units are set to different Set channel selection switches
between units. channels. (A-7, B-10) to the same position
on both units.
Parent unit out of range of Move parent unit closer
tansmitted signal. to baby unit.
Battery pack does Battery life at an end. Replace battery pack (B-13) of
not charge. parent unit.
Interference or poor Mobile or cordless phone(s) Move phone(s) away from
reception. too close to baby monitor. baby monitor.
Interference from other Switch both units to another
baby monitors in the channel using the channel
neighborhood. selection switch (A-7, B-10).
Battery power running low. Recharge battery pack in time.
Transmitted signal is out of Move parent unit closer
range; e.g. there are too many to baby unit.
walls and/or ceilings between
baby unit and parent unit.
Parent unit located too close Move parent unit away
to a window and picking up from window.
interfering signals from other
appliances.
LINK light (B-5) Units are out of range. Move units closer together.
flashing red / LINK
alarm (B-11) beeps. Interference from another Switch to a different channel
baby monitor. (A-7, B-10).
Interference from another Remove other FM source.
FM source.
EN Troubleshooting
12

EN
13
Question
Why does a new rechargeable
battery pack has no full
operating time capacity after
the first charge?
My rechargeable battery pack
has very short duration, why?
The charging light (B-4) on
the parent unit charging base
(B-3) remains lit red, even
after the full charge duration.
Why?
When installed on the
charging base, the parent unit
cannot be switched on
immediately.
Parent unit reacts too slow/
late on baby's cry.
Parent unit reacts too quick
on other ambient sounds.
The link is lost every now and
then, sound interruptions etc.
Frequently asked questions
Answer
It takes about 3 times full recharge and discharges before the
rechargeable NiMH batteries have their full capacity available.
Leaving the rechargeable battery pack continuously connected
to a charging unit can shorten it’s lifetime. If the product is not
used for some time, the charged battery pack slowly looses it’s
load.This is normal; a short recharge will bring it back to it’s
full capacity again.
The charging light (B-4) is always activated as soon as the
parent unit is installed. It gradually dims when the batteries are
fully charged but remains lit, indicating that the parent unit is
powered.
At this point your battery is probably completely empty.
After some 30 minutes of charging it will be possible to switch
the parent unit on, while installed on the charging unit.
Set microphone sensitivity on the baby unit to a higher level
and/or move the baby unit closer to the baby (keep minimal
distance of 1 meter / 3 feet).
Set microphone sensitivity on the baby unit to a lower level
and/or move the baby unit closer to the baby (keep minimal
distance of 1 meter / 3 feet).
You are probably approaching the outer boundaries of the
practical range.Try a different location or reduce the distance
slightly. Please note that it takes about 30 seconds each time
before a new link is established.

– Battery pack: rechargeable NiMH for parent unit (included).
– AC power adapter 230V AC, 50 Hz (two included).
Output voltage 9V DC, 200mAh.
– Up to 250 meters / 750 feet in open air. Depending on the
surroundings and other disturbing factors this range may be
limited.
Dry materials Material Loss of
thickness range
Wood, plaster, < 30cm / 12” 0-10%
plaster cardboard,
glass (without metal
or wires, no lead)
Brick, plywood < 30cm / 12” 5-35%
Reinforced concrete < 30cm / 12” 30-100%
Metal grids, bars < 1cm / 0.4” 90-100%
Metal,Aluminium sheets < 1cm / 0.4” 100%
For wet and moist materials reduction can be as up to 100%.
0 °C - 40 °C
40.665 MHz, 40.680 MHz, 40.695 MHz
EN Technical specifications
14
Power supply
Operating range
Operating temperature
Transmission frequencies

EN
15
Replacing the parent unit battery pack
If the battery pack needs to be recharged more often than
usual, replace it with a new battery pack. Only use rechargeable
NiMH batteries.
1Open the parent unit’s battery compartment, using a
screwdriver and slide down the cover (B-12).
2Disconnect the old battery pack (B-13) from it’s power plug
and remove it.
3Carefully connect the new battery pack to the power plug
and place inside the battery compartment.
4Close the battery compartment cover (B-12).
Important information

Environmental information
Disposal of your old product
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product it means the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate collection
system for electrical and electronic products.
Please act according to your local rules and do not dispose of
your old products with your normal household waste.
The correct disposal of your old product will help prevent
potential negative consequences for the environment and
human health.
Maintenance
• Clean the baby monitor with a damp cloth
• Dispose of used batteries in an environmentally friendly
manner
• Do not mix old and new batteries or different types of
batteries.
• If the batteries are left in the unit when it is powered from
the mains, check them for leakage every six months.
EN Important information
16
Online help: www.philips.com
For interactive help, downloads and frequently asked questions
Contact line:
If you have any questions about the SCD465, please contact our
helpline for assistance! You can find the number in the separate
Guarantee leaflet.
Before you call, please read this manual carefully.
You will be able to solve most of your problems.
You will be asked for:
• A description of the problem and when it occurs
• The type number on the label of your product
• The date of purchase
Need help?

FR
17
A. Unité bébé
A-1 Bouton ON/OFF
A-2 Veilleuse
A-3 Prise jack d’alimentation CC 9V ——<<++
A-4 Microphone
A-5 Témoin d’alimentation
A-6 Sensibilité du microphone
A-7 Sélecteur de canal
A-8 Compartiment des batteries
A-9 Adaptateur d’alimentation secteur
A-10 Prise secteur
B. Unité parents
B-1 Adaptateur d’alimentation secteur
B-2 Prise secteur
B-3 Chargeur
B-4 Témoin du chargeur
B-5 Témoin de connexion
B-6 Haut-parleur
B-7 Témoin d’alimentation
B-8 Témoins de volume
B-9 Commutateur ON/OFF / Réglage de volume
B-10 Sélecteur de canal
B-11 Commutateur d’alarme de connexion
B-12 Couvercle du compartiment des batteries
B-13 Batterie rechargeable
B-14 Prise jack d’alimentation CC 9V ——<<++
C.Autres accessoires utiles
– Pièce de monnaie
(pour ouvrir le compartiment des piles de l’unité bébé)
– Petit tournevis plat (pour sélecteurs de canal et pour ouvrir
le compartiment des piles de l’unité parents)
Légende des fonctions

3 Illustrations
17 Légende des fonctions
17 Unité bébé
17 Unité parents
17 Autres accessoires
18 Sommaire
19 Bienvenue
19 Consignes de sécurité
20 Mise en service de votre moniteur
pour bébé
20 Unité bébé
20 Unité parents
21 Utilisation du moniteur pour bébé
22 Caractéristiques
22 Éviter les interférences
23 Réglage de sensibilité du microphone
23 Surveillance silencieuse du bébé
24 Veilleuse allumée ou éteinte
24 Activation et désactivation de l’alarme de connexion
25 Dépannage
26 Questions fréquentes
27 Caractéristiques techniques
28 Important
28 Remplacement des batteries
29 Environnement
29 Maintenance
29 Besoin d’aide ?
Sommaire
FR
18

FR
Philips s’engage à fournir des produits de soin fiables
parfaitement rassurants pour les parents. Grâce à ce système,
vous entendez votre bébé n’importe où chez vous. Offrant un
choix de seize canaux, les interférences sont minimes.
Philips Baby Care,Taking care together
Consignes de sécurité
Lisez ce manuel attentivement avant d’utiliser votre moniteur
de télésurveillance pour bébé, et conservez-le pour vous y
reporter ultérieurement. Ce moniteur pour bébé n’est qu’une
assistance. Il ne saurait se substituer à une surveillance adulte
responsable et ne doit en aucun cas être considéré comme tel.
• Assurez-vous que le moniteur et le câble de l’adaptateur sont
toujours hors de portée du bébé, à une distance d’au moins
un mètre.
• Ne placez jamais l’unité bébé dans son lit ou son parc.
• Ne couvrez jamais le moniteur (avec une serviette, une
couverture, etc.).
• N’utilisez jamais l’appareil dans des lieux humides ou à
proximité de l’eau.
• Vérifiez que la tension indiquée sur l’adaptateur (A-10, B-1)
correspond à celle du secteur avant de le brancher.
• N’exposez pas le moniteur à une source de chaleur ou de
lumière extrême (par exemple, directement au soleil).
• Pour éviter tout risque d’électrocution, n’ouvrez ni l’unité
bébé ni l’unité parents (sauf pour remplacer les piles)
• Les antennes des deux unités sont de longueur fixe ;
ne tentez pas de les allonger.
Bienvenue
19

Unité bébé
L’unité pour bébé peut fonctionner sur secteur ou sur piles.
L’installation de piles permet de disposer d’une source
d’alimentation de secours en cas de panne de secteur.
Utilisation sur secteur
1Branchez le cordon de l’adaptateur au jack d’alimentation
(CC 9V ——<<++- A-3) de l’unité bébé.
2Branchez l’adaptateur secteur (A-9) à une prise murale.
➜
L’unité bébé peut maintenant fonctionner sur secteur.
Utilisation sur piles
1Retirez le couvercle du compartiment des piles (A-8) à l’aide
d’une pièce de monnaie.
2Insérez quatre piles AA de 1,5 V dans le compartiment en
respectant les polarités. (Les piles ne sont pas fournies ; nous
recommandons l’utilisation de piles alcalines Philips.)
3Refermez le couvercle du compartiment des piles (A-8) à
l’aide d’une pièce de monnaie.
➜L’unité bébé peut maintenant fonctionner sur piles.
Unité parents
L’unité parents contient déjà une batterie rechargeable.
1Branchez le cordon de l’adaptateur (B-2) au jack
d’alimentation (CC 9V ——<<++- B-14) du chargeur (B-3).
2Branchez l’adaptateur secteur (B-1) à une prise murale.
3Placez l’unité parents sur le chargeur (B-3).
>Le témoin de charge rouge (B-4) s’allume.
4Laissez l’unité parents sur le chargeur (B-3) jusqu’à ce que les
batteries soient à pleine charge (au moins 14 heures).
> Une fois les batteries à pleine charge, le voyant de charge
(B-4) s’éteint progressivement.Vous pouvez alors retirer
l’unité parents du chargeur et l’utiliser en mode sans fil ;
son autonomie peut atteindre 10 heures.
Mise en service de votre moniteur pour bébé
FR
20
