A. Baby unit
B. Parent unit

EN
4
A. Baby unit
A-1 On/Off button (y)
A-2 LINK light
A-3 Night light
A-4 Volume – / + buttons
A-5 Microphone
A-6 PAGE button
A-7 Night light button ( )
A-8 Battery check light ( )
A-9 Battery compartment cover
A-10 DC 9V / 300mA power supply jack
A-11 AC power adapter
B. Parent unit
B-1 TALK button
B-2 SENSITIVITY button
B-3 Loudspeaker
B-4 Microphone
B-5 On/Off button (y)
B-6 Battery check light ( )
B-7 LINK light
B-8 Sound-level lights
B-9 Volume – / + buttons
B-10 Recess for the belt clip
B-11 Battery compartment cover
B-12 Belt clip
B-13 AC power adapter
B-14 Charging base
B-15 POWER light
B-16 Neck strap
C.What else you need
Both units can be mains or battery operated.
For battery-operated use you will need:
– 4 x 1.5V AA Alkaline batteries for baby unit (not supplied);
– 2 x 1.2V AAA size Ni-MH rechargeable batteries for parent
unit (supplied).
Legend of functions

EN
3 Illustrations
4 Legend of functions
4 Baby unit
4 Parent unit
4 What else you need
5 Contents
6 Welcome
6 Important safety information
6 Getting your baby monitor ready for use
6 Baby unit
7 Parent unit
8 Using your baby monitor
9 Other features
9 Adjusting loudspeaker volume
10 Talking to your baby
10 Adjusting microphone sensitivity
11 Monitoring baby silently
11 Switching night light on / off
12 Connecting / disconnecting belt clip and neck strap
12 Paging parent unit
13 Troubleshooting
15 Frequently asked questions
16 Important information
16 Technical specifications
16 Maintenance
17 Environmental information
17 Factory initialization mode
18 Guarantee and service
Contents
5

Philips is dedicated to producing caring, reliable products to give parents the reassurance they
need.You can trust this Philips baby monitor to provide round-the-clock support by ensuring you
can always hear your baby clearly without any distracting noise.Your SCD488NC uses DECT
technology which guarantees zero interference from other wireless appliances and a clear signal
between the parent unit and baby unit.
Philips Baby Care, taking care together
Safety information
Please read this user manual carefully before using your baby monitor and keep it for future
reference.This baby monitor is intended as an aid. It is not a substitute for responsible and
proper adult supervision and should not be used as such.
• Make sure the baby unit and adapter cable are always out of reach of the baby (at least
1 meter / 3 feet away).
• Never place the baby unit inside the baby’s bed or playpen.
• Never cover the baby monitor (with a towel, blanket, etc.).
• Never use the baby monitor in moist places or close to water.
• Check if the voltage indicated on the type plate of the adapters (A-11, B13) corresponds to
the local power voltage before connecting to the AC power supply.
• Do not expose the baby monitor to extreme cold, heat or light (e.g. direct sunlight).
• To prevent electric shock, do not open the case of the baby unit and parent unit (except
battery compartment covers).
• Risk of explosion if batteries are replaced by an incorrect type. For the parent unit,always
use rechargeable batteries.
EN
6
Welcome
Getting your baby monitor ready for use
Baby unit
The baby unit can be mains or battery operated.
When batteries are inserted, you will have an automatic back-up
in case of mains failure.
Mains operated use
1Connect the power adapter cord (A-11) to the power supply
jack (DC 9V / 300mA - A-10) of the baby unit.
2Connect the AC power adapter (A-11) to a wall outlet.
➜The baby unit is now ready for mains operated use!

EN
Battery operated use

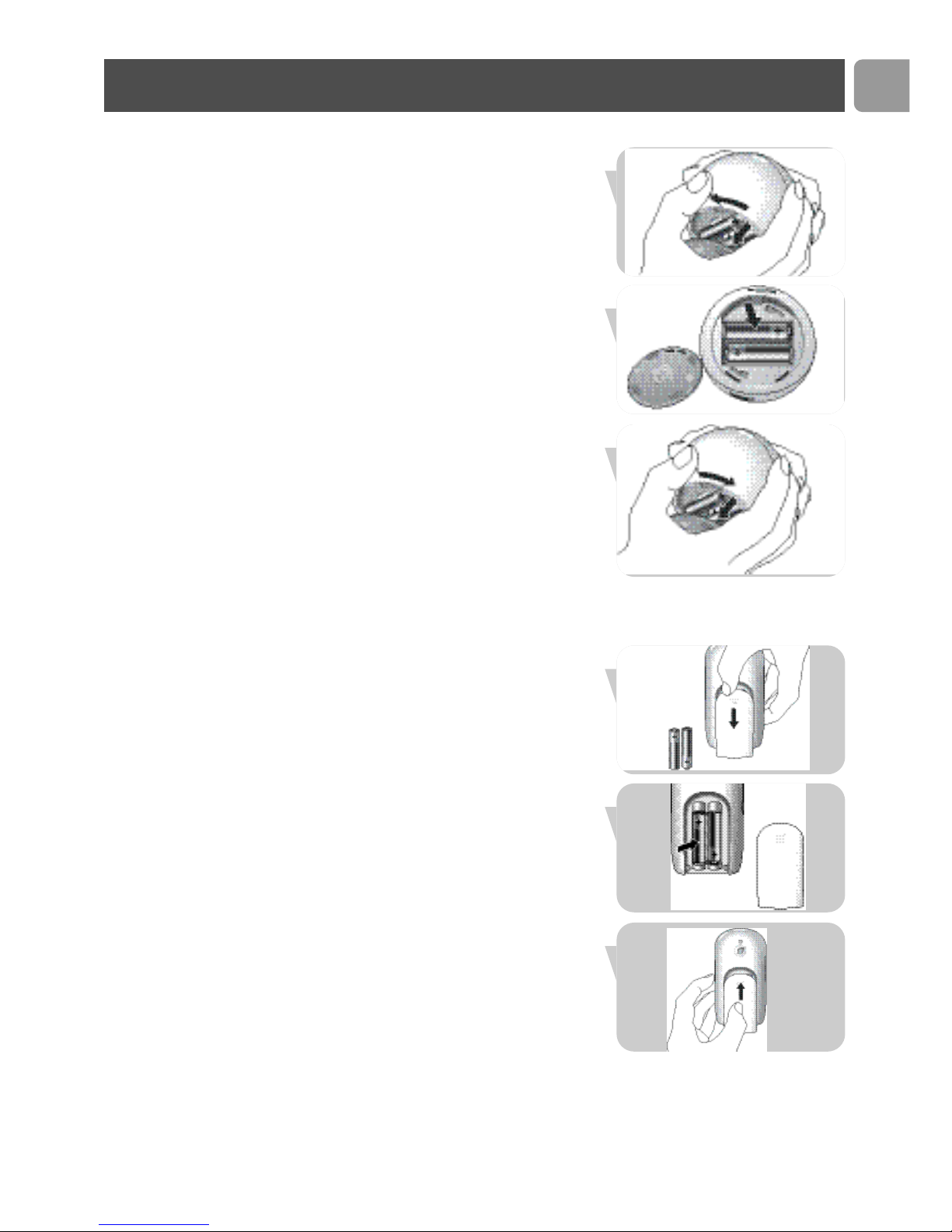

1Open the battery compartment by turning the cover (A-9) to
the left (1OPEN), using the palm of your hand.Take off the
cover.
2Insert four 1.5V AA batteries, noting the + and –
configuration inside the battery compartment (batteries are
not supplied; we recommend Philips Alkaline batteries).
3Put the battery compartment cover (A-9) back in place.
Close the compartment by turning the cover (A-9) to the
right (CLOSE 2), using the palm of your hand.
➜The baby unit is now ready for battery operated use!
Parent unit
1Open the battery compartment by sliding the cover (B-11)
downwards.
2Insert the two 1.2V AAA size Ni-MH rechargeable batteries
(supplied), noting the + and – configuration inside the battery
compartment.
3Put the battery compartment cover (B-11) back in place.
Close the compartment by sliding the cover (B-11) upward
until it clicks in position.
Getting your baby monitor ready for use
7

4Connect the AC power adapter (B-13) of the charging base
(B-14) to a wall outlet.
5Place the parent unit in the charging base (B-14).
> The POWER light (B-15) lights up red.
6Leave the parent unit in the charging base until the batteries
are fully charged (at least 16 hours).
> The POWER light (B-15) will stay red, even when batteries
are fully charged.
> When the batteries are fully charged, the parent unit can be
taken out of the charging base and used cordlessly for at
least 8 hours.
Notes:
– Operation time will be 8 hours based on the assumption that
the baby unit will be transmitting 25% of the time and is in
standby mode for the rest of the time (baby does not any
make sound).
– When the parent unit batteries are charged for the first time,
operating time will be less than 8 hours.The batteries will use
their maximum capacity after at least four times charging and
discharging.
– Charging will take longer than 16 hours when the parent unit
is switched on during charging.To shorten the charging time,
the parent unit should be switched off.
➜The parent unit is now ready for use!
General notes:
– When the units are switched off, in case of battery operated
use, the batteries still discharge slowly.
– When the batteries are almost empty, the battery check light
of the parent unit (B-6) starts blinking red; the battery check
light of the baby unit (A-8) lights up red continuously.
Place the parent unit in the charging base (B-14) to recharge
the batteries and/or replace the batteries in the baby unit.
EN
8
Getting your baby monitor ready for use

EN
Using your baby monitor
9
1Place both units in the same room to test the connection.
Make sure the baby unit is at least 1 meter / 3 feet away from
the parent unit.
2Press and hold the On/Off (y) button (A-1) on the baby unit
for 2 seconds.
> The night light (A-3) lights up briefly.
> The LINK light (A-2) lights up red briefly then starts
blinking green as it seeks connection with the parent unit.
3Press and hold the On/Off button (y) (B-5) on the parent
unit for 2 seconds.
> The sound level lights (B-8) light up orange briefly.
> The battery check light ( - B-6) lights up red briefly.
> The LINK light (B-7) lights up red briefly then starts
blinking green as it seeks connection with the baby unit.
> The LINK lights (A-2, B-7) on both units blink green until
connection has been established.This will take up to
approximately 30 seconds. Both LINK lights (A-2, B-7) will
then light green continously.
> If, after 30 seconds, no link is establshed both LINK lights
(A-2, B-7) will light up red and the parent unit will emit a
beep from time to time.
4Position the baby unit at least 1 meter / 3 feet away from
your baby.
5Position the parent unit at the desired place within the
operating range of the baby unit but at least 1 meter / 3 feet
away from the baby unit. For more information on the
operating range see ‘Technical specifications’.
➜You can now monitor your baby!

Adjusting loudspeaker volume
•Briefly press the volume + and – buttons (A-4) on the baby
unit repeatedly until the desired loudspeaker volume for the
baby unit has been reached.
• Briefly press the volume + and – buttons (B-9) on the parent
unit repeatedly until the desired loudspeaker volume for the
parent unit has been reached.
Notes:
– If you press theVolume + and – buttons (A-4, B-9) too long,
the volume will not be adjusted.
– If the volume is set to a high level, the units consume more
power.
Talking to your baby

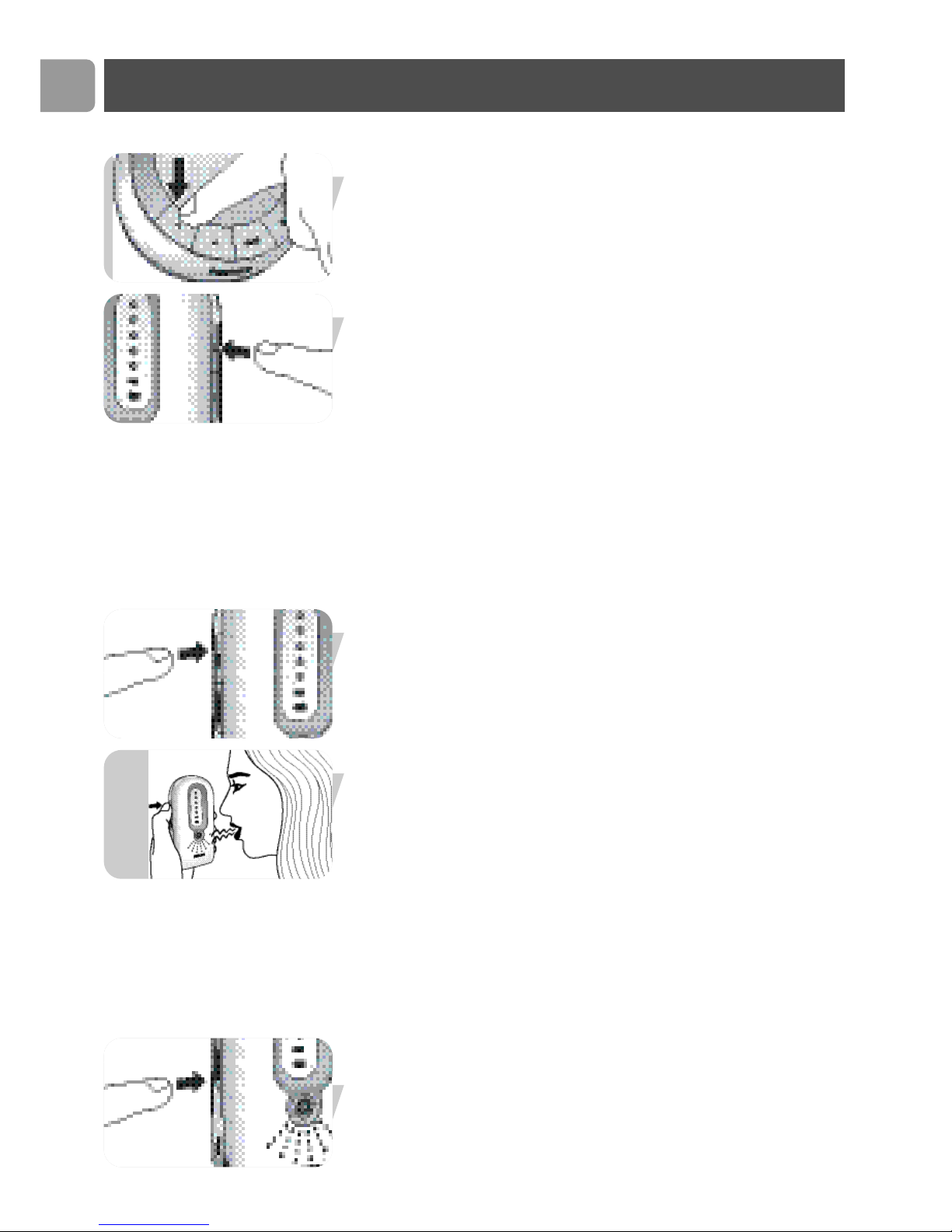

While using the TALK button (B-1) on the parent unit you can
talk to your baby (e.g to comfort your baby).
•Press and hold the TALK button (B-1) and talk clearly into
the microphone (B-4).
•Release TALK button (B-1) when finished talking.
Note:When the TALK button (B-1) is pressed, you can no
longer hear your baby.
Adjusting microphone sensitivity
You can set the sound sensitivity of the baby unit, to the desired
level.When set to the maximum sensitivity level all sounds
(including your baby’s breathing, when loud enough) can be
heard on the parent unit.You can only change the microphone
sensitivity if the connection between the baby unit and the
parent unit is established (when LINK lights (A-2, B-7) light
continuously green).

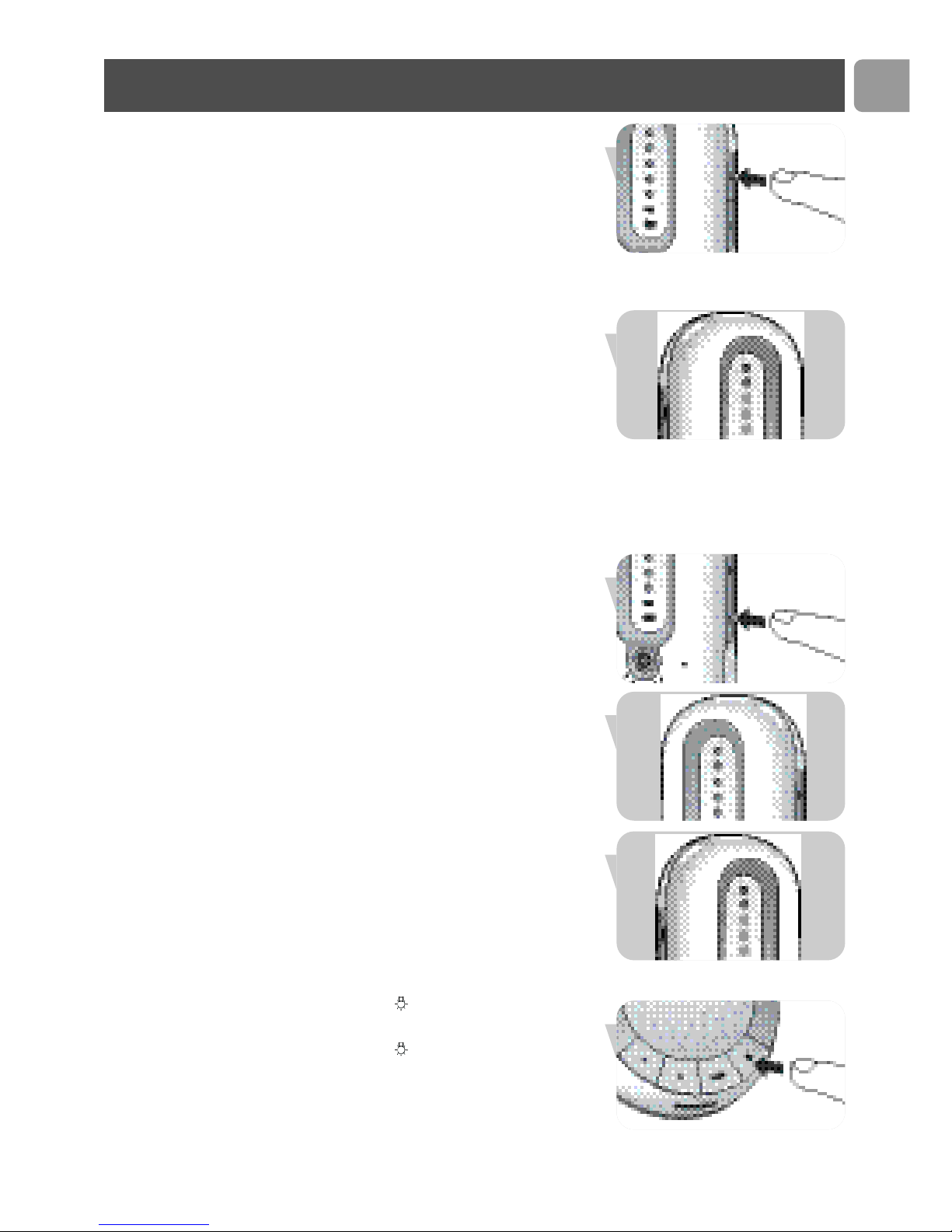

1Briefly press the SENSITIVITY button (B-2) on the parent
unit.
> The sound-level lights (B-8) give visual feedback on the
current sensitivity level for approximately 2 seconds.
EN
10
Other features

EN
Other features
11
2Briefly press the Volume + and – buttons (B-9) on the parent
unit repeatedly until the desired microphone sensitivity for
the baby unit has been reached.
Note: If you press the SENSITIVITY button (B-2) and/or the
Volume + and – buttons (B-9) too long, the microphone
sensitivity will not be adjusted.
> The sound-level lights (B-8) give visual feedback on the new
setting for approximately 2 seconds:
- 1 light (1 x orange) = minimum level / lowest sensitivity;
- all lights (5 x orange) = maximum level (continuous
transmission) / highest sensitivity.
Note:When the sensitivity level of the baby unit is set to a high
level, the unit will consume more power because it is in
continuous transmission mode.
Monitoring baby silently
•Briefly press the Volume – button (B-9) on the parent unit
repeatedly until the volume is switched off completely.
> All sound-level lights (B-8) will now be off.
> When no sound is detected all sound-level lights (B-8) will
be off.
> When a sound is detected the sound-level lights (B-8) light
up orange.
Switching night light on/off
1Briefly press the night light button ( ) (A-7) on the baby unit
to switch on the night light (A-3).
2Briefly press the night light button ( ) (A-7) again to switch
off the night light (A-3).
> The night light dims and gradually switches off.
•Switch off the night light when operating the baby unit with
batteries.This saves power!

Note: If you press the night light button ( ) (A-7) too long, the
night light (A-3) will not switch on/off.
Connecting / disconnecting belt clip and
neck strap
If the parent unit is operated using batteries, you can carry it in
and around your house, allowing you freedom of movement
while still monitoring your baby.
Connect

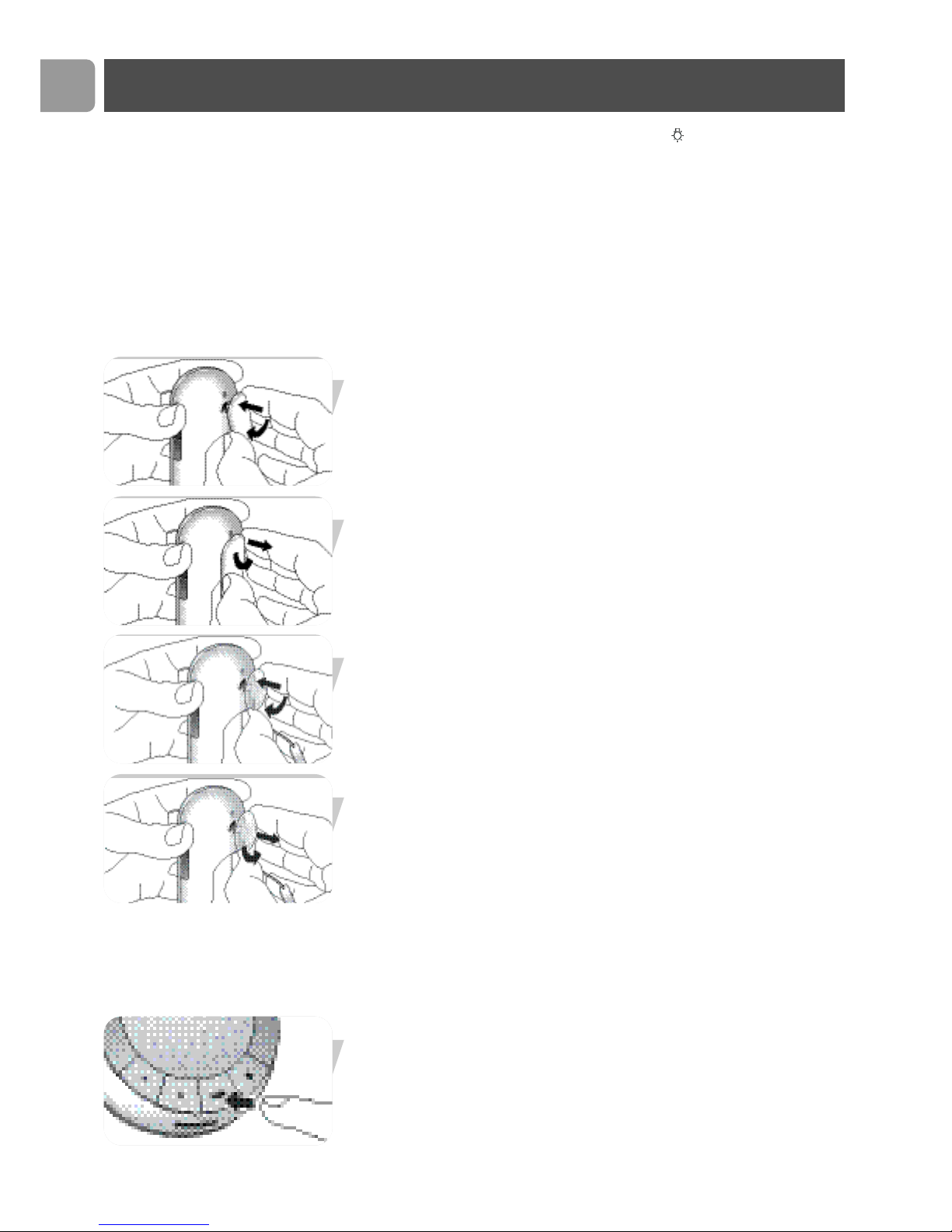

•Insert the little spindle on the rear of the belt clip into the
recess (B-10) on the rear of the parent unit.Turn the belt clip
to the left until it clicks in position.
Disconnect
•Turn the belt clip to the right (TURN 2) and take it off.
Connecting the neck strap
•Insert the little spindle at the end of the neck strap into the
recess (B-10) on the rear of the parent unit.
Turn the spindle to the left until it clicks in position.
Disconnecting the neck strap
•Turn the spindle to the right (TURN 2) and take it off.
Paging parent unit
When the parent unit is misplaced and the volume is switched
off, you can use the PAGE button (A-6) on the baby unit to
locate the parent unit.
1Briefly press the PAGE button (A-6) on the baby unit.
> A paging alert will sound on the parent unit.
2To stop the paging alert, briefly press the page button (A-6)
again or any button on the parent unit.
Note: If you press the PAGE button (A-6) too long, the paging
alert will not sound.
EN
12
Other features

EN
Troubleshooting
13
Problem Possible cause Solution
LINK light (A-2, B-7) Parent unit:
does not light at all. Power adapter (B-13) Connect power adapter (B-13)
not plugged in. to parent unit.
Connect power adapter (B-13)
to wall outlet.
Unit not turned on. Press and hold On/Off button (y)
(B-5) for two seconds.
Batteries are low. Recharge batteries (B-11).
Batteries are empty. Replace batteries (B-11).
Baby unit:
Power adapter (A-11) Connect power adapter (A-11) to
not plugged in. baby unit.
Connect power adapter (A-11) to
wall outlet.
Batteries incorrectly Insert batteries correctly.
inserted.
Unit not turned on. Press and hold On/Off button (y)
(A-1) for two seconds.
Batteries are low. Replace batteries (A-9).
LINK light (A2, B-7) Units out of range. Decrease distance between units
flashing red/alarm (see ‘Technical specifications).
beeping on parent unit. Baby unit batteries are low. Replace batteries (A-9.).
Parent unit batteries are low. Recharge batteries (B-11).
Parent unit batteries are Replace batteries (B-11).
empty.
Units cannot establish Try solving the problem by using
connection, even when the factory initialization mode.
close to each other. See chapter ‘Factory initialization
mode’.
No power on one of the Press On/Off button (A-1, B-5)
units. for two seconds.

Problem Possible cause Solution
High pitched noise. Units are too close to Move parent unit away
each other. from baby unit (at least
1 meter / 3 feet).
Volume on parent unit Decrease volume (B-9) on
set too high. parent unit.
No sound/ Volume on parent unit is Increase volume on parent unit
baby’s crying cannot set too low or switched off. (B-9).
be heard.
Microphone sensitivity level Adjust microphone sensitivity
set too low on parent unit. level (B-2) on parent unit.
to a higher level.
Units are out of range Move parent unit closer to baby
unit.
Parent unit reacts Ambient sounds trigger Move baby unit closer to
too fast to other transmission. baby (keep minimal distance of
ambient sounds. 1 meter / 3 feet).
Microphone sensitivity Decrease microphone sensitivity
set too high. level (B-2) on parent unit.
Parent unit reacts slowly/ Microphone sensitivity is Increase microphone sensitivity
late to baby's crying. set too low. level (B-2) on parent unit and/or
move baby unit closer to baby
(keep minimal distance of 1 meter
/ 3 feet).
Battery check light ( ) Batteries are low or almost Replace batteries (A-9, B-11).
is lit. empty.
Baby unit battery power Microphone sensitivity is set Set microphone sensitivity to a
diminishes rapidly. too high. Unit consumes lower level (B-2).
more power.
Volume setting too high. Set volume to a lower level (A-4).
Charging time of parent Parent unit switched on during Switch off parent unit (B-5).
unit batteries exceeds charging.
16 hours.
EN
14
Troubleshooting

EN
Question
The technical specifications
show an operating range of
300 meters / 900 feet outdoors.
How come my baby monitor
manages much less than that?
The link is lost every now and
then, sound interruptions etc.
What happens during a mains
failure?
Is my DECT baby monitor
secure from eavesdropping and
interference?
Some buttons do not seem to
work when I press them.
What do I do wrong?
Operating time of the parent
unit batteries is supposed to be
at least 8 hours. How come the
battery operating time of my
parent unit is less?
Frequently asked questions
15
Answer
The specified range is only valid outdoors in open air. Inside
your house the workable range is limited by the amount
and type of walls and/or ceilings in between. Inside the
house the operating range will be up to 50 meters /
150 feet.
You are probably approaching the outer limits of the
practical range.Try a different location or decrease the
distance slightly. Please note that it takes about 30 seconds
each time before a new link between the units is
established.
When batteries are installed in the both units, the units will
automatically switch over to battery use in case of mains
failure.
The 120 channels guarantee no interference from other
equipment.
Except for the On/Off buttons and TALK button (A-1, B-5),
only press the buttons briefly.
When the parent unit batteries are charged for the first
time, operating time will be less than 8 hours.The batteries
will use their maximum capacity after at least four times
charging and discharging.
Maybe the volume setting is too high.When the volume is
set to a high level, the unit consumes more power. Set the
volume to a lower level (B-9).
Maybe the microphone sensitivity setting is too high.When
the sensitivity is set to a high level, the units consumes
more power. Set the sensitivity to a lower level (B-2).

Technical specifications
– 1 x AC power adapter DC 9V / 300mA for baby unit
(supplied).
– 1 x charging base DC 9V / 300mA for parent unit (supplied).
– 4 x AA 1.5V Alkaline batteries for baby unit (not supplied).
– 2 x AAA 1.2V Ni-MH rechargeable batteries for parent unit
(supplied).
Up to 300 meters / 900 feet in ideal condition.Walls, doors, etc
will affect range. Indoors the range is up to 50 meters /
150 feet.
Dry materials Material thickness Loss of range
Wood, plaster, < 30cm / 12˝ 0 - 10%
plaster cardboard,
glass (without metal
or wires, no lead)
Brick, plywood < 30cm / 12˝ 5 - 35%
Reinforced concrete < 30cm / 12˝ 30 - 100%
Metal grids, bars < 1cm / 0.4˝ 90 - 100%
Metal,Aluminium < 1cm / 0.4˝ 100%
sheets
+ 0°C – + 40°C
Digital Enhanced Cordless Telecommunication (DECT)
The DECT standard makes use of advanced digital radio
techniques to achieve efficient use of the radio spectrum. It
delivers high speech quality and security and low power
technology. It makes it possible to hear your baby at a range of
up to 300 meters / 900 feet in open air.
Maintenance
• Clean the baby monitor with a damp cloth.
• Dispose of used batteries in an environmentally friendly
manner.
• When batteries are inserted in case of mains operated use,
check the batteries every six months on possible leakage.
• If the batteries are left in the unit when it is powered from
the mains, check them for leakage every six months.
EN
16
Power supply
Operating range
Operating temperature
Standard
Important information

EN
Important information
17
Environmental information
Disposal of your old product
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product it means the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate collection
system for electrical and electronic products.
Please act according to your local rules and do not dispose of
your old products with your normal household waste.The
correct disposal of your old product will help prevent potential
negative consequences for the environment and human health.
Factory initialization mode
In this mode both units can be reset to the default factory
settings. Factory initialization can be used if problems occur
which can not be solved by following the suggestions in the
chapter ‘Troubleshooting’. Resetting must be done separately for
each unit.
1Press and hold the On/Off (y) button (A-1, B-5) for
2 seconds to switch on the units.
2When the LINK lights (A-2, B-7) on the units light up,
immediately press and hold the volume – button
(A-4, B-9) for 1 second.
> The units have now been reset to the default factory
settings.
Default factory settings
Parent unit
– Loudspeaker volume: 1
– Microphone sensitivity: 3
Baby unit
– Loudspeaker volume: 3
– Night light: off

EN
18
Guarantee & service
If you need information or if you have a problem, please visit the Philips website at
www.philips.com or contact the Philips Customer Care Centre in your country (you will find its
phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your
country, turn to your local Philips dealer or contact the Service Department of Philips Domestic
Appliances and Personal Care BV.

FR
19
A. Unité bébé
A-1 Bouton marche/arrêt (y)
A-2 Indicateur de liaison LINK
A-3 Veilleuse
A-4 Boutons de volume – / +
A-5 Micro
A-6 Bouton de contact PAGE
A-7 Bouton de veilleuse ( )
A-8 Indicateur de niveau des piles ( )
A-9 Couvercle du compartiment des piles
A-10 Jack d’alimentation 9 V/300 mA cc
A-11 Adaptateur secteur
B. Unité parent
B-1 Bouton de communication TALK
B-2 Bouton de sensibilité SENSITIVITY
B-3 Haut-parleur
B-4 Micro
B-5 Bouton marche/arrêt (y)
B-6 Indicateur de niveau des piles ( )
B-7 Indicateur de liaison LINK
B-8 Indicateurs de volume sonore
B-9 Boutons de volume - / +
B-10 Logement de la pince de ceinture
B-11 Couvercle du compartiment des piles
B-12 Pince de ceinture
B-13 Adaptateur secteur
B-14 Chargeur
B-15 Indicateur d’alimentation POWER
B-16 Lanière
C.Autres éléments nécessaires
Les deux unités peuvent fonctionner sur secteur ou sur piles.
Pour une utilisation sur piles, vous aurez besoin de :
– 4 piles alcalines 1,5V de type AA pour l’unité bébé
(non fournies);
– 2 piles NiMH rechargeables 1,2V de type AAA pour l’unité
parent. Fournies.
Légende des fonctions

3 Illustrations
19 Légende des fonctions
19 Unité bébé
19 Unité parent
19 Autres éléments nécessaires
20 Sommaire
21 Accueil
21 Informations relatives à la sécurité
21 Préparation de votre babyphone
21 Unité bébé
22 Unité parent
23 Utilisation de votre babyphone
24 Autres fonctions
24 Réglage du volume du haut-parleur
25 Parler à votre bébé
25 Réglage de la sensibilité du micro
26 Surveillance silencieuse de votre bébé
26 Activation/désactivation de la veilleuse
27 Ajout/retrait de la pince de ceinture et de la lanière
27 Contacter l’unité parent
28 Dépannage
30 Questions fréquemment posées
31 Informations importantes
31 Spécifications techniques
31 Entretien
32 Informations concernant l’environnement
32 Mode initialisation usine
33 Garantie et service
FR Sommaire
20
