Philips CID3680/93 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual

3
6 Play with Bluetooth device 21
Pair the Bluetooth-enabled devices 21
Make a call 21
Receive call 22
Listen to music from Bluetooth device 22
Adjust Bluetooth settings 23
7 Adjust sound 24
Adjust volume 24
Mute 24
Select preset equalizer 24
Adjust fader/balance 24
Set Dynamic Bass Boost (DBB) 25
8 Adjust settings 26
Display system setup menu 26
Adjust general settings 26
Adjust sound settings 27
Adjust video settings 27
Adjust Bluetooth settings 28
Adjust language settings 29
Adjust volume settings 29
Adjust DVD rating 29
9 Others 31
Listen to other devices 31
Reset 31
Remove the unit 31
Replace fuse 32
10 Product information 33
11 Troubleshooting 35
About Bluetooth device 35
12 Glossary 37
Contents
1 Important 4
Safety 4
Notice 4
Introduction 5
What’s in the box 5
Overview of the main unit 6
2 Get started 8
Install the car audio 8
Turn on 11
Adjust screen 12
Set date and time 12
3 Use map 13
Upgrade the map 13
4 Listen to radio 14
Tune to a radio station 14
Store radio stations in memory 15
Tune to a preset station 15
5 Play 16
Load discs 16
Connect USB device 16
Insert SD/MMC card 17
Play/Pause 17
Search for a folder 17
Search within a title/folder 18
Repeat 18
Repeat a section 19
Random play 19
Select audio language 19
Select audio mode 19
Select subtitle language 20
Rotate pictures 20
Zoom 20
Select slide show duration 20
English
EN

4
Notice
The making of unauthorized copies of
copy-protected material, including computer
SURJUDPVÀOHVEURDGFDVWVDQGVRXQG
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
´'LY;'LY;µ&HUWLÀHGDQGDVVRFLDWHGORJRV
are trademarks of DivX, Inc. and are used
under license.
2IÀFDO'LY;&HUWLÀHGSURGXFW3OD\VDOO
YHUVLRQVRI'LY;YLGHRLQFOXGLQJ'LY;
ZLWKVWDQGDUGSOD\EDFNRI'LY;PHGLDÀOHV
7KH%OXHWRRWKZRUGPDUNDQGORJRVDUH
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This apparatus includes this label:
1 Important
Safety
Read and understand all instructions
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground
(earth) 12 V DC operation only.
7RUHGXFHWKHULVNRIWUDIÀFDFFLGHQWGR
no watch video during driving.
To ensure safe driving, adjust the volume
to a safe and comfortable level.
Improper fuses can cause damage or
ÀUH:KHQ\RXQHHGWRFKDQJHWKHIXVH
consult a professional.
Use only the supplied mounting hardware
for a safe and secure installation.
To avoid short circuit, do not expose the
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation
slots or other openings on the apparatus.
Never place any objects other than discs
into the disc tray/slot.
Visible and invisible laser radiation when
open. Avoid exposure to beam.
Risk of damage to the screen! Never
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene,
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
EN

5
What’s in the box
Check and identify the contents of your package:
ab
cd
e
g
f
hi
j
aMain unit
bMZ-TFT/Video out 2 cable
cAV out cable
dISO wire
eAV in cable
fGPS antenna
gControl/Camera wire
hScreen cleaning cloth
iPrinting material (include User manual,
Quick start guide, GPS user manual)
jGauarantee card/QC card
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
$Q\FKDQJHVRUPRGLÀFDWLRQVPDGHWRWKLV
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2008 © Koninklijke Philips Electronics N.V.
All rights reserved.
6SHFLÀFDWLRQVDUHVXEMHFWWRFKDQJHZLWKRXW
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Congratulations on your purchase, and
ZHOFRPHWR3KLOLSV7RIXOO\EHQHÀWIURPWKH
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can
Quickly found routine through the
navigation system
And you can also enjoy:
Audio/video/JPEG pictures from
DVD, VCD or CD
USB devices
SD/SDHC/MMC cards
External devices
FM or AM (MW) radio
Audio from Bluetooth-enabled devices
Besides, you can make/receive phone calls with
Bluetooth-enabled devices.
English
EN

6
hRESET
Reset the unit when it hangs up.
i
Eject disc.
jDisc slot
kMAP
Open the cover and insert/remove
the GPS map card.
lTUNE/ SELECT
Skip to the previous or next title,
chapter, or track.
Search backward/forward at
different speeds.
&RQÀUPDQHQWU\RUVHOHFWLRQ
Start, pause or resume play.
Display the EO setting interface.
m/
Skip to the previous/next option.
Skip to the previous/next folder.
Move cursor up/down.
Overview of the main unit
a
b
c
d
e
fg
m
hi l k j
r
q
p
o
n
a(Green)
Answer phone.
Dial number.
(Red)
Terminate call.
bMENU
Return to the home menu.
cNAVI
Enter the GPS navigation system
or exit.
dSRC
Select source.
eSD/SDHC/MMC card slot
f
Built-in microphone for phone calls.
g/MUTE/VOL
Turn the unit on or off.
Mute or unmute audio.
Adjust volume.
EN

7
nDISP/ /
Adjust screen brightness/contrast/
color.
Turn on/off the screen display.
Adjust the display aspect ratio.
oSEARCH
6HDUFKIRUVSHFLÀFÀOHV
Change waveband.
pFM/AM
Switch to the FM/AM source.
q
USB socket.
rAV IN
External equipment audio/video in
socket.
English
EN

8
Note on the power supply lead (yellow)
When you connect other devices to this
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
Notes on speaker connection
Never connect speaker wires to the metal
body or chassis of the car.
Never connect speaker wires with stripes
to one another.
Connect wires
Caution
Ensure that all loose leads are insulated with
electrical tape.
1Check the car’s wiring carefully, then
connect them to the two supplied ISO
wires.
a
g
h
i
j
b
c
d
e
f
2 Get started
Caution
Use of controls or adjustments or
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.

Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,

ensure that the ignition is off.
Ensure that you connect the yellow and red

power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with

electrical tape.
Ensure that the leads do not get caught under

screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to

a common ground (earth) point.
Use only the supplied mounting hardware for a

safe and secure installation.
,PSURSHUIXVHVFDQFDXVHGDPDJHRUÀUH

When you need to change the fuse, consult a
professional.
EN

9

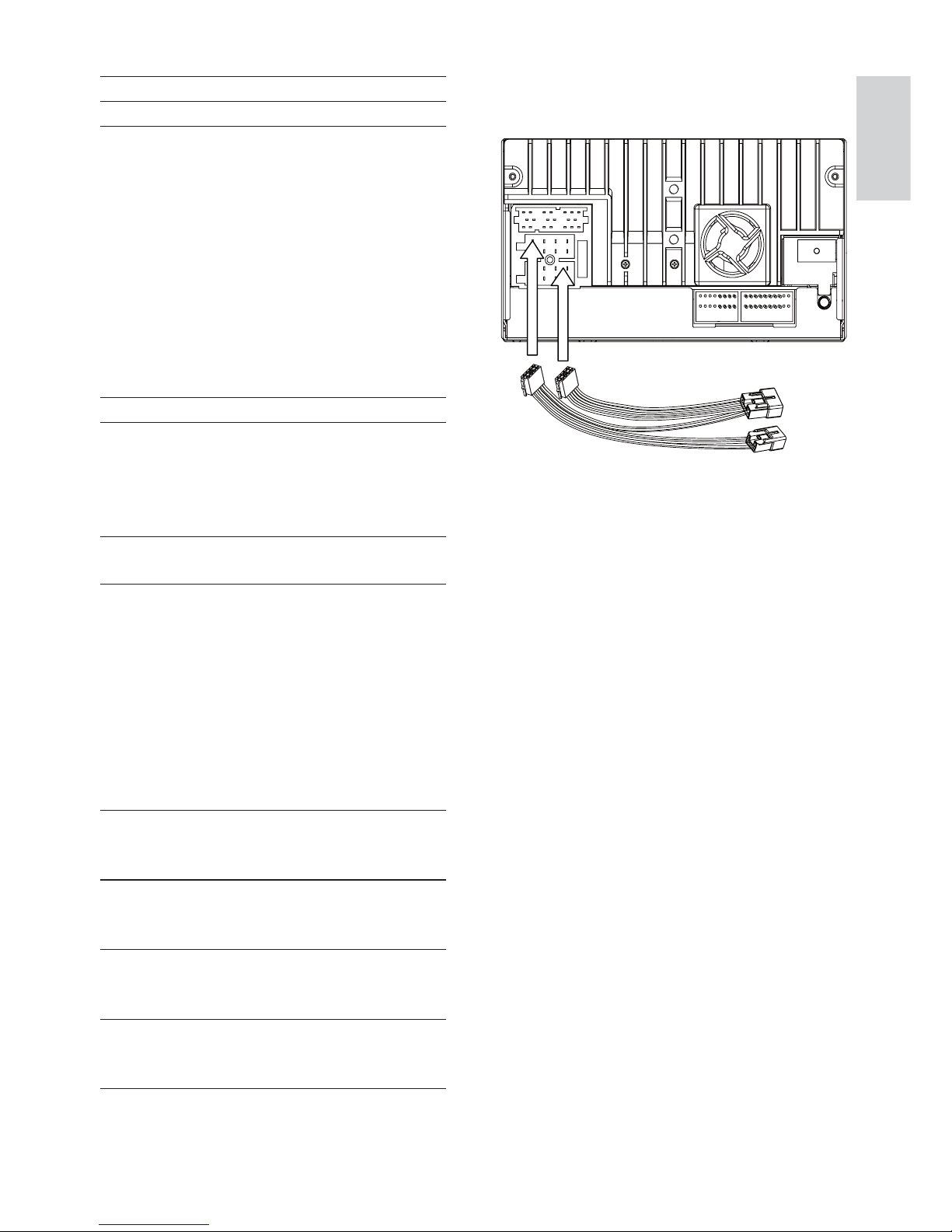

2Connect the other end of the two ISO
connectors to the car audio system.
3If necessary, do the other connections:
Connector Connect to
1 Telephone mute
2Redwire The +12V power terminal
which is live in the
accessory (ACC) position
of the ignition switch
If there is no accessory
position, connect to the
+12V car battery terminal
that is always live. Be
sure to connect the black
ground (earth) lead to a
metal surface of the car
ÀUVW
3 Orange wire Lumination switch
4Blackwire A metal surface of the car
First connect the black
ground (earth) lead, then
connect the yellow and red
power supply leads.
5YellowwireThe +12V car battery
which is live at all times.
6Bluewire The electric antenna
control lead or power
supply lead of the antenna
booster
If there is no electric
antenna or antenna
booster, or it is manually
operated telescopic
antenna, it is not necessary
to connect this lead.
7 Green and
green/black
wires
Left speaker (Rear)
8 White and
white/black
wires
Left speaker (Front)
9 Gray and
gray/black
wires
Right speaker (Front)
10 Purple and
purple/black
wires
Right speaker (Rear)
English
EN

10
Connect GPS antenna
To receive signal from satellites, connect the
supplied GPS antenna to your car and the
system.
1Connect the supplier GPS antenna to the
V\VWHPÀUVW
Red
White
Yellow
Red
Red White Yellow
Black Black
Yellow Green Blue
White
Black
Touch controller
Rear screen
Amplifier
Yellow
White
Brown
Red Red
EN

11
4Attach the trim plate.
5Reconnect the negative terminal of the
car battery.
Turn on
Caution
Risk of road accidents! Never watch video or
adjust settings while you drive.
1Press and hold /MUTE/VOL to turn on
the unit.
The available OSD (On-Screen»
Display) languages are displayed.
2Touch a language to select.
The OSD language is changed to the»
selected language immediately.
To turn off the unit, press and hold
/MUTE/VOL.
2Stick the other end of the GPS antenna to
a metal surface of the car.
Connect GPS antenna
If your car has built-in radio antenna, connect
it to the radio antenna of the system for
better radio signal.
1Connect the radio antenna to the car
antenna.
2Stick the other end of the GPS antenna to
a surface for signal reception.
Mount in the dashboard
Note
Check wire connection before you mount the
unit into a car.
1Take off the trim plate of the car.
2Install the mounting brackets of the car to
the unit with screws (supplied by the car
manufacturer).
3Fix the mounting brackets to the car.
English
EN

12
Set date
1Touch [Date].
2Touch on the displayed date information.
A submenu is displayed.»
3Touch or to set year, month and day.
Set clock mode
1Touch [Clock mode].
2Touch on [12Hr] or [24Hr] to select
clock mode.
Set time
1Touch [Time].
2Touch on the displayed time.
A submenu is displayed.»
3Touch or to set hour and minute.
Tip
When date/time is set, touchÀUVWDQGWKHQ
touch to return to main menu.
Adjust screen
To adjust screen brightness/contrast/color
1Press DISP/ /to show the manual.
2Press or to select an item.
3Touch / to adjust the value.
4Press DISP/ /WRFRQÀUP
To turn on/off the screen, press and hold
DISP/ /.
Set date and time
1Touch the upper left corner to display
main menu.
2Touch in the middle right side of the
screen.
The second main menu is displayed.»
3Touch [Settings].
4Touch [Time].
The date/time setup menu is displayed.»
EN

13
Upgrade the map
1Turn off the car audio system.
2Press the map card until you hear a click
sound.
3Take out the card and bring it to the
authorized service center for upgrade.
a
b
4Insert the upgraded map card back into
the map card slot.
5Turn on the car audio.
The map upgrades in a few minutes.»
3 Use map
Note
You may need to upgrade the map before
using it (see “Upgrade the map” section)
1Touch the upper left corner to display
home menu.
2Touch [Navigation].
The navigation menu is displayed in a»
few seconds.
3Refer to the map manual (in Chinese) to
operate the navigation tool.
Tip
You can pressNAVI to enter/exit the navigation
system.
English
EN

14
4Touch the numbers to enter frequency.
Touch to clear the last entered
number.
Touch to clear all the entered
numbers.
5Touch WRFRQÀUP
The radio station is broadcast.»
Select radio range
Before you start to search for radio stations,
you can select radio range.
1Touch .
2Touch [Radio range] to toggle tuner
sensitivity from normal to high sensitivity.
 [Distance]: Only stations with strong
signals can be broadcast.
 [Local]: Stations with strong and
weak signals can be broadcast.

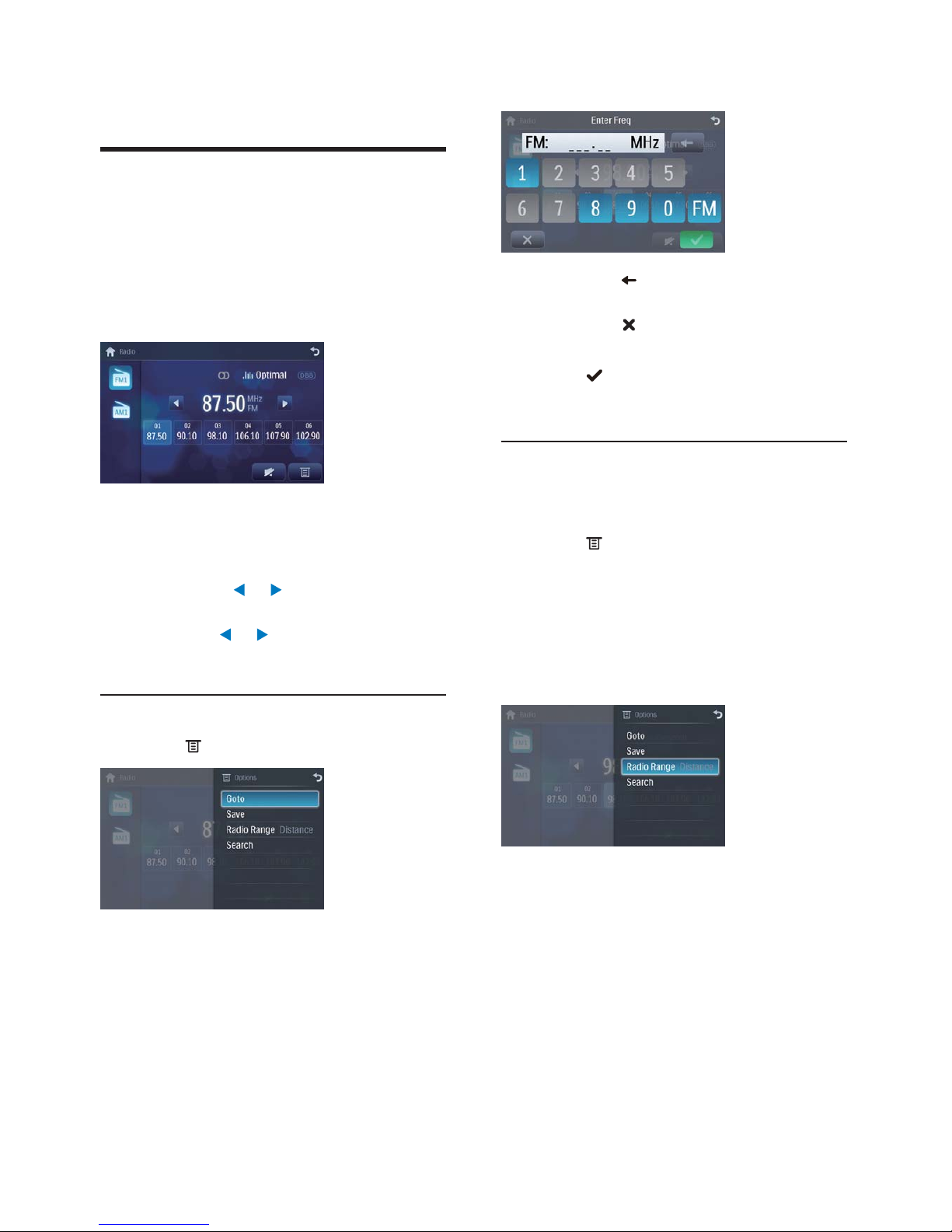

4 Listen to radio
Tune to a radio station
1Touch the upper left corner to display
home menu.
2Touch [Radio].
Band and frequency information is»
displayed.
3Touch on FM or AM to select band:
FM band options: FM1, FM2, FM3
AM band options: AM1, AM2
4 %ULHÁ\WRXFK or to tune to a radio
station by step.
Touch or for over 1 seconds to
tune to a radio station automatically.
Tune by frequency
1Touch .
2Touch [Goto].
3Touch FM or AM to select band.
EN

15
Tune to a preset station
1Touch [Radio].
2Select band.
3Touch one of the preset channels (01 to 06)
to select a preset station.
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations manually
1Tune to the station.
2Touch .
3Touch [Save].
4Touch one of the channels 01 to 06 to
save the select band.
Store stations automatically
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1Select band.
2Touch .
3Touch [Search].
Auto search starts.The six strongest»
stations of the selected band are saved
in preset channels 1-6 automatically.
English
EN

16
Connect USB device
Note
Ensure that the device contains playable content.
1Open the USB door.
2Insert your USB device to the USB
socket.
Play starts automatically.»
5 Play
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW
VCD
Audio CD, CD-R, CD-RW
Note
Ensure that the disc contains playable content.
1Insert the disc into the disc slot with label
side facing up.
Play starts automatically.»
To remove the disc, press the»button.
When the disc is ejected, the unit»
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
EN

17
Play/Pause
1Once a disc, USB or SD/MMC card is
inserted, play starts automatically.
For DVD movie, if a menu appears, press
TUNE/ SELECT to start play.
2To pause, touch .
To resume play, touch again.
Tip
You can also pressTUNE/ SELECT
repeatedly to pause/resume play.

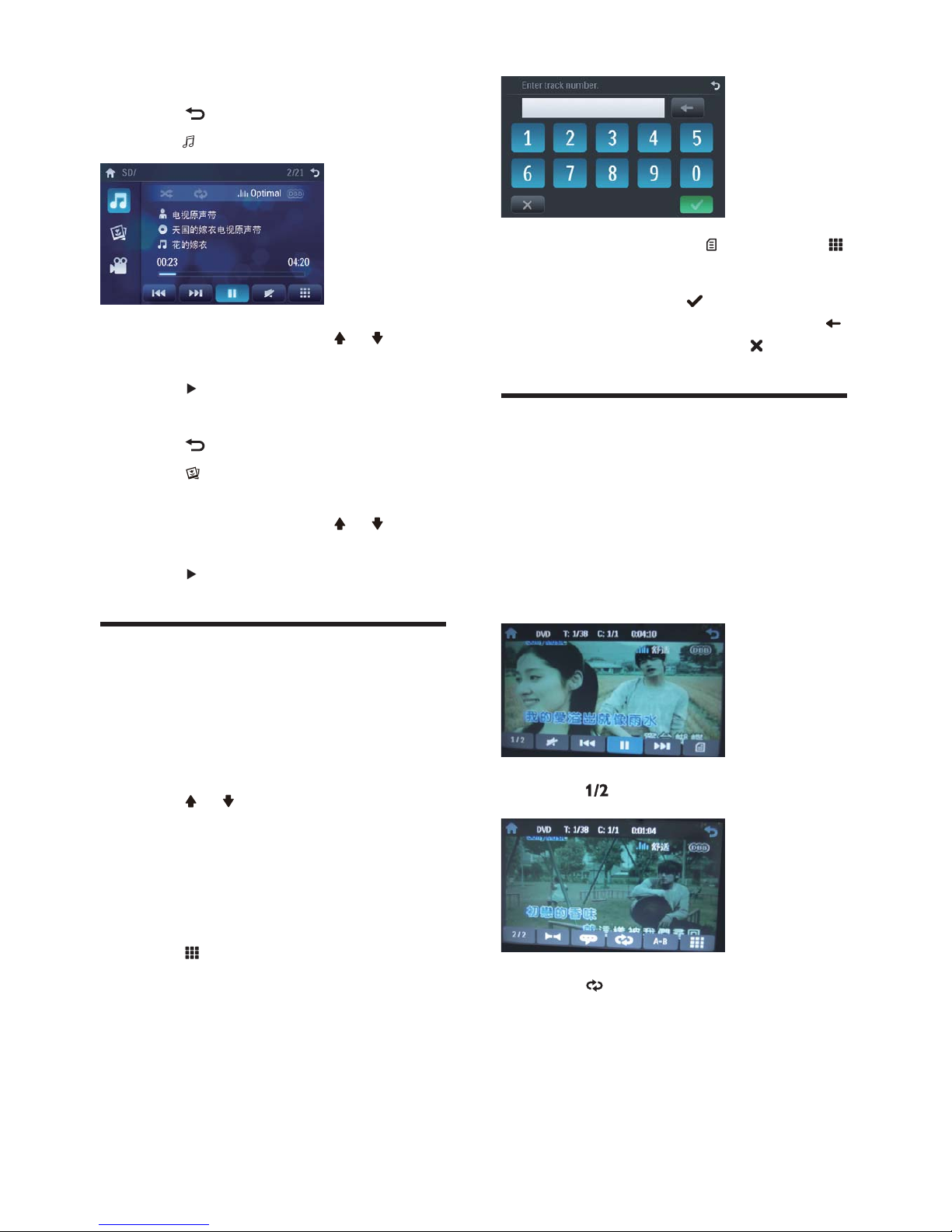

Search for a folder
)RUYLGHRÀOHV
1Touch to return to playlist menu.
2Touch WRGLVSOD\DOODYDLODEOHYLGHRÀOH
folders.
3Touch a folder, then touch or to
VHOHFWDÀOH
4Touch to start play.
Remove the USB device
1Press SRC to switch to another source.
2Remove the USB device.
Insert SD/MMC card
Note
Ensure that the device contains playable content.
The unit supports SDHC card.
1Open the SD/MMC card cover.
2Insert the SD/MMC card into the
SD/MMC card slot.
Play starts automatically.»
Remove the SD/MMC card
1Press SRC to switch to another source.
2Press the card until you hear a click sound.
The card is now disengaged.»
3Remove the SD or MMC card.
English
EN

18
)RUYLGHRÀOHVWRXFK»ÀUVWWKHQWRXFK .
3 7RXFKWKHQXPEHUVWRHQWHUFKDSWHUÀOH
number, then touch .
To clear the previous input, touch .
To clear all input, touch .
Repeat
During play, you can select different repeat play
modes.
For DVD/VCD movie disc:
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch to display the 2nd menu.
3Touch to select:
 [Repeat chapter]: play the current
chapter repeatedly.
 [Repeat title]: play all chapters in the
title repeatedly.
 [Repeat off]: cancel repeat play.
)RUDXGLRÀOHV
1Touch to return to playlist menu.
2Touch to display all available audio folders.
3Touch a folder, then touch or to
VHOHFWDÀOH
4Touch to start play.
)RUSLFWXUHÀOHV
1Touch to return to playlist menu.
2Touch to display all available picture
folders.
3Touch a folder, then touch or to
select a picture.
4Touch to view the picture.
Search within a title/folder
Search by step
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch or to skip to the previous or
next chapter/track.
Direct search
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch .
The search screen is displayed.»
EN

19
Random play
<RXFDQSOD\DXGLRWUDFNVÀOHVLQUDQGRPRUGHU
1During play, touch repeatedly to turn
random play on or off.
 is highlighted : start random play.
 turns gray: cancel random play.
Select audio language
For video discs that contain two or more audio
channels.
1During play, touch anywhere except for
the upper left corner to display menu on
the screen, if necessary.
2Touch to display the 2nd menu.
3Touch repeatedly.
The audio channel information is»
displayed on the upper line of the
screen.
Select audio mode
When you play VCDs, you can select an audio
mode (R/L/Stereo).
1During play, touch anywhere except for
the upper left corner to display menu on
the screen.
2Touch repeatedly until the audio
mode is selected.
ForVCD karaoke or audio CD:
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch to select:
 [Repeat]: play the current track
repeatedly.
 [Repeat off]: cancel repeat play.
)RU03:0$ÀOHV:
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch to select:
 [Repeat]: play the current track
repeatedly.
 [Repeat folder]: play all the tracks in
the current folder repeatedly.
 [Repeat off]: cancel repeat play.
Repeat a section
<RXFDQUHSHDWDVSHFLÀFVHFWLRQRIYLGHRÀOH
(repeat A-B).
1During play, touch anywhere except for
the upper left corner to display menu on
the screen, if necessary.
2Touch to display the 2nd menu, if
necessary.
3Touch repeatedly to mark:
 [Repeat A-]: the start of the section
to repeat.
 [Repeat A-B]: the end of the section
to repeat.
The selected section plays repeatedly.
4To exit A-B repeat mode, touch
repeatedly until [Repeat A-B off] is
displayed.
English
EN

20
3Touch , , or to pan through the
enlarged picture.
Select slide show duration
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch repeatedly to select:
 Fast: 3 seconds
 Normal: 5 seconds
 Slow: 8 seconds
Select subtitle language
For DVD or DivX discs that contain two or
more subtitle languages.
1During play, touch anywhere except for
the upper left corner to display menu on
the screen, if necessary.
2Touch to display the 2nd menu
3Touch repeatedly to select a language.
The selected language is displayed.»
Rotate pictures
1When you view pictures, touch anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2Touch repeatedly to rotate the picture.
Zoom
You can zoom in pictures for a close view.
1During view pictures, touch anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2Touch repeatedly to zoom in the picture.
EN

21
4Enter default password “0000”.
If pairing succeeds. phone call record is»
displayed.
Disconnect Bluetooth devices
1To disconnect one device, touch (red).
»(green) is displayed.
Tip
The device will also be disconnected when the
device is moved beyond the operational range.
If you want to reconnect the device to the

unit, place it within the operational range.
If you do not want to reconnect the device

to the unit automatically, touch >[Auto
connect], then select [Off]. For details, see the
“Adjust Bluetooth settings” section.
Make a call
1Pair the phone with the unit.
2Touch the upper left corner to display the
home menu.
3Touch [Bluetooth].
The Bluetooth menu is displayed.»
4Touch or to select the paired phone,
then touch .
6 Play with
Bluetooth
device
You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetooth-
enabled device.
Pair the Bluetooth-enabled
devices
To connect your Bluetooth device to the unit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.
Note
The operational range between this unit and a
Bluetooth device is approximately 10 meters
(30 feet).
Before you connect a Bluetooth device to this

unit, familiarize yourself with the Bluetooth
capabilities of the device.
Compatibility with all Bluetooth devices is not

guaranteed.
Any obstacle between this unit and a Bluetooth

device can reduce the operational range.
Keep this unit away from any other electronic

device that may cause interference.
1Turn on the Bluetooth function on the
device.
2Search for Bluetooth device with the
device.
3Select “CID3680” in the pairing list.
English
EN
