Philips CED780/55 User manual

www.philips.com/welcome
Register your product and get support at
CED780
EN User manual 3
ES-AR Manual del usuario 41
PT-BR Manual do Usuário 87

3
English
EN
Contents
1 Important 5
Safety 5
Notice 5
2 Your in-car entertainment system 7
Introduction 7
What's in the box 8
Overview of the main unit 9
Overview of the remote control 10
3 Get started 12

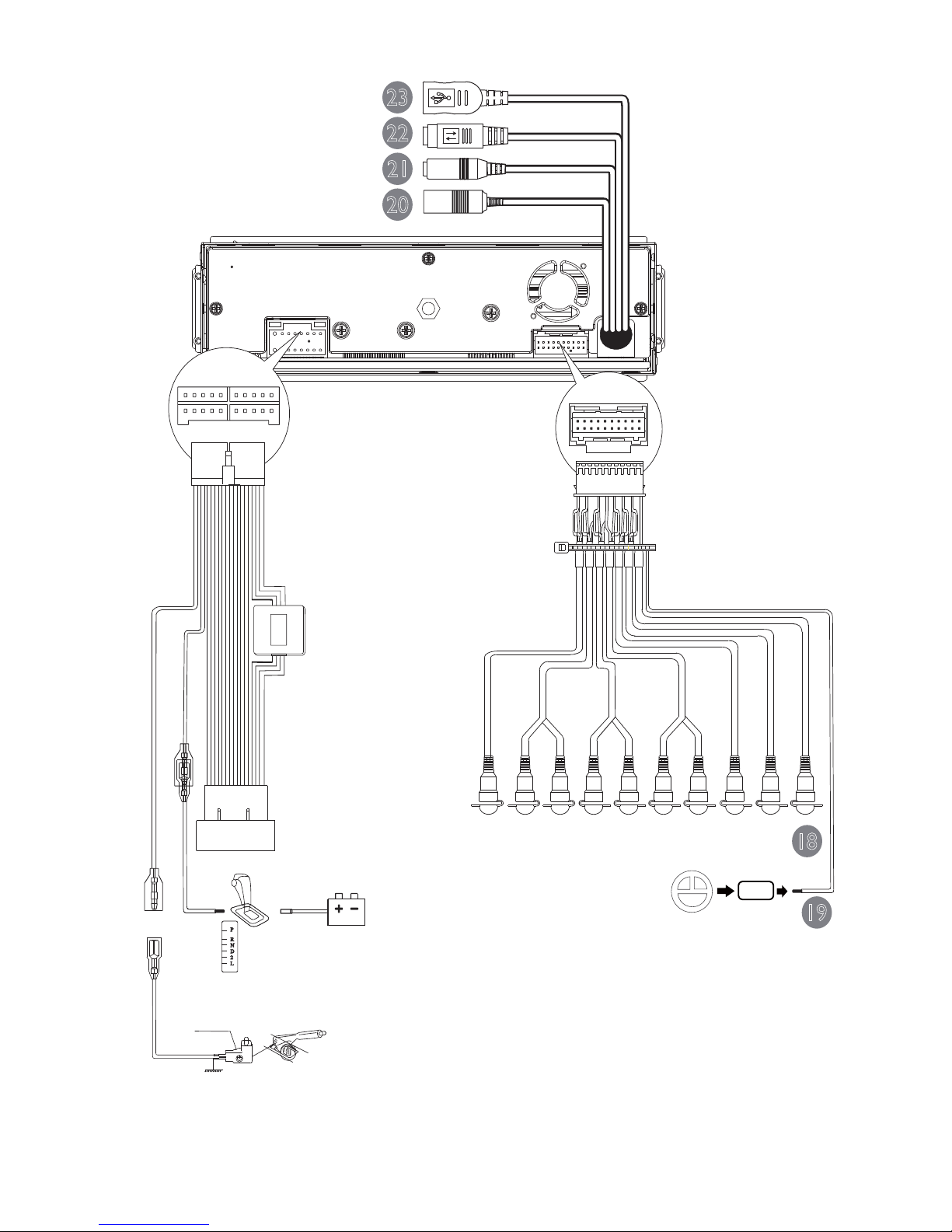

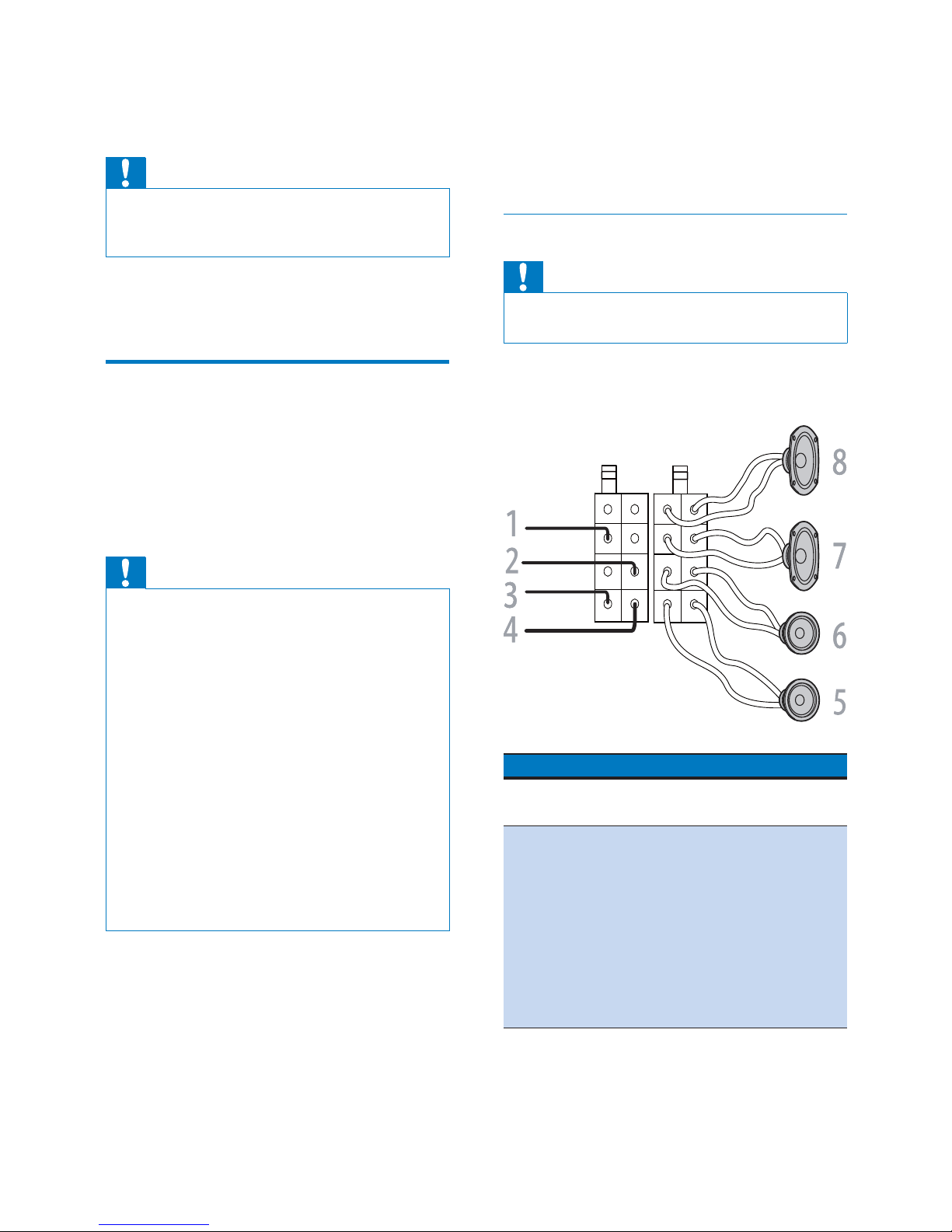

Install the car audio 12

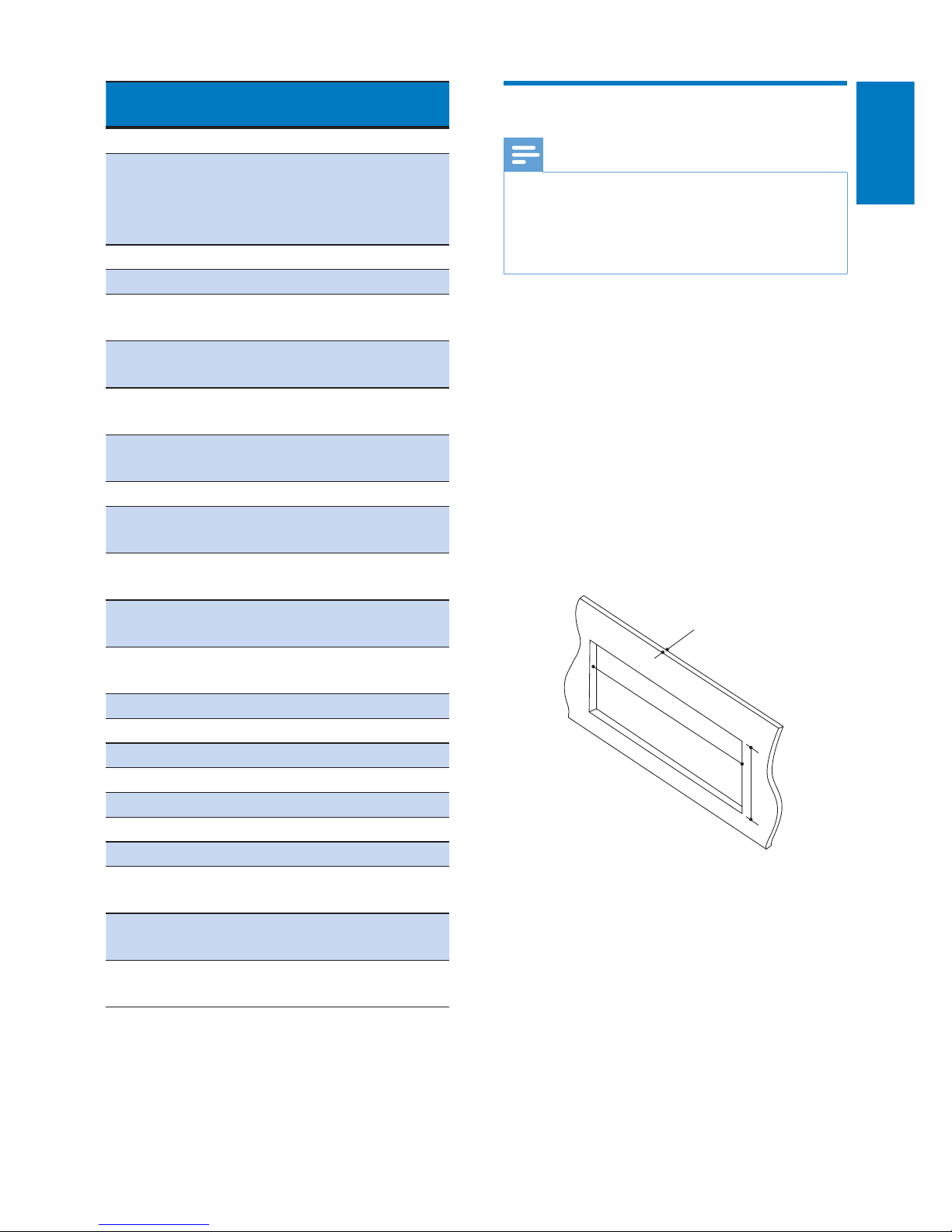

Mount into the dashboard 15
Attach the front panel 16
Install remote control battery 16
Turn on 17
Set date and time 17
4 Play audio/video/picture 18
Load discs 18
Connect USB device 19
Insert SD/MMC card 19
Play/Pause 20
Browse 20

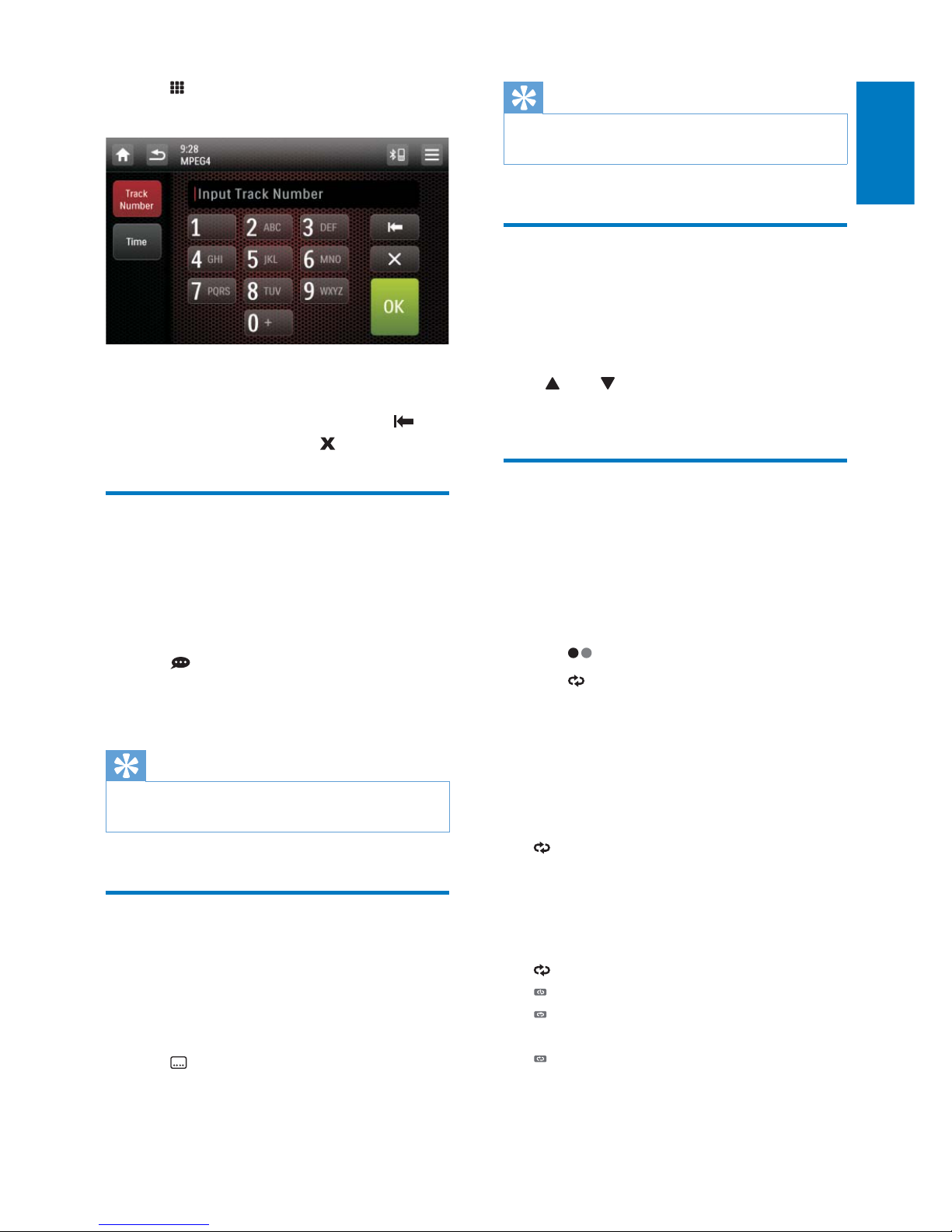

Skip to a chapter/title/time 20
Select audio track 21
Select subtitle language 21
Change view angle 21
Repeat one/all chapter 21
Random play 22
Select audio mode 22
View photo 22
5 Listen to radio 23
Tune to a radio station 23
Store radio stations in memory 23
Tune to a preset station 24
6 Use navigation system 24
Insert map card 24
Use map 24
7 Play with Bluetooth device 25
Adjust microphone position 25
Pair the Bluetooth-enabled devices 25
Make a call 27
Receive call 27
Bluetooth phone book settings 28
Favorite call 28
Adjust Bluetooth settings 28
Listen to music from Bluetooth device 29
8 Play iPod 29
Compatible iPod/iPhone/iPad 29
Listen to the iPod/iPhone/iPad 30
Search for a track 30
Charge the iPod/iPhone/iPad 30
9 Adjust sound 31
Adjust volume 31
Mute 31
Select preset equalizer 31
Adjust fader/balance/subwoofer 31
Switch music listening zone 32
Turn FullSound on/off 32
Turn MAX sound on/off 32
Turn DBB on/off 32
10 Adjust settings 33
Display system setup menu 33
Adjust general settings 33
View Info settings 33
Adjust Navigation settings 34
Adjust Bluetooth settings 34
11 Others 35
Adjust brightness 35
Set rear view camera 35
Adjust display design 35
Listen to other devices 35
Detach the front panel 36
Reset 36
Replace fuse 37

4EN
12 Product information 37
USB playability information 38
13 Troubleshooting 39
About the Bluetooth device 39

5
English
EN
1 Important
Safety
 Read and understand all instructions
before you use the device. If damage is
caused by failure to follow instructions, the
warranty does not apply.
 Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
 The device is designed for negative ground
(earth) 12V DC operation only.
 
not watch video when driving.
 To ensure safe driving, adjust the volume to
a safe and comfortable level.
 Improper fuses can cause damage or

consult a professional.
 Use only the supplied mounting hardware
for a safe and secure installation.
 To avoid short circuits, do not expose the
device, remote control or remote control
batteries to rain or water.
 The device shall not be exposed to
dripping or splashing.
 Do not place any sources of danger on

candles).
 Never insert objects into the ventilation
slots or other openings on the device.
 Never place any objects other than discs
into the disc tray/slot.
 To avoid exposure to laser radiation, do
not disassemble the device.
 Risk of damage to the screen! Never touch,
push, rub or strike the screen with any
object.
 Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
 Clean the device with soft, damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners on the
device.
Notice
The making of unauthorized copies of copy-
protected material, including computer

recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
The Bluetooth®word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips is
under license.
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been


the developer to meet Apple performance
standards.Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.

6EN
ABOUT DIVXVIDEO: DivX®is a digital video
format created by DivX, LLC, a subsidiary

®device that plays DivX video.Visit
divx.com for more information and software

ABOUT DIVXVIDEO-ON-DEMAND:This
®device must be registered
in order to play purchased DivXVideo-on-
Demand (VOD) movies.To obtain your
registration code, locate the DivXVOD section
in your device setup menu. Go to vod.divx.com
for more information on how to complete your
registration.
DivX®®and associated logos
are trademarks of Rovi Corporation or its
subsidiaries and are used under license.
Manufactured under license from Dolby
Laboratories.
"Dolby" and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This apparatus includes this label:
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products.The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
This product complies with the radio
interference requirements of the European
Community.

7
English
EN
Disposal of your old product and
batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.

device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2011 © Koninklijke Philips Electronics N.V. All
rights reserved.

notice.Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
2 Your in-car
entertainment
system
Congratulations on your purchase, and

support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can
 Quickly found routine through the
navigation system
And you can also enjoy:
 Audio/video/JPEG pictures from
 DVD,VCD or CD
 USB devices
 SD/SDHC/MMC cards
 iPod/iPhone
 External devices
 FM or AM (MW) radio
 Audio from Bluetooth-enabled devices
Besides, you can make/receive phone calls with
Bluetooth-enabled devices.

8EN
What's in the box
Check and identify the contents of your
package:
a Main unit and front panel (with a sleeve)
b Remote control
c Trim plate
d Carrying case for front panel
e ISO standard connector
ba
dc
fe
igh
ljk
f Audio andVideo cable
g Hexagon head screw
h Screws
- M4x8mm (x4)
i Remote control battery
j Rubber cushion
k User manual
l Quick start guide

9
English
EN
Overview of the main unit
abcde
i
j
k
p
abcdef g
n
h
j
k
om
l
q
a OPEN
 Open/Close TFT screen.
b
 Press to answer or redial a call.
 Press and hold to transfer call.
c /
 Turn the unit on or off.
 
 Mute or unmute sound.
 Rotate to adjust volume.
d BAND
 Select tuner band.
e +/-PRESET
 Select preset radio station.
 Search for track/folder.
f DISP
 Adjust dimmer settings.
 Press and hold to turn off display.
g TILT
 Adjust position of the screen.
h
 Eject disc.
i NAVI
 Enter GPS navigation system or exit.

10 EN
j AV IN
 External audio/video socket.
k
 Unlock the panel.
l
 USB socket.
m SOURCE
 Select source.
n
 Press to terminate call.
o /
 Tune for radio station.
 Skip/search for track.
 Fast backward/forward playback.
p RESET
 Reset the unit when it hangs up.
q SD/SDHC/MMC card slot
Overview of the remote
control
a
 Turn the unit on or off.
b NAVI
 Enter GPS navigation system or exit.
c SOURCE
 Select source.
d
 Mute or unmute sound.
e BAND
 Select tuner band.
f VOLUME +/-
 Adjust volume.
g SUBTITLE
 Select DVD or DivX subtitle language.
f
h
j
l
m
o
e
g
i
k
n
p
ab dc
q
r
t
v
y
x
|
~
s
z
w
u
{
}

11
English
EN
h
 Turn maximizing sound on or off.
i DVD MENU
 Access DVD main menu.
j
 Turn full sound on or off.
k
 Return to previous menu or exit.
l DBB
 Turn Dynamic Bass Boost (DBB) sound
on or off.
m EQ
 Access audio setting menu.
n
 Turn the screen blackout mode on or
off.
o ZONE
 Switch music listening zone.
p
 Select video channel.
q
 Answer phone.
 Dial or redial number.
r
 Terminate call.
s
 Browse photos.
t
 Switch to music playing mode.
u /
 Skip to previous/next preset station.
 Skip to previous/next folder.
 Search backward/forward for DVD
video.
 Move cursor up/down.
v
 Start play or pause.
w OK
 
x /
 Skip to previous/next track/chapter.
 Move cursor to left/right.
y
 View the clock.
z DVD AUDIO
 Select audio language or audio channel.
{TOP MENU
 Return to top menu.
|TILT +/-
 Adjust position of the screen.
}
 Unlock the panel.
~DISP
 Adjust dimmer settings.
 Press and hold to turn off display.

12 EN
3 Get started
Caution
 Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
 This unit is designed for negative ground (earth) 12 V
DC operation only.
 Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
 To avoid short-circuit: before you connect, ensure that
the ignition is off.
 Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
 Ensure that all loose leads are insulated with electrical
tape.
 Ensure that the leads do not get caught under screws
or in moving parts (e.g. seat rail).
 Ensure that all ground (earth) leads are connected to a
common ground (earth) point.
 Use only the supplied mounting hardware for a safe
and secure installation.
 
need to change the fuse, consult a professional.
Note on the power supply lead (yellow)
 When you connect other devices to this
system, ensure that the rating of the car
circuit is higher than the total fuse value of
all the connected devices.
Notes on speaker connection
 Never connect speaker wires to the metal
body or chassis of the car.
 Never connect speaker wires with stripes
to one another.
Connect wires
Caution
 Ensure that all loose leads are insulated with electrical
tape.
1 Check the car's wiring carefully, then
connect them to the supplied ISO wires.
Connector Connect to
1 Yellow wire The +12V car battery
which is live at all times.
2 Blue/White
wire
The electric antenna control
lead or power supply lead
of the antenna booster. If
there is no electric antenna
or antenna booster, or
it is manually operated
telescopic antenna, it is
unnecessary to connect
this lead.

13
English
EN
Connector Connect to
3 Black wire A metal surface of the car.
Connect the black ground
(earth) lead before connect
the yellow and red power
supply leads.
4 Red wire The +12V power terminal
which is live in the
accessory (ACC) position
of the ignition switch. If
there is no accessory
position, connect to the
+12V car battery terminal
that is always live. Ensure
that black ground (earth)
lead is connected to a metal

5 Green and
green/black
wires
Left speaker (Rear)
6 White and
white/black
wires
Left speaker (Front)
7 Gray and
gray/black
wires
Right speaker (Front)
8 Purple and
purple/
black wires
Right speaker (Rear)
2 Connect the other end of the supplied
standard connector to the car audio
system.
Caution
 To avoid any accident, the driver must not watch video
while driving.This unit is designed to not allow watching
moving video while driving. Park your car in a safe place
and engage the parking brake before watching moving
video.
Note
 The video blocking system under parking brake not
engaged only control the display of this unit, and will
not affect the video output through the rear RCA
video output.
 If watch moving video from disc or AV-IN source but
parking brake is not properly connected, the video
signal will be blocked by the system, and the below
display will be shown on TFT:

14 EN
1
2
3
4
5
6
7
890!"$&
§%
18
19
/
20
21
22
23

15
English
EN
Connector/
Object
Connect to/with
1 Pink wire Extension wire
2 2.5m
extension
wire (not
included)
Parking brake (-)
3 Brake switch
4 Ground
5 Purple wire Reverse camera
(B+)
6 Gearbox
switch
7 Reverse gear
signal
Back lamp lead +
8 ISO wires Connected in step
1 above
9 Yellow cable Video out
10 Red cable Rear line out
(Right)
11 White cable Rear line out
(Left)
12 Red cable Front line out
(Right)
13 White cable Front line out
(Left)
14 Red cable Audio in (Right)
15 White cable Audio in (Left)
16 Yellow cable Video in
17 Brown cable Camera in
18 Blue cable Subwoofer
19 White wire OE remote
20 Black wire Radio antenna
21 Black wire External
microphone
22 Black wire TV ready/DAB
ready
23 Black wire GPS smart
antenna
Mount into the dashboard
Note
 Check wire connection before you mount the unit
into a car.
 If preset radio stations are lost when the ignition key is
turned off and then turned on, reconnect the red leads
crosswise to the yellow ones.
1 If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
 If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
 If the car battery is not disconnected,
to avoid short-circuit, ensure that the
bare wires do not touch each other.
2 Ensure that car dashboard opening is
within these measurements:
 Since the unit cannot be used if the
slant angle of dashboard opening is
above 20 degrees, ensure that the
horizontal slant of the dashboard
opening is between 0 and 20 degrees.
183 mm
53mm
5mm

16 EN
3 When installing in a shallow space, change
the position of slide brackets.
4 Place the supplied rubber cushion over the
end of the mounting bolt.
5 Install the sleeve into the dashboard and

Slide the unit into the dashboard until you
hear a click.
Note
 
sleeve, skip this step.
Attach the front panel
1 Attach the trim plate.
2 Insert the left side of the panel in the
chassis until it is correctly engaged.
3 Press the right side of the panel until the
mechanism locks it into place.
Install remote control battery
Caution
 Risk of explosion! Keep battery away from heat,


17
English
EN
Note
 
not to be used for a long time.
 Battery contain chemical substances. It should be
disposed of properly.
1 Open the battery compartment.
2 Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3 Close the battery compartment.
Turn on
Caution
 Risk of road accidents! Never watch videos or adjust
settings while you drive.
1 Press to turn the unit on.
» The available OSD (On-Screen
Display) languages are displayed.
2 
» The OSD language is changed to the
selected language immediately.
 To turn the unit off, press and hold
for three seconds.
Set date and time
1 Tap to display main menu.
2 Tap to display the full menu.
3 Tap .
» The setup menu is displayed.

18 EN
4 Tap .
» The date/time setup menu is displayed.
5 Tap on [Date], [Clock Mode] or [Time].
6 Tap or to set date/time.
7 When date/time is set, tap to return to
main menu.
4 Play audio/
video/picture
Load discs
You can play video, audio or images stored on
the following discs:
 DVD video, DVD-R, DVD-RW
 VCD
 Audio CD, CD-R, CD-RW
1 Insert the disc into the disc slot with label
side facing up.
» The disc starts playing automatically.
2 To remove the disc, press the button.
» When the disc is ejected, the unit
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
Note
 Supported region code depends on where you bought
the car audio system.
Countries where you
bought the unit
Supported DVD
region code
China

Korea

19
English
EN
Latin America
Russia, India
Connect USB device
Note
 Ensure that the device contains playable content.
1 Push the USB socket cover upside.
2 Insert the USB device into the USB slot .
» 
3 To remove the USB device, switch the car

take off the USB device.
» When USB device is disconnected, it
plays the previous source.
Insert SD/MMC card
Note
 This device supports Secure Digital High Capacity
(SDHC) card.
1 Detach the front panel. (see 'Detach the
front panel' on page 36)
2 Insert the SD/MMC card into SD/MMC
card slot.
» Play starts automatically.
Remove SD/MMC card
1 Switch to another source.
2 Press the card until you hear a click.
» The card is now disengaged.
3 Remove the SD or MMC card.

20 EN
Play/Pause
1 Once a disc, USB or SD/MMC card is
inserted, play starts automatically.
 For DVD movie, if a menu appears,
press to start play.
2 To pause, tap .
 To resume play, tap again.
3 To skip forward/backward, tap or .
4 To fast forward/backward, tap and hold
or .
Browse
During play from USB device or SD card, you
can browse through the listed audio/video or

or watching.
1 Tap to return to playlist menu.
2 Tap one of the icons below to select

 : to display all available audio folders/
tracks.
 : to display all available picture

 : to display all available video

3 Drag along the search bar to display the
alphabet pop-up.
4 
5 Tap on the name to start play.
Skip to a chapter/title/time
1 During play, tap anywhere except for the
upper left corner to display the control bar.
2 Tap on the left lower corner of the
screen.
» The second control bar is displayed.

21
English
EN
3 Tap .
» The search screen is displayed.
4 Tap the numbers to enter track number,
then tap [OK].
 To clear the previous input, tap .
 To clear all input, tap .
Select audio track
For video discs that contain two or more audio
tracks.
1 During play, tap anywhere except for the
upper left corner to display the control bar.
2 Tap repeatedly to select audio track.
» The audio channel information is
displayed on upper line of the screen.
Tip
 You can also press DVD AUDIO on the remote
control repeatedly to change audio track.
Select subtitle language
For DVD or DivX discs that contain two or
more subtitle languages.
1 During play, tap anywhere except for the
upper left corner to display the control bar.
2 Tap repeatedly to select a language.
» The selected language is displayed.
Tip
 You may also press SUBTITLE on the remote control
repeatedly to select subtitle language.
Change view angle
Some DVDs contain alternate scenes, such
as scenes recorded from different camera
angles. For such DVDs, you can select available
alternate scenes.
Press TILT repeatedly on the front panel.
» The view angle is changed.
Repeat one/all chapter
During play, you can select different repeat play
modes.
For DVD/VCD movie disc:
1 Tap anywhere except for the upper left
corner to display the control bar.
2 Tap to display the second menu.
3 Tap to select:
 [Rep: chapter]: play the current
chapter repeatedly.
 [Rep: title]: play all chapters in the title
repeatedly.
 [Rep: disc]: cancel repeat play.
ForVCD karaoke:
Tap to select:
 [Rep: one]: play the current track
repeatedly.
 [Rep: disc]: cancel repeat play.

Tap on the upper line of the screen to select:
 : play the current track repeatedly.
 : play all tracks in the current folder
repeatedly.
 : cancel repeat play.
