Philips AJ3138 User manual

Register your product and get support at AJ3138
EN User manual

EN
1 Important
Safety
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j Only use attachments/accessories specied by the
manufacturer.
kUse only with the cart, stand, tripod, bracket, or table
specied by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.

lUnplug this apparatus during lightning storms or when
unused for long periods of time.
m Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
nBattery usage CAUTION – To prevent battery leakage which
may result in bodily injury, property damage, or damage to
the unit:
Install all batteries correctly, + and - as marked on the unit.•
Do not mix batteries (old and new or carbon and alkaline,•
etc.).
Remove batteries when the unit is not used for a long time.•
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g.
liquid lled objects, lighted candles).
qWhere the MAINS plug or an appliance coupler is used as
the disconnect device, the disconnect device shall remain
readily operable.

Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keepthisapparatusawayfromdirectsunlight,nakedamesorheat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or•
adaptor to disconnect this apparatus from the power.
Notice
This product complies with the radio interference requirements of
the European Community.
Anychangesormodicationsmadetothisdevicethatarenot
expressly approved by Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product
it means that the product is covered by the European Directive
2002/96/EC.

Please inform yourself about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your
old products with your normal household waste. Correct disposal of
your old product helps to prevent potential negative consequences
for the environment and human health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed with normal household
waste.Please inform yourself about the local rules on separate
collection of batteries because correct disposal helps to prevent
negative consequences for the environmental and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam
sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
The making of unauthorized copies of copy-protected material,
includingcomputerprograms,les,broadcastsandsoundrecordings,
may be an infringement of copyrights and constitute a criminal
offence. This equipment should not be used for such purposes.
Norge
Typeskiltnnespåapparatensunderside.

Observer: Nettbryteren er sekundert innkoplet. Den innebygde
netdelenerderforikkefrakopletnettetsålengeapparateter
tilsluttet nettkontakten.
Foråreduserefarenforbrannellerelektriskstøt,skalapparatetikke
utsettes for regn eller fuktighet.
2 Your clock radio
Congratulations on your purchase, and welcome to Philips!To fully
benetfromthesupportthatPhilipsoffers,registeryourproductat
www.philips.com/welcome.
Introduction
With this clock radio, you can:
enjoy the FM radio•
know the time•
wake up to buzz, favorite radio tone, or recorded sound•
set two alarms to ring at different time.•
What’s in the box
Check and identify the contents of your package:
Main unit x 1•
AC power adaptor x 1•
Decorative ring x 1•
Knob x 2•
User manual x 1•
Quick start guide x 1•

Overview of the main unit
avolume
Adjust volume.•
bmic
Built-in microphone.•
crepeat alarm/brightness control
Repeat the alarm.•
Adjust the display brightness.•
dtuning
Tune to a radio station.•
eDisplay panel
fradio
Turn on/off the radio.•
k
j
i
c
a
b
d
e
f
m
n
o
l
h
g

gBattery compartment
Antenna (Inside the battery compartment)
hDC IN jack
iset/scan
Set the clock.•
Scan radio stations.•
Program radio stations.•
j+/-
Tune to a radio station.•
Select a preset radio station.•
Adjust time.•
Select time format.•
k/
Set the alarm timer.•
View the alarm time.•
Turn on/off the alarm.•
lrec/play
Record a piece of sound.•
Play the recorded sound.•
mdisplay
Toggle between different information.•
nnap
Select the nap time.•
osleep
Set sleep timer.•

3 Get started
Caution
Use of controls or adjustments or performance of procedures other•
than herein may result in hazardous radiation exposure or other
unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number
of this apparatus.The model number and serial number are on the
bottom of the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install batteries
Caution
Riskofexplosion!Keepbatteriesawayfromheat,sunshineorre.•
Neverdiscardbatteriesinre.
Risk of product damage! When the apparatus is not used for long
•
periods, remove the battery.
Batteries contain chemical substances, so they should be disposed
•
of properly.
1Open the battery compartment.
2Insert 3 AAA batteries (not supplied) with correct polarity
(+/-) as indicated.
The screen lights up for 5 seconds.»
3Close the battery compartment.

Tip
When the unit is powered by battery, the screen lights up for 5•
seconds after any operation.
Connect power
Caution
Risk of product damage! Ensure that the power voltage corresponds•
to the voltage printed on the back or underside of the apparatus.
Risk of electric shock! When you unplug the AC adaptor, always pull
•
the plug from the socket. Never pull the cord.
Before connecting the AC adaptor, ensure you have completed all
•
other connections.
1Connect the power cord to
the DC IN jack on the back of the main unit•
the power socket.•

Set time and date
1In clock mode, press set/scan.
The hour digits begin to blink.»
2Press +/- to set hour.
3Press set/scantoconrm.
4Repeat steps 2-3 to set the minute.
5Repeat steps 2-3 to select 12 hour or 24 hour format.
6Repeat steps 2-3 to set the year.
7Repeat steps 2-3 to set the date.
8Repeat steps 2-3 to set the month-day display mode.
4 Listen to radio
Tune to a radio station
1Press radio to turn on the radio.
2Rotate tuning clockwise or counter-clockwise to tune to a
radio station.

Program radio stations automatically
Note
You can program a maximum of 20 preset radio stations.•
1Press radio repeatedly to turn on the radio.
2Press and hold set/scan for 2 seconds.
All available stations are programmed in the order of waveband»
reception strength.
Therstprogramedradiostationbroadcastsautomatically.»
Program radio stations manually
Note
You can program a maximum of 20 preset radio stations.•
1Press radio repeatedly to turn on the radio.
2Rotate tuning clockwise or counter-clockwise to tune to a
radio station.
3Press set/scan.
The number begins to blink.»
4Press +/- repeatedly to select a preset number.
5Press set/scantoconrm.
6Repeat the above steps to program more stations.

Tip
To overwrite a programmed station, program another station in its•
place.
Select a preset radio station
1Press radio to turn on radio.
2Press +/- to select a radio station.
5 Set the alarm timer
You can set two separate alarms. For the alarm tone, you can select the
buzz, the FM radio, or a piece of recorded sound.
1Before you start, ensure that the time is set correctly.
2Press / .
»or is displayed.
3Press set/scan.
The hour digits begin to blink.»
4Press +/- to set the hour.
5Press set/scantoconrm.
The minute digits begin to blink.»
6Repeat steps 3-5 to set the minute.
7Repeat steps 3-5 to select days for the alarm.
8Repeat steps 3-5 to select buzz or radio or recorded sound for
the alarm.
The apparatus turns on automatically at the set time and rings with»
buzz or radio or recorded sound.

Tip
You can also press and hold•/ to start alarm setting.
The gentle wake up function is designed for buzzer source only.
•
Turn on/off the alarm timer
Note
Ensure that you already set the alarms successfully.•
Press or repeatedly to turn on or off the alarm timer.
If the alarm timer is turned on,»or appears.
If the alarm timer is turned off,»or disappears.
Repeat alarm
1When the alarm rings, press repeat alarm/brightness control.
The alarm repeats ringing minutes later.»
Tip
You can press•repeat alarm/brightness control again to adjust
interval to repeat alarm (5, 10, 15, 20, 25, or 30 minutes).
Stop alarm ring
1When the alarm rings, press the corresponding or .
The alarm stops but the alarm settings remain.»

View the alarm settings
1Press / or display.
6 Other features
Set the sleep timer
You can set the clock radio to turn off automatically after a certain
period of time.
1Press sleeprepeatedly to select time (in minutes).
The apparatus turns off automatically after the set period of time.»
To turn off the sleep timer:
1Press sleeprepeatedly until [OFF] (off )appears or press radio.
»is displayed when sleep timer is on and disappears when it is
off.
Set nap timer
1Press nap repeatedly to select the nap time (in minutes).
The alarm rings after the set period of time.»
To turn off the nap timer
1Press nap repeatedly until [OFF] is displayed.

Record a piece of sound
Note
You can record for a maximum of 8 seconds.•
1Press and hold rec/play during the whole process of recording.
[»REC] is displayed.
When the sound is recorded,»is displayed.
Tip
Keep the sound source close to•mic on the top of the unit.
To play the recorded sound, press• rec/play.
»is displayed.
Adjust the volume level
1Rotate volume to increase/decrease the volume level.
Adjust display brightness
1Press repeat alarm/brightness control repeatedly to turn on/
off the backlight of the display.
Activate the backlight blinking function
1Press and hold repeat alarm/brightness control for 5 seconds.
The backlight blinks.»
When the alarm rings next time, the backlight blinks for 3 minutes.»

To deactivate the backlight blinking function
1Press and hold repeat alarm/brightness control for 5 seconds
again.
Change the decorative ring and knobs
Note
You can change the decorative ring and knobs with the supplied ring•
and knobs.
To change the decorative ring
1Rotate the ring counter-clockwise.
The ring separates from the main unit.»

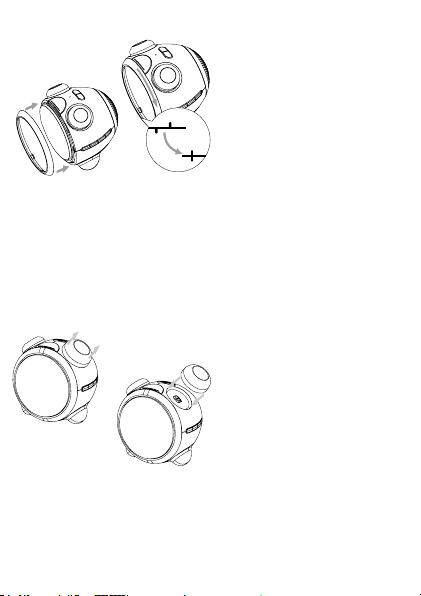

2Place the ring to be installed onto the main unit.

3Rotate the ring clockwise.
The ring is installed.»
To change the knobs
1Pull the knobs directly out of the socket.
2Plug the knobs to be installed into the sockets.

7 Product information
Note
Product information is subject to change without prior notice.•
Specications
Tuner (FM)
Tuning Range 87.5 - 108MHz
Tuning grid 50KHz
Sensitivity
- Mono, 26dB S/N Ratio
<22 dBf
Search Selectivity >28dBf
Total Harmonic Distortion <3%
Signal to Noise Ratio >50dB

General information
Power - AC: Model: AD39673
Input: 220 - 230V~ ,50Hz, 0.02A ,
Output: 5V, 0.2A
- DC: 3 x AAA batteries
Operation Power
Consumption
2W
Standby Power Consumption 1W
Dimensions
- Main Unit (W x H x D) 102 x 102 x 102 mm
Weight
- With Packing
- Main Unit
0.6 kg
0.3 kg
8 Troubleshooting
Caution
Never remove the casing of this apparatus.•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/support).When
you contact Philips, ensure that your apparatus is nearby and the model
number and serial number are available.
No power
