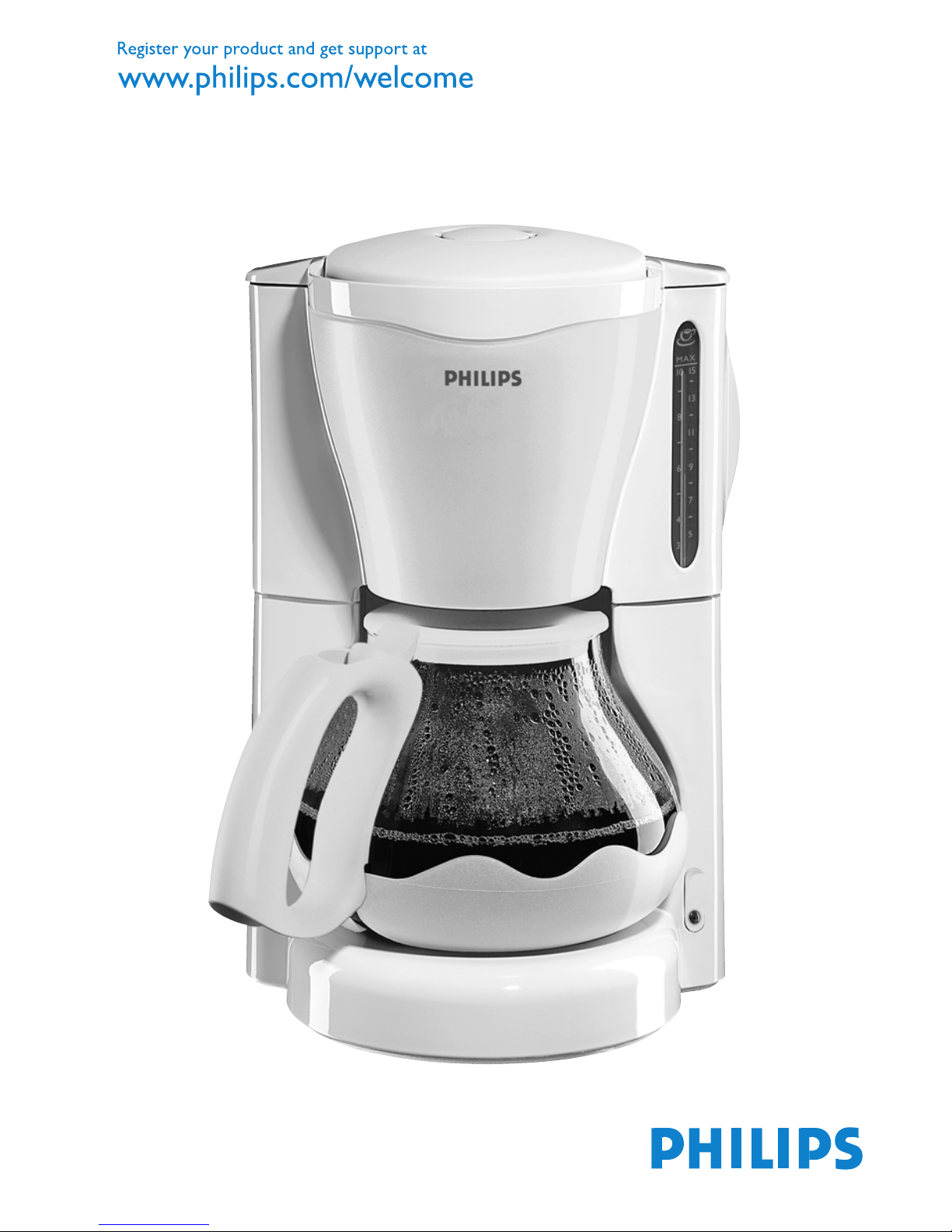

Philips HD7502/55 User manual

HD7502

2

3
1

4

HD7502
ENGLISH 6
DANSK 9
DEUTSCH 12
 15
ESPAÑOL 18
SUOMI 21
FRANÇAIS 24
INDONESIA 27
ITALIANO 30
NEDERLANDS 33
NORSK 36
PORTUGUÊS 39
SVENSKA 42
ภาษาไทย 45
50

6
Important
Read this user manual carefully before you use the appliance and save it for future reference.
Danger
Never immerse the appliance in water or any other liquid.
Warning
Check if the voltage indicated on the appliance corresponds to the local mains voltage before
you connect the appliance.
Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by
Philips or similarly qualied persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure that they do not play with the appliance.
Keep the mains cord out of the reach of children. Do not let the mains cord hang over the edge
of the table or worktop on which the appliance stands.
Caution
Do not place the appliance on a hot surface and prevent the mains cord from coming into
contact with hot surfaces.
Unplug the appliance if problems occur during brewing and before you clean it.

This Philips appliance complies with all standards regarding electromagnetic elds (EMF). If handled
properly and according to the instructions in this user manual, the appliance is safe to use based on
scientic evidence available today.

A Mains cord
BOn/off switch
CCoffeemaker
DLid of water tank
EWater tank
F Filter holder
GLid of jug
HJug
IBuffer ring

1 Placetheapplianceonaatandstablesurface.
2 Lettheappliancecompleteonebrewingcyclewithoutalterandgroundcoffee(seechapter
‘Usingtheappliance’).
3 Cleanthedetachableparts(seechapter‘Cleaning’).
Youcanstoreexcesscordbypushingitintotheopeninginthebackoftheappliance(Fig.2).

Brewing coffee
1 Fillthewatertankwithfresh,coldwater(Fig.3).
-
-
-
-
-
-
-
-
-
,
ENGLISH

Thegraduationsontheleftareforlargecups(120ml)(Fig.4).
Thegraduationsontherightareforsmallcups(80ml).
2 Openthelterholder(Fig.5).
3 Takeapaperlter(type1x4orno.4)andfoldthesealededgestopreventtearingand
folding(Fig.6).
4 Putthelterinthelterholder(Fig.7).
Note: Some versions come with a permanent lter. In this case you do not need to use paper lters.
5 Putgroundcoffee(lter-negrind)inthelter(Fig.8).
For large cups: use one heaped measuring spoon of ground coffee for each cup.
For small cups: use one level measuring spoon of ground coffee for each cup.
6 Closethelterholder.(Fig.9)
7 Placethejugonthehotplate(Fig.10).
8 Presstheon/offswitchtoswitchontheappliance(Fig.11).
9 Whenallthewaterhaspassedthroughthelter,youcanremovethejugfromthe
appliance(Fig.12).
10 Afteryouhavepouredcoffee,putthejugwiththeremainingcoffeebackontothehotplate
tokeepithotandtopreserveitsavour.

If you want to brew another jug of fresh coffee right away, switch off the appliance and let it cool
down for three minutes. Fill the water tank again and put a new amount of ground coffee in a new
paper lter (or in the permanent lter after emptying and cleaning it). Now you can make fresh
coffee again.

If you want to heat up coffee, you can place the jug in the microwave, even with the buffer ring
attached.

Dripstop
The drip stop system prevents coffee from dripping through the lter onto the hotplate when you
remove the jug from the appliance during or after brewing.
Protectivebufferring(Fig.13)
The jug has a detachable buffer ring that helps prevent the jug from breaking.
Cleaning
Neverimmersetheapplianceinwater.
1 Unplugtheappliance.
2 Cleantheoutsideoftheappliancewithamoistcloth.
3 Detachthelterholder.(Fig.14)
You do not have to remove the spring.
4 Detachthefrontofthelterholder.(Fig.15)
5 Detachthebufferring(Fig.16).
6 Cleanthelterholder,thejugandthebufferringinhotwaterwithsomewashing-upliquid
orinthedishwasher.
,
,
-
-
,
,
ENGLISH 7


Regular descaling prolongs the life of the appliance and guarantees optimal brewing results for a
long time.
In case of normal use (two full jugs of coffee every day), descale the appliance:
2 or 3 times a year if you use soft water (up to 18dH);
4 or 5 times a year if you use hard water (over 18dH).
Contact your local water board for information about the water hardness in your area.
1 Fillthewatertankwithwhitevinegar(4%aceticacid).Donotputalterandgroundcoffee
inthelterholder.
2 Lettheappliancecompletetwobrewingcycles(seechapter‘Usingtheappliance’).
3 Lettheappliancecompletetwomorebrewingcycleswithfresh,coldwatertoremoveany
vinegarandscaleresidues.
4 Cleanthejugandthelterholder(seechapter‘Cleaning’).

You can order a glass jug from your local Philips dealer or a Philips service centre.
Jug type HD7954/88 for coffeemaker type HD7502/88 (white/cornhusk yellow).
Jug type HD7957 for coffeemaker type HD7502/31 (lilac).

Do not throw away the appliance with the normal household waste at the end of its life, but
hand it in at an ofcial collection point for recycling. By doing this, you help to preserve the
environment (Fig. 17).

If you need information or if you have a problem, please visit the Philips website at www.philips.com
or contact the Philips Customer Care Centre in your country (you nd its phone number in the
worldwide guarantee leaet). If there is no Customer Care Centre in your country, go to your local
Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal
Care BV.
-
-
-
-
-
ENGLISH8

9
Vigtigt
Læs denne brugsvejledning omhyggeligt igennem, inden apparatet tages i brug, og gem den til
eventuelt senere brug.
Fare
Apparatet må aldrig kommes ned i vand eller anden væske.

Kontrollér, om den angivne netspænding på apparatet svarer til den lokale netspænding, før du
slutter strøm til apparatet.
Brug aldrig apparatet, hvis netstik, netledning eller selve apparatet er beskadiget.
Hvis netledningen beskadiges, må den kun udskiftes af Philips, et autoriseret Philips-
serviceværksted eller en tilsvarende kvaliceret fagmand for at undgå enhver risiko.
Dette apparat er ikke beregnet til at blive brugt af personer (herunder børn) med nedsatte
fysiske og mentale evner, nedsat følesans eller manglende erfaring og viden, medmindre de er
blevet vejledt eller instrueret i apparatets anvendelse af en person, der er ansvarlig for deres
sikkerhed.
Apparatet bør holdes uden for børns rækkevidde for at sikre, at de ikke kan komme til at lege
med det.
Hold netledningen uden for børns rækkevidde. Lad aldrig netledningen hænge ud over kanten af
det (køkken)bord, hvor apparatet er placeret.

Stil aldrig apparatet på et varmt underlag, og sørg for, at netledningen ikke kommer i berøring
med varme ader.
Tag stikket ud af apparatet, hvis der opstår problemer under brygningen, og før rengøring.

Dette Philips-apparat overholder alle standarder for elektromagnetiske felter (EMF). Ved korrekt
anvendelse i overensstemmelse med instruktionerne i denne brugsvejleding, er apparatet sikkert at
anvende, ifølge den videnskabelige viden, der er tilgængelig i dag.

ANetledning
BOn/off-kontakt (tænd/sluk)
CKaffemaskine
DLåg til vandtank
EVandtank
F Filterholder
GLåg til kaffekande
HNy kande
IKandeskåner
Klargøring
1 Stilapparatetpåetjævntogstabiltunderlag.
2 Ladmaskinenkøreigennemenenkeltbryggeprocesudenlterogkaffe(sekapitlet“Sådan
brugesapparatet”).
3 Rengørdeaftageligedele(seafsnittet“Rengøring”).
Overskydendenetledningkanskubbesindiåbningenpåapparatetsbagside(g.2).
-
-
-
-
-
-
-
-
-
,
DANSK



1 Fyldvandtankenmedfriskt,koldtvand(g.3).
Markeringernetilvenstregælderforstorekopper(120ml)(g.4).
Markeringernetilhøjreertilsmåkopper(80ml).
2 Luklterholderenop(g.5).
3 Tagetpapirlter(type1x4ellernr.4)ogombukdeforsegledekanter,sålteretikkegåritu
ellerfaldersammen(g.6).
4 Sætlteretilterholderen(g.7).
Bemærk: Nogle modeller leveres med et permanent lter. Er dette tilfældet, er det ikke nødvendigt at
bruge et papirlter.
5 Komkaffebønner(beregnettillterkaffe)ilteret(g.8).
Store kopper: 1 måleske med top pr. kop.
Til mindre kopper: 1 strøget måleske pr. kop.
6 Luklterholderen.(g.9)
7 Stilkandenpåvarmepladen(g.10).
8 Trykpåon/off-kontaktenforattændeforapparatet(g.11).
9 Nåralvandeterløbetgennemlteret,kankandentagesvækfravarmepladen(g.12).
10 Nårkaffenerskænket,sætteskandenmeddenresterendekaffetilbagepåvarmepladenforat
holdedenvarmogbevarearomaen.

Ønsker du at lave en ny kande frisk kaffe med det samme, skal maskinen først slukkes og afkøles i 3
minutter. Fyld derefter vandtanken igen og kom nye kaffebønner i et nyt papirlter (eller i det
permanente lter, efter det er tømt og skyllet rent). Herefter er kaffemaskinen klar igen.

Hvis du vil opvarme kaffen, kan kanden sættes i mikrobølgeovnen – selv med påsat kandeskåner.
Funktioner
Drypstop-funktion
Drypstop-systemet sikrer, at der ikke drypper kaffe fra lteret ned på varmepladen, når kanden
yttes under eller efter brygningen.
Kandeskåner(g.13)
Kaffekanden har en aftagelig kandeskåner, som beskytter kanden, så den ikke så nemt går i stykker.
Rengøring
Apparatetmåaldrigkommesnedivand.
1 Tagstikketudafstikkontakten.
2 Apparatetrengøresudvendigtmedenfugtigklud.
3 Taglterholderenaf.(g.14)
Du behøver ikke fjerne fjederen.
4 Tagfrontenaflterholderen.(g.15)
5 Tagkandeskånerenaf(g.16).
,
,
-
-
,
,
DANSK10
