Philips AJ7030D User manual

Register your product and get support at AJ7030D
EN User manual
Thank you for choosing Philips.
Need help fast?
Read your Quick Start Guide and/or
User Manual first for quick tips
that make using your Philips product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
www.philips.com/welcome
ARRÊT
ALTO
STOP
Philips vous remercie de
votre confiance.
Besoin d'une aide
rapide?
Le Guide rapide de début et
Manuel de l'utilisateur regorgent
d'astuces destinées à simplifier
l'utilisation de votre produit Philips.
Toutefois, si vous ne parvenez
pas à résoudre votre problème,
vous pouvez accéder à
notre aide en ligne à l'adresse
www.philips.com/welcome
ARRÊT
ALTO
STOP
Gracias por escoger Philips
Necesita ayuda
inmediata?
Lea primero la Guía rápida del
comienzo o el Manual del usuario,
en donde encontrará consejos que
le ayudarán a disfrutar plenamente
de su producto Philips.
Si después de leerlo aún necesita ayuda,
consulte nuestro servicio de
asistencia en línea en
www.philips.com/welcome
ARRÊT
ALTO
STOP

d
e
k
l
b
c
a
f
g
h
m
n
j
i
A

B
C

D
E

F
G

Canada
English:
This digital apparatus does not exceed the Class B limits for
radio noise emissions from digital apparatus as set out in the
Radio Interference Regulations of the Canadian Department
of Communications.This Class B digital apparatus complies
with Canadian ICES-003.
Français:
Cet appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques
de Classe B prescrites dans le Règlement sur le Brouillage
Radioélectrique édicté par le Ministère des Communications
du Canada. Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
This product complies with the FCC-Rules, Part 15.
Operation is subject to the following two conditions:
1.This device may not cause harmful interference, and
2.This device must accept any interference received,including
interference that may cause undesired operation.
L’appareil est conforme à la réglementation FCC,
section 15. Son utilisation est soumise à deux
conditions:
1. L’appareil ne doit pas provoquer d’interférences nuisibles, et
2. L’appareil doit supporter les interférences reçues, y compris
les interférences empêchant son fonctionnement correct.

EN
1 Important
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
h Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
i Protect the power cord from being walked on
or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
j Only use attachments/accessories specified by the
manufacturer.

k Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
lUnplug this apparatus during lightning storms or
when unused for long periods of time.
m Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
n Battery usage CAUTION – To prevent battery
leakage which may result in bodily injury, property
damage, or damage to the unit:
Install all batteries correctly, + and - as marked on• the unit.
Do not mix batteries (old and new or carbon and• alkaline, etc.).
Remove batteries when the unit is not used for a• long time.

o Apparatus shall not be exposed to dripping or
splashing.
p Do not place any sources of danger on the apparatus
(e.g. liquid filled objects, lighted candles).
q This product may contain lead and mercury.
Disposal of these materials may be regulated due
to environmental considerations. For disposal or
recycling information, please contact your local
authorities or the Electronic Industries Alliance:
www.eiae.org.
r Where the plug of the Direct Plug-in Adapter is used
as the disconnect device, the disconnect device shall
remain readily operable.
2 Your clock radio
Congratulations on your purchase, and welcome to Philips! To
fully benefit from the support that Philips offers, register your
product at www.philips.com/welcome.
Introduction
With this clock radio, you can:
listen to FM radio;• enjoy audio from iPod/iPhone or an external• device;
know the time; and• wake up by buzzer alarm, radio, or audio in iPod/• iPhone.

What’s in the box
Check and identify the contents of your package:
Main unit (with a battery)• AC adapter• User manual•

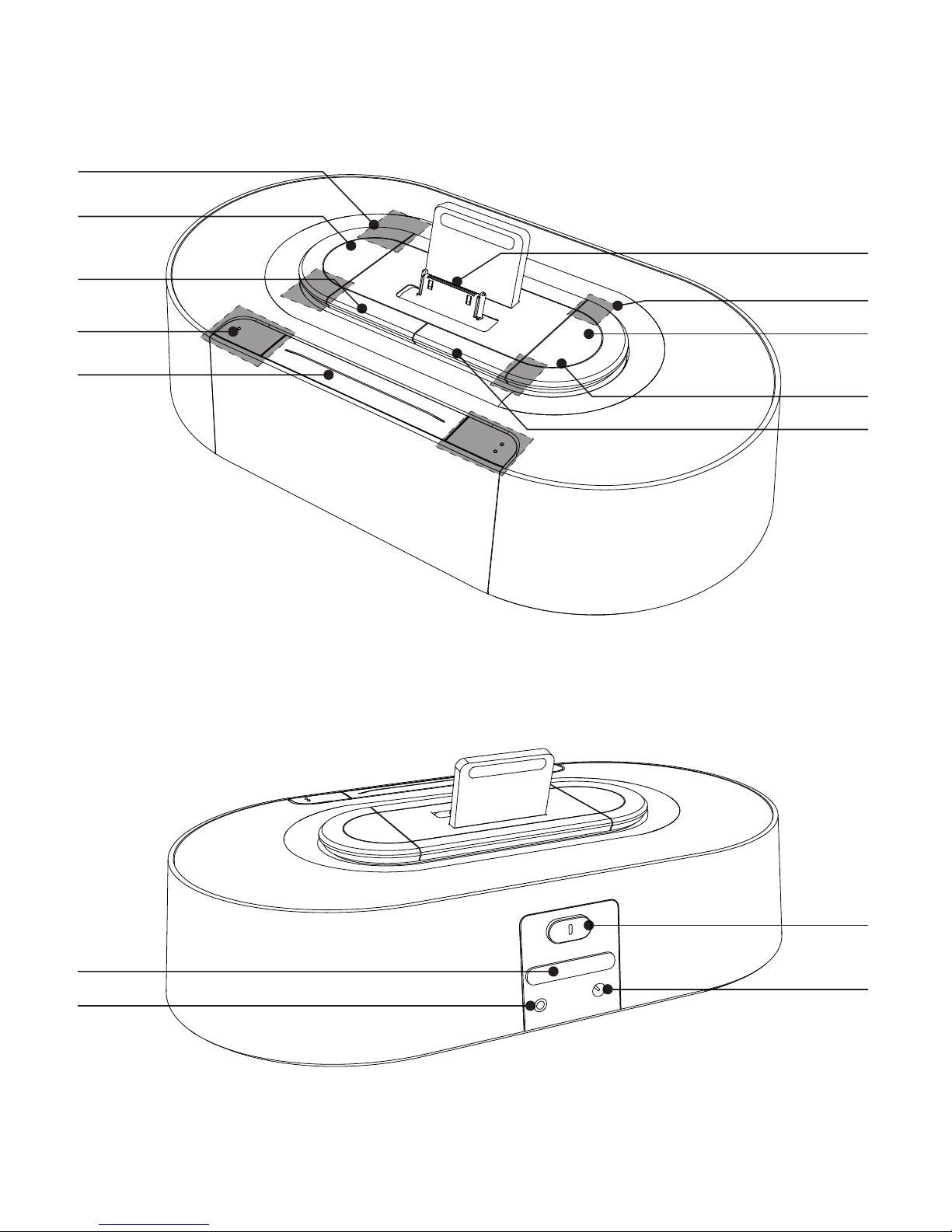

Overview of the main unit A
a PRESET
Select a preset radio station.• Adjust hour and minute.•
b TUNING +/-
Tune to a FM radio station.• Adjust hour and minute.•
c
Turn on/off the clock radio.• Switch the clock radio to standby mode.•
d AL1/AL2
Set alarm.• View alarm settings.• Activate/deactivate alarm timer.•
e SNOOZE/BRIGHTNESS
Snooze alarm.• Adjust display brightness.•
f iPod/iPhone
Dock for iPod/iPhone.•
g VOLUME +/-
Adjust volume.•
h SET
Store radio stations automatically/manually.•

Set clock.•
i SLEEP
Set sleep timer.•
j SOURCE
Select source.•
k Battery tray
l AUX IN
Connect an external audio device.•
m AL1/2 iPhone·RADIO·BUZZ
Select alarm source.
•
n DC 5V
Power supply socket.•
3 Get started
Always follow the instructions in this chapter in sequence.
Install battery
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fire.•
Never discard batteries in fire.
Danger of explosion if battery is incorrectly replaced. Replace only
•
with the same or equivalent type.
The battery contains chemical substances, so it should be disposed
•
of properly.
Keep children away from the battery.
•
Perchlorate Material - special handling may apply. See www.dtsc.•
ca.gov/hazardouswaste/perchlorate.

Note
You can only use AC power as power supply. The pre-installed•
lithium CR2032 battery can only back up time and alarm.
When power is disconnected, the display backlight is off.
•
For first-time use:
Remove the protective tab to activate the battery.
To replace the battery: B
Connect power C
Caution
Risk of product damage! Ensure that the power voltage corresponds•
to the voltage printed on the back or underside of the clock radio.
Risk of electric shock! When you unplug the AC adapter, always pull
•
the plug from the socket. Never pull the cord.
Set clock
1 In standby mode, press and hold SET for two seconds
to activate clock setting mode.
»[12H] or [24H] is displayed.
2 Press TUNING +/- or / repeatedly to select 12/24
hour format.
3 Press SET again to confirm.
The hour digits begin to blink.»
4 Repeat Steps 2 to 3 to set the hour and minute.

Note
If clock is not manually set, when iPod/iPhone is connected, the clock•
radio synchronizes time from the iPod/iPhone automatically.
Turn on
Press .
The clock radio switches to the last selected source.»
Switch to standby mode
Press to switch the clock radio to standby mode.
The clock (if set) appears on the display panel.»
4 Play from iPod/iPhone
You can enjoy audio from iPod/iPhone through this clock radio.
Compatible iPod/iPhone
The clock radio supports these iPod and iPhone models:
Made for.
iPod touch (1st, 2nd, 3rd, and 4th generation)• iPod classic• iPod with video• iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th generation)• iPod with color display• iPod mini• iPhone 4• iPhone 3GS• iPhone 3G•

iPhone•
Listen to audio from iPod/iPhone D
1 Press SOURCE repeatedly to select iPod/iPhone mode.
2 Place the iPod/iPhone in the dock.
3 Start to play audio from the iPod/iPhone.
Remove the iPod/iPhone E
Pull the iPod/iPhone out of the dock.
Charge the iPod/iPhone
When the clock radio is connected to power, the docked iPod/
iPhone starts charging.
Adjust volume F
5 Listen to FM radio
Tune to FM radio stations
Tip
Position the antenna as far as possible from TV, VCR, or other•
radiation source.
For better reception, fully extend and adjust the position of the
•
antenna.
1 Press SOURCE repeatedly to select FM tuner source.

2 Press and hold TUNING +/- for 2 seconds.
The clock radio tunes to a station with strong»
reception automatically.
3 Repeat step 2 to tune to more stations.
To tune to a station manually:
1 Press TUNING +/- repeatedly until you find optimal
reception.
Store FM radio stations automatically
You can store a maximum of 20 FM radio stations.
In tuner mode, press an hold SET for two seconds.
The clock radio stores all the available FM radio»
stations and broadcasts the first available station
automatically.
Store FM radio stations manually
1 Tune to an FM radio station.
2 Press SET.
The preset number begins to blink.»
3 Press PRESET / repeatedly to select a number.
4 Press SET again to confirm.
5 Repeat steps 1 to 4 to store other stations.
Note
To remove a pre-stored station, store another station in its place.•

Select a preset radio station
In tuner mode, press PRESET / to select a preset number.
6 Other features
Set alarm timer
Set alarm G
In standby mode, you can set two alarms to ring at different
time.
Note
Make sure that you have set the clock correctly.•
1 Press and hold AL1/AL2 for two seconds to activate
alarm setting mode.
The hour digits and alarm icon begin to blink.»
2 Press TUNING +/- or / to set the hour.
3 Press AL1/AL2 to confirm.
The minute digits begin to blink.»
4 Repeat steps 2 to 3 to set the minute and alarm
volume.

Select alarm source
Adjust AL1/2 iPhone·RADIO·BUZZ control to select alarm
source for both alarms.
Note
When alarm time comes, the selected radio, buzzer, or iPod/iPhone•
turns on.
You can only select the same alarm source for Alarm 1/ Alarm2.
•
If iPhone is selected as alarm source, while no iPod/iPhone is•
connected, the clock radio switches to buzzer source instead.
Activate/deactivate alarm timer
1 Press AL1/AL2 to view alarm settings.
2 Press AL1/AL2 again to activate or deactivate the alarm
timer.
»or appears if alarm timer is on and disappears
if it is off.
To stop the ringing alarm, press the corresponding
• AL1/AL2.
The alarm repeats ringing for the next day.•
Snooze alarm
When alarm sounds, press SNOOZE.
The alarm snoozes and repeats ringing five minutes»
later.
To adjust alarm interval (in minutes), press SNOOZE
repeatedly.

Set sleep timer
This clock radio can switch to standby mode automatically
after a preset period.
Press SLEEP repeatedly to select the sleep timer period (in
minutes).
When the sleep timer is activated,»appears.
To deactivate the sleep timer, press SLEEP repeatedly until
[OFF] (off) appears.
Play audio from an external device
You can listen to audio from an external device through this
clock radio.
1 Connect the audio cable to:
the• AUX IN socket.
the audio output sockets of an external device.•
2 Press SOURCE repeatedly to select AUX source.
»is displayed.
3 Start to play the external device (see the user manual
of this device).
15 30 60 90 120
off

Adjust display brightness
Press BRIGHTNESS repeatedly to select different brightness
levels.
7 Product information
Note
Product information is subject to change without prior notice.•
Specifications
Amplifier
Rated Output Power 2 X 3W RMS
Tuner
Tuning Range FM: 87.5 - 108 MHz
Sensitivity
- Mono, 26dB S/N Ratio
FM: <22 dBf
Search Selectivity FM: <28 dBf
Total Harmonic Distortion FM: <2%
Signal to Noise Ratio FM: >55 dB

General information
AC Power Model:ASSA1A-050200;
Output:5V 2A
Operation Power
Consumption
8 W
Standby Power Consumption <1 W
Dimensions
- Main Unit (W x H x D) 198 x 71 x 111 mm
Weight
- With Packing
- Main Unit
0.9 kg
0.5 kg
8 Troubleshooting
Warning
Never remove the casing of this apparatus.•
To keep the warranty valid, never try to repair the system
yourself.
If you encounter problems when using this apparatus, check
the following points before requesting service. If the problem
remains unsolved, go to the Philips web site (www.philips.
com/welcome).When you contact Philips, ensure that the
