Philips DVDR3400 User manual

DVD Player/ Recorder DVDR3400
User Manual 4
72
Buku Pandan Pengguna 140

2
LASER
Type Semiconductor laser
InGaAlP (DVD)
AIGaAs (CD)
Wave length 658 nm (DVD)
790 nm (CD)
Output Power 30 mW (DVD+RW write)
1.0 mW (DVD read)
1.0 mW (CD read)
Beam divergence 84 degrees (DVD)
61 degrees (CD)
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p DVD PLAYER, PLEASE
CONTACT OUR CUSTOMER SERVICE CENTER.’
For Customer Use:
Read carefully the information located at the
bottom or rear of your DVD Recorder and
enter below the Serial No. Retain this
information for future reference.
Model No. DVD RECORDER
DVDR3400
Serial No. _______________

3
English
Bahasa Melayu
Index
This product incorporates copyright protection
technology that is protected by US patents. Use
of this copyright protection technology must be
authorised by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorised by Macrovision. Reverse
engineering or disassembly is prohibited.
U.S. Patent Number 4,631,603; 4,819,098;
4,907,093; 5,315,448; and 6,516,132
Manufactured under license from Dolby
Laboratories.“Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
G-CODE®is a registered trademark of
Gemstar Development Corporation.The
G-CODE®system is manufactured under
licence from Gemstar Development
Corporation.
DivX®, DivX Certied, and associated logos are
trademarks of DivX Networks, Inc and are used
under license.
HDMI, and HDMI logo and High-Denition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
English ------------------------------------------4
--------------------------------- 72
Bahasa Melayu------------------------------140

English
4
Table of Contents
General
Care and Safety Information .......................................................................................... 6
Setup precautions.................................................................................................................................................6
Cleaning discs ........................................................................................................................................................6
About recycling.....................................................................................................................................................6
Product Information ........................................................................................................ 7
Introduction...........................................................................................................................................................7
Accessories supplied ...........................................................................................................................................7
Region codes..........................................................................................................................................................7
Copyright notice...................................................................................................................................................7
Special features .....................................................................................................................................................8
Product Overview
Main Unit ........................................................................................................................... 9

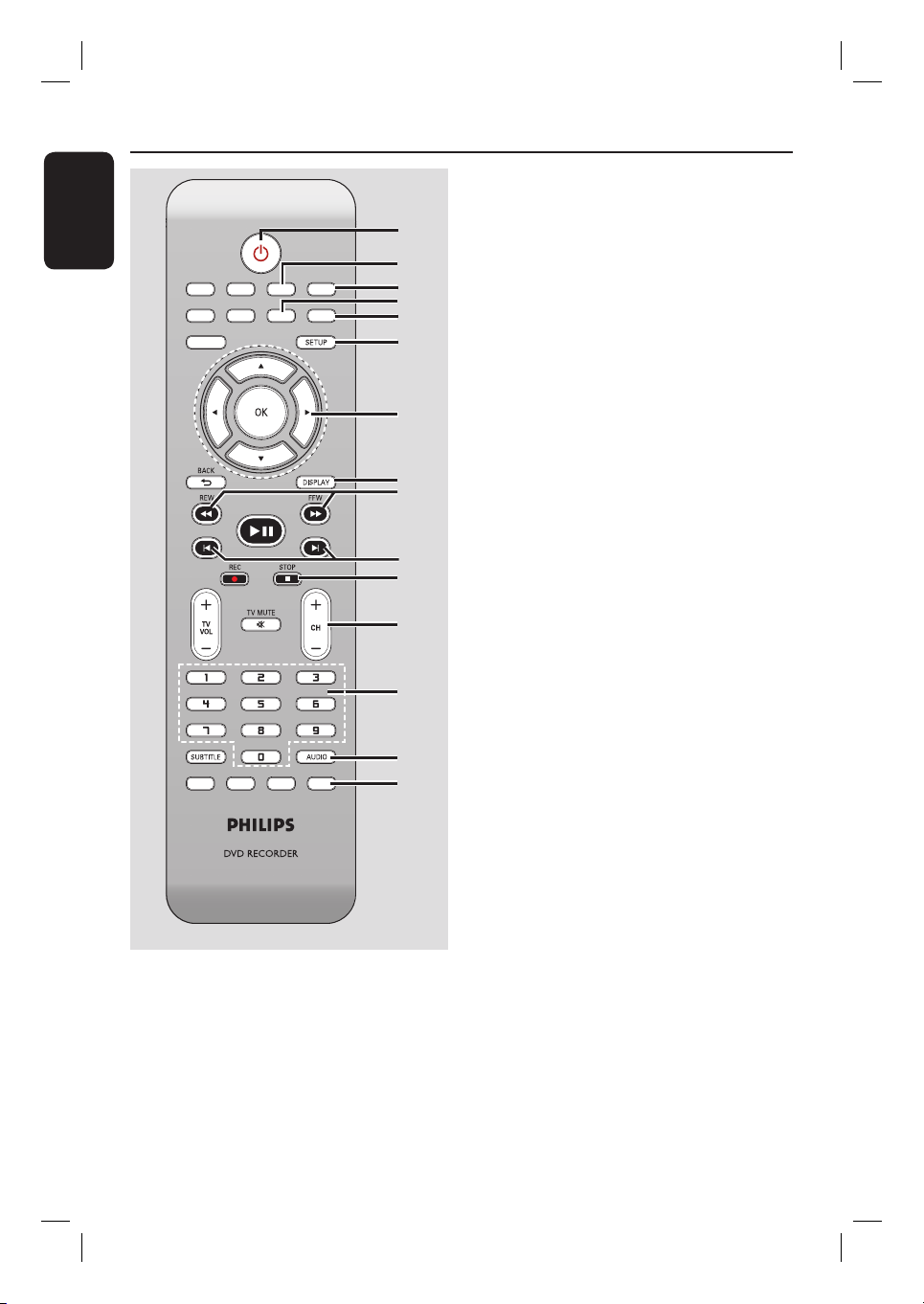

Remote Control .............................................................................................................. 10
Using the remote control ................................................................................................................................12
Connections
Step 1: Basic Recorder Connections............................................................................ 13
Connecting the antenna cables ......................................................................................................................13
Connecting the video cable.............................................................................................................................14
Connecting the audio cables ...........................................................................................................................16
Step 2: Optional Connections .........................................................................17
Connecting to a Cable Box or Satellite Receiver .....................................................................................17
Connecting to a VCR or other similar device............................................................................................18
Connecting to a VCR and Cable Box/Satellite Receiver.........................................................................19
Connecting a camcorder to the front jacks............................................................................................... 20
Connecting a USB ash drive or USB memory card reader..................................................................21
Step 3: Installation and Setup....................................................................................... 22
Finding the correct viewing channel ............................................................................................................ 22
Setting the OSD language ............................................................................................................................... 22
Setting your TV channel programs............................................................................................................... 23
Setting the date & time .................................................................................................................................... 23
Recording
Recording .........................................................................................................................24
Discs for recording ............................................................................................................................................24
Recording settings ........................................................................................................................................... 25
RECORD settings ...................................................................................................................................... 26
Recording from various sources ....................................................................................................................27
Archiving from a USB ash drive or USB memory card reader ...........................................................29
Instant time-off recording............................................................................................................................... 30
Watching another TV program during recording.................................................................................... 30
Timer Recording ............................................................................................................. 31
About timer recording......................................................................................................................................31
Timer recording (G-CODE®System) ..............................................................................................................31
Timer recording (manually).............................................................................................................................32
Changing/ Deleting a timer recording ......................................................................................................... 34

English
5
Table of Contents
Playback
Playback ........................................................................................................................... 35
Playable discs ...................................................................................................................................................... 35
Starting disc playback ....................................................................................................................................... 36
Additional Playback Features .......................................................................................40
Changing to another chapter/track.............................................................................................................. 40
Pausing playback ................................................................................................................................................ 40
Searching forwards/backwards ..................................................................................................................... 40
Zooming in .......................................................................................................................................................... 40
Using the TOOLS options ...............................................................................................................................41
Edit Recordings
Editing/ Finalizing Recording ........................................................................................44
About disc editing ............................................................................................................................................. 44
Accessing disc editing menu ........................................................................................................................... 44
Playing your recordings on other DVD players (DVD±R only)........................................................... 46
About title editing ..............................................................................................................................................47
Accessing title editing menu............................................................................................................................47
About video editing .......................................................................................................................................... 49
Accessing video editing menu........................................................................................................................ 49
Other Information
DVD Setup Menu Options............................................................................................. 52
Accessing the Setup Menu ...............................................................................................................................52
GENERAL settings .....................................................................................................................................53
RECORD settings .......................................................................................................................................53
PLAYBACK settings .................................................................................................................................. 54
DVD settings ............................................................................................................................................... 56
CHANNEL SETUP settings .................................................................................................................... 58
CLOCK settings ......................................................................................................................................... 60
Software Upgrade .......................................................................................................... 61
Installing the latest software ...........................................................................................................................61
Troubleshooting .............................................................................................................. 62
Frequently Asked Questions......................................................................................... 66
Specications .................................................................................................................. 68
Display panel symbols/ messages ................................................................................. 69
Glossary ........................................................................................................................... 70
TV System Guide..........................................................................................................208

English
6
Care and Safety Information
CAUTION!
High voltage! Do not open the
device. You run the risk of getting
an electric shock.
The machine does not contain any
user-serviceable parts. Please leave
all maintenance work to qualied
personnel.
Setup precautions
Finding a suitable location
– Place the set on a at, hard and stable
surface. Do not place the set on a carpet.
– Do not position the set on top of
other equipment that might heat it up
(e.g., receiver or amplier.)
– Do not put anything above or under
the set (e.g., CDs, magazines.)
– Install this unit near the AC outlet and
where the AC power plug can be
reached easily.
Space for ventilation
– Place the apparatus in a location with
adequate ventilation to prevent internal
heat build up. Allow at least 10 cm (4”)
clearance from the rear and the top of
the set and 5cm (2”) from the left and
right to prevent overheating.
Avoid high temperatures, moisture,
water and dust
– Apparatus shall not be exposed to
dripping or splashing.
– Do not place any sources of danger on
the apparatus (e.g., liquid lled objects,
lighted candles.)
Cleaning discs
Some problems occur (frozen picture,
sound disruptions, picture distortions)
because the disc inside the unit is dirty.
To avoid these problems, discs should be
cleaned on a regular basis.
To clean a disc, use a micro bre cleaning
cloth and wipe the disc from the center
to the edge in a straight line.
CAUTION!
Do not use solvents such as benzene,
thinner, commercially available cleaners,
or anti-static sprays intended for discs.
Since the optical unit (laser) of the
recorder operates at a higher power than
regular DVD or CD players, cleaning
CDs intended for DVD or CD players
may damage the optical unit (laser.)
Therefore, refrain from using a cleaning
CD.
About recycling
These operating instructions have been
printed on non-polluting paper. This
electronic equipment contains a large
number of materials that can be recycled.
If you are disposing of an old machine,
please take it to a recycling center. Please
observe the local regulations regarding
disposal of packaging materials, exhausted
batteries, and old equipment.

English
7
Introduction
Your Philips recorder allows you to
record TV programs or duplicate
camcorder recordings to a DVD±RW or
DVD±R and play pre-recorded DVDs.
The recordings you make with this
recorder will playback on DVD players
and DVD-ROM drives. DVD±R discs
have to be nalized before they can be
played back on other DVD players.
Before you start using this recorder,
complete the basic connections and
set-up in three easy steps.
Step 1: Basic recorder connections
Step 2: Optional connections for
other devices
Step 3: Basic installation and
set-up
Please take time to read this user manual
before using your recorder. It contains
important information and notes
regarding operations of the recorder.
Helpful Hints:
– If you have questions or if problems occur
during operation, see the chapter
‘Troubleshooting’.
– If you need further assistance, please call
the customer support service for your
country. The corresponding telephone
numbers and e-mail addresses are given in
the guarantee booklet.
– Refer to the type plate on the rear or
bottom of the product for identication and
supply ratings.
Accessories supplied
– Remote control and batteries
– Audio/video cables
– RF coaxial cable
– Quick Start Guide
Region codes
DVD lms are usually not released at the
same time in all regions of the world,
thus most DVD players/recorders are
keyed to a specic region code.
The regional code is shown on the back
panel of this device. If the DVD is
marked with a different region code, it
cannot be played back on this device.
ALL
3
Region
Asia Pacic,
Taiwan, Korea
Australia,
New Zealand,
Latam
ALL
4
DVDs that can
be played
Copyright notice
The making of unauthorised copies of
copy-protected material, including
computer programs, les, broadcasts and
sound recordings, may be an infringement
of copyrights and constitute a criminal
offence. This equipment should not be
used for such purposes.
Product Information

English
8
Special features
This is a simple programming system for
recorders. To use it, enter the
programming number associated with
your television program. You can nd
this number in your favourite listings
magazine.
i.Link is also known as ‘FireWire’ and
‘IEEE1394’. This connection is used for
the transfer of high bandwidth digital
signals as used by digital video (DV)
camcorders. It carries all audio and video
signals via a single cable.
HDMI (High-Denition Multimedia
Interface) is a high-speed digital interface
that can transmit uncompressed high
denition video and digital multichannel
audio. It delivers perfect picture and
sound quality, completely free from
noise. HDMI is fully backward-compatible
with DVI.
‘Copy or Play from USB to DVD’
This function allows you to copy your
content in your USB ash drive/USB
memory card reader to a recordable
DVD disc.
Product Information (continued)
A surround sound system developed by
Dolby Laboratories containing up to six
channels of digital audio
The DivX code is a video codec
developed by DivX Networks Inc., that
compresses digital video to small sizes
while retaining relatively high visual
quality.
Philips DVD recorders support ‘dual
media’ recording – the ability to create
recordings on + and - discs
(DVD+R/+RW, DVD+R DL,
DVD-R/-RW.)

English
9
Main Unit
abcdefgh
ijk
aSTANDBY-ON
– Turns on the recorder or switch to
standby mode.
bDisc tray
cOPEN/CLOSE ç
– Opens/closes the disc tray.
dSystem display panel
– Show information about the current
status of the recorder.
e.(PREV) / >(NEXT)
– Go to the previous/next chapter or track.
Press and hold to make a forward/
reverse search.
É(PLAY)
– Plays a disc.
(STOP)
– Stops playback/recording.
f(RECORD)
– Starts recording the current TV channel
or the current video input source.
– Press repeatedly to set up a One Touch
Recording at 30, 60 or 90 minutes
interval.
Jacks behind the ap
Flip down the door as indicated by the
OPEN Xlabel at the right hand corner.
gVIDEO
– Video input for camcorders or video
recorders.
Press SOURCE on the remote control
to select ‘CAM1’ in order to view the
input source.
hL/R AUDIO
– Audio input for camcorders or video
recorders.
iS-VIDEO
– S-video input for SVHS/Hi8 camcorders
or SVHS/Hi8 video recorders.
Press SOURCE on the remote control
to select ‘CAM2’ in order to view the
input source
jDV IN
– Input for digital camcorders or other
suitable devices using this connector.
Press SOURCE on the remote control
to select ‘DV’ in order to view the input
source.
kUSB
– Input for USB ash drive/ USB memory
card reader.
Press USB to view the contents of the
USB ash drive/ USB memory card
reader.

English
10
Remote Control
SOURCE
SOURCE
SELECT
SELECT
REPE
REPEAT
DISC MENU
DISC MENU
USB
USB
TOOLS
TOOLS
CLEAR
CLEAR
ZOOM
ZOOM
ç
PLA
PLA
Y/P
Y/P
AUSE
AUSE
REC MODE
REC MODE
TIMER
TIMER
EDIT
EDIT
OPEN/CLOSE
OPEN/CLOSE
G-CODE
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
a2
– Turns on the recorder or switch to
standby mode.
bTOOLS
– Enters/exits the tools or disc/title editing
menu.
cOPEN/CLOSEç
– Opens/closes the disc tray.
dCLEAR
– Clears a track/le in the selection playlist/
copylist.
– Clears a timer entry.
eZOOM
– Enlarges a picture on the TV screen.
fSETUP
– Enters/exits the setup menu.
gWX: Cursor buttons for moving to the
left or right.
ST : Cursor buttons for moving
up/down or changing the recorder’s TV
tuner channel.
hDISPLAY
– Displays/removes the status bar.
iREW à/ FFW á
– Fast reverse or fast forward search.
jPREVí/ NEXTë
– Skips to previous or next chapter/track.
kSTOP 
– Stops playback/recording.
lCH +/-
– While in tuner, selects the next or
previous TV channel.
mNumeric keypad
– Selects a chapter/track number to play.
– Selects the recorder’s preset TV tuner
channel.
nAUDIO
– Selects an audio language (DVD, VCD) or
an audio channel.
oG-CODE
– Enters/exits the G-CODE®menu.

English
11
Remote Control (continued)
SOURCE
SOURCE
SELECT
SELECT
REPE
REPEAT
DISC MENU
DISC MENU
USB
USB
TOOLS
TOOLS
CLEAR
CLEAR
ZOOM
ZOOM
ç
PLA
PLA
Y/P
Y/P
AUSE
AUSE
REC MODE
REC MODE
TIMER
TIMER
EDIT
EDIT
OPEN/CLOSE
OPEN/CLOSE
G-CODE
u
p
q
r
s
t
v
w
x
y
z
pUSB
– Accesses the contents of the connected
USB ash drive/ USB memory card reader.
qSOURCE
– Selects the recorder’s input source (DV,
EXT1, EXT2, EXT3 CAM1, CAM2 or
Tuner.)
rSELECT
– Selects a track/chapter/le in the program
menu.
sREPEAT
– Repeat playback of title, chapter, track or
disc in DVD mode.
tDISC MENU
– Press to access the DVD disc menu or
Index Picture screen of a DVD±R/±RW.
– Press to access the VCD disc menu when
PBC is turned on.
uOK
– Stores/conrms an entry.
vBACK2
– Returns to the previous menu of a video
CD (VCD.)
wPLAY/PAUSE u
– Plays a disc.
– Pauses the playback or recording.
xREC 
– Starts recording the current TV channel
or the current video input source.
– Press repeatedly to set up a One Touch
Recording at 30, 60 or 90 minutes
interval.
yTV VOL +/ -
– Adjusts the volume of the TV set (Philips
TV only.)
zTV MUTE H
– Mutes the volume of the TV set (Philips
TV only.)
wj SUBTITLE
– Selects a DVD subtitle language.
wk
REC MODE
– Toggles between recording modes :
HQ, SP, SPP, LP, EP, or SLP.
This determines the quality of the
recording and the amount/length of time
you can record on a DVD±R/±RW.
wl
TIMER
– Enters/exits the timer recording menu.
e;
EDIT
– Enters/exits the video editing menu.

English
12
Remote Control (continued)
Using the remote control
AOpen the battery compartment.
BInsert two batteries of type R03 or AAA,
following the indications (+-) inside
the compartment.
CClose the cover.
DAim the remote control directly at the
remote sensor (IR) on the front panel.
SOURCE
SOURCE
SELECT
SELECT
TOOLS
TOOLS
DISCMENU
DISCMENU
USB
USB
TV/DVD
TV/DVD
CLEAR
CLEAR
REPEAT
REPEAT
ç
PLAY
PLAY
RECMODE
RECMODE
TIMER
TIMER
EDIT
EDIT
SHOWVIEW
SHOWVIEW
ESelect the source you want to control by
pressing the SOURCE button on the
remote control.
FSelect the desired function (for example
à, á.)
CAUTION!
– Remove batteries if they are
exhausted or if the remote control
is not to be used for a long time.
– Do not mix batteries (old and new
or carbon and alkaline, etc..)
– Batteries contain chemical
substances, so they should be
disposed of properly.
A
C
B

English
13
Step 1: Basic Recorder Connections
Connecting the antenna
cables
These connections enable you to watch
and record TV programs using this
recorder. If the antenna signal is
connected via a VCR, Cable Box or
Satellite Receiver, ensure that these
devices are turned on in order to watch
or record the cable programs.
If you want to connect to a VCR
and/or Cable Box/Satellite Receiver,
see “Step 2: Optional connections” for
the complete connection to your TV.
AConnect the existing Antenna/Cable TV
signal (or from the Cable Box/Satellite
Receiver {RF OUT or TO TV}) to the
ANTENNA-IN jack on the
recorder.
BUse the supplied RF coaxial cable to
connect the TV-OUT jack on the
recorder to the antenna input jack on
your TV (VHF/UHF RF IN.)
Helpful Hint:
– Depending on how you have currently
connected your TV channel (directly from an
off-air antenna or Cable box or VCR), you
will have to disconnect some of the cables
before you make the above connection.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
R
L
R
L
YP B P R
Y
P
B
P R
VIDEO (CVBS)
COMPONENT
VIDEO
EXT 2
S-VIDEO (Y/C)
VIDEO (CVBS)
S-VIDEO (Y/C)AUDIO
COAXIAL
R
L
R
L
(DIGITAL AUDIO)
INPUT
EXT 1
EXT 3
COMPONENT VIDEO
AUDIO AUDIO
ANTENNA-IN
TV-OUT
AU D IO
OUT
S-V ID E O
IN
VIDEOIN
TV
CABLE SATELLITE ANTENNA
A
B

English
14
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
Step 1: Basic Recorder Connections (continued)
Connecting the video cable
This connection enables you to view the
disc playback from this recorder. You
need to choose only one of the options
below to make your video connection.
Option 1: Using a Video (CVBS)
cable
Use the supplied audio/video cables
(yellow plug) to connect the VIDEO
(CVBS)-OUTPUT jack on the
recorder to the video input jack (or
labeled as A/V In, Video In or Composite)
on the TV.
Option 2: Using an S-Video cable
Use an S-video cable (not supplied) to
connect the S-VIDEO (Y/C) -
OUTPUT jack on the recorder to the
S-Video input jack (or labeled as Y/C or
S-VHS) on the TV.
Option 3: Using a Component
Video cable
A
Use the component video cables (red/
blue/green - not supplied) to connect the
Y PBPR-OUTPUT jacks on the
recorder to the corresponding
component video input jacks (or labeled
as Y Pb/Cb Pr/Cr or YUV) on the TV.
BIf your TV accepts Progressive Scan
signal, see the chapter “DVD Setup Menu
Options – PLAYBACK settings” for
detailed set up.
IMPORTANT!
The progressive scan video quality is
only available through a Y PB PR
connection and a progressive TV is
required. It is strongly advised to
complete the recorder installation
rst, before enabling the
progressive scan feature.
For options 1 – 3, audio connection is
required in order to hear the sound, see
next section “Connecting the audio
cables”
R
L
R
L
YP B P R
Y
P
B
P R
VIDEO (CVBS)
COMPONENT
VIDEO
EXT 2
S-VIDEO (Y/C)
VIDEO (CVBS)
S-VIDEO (Y/C)AUDIO
HDMI
COAXIAL
R
L
R
L
(DIGITAL AUDIO)
INPUT OUTPUT
EXT 1
EXT 3
COMPONENT VIDEO
AUDIO AUDIO
ANTENNA-IN
TV-OUT
AU D IO
OUT
S-V ID E O
IN
VIDEOIN
TV
Option 1 Option 2
Option 3
OR OR

English
15
Step 1: Basic Recorder Connections (continued)
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
Option 4: Using a HDMI cable
HDMI (High Denition Multimedia
Interface) is a digital interface that allows
pure digital video transmission without
the loss of image quality.
AUse an HDMI cable (not supplied) to
connect the HDMI OUTPUT socket
on this recorder to the HDMI IN on a
HDMI compatible device (e.g. HDMI TV,
HDCP compliant DVI TV.)
BOnce you have completed the necessary
connections, installation and set-up, see
chapter “DVD Setup Menu Options –
PLAYBACK Settings”.
YP B P R
Y
P
B
P R
COMPONENT
VIDEO
VIDEO (CVBS)
S-VIDEO (Y/C)AUDIO
HDMI
COAXIAL
R
L
R
L
~
MAINS
(DIGITAL AUDIO)
OUTPUT
EXT 3
COMPONENT VIDEO
Option 4
Helpful Hints:
– Digital devices from different
manufacturers have the possibility of
differing output standards which may cause
difculties for the television to properly
display.
– The HDMI connector is only compatible
with HDMI compliant devices and DVI-TV.
– When the HDMI cable is unplugged, the
{ HDMI Video Resolution } setting will
automatically switch to default value {576i}.

English
16
Connecting the audio cables
This connection enables you to listen to
the playback from this recorder.
However, this connection is not required
if this recorder is connected to the TV
using a HDMI cable.
Option 1: Using an audio cable
You can connect the recorder to a two
channel stereo system (mini system, TV)
or receiver in order to enjoy the stereo
sound system.
Use an audio cable (red/white ends) to
connect the AUDIO L/R OUTPUT
jacks to the audio input jacks of the
connected device.
Step 1: Basic Recorder Connections (continued)
Option 2: Using a coaxial cable
You can connect the recorder to an AV
amplier/receiver with a digital multi-
channel sound decoder in order to enjoy
multichannel surround sound.
Use a coaxial cable (not supplied.)
Connect the COAXIAL (DIGITAL
AUDIO) jack on the recorder to the
digital input jack on the amplier/
receiver.
Before you start operating, set the digital
audio output settings accordingly (see the
section “PLAYBACK settings – Digital
Audio Output”.)
If the setting does not match your
stereo’s capabilities, the stereo may
produce a strong, distorted sound or no
sound at all.
Helpful Hint:
– Do not connect your TV’s audio output
jacks to the AUDIO-L/-R INPUT jacks on this
recorder, this may cause unwanted noise.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
R
L
R
L
YP B P R
Y
P
B
P R
VIDEO (CVBS)
COMPONENT
VIDEO
EXT 2
S-VIDEO (Y/C)
VIDEO (CVBS)
S-VIDEO (Y/C)AUDIO
HDMI
COAXIAL
R
L
R
L
(DIGITAL AUDIO)
INPUT OUTPUT
EXT 1
EXT 3
COMPONENT VIDEO
AUDIO AUDIO
STEREO / TV
DIGITAL IN
Option 2
Option 1
AV amplier/
receiver

English
17
Step 2: Optional Connections
Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
only has an antenna output jack
(RF OUT or TO TV),
See “Step 1: Basic Recorder Connections
– Connecting the antenna cables” for the
complete connections to your TV.
Option 2
If your Cable Box/Satellite Receiver
has video/audio output jacks,
AKeep the existing antenna connection
from the Antenna/Cable TV signal to the
Cable Box/Satellite Receiver.
BUse the audio/video cables to connect
the VIDEO (CVBS) EXT1 /AUDIO
INPUT jacks on the recorder to the
matching VIDEO/AUDIO output jacks on
the Cable Box/Satellite Receiver.
CUse the audio/video cables to connect
the VIDEO (CVBS) OUTPUT/
AUDIO OUTPUT jacks on the
recorder to the matching VIDEO/AUDIO
input jacks on the TV.
TIPS: Refer to the respective connected device’s user manual for other possible connections.
R
L
R
L
YP B P R
Y
P
B
P R
VIDEO (CVBS)
COMPONENT
VIDEO
EXT 2
S-VIDEO (Y/C)
VIDEO (CVBS)
S-VIDEO (Y/C)AUDIO
COAXIAL
R
L
R
L
(DIGITAL AUDIO)
INPUT
EXT 1
EXT 3
COMPONENT VIDEO
AUDIO AUDIO
ANTENNA-IN
TV-OUT
RF S-VIDEO
OUT
IN AUDIO
R L
VIDEO
AUD IO
OUT
S-VID E O
IN
VIDEOIN
TV
CABLE
SATELLITE
ANTENNA
AB
C
Rear of a Cable Box
or Satellite Receiver
(Example only)

English
18
TIPS: Refer to the respective connected device’s user manual for other possible connections.
Step 2: Optional Connections (continued)
A
B
Rear of a VCR
(Example only)
C
Connecting to a VCR or
other similar device
This connection enables you to record
from video tape to a DVD±R/±RW and
allows the VCR to be used for playback if
the recorder is turned off.
Before you start...
Your new recorder can replace the
VCR for all your recording needs.
Just unplug all the connections from
your VCR.
AConnect the Antenna/Cable TV signal to
the ANTENNA-IN jack on the
recorder.
BUse a RF coaxial cable to connect the
TV-OUT jack on the recorder to
the antenna input jack on your TV (VHF/
UHF RF IN.)
CUse the audio/video cables to connect
the VIDEO (CVBS)/ AUDIO INPUT
(red/whote/yellow) jacks on the recorder
to the matching VIDEO/AUDIO output
jacks on the VCR.
DUse the audio/video cables to connect the
VIDEO (CVBS)/ AUDIO OUTPUT
(red/whote/yellow) jacks on the recorder
to the matching VIDEO/AUDIO input
jacks on the TV.
Helpful Hints:
– Most commercial video cassettes and
DVDs are copy-protected and therefore
cannot be recorded.
– Connect the recorder directly to the
TV. If there is a VCR or an additional device
in between, the picture quality may be poor
because of the copy protection system built
into the recorder.
R
L
R
L
YPBPR
Y
PB
PR
VIDEO (CVBS)
COMPONENT
VIDEO
EXT 2
S-VIDEO (Y/C)
VIDEO (CVBS)
S-VIDEO (Y/C)AUDIO
HDMI
COAXIAL
R
L
R
L
(DIGITAL AUDIO)
INPUT OUTPUT
EXT 1
EXT 3
COMPONENT VIDEO
AUDIO AUDIO
ANTENNA-IN
TV-OUT
AUD IO
OUT
S-VID EO
IN
VIDEOIN
TV
CABLE
SATELLITE
ANTENNA
VIDEO
IN
OUT IN
AUDIO
L
AUDIO
R
VIDEO
OUT
AUDIO
L
AUDIO
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
D

English
19
R
L
R
L
YP B P R
Y
P
B
P R
VIDEO (CVBS)
COMPONENT
VIDEO
EXT 2
S-VIDEO (Y/C)
VIDEO (CVBS)
S-VIDEO (Y/C)AUDIO
COAXIAL
R
L
R
L
(DIGITAL AUDIO)
INPUT
EXT 1
EXT 3
COMPONENT VIDEO
AUDIO AUDIO
ANTENNA-IN
TV-OUT
AUD IO
OUT
S-VID EO
IN
VIDEOIN
TV
RF S-VIDEO
OUT
IN AUDIO
R L
VIDEO
CABLE
SATELLITE
ANTENNA
VIDEO
IN
OUT IN
AUDIO
L
AUDIO
R
VIDEO
OUT
AUDIO
L
AUDIO
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
S-VIDEO
Step 2: Optional Connections (continued)
Connecting to a VCR and
Cable Box/Satellite Receiver
AConnect the Antenna/Cable TV signal to
the antenna input (RF IN) jack on the
Cable Box/ Satellite Receiver.
BUse the supplied RF coaxial cable to
connect the ANTENNA-IN jack on
the recorder to the RF OUT jack on the
Cable Box/ Satellite Receiver.
CUse a RF coaxial cable (not supplied) to
connect the TV-OUT jack on the
recorder to the antenna input jack on
your TV (VHF/UHF RF IN.)
DUse the supplied audio/ video cables to
connect the VIDEO(CVBS) EXT1/
AUDIO-INPUT (red/white/yellow)
jacks on the recorder to the matching
VIDEO/AUDIO output jacks on the
Cable Box/ Satellite Receiver.
EUse the audio/video cables to connect
the VIDEO(CVBS) EXT1/AUDIO -
OUTPUT (red/whote/yellow) jacks on
the recorder to the matching VIDEO/
AUDIO input jacks on the TV.
FUse another set of audio/video cables to
connect the CAM1/ L-AUDIO-R jacks
on the front panel of the recorder to the
to the matching VIDEO/AUDIO output
jacks on the VCR.
TIPS: Refer to the respective connected device’s user manual for other possible connections.
C
A
D
F
Rear of a VCR
(Example only)
E
Rear of a Cable Box
or Satellite Receiver
(Example only)
B
Front Panel of
recorder

English
20
TIPS: Refer to the respective connected device’s user manual for other possible connections.
Step 2: Optional Connections (continued)
Connecting a camcorder to
the front jacks
You can use the front jacks to copy
camcorder recordings. These jacks are
located behind the ap on the right which
provides convenient connections.
Option 1: Using the DV IN jack
Use this connection if you have a Digital
Video or Digital 8 camcorder. The DV
jack conforms to the i.LINK standard.
Use an i.LINK 4-pin cable (not supplied)
to connect the DV IN jack on the front
panel of the recorder to the appropriate
DV OUT jack on the camcorder.
Before you start operating, press
SOURCE on the remote control
repeatedly to select ‘DV’ as the input
channel.
Helpful Hints:
– The DV IN jack does not support a
connection to a Personal Computer.
– It is not possible to record from the
recorder to your camcorder via the DV IN
jack on your recorder.
Option 2: Using the VIDEO In or
S-VIDEO In jacks
Use this connection if you have a Hi8 or
S-VHS(C) camcorder or if your
camcorder has only a single video output
jack (Composite Video, CVBS.)
AUse a video cable (not supplied) to
connect the CAM 1 jack on the front
panel of the recorder to the Video
output jack on the connected video
device.
OR,
Use an S-Video cable to connect the
CAM 2 jack if the connected video
device has the S-Video output jack. It
provides better picture quality.
BUse an audio cable (not supplied) to
connect the AUDIO L/R jacks on the
front panel of the recorder to the audio
output jacks on the connected video
device.
Before you start operating, press
SOURCE on the remote control
repeatedly to select ‘CAM1’ or ‘CAM2’
as the input channel, depending on your
connections.
DV OUT
L
R
AB
OR
