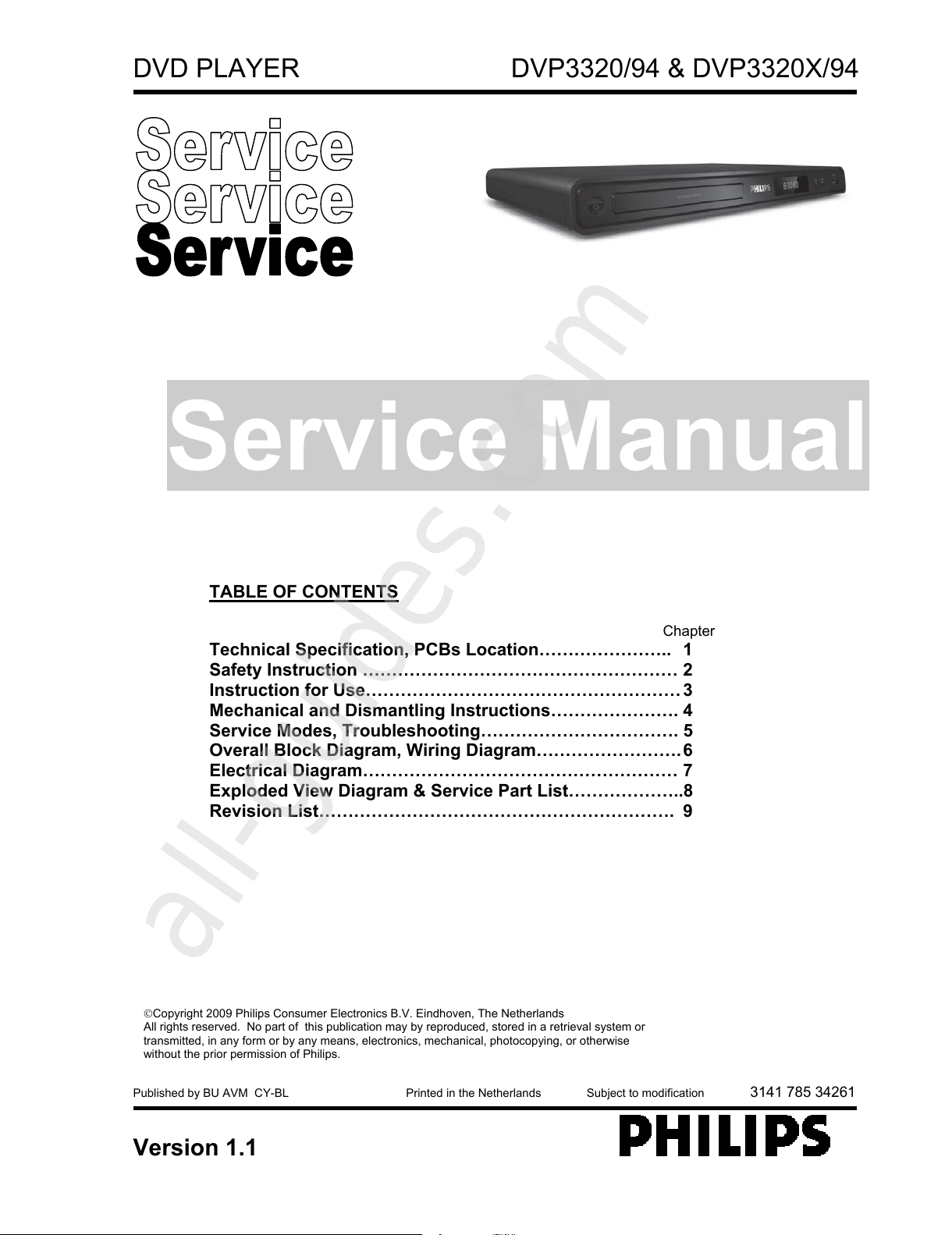

Philips DVP3320/94 User manual

DVD PLAYER DVP3320/94 & DVP3320X/94
Published by BU AVM CY-BLPrinted in the Netherlands Subject to modification 3141 785 34261
Version 1.1
TABLE OF CONTENTS
Chapter
Technical Specification, PCBs Location………………….. 1
Safety Instruction ……………………………………………… 2
Instruction for Use………………………………………………3
Mechanical and Dismantling Instructions…………………. 4
Service Modes, Troubleshooting……………………………. 5
Overall Block Diagram, Wiring Diagram…………………….6
Electrical Diagram……………………………………………… 7
Exploded View Diagram & Service Part List………………..8
Revision List……………………………………………………. 9
©Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronics, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Service Manual
All manuals and user guides at all-guides.com
all-guides.com

1.0 TECHNICAL SPECIFICATION
VIDEO PERFORMANCE
Test equipment：Tektronics VM700T
Test discs：DVD test disc：Philips LVP 10。01
（PAL）/Abex TDV-540（NTSC）
Load Impedance：75Ω
VIDEO FORMAT
DVD，VCD，MP3，JPEG
USB:2.0 HS,support MSC,MTP,sector size 4K
AUDIO PERFORMANCE
Line outputs
Test equipment：Audio Precision System2
Test discs:CDDA:Philips audio signal test disc 1
Load Impedance：100KΩfor Audio
AUDIO FORMAT
CD/MP3,DVD audio
CVBS
Amplitude output:1Vpp± 0.1V/
White bar: 714mV ± 10%/700mVpp ± 10%
Sync. Amplitude: 286mV ±100mV/300mVpp ± 100mV
Burst/chroma ratio: ± 10%
S/N luminance: ≥52 dB
COMPONENT VIDEO RGB
Luminance amplitude output: 700mV ± 10%
RGB unbalance:5%
Sync. Amplitude: 300mV ± 100mV
S/N on RGB outputs: ≥52 dB
DC Level: ≤1V
COMPONENT VIDEO YPbP
r
PbPr output unbalance:3%
Sync. Amplitude: 286mV ± 100mV
Video Bandwidth 4.2 MHz:-5db
S/N on outputs: YUV: ≥52 dB
POWER CONSUMPTION
Power-Supply:100-280V ac,50/60Hz,standby:310V
Supply voltage:AC 100~280V
Supply Power consumption(AC 100/240V):12W/+10%
Standby Power,230VAC: <1W
GENERAL DESCRIPTION
Optical Pickup:IM S76RFVP
Chip set/Solution:Mediatek MTK1389QE-LA
Disc Size:8cm/12cm
1-1
All manuals and user guides at all-guides.com

1.1 PCBs LOCATION
VERSION VARIATIONS
Type/Versions:
Service policy
Board in used:
DVP3320
94
MAIN BOARD M/C
8W/2P POWER BOARD M/C
LED BOARD C
USB BOARD C
POWER SW BOARD C
*TIPS: C -- Component Lever Repair.
M -- Module Lever Repair
X – Used
MAIN BOARD
LED BOARD
DECK AMI
POWER SW BOARD
USB BOARD
8W/2P POWER BOARD
1-2
All manuals and user guides at all-guides.com

1.2 System, Region Code, etc. Setting Procedure
Procedure to change region code of your DVD
Portable
1. Power ON the DVD player and do not insert
DISC inside player
2. Setup Prefer
Press IR in the sequence as
9 6 5 3
The LCD display showed the existing region
Code
3. Press▲(navigation up)or▼(navigation down)
repeatedly to select the number from 0 to 6.
4. Then press OK to confirm your region code.
5. Refer below table for your region code setting
Select “0” setting = Region Free (confidential)
Procedure for SW upgrade
1. The
upgrade will provide a document
re-named: PHILIPS.BIN
2. “PHILIPS.BIN” copy to USB or CD-ROM into
the data;
3. Reading the USB or CD-ROM，in accordance
with prompt，press ”OK” key to upgrade.
Warning: Do not unplug the AC adapter during
firmware upgrade to prevent flash corrupt of
the set!!
Procedure to check SW version of your DVD
Portable
1. OPEN
2. Press SETUP MENU
3. Select Preferences
4. Select Version Info
5. Press “OK” key
1-3
All manuals and user guides at all-guides.com

2.0 Safety instruction
1. General safety
Safety regulations require that during a repair:
. Connect the unit to the mains via an isolation
transformer.
. Replace safety components indicated by the
symbol
Only by components identical to the original ones.
Any
Other component substitution (other than original
type)
May increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, you
must
Return the unit in its original condition. Pay, in
particular,
Attention to the following points:
. Route the wires/cables correctly, and fix them with
the
mounted cable clamps
. Check the insulation of the mains lead for external
Damage
. Check the electrical DC resistance between the
mains
Plug and the secondary side:
1) Unplug the mains cord, and connect a wire
between
The two pins of the mains plug.
2) Set the mains switch the “on” position (keep
the
Mains cord unplug).
3) Measure the resistance value between the
mains
plug and the front panel, controls, and chassis
bottom.
4) Repair or correct unit when the resistance
measurement is less than 1M Ω
5) Verify this, before you return the unit to the
customer/user (ref. UL-standard no. 1492).
6) Switch the unit “off”, and remove the wire
between
the two pins of the mains plug.
2. Laser safety
This unit employs a laser. Only qualified service
personnel
May remove the cover, or attempt to service this
device
(due to possible eye injury).
Laser device unit
Type :Semiconductor laser GaAIAs
Wavelength :650nm (DVD)
:780nm (VCD/CD)
Output power :7mW(DVD)
:10mW(DVD/CD)
Beam divergence:60 degree
Note: Use of controls or adjustments or
performance of procedure other than those
specified herein, may result in hazardous
radiation exposure. Avoid direct exposure to
beam.
2-1
All manuals and user guides at all-guides.com

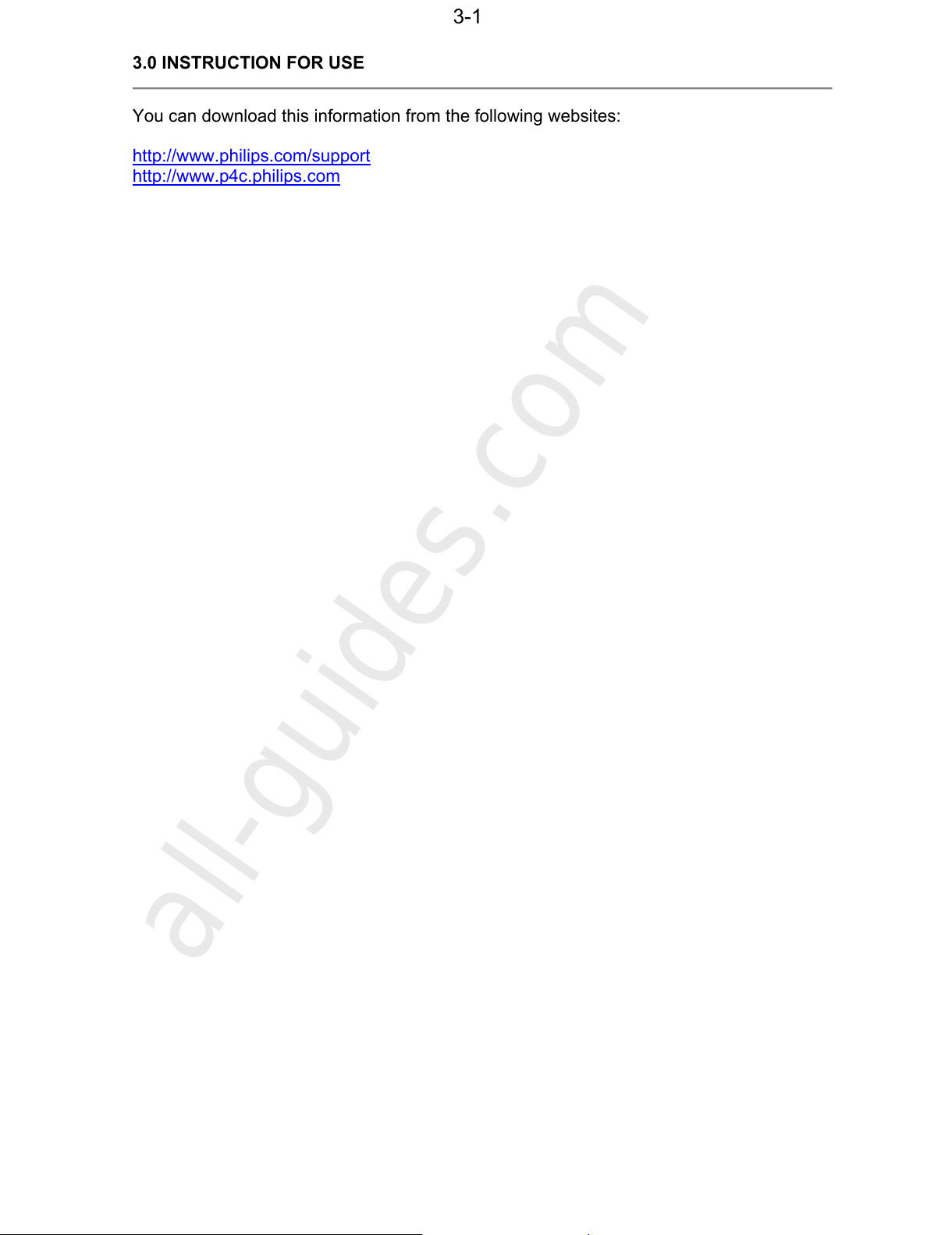

3.0 INSTRUCTION FOR USE
You can download this information from the following websites:
http://www.philips.com/support
http://www.p4c.philips.com
3-1
All manuals and user guides at all-guides.com
all-guides.com

4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS

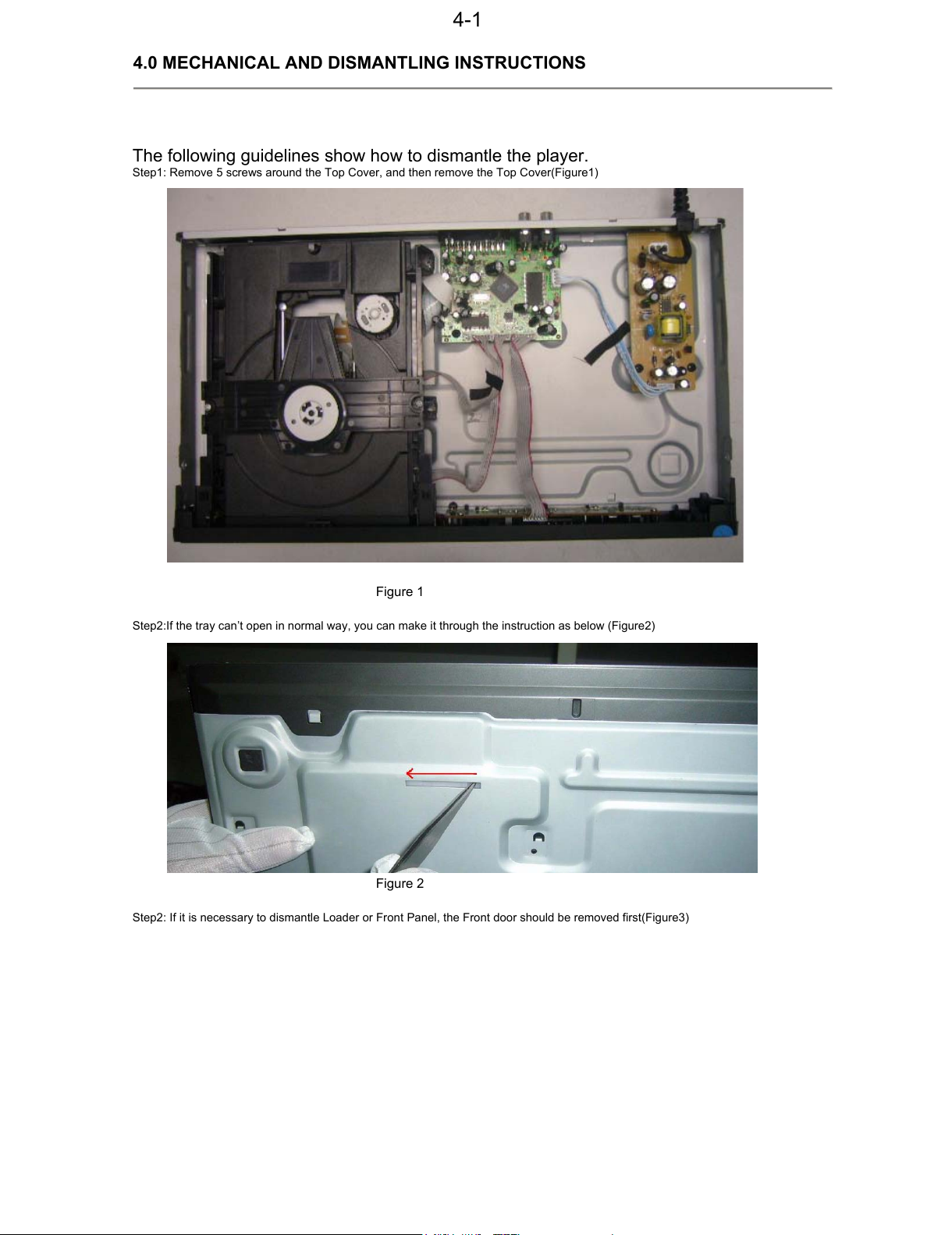

The following guidelines show how to dismantle the player.
Step1: Remove 5 screws around the Top Cover, and then remove the Top Cover(Figure1)
Figure 1
Step2:If the tray can’t open in normal way, you can make it through the instruction as below (Figure2)
Figure 2
Step2: If it is necessary to dismantle Loader or Front Panel, the Front door should be removed first(Figure3)
4-1
All manuals and user guides at all-guides.com

Figure3

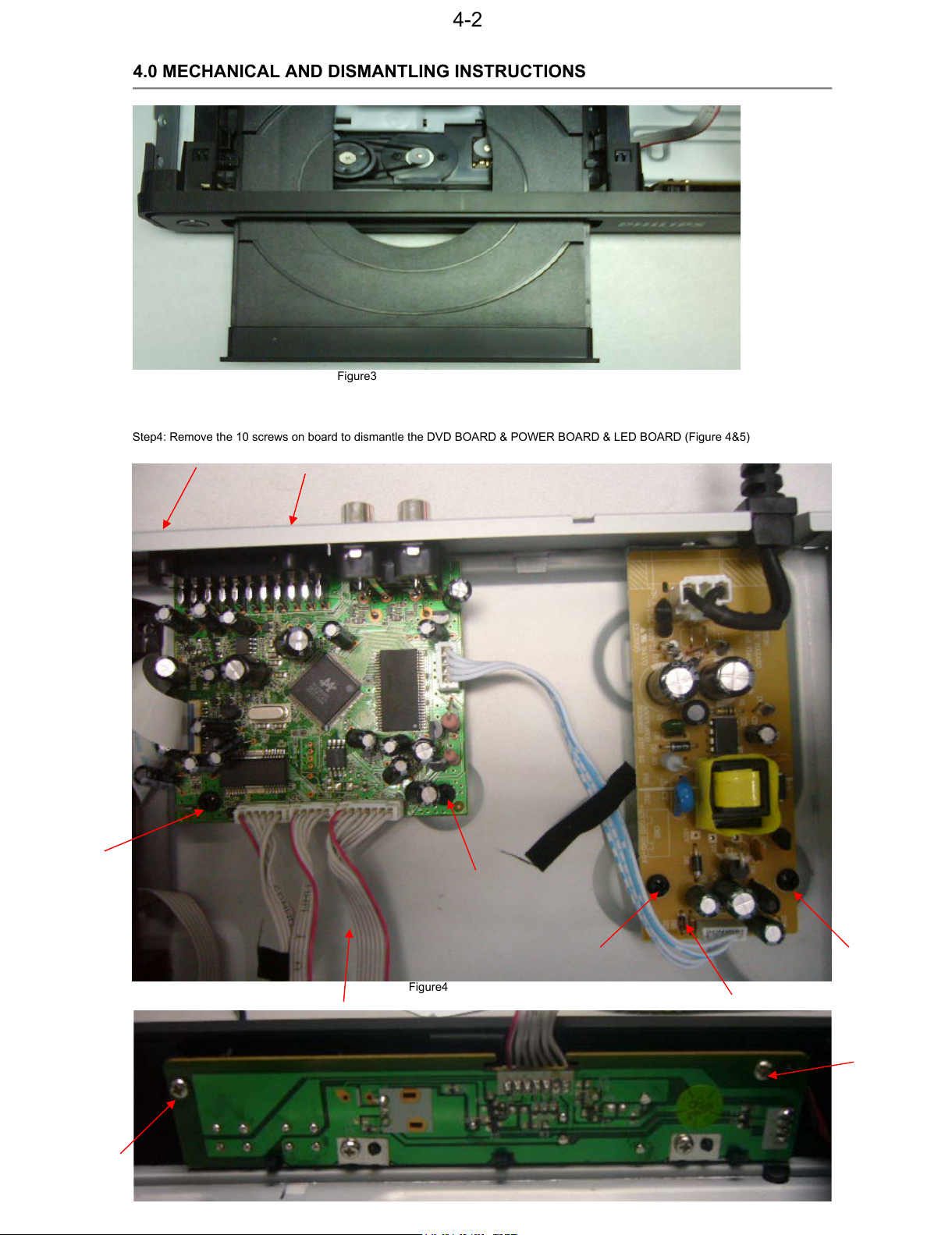

Step4: Remove the 10 screws on board to dismantle the DVD BOARD & POWER BOARD & LED BOARD (Figure 4&5)
Figure4
4-2
4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS
All manuals and user guides at all-guides.com

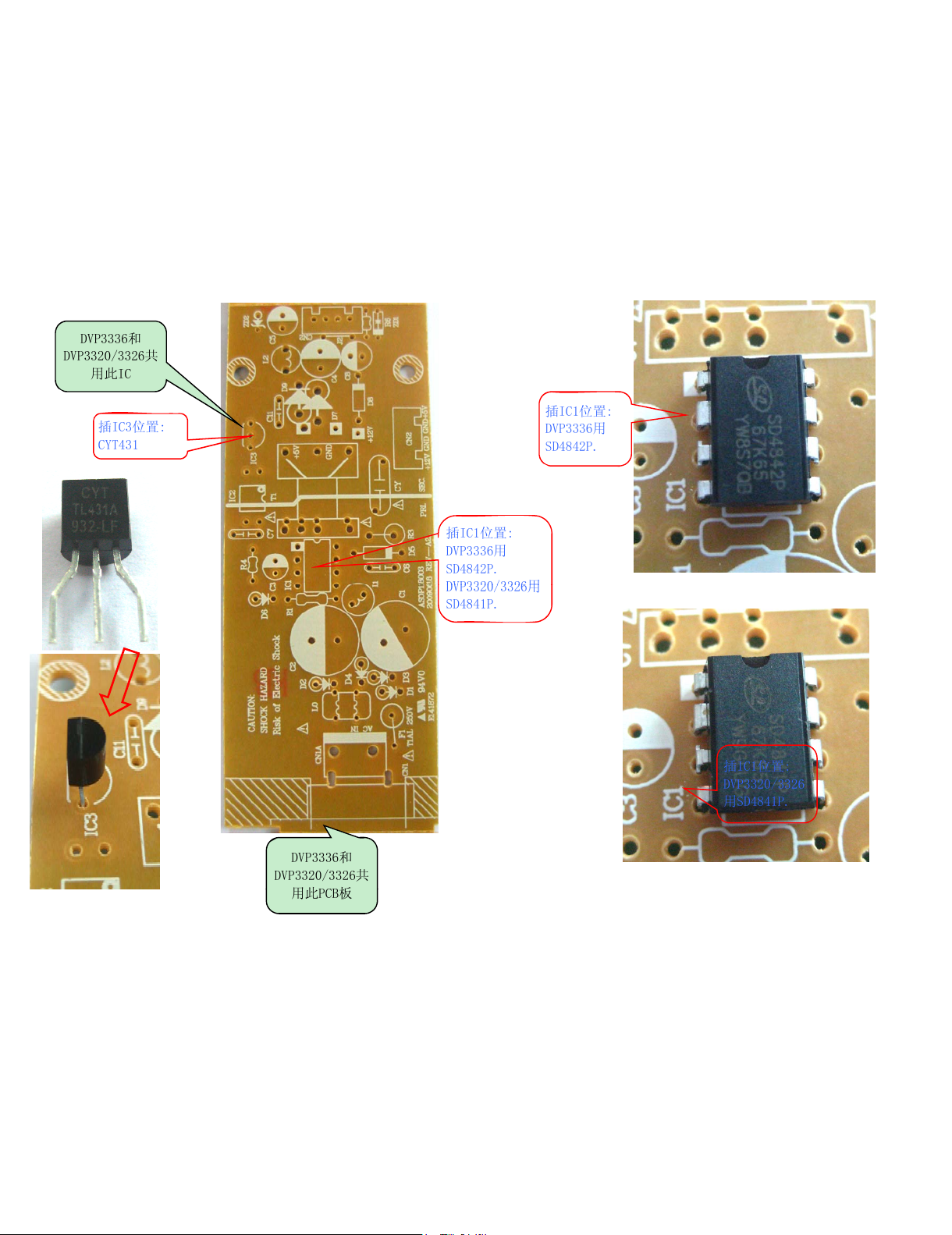

插IC1位置:
DVP3336用
SD4842P.
DVP
3320
/
3326
用
插IC3位置:
CYT431
插IC1位置:
DVP3336用
SD4842P.
DVP3336和
DVP3320/3326共
用此IC
DVP
3320
/
3326
用
SD4841P.
DVP3336和
DVP3320/3326共
用此
PCB
板
插IC1位置:
DVP3320/3326
用SD4841P.
用此
PCB
板
All manuals and user guides at all-guides.com

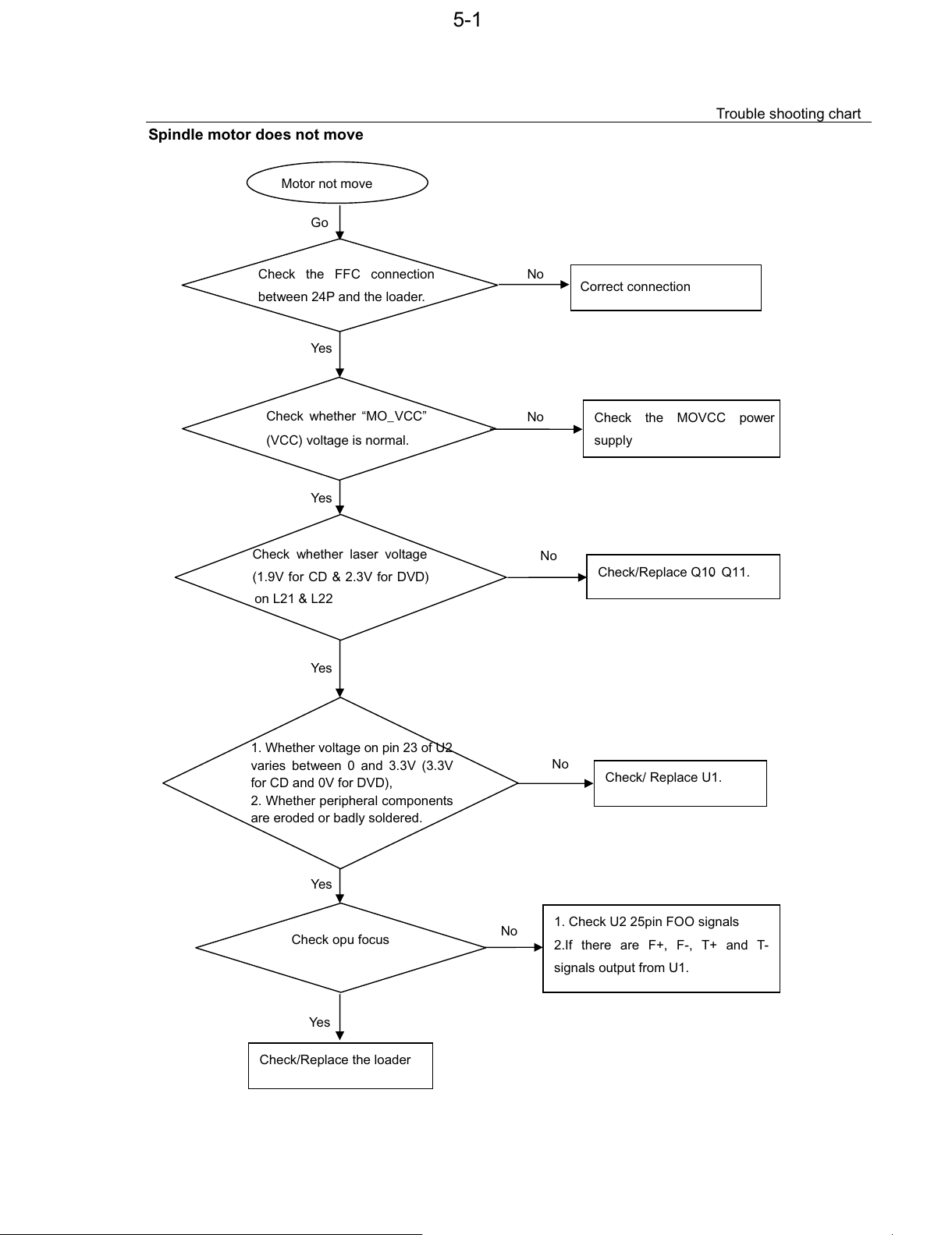

Spindle motor does not move
Yes
Yes
No
No
No
No
Yes
Check whether “MO_VCC”
(VCC) voltage is normal.
Correct connection
Check the MOVCC power
supply
Check/Replace Q10ǃQ11.
Check/ Replace U1.
Check opu focus
1. Check U2 25pin FOO signals
2.If there are F+, F-, T+ and T-
signals output from U1.
Check/Replace the loader
Yes
Yes
No
Go
Check whether laser voltage
(1.9V for CD & 2.3V for DVD)
on L21 & L22
Check the FFC connection
between 24P and the loader.
1. Whether voltage on pin 23 of U2
varies between 0 and 3.3V (3.3V
for CD and 0V for DVD),
2. Whether peripheral components
are eroded or badly soldered.
Trouble shooting chart
Motor not move
5-1
All manuals and user guides at all-guides.com

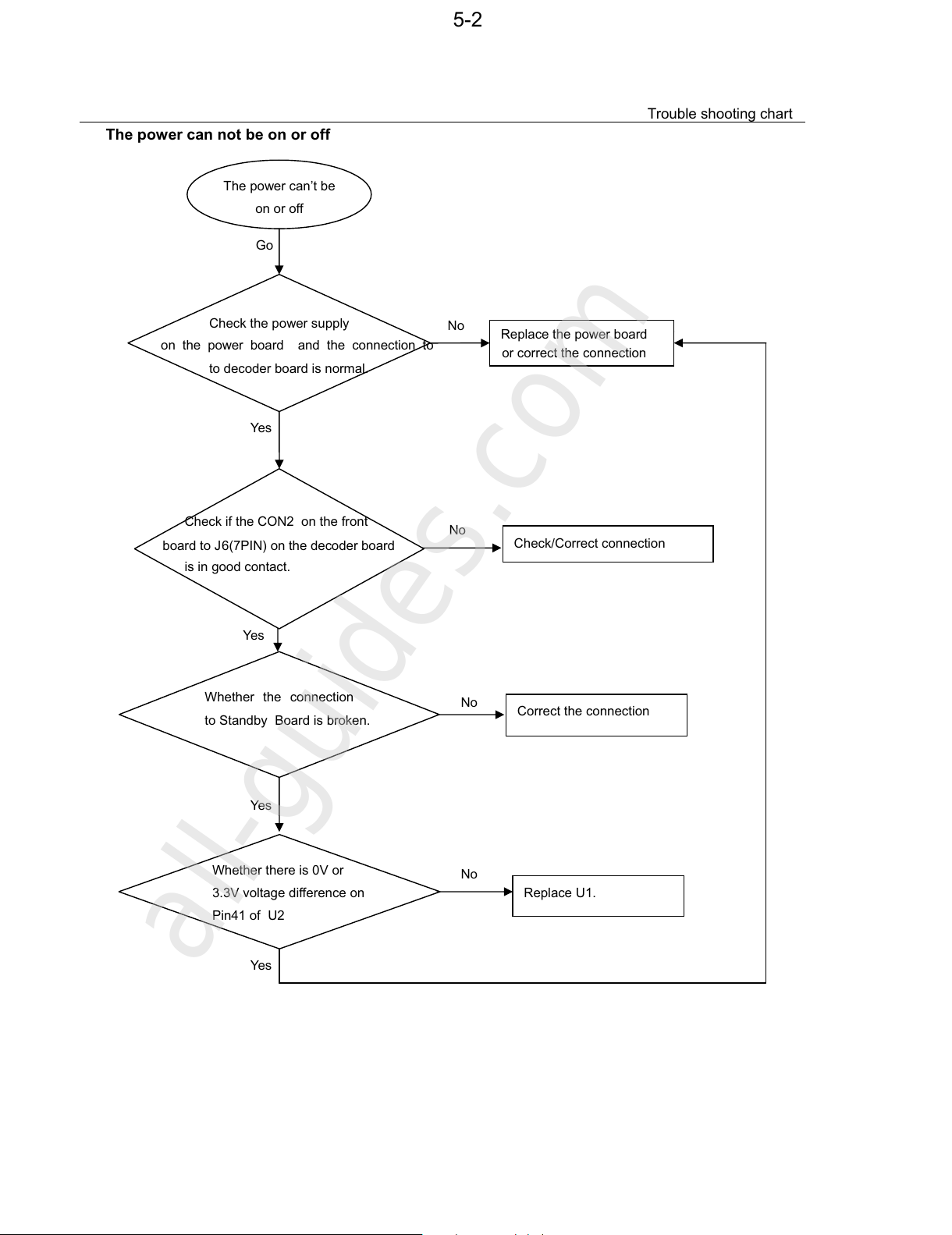

The power can not be on or off
Go
Yes
Yes
No
No
The power can’t be
on or off
Yes
Replace the power board
Check the power supply
on the power board and the connection to
to decoder board is normal.
Check/Correct connection
Whether the connection
to Standby Board is broken. Correct the connection
Replace U1.
No
No
Yes
Yes
Check if the CON2 on the front
board to J 6(7PIN) on the decoder board
is in good contact.
Whether there is 0V or
3.3V voltage difference on
Pin41 of U2
Trouble shooting chart
or correct the connection
5-2
All manuals and user guides at all-guides.com
all-guides.com

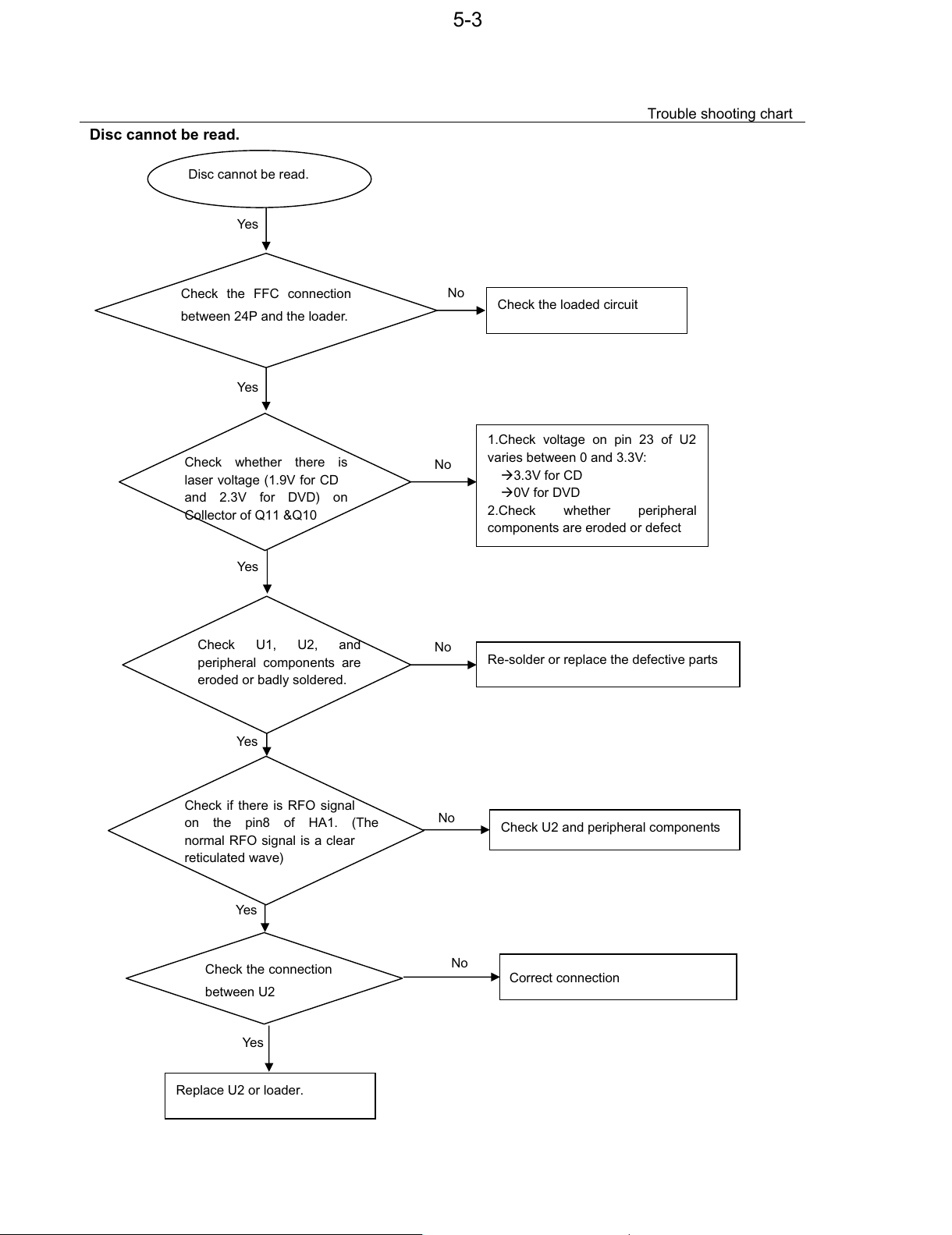

Disc cannot be read.
No
Yes
No
Yes
No
Yes
Yes
No
No
Yes
Disc cannot be read.
Check the loaded circuit
1.Check voltage on pin 23 of U2
varies between 0 and 3.3V:
Æ3.3V for CD
Æ0V for DVD
2.Check whether peripheral
components are eroded or defect
Check the FFC connection
between 24P and the loader.
Check U2 and peripheral components
Re-solder or replace the defective parts
Check the connection
between U2
Correct connection
Replace U2 or loader.
Yes
Check whether there is
laser voltage (1.9V for CD
and 2.3V for DVD) on
Collector of Q11 &Q10
Check if there is RFO signal
on the pin8 of HA1. (The
normal RFO signal is a clear
reticulated wave)
Check U1, U2, and
peripheral components are
eroded or badly soldered.
Trouble shooting chart
5-3
All manuals and user guides at all-guides.com

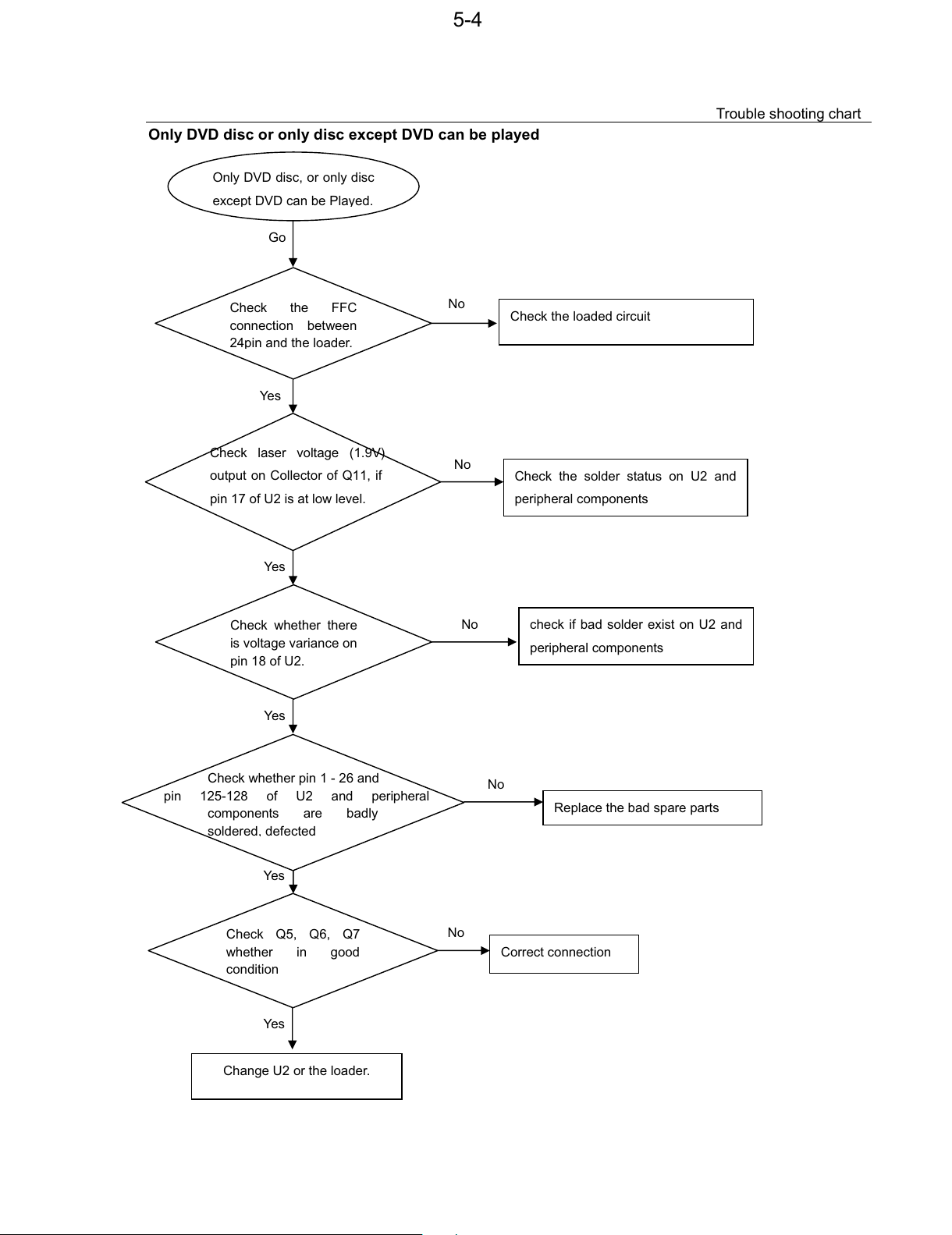

Only DVD disc or only disc except DVD can be played
No
No
Yes
Only DVD disc, or only disc
exce
p
t DVD can be Pla
y
ed.
Check the FFC
connection between
24
p
in and the loader.
Check the loaded circuit
Check the solder status on U2 and
peripheral components
Check whether there
is voltage variance on
p
in 18 of U2.
check if bad solder exist on U2 and
peripheral components
Replace the bad spare parts
Check whether pin 1 - 26 and
pin 125-128 of U2 and peripheral
components are badly
soldered
,
defected
Check Q5, Q6, Q7
whether in good
condition
Yes
Yes
Yes
Go
Correct connection
Change U2 or the loader.
No
No
Yes
Check laser voltage (1.9V)
output on Collector of Q11, if
pin 17 of U2 is at low level.
No
Trouble shooting chart
5-4
All manuals and user guides at all-guides.com

Distorted audio and loud noise
Yes
No
Yes
Yes
No
Distorted audio and
loud noise
Replace L2
Replace Q12, Q14
Check he power supply
voltages +12V
to the operation amplifying
L2 are normal
Check whether the
muting transistors Q12,
Q14, are normal
Checking the U2 leads
the feet has no to break
to open
Correct connection
Check whether the U5
or U2 power supply
normal
No
Yes
Yes
Check U2, U5
Replace U2, U5
No
Trouble shooting chart
No
5-5
All manuals and user guides at all-guides.com

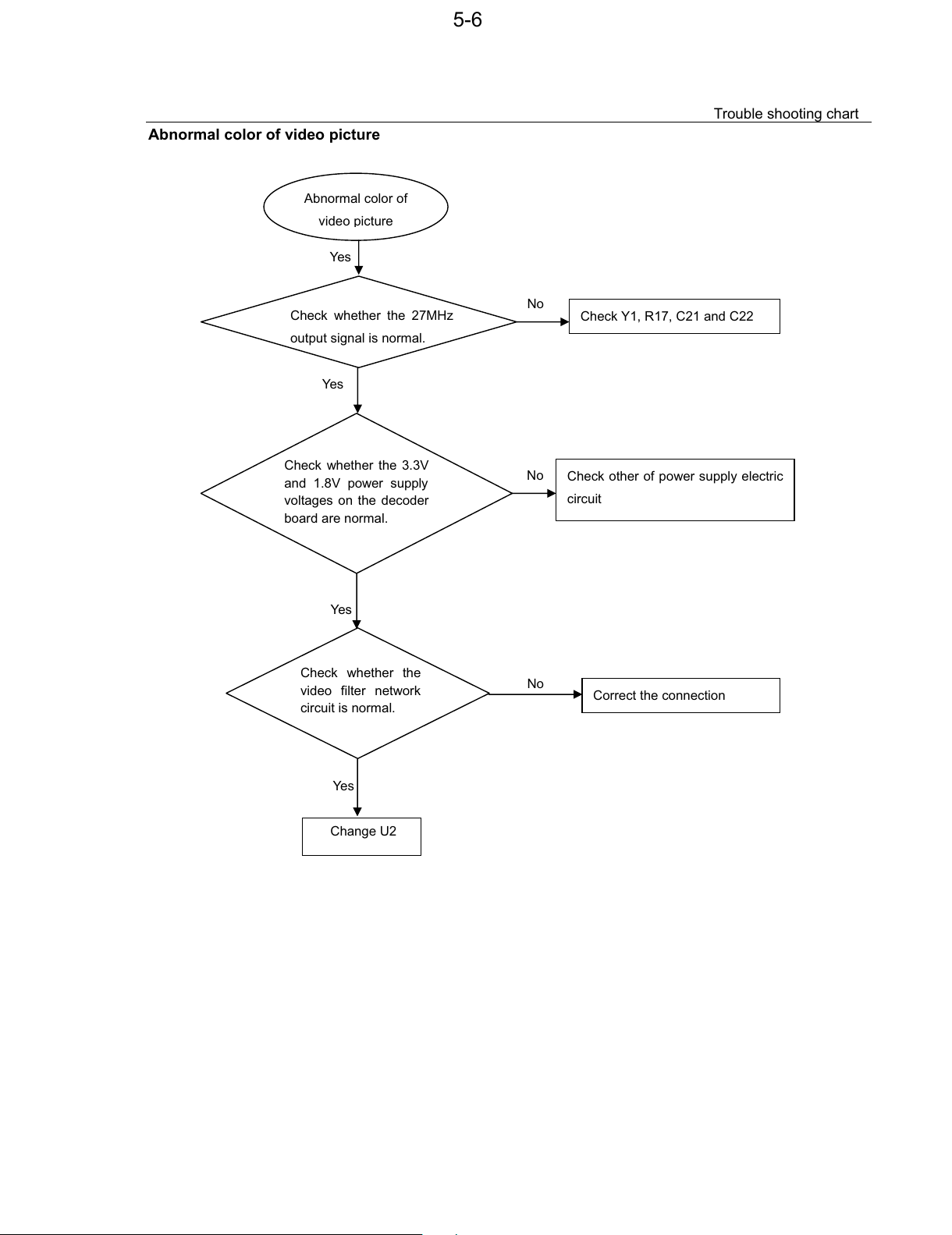

Abnormal color of video picture
Yes
Abnormal color of
video
p
icture
Check whether the 3.3V
and 1.8V power supply
voltages on the decoder
board are normal.
Check Y1, R17, C21 and C22
Check other of power supply electric
circuit
Correct the connection
Check whether the
video filter network
circuit is normal.
Yes
Yes
No
No
No
Check whether the 27MHz
output signal is normal.
Change U2
Yes
Trouble shooting chart
5-6
All manuals and user guides at all-guides.com

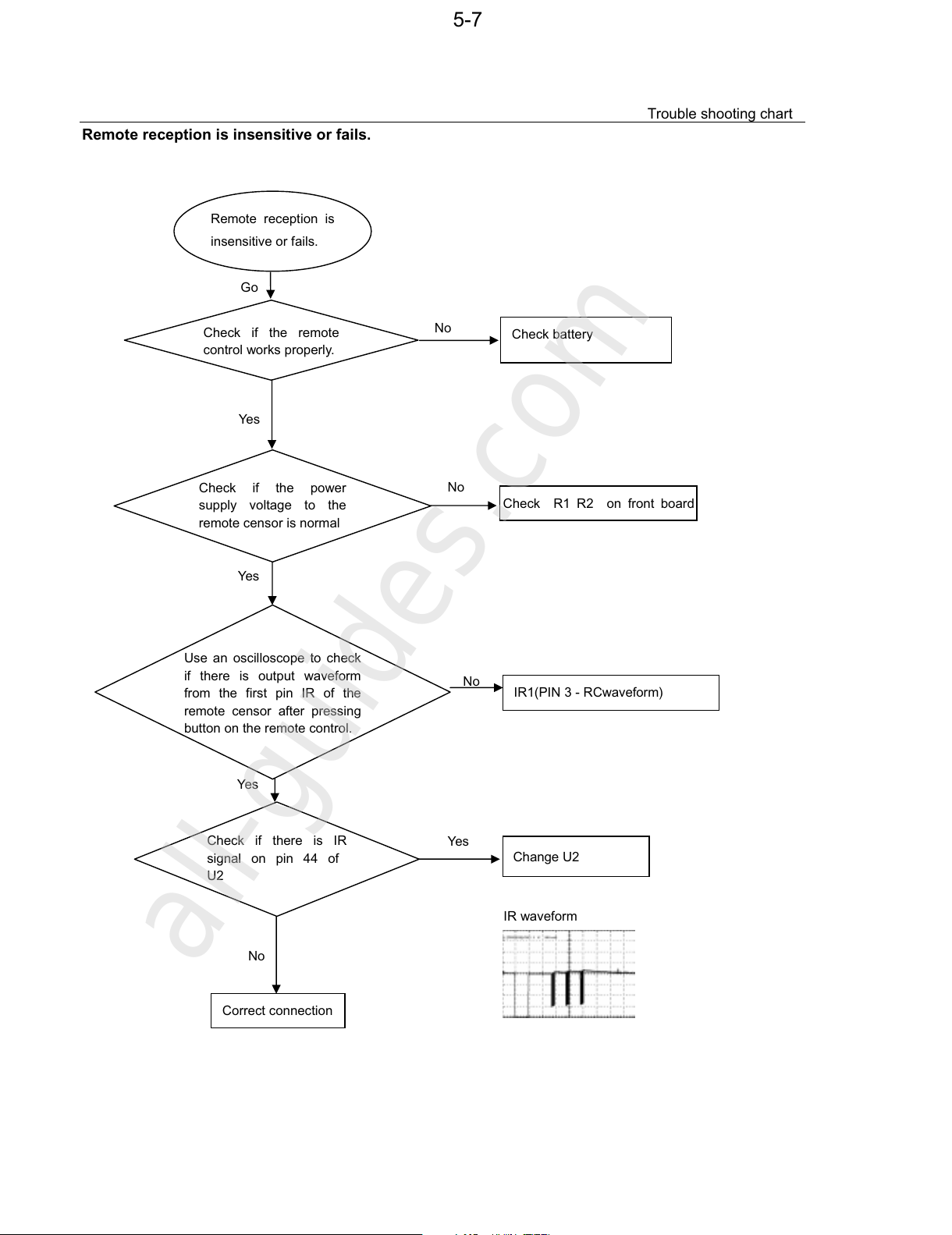

Remote reception is insensitive or fails.
No
Remote reception is
insensitive or fails.
Check if the remote
control works
p
ro
p
erl
y
.
Check battery
Check R1 R2 on front board
Use an oscilloscope to check
if there is output waveform
from the first pin IR of the
remote censor after pressing
button on the remote control.
IR1(PIN 3 - RCwaveform)
Check if there is IR
signal on pin 44 of
U2
Check if the power
supply voltage to the
remote censor is normal
Go
No
No
No
Yes
Yes
Yes
Correct connection
Yes
Change U2
IR waveform
Trouble shooting chart
5-7
All manuals and user guides at all-guides.com
all-guides.com

No video picture, no sound.
Change C13,Q4,Q3
No video picture,
no sound.
Check if the reset circuit consisting
of C13, Q4, Q3,R11,R12,R13,R15,R16 is normal
(at a high level for tens of milliseconds,
then constantl
y
at 0V
)
.
Check whether there is
27MHz signal output.
Check if there is 128MHz
signal output on R49.
Check the loaded circuit
Crystal oscillator Y1 and
peripheral components
are defected or eroded.
Check whether
short-circuit or bad
solder on U3, U4
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Reconnect the component in
short-circuit
Check U3.
27M waveform
SDRAM(R49 SDCLK) waveform
Check whether all the
voltages from the power
board to the decoder board
are normal. CVBS(L27 point) waveform
Trouble shooting chart
Go
No
5-8
All manuals and user guides at all-guides.com

No display on LED, and buttons do not work
No
No
No
LED and
buttons do not work
Check whether there is
correct contact
between CON1 of front board
and J 6 of decoder board
Correct connection
Fix power supply board top
a power supply for should
electric circuit
Check the U2’s pin 33,34,40,41 arrive
the J 6 connect condition
Correct connection
Replace LED or Q1,Q2,Q3,Q4
Yes
Yes
Yes
Check DV33(+3.3V)
voltage on the power
and front board
Check whether there is 0V
or 3.3V on the signals of VPLAY,STB
CLK, DATA
Check whether the circuit
connected to LED & BUTTONS
is broken,
Trouble shooting chart
Yes
Yes
No
Check wether Q1,Q2,Q3,Q4 for 3904
&LED is broken,
5-9
All manuals and user guides at all-guides.com

3.3V
RF
1.8V
ASA 8829B+
Sanyo DV38
MT1389L
AM5888S
AV-OUT RCA
5V
DVD-AU-R
3.3V
KEY
IR
1.8V
OP
COAX
12V
IR
SENSOR
Y&U&V RCA
DVD-CVBS
SPI
Flash
8M&16M
5VSwitch
Power
DVD-AU-L
4558
SDRAM
1*16&4*16
ASA 8829B+Sanyo DV38
CIRCUIT DIAGRAM DVP3100 6-1
All manuals and user guides at all-guides.com

POWER I/F
SERVO I/F
+12V
+12V
89L_3V3
DV33
V18
FB18
+P12V
GND
URST#
DV33
LOAD-
TRIN
TROUT
LOAD+
VCC
VCC
TRIN
DMSO
TROUT
URST#
TROUT
TROPEN
TRCLOSE
FOSO
DMSO
FMSO
TRSO
SL+
SL-
SP+
SP-
T+
T-
F+
F-
V1P4
V1P4
STBY
SL-
SL+
FB33
TRCLOSE
STBY
T-
SP-
OUT33
FB18
LOAD-
FOSO
FMSO
TRSO
OUT18
SP+
F+
FB33
OUT18
TROPEN
OUT33
T+ F-
LOAD+
+12V [2,4]
89L_3V3 [2]
DV33 [2,3,4,5]
V18 [2]
VCC [2,4]
TRIN [2]
TROUT [2]
URST# [2]
TROUT [2]
TROPEN [2]
TRCLOSE [2]
FOSO [2]
DMSO [2]
FMSO [2]
TRSO [2]
SL+ [2]
SL- [2]
SP+ [2]
SP- [2]
T+ [2]
T- [2]
F+ [2]
F- [2]
V1P4 [2]
STBY [2]
+12V
+P12V
V18
V33
VCC
+P12V
DV33
89L_3V3
V33
DV33
DV33
VCC
MO_VCC MO_VCC
VCC MO_VCC
L7
FB
C9
0.1uF
R7
6.8K/1%
R16
4.7k
C11
0.1uF
Q4
2N3904
1
3 2
+
CE6
100uF/10v
+
C13
22uF/6.3v
12
+
CE7
47uF/10v
R2
10K/1%
R4
10
L2
FB
C8
0.1uF
J1
4x1 W/HOUSING
1
2
3
4
R12
3.3k
L1
FB
+
CE3
220uF/6.3v
12
C10 0.1uF
C12
0.1uF
U1
AM5888
1
9
10
12
3
2
15
7
14
13
21
19
20
24
27
6
4
5
28
8
11
17
18
16
23
22
25
26
2930
VINFC
VOTR-
VOTR+
VOSL-
REGO2
TRB1
VOTK+
REV
VOFC+
VOFC-
VCTL
VCC2
NC
NC
BIAS
FWD
VINSL+
REGO1
MUTE
VCC
VOSL+
VOLD+
VOLD-
VOTK-
VINLD
GND
TRB2
VINTK
G1G2
R13
22k
R10
10k
C2
0.1uF
C14
1uF/NC
L4 FB
C7
0.1uF
L8 FB
R8
10
L6
FB
+
CE1
220uF/6.3v
12
Q3
2N3904
1
3 2
+
CE2
47uF/25v
C3 0.1uF
Q2
8550
2
3 1
+
CE5
10uF/10v
R14 10k
C1
0.1uF
R6
2.2dip
R9
10k
R5
11K/1%/12K
R11
15k
Q1
8550
2
3 1
R1
4.3K/1%/5.1K
J2
5x1 W/HOUSING
1
2
3
4
5
R3
5.6dip
R15
3.9k
C4
0.1uF
CIRCUIT DIAGRAM DVP3100 MAIN BOARD
POWER PART
7-1
All manuals and user guides at all-guides.com
