Philips HQ6757 User manual

ENGLISH 4
BAHASA MALAYSIA 17
BAHASA INDONESIA 31
TI”NG VI◊T 45
 57
68
80
92
HQ6757, HQ6756, HQ6755
3

Important
Read these instructions for use carefully before
using the appliance and save them for future
reference.
◗Only use the HQ8000 powerplug and the
charging stand supplied to charge the shaver.
◗The powerplug is suitable for mains voltages
ranging from 100 to 240 volts.
◗The powerplug contains a transformer. Do
not cut off the powerplug to replace it with
another plug, as this will cause a hazardous
situation.
◗The powerplug transforms 100-240 volts to
12 volts.
C◗Make sure the HQ8000 powerplug does not
get wet.
C◗The shaver runs at a safe low voltage of
12 volts. It is watertight and can be cleaned
under the tap. Do not rinse the shaver with
water hotter than 80cC.
◗For the best shaving results, shaving emulsion
should be pumped up frequently.
◗If the mains cord of this appliance is damaged,
it must always be replaced by Philips or a
service centre authorised by Philips in order
to avoid hazardous situations.
ENGLISH4

Charge indications
C◗As soon as you start charging the empty
shaver, the green pilot light goes on.
◗When the batteries have been fully charged,
the green pilot light starts blinking.
◗The red pilot light blinks when the batteries
are almost empty.
◗When the batteries are almost empty, the red
pilot light blinks a few times after the shaver
has been switched off.
Charging
Recharge, store and use the appliance at a
temperature between 5cC and 35cC.
1Insert the small plug into the charging
stand and put the powerplug in the wall
socket.
C2Place the shaver in the charging stand.
C3Press until you hear a click.
The shaver automatically switches off when
placed in the charging stand.
4When charging for the first time or after a
long period of disuse: leave the shaver to
charge continuously for 4 hours.
Charging normally takes approx. 1 hour.
A fully charged shaver has a cordless shaving time
of up to approx. 40 minutes.
ENGLISH 5

Inserting cartridges
The cartridges with moisturising NIVEA FOR
MEN shaving emulsion are available in boxes
containing five cartridges and one small plastic
pump. Do not throw the pump away: you will
need it for all five cartridges!
Use only Philishave NIVEA FOR MEN Cool Skin
(HQ160 or HQ161) cartridges.
For hygienic reasons, we advise you to insert a
new pump when you start using a new set of five
cartridges.
Inserting the first cartridge
C1Take one cartridge from the box.Take the
pump (supplied in the same box) out of its
bag and push it into the cartridge until it
locks into position with a click.
C2Move the release slide downwards and
open the cover of the cartridge
compartment.
C3Slide the cartridge with the pump into the
shaver. It only fits properly if the white side
of the pump is pointing upwards. Close the
cover.
ENGLISH6
12

4Press the yellow pump button a few times
until the NIVEA FOR MEN shaving
emulsion appears.The shaver is now ready
for use.
Do not throw the pump away when you replace
an empty cartridge.You will need it for the other
cartridges.
The NIVEA FOR MEN shaving emulsion in this
cartridge will keep when stored at temperatures
between 0cC and +40cC.
Shaving
1Switch the shaver on by pressing the on/off
button once.
C2Press the yellow pump button to apply
NIVEA FOR MEN shaving emulsion to
your skin. Move the shaver over your skin,
making both straight and circular
movements.
3While shaving, press the pump button
frequently to apply more NIVEA FOR
MEN shaving emulsion so that the shaver
keeps gliding smoothly over your face.
Do not press the shaver too hard against your
skin while shaving.
If you prefer, you can wet your face first.
ENGLISH 7

◗When you have run out of shaving emulsion,
you can also use the shaver without it on a
dry face.
◗Your skin may need 2 or 3 weeks to get
accustomed to the Philishave system.
4Switch the shaver off.
C5Put the protection cap on the shaver every
time you have used it, to prevent damage.
Remove the cartridge and clean the shaver if you
are not going to use the appliance for more than
one week. Rinse the shaver after each shave.
Trimming
The shaver has a separate trimmer for grooming
sideburns and moustache.
1Switch the shaver off.
Clean the shaver before you attach the trimmer.
C2Press the release button to open the
shaving unit and pull the shaving unit off
the shaver.
C3Tilt the trimmer slightly backwards and fit
it onto the shaver.
4Remove the trimmer by pressing the
release button again and pulling the
trimmer off the shaver.
ENGLISH8
2
1

Cleaning
Shaving unit
Rinse the shaving unit and the hair chamber with
hot water (60cC - 80cC) after every use.
1Switch the shaver off.
C2Press the release button to open the
shaving unit.
C3Clean the shaving unit and the hair
chamber by rinsing them under a hot tap
for some time.
Never dry the shaving unit with a towel or tissue
as this may damage the shaving heads.
C4Rinse the outside of the shaver.
Make sure the inside of the shaving unit and the
hair chamber have been cleaned properly. Close
the shaving unit and shake off excess water.
Charging stand
1Unplug the charging stand.
2Clean the charging stand with a moist
cloth.
ENGLISH 9

Trimmer
1Clean the outside of the trimmer with the
brush supplied after every use.
C2Open the trimmer to clean it on the
inside.
C3Lubricate the trimmer teeth with a drop
of sewing machine oil every six months.
Replacing the shaving heads
Replace the shaving heads every two years for
optimal shaving results.
1Switch the shaver off.
C2Press the release button to open the
shaving unit.
C3Turn the wheel anticlockwise and remove
the retaining frame.
C4Remove the shaving heads and place the
new ones in the shaving unit.
ENGLISH10
OIL
1
1
2

C5Put the retaining frame back into the
shaving unit. Press the wheel and turn it
clockwise.
Replace damaged or worn shaving heads with
Philishave HQ167 Cool Skin shaving heads only.
Storage
C◗After cleaning, the wet shaver can be placed in
the charging stand.
◗The appliance and the trimmer can be stored
in the pouch or cassette supplied.Whether
you have a pouch or a cassette depends on
your type of shaver.
Disposal of batteries
The built-in rechargeable batteries contain
substances that may pollute the environment.
Remove the batteries when you discard the
shaver. Do not throw the batteries away with the
normal household waste, but hand them in at an
official collection point.You can also take the
appliance to a Philips service centre, which will
remove them for you and will dispose of them in
an environmentally safe way.
Only remove the batteries if they are completely
empty.
C1Let the shaver run until it stops, undo the
screws and open the shaver.
ENGLISH 11
1
1

2Remove the batteries.
Do not put the shaver back into the charging
stand after the batteries have been removed.
Tip
◗The shaver comes with two different kinds of
shaving emulsion: an emulsion for sensitive
skin and a fresh gel.This gives you the
opportunity to try them out and discover
which one suits your skin type best.
Troubleshooting
1The shaving heads do not move smoothly
over the skin:
BCause: not enough shaving emulsion has been
applied.
◗Press the pump button a few times until a
sufficient amount of NIVEA FOR MEN shaving
emulsion has been released to allow the
shaving heads to move smoothly over your
face again.
2Reduced shaving performance:
BCause 1: the shaving heads are dirty.The shaver
has not been cleaned immediately after use
and/or has not been rinsed long enough and/or
the water used to rinse the shaver was not hot
enough.
ENGLISH12

◗Clean the shaver thoroughly before you
continue shaving (see 'Cleaning').
BCause 2: long hairs are obstructing the shaving
heads.

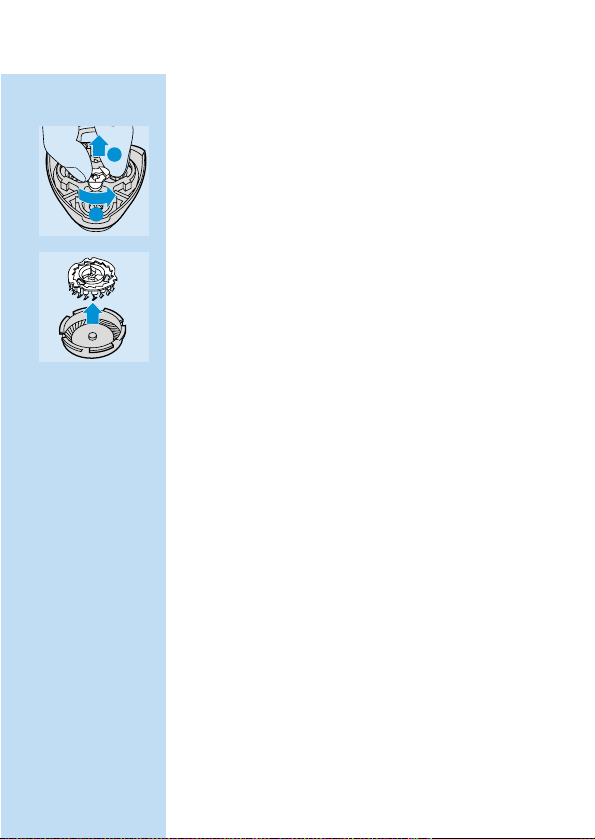

C◗Remove the retaining frame.
C◗Clean the cutters and guards
Do not clean more than one cutter and guard at
a time, since they are all matching sets. If you
accidentally mix up the cutters and guards, it may
take several weeks before optimal shaving
performance is restored.
◗Remove the hairs.
◗Put the shaving heads back into the shaving
unit. Put the retaining frame back onto the
shaving unit, press the wheel and turn it
clockwise.
BCause 3: the shaving heads are damaged or worn.
◗Remove the retaining frame.
◗Remove the old shaving heads from the
shaving unit and replace them with new ones
Damaged or worn shaving heads (cutters and
guards) must only be replaced with the original
Philishave HQ167 Cool Skin shaving heads.
◗Put the retaining frame back onto the shaving
unit, press the wheel and turn it clockwise.
ENGLISH 13
1
1
2

3The shaver does not work when the on/off
button is pressed:
BCause: the batteries are empty
◗Recharge the batteries.
4The cover of the cartridge compartment
cannot be closed:
BCause 1: the cartridge has not been inserted
correctly.
◗Insert the cartridge correctly. It only fits
properly into the shaver if the white side of
the pump is pointing upwards.
BCause 2: the cartridge has not been pushed far
enough into the shaver.
◗Press the cartridge until it is properly seated.
5The NIVEA FOR MEN shaving emulsion
has changed colour or has turned watery.
BCause: the NIVEA FOR MEN shaving emulsion
has not been stored at the right temperature.
◗Insert a new cartridge.
6Skin irritation occurs:
BCause 1: your skin has not yet become
accustomed to this shaving system.
ENGLISH14

◗Allow 2-3 weeks for your skin to get
accustomed to this shaving system.
BCause 2: the shaving emulsion irritates your skin.
◗Try the other type of shaving emulsion.
◗Wet your face before shaving with the shaving
emulsion.
If the irritation does not disappear within 24
hours, we advise you to stop using the shaving
emulsion and to contact your doctor.
7In case of other problems:
◗See 'Guarantee & service'
Accessories
The following accessories are available:
- HQ167 Philishave Cool Skin shaving heads.
- HQ160 NIVEA FOR MEN Cool Skin
moisturising shaving emulsion.
- HQ161 NIVEA FOR MEN Cool Skin
moisturising fresh shaving gel.
- HQ8000 powerplug.
- HQ100 Philishave Action Clean (shaving head
cleaner).
- HQ101 Philishave Action Clean refill (shaving
head cleaning liquid).
- HQ110 Philishave shaving head cleaner (shaving
head cleaning spray).
ENGLISH 15

Guarantee & service
If you need information or if you have a problem,
please visit the Philips Web site at
www.philips.com or contact the Philips Customer
Care Centre in your country (you will find its
phone number in the worldwide guarantee
leaflet). If there is no Customer Care Centre in
your country, turn to your local Philips dealer or
contact the Service Department of Philips
Domestic Appliances and Personal Care BV.
◗Save these instructions for use for future
reference.
ENGLISH16

Penting
Baca arahan penggunaan ini dengan teliti sebelum
menggunakan peralatan dan simpan untuk rujukan
di masa depan.
◗Gunakan hanya plag kuasa HQ8000 dan
penegak cas yang dibekalkan untuk
mengecaskan pencukur itu.
◗Plag kuasa itu sesuai untuk kuasa voltan utama
antara 100 hingga 240 voltan.
◗Plag kuasa itu mengandungi sebuah
transformer. Jangan potong plag kuasa untuk
menggantikannya dengan plag yang lain kerana
ini akan menimbulkan situasi berbahaya.
◗Plag kuasa mengubah 100-240 voltan kepada
12 voltan.
C◗Pastikan plag kuasa HQ8000 tidak dibasahkan.
C◗Alat pencukur ini beroperasi pada kuasa
voltan 12V yang rendah dan selamat. Ia juga
kedap air dan boleh dibersihkan di bawah paip
air. Jangan bilas menggunakan air yang lebih
panas dari 80cC.
◗Untuk hasil cukuran yang terbaik, emulsi
pencukur hendaklah sentiasa dipamkan.
◗Jika kord utama peralatan rosak, ia mesti
digantikan oleh Philips atau sebuah pusat
servis yang diluluskan Philips untuk
mengelakkan terjadinya situasi berbahaya.
BAHASA MALAYSIA 17

Penunjuk cas
C◗Sebaik sahaja anda mula mengecas pencukur
yang kosong, lampu panduan hijau akan
menyala.
◗Apabila bateri sudah tercas sepenuhnya, lampu
panduan hijau akan berkelip.
◗Lampu panduan merah akan berkelip apabila
bateri hampir kosong.
◗Apabila bateri hampir kosong, lampu panduan
merah akan berkelip beberapa kali selepas
pencukur dimatikan.
Mengecas
Cas semula dan simpan alat pada suhu antara 5cC
dan 35cC.
1Masukkan plag kecil ke penegak cas dan
pasangkan plag kuasa di soket dinding.
C2Letakkan alat pencukur di penegak cas.
C3Tekan sehingga terdengar bunyi klik.
Pencukur akan terpadam dengan automatik
apabila diletakkan di penegak cas.
4Jika mengecas buat pertama kali atau
setelah alat pencukur telah lama tidak
digunakan: cas alat pencukur selama 4 jam
secara berterusan.
Pengecasan biasanya mengambil masa lebih
kurang 1 jam.
BAHASA MALAYSIA18

Alat pencukur yang telah dicas penuh mempunyai
masa cukuran tanpa wayar sehingga lebih kurang
40 minit.
Memasukkan kartrij
Kartrij dengan pelembapan emulsi cukuran NIVEA
FOR MEN terdapat dalam kotak yang
mengandungi lima kartrij dan satu pam plastik
kecil. Jangan buangkan pam: anda akan
memerlukannya untuk kesemua lima kartrij!
Guna hanya kartrij Penyejuk Kulit Philishave
NIVEA FOR MEN (HQ160 atau HQ161).
Untuk tujuan kesihatan, kami nasihatkan anda
untuk memasukkan pam baru apabila mula
mengunakan set lima kartrij yang baru.
Memasukkan kartrij yang pertama
C1Ambil satu kartrij dari dalam kotak.Ambil
pam (yang dibekalkan di dalam kotak yang
sama) dari dalam beg dan tolakkannya ke
dalam kartrij sehingga ia terkunci dalam
kedudukan dengan bunyi klik.
C2Gerakkan selak pelepas ke bawah dan buka
penutup bekas kartrij.
BAHASA MALAYSIA 19
12

C3Luncurkan kartrij dengan pam ke dalam
alat pencukur. Ia akan benar-benar muat
jika bahagian putih pam mengarah ke atas.
Tutup penutupnya.
4Tekan butang kuning pam beberapa kali
sehingga ternampak emulsi cukuran NIVEA
FOR MEN.Alat pencukur kini sedia untuk
digunakan.
Jangan buangkan pam apabila anda menggantikan
kartrij kosong. Anda akan memerlukannya untuk
kartrij yang lain.
Emulsi cukuran NIVEA FOR MEN di dalam kartrij
ini akan terjaga apabila disimpan pada suhu antara
0cC dan +40cC.
Mencukur
1Hidupkan alat pencukur dengan menekan
butang hidup/mati sekali.
C2Tekan butang kuning pam untuk
menggunakan emulsi cukuran NIVEA FOR
MEN di kulit anda. Gerakkan alat pencukur
ke atas kulit anda secara lurus dan
membulat.
3Semasa bercukur, tekan butang pam secara
kerap untuk menggunakan lebih banyak
emulsi cukuran NIVEA FOR MEN supaya
alat pencukur akan meluncur rata di muka
anda.
BAHASA MALAYSIA20

Jangan tekan alat pencukur dengan terlalu kuat
pada kulit anda semasa bercukur.
Jika anda mahu, anda boleh basahkan dahulu muka
anda.
◗Apabila emulsi cukuran habis, anda juga boleh
menggunakan alat pencukur tanpanya di atas
muka yang kering.
◗Kulit anda mungkin memerlukan 2 atau 3
minggu untuk membiasakan diri dengan sistem
Philishave.
4Matikan alat pencukur.
C5Pasang semula tutup pelindung pada
pencukur setelah setiap penggunaan untuk
mengelakkan kerosakan.
Alihkan kartrij dan bersihkan alat pencukur jika
anda tidak mahu menggunakan peralatan lebih
daripada seminggu. Bilaskan alat pencukur setiap
kali selepas bercukur.
Perapian
Alat pencukur ini ada perapi berasingan untuk
mengemaskan misai dan jambang.
1Matikan suis alat pencukur.
Bersihkan alat pencukur sebelum anda pasangkan
perapi.
BAHASA MALAYSIA 21

C2Tekan butang pelepas untuk membuka unit
pencukur dan tarik unit pencukur daripada
alat pencukur.
C3Miringkan perapi ke belakang sedikit dan
muatkan ke dalam alat pencukur.
4Alihkan perapi dengan menekan butang
pelepas sekali lagi serta menarik perapi
dari pencukur.
Pembersihan
Unit pencukur
Bilas unit pencukur dan ruang rambut dengan air
panas (60cC -80cC) setiap kali selepas digunakan.
1Matikan alat pencukur.
C2Tekan butang pelepas untuk membuka unit
pencukur.
C3Bersihkan unit pencukur dan ruang rambut
dengan membilas seketika dengan air
panas.
Jangan keringkan unit pencukur dengan tuala atau
tisu, kerana ini mungkin akan merosakkan kepala
pencukur.
BAHASA MALAYSIA22
2
1
