Philips Norelco 7886XL User manual

7886XL
7885XL
6887XL
6886XL
6885XL
Rechargeable Tripleheader ®
Cordless/Cord Razor
SHAVING SYSTEM
7
7
QUADRA
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 1 (Black plate)

2
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 2 (Black plate)

ENGLISH 4
ESPAÑOL 22
7886XL, 7885XL, 6887XL, 6886XL, 6885XL
3
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 3 (Black plate)

IMPORTANT SAFETY
INSTRUCTIONS
When using an electric razor, basic safety precautions should always be
followed, including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a razor that has fallen into water.
Unplug immediately.
2. Do not use razor corded while bathing or in a shower.
3. Do not place or store razor while plugged in where it can fall or be pulled
into a tub or sink. Do not place or drop into water or other liquid while
plugged in.
4. Always unplug this razor from the electrical outlet immediately after use,
except when razor is (re)charging.
5. Unplug this razor before cleaning.
6. When discarding razor, unplug razor and remove rechargeable batteries.
See Battery Removal instructions.
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Close supervision is necessary when this razor is used by, on, or near
children or invalids.
2. Use this razor for its intended household use as described in this manual.
Do not use attachments not recommended by Philips Electronics North
America Corporation.
3. Never operate this razor if it has a damaged cord or charging plug, if it is
not working properly, if it has been dropped or damaged, or dropped into
water while plugged in. Return the razor to an Authorized Norelco Service
Location for examination and repair.
4ENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 4 (Black plate)

5
ENGLISH
4. Keep the razor, cord and charging plug away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not charge or plug in razor outdoors or operate where aerosol (spray)
products are being used or where oxygen is being administered.
7. Do not use this razor with a damaged or broken comb, as facial injury may
occur.
8. Always attach plug to razor first, then charging plug to outlet. Be certain
that plug is inserted firmly into razor, up to mark indicated on plug.To
disconnect, turn razor off then remove charging plug from outlet.
9. Never put the razor in direct sunlight or store in a pouch at a temperature
above 140ºF.
10. Razor can be rinsed under running tap water. Do not submerge razor in
water.
11. To prevent possible damage to the cord, do not wrap cord around the
razor.
SAVE THESE
INSTRUCTIONS
IMPORTANT
The power plug contains a transformer. Do not cut off the power plug to
replace it with another plug, as this will cause a hazardous condition.
IMPORTANT
Your razor contains NICKEL-CADMIUM RECHARGEABLE
BATTERIES. See Battery Removal instruction sheet for battery disposal
information.
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 5 (Black plate)

ENGLISH
Name
Address
City
State Zip
Daytime Telephone No. ( )
Email Address
REASON FOR RETURNING:
60-DAY MONEY-BACK
GUARANTEE
To enjoy the closest and most comfortable shave from your new Norelco Men’s
Razor, the razor should be used exclusivelyfor 3 weeks.This allows your hair and
skin enough time to adapt to the Norelco Shaving System. If, after that period of
time, you are not fully satisfied with your Norelco Men’s Razor, send the product
back and we’ll refund you the full purchase price. The razor must be shipped
prepaid by insured mail, insurance prepaid, and have the sales slip, indi-
cating purchase price and the date of purchase, enclosed. The razor must
be postmarked no later than 60 days after the date of purchase. Norelco reserves
the right to verify the purchase price of the razor and limit refunds not to exceed
suggested retail price.
Send dated sales receipt, your complete name and address as indicated below,
and the razor, prepaid to:
Norelco Consumer Products Company
A Division of Philips Electronics
North America Corporation
450 North Medinah Road, Dock 16
Roselle, IL 60172-2329
Please allow 4-6 weeks for delivery of check. (Please Print)
AREA CODE
6
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 6 (Black plate)

Table of Contents
Features..........................................................8-9
LCD Display...............................................10-11
Charge Meter..................................................11
Charging ...................................................11-12
Put It To The Test & Shaving Tips................13
How To Shave With
An Electric Razor...........................................14
Trimming....................................................14-15
Cleaning.....................................................15-18
Assistance........................................................19
Accessories.....................................................19
Storage.............................................................20
Battery Removal............................................20
Warranty...........................................................21
Spanish..............................................................22
7
ENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 1 (Black plate)

Put ItToTheTest & Shaving Tips

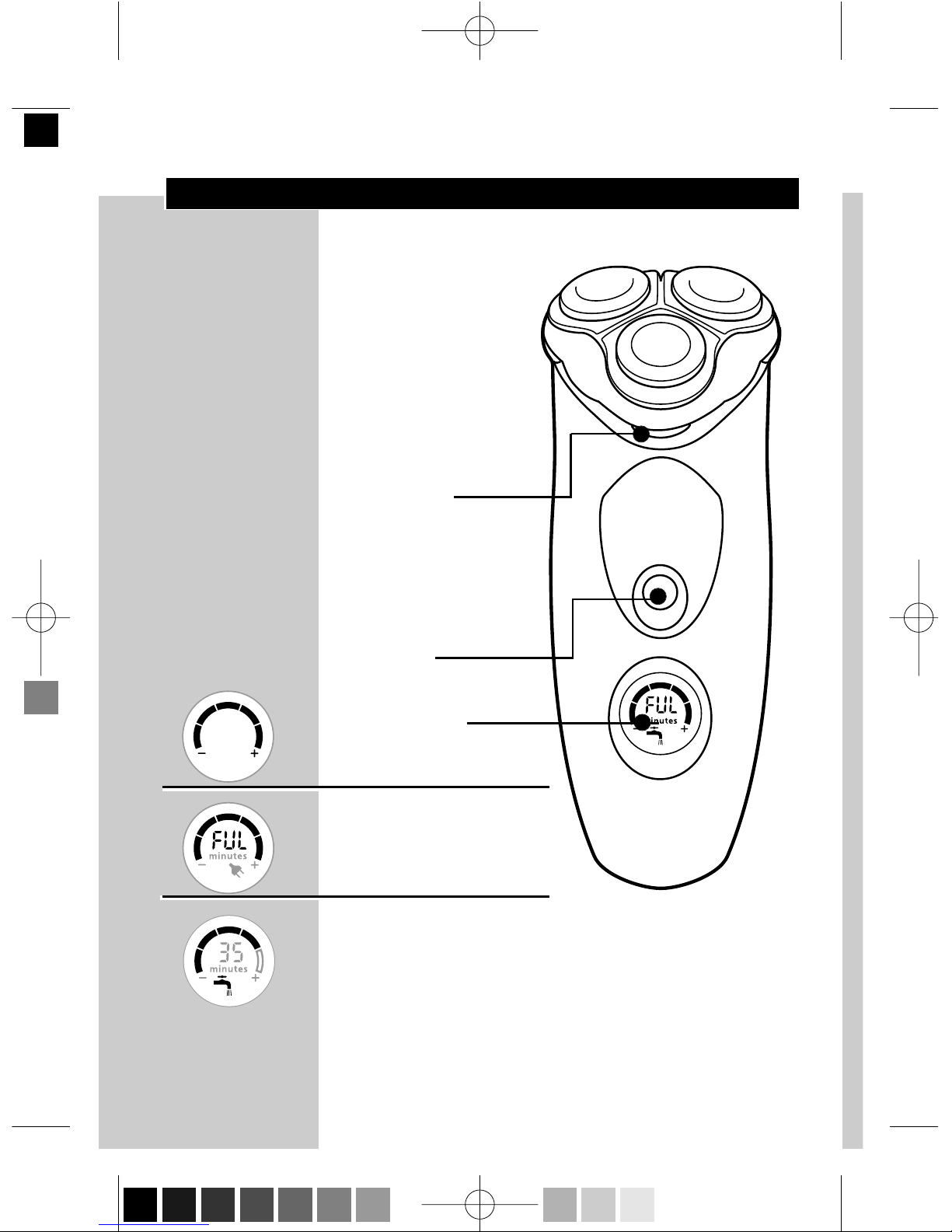

Quadra
Shaving System
Razor Head Assembly
Protective Razor
Head Cap
Individually Floating
Heads
Razor Head
Release Button
• Hair Chamber
captures
shaven hair
Electronic ON/OFF
Button
LCD Display
• Shows remaining power
level in batteries
• Actual shaving
“Minutes Left”
Automatic Cleaning
Indicator
• Indicates razor heads
should be cleaned
under running water
8ENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 2 (Black plate)

Pop-Up Trimmer
Automatic
Worldwide Voltage
100V to 240V AC
Cleaning Brush
Pouch
Rechargeable - Initial
4 hour Full Charge for
up to 45 minutes of
cordless shave time
1-Hour Quick Charge
Cord/Cordless - To
shave with or
without a cord
Full 2-Year Warranty
60-Day Money-Back
Guarantee
9
ENGLISH
How the Unique Norelco Lift and Cut®
Shaving System Makes Close Comfortable:
Groove channels beard
closer to cutting system Lifter raises hair Slots to cut long hairs Holes to cut short hairs even closer
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 3 (Black plate)

LCD Display
The Display provides the following
information:
C◗Charging Indicator
As soon as you connect cord, the light in display
area goes ON, the plug symbol appears and the
minute indicator starts blinking.
C◗Full Charge Indicator
When batteries have been fully charged,“FULL”
scrolls across the display and light in display starts
blinking.
C◗Minutes Left Indicator
The number on the display shows remaining
shaving time in minutes. The “squares” in the
charge meter indicate how much power is still
left in batteries.
C◗Low Battery Indicator
When the batteries are running low, the plug
symbol will blink after you have turned the
razor OFF. If this occurs while shaving, you
should have enough power to complete your
shave.
When you turn razor ON or OFF, the light in
the LCD Display will come ON for
approximately 10 seconds.
The razor has a 1-minute demonstration
program that will run through the full display of
10 ENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 4 (Black plate)

razor functions.To activate, press and hold the
ON/OFF button in for a few seconds until all
symbols appear on the display.You can interrupt
the demonstration by pressing the ON/OFF
button again.

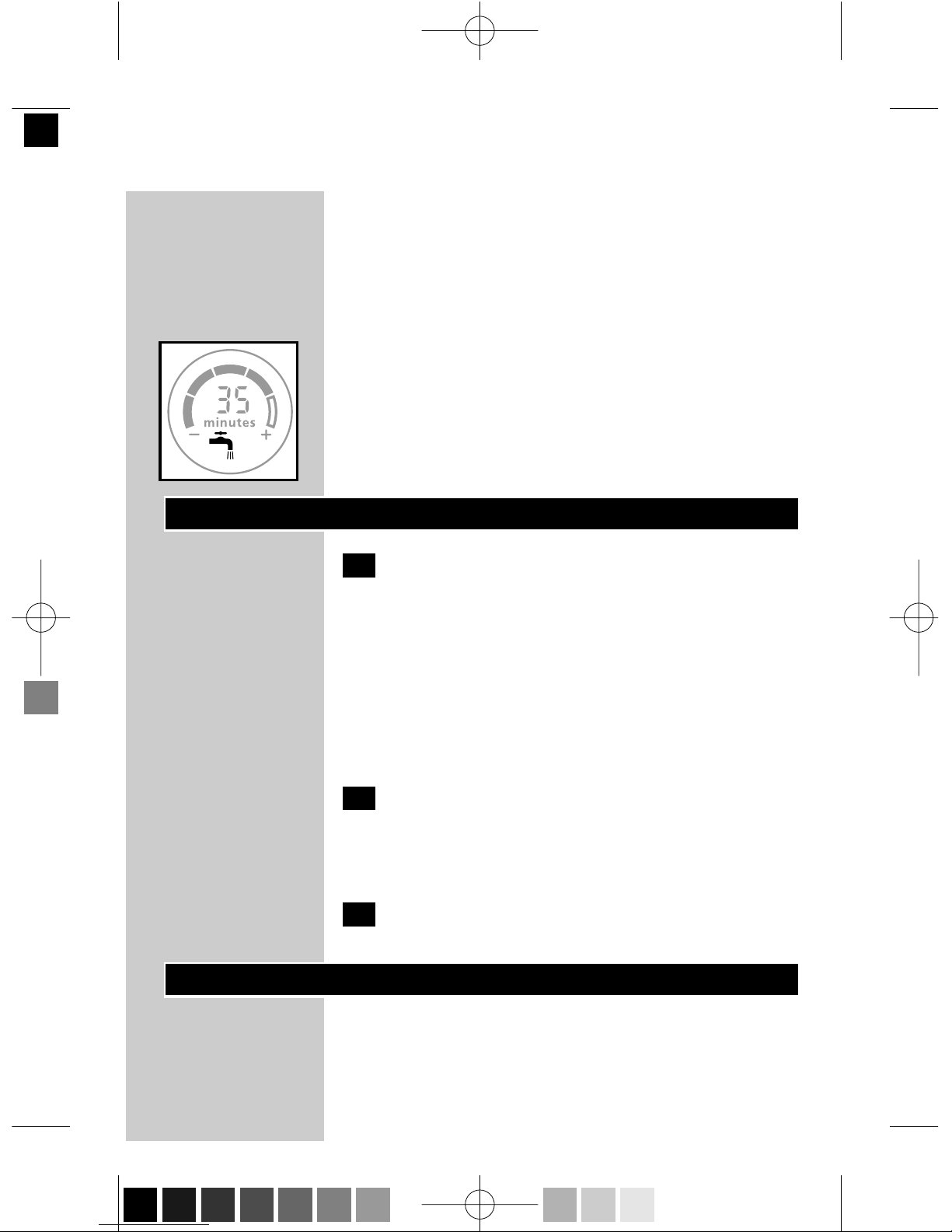

C◗Cleaning Indicator
The blinking faucet symbol reminds you that
razor heads need to be cleaned and appears
approximately once a week (in the case of
normal use).
Charge Meter
1Charge Meter monitors amount of
remaining battery power and actual
remaining shaving minutes available.
“Minutes Left” is based on the amount of
power consumed shaving per minute and is
dependent upon your skin and beard type,
whether you use pre-shave lotion, shaving
habits and how often the trimmer is used.
2Initially your razor may need to go through
2 or 3 full charge/recharge cycles before
“Minutes Left” indicator begins to display
your accurate “Shaving Minutes Left”.
3The squares in the charge meter indicate
how much power is left in the batteries.
Charging
◗Battery performance is best if you recharge
only when the batteries are (almost)
completely empty.
11
ENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 5 (Black plate)

◗Charging or recharging at temperatures below
40ºF or higher than 95ºF adversely affects
lifetime of batteries.
◗Continuously recharging or continuously using
as a corded razor will reduce life of batteries.
◗You may also shave using the charging plug
provided.This razor will not recharge while
being used corded.
◗Recharge only when plug symbol starts blinking.
This symbol may appear when your razor is
ON or OFF.
C1Connect cord to razor. Connect charging
plug into any 120V to 240V AC outlet. Use
only the charging plug provided. The light
in the display will come on, the plug and
the minutes indicator symbols will blink.
Minutes Left” numbers will appear on the
display and gradually increase. You can
shave immediately (corded).
◗ An adaptor plug may be necessary for charging
plug usage in some foreign countries. Use an
attachment plug adaptor of the proper
configuration for power outlet.The charging
plug will automatically convert to work on
100V to 240V AC Systems.
◗ Do not charge razor in pouch.
2First time charging and recharging after
non-use for 1 month or more requires a
full 4 hours.When batteries are fully
charged,“FULL” scrolls across the display
and light in the display will blink.
12 ENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 6 (Black plate)

Recharging
1First time charging requires 4 hours. After
initial charge, recharging requires
approximately 1 hour.
2Disconnect the charging plug from outlet.
Do not keep razor permanently plugged
into outlet.
◗Quick Charge
When batteries are totally depleted, recharging
the razor for approximately 6 minutes gives
enough energy for a 3 minute cordless shave.
Put ItToTheTest & ShavingTips
◗21 DayTrial and Conversion Process.
It is a fact that your skin and beard need time
to adjust to a new shaving system.
◗Use your new razor exclusively for 3 weeks to
fully enjoy the closeness of a Norelco shave.
◗At first you may not get as close a shave as you
expect, or your face may even become slightly
irritated.This is normal since your beard and
skin will need time to adjust. Invest 3 weeks and
you'll soon experience the full joy of your new
razor.
◗Stick with it! If you alternate shaving
methods during the adjustment period,
it may make it more difficult to adapt to
the Norelco shaving system.
◗If you are still not convinced after 21 days,
Norelco will refund you the full purchase price,
guaranteed.
13
ENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 7 (Black plate)

14 ENGLISH
How to ShaveWith An Electric Razor
◗ Use this razor for its intended household use as
described in this manual.
◗ Shaving with a clean, dry face gives the best
results.

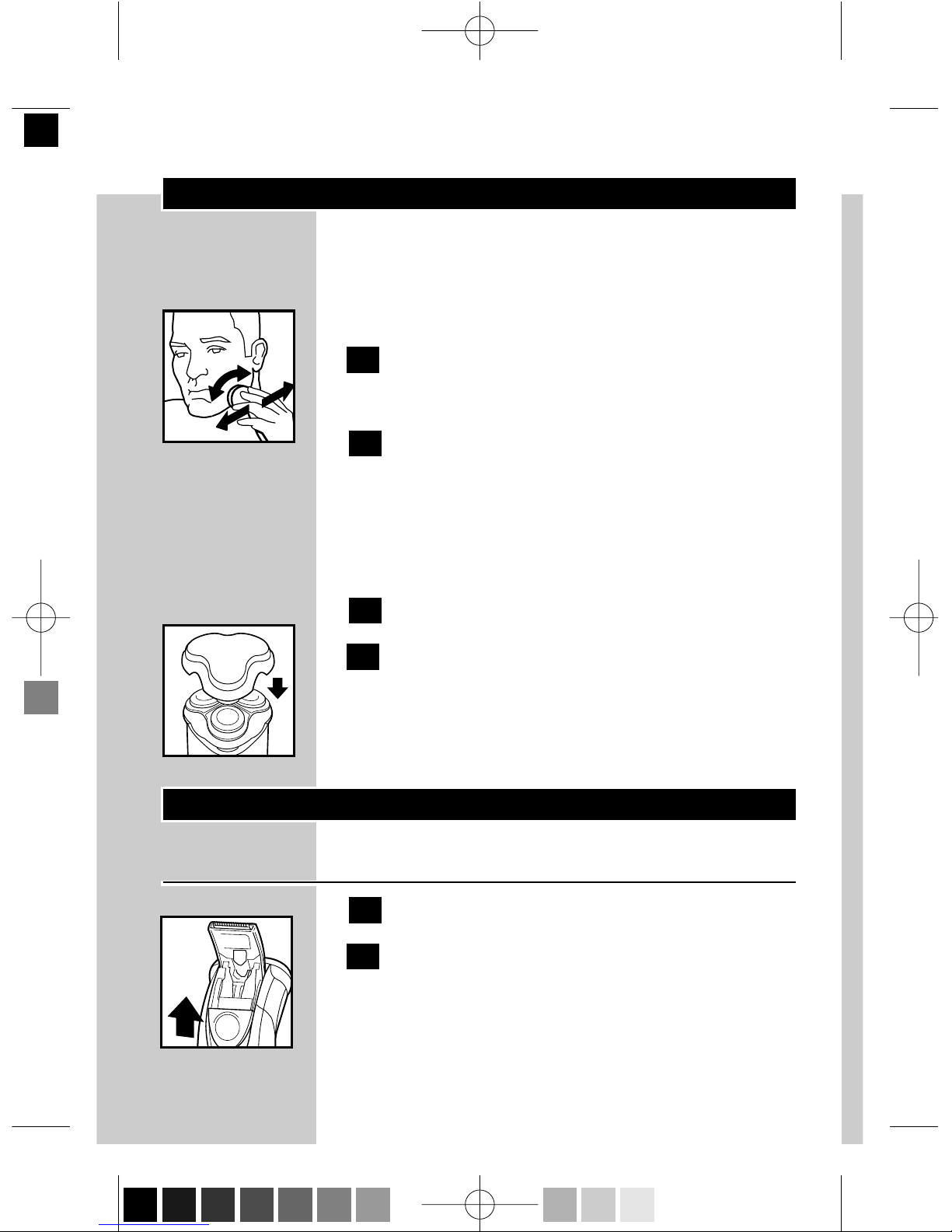

CTurn razor ON. Shave against the direction
of beard growth using both straight and
circular movements.
Stretch your skin with your free hand so
blades can lift and cut whiskers. Gently
press razor to skin, so the floating heads
can follow the contours of your face. DO
NOT press too hard.Too much pressure
can pinch the skin into the combs.
Turn razor OFF.
CPut the protective razor head cap on the
razor to protect razor heads.
◗ Replace Quadra razor heads (model # HQ6)
once a year for optimal shaving results.
Trimming
To groom sideburns and moustache:
Turn razor ON.
CPush up Trimmer Slide Switch.The Trimmer
can be activated while the razor is running.
2
1
4
3
2
1
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 8 (Black plate)

CHold Trimmer as shown and move in
downward strokes with gentle pressure.
Close Trimmer by sliding Trimmer switch
down.
Turn razor OFF.
Cleaning
Every Week: Razor Heads
C◗The easiest and most hygienic way to clean the
razor heads is to rinse them every week with
hot water. Water from the tap should be on a
hot setting but BE CAREFUL TOTEST WATER
FIRST SO AS NOT TO BURN OR SCALD
HANDS.
◗ Regular cleaning guarantees better shaving
results.
◗ You may also quickly rinse your razor heads
after each use.
Always turn razor OFF, remove the
charging plug from outlet and remove cord
from razor beforecleaning.
CPress the Razor Head Release Button, flip
open the Razor Head Assembly.
CClean razor heads and hair chamber by
running under hot water.
3
2
1
5
4
3
15
ENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 9 (Black plate)

Close the Razor Head Assembly and shake
off excess water.
COpen Razor Head Assembly again and
leave open to air dry.
You may also clean the hair chamber
without water by using the supplied brush.
Once A Month: Razor Heads
◗ Do not mix up the cutters and combs as the
shaving performance may be adversely affected
for several weeks before optimal shaving
performance is restored.
Turn razor OFF, remove the charging plug
from the outlet and cord from the razor.
CPress the Razor Head Release Button and
open the Razor Head Assembly.
CTurn the wheel counterclockwise and
remove the retaining frame.
Remove and clean one set of heads at a
time.
CSeparate the cutter from the comb and
rinse clean under hot water.
◗ Do not clean more than one cutter and comb
at a time, since they are all matching sets. If you
accidentally interchange the cutters and combs,
it could take several weeks before optimal
shaving performance is restored.
5
4
3
2
1
6
5
4
16 ENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 10 (Black plate)

CReplace the set back into the Head
Assembly in such a way that the sides with
the little holes point to the middle of the
shaving unit.
◗ Make sure that the two pointy edges of the
head fit exactly into the recesses.
Repeat the process for the other two sets
of cutters and combs.
Replace the frame.
CPress down and turn wheel clockwise until
it locks into place.
Replace the Razor Head Assembly back on
razor.
◗ If the razor heads have been properly inserted,
a shiny circle is visible in the middle of the razor
head assembly.
Once A Month: Razor Heads
◗ For optimum performance, razor cutters and
combs should be cleaned in a degreasing liquid
(e.g. Norelco Razor Cleaner, Model RC1776, or
alcohol) and lubricated with Norelco Razor
Lubricant, model AL80, or one drop of mineral
oil (in the center of the head).
10
9
8
7
6
17
ENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 11 (Black plate)

18 ENGLISHENGLISH
Every Six Months:Trimmer
Turn razor OFF.
Push Trimmer Slide Switch up to pop up
Trimmer.
CClean Trimmer with the brush.
CLubricate the Trimmer teeth with Norelco
Razor Lubricant (model AL80) or with one
drop of mineral oil.
Close Trimmer by sliding Trimmer switch
down.
This razor has no other user-serviceable parts.
Any other service should be performed by an
Authorized Norelco Service Location.
5
4
3
2
1
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 12 (Black plate)

Assistance
For assistance or the Authorized Norelco Service
Location nearest you, call toll free:
1-800-243-3050
or visit our website: www.norelco.com
Authorized Norelco Service Location information
is available 24 hours a day, 7 days a week.
Accessories
◗Replacement Heads
Model HQ6 - For maximum razor
performance, replace your Norelco Quadra
razor once a year.
◗Razor Cleaner
RC1776 - Norelco Razor Cleaner
◗Razor Lubricant
AL80 - Norelco Razor Lubricant
◗Car Cord Adaptor Cable
HQ8010 - Charges razor from a 12V battery
in your car, truck, van, boat or camper.
◗Norelco Razor Accessories may be purchased at
a store near you, an Authorized Norelco Service
Location, on our website www.norelco.com or
by using the order form enclosed.
19
ENGLISHENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 13 (Black plate)

Storage
◗Be sure Razor is turned off. Remove cord
from outlet and Razor before storing in a safe,
dry location where it will not be crushed,
banged, or subject to damage.
◗Do not wrap cord around Razor when
storing.
◗Store cord in a safe location where it will not
be cut or damaged.
◗Do not place or store Razor where it can fall
or be pulled into a tub or sink, water or other
liquid while plugged in.
◗Put the Protective Razor Head Cap on razor
to protect heads.
Battery Removal
◗ This Norelco Razor contains rechargeable
Nickel-Cadmium batteries, which must be
disposed of properly.
◗ Batteries should only be removed when Razor
is to be discarded.
◗ Refer to Battery Removal instruction sheet for
directions on removing the rechargeable
batteries.
20 ENGLISHENGLISH
7885XL_DFU1.QXD 2/3/04 4:16 PM Page 14 (Black plate)
