IMPORTANT
SAFEGUARDS
Warning: READ ALL INSTRUCTIONS
BEFORE USE
When using electrical products, especially when
children are present, basic safety precautions
should always be followed, including the following:
DANGERS
To reduce the risk of electrocution:
1 Always place and store the charger at a safe
distance from water.
2 Do not reach for a product that has fallen into
water. Unplug immediately.
3 Never use a charger with a damaged cord or
plug.
WARNINGS
To reduce the risk of burns, electrocution, re or
physical injury:
1 Do not use attachments other than those
recommended by the manufacturer.
2 Do not plug into an outlet with a voltage other
than specied on the bottom of the product.
This product is designed to operate within a
range of 100 to 240 volts. Voltage converters do
not warrant voltage compatibility.
3 Never force the plug into an outlet; if the plug
does not easily t into the outlet, discontinue use.
4 Discontinue use if the product appears
damaged in any way (brush head, handle or
charger, etc.).
6English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 6 22/03/17 09:36

5 The mains cord cannot be replaced. If the mains
cord is damaged, discard the charger.
6 Keep the cord away from heated surfaces.
7 Do not use the base charger outdoors or near
heated surfaces.
8 This product contains no user-serviceable parts.
Refer to ‘Warranty and support’ if the product
no longer works properly or needs repair.
9 Use this product only for its intended use as
described in this document or as recommended
by your dental professional.
10 This product is not intended for use by
persons (including children) with reduced
physical, sensory, or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
11 Children should be supervised to ensure that
they do not play with the product.
12 Philips Sonicare is a personal care device and
is not intended for use on multiple patients in a
dental oce or institution.
13 Use UL Listed computer, USB Hub or USB
duplex receptacle when charging the
toothbrush handle in the travel case.
14 When using a computer to recharge the
toothbrush handle, the computer should be
located away from sources of water (i.e. sink or
tub) so as to avoid electrical shock.
15 In order to eectively charge your Philips
Sonicare do not place your charger base on a
magnetic metal surface.
7
English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 7 22/03/17 09:36

16 The product is not intended to be repaired
by service personnel in case of failure or
component defect (unit can be thrown away).
17 For connection to a supply not in the U.S.A.,
use a charger of the proper conguration for the
power outlet.
18 Use this product only for its intended use
as described in this manual. Do not use
attachments not recommended by the
manufacturer.
MEDICAL WARNINGS
1 Consult your dental professional before you
use this product if you have had oral or gum
surgery in the previous 2 months.
2 Contact your dental professional if excessive
bleeding occurs after using this product or
bleeding continues to occur after 1 week of use.
3 Discontinue use of this product and contact
a physician/dentist if discomfort or pain is
experienced.
4 This product complies with the safety standards
for electromagnetic devices. If you have a
pacemaker or other implanted device, contact
your physician or the device manufacturer prior
to use.
5 Consult your physician if you have other
medical concerns.
Electromagnetic elds (EMF)
This Philips device complies with all applicable
standards and regulations regarding exposure to
electromagnetic elds.
8English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 8 22/03/17 09:36

SAVE THESE
INSTRUCTIONS
Radio Equipment Directive
-Radio Equipment in this product operates
between 2402 – 2480 MHz
-Maximum RF power transmitted by the Radio
Equipment is +3 dBm
Introduction
Congratulations on your purchase and welcome
to Philips! To fully benet from the support
that Philips oers, register your product at
www.philips.com/welcome or via the Philips
Sonicare app.
Your Philips Sonicare (Fig. 1)
1 Hygienic travel cap
2 Brush heads
3 Handle
4 Power on/o button
5 Intensity light
6 Mode/intensity button
7 Mode light
8 Brush head replacement reminder light
9 Battery indication
10 Light ring
11 Charging base
12 Travel case
13 Cord storage compartment
14 USB cord (integrated)
15 Charging glass
Note: The content of the box may vary based on
the model purchased.
9
English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 9 22/03/17 09:36

Brush heads
Your Philips Sonicare comes with a range of
brush heads which are designed to deliver superior
results for your oral care needs.
The number and type of brush heads might
change according to the toothbrush type you
purchased.
1 Premium Plaque Control brush head
2 Premium Gum Care brush head
3 Premium White brush head
4 Tongue Care+ brush head (specic types only)
Smart brush head recognition
Premium Plaque Control, Premium Gum Care,
Premium White and Tongue Care+ brush heads
are enabled with smart brush head recognition
technology.
A micro-chip inside the brush head communicates
with the toothbrush handle. So when you attach a
brush head, the handle automatically recognizes
the brush head and selects the recommended
mode and intensity level to optimize your brushing
performance.
Thanks to this feature the toothbrush also tracks
your usage and gives a personalized reminder
when you need to replace your brush head for the
best oral care results.
10 English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 10 22/03/17 09:36

Brushing modes
Your power toothbrush is equipped with 5 dierent
modes to accommodate all your oral care needs
(some models come with 4 brushing modes only).
The following modes are available:
Clean mode
Clean is a 2-minute mode, recommended to be
used with intensity level 3. It gives you a thorough
and complete clean and is recommended to be
used with the Premium Plaque Control brush
head. In order to reach optimal results, follow the
instructions below.
1 Begin brushing the upper right teeth (segment 1)
and brush for 20 seconds, on both the outer and
inner surfaces, before you move to the upper
front teeth (segment 2). Continue doing this for
segments 3 to 6 to ensure even brushing in all
6 segments of the mouth. You will hear a beep
after each 20-second interval, to indicate that
you should move to the next segment.
White+ mode
White+ is a 2-minute 40-seconds mode,
recommended to be used with intensity level 3 and
the Premium White brush head. In order to reach
optimal results, follow the instructions below.
1 Begin brushing the upper right teeth (segment
1) and brush for 20 seconds before you move
to the upper front teeth (segment 2). Continue
doing this for segments 3 to 6 to ensure even
brushing in all 6 sections of the mouth.
2 After completing all 6 of these segments,
the toothbrush switches to polishing mode
automatically.
2
13
64
5
2
13
64
5
11
English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 11 22/03/17 09:36

3 To polish your teeth, brush the outer surface of
your upper teeth for 20 seconds (segment 2)
and then brush the outer surface of your lower
teeth for 20 seconds (segment 5). The polishing
motion used in this part of the mode will feel
and sound dierent from the rst two minutes
of the mode.
Gum Health mode
Gum Health is a 3-minute 20-seconds mode,
recommended to be used with intensity level 3
and the Premium Gum Care brush head. In order
to reach optimal results, follow the instructions
below:
1 Begin brushing the upper right teeth (segment 1)
and brush for 20 seconds, on both the outer and
inner surfaces, before you move to the upper
front teeth (segment 2). Continue doing this for
section 3 to 6 to ensure even brushing in all 6
segments of the mouth.
2 Next, to take optimal care for your gums, brush the
outer and inner surfaces of your upper right back
teeth for 20 seconds (segment 1), then brush the
outer and inner surfaces of your upper left back
teeth for 20 seconds (segment 3).
Continue brushing the outer and inner surfaces
of your lower right back teeth for 20 seconds
(segment 4), followed by another 20 seconds
on the outer and inner surfaces of your lower
left back teeth (segment 6). The brushing
motion used in this part of the mode will feel
and sound dierent from the rst two minutes
of the mode.
2
5
2
13
64
5
13
64
12 English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 12 22/03/17 09:36

DeepClean+ mode
DeepClean+ mode length depends on whether
or not the handle is connected to the app. In
connected mode DeepClean+ runs for two
minutes and provides BrushPacer feedback every
20 seconds. In non-connected mode DeepClean+
runs for three minutes and provides BrushPacer
feedback every 30 seconds. In order to reach
optimal results, follow the instructions below when
brushing non-connected.
-Begin brushing in the upper right teeth
(segment 1) and brush for 30 seconds, on both
the outer and inner surfaces, before you move
to the upper front teeth (segment 2). Continue
doing this for segments 3 to 6 to ensure even
brushing in all 6 segments of the mouth.

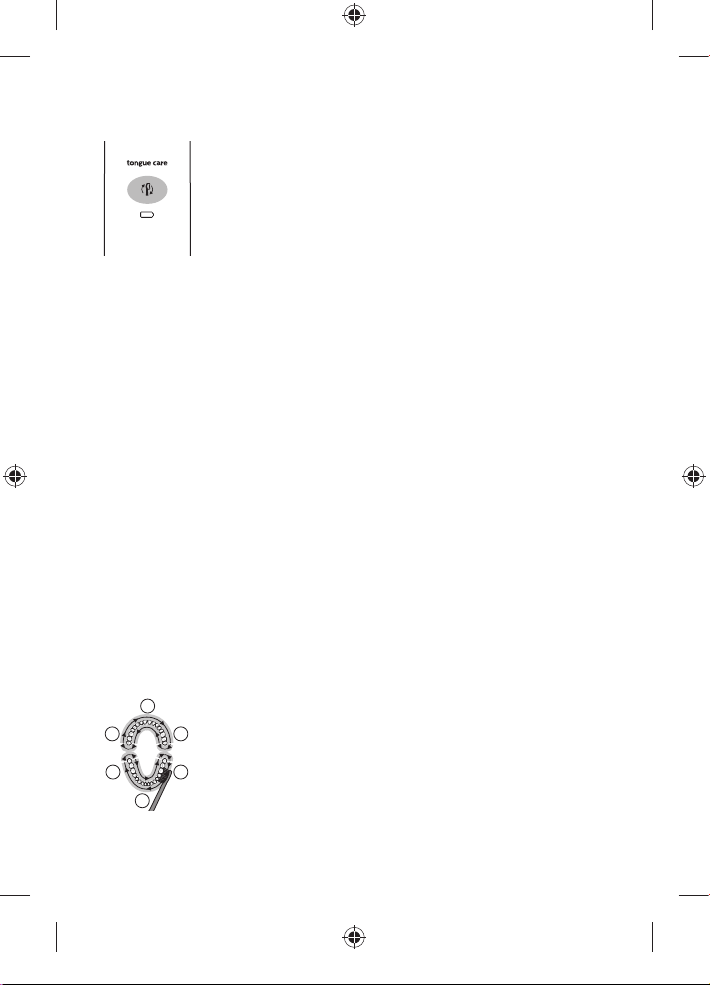

Tongue Care mode (specic types only)
Tongue Care is a 20-second mode, recommended
to be used with intensity level 1 and the Tongue
Care+ brush head. In order to reach optimal results,
follow the instructions below:
2
13
64
5
13
English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 13 22/03/17 09:36

1 Wet the micro bristles and brush your tongue
with a back and forth motion. Clean as far back
as comfortable.
2 Rinse your mouth and repeat the procedure
two more times.
Based on the brush head you attach, the mode will
be selected automatically. If you want to adjust
the mode or intensity manually, you can do this by
using the mode/intensity button. Press the mode/
intensity button before brushing to change the
mode, and press it while brushing to adjust the
intensity level. Your selection will be remembered
next time you attached the same brush head. If
you want to go back to the initial recommended
settings for your brush head, manually change it to
the recommended setting described above.
Note: When the Philips Sonicare is used in clinical
studies, it must be used at high intensity in the
Clean mode, in White+ mode, in GumHealth mode,
or in unconnected DeepClean+ mode to achieve
the ecacy in plaque removal, stain removal, gum
health or superiority (respectively).
20 sec.
14 English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 14 22/03/17 09:36

Intensity settings
Your power toothbrush gives you the option to
choose between 3 dierent intensity levels: low,
medium and high. Based on the brush head you
attach, the intensity will be selected automatically.
If you wish to change to a dierent intensity,
you can do so by pressing the mode/intensity
button while brushing. For optimal results it is
recommended to use the automatically selected
intensity. The intensity cannot be changed as long
as the handle is powered o or paused.
Using your Philips Sonicare
Brushing instructions
1 Attach your desired brush head (see ‚Brush
heads‘). Align the brush head so the bristles
point in the same direction as the front of the
handle.
2 Wet the bristles.
3 Apply a small amount of toothpaste on the
bristles.
15
English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 15 22/03/17 09:36

4 Place the toothbrush bristles against the teeth
at a slight angle (45 degrees), pressing rmly to
make the bristles reach the gumline or slightly
beneath the gumline. A change in vibration (and
a slight change in sound) and activation of the
light ring alert you when you apply too much
pressure while brushing.
Note: Keep the center of the brush in contact
with the teeth at all times.
5 Press the power on/o button to switch on the
Philips Sonicare.
6 Apply light pressure to maximize Philips
Sonicare‘s eectiveness. Brush your teeth with
a small back and forth motion so the bristles
reach between the teeth. Continue this motion
throughout the brushing cycle.
Note: The bristles should are slightly. Do not
scrub.
7 To clean the inside surfaces of the front teeth,
tilt the brush handle semi-upright and make
several vertical overlapping brushing strokes on
each tooth.
Your Philips Sonicare is safe to use on:
-Braces (brush heads wear out sooner when
used on braces).
-Dental restorations (llings, crowns, veneers).
16 English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 16 22/03/17 09:36

Features and accessories
a App
b Pressure sensor
c Brush head replacement reminder
d BrushPacer
e Easy-start
f Travel case (specic types only)
g Brush head holder (specic types only)
a. App
Your Philips Sonicare is Bluetooth enabled and
allows you to achieve superior oral health care
with the Philips Sonicare app.
Using the Philips Sonicare app will help you to
improve your oral health care habits. It gives you
real-time feedback while brushing, informs you if
you missed any spots when brushing, tracks your
brushing behavior over time and provides useful
tips and tricks for your healthiest mouth ever. In
order to fully benet from your Philips Sonicare,
we advise you to follow these steps:
Connecting your toothbrush
1 Download the Philips Sonicare app from the
Apple App Store or Google Play Store.
2 Conrm Bluetooth is switched on on your
mobile device before you open the app. Check
the settings on your mobile device to switch on
Bluetooth.
3 Open the Sonicare app.
4 To connect the toothbrush to the app, remove
the handle from the charger and press the
mode/intensity button.
17
English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 17 22/03/17 09:36

5 Follow the Sonicare app instructions displayed
on your mobile device. The app automatically
connects with the toothbrush. If the toothbrush
does not connect, follow the troubleshooting
steps provided in the app.
Note: For optimal data capture, keep your mobile
device close during brushing.
b. Pressure sensor
Your Philips Sonicare is equipped with an
advanced sensor that measures the pressure
you apply while brushing. If you apply too much
pressure, the toothbrush will provide immediate
feedback to indicate that you need to reduce the
pressure. The feedback is given in two dierent
ways:
1 You experience a change in vibration and
therefore brushing sensation.
2 The pressure warning light of the light ring will
light up purple.
If you receive a warning, reduce the pressure. The
light will turn o and the brushing sensation will
adjust to the original sensation.
Activating or deactivating the pressure
sensor
1 Place the handle, with a brush head attached,
in the plugged-in charger.
2 Pressure sensor is enabled by holding the
mode/intensity button and by pressing the
power button twice while on a charger. The
handle will beep twice to conrm it is enabled.
3 Pressure sensor is disabled by holding the
mode/intensity button and by pressing the
power button twice while on a charger. The
handle will beep once to conrm it is disabled.
18 English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 18 22/03/17 09:36

c. Brush head replacement reminder
Your Philips Sonicare is equipped with a smart
feature that tracks the wear of your brush head.
Depending on the pressure you apply and the
amount of time used, the brush head replacement
reminder light reminds you to change your brush
head. It is important to change your brush head in
time in order to guarantee the best cleaning & care
of your teeth.
When the amber brush head replacement light
starts blinking, you should replace your brush
head.
Activating or deactivating the brush head
replacement reminder
1 Place the handle in the plugged-in charger.
2 Brush head replacement reminder is enabled
by holding the mode/intensity button and by
pressing the power button three times while
on the charger. The handle will beep twice to
conrm it is enabled.
3 Brush head replacement reminder is disabled
by holding the mode/intensity button and by
pressing the power button three times while
on the charger. The handle will beep once to
conrm it is disabled.
d. Brushpacer
The brushpacer is an interval timer that has a
short beep and pause to remind you to brush the
dierent sections of your mouth. Depending on the
brushing mode you have selected (see ‚Brushing
modes‘), the brushpacer beeps at dierent
intervals during the brushing cycle.
2
3 1
64
5
19
English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 19 22/03/17 09:36

e. Easy-start
The Easy-start feature gently increases the power
over the rst 14 brushings to help you get used
to the brushing with the Philips Sonicare. The
Easy-start feature works in all modes other than
TongueCare+ mode. This Philips Sonicare model
comes with the Easy-start feature deactivated.
Activating or deactivating the Easy-start
feature
1 Place the handle in the plugged-in charger.
2 Easy-start is enabled by holding the mode/
intensity button and by pressing the power
button once while on the charger. The handle
will beep twice to conrm it is enabled.
3 Easy start is disabled by holding the mode/
intensity button and by pressing the power
button once while on the charger. The handle
will beep once to conrm it is disabled.
Note: Using the Easy-start feature beyond the
initial ramp-up period is not recommended and
reduces Philips Sonicare eectiveness in removing
plaque.
Note: Each of the rst 14 brushings must be at least
1 minute in length to properly move through the
Easy-start ramp-up cycle.
Note: To achieve clinical ecacy, Easy-start needs
to be deactivated.
20 English
4235_021_1899_2_DFU-Luxury_A6_v1.indd 20 22/03/17 09:36
