Philips Sonicare DiamondClean Smart User manual

DiamondClean
Smart

2
1
3
4
6
13
16
15
17
14
12
5
7
8
10
11
9

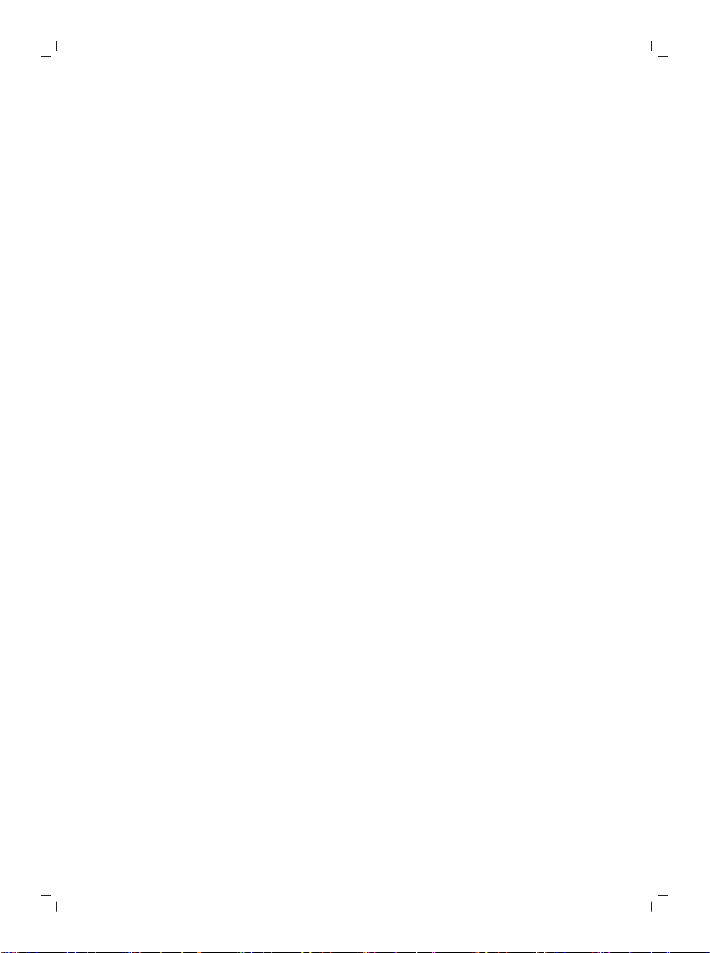

empty page before TOC

English 6
Español 30
Français (Canada) 55

English
6English
Introduction
Welcome to the Philips Sonicare family!
This toothbrush enables you to obtain superior plaque
removal, whiter teeth and healthier gums. Using
Sonicare’s combination of gentle sonic technology and
clinically developed and proven features, you can be
confident that you’re getting the very best clean, every
time.
Further support and product registration are available to
you at: www.philips.com/support
Important safety information
- Only use the product for its intended purpose. Read
this information carefully before you use the product
and its batteries and accessories, and save it for future
reference. Misuse can lead to hazards or serious
injuries. Accessories supplied may vary for different
products.
WARNINGS
- Keep the chargers away from water.
- After cleaning, make sure the adapters, chargers, UV sanitizers, and travel
cases are completely dry before you connect these.
- This appliance can be used by children and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Cleaning and user
maintenance shall not be made by children without supervision.
- Children should be supervised to ensure that they do not play with the
product.
- Do not clean any part of the product in the dishwasher.
- Do not use adapters, chargers, and UV sanitizers outdoors or near heated
surfaces.
- Charge only with Philips CBAxxxx (input ratings: 100 - 240V~; 50/60Hz;
1.3W), TCAxxxx (input ratings: 100 - 240V~; 50/60Hz; 1.5W), WAAxxxx
(input ratings: 100 - 240V~; 50/60Hz; 3.5W). For the list of approved
adapters, please see philips.com/support.
- Only use original Philips accessories or consumables. Only use with an
approved Class 2 certified DC safety adapter (IPX4 or higher). If supplied,
only use the original USB cable and USB power supply unit.

7
English
- This appliance contains no user-serviceable parts. If the appliance is
damaged, stop using it and contact the Consumer Care Center in your
country. If the USB cable is damaged, stop using it.
- Avoid direct contact with products that contain essential oils or coconut oil.
Contact may result in bristles dislodging.
- This appliance has only been designed for cleaning teeth, gums and
tongue.
- Stop using a brush head with crushed or bent bristles. Replace the brush
head every 3 months or sooner if signs of wear appear.
- Charge and use the product at a temperature between 0 °C and 40 °C
(32°F and 104 °F).
MEDICAL WARNINGS
- Stop using the appliance and consult your dentist/doctor if excessive
bleeding occurs after use, if bleeding continues to occur after 1 week of use
or if you experience discomfort or pain.
- If you have had oral or gum surgery in the previous 2 months, consult your
dentist before you use this appliance.
- If you have a pacemaker or other implanted device, contact your doctor or
the manufacturer of the implanted device prior to use.
- If you have medical concerns, consult your doctor before you use this
appliance.
- This appliance is a personal care device and is not intended for use on
multiple patients in a dental practice or institution.
Battery safety instructions
- This appliance contains batteries that are only
removable by skilled persons.
- Only use the product for its intended purpose. Read
this information carefully before you use the product
and its batteries and accessories, and save it for future
reference. Misuse can lead to hazards or serious
injuries. Accessories supplied may vary for different
products.
- Only use original Philips accessories and consumables.
Only use detachable supply unit CBAyyyy, TCAxxxx, or
WAAxxxx.
- Keep product and batteries away from fire and do not
expose them to direct sunlight or high temperatures.

8English
- If the product becomes abnormally hot or smelly,
changes color or if charging takes longer than usual,
stop using and charging the product and contact
Philips.
- Do not place products and their batteries in
microwave ovens or on induction cookers.
- Do not open, modify, pierce, damage or dismantle the
product or battery to prevent batteries from heating
up or releasing toxic or hazardous substances. Do not
short-circuit, overcharge or reverse charge batteries.
- This appliance contains batteries that are non-
replaceable. When the battery is at end of life, the
appliance shall be properly disposed of, see section on
Recycling.
- If batteries are damaged or leaking, avoid contact
with the skin or eyes. If this occurs, immediately rinse
well with water and seek medical care.
- When you handle batteries, make sure that your
hands, the product and the batteries are dry.
- To avoid accidental short-circuiting of batteries after
removal, do not let battery terminals come into
contact with metal object (e.g. coins, hairpins, rings).
Do not wrap batteries in aluminium foil. Tape battery
terminals or put batteries in a plastic bag before you
discard them.
Storage and transportation conditions
Temperature -10°C to +60°C (14°F to 140°F).
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable
standards and regulations regarding exposure to
electromagnetic fields.
FCC Compliance
Changes or modifications not expressly approved by
Philips could void the user's FCC authorization to operate
the toothbrush.
This device complies with Part 15 of FCC Rules. Operation
is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device

9
English
must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment (handle) off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna (of the
radio or television).
- Increase the separation between the equipment
(handle) and receiver.
- Connect the equipment (charger) into an outlet on a
circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
ISED Compliance
This device contains licence-exempt
transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two
conditions:
1This device may not cause interference.
2This device must accept any interference, including
interference that may cause undesired operation of
the device.
SAVE THESE INSTRUCTIONS
The following symbols may appear on the product:

10 English
Read Operator’s Manual.
Detachable Power Supply Part:The "xxxxxx" indicates the
model number of the approved chargers to be used.
Intended use
Sonicare DiamondClean Smart power toothbrushes are
intended to remove adherent plaque and food debris
from the teeth to reduce tooth decay and improve and
maintain oral health. Sonicare DiamondClean Smart
power toothbrushes are intended for personal use. Use
by children should be with adult supervision.
Your Philips Sonicare (Fig 1.)
1 Handle
2 Power on/off button
3 Intensity indicator
4 Mode/intensity button
5 Mode indicator
6 Brush head replacement reminder
7 Battery indicator
8 Brushing feedback light
Accessories:
9 Brush head cap
10 Smart brush head(s)
11 BrushSync symbol
12 Charging glass
13 Charging base
14 Charging stand
15 Charging travel case with integrated USB cord
16 USB-A wall adapter

11
English
17 Travel case
Note: The content of the box may vary based on the
model purchased.
Dental+ app - Getting started
The Philips Dental+ app pairs with your toothbrush to
provide you a connected experience. By connecting your
toothbrush to your Dental+ app account, you will be able
to:
- Track your brushing progress
- Receive personalized tips and actionable
recommendations to improve your oral health
- Access the full range of benefits and receive ongoing
upgrades
The app is compatible with a wide range of mobile
devices.
To start using the Philips Dental+ app:
1Download the Dental+ app to your mobile device.
2Ensure that Bluetooth for your mobile device is turned
on.
3Pick up your toothbrush to ensure it is active (lights
on).
4Open the Dental+ app and follow the steps.
5Pair your toothbrush with the app.
6Create your account via the app. Complete firmware
update, if prompted, to access the latest
improvements and features.
7Brush regularly with your toothbrush connected to
the app. When you regularly sync the toothbrush with
the app, you will receive updates to help improve your
oral health.
8Keep your mobile device close to your toothbrush for
optimal data transfer.
To sync manually: Pair/connect your toothbrush with
the app every two weeks at minimum to benefit from the
app features/capabilities.
To sync automatically: Allow location permission while
setting up the app. By allowing location permission, your
phone knows when it is in the connection range of your

12 English
toothbrush and can refresh your brushing data in the app
to provide the latest insights and recommendations.
Note: Make sure your phone's Bluetooth is switched on
when using the app so that your toothbrush can transfer
and update your brushing data in the app. If you have
questions about why your brushing data is collected, be
sure to review the Philips Dental+ Privacy Notice,
available throughout the app setup process.
App features
Your Sonicare power toothbrush is equipped with smart
sensors to provide you with feedback about your
brushing habits, including:
- Daily brushing sessions.
- Time spent during each brushing session.
- Applied brushing pressure.
- Personalized tips and actionable recommendations.
- Brush head replacement reminder. (based on actual
use)
The Dental+ app collects the data provided by the smart
sensors and tracks your brushing habits over time.
Getting started
1Align the brush head so the bristles point in the same
direction as the front of the handle.
2Firmly press the brush head down onto the metal
shaft until it will not go any further.
Note: It is normal to see a slight gap between the
brush head and the handle.
Using your Philips Sonicare toothbrush
If you are using your Sonicare toothbrush for the first
time, it is normal to feel more vibration than when using

13
English
a non-electric toothbrush. It is common for first-time
users to apply too much pressure. Only apply gentle
pressure and let the toothbrush do the brushing for you.
Please follow the brushing instructions below for the best
experience.
To help you transition to your new Sonicare power
toothbrush, use a lower intensity setting for the first 1-2
weeks then transition to a higher setting.
Brushing instructions
1Wet the bristles and apply a small amount of
toothpaste.
45°
2Place the toothbrush bristles against the teeth at a
slight angle (45 degrees). Pressing firmly to make the
bristles reach the gumline or slightly beneath the
gumline.
Note: Keep the center of the brush in contact with the
teeth at all times.
3Press the power on/off button to switch on the Philips
Sonicare.
4Gently keep the bristles placed on the teeth and in the
gumline. Brush your teeth with small back and forth
motion so the bristles reach between the teeth.
Continue this motion throughout your brushing cycle.
Note: The bristles should slightly flare. It is not
recommended to scrub as you would with a manual
toothbrush.
Note: If you apply too much pressure, you will be
alerted by a change in vibration of the handle and a
flashing purple brushing feedback light.

14 English
5To clean the inside surfaces of the front teeth, tilt the
brush handle semi-upright and make several vertical
overlapping brushing strokes on each tooth.
6After you have completed the brushing cycle, you can
spend additional time brushing the chewing surfaces
of your teeth and areas where staining occurs. You
can also brush your tongue, with the toothbrush
switched on or off, as you prefer.
Note: Your Philips Sonicare toothbrush is safe to use on
braces (brush heads wear out sooner when used on
braces) and dental restorations (fillings, crowns, veneers)
if they are properly adhered and not compromised.
BrushPacer
1
2
3
4
5
6
To make sure you brush evenly throughout the mouth,
divide your mouth into 6 sections using the BrushPacer
feature. The BrushPacer divides the brushing time into 6
equal segments and indicates when you should move to
the next area. The segments are indicated with a brief
pause in vibration. The toothbrush automatically stops at
the end of the brushing session.
Note: Additional segments may be added when you use
the White+ or Gum Health Modes.
Modes
Your power toothbrush is equipped with up to 5
different modes: Clean, White+, Gum Health, Deep
Clean+ and Tongue Care (specific models only). Based on
the smart brush head you use, the optimal mode and
intensity will be selected automatically by the BrushSync
technology. To change modes, press the mode/intensity
button while the handle is turned off.
Clean and
Deep Clean+
White+ Gum health Tongue Care
(specific
models only)
Benefit Plaque
removal Plaque and surface stains
removal
Plaque
removal and
gum massage
Tongue
cleaning

15
English
Clean and
Deep Clean+
White+ Gum health Tongue Care
(specific
models only)
Recom
mended
intensity
level
High High High Low
Total
brushing
time
Clean: 2
minutes
Deep Clean+:
3 minutes*
2 minutes
and 40
seconds
3 minutes
and 20
seconds
20 seconds
How to
brush
Clean: Brush
each segment
for 20
seconds
1
2
3
4
5
6
Deep Clean+:
Brush each
segment for
30 seconds*
1
2
3
4
5
6
Brush each
segment for
20 seconds,
1
2
3
4
5
6
then brush
segments 7
and 8 for 20
seconds each.
7
8
Brush each
segment for
20 seconds,
1
2
3
4
5
6
then brush
segments 7,
8, 9 and 10
for 20
seconds each.
7
8
10
9
1. Wet the
micro bristles
and brush
your tongue
with a back
and forth
motion. Clean
as far back as
comfortable.
2. Rinse your
mouth and
repeat the
procedure
two more
times.
*Note: When brushing with the Dental+ app in 'Deep
Clean+' mode, the brushing time will be 2 minutes when
connected to the app and 3 minutes when not
connected to the app.

16 English
Intensities
Your power toothbrush comes with 3 different intensity
settings:
- low intensity (one bar)
- medium intensity (two bars)
- high intensity (three bars)
When attached to the handle, the smart brush head will
automatically select the recommended intensity. If you
wish to change to a different intensity, you can do so by
pressing the mode/intensity button while brushing.
The intensity cannot be changed as long as the handle is
powered off or paused.
BrushSync technology
BrushSync technology enables your brush head to
communicate with your handle using a microchip. The
symbol at the bottom of the brush head indicates that
the brush head is equipped with this technology.
BrushSync technology enables:
- Brush head replacement reminder
- BrushSync mode pairing
Philips Sonicare offers a wide range of smart brush heads,
equipped with BrushSync technology. To explore our full
range of toothbrush brush heads, and find the brush
head that is best for you, go to
www.philips.com/toothbrush-heads for more
information.
Features
- Pressure Sensor Feedback
- BrushPacer
- SmartTimer
- Brush Head Mode Pairing
- Easy Start
- Brush Head Replacement Reminder
Pressure Sensor Feedback
Your Sonicare toothbrush measures the pressure you
apply while brushing, to protect your gums and teeth
from damage.

17
English
If you apply excess pressure, the handle changes its
vibration and the brushing feedback light flashes purple
at the bottom of the handle until you reduce the
pressure.
Note: Your product comes with the Pressure Sensor
activated. To deactivate this feature (see 'Activating or
deactivating features').
BrushPacer
The BrushPacer is an interval timer that helps you to
brush evenly through the mouth by dividing your mouth
into 6 sections. (see 'Brushing instructions')
SmarTimer
The SmarTimer indicates that your brushing cycle is
complete by automatically switching off the toothbrush
at the end of the brushing cycle.
Dental professionals recommend brushing no less than 2
minutes twice a day.
Note: If you press the power on/off button after you
started the brushing cycle, the toothbrush pauses. After a
pause of 30 seconds, the SmarTimer resets.
Brush Head Mode Pairing
Brush heads with BrushSync technology are equipped
with a microchip which communicates with the handle
and automatically pairs it with the recommended mode
and intensity.
Most brush heads with BrushSync technology will auto
pair to Clean Mode. Brush heads with specific benefits
will pair with the corresponding mode (when available),
examples include:
- G3 Premium Gum Care : Gum Health mode
- W3 Premium White: White+ mode
- TongueCare+: Tongue Care mode
Note: If you choose to change mode/intensity from the
recommended setting, the brush head will remember the
your chosen setting for future brushing sessions.

18 English
EasyStart
This Philips Sonicare model comes with the EasyStart
feature deactivated. To activate EasyStart (see 'Activating
or deactivating features'). The EasyStart feature gently
increases the power over the first 14 brushings to help
you get used to brushing with the Philips Sonicare.
The EasyStart feature works with all modes.
Disclaimer
When the Philips Sonicare toothbrush is used in clinical
studies, it must be used in clean mode at high intensity
with the handle fully charged and the EasyStart feature
deactivated.
Brush Head Replacement Reminder
Your Philips Sonicare is equipped with BrushSync
technology that tracks the wear of your brush head.
Note: This feature only works with Philips Sonicare smart
brush heads with BrushSync technology.
1When you attach a new smart brush head for the first
time, the handle recognizes that you have a Philips
brush head with BrushSync technology and begins
tracking brush head wear.
2Over time, based on the pressure you apply and the
total time the brush head has been used, the handle
tracks brush head wear in order to determine the
optimal time to replace your brush head. This feature
guarantees the best cleaning and care of your teeth.
3When the brush head replacement reminder indicator
lights up amber, you should replace your brush head.
All smart brush heads come with the brush head
replacement reminder feature activated. To deactivate
the brush head replacement reminder see 'Activating or
deactivating features'.
Activating or deactivating features
You can activate or deactivate the following features of
your toothbrush:
- EasyStart
- Brush Head Replacement Reminder
- Pressure Sensor Feedback

19
English
Note: You can only activate or deactivate the Brush Head
Replacement Reminder when a smart brush head is on
the handle.

20 English
Step 1: Place the handle on the charging stand or in the
charging glass.
Step 2: Press and hold the mode/intensity button.
EasyStart Pressure Sensor
Feedback Brush Head Replacement Reminder
Press the power
on/off button 1
time.
Press the power
on/off button 2
times.
Press the power on/off
button 3 times.
¯¯¯
Step 3: Let go of the mode/intensity button.
If you see the battery indicator flash white 2 times and hear 2
beeps then the feature has been activated.
OR
If you see the battery indicator flash amber 1 time and hear 1
beep, then the feature has been deactivated.
Charging and battery status
This Philips Sonicare toothbrush is designed to provide at
least 28 brushing sessions, each session lasting 2 minutes
(14 days if used twice per day) on a fully charged battery.
The battery indicator shows the battery status when you
complete the 2-minute brushing session, when you pause
the toothbrush, or while it is charging.
Note: It can take up to 24 hours to fully charge the
battery before first use, but you can use the Philips
Sonicare toothbrush before it is fully charged.
