Lighting is crucial for creating the right mood and environment for many
different types of retail experiences. Consumer purchasing behaviour is not
always the same. It can be purely functional, for instance when buying the daily
necessities, but on other occasions shoppers may be impulsive, or want to
indulge themselves and expect a much more sophisticated experience that is
also educational and entertaining. Creating the right ambience for customers
and showing merchandise in the best possible light is good for business and
increasing prot.
Attractively lit shops, showrooms and shopping centres encourage more
customers inside and persuade them to stay longer. The Compact High-Intensity
Discharge range of lamps perfectly meet this need. They will not only boost
your sales, they will reduce your lighting costs, giving you the best of both worlds.
The range that meets all of your needs
Our Compact HID lamps let you choose the right light for your application.Whether it is
accent lighting, power spots, down lighting, wall washing, floodlighting or area lighting, the
Compact HID range has the right lamp. In fashion and fresh food, they make all the difference.
They are also the first choice for new retail lighting installations and the ideal lamps to upgrade
existing installations.The majority of lamps in the Compact HID range are in the Philips
MASTER category, which include MASTERColour CDM lamps and MASTER SDW lamps.

2.4 OEM Catalogue 2009/2010
Compact HID Lamps

Compact HID Lamps
2.5OEM Catalogue 2009/2010
Compact HID Lamps
Philips MASTERColour CDM category
Philips MASTERColour CDM lamps offer unrivalled light quality. Its crisp, white light gives
merchandise – and especially clothing, footwear and fashion accessories – an added vibrancy.
Colour reproduction is exceptional. Reds are deep and luxurious, yellows become brighter and
warmer, while blues and greens are extremely vivid. The texture of materials is also enhanced
and accentuated. Philips MASTERColour CDM lamps maintain their excellent colour stability.
The fashion industry never stands still; new developments are taking place all the time. The
same applies to lighting.We are constantly evaluating our product offer so we can create an
even more satisfying experience for end-users. An extension of the MASTERColour family,
Elite lamps naturally have all the characteristics which have proved so popular, such as stable
colour temperature, crisp, white light and reduced heat generation.
MASTERColour CDM Elite; Simply irresistible
Philips MASTERColour CDM Elite lamps draw shoppers to your store by creating an
appealing and fresh ambience. The crisp, stable white light also gives amazingly accurate colour
reproduction that shows off merchandising like never before. And then continues to do so,
season after season after season...
The Philips MASTERColour CDM Elite family is at the very top of our Philips MASTERColour
CDM range. Comprising 35 and 70 W versions, its crisp, sparkling white light, excellent colour
rendering and superb energy efficiency are the reason why many of you consider it to be the
best light for fashion retail.
MASTERColour CDM Elite is also a Philips Green product, and therefore by definition
outperforms its predecessor or closest market competitors in at least one of six key
environmental areas. In the case of Elite, it comes out on top in two; hazardous substances and
lifetime reliability.

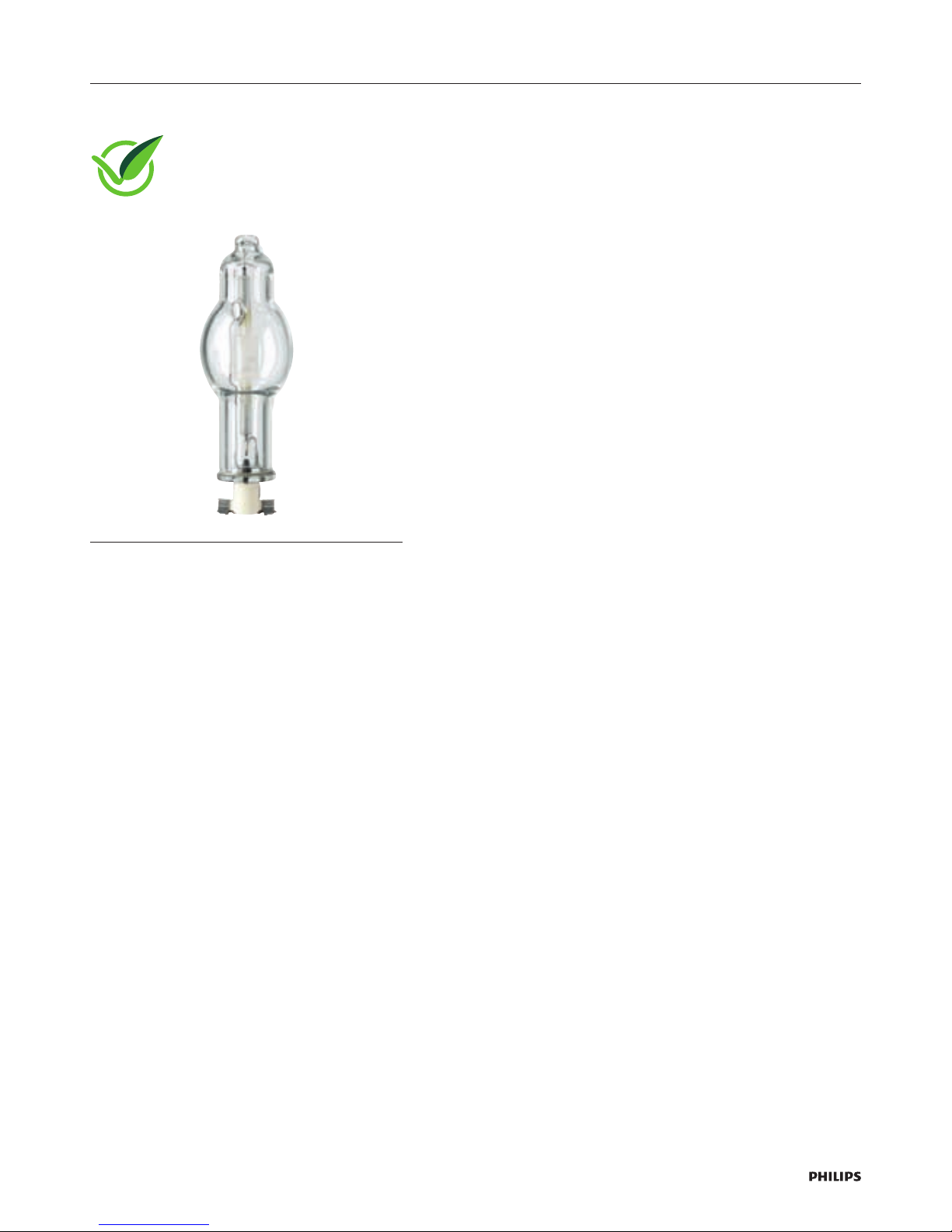

Energy saving with MASTERColour CDM-Tm Mini
Buildings today account for 40 percent of energy consumption in developed countries. But the
revolution in lighting technology means that switching from the older lighting to the new will
bring huge savings.
For example, the MASTERColour CDM-Tm Mini lamp saves up to 70% energy compared with
traditional halogen lighting solutions with a similar light output. For retail outlets with hundreds
of luminaires, this translates into a significant saving and the quality of light is superior as well.

OEM Catalogue 2009/20102.6
MASTERColour CDM-T Elite

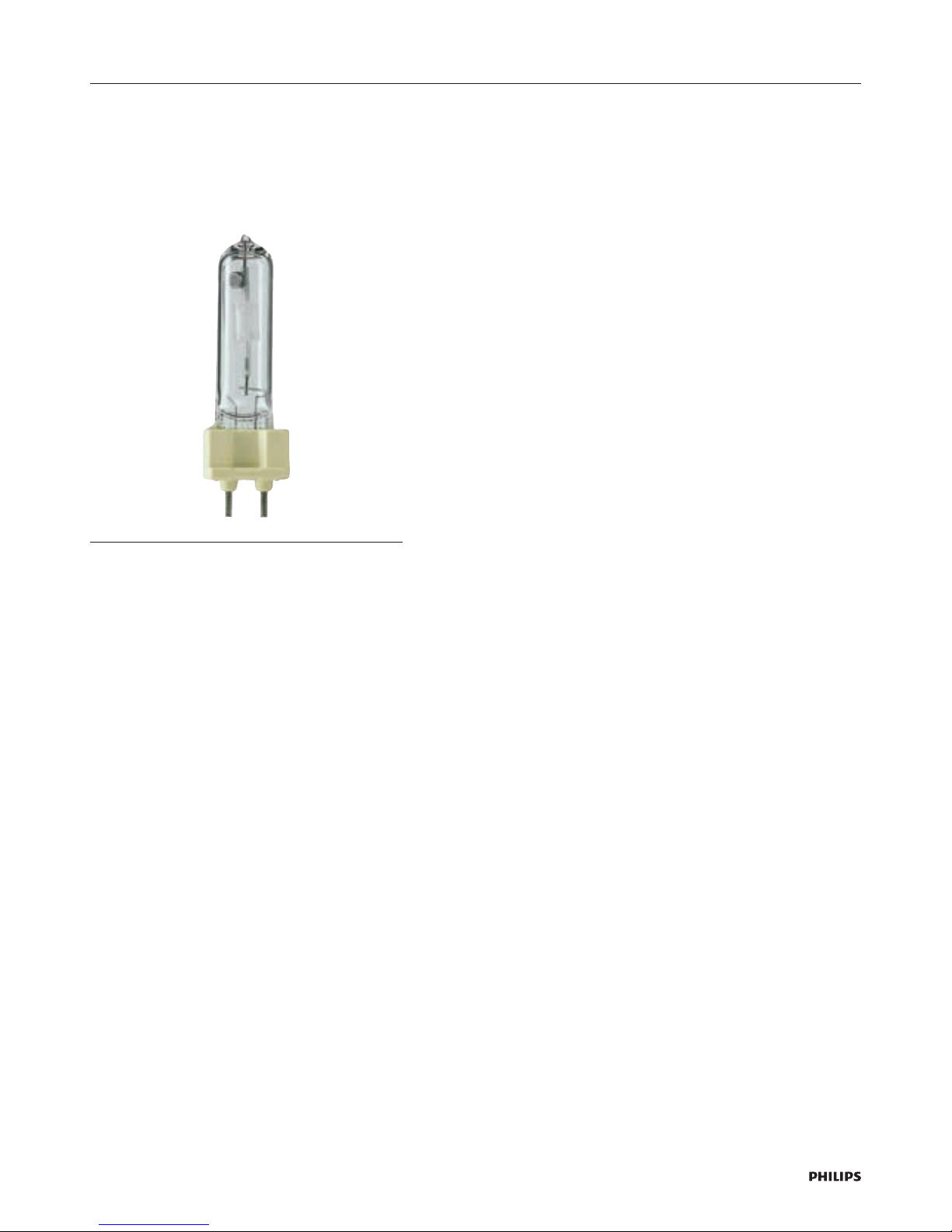

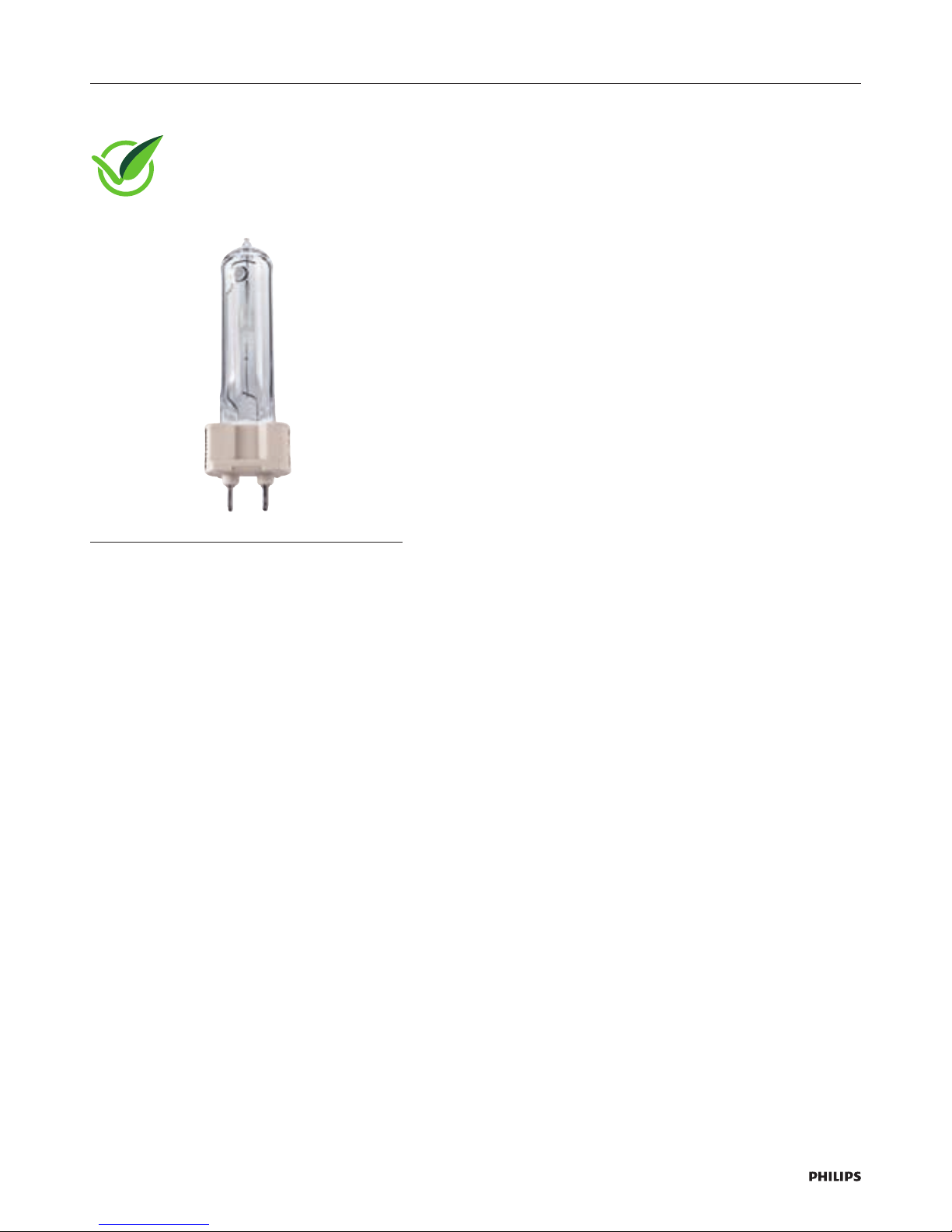

CDM-T 35W /930
Product Description
● Single-ended, high-efficiency Ceramic Metal Halide discharge lamp
Product Features
● Crisp white light
● Excellent colour rendering (Ra 90)
● Reliable lifetime performance
● Stable colour performance during lifetime
● Increased light output compared with regular MASTERColour lamps
● Improved maintenance compared with regular MASTERColour
lamps
● Burning position for
○ CDM Elite-T 35 W: vertical +/- 60 degrees
○ CDM Elite-T 70 W: universal
Product Benefits
● Outstanding rendering of displayed merchandise due to high colour
rendering (Ra 90) in combination with high lumen output; best offer
in the market for ‘enhancing merchandise’
● Excellent colour quality, which remains stable over lifetime
● Light output over lifetime maintains display brightness
● High efficacy and long lifetime for lowest operating costs and low
heat generation
● Relatively low heat generation enhances comfort for shoppers and
staff
● UV-Block for reduced fading risk of merchandise
Application
● Accent and display lighting with a sparkling effect, excellent solution
for Retail
● Decorative outdoor floodlighting
Luminaires
● Must be used in closed luminaires with a proper cover (IEC 61167
and IEC 60958)
System
● Must be used with electronic gear such as PrimaVision
Environment
● Excellent environmental choice because of high energy efficiency
and long reliable life
● This product is a Philips Green product
● This product is RoHS compliant
● This product is covered by WEEE
Recommended gear page 2.98
www.philips.com/OEM

OEM Catalogue 2009/2010 2.7
Compact HID Lamps
O
D
L
C
CDM-T

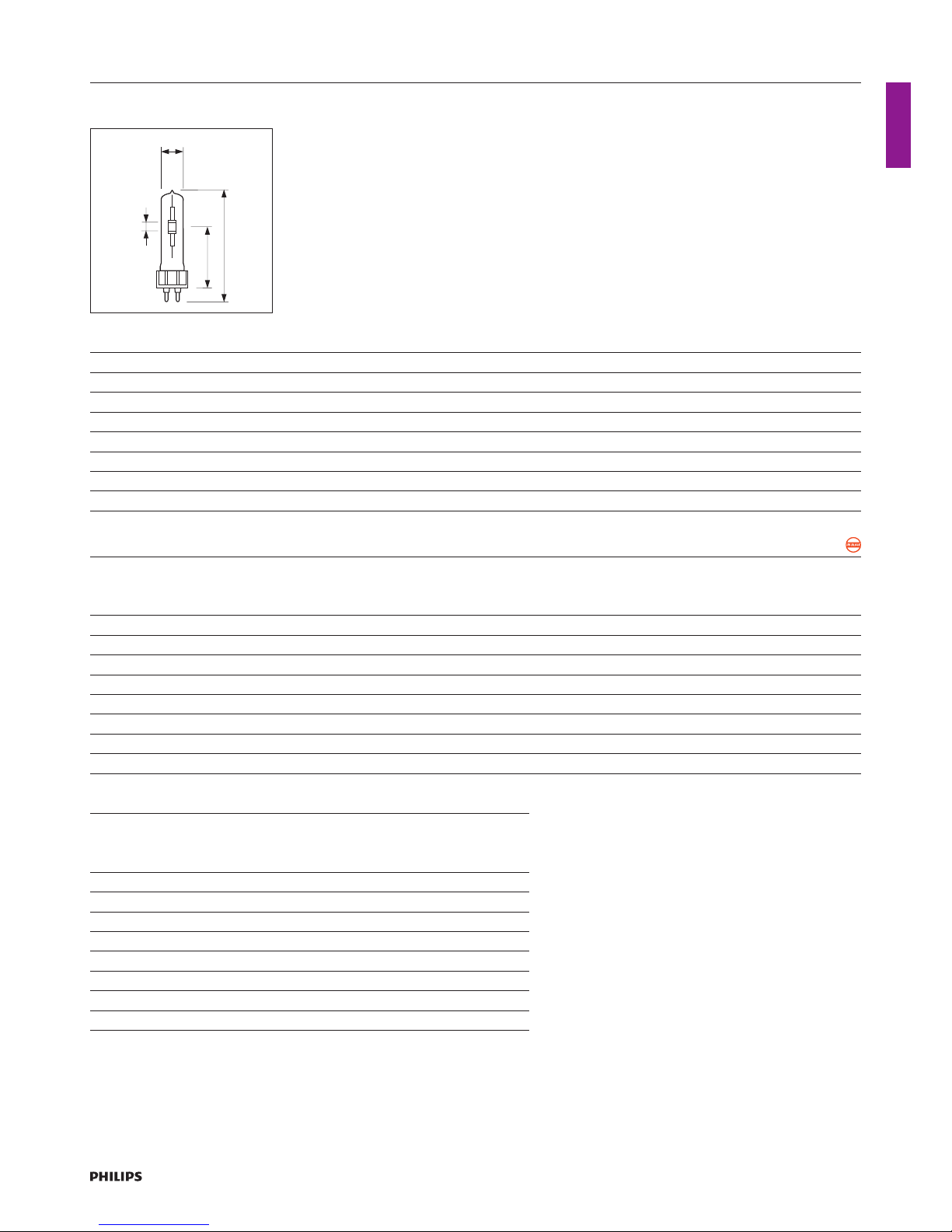

Type CMax DMax LMin LNom LMax OMin ONom OMax
MASTERColour CDM-T Elite 35W/930 G12 1CT 103 20 55 56 57 - 4.3 -
MASTERColour CDM-T Elite 70W/930 G12 1CT 103 20 55 56 57 5.45 5.75 6.05
MASTERColour CDM-T Elite
Technical data
Type Lamp
Current
EL
(A)
Lamp
Wattage
EL
(W)
Lamp
Voltage
(V)
Rated
Lamp
Wattage
Dimmable Ignition
Peak
Voltage
(V)
Ignition
Supply
Voltage
(V)
Ignition
Time
(sec)
MASTERColour CDM-T Elite 35W/930 G12 1CT - 39 85 35 No 5000 198 30
MASTERColour CDM-T Elite 70W/930 G12 1CT 0.840 73 87 70 No 5000 198 30
Technical data
Type Re-ignition
Time
(min)
Run-up
time
90%
(min)
Life to
50%
failures
(hrs)
MASTERColour CDM-T Elite 35W/930 G12 1CT 15 3 12000
MASTERColour CDM-T Elite 70W/930 G12 1CT 15 3 12000
Light data
Type Luminous
Flux Lamp
EL
(lm)
Luminous
Efficacy
Lamp EL
(lm/W)
Colour
Designation
Colour
Temperature
(K)
Colour
Rendering
Index
(Ra)
Chromaticity
Coordinate X
Chromaticity
Coordinate Y
Operating
Position
MASTERColour CDM-T Elite 35W/930 G12 1CT 3500 90 Warm White 3000 90 432 396 vbu/vbd60
MASTERColour CDM-T Elite 70W/930 G12 1CT 7300 100 Warm White 3000 90 434 395 any
Ordering and packing data
Type ILCOS EAN code
1 piece
Weight Qty bulk
packing
Dimensions bulk packing EAN code
bulk packing
EOC
8711500
MASTERColour CDM-T Elite 35W/930 G12 1CT MT-35/30/1A-H-G12 8711500208132 0.027 kg 12 14.9 cm x 13.1 cm x 13.6 cm 8711500208149 208132 15
MASTERColour CDM-T Elite 70W/930 G12 1CT MT-70/30/1A-H-G12 8711500208156 0.029 kg 12 14.9 cm x 13.1 cm x 13.6 cm 8711500208163 208156 15

OEM Catalogue 2009/20102.8

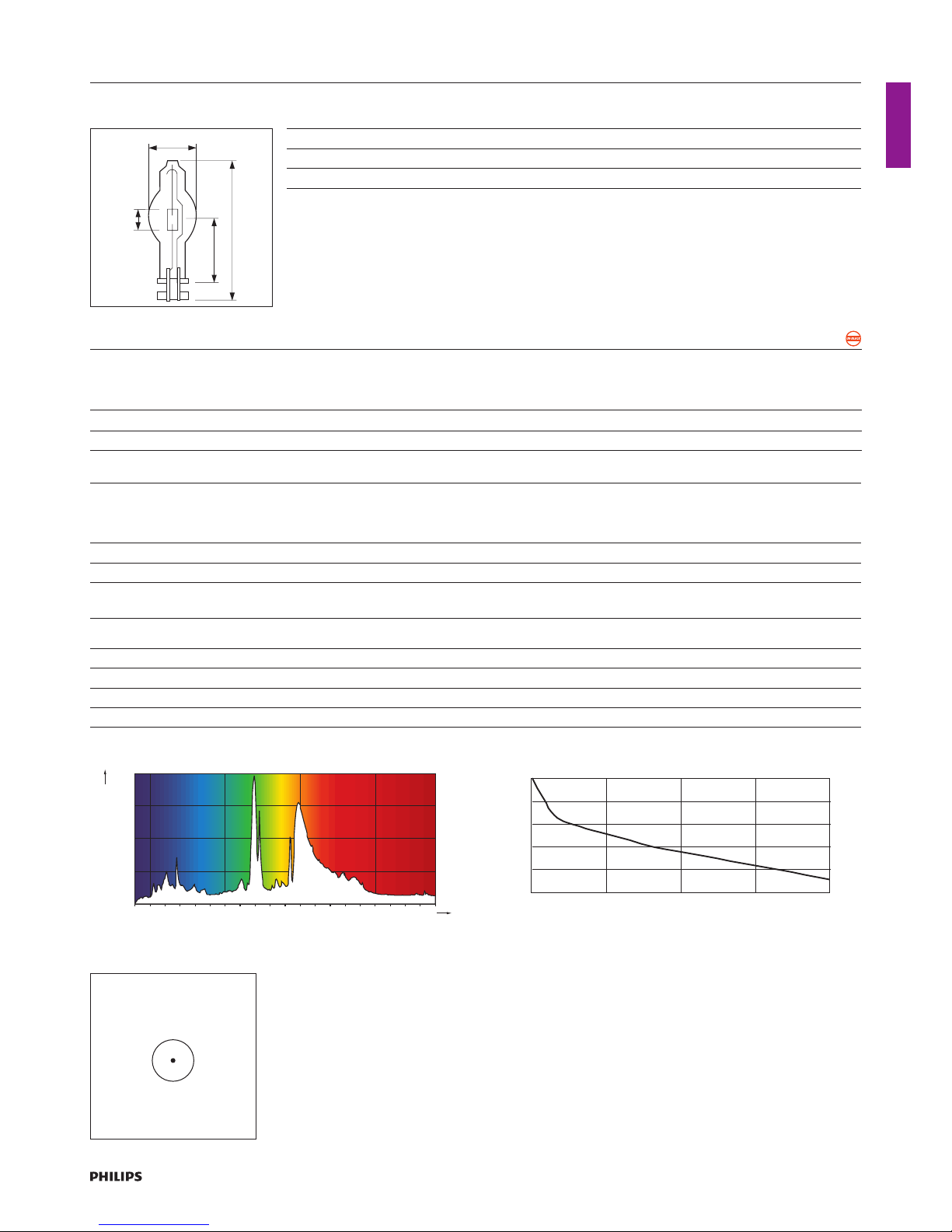

MASTERColour CDM-T Elite

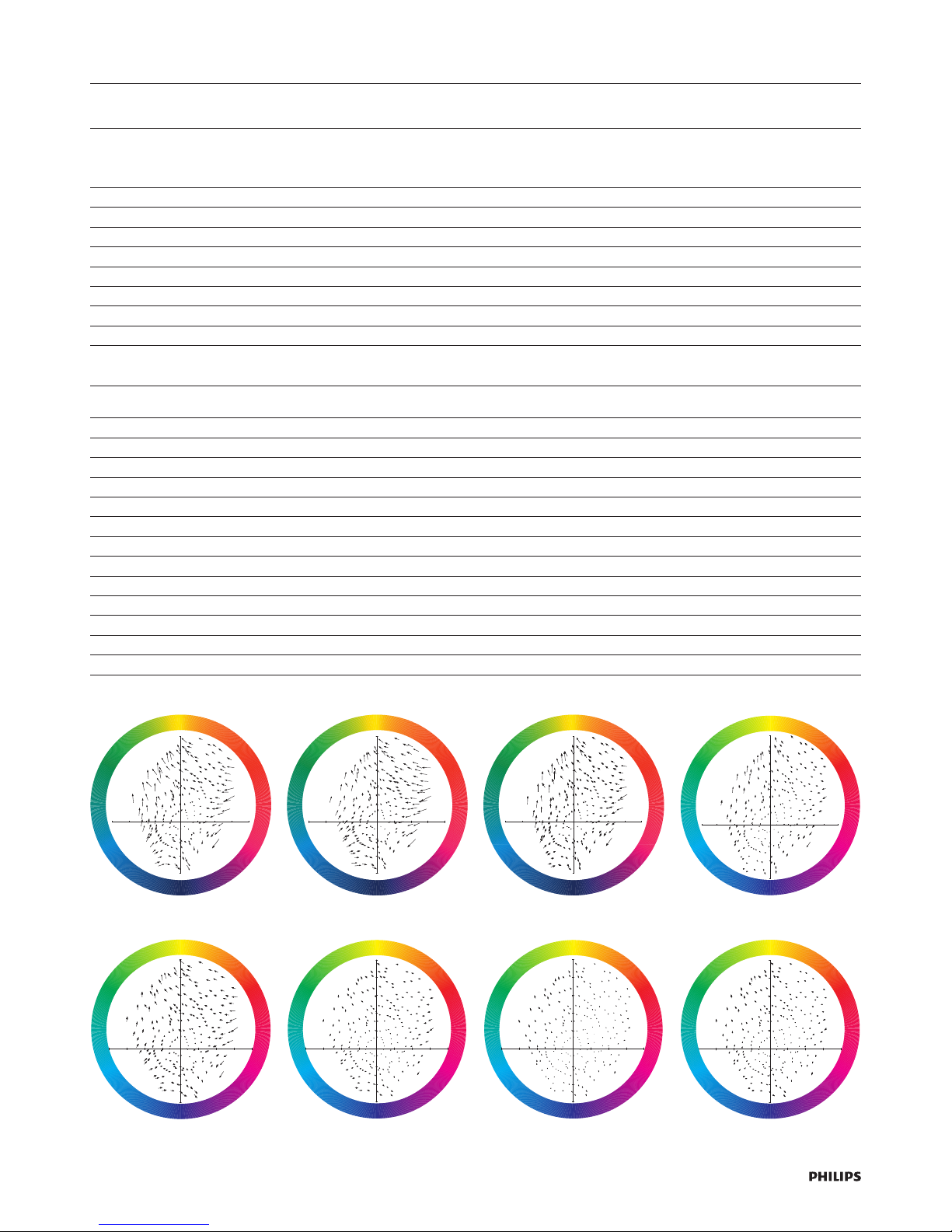

CRV diagram
CDM-T 35W /930
a*
b*
CDM-T
CDM-T 70W /930
a*
b*
CDM-T 70W /930
Spectral power distribution
300 400 500 600
50
150
250
100
200
700
300
[
W
/
m
n5
(
. ml )]
[nm]
CDM-T 35W /930
300 400 500 600
50
150
250
100
200
700
300
[
W
/
m
n5
(
. ml )]
[nm]
CDM-T 70W /930
Performance diagram
%
t
51 2 3 4
0
40
80
120
160
200
Ila
Wla
Vla 
Ra
CDM-T 35W /930
Lamp performance during run up
%
t
Ila
Wla
Vla 
51 2 3 4
0
40
80
120
160
200
Ra
CDM-T 70W /930
Lamp performance during run up

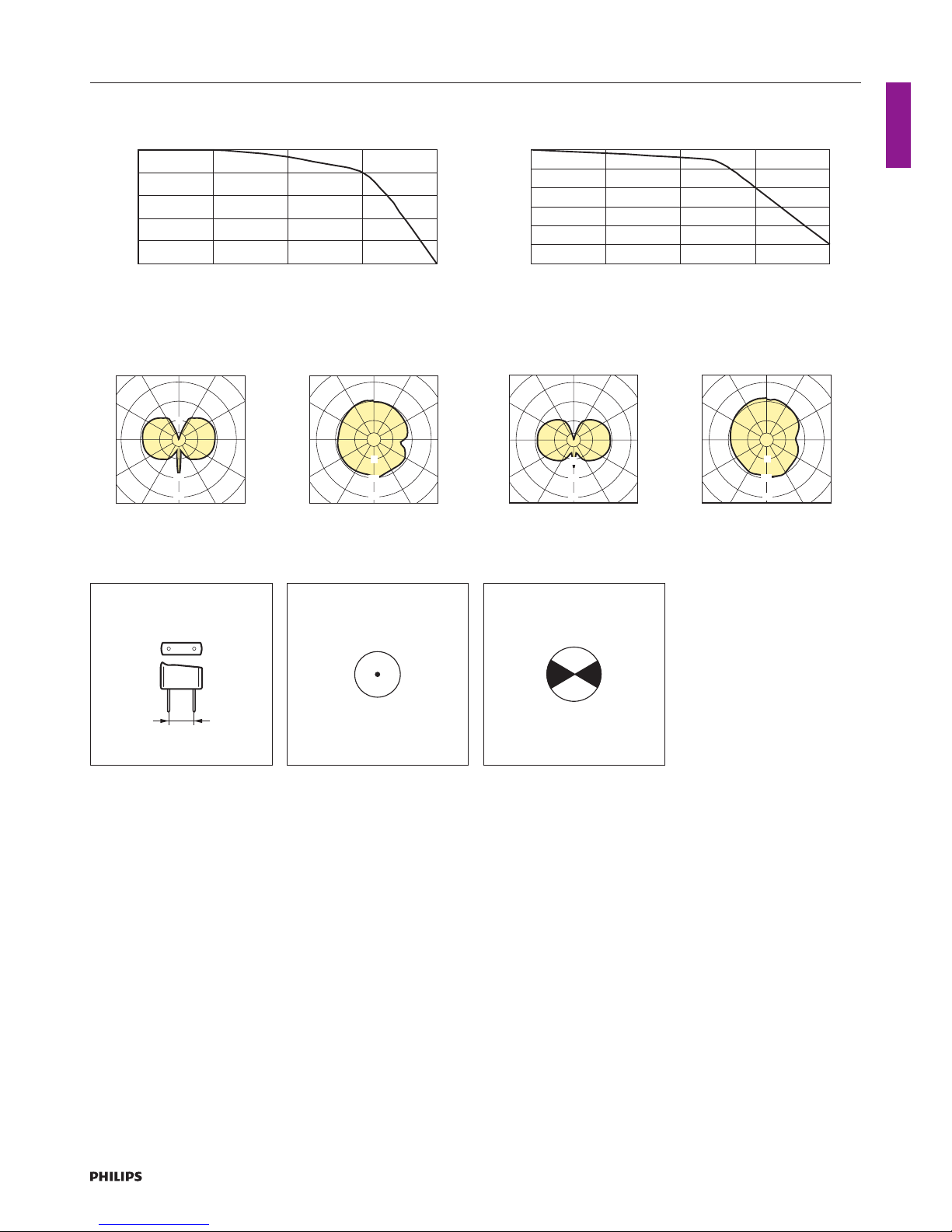

Lumen maintenance diagram
Lumen in %
50
60
70
80
90
100
Burning hours
3000 9000
06000
12000
CDM-T 35W on electronic gear
Lumen in %
50
60
70
80
90
100
Burning hours
3000 9000
06000
12000
40
CDM-T 70W on electronic gear

OEM Catalogue 2009/2010 2.9
Compact HID Lamps
Life expectancy diagram
Survivals in %
50
60
70
80
90
100
Burning hours
3000 9000
06000
12000
CDM-T 35W on electronic gear
MASTERColour CDM-T Elite
Survivals in %
50
60
70
80
90
100
Burning hours
3000 9000
06000
12000
40
CDM-T 70W on electronic gear
Photometric diagram
180 150150
0(cd/1000lm)
60
90
120
60
90
120
180 150150
0(cd/1000lm)
60
90
120
60
90
120
50
100
150
50
100
150
CDM-T 35W /930
180 150150
0(cd/1000lm)
60
90
120
60
90
120
180 150150
0(cd/1000lm)
60
90
120
60
90
120
50
100
150
50
100
150
CDM-T 70W /930
Cap Base
12
G12
Operating position
any vbu/vbd60

OEM Catalogue 2009/20102.10
MASTERColour CDM-TC Elite
CDM-TC 35W /930
Product Description
● Single-ended, compact size, high-efficiency Ceramic Metal Halide
discharge lamp
Product Features
● Crisp white light
● Excellent colour rendering (Ra 90)
● Reliable lifetime performance
● Stable colour performance during lifetime
● Increased light output compared with regular MASTERColour lamps
● Improved maintenance compared with regular MASTERColour
lamps
● Burning position for
○ CDM Elite-TC 35 W: vertical +/- 60 degrees
○ CDM Elite-TC 70 W: universal
Product Benefits
● Outstanding rendering of displayed merchandise due to high colour
rendering (Ra 90) in combination with high lumen output; best offer
in the market for ‘enhancing merchandise’
● Excellent colour quality remains stable over lifetime
● Light output over lifetime maintains display brightness
● High efficacy and long lifetime for lowest operating costs and low
heat generation
● Relatively low heat generation enhances comfort for shoppers and
staff
● UV-Block for reduced fading risk of merchandise
● Allows design of very compact luminaires with high beam intensities
Application
● Accent and display lighting with a sparkling effect, excellent solution
for Retail
● General and decorative lighting
Luminaires
● Must be used in closed luminaires with a proper cover (IEC 61167
and IEC 60958)
System
● Must be used with electronic gear such as Philips PrimaVision
Environment
● Good environmental choice because of high energy efficiency and
long reliable life
● This product is a Philips Green product
● This product is RoHS compliant
● This product is covered by WEEE
Recommended gear page 2.98
www.philips.com/OEM

OEM Catalogue 2009/2010 2.11
Compact HID Lamps
MASTERColour CDM-TC Elite
L
C
D
O
CDM-TC

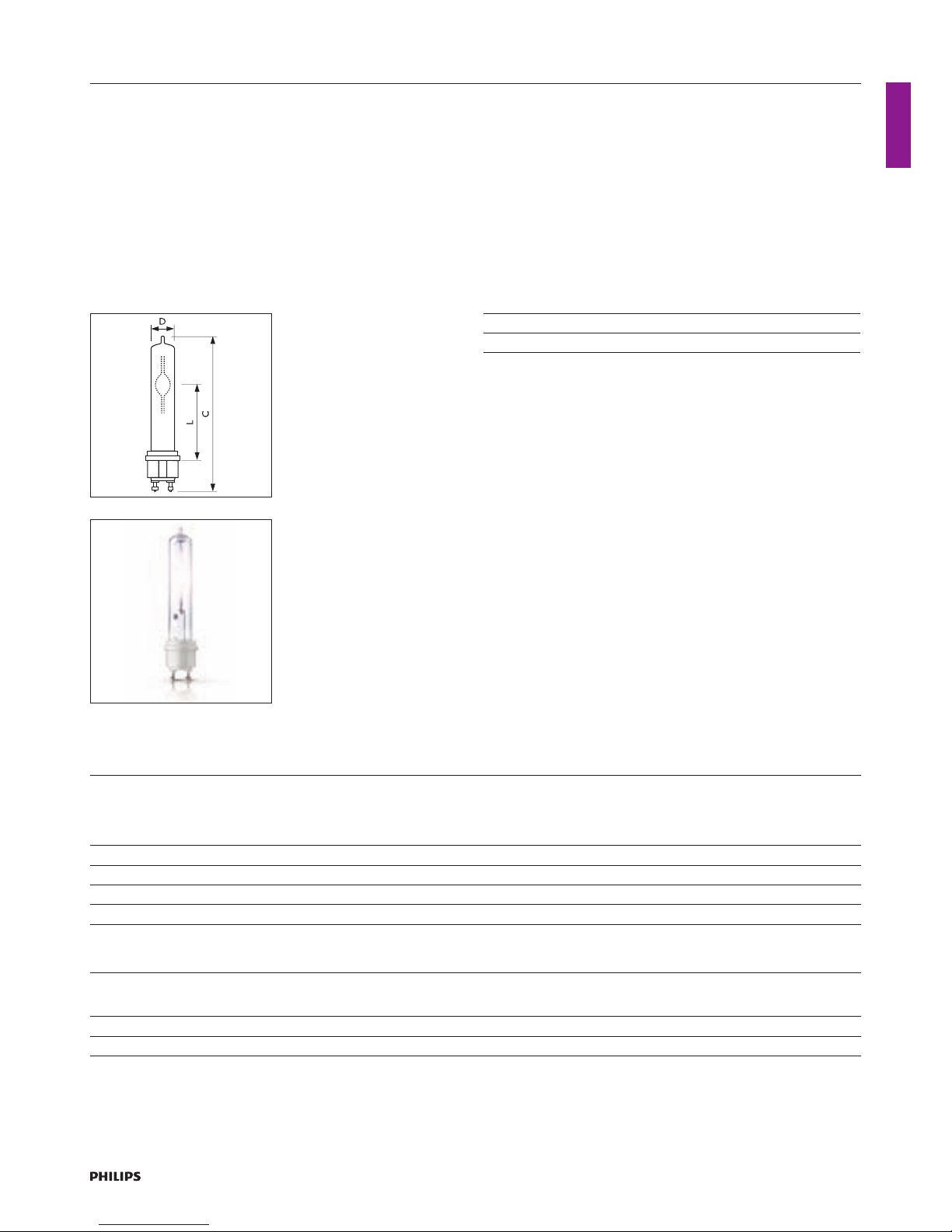

Type CMax DMax LMin LNom LMax OMin ONom OMax
MASTERColour CDM-TC Elite 35W/930 G8.5 1CT 85 15 51 52 53 4 4.3 4.6
MASTERColour CDM-TC Elite 70W/930 G8.5 1CT 85 14.35 51 52 53 5.45 5.75 6.05
Technical data
Type Lamp
Current
EL
(A)
Lamp
Wattage
EL
(W)
Lamp
Voltage
(V)
Rated
Lamp
Wattage
Dimmable Ignition
Peak
Voltage
(V)
Ignition
Supply
Voltage
(V)
Ignition
Time
(sec)
MASTERColour CDM-TC Elite 35W/930 G8.5 1CT - 39 85 35 No 5000 198 30
MASTERColour CDM-TC Elite 70W/930 G8.5 1CT 0.840 73 87 70 No 5000 198 30
Technical data
Type Re-ignition
Time
(min)
Run-up
time
90%
(min)
Life to
50%
failures
(hrs)
MASTERColour CDM-TC Elite 35W/930 G8.5 1CT 15 3 12000
MASTERColour CDM-TC Elite 70W/930 G8.5 1CT 15 3 12000
Light data
Type Luminous
Flux Lamp
EL
(lm)
Luminous
Efficacy
Lamp EL
(lm/W)
Colour
Designation
Colour
Temperature
(K)
Colour
Rendering
Index
(Ra)
Chromaticity
Coordinate X
Chromaticity
Coordinate Y
Operating
Position
MASTERColour CDM-TC Elite 35W/930 G8.5 1CT 3500 90 Warm White 3000 90 434 396 vbu/vbd60
MASTERColour CDM-TC Elite 70W/930 G8.5 1CT 7300 97 Warm White 3000 90 438 395 any
Ordering and packing data
Type ILCOS EAN code
1 piece
Weight Qty bulk
packing
Dimensions bulk packing EAN code
bulk packing
EOC
8711500
MASTERColour CDM-TC Elite 35W/930 G8.5 1CT MT-35/30/1B-H-G8.5 8711500208170 0.01 kg 12 13.6 cm x 11.3 cm x 11.5 cm 8711500208187 208170 15
MASTERColour CDM-TC Elite 70W/930 G8.5 1CT MT-70/30/1B-H-G8.5 8711500208194 0.01 kg 12 13.6 cm x 11.3 cm x 11.5 cm 8711500208200 208194 15

OEM Catalogue 2009/20102.12
MASTERColour CDM-TC Elite
CRV diagram
CDM-TC 35W /930
a*
b*
CDM-TC 35W /930
CDM-TC 70W /930
a*
b*
CDM-TC 70W /930
Spectral power distribution
300 400 500 600
50
150
250
100
200
700
300
[
W
/
m
n5
(
. ml )]
[nm]
CDM-TC 35W /930
300 400 500 600
50
150
250
100
200
700
300
[
W
/
m
n5
(
. ml )]
[nm]
CDM-TC 70W /930
Performance diagram
%
t
51 2 3 4
0
40
80
120
160
200
Ila
Wla
Vla 
Ra
CDM-TC 35W /930
Lamp performance during run up
%
t
Ila
Wla
Vla

51 2 3 4
0
40
80
120
160
200
Ra
CDM-TC 70W /930
Lamp performance during run up
Lumen maintenance diagram
Lumen in %
50
60
70
80
90
100
Burning hours
3000 9000
06000
12000
CDM-TC 35W/930 on electronic gear
Lumen in %
50
60
70
80
90
100
Burning hours
3000 9000
06000
12000
40
CDM-TC 70W/930 on electronic gear

OEM Catalogue 2009/2010 2.13
Compact HID Lamps
Life expectancy diagram
Survivals in %
50
60
70
80
90
100
Burning hours
3000 9000
06000
12000
CDM-TC 35W/930 on electronic gear
MASTERColour CDM-TC Elite
Survivals in %
50
60
70
80
90
100
Burning hours
3000 9000
06000
12000
40
CDM-TC 70W/930 on electronic gear
Photometric diagram
180 150150
0(cd/1000lm)
60
90
120
60
90
120
180 150150
0(cd/1000lm)
60
90
120
60
90
120
50
100
150
50
100
150
CDM-TC 35W /930
180 150150
0(cd/1000lm)
60
90
120
60
90
120
180 150150
0(cd/1000lm)
60
90
120
60
90
120
100
150
50
100
150
50
CDM-TC 70W /930
Cap Base
8.5
G8.5
Operating position
any vbu/vbd60

MASTERColour CDM-Elite MW
OEM Catalogue 2009/20102.14
Product Description
The Philips MASTERColour CDM Elite MW system offers an
unrivalled level of light quality and performance.The lamp’s sparkling
white light creates a more natural ambience and really brings out the
best in all different types of colour.This performance remains stable
over the long lifetime of the lamp. In addition, the high efficiency of the
lamp and driver together means reduced energy use and a lower cost
of ownership
Product Features
● 
Crisp, white light with excellent colour rendering (Ra 90).
● 
Stable colour performance over entire long lifespan.
● 
New socket design makes lamp extremely compact and improves
efficiency as well as light distribution.
● 
Electronic driver suitable for both indoor and outdoor applications
● 
Complements existing CDM lamps; range now extended from
20W to 315W
Product Benefits
● 
High efficiency of both lamp and driver means lower energy
consumption and therefore reduced CO2emissions – without
compromising on light quality.
● 
Longer lifespan equates to reduced maintenance and lower
replacement costs.
● 
Excellent colour quality and consistent light output from beginning
to end.
● 
Being 50% smaller than conventional HPI and HPL lamps gives
freedom in optic and luminaire design.
● 
Greater harmony in lighting design as CDM lamps can now be used
in many new applications.
● 
Sparkling properties of white light create a more natural and inviting
ambience.
Application
● 
Outdoor; floodlighting of buildings and other interesting structures.
Illumination of roads and pedestrian areas, public spaces, car parks,
petrol stations etc.
● 
Indoor; larger (high-bay) retail outlets, warehouses, manufacturing
facilities etc.
Luminaires
● 
Must be used with closed luminaires with a proper cover
(IEC 61167 and IEC 60958)
MASTERColour CDM Elite MW

Compact HID Lamps
MASTERColour CDM-Elite MW
OEM Catalogue 2009/2010 2.15
Environment
● 
Excellent environmental choice because of high energy efficiency
and long reliable life.
● This product is a Philips Green product
● This product is RoHS compliant
● This product is covered by WEEE
www.philips.com/OEM
MASTER Colour CDM Elite MW
Technical data
Type Lamp
Wattage
(W)
Luminous
Flux Lamp
(lm)
Luminous
Efficacy
Lamp
(lm/W)
Colour
Temperature
(K)
Colour
Rendering
Index
(Ra)
Operating
Position
Service
Lifetime
at 10%
Failures
(h)*
Average
Lifetime
at 10%
Failures
(h)*
Lumen
Maincenance
at 12Khrs
(%)
CDM Elite MW 210W/930 210 24100 115 3000 90 Universal 12000 20000 80
CDM Elite MW 315W/930 315 37800 120 3000 90 Universal 12000 20000 80
CDM Elite MW 210W/942 210 23100 110 4200 90 Universal 12000 20000 80
CDM Elite MW 315W/942 315 36200 115 4200 90 Universal 12000 20000 80
* 12000 and 20000 hours are design lifetimes. At launch this will be respectively 8000 and 12000 hours.
The 930 versions will be available in March 2009, the 942 versions in September 2009.
Driver Range Power
Losses
(%)
Power
Factor
(%)
Class Tc Life
(C)*
Ta Life
(C)*
Lifetime at max.
5% failure rate
(at Tc Life) (h)
Harmonic
Distortion
(%)
Dimensions
(LxWxH)
in mm
# Drivers
/MCB
Luminaire
Moisture
Philips HID PrimaVision 210W <17 >95 II 80 45 60000 <12 169x97x65 6 >IP21
Philips HID PrimaVision 315W <19 >95 II 80 45 50000 <12 217x126x59 8 >IP21
* Actual (target).
Type Cmax Dmax Lnom
CDM Elite MW 188 28.5 90

OEM Catalogue 2009/20102.16
MASTERColour CDM-Tm Mini
CDM-Tm PGJ5
Product Description
● Miniature, single-ended ceramic metal halide lamp
● PGJ5 twist-lock lamp base
Product Features
● Crisp, sparkling light for a comfortable atmosphere
● Low heat generation
● Crisp white light
● Superior colour quality
● Miniature size allows design of very compact luminaires with high
beam intensities for mounting close to illuminated object
● Easy replacement due to robust twist-lock socket
● Universal burning position
Product Benefits
● Stable colour impression over lifetime
● High efficacy for low operating costs and low heat generation
● Long life compared with halogen lamps
● Relatively low heat output enhances comfort for shoppers and staff
● Mechanical retrofit in halogen capsule (GY6.35) luminaires (same
light centre length). For full retrofit, also gear and lampholder need
to be exchanged
● UV-Block for reduced fading risk of merchandise
Application
● Accent and display lighting with a sparkling effect
● Decorative outdoor floodlighting
Luminaires
● Must be used in closed luminaires with a hard glass cover
System
● Must be used in combination with Philips electronic gear
Environment
● Excellent environmental choice because of high energy efficiency
and long reliable life
● This product is a Philips Green product
● This product is RoHS compliant
● This product is covered by WEEE
Recommended lamp page 2.98
www.philips.com/OEM

OEM Catalogue 2009/2010 2.17
Compact HID Lamps
D
L
C
O
CDM-Tm PGJ5 -
Type CMax DMax LMin LNom LMax OMin ONom OMax
MASTERColour CDM-Tm Mini 20W 52 17.3 22.3 22.6 22.9 2.8 3 3.2
MASTERColour CDM-Tm Mini 35W 52 17.3 22.3 22.6 22.9 3.8 4.0 4.2
MASTERColour CDM-Tm Mini
Technical data
Type Lamp
Current
EL
(A)
Lamp
Wattage
EL
(W)
Lamp
Voltage
(V)
Rated
Lamp
Wattage
Dimmable Ignition
Time
(sec)
Re-ignition
Time
(min)
Run-up
time
90%
(min)
Life to
50%
failures
(hrs)
MASTERColour CDM-Tm Mini 20W/830 PGJ5 0.220 22 100 20 No 30 15 3 12000
MASTERColour CDM-Tm Mini 35W/930 PGJ5 0.4 39 96 35 No 30 15 3 12000
Light data
Type Luminous
Flux Lamp
EL
(lm)
Luminous
Efficacy
Lamp EL
(lm/W)
Colour
Designation
Colour
Temperature
(K)
Colour
Rendering
Index
(Ra)
Chromaticity
Coordinate X
Chromaticity
Coordinate Y
Operating
Position
MASTERColour CDM-Tm Mini 20W/830 PGJ5 1650 75 Warm White 3000 85 429 395 any
MASTERColour CDM-Tm Mini 35W/930 PGJ5 3000 77 Warm White 3000 90 432 394 any
Ordering and packing data
Type ILCOS EAN code
1 piece
Weight Qty bulk
packing
Dimensions bulk packing EAN code
bulk packing
EOC
8711500
MASTERColour CDM-Tm Mini 20W/830 PGJ5 1CT MC-20/30/1B-H-PGJ5 8711500207517 0.006 kg 12 9.7 cm x 7.3 cm x 7.9 cm 8711500207524 207517 15
MASTERColour CDM-Tm Mini 20W/830 PGJ5 KIT MC-20/30/1B-H-PGJ5 8711500207661 0.013 kg 12 18.8 cm x 10.8 cm x 12.3 cm 8711500207579 207661 15
MASTERColour CDM-Tm Mini 35W/930 PGJ5 1CT MC-35/30/1A-H-PGJ5 8711500211491 0.006 kg 12 9.7 cm x 7.3 cm x 7.9 cm 8711500211507 211491 15
MASTERColour CDM-Tm Mini 35W/930 PGJ5 KIT MC-35/1A/30-H-PGJ5 8711500212924 0.013 kg 12 18.8 cm x 10.8 cm x 12.3 cm 8711500212931 212924 15
Spectral power distribution
2
4
6
8
400 500 600 700
[nm]
W/nm
CDM-Tm /830/930
Lumen maintenance diagram
50
60
70
90
100
Lumen in %
Burning hours
012000
3000 6000 9000
80
CDM-Tm on electronic gear
Operating position
any

OEM Catalogue 2009/20102.18
MASTERColour CDM-T
CDM-T 70W /830/842/942 G12
Product Description
● Range of single-ended, compact, high-efficiency, discharge lamps with
a stable colour over lifetime and a crisp, sparkling light
Product Features
● Crisp white light
● Superior colour quality
● Allows small-size luminaires designs that give high beam intensities
Product Benefits
● Stable colour impression over lifetime
● High lamp efficacy results in low operating costs and low heat
generation
● Long lamp life compared with incandescent and halogen lamps
● Relatively low heat output enhances comfort for shoppers and staff
● All types are UV-Block for reduced fading risks
Application
● Shops and shop windows, offices and public buildings
● Decorative outdoor: floodlighting and pedestrian areas
Luminaires
● Must be used in closed luminaires with a hard-glass cover
System
● Must be used in combination with a gear and an ignitor
● A high-current protection device (thermo-switch) in the gear is
mandatory (IEC 1167)
● If there is a constant voltage deviation of more than 3% of the rated
voltage, a different gear rating / tap must be used
● Electronic gear can be used, and increases lamp-life, improves system
efficacy, and eliminates visible flicker
● The CDM-T 35W/942 must be used with electronic gear
Environment
● Good environmental choice because of high energy efficiency and
long reliable life
● This product is RoHS compliant
● This product is covered by WEEE
Recommended gear page 2.98
www.philips.com/OEM

OEM Catalogue 2009/2010 2.19
Compact HID Lamps
O
D
L
C
CDM-T
Type CMax DMax LMin LNom LMax OMin ONom OMax
MASTERColour CDM-T 35W/830 G12 1CT 103 20 55 56 57 4.69 4.9 5.11
MASTERColour CDM-T 35W/942 G12 1CT 103 20 55 56 57 - 5 -
MASTERColour CDM-T 70W/830 G12 1CT 103 20 55 56 57 6.67 7 7.33
MASTERColour CDM-T 70W/942 G12 1CT 103 20 55 56 57 5.52 5.85 6.18
MASTERColour CDM-T 150W/830 G12 1CT 110 20 55 56 57 8.67 9 9.33
MASTERColour CDM-T 150W/942 G12 1CT 110 20 55 56 57 7.67 8 8.33
MASTERColour CDM-T 250W/830/942 G12 1CT 135 25 72 73 74 - 11 -
MASTERColour CDM-T
Technical data
Type Lamp
Current
(A)
Lamp
Wattage
(W)
Lamp
Voltage
(V)
Rated
Lamp
Wattage
Dimmable Ignition
Peak
Voltage
(V)
Ignition
Supply
Voltage
(V)
Ignition
Time
(sec)
MASTERColour CDM-T 35W/830 G12 1CT 0.53 38.0 88 35 No 5000 198 30
MASTERColour CDM-T 35W/942 G12 1CT - - 85 35 No 5000 198 30
MASTERColour CDM-T 70W/830 G12 1CT 0.98 71.0 88 70 No 5000 198 30
MASTERColour CDM-T 70W/942 G12 1CT 0.98 72.0 88 70 No 5000 198 30
MASTERColour CDM-T 150W/830 G12 1CT 1.8 147.0 96 150 No 5000 198 30
MASTERColour CDM-T 150W/942 G12 1CT 1.9 145.0 90 150 No 5000 198 30
MASTERColour CDM-T 250W/830 G12 1CT 3 245 93 250 No 5000 198 30
MASTERColour CDM-T 250W/942 G12 1CT 3 247 94 250 No 5000 198 30
Technical data
Type Re-ignition
Time
(min)
Run-up
time
90%
(min)
Life to
50%
failures
(hrs)
MASTERColour CDM-T 35W/830 G12 1CT 15 3 12000
MASTERColour CDM-T 35W/942 G12 1CT 15 3 12000
MASTERColour CDM-T 70W/830 G12 1CT 15 3 12000
MASTERColour CDM-T 70W/942 G12 1CT 15 3 12000
MASTERColour CDM-T 150W/830 G12 1CT 15 3 12000
MASTERColour CDM-T 150W/942 G12 1CT 15 3 12000
MASTERColour CDM-T 250W/830 G12 1CT 15 3 11000
MASTERColour CDM-T 250W/942 G12 1CT 15 3 6000

OEM Catalogue 2009/20102.20
MASTERColour CDM-T
Light data
Type Luminous
Flux Lamp
(lm)
Luminous
Efficacy
Lamp
(lm/W)
Colour
Designation
Colour
Temperature
(K)
Colour
Rendering
Index
(Ra)
Chromaticity
Coordinate X
Chromaticity
Coordinate Y
Operating
Position
MASTERColour CDM-T 35W/830 G12 1CT 3300 87 Warm White 3000 81 428 397 any
MASTERColour CDM-T 35W/942 G12 1CT - - Cool White 4200 90 365 364 any
MASTERColour CDM-T 70W/830 G12 1CT 6600 93 Warm White 3000 84 428 394 any
MASTERColour CDM-T 70W/942 G12 1CT 6600 92 Cool White 4200 92 372 369 any
MASTERColour CDM-T 150W/830 G12 1CT 14000 95 Warm White 3000 85 436 396 any
MASTERColour CDM-T 150W/942 G12 1CT 12700 88 Cool White 4200 96 375 363 any
MASTERColour CDM-T 250W/830 G12 1CT 23000 94 Warm White 3000 89 427 384 any
MASTERColour CDM-T 250W/942 G12 1CT 23300 94 Cool White 4200 94 372 367 any
Ordering and packing data
Type ILCOS EAN code
1 piece
Weight Qty bulk
packing
Dimensions bulk packing EAN code
bulk packing
EOC
8711500
MASTERColour CDM-T 35W/830 G12 1CT MT-35/30/1B-H-G12 8711500196972 0.027 kg 12 14.9 cm x 13.1 cm x 13.6 cm 8711500196989 196972 15
MASTERColour CDM-T 35W/830 G12 1CT MT-35/30/1B-H-G12 8711500202178 0.027 kg 12 14.9 cm x 13.1 cm x 13.6 cm 8711500202185 202178 15
MASTERColour CDM-T 35W/942 G12 1CT MT-35/42/1A-H-G12 8711500211262 0.028 kg 12 14.9 cm x 13.1 cm x 13.6 cm 8711500211279 211262 15
MASTERColour CDM-T 70W/830 G12 1CT MT-70/30/1B-H-G12 8711500202192 0.029 kg 12 14.9 cm x 13.1 cm x 13.6 cm 8711500202208 202192 15
MASTERColour CDM-T 70W/830 G12 1CT MT-70/30/1B-H-G12 8711500196996 0.029 kg 12 14.9 cm x 13.1 cm x 13.6 cm 8711500197009 196996 15
MASTERColour CDM-T 70W/942 G12 1CT MT-70/42/1A-H-G12 8711500199270 0.029 kg 12 14.9 cm x 13.1 cm x 13.6 cm 8711500199287 199270 15
MASTERColour CDM-T 70W/942 G12 1CT MT-70/42/1A-H-G12 8711500206596 0.029 kg 12 14.9 cm x 13.1 cm x 13.6 cm 8711500206602 206596 15
MASTERColour CDM-T 150W/830 G12 1CT MT-150/30/1B-H-G12 8711500202215 0.033 kg 12 17.5 cm x 15.6 cm x 15.9 cm 8711500202222 202215 15
MASTERColour CDM-T 150W/830 G12 1CT MT-150/30/1B-H-G12 8711500197801 0.033 kg 12 17.5 cm x 15.6 cm x 15.9 cm 8711500197818 197801 15
MASTERColour CDM-T 150W/942 G12 1CT MT-150/42/1A-H-G12 8711500200051 0.033 kg 12 17.5 cm x 15.6 cm x 15.9 cm 8711500200068 200051 15
MASTERColour CDM-T 150W/942 G12 1CT MT-150/42/1A-H-G12 8711500206619 0.033 kg 12 17.5 cm x 15.6 cm x 15.9 cm 8711500206626 206619 15
MASTERColour CDM-T 250W/830 G12 1CT MT-250/30/1B-H-G12 8711500208019 0.039 kg 12 17.7 cm x 15.7 cm x 16.3 cm 8711500208026 208019 15
MASTERColour CDM-T 250W/942 G12 1CT MT-250/42/1A-H-G12 8711500211125 0.039 kg 12 17.7 cm x 15.7 cm x 16.3 cm 8711500211132 211125 15
CRV diagram
a*
b*
CDM-T 35W
CDM-T 35W /830
CDM-T 70W
a*
b*
CDM-T 70W /830
b*
CDM-T 150W
a*
CDM-T 150W /830
CDM-T 250W /830
b*
a*
CDM-T 250W /830



CDM-T 35W /942
a*
b*
CDM-T 70W
CDM-T 70W /942
a*
b*
CDM-T 150W
CDM-T 150W /942
CDM-T 250W /942
b*
a*
CDM-T 250W /942
