Philips Azur 4800 GC4845 User manual

ServiceManual
Philips Consumer Lifestyle
Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification
Steam Iron Azur 4800
GC4845
10/06
PRODUCT INFORMATION
Features
- Color : Storm Blue
- SteamGlide plus soleplate
- Easy Reach Steam tip
- Steam output (45 gram/min)
- Shot Of Steam, SOS (170 gram/min)
- Vertical SOS
- Spray feature
- Tank capacity (350 ml)
- Cord winder & Velcro
- Cord length (2.5 m)
- Drip stop System
- Double Active Calc System
Safety Information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements and
legal regulations as officially laid down at this moment.
TECHNICAL INFORMATION
Voltage : 220 - 240 V
Frequency : 50 - 60 Hz
Power : 2000 - 2400 W
Dimension (F-box) : 130 (D) x 327 (W) x 164 (H) mm
Weight (Product) : 1.59 kg
Water Advice
Suitable for tap water use. Advice to mix with equal portion
of distilled water or use only distilled water if the tap water is
very hard.
SteamGlide plus Soleplate
The specially treated Stealide plus soleplate is designed with 2
distinctly different types of steam vents:
1. Large vents for maximum crease removel
2. Fine vents for best glide
Easy Reach Steam Tip
Concentrated steam delivered in the hard to reach places by
pointed shape & the elongated steam slots.
Double Active Calc System
This is a 2-step system to protect your iron from scale
build-up:
1. The anti-calc tablet prevents scale from clogging the
steam vents.
2. The calc-clean function flushes out any loose scale
particles still inside the iron.
Drip Stop System
Water is released into the steam chamber via the tank valve
when the soleplate temperature is high enough.
When temperature is too low, the tank valve is closed by
means of a bi-metal disc.

GC4845
THERMOSTAT PLATE
PRINTED 19
THERMOSTAT RING 20
LINNE
B.WOLLE
WOLLE
NYLON
NYLON
YLLE
SEIDE
SILKE
BOMULE
LEINEN
BACKPLATE 6
BALL SWIVEL 7
CORDSET 16
Remove Screw A
Remove BACKPLATE 6
Remove Screws B1,B2
DISASSEMBLY ADVICE
FILLING DOOR ASSY 9
INLAY ASSY 10
SOS KNOB 14
SPRAY KNOB 15
LAMP ASSY 17
Remove Screw A
Remove BACKPLATE 6
Remove INLAY ASSY 10
STEAM SLIDER 11
WATER TANK ASSY 12
HOUSING 13
THERMOSTAT BUSH 18
Remove Screw A
Remove BACKPLATE 6
Remove INLAY ASSY 10
Remove SOS KNOB 14
Remove SPRAY KNOB 15
Remove THERMOSTAT PLATE
PRINTED 19
Remove THERMOSTAT RING 20
Remove Screws D1, D2
Remove Screws E1, E2
Remove HOUSING 13
Remove Screws F1, F2
Remove WATER TANK ASSY 12
RYTON SPACER 3
DOSING SEAL 4
HEAT SHIELD 5
Remove Screw A
Remove BACKPLATE 6
Remove INLAY ASSY 10
Remove SOS KNOB 14
Remove SPRAY KNOB 15
Remove Screw E1
Remove Screws F1, F2
Remove WATER TANK ASSY 12
Remove Screws G1, G2, G3
Remove HEAT SHIELD 5
Remove COVER SPRAYED 1
2-5

GC4845
REPAIR INSTRUCTIONS
- Due to the high wattage of the iron, only the specified cord set must be used.
- Should damage be observed on the CORDSET 16, it must be replaced.
Continued usage is not allowed.
- If COVER 1 is provided without type plate information eg. type number, voltage etc. When replacing the cover, engrave the type
number & voltage on the type plate with a sharp object.
- After the product has been repaired, it should function properly and has to meet the safety requirements & legal regulations as
laid down & officially established at this moment.
- The following tests are common checks that are conducted on a repaired product before it is returned to the consumer.

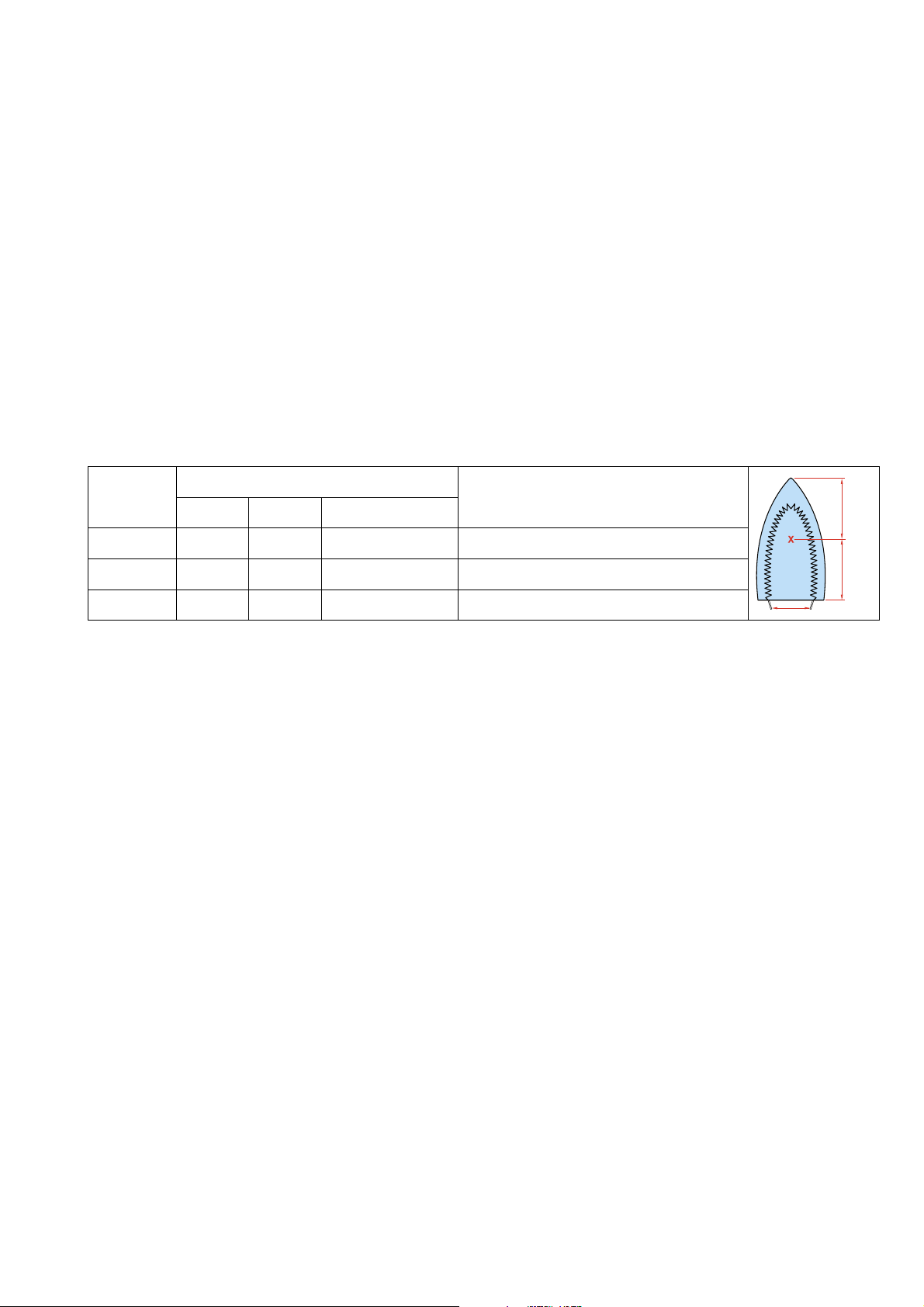

1. Soleplate temperature
Check that soleplate temperature is within IEC requirement.
Measure the temperature of the soleplate after the iron has reached steady state i.e connected to the mains for at least 15
minutes. The table below shows the temperature requirement.
Marking
Soleplate temperature (Deg C)
Material, for example
Test-
point
==
Minimum Maximum Nominal + Tolerance
•(1 dot) 70 120 95 ± 25 Acetate, elastane, polyamide, polyproylene
•• (2 dots) 100 160 130 ± 30 Cupro, polyester, silk, triacetate, viscose, wool
••• (3 dots) 140 210 175 ± 35 Cotton, linen
2. Leakage current
Check that leakage current is within IEC requirement.
Measure leakage current between LIVE/NEUTRAL & EARTH.
IEC requirement is that at 230 V supply, the EARTH leakage current must be less than 0.75 mA.
3. Water leakage / Functionality
Check that there is no water leakage from any part of the product during operation.
Check that the functionality of the product (product dependent) eg. steaming, variable steam, SOS, ASO etc is working
properly.
4. Loose part
Check that there are no loose parts eg. extra screw in the product that can cause short-circuit or product malfunction.
3-5

GC4845
PARTS LIST& ELECTRICAL DIAGRAM
Resistor
Lamp
L
N
E
Heating
Element
INPUT
Thermostat
Thermal
Fuse
4-5
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
4239 015 44371
4239 021 59771
4239 025 98250
4239 015 58891
4239 010 08970
4239 026 41051
4239 026 41251
4239 026 41071
4239 021 34591
4239 021 59641
4239 026 40901
4239 021 59881
4239 021 59551
4239 026 40831
4239 026 40871
4239 000 11161
4239 021 29040
4239 026 17320
4239 021 59601
4239 026 40961
4239 026 05990
Cover inscribed
Soleplate mounted assy 230 V / 2200 W
Ryton spacer
Dosing seal
Heat shield
Backplate
Ball swivel
Backplate cover
Filling door assy
Inlay assy
Steam slider
Water tank assy
Housing assy
SOS knob
Spray knob
Cordset EU
Lamp assy
Thermostat bush
Thermostat plate printed
Thermostat ring
Filling cup

GC4845
EXPLODED VIEW
MAX
E1
E2
D1 D2
B1
F1
F2
G1
G2 G3
B2
A
18
10
6
3
17
19
20
7
5
1
21
16
12
11
9
4
2
14
13
15
8
5-5
