Congratulations on your purchase and welcome to Philips! To fully benet
from the support that Philips offers, register your product at www.philips.
com/welcome.
This user manual contains information about the surprising features of
this iron and some tips to make ironing easier and more enjoyable.
This iron is equipped with a special sensor-controlled handle and
automatic .
While you iron, the sensor in the handle ensures that the iron produces
the optimal amount of steam. As 90% of the energy consumption of an
iron is used to create steam, energy consumption is optimised by
optimising the steam output. When you intuitively put more force on the
handle to remove stubborn creases, the iron automatically produces
more steam.
When you do not press the handle, when you lift the iron and when the
iron is standing on its heel or on its soleplate without any movement, the
automatic energy-saving technology limits the steam output to reduce
energy consumption.
We hope you enjoy using this iron.

Read this user manual carefully before you use the appliance and save it
for future reference.

- Never immerse the iron in water.

- Check if the voltage indicated on the appliance corresponds to the
local mains voltage before you connect the appliance.
- Do not use the appliance if the plug, the mains cord or the appliance
itself shows visible damage, or if the appliance has been dropped
or leaks.
- If the mains cord is damaged, you must have it replaced by Philips, a
service centre authorised by Philips or similarly qualied persons in
order to avoid a hazard.


- Never leave the appliance unattended when it is connected to the
mains.
- This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
- Children should be supervised to ensure that they do not play with
the appliance.
- Do not let the mains cord come into contact with the hot soleplate
of the iron.
- Do not use the appliance if the exible rubber handle parts show
visible damage.

- Only connect the appliance to an earthed wall socket.
- Check the mains cord regularly for possible damage.
- The soleplate of the iron can become extremely hot and may cause
burns if touched.
- When you have nished ironing, when you clean the appliance, when
you ll or empty the water tank and also when you leave the iron
even for a short while: set the steam control to position 0, put the
iron on its heel and remove the mains plug from the wall socket.
- Always place and use the iron on a stable, level and horizontal
surface.
- Do not put perfume, vinegar, starch, descaling agents, ironing aids or
other chemicals in the water tank.
- This appliance is intended for household use only.

This Philips appliance complies with all standards regarding
electromagnetic elds (EMF). If handled properly and according to the
instructions in this user manual, the appliance is safe to use based on
scientic evidence available today.

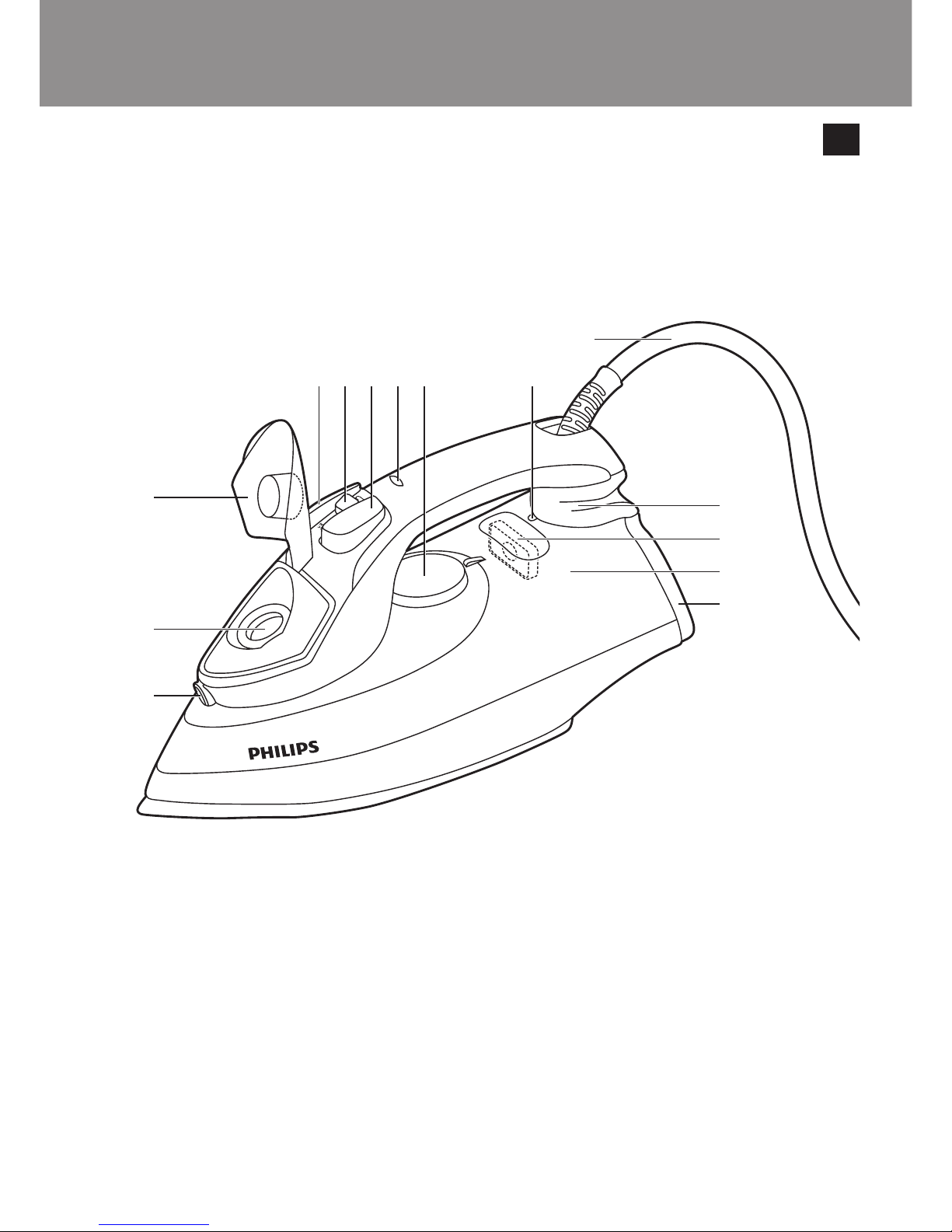

 7


 Spray nozzle
 Filling opening
 Cap of lling opening
 Steam boost button ( 9)
 Steam control
- CALC CLEAN = Calc-Clean function
- 0 = no steam
- l = minimum steam
- ; = maximum steam
 Spray button ( 8)
 Red auto-off light (GC3660 only)
 Temperature dial
 Temperature light
 Mains cord
 Flexible rubber handle part
 Anti-Calc tablet
 Water tank
 Heel
Not shown: lling cup

1 Remove any sticker, protective foil or plastic from the
soleplate (Fig. 2).


Do not put perfume, vinegar, starch, descaling agents, ironing aids or
other chemicals in the water tank.
1 Make sure the appliance is unplugged.
2 Set the steam control to position 0 (= no steam) (Fig. 3).
3 Open the cap of the lling opening.
8

4 Use the lling cup to ll the water tank with tap water up to the
maximum level. Tilt the iron backwards to check if the water level
has reached the MAX indication (Fig. 4).
Do not ll the water tank beyond the MAX indication.
5 Close the cap of the lling opening (‘click’).


Fabric type Temperature
setting Steam setting Steam boost
Linen MAX ; Yes
Cotton 3; Yes
Wool 2lN.A.
Silk 10 N.A.
Synthetic fabrics (e.g.
acrylic, nylon,
polyamide, polyester)
10 N.A.
Check the laundry care label for the required ironing temperature.
If you do not know what kind or kinds of fabric an article is made of,
determine the right ironing temperature by ironing a part that is not
visible when you wear or use the article.
Silk, woolen and synthetic materials: iron the reverse side of the fabric to
prevent shiny patches. To prevent stains, do not use the spray function.
Start ironing the articles that require the lowest ironing temperature,
such as those made of synthetic bers.
1 Put the iron on its heel.
2 To set the required ironing temperature, turn the temperature dial
to the appropriate position (Fig. 5).
See table ‘Temperature and steam settings’.
 9

3 Put the mains plug in an earthed wall socket.
,The temperature light goes on (Fig. 6).
4 When the temperature light goes out, wait a while before you
start ironing.
Note: The temperature light goes on from time to time during ironing.

Note: The iron may give off some smoke when you use it for the rst time.
This stops after a short while.

- While you iron, the sensor in the handle ensures that the iron
produces the optimal amount of steam. As 90% of the energy
consumption of an iron is used to create steam, energy consumption
is optimised by optimising the steam output. When you intuitively put
more force on the handle to remove stubborn creases, the iron
automatically produces more steam.
- When you do not press the handle, when you lift the iron and when
the iron is standing on its heel or on its soleplate without any
movement, the automatic energy-saving technology limits the steam
output to reduce energy consumption (Fig. 7).

1 Make sure that there is enough water in the water tank.
2 Set the recommended ironing temperature (see chapter ‘Preparing
for use’, table ‘Temperature and steam settings’).
3 Set the appropriate steam setting. Make sure that the steam
setting is suitable for the set ironing temperature (see chapter
‘Preparing for use’, table ‘Temperature and steam settings’) (Fig. 8).
Note: The iron is ready for steam ironing as soon as it has reached the
set ironing temperature.
Note: If the set ironing temperature is too low (MIN to 2), water may drip
from the soleplate (see chapter ‘Features’, section ‘Drip stop’).
10


1 Set the steam control to position 0 (= no steam) (Fig. 3).
2 Set the recommended ironing temperature (see chapter ‘Preparing
for use’, table ‘Temperature and steam settings’).


You can use the spray function to remove stubborn creases at any
temperature.
1 Make sure that there is enough water in the water tank.
2 Press the spray button several times to moisten the article to be
ironed (Fig. 9).

A powerful steam boost helps to remove very stubborn creases.
The steam boost function can only be used at temperature settings
between 3 and MAX.
1 Press and release the steam boost button (Fig. 10).


The concentrated steam boost from the long vents in the Steam
Tip enhances the distribution of steam into every part of your garment.
The concentrated steam boost function can only be used at temperature
settings between 3 and MAX.
1 Press and release the steam boost button (Fig. 11).

You can also use the steam boost function when you hold the iron in
vertical position. This is useful for removing creases from hanging clothes,
curtains etc.
 11

1 Hold the iron in vertical position and press and release the steam
boost button (Fig. 12).
Never direct the steam at people.

This iron is equipped with a drip-stop function: the iron automatically
stops producing steam when the temperature is too low, to prevent
water from dripping out of the soleplate. When this happens, you may
hear a sound.

The automatic shut-off function automatically switches off the iron if it
has not been moved for a while.
,The red auto-off light ashes to indicate that the iron has been
switched off by the automatic shut-off function (Fig. 13).
To let the iron heat up again:
1 Pick up the iron or move it slightly
,The red auto-off light goes out.
,If the temperature of the soleplate has dropped below the set
ironing temperature, the temperature light goes on.
2 If the temperature light goes on after you have moved the iron,
wait for it to go out before you start ironing.
Note: If the temperature light does not go on after you move the iron, the
soleplate still has the right temperature and the iron is ready for use.


1 Set the steam control to position 0, remove the mains plug from
the wall socket and let the iron cool down.
2 Wipe akes and any other deposits off the soleplate with a damp
cloth and a non-abrasive (liquid) cleaning agent.
12

To keep the soleplate smooth, avoid hard contact with metal objects.
Never use a scouring pad, vinegar or other chemicals to clean the
soleplate.
3 Clean the upper part of the iron with a damp cloth.
4 Regularly rinse the water tank with water. Empty the water tank
after you have rinsed it (Fig. 14).

The Double-Active Calc System consists of an Anti-Calc tablet inside the
water tank combined with the Calc-Clean function.
1 The Anti-Calc tablet prevents scale from clogging the steam vents.
This tablet is constantly active and does not need to be
replaced (Fig. 15).
2 The Calc-Clean function removes the scale particles from the iron.

Use the Calc-Clean function once every two weeks. If the water in your
area is very hard (i.e. when akes come out of the soleplate during
ironing), use the Calc-Clean function more frequently.
1 Set the steam control to position 0 and remove the mains plug
from the wall socket.
2 Fill the water tank to the maximum level.
Do not pour vinegar or other descaling agents in the water tank.
3 Set the temperature dial to MAX.
4 Put the mains plug in an earthed wall socket.
5 Unplug the iron when the temperature light goes out.
6 Hold the iron over the sink. Push the steam control to the CALC
CLEAN position and hold it. Gently shake the iron to and
fro (Fig. 16).
,Steam and boiling water come out of the soleplate. Impurities and
akes (if any) are ushed out.
 13

7 Release the steam control as soon as all the water in the tank has
been used up.
8 Repeat the Calc-Clean process if the iron still contains a lot of
impurities.

1 Put the plug back into the wall socket and let the iron heat up to
let the soleplate dry.
2 Unplug the iron when the temperature light goes out.
3 Move the iron gently over a piece of used cloth to remove any
water stains that may have formed on the soleplate.
4 Let the iron cool down before you store it.

1 Set the steam control to position 0, remove the mains plug from
the wall socket and let the iron cool down.
2 Wind the mains cord round the cord storage facility (Fig. 17).
Note: Make sure that the mains cord does not press down the handle during
storage.
3 Store the iron on its heel in a safe and dry place.

- Do not throw away the appliance with the normal household waste
at the end of its life, but hand it in at an ofcial collection point for
recycling. By doing this, you help to preserve the
environment (Fig. 18).

If you need service or information or if you have a problem, please visit
the Philips website at www.philips.com or contact the Philips Consumer
Care Centre in your country (you nd its phone number in the
14

worldwide guarantee leaet). If there is no Consumer Care Centre in
your country, go to your local Philips dealer.

This chapter summarises the most common problems you could
encounter with the appliance. If you are unable to solve the problem with
the information below, contact the Consumer Care Centre in your
country.
Problem Possible cause Solution
The iron is
plugged in,
but the
soleplate
stays cold.
There is a
connection
problem.
Check the mains cord, the plug
and the wall socket.
The temperature
dial is set to MIN. Set the temperature dial to the required position.
The iron
does not
produce any
steam.
There is not
enough water in
the water tank.
Fill the water tank (see chapter
‘Preparing for use’, section ‘Filling
the water tank).
The steam control
is set to position 0. Set the steam control to l or ;
(see chapter ‘Preparing for use’,
table ‘ Temperature and steam
settings’).
The iron is not hot
enough and/or the
drip-stop function
has been activated.
Set an ironing temperature that is
suitable for steam ironing ( 2 to
MAX). Put the iron on its heel and
wait until the temperature light
goes out before you start ironing.
 15

Problem Possible cause Solution
The steam
boost
function
does not
work
properly.
You used the
steam boost
function too often
within a short
period.
Continue ironing in horizontal
position and wait a while before
you use the steam boost function
again..
The iron is not hot
enough. Set an ironing temperature at which the steam boost function
can be used ( 3 to MAX). Put
the iron on its heel and wait until
the temperature light goes out
before you use the steam boost
function.
Water
droplets
drip onto
the fabric
during
ironing
You have not
closed the cap of
the lling opening
properly.
Press the cap until you hear a click.
You have put an
additive in the
water tank.
Rinse the water tank and do not
put any additive in the water tank.
You have used the
steam boost
function at a
temperature
setting below
3.
Set the temperature dial to a
setting between 3 and MAX
16

Problem Possible cause Solution
You have set a too
low temperature
for steam ironing.
Set an ironing temperature that is
suitable for steam ironing ( 2 to
MAX). Put the iron on its heel and
wait until the temperature light
goes out before you start ironing
Water drips
from the
soleplate
after the
iron has
cooled
down or
has been
stored.
You have put the
iron in horizontal
position with water
still left in the
water tank.
Empty the water tank before you
store the iron. Store the iron on its
heel.
Flakes and
impurities
come out of
the
soleplate
during
ironing.
Hard water forms
akes inside the
soleplate.
Use the Calc-Clean function one
or more times (see chapter
‘Cleaning and maintenance’,
section ‘Calc-Clean function’).
The red
auto-
off light
ashes
(specic
types only).
The
automatic shut-off
function has
switched off the
iron (see chapter
‘Features’).
Move the iron slightly to deactivate
the automatic shut-off function.
The red auto-off light goes out.
 17

222
2 3 4 5
67 8 9
10 11 12 13
14 15 16 17
18
