Philips DVD-LV70 User manual

Service Manual
TOP NEXT
ORDER NO. ODSD010202A5
B12
Portable DVD/VIDEO CD/CD Player
 DVD-LV70
Colour
(s).....................Silver Type
Area
PP....................U.S.A. and Canada.
EB....................Great Britain.
EG....................Germany and Poland,etc.
Please file and use this manual together with the service manual for
Model No. DVD-LV75D,PV55D, Order No. ODSD000305C1
Model No. DVD-LV75EB/EC,PV55EB/EC, Order No. ODSD000404C2.
Specifications
•General
Power supply: DC 9 V (AC adaptor terminal)/
DC 7.2 V (Exclusive battery terminal)
Power consumption: 13 W (8 W: Unit only)[Power consumption in standby mode: 2 W (when using the included AC adaptor)]
AC adaptor
Power supply: AC 120 V, 60 Hz
Power consumption: 23 W
Page
1
of
3
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0000000000.html

DC output: 9 V, 1.5 A
Signal system: NTSC
Mass 613g
Dimensions: 185 (W)×140 (D)×25.1 (H) mm
(when the LCD screen is closed,excluding protrusions)
Operating temperature range: 5°C to 35°C (41°F to 95°F)
Operating humidity range: 5 to 90% RH (no condensation)
Region number: Region No.3
•Discs played
(1) DVD-Video disc:
(2) Compact disc (CD-DA, Video CD)
(2) CD-R
•LCD screen 5”
-Si, TFT wide-screen LCD
•S video output
Y output level: 1 Vp-p (75Ω)
C output level: 0.286 Vp-p (75Ω)
Output terminal: S terminal (1 system)
•Video output/ input
Output/input level: 1 Vp-p (75Ω)
Output/input terminal: Mini-jack
(1 system, Output/input selectable)
•Audio output/input
Output/input level: 1.5 Vrms (1 kHz, 0 dB)
Output/input terminal:
2 ch (MIX) Output (L/R): Stereo mini-jack
(1 system, Output/input selectable)
(Also used for digital audio output)
•Audio signal output characteristics
(1) Frequency response:
DVD (linear audio): 2 Hz-22 kHz (48 kHz sampling)
2 Hz-44 kHz (96 kHz sampling)
CD audio: 2 Hz-20 kHz
(2) S/N ratio:
CD audio: 115 dB
(3) Dynamic range:
CD audio: 97 dB
•Digital audio output
Optical digital output: Mini optical terminal
(Also used for audio output/input)
•Pickup
Wave length: 660 nm/780 nm
Page
2
of
3
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0000000000.html

© 2001 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
TOP
NEXT
Laser power: CLASS 2/CLASS 3A
Notes:
Specifications are subject to change without notice.
Mass and dimensions are approximate.
Page
3
of
3
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0000000000.html

Page
1
of
1
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/em_cas.gif

Page
1
of
1
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/em_tra.gif

Page
1
of
1
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/em_pac.gif

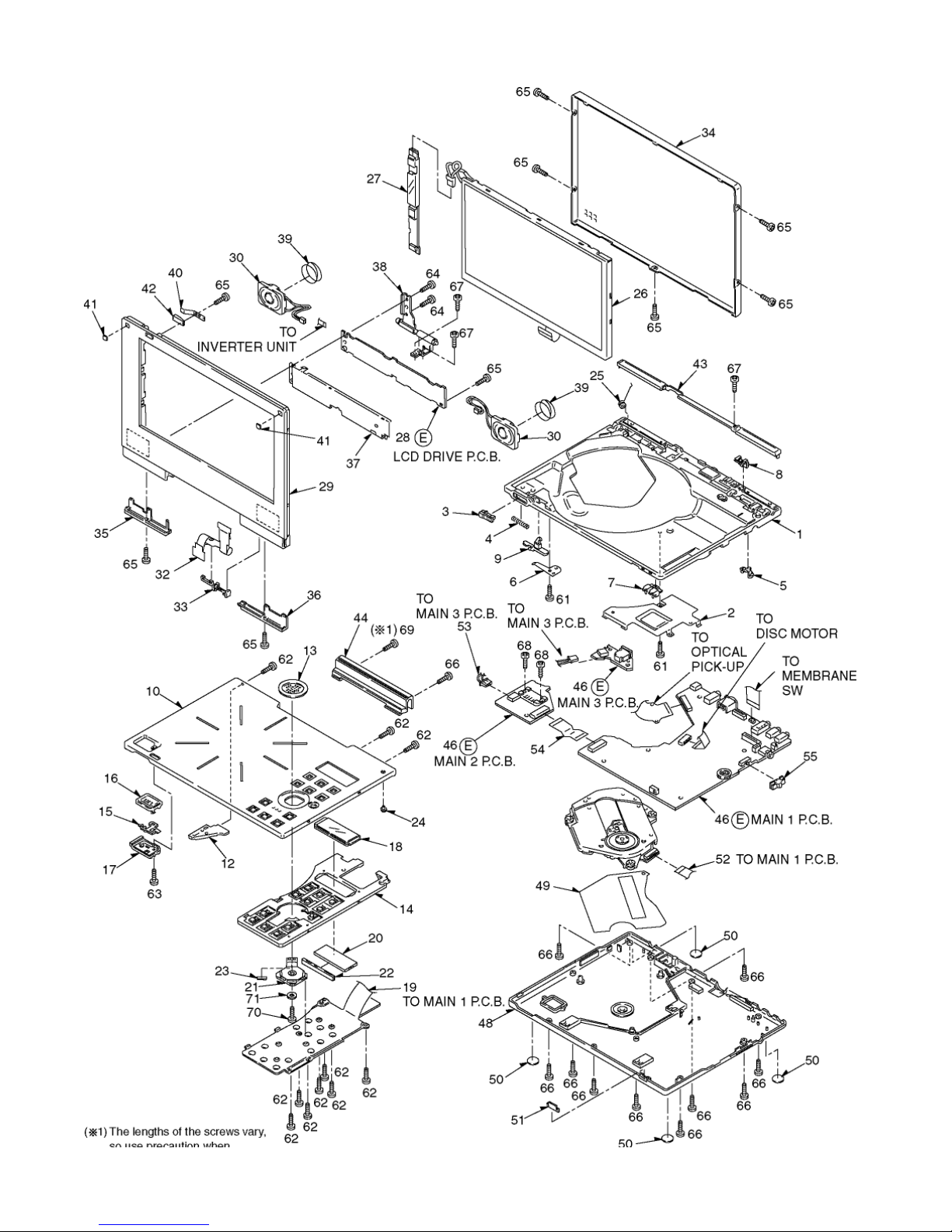

4 REPLACEMENT PARTS LIST
TOP PREVIOUS
Notes:
*Important safety notice:
Components identified by mark have special characteristics important for safety.
Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound
(capacitors), low-noise (resistors), etc. are used.
When replacing any of components, be sure to use only manufactures specified parts shown in the parts
list.
*Warning: This product uses a laser diode. Refer to caution statements.
*ACHTUNG: Die lasereinheit nicht zerlegen. Die lasereinheit darf nur gegen enic vom hersteller
spezifizierte einheit ausgetauscht werden.
*Capacity values are in microfarads (µF) unless specified otherwise, P=Pico-farads (pF), F=Farads (F).
*Resistance values are in ohms, unless specified otherwise, 1K=1,000 (OHM), 1M=1,000k (OHM).
*The marking (RTL) indicates that the Retention Time is limited for this item. After the discontinuation
of this assembly in production, the item will continue to be available for a specific period of time. The
retention period of availabilityis dependant on the type of assembly, and in accordance with the laws
governing part and product retention. After the end of this period, the assembly will no longer be
available.
*[SPC] in Remarks columns parts that are supplied by S.P.C..
*[<IA>: German/French, <IB>: Englich, <IC>: Spanish/Italian/Swedish/Dutch/Danish, <ID>: American
English, Canadian French]
*”(PP)”, “(EB)”, “(EG)”, marks in Remarks indicate models.
[(PP): DVD-LV70PP, (EB): DVD-LV70EB, (EG): DVD-LV70EG]
Ref. No. Part No. Part Name & Description Pcs Remarks
1VGP5316 MAIN CABINET 1 [SPC]
2VSC4994 HEAT SINK 1 [SPC]
3VGU8388 LOCK KNOB 1 [SPC]
4VMB3399 LOCK KNOB SPRING 1 [SPC]
5VMD3826 STOPPER 1 [SPC]
6VMC1596 SPRING 1 [SPC]
Page
1
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

7VGL0870 HOLDER 1 [SPC]
8VGU8390 BUTTON 1 [SPC]
9VMD3969 LOCK SLIDER 1 [SPC]
10 VGM1790 DISK COVER 1 [SPC]
12 VMD3825A SHAFT 1 [SPC]
13 VGU8782 NAVIGATOR BUTTON 1 [SPC]
14 VGU8574 OPERATION BUTTON 1 [SPC]
15 VMD3827 LOCK LEVER 1 [SPC]
16 VGU8394 OPEN BUTTON 1 [SPC]
17 VMD3861 LOCK LEVER BASE 1 [SPC]
18 VGK2559 LCD COVER 1 [SPC]
19 VXK1664 MEMBRANE SW UNIT 1 [SPC]
20 VSL0544 DISPLAY LCD 1 [SPC]
21 VSS0575 NAVIGATION SW 1 [SPC]
22 VMG1291 RUBBER(A) 1 [SPC]
23 VMG1292 RUBBER(B) 1 [SPC]
24 VGU8391 BUTTON 1 [SPC]
25 VMB3400 OPEN SPRING 1 [SPC]
26 EDTCA31QNF LCD PANEL 1 [SPC]
27 VEK8927 INVERTER UNIT 1 [SPC]
28 VEP93330B LCD DRIVE P.C.B. 1 (RTL)[SPC](PP)
28 VEP93330C LCD DRIVE P.C.B. 1 (RTL)[SPC](EB/EG)
29 VGP5199 MONITOR CABINET 1 [SPC]
30 EAS2D01E0 SPEAKER 2 [SPC]
32 VWJ1381 MONITOR FPC 1 (FP1001-FP8001)[SPC]
33 VMD3829 FPC HOLDER 1 [SPC]
34 VGM1791 MONITOR COVER(A) 1 [SPC]
35 VMD3828 MONITOR COVER(B) 1 [SPC]
36 VMD3860 MONITOR COVER(C) 1 [SPC]
37 VSC4995 SHIELD PLATE 1 [SPC]
38 VKC0574 HINGE 1 [SPC]
39 VMB3401 SPRING 2 [SPC]
40 VMC1615 SPRING 1 [SPC]
41 VMT1092 CUSHION 2 [SPC]
42 VMD3989 LOCK COVER 1 [SPC]
43 VMD3831 HINGE BASE 1 [SPC]
44 VMD4039 HINGE COVER 1 [SPC]
46 REP3169A-M MAIN 1,2,3 P.C.B. 1 (RTL)[SPC](PP)
46 REP3169B-M MAIN 1,2,3 P.C.B. 1 (RTL)[SPC](EB/EG)
48 VMD4203 BOTTOM CABINET 1 [SPC](PP)
48 VMD4205 BOTTOM CABINET 1 [SPC](EB/EG)
49 VMZ3004 INSULATION SHEET 1 [SPC]
50 VKA0313 LEG 4 [SPC]
51 VMD3822 COVER 1 [SPC]
52 VWJ20D0038AA SPINDLE CABLE 1 (DISC MOTOR-FP2501)[SPC]
53 VEE0J92 DC-IN CABLE 1 (P1402-P1601)[SPC]
54 VWJ12E7034LL BATTERY FFC 1 (FP1002-FP1403)[SPC]
Page
2
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

55 VGU8389 SLIDE LEVER 1 [SPC]
56* VMC1655 HARD GASKET 1 [SPC]
61 XQN16+AG5FZ SCREW 2 [SPC]
62 XQN14+BG3FC SCREW 10 [SPC]
63 XQN14+BJ25FZ SCREW 1 [SPC]
64 XQS16+CG45FZ SCREW 2 [SPC]
65 XQN17+BG4FN SCREW 9 [SPC]
66 XQN16+CG6FN SCREW 11 [SPC]
67 XQN16+AG5FZ SCREW 3 [SPC]
68 XQN17+BG4FZ SCREW 2 [SPC]
69 XQN16+CG10FN SCREW 1 [SPC]
70 RHD12002-K SCREW 1 [SPC]
71 RHW13021 WASHER 1 [SPC]
101 BKL2E01KA DISC MOTOR 1 [SPC]
102 VDG1421 INTERFACE GEAR 1 [SPC]
103 VEM0727 TRAVERSE MOTOR UNIT 1 [SPC]
104 VMA0E21 MAIN SHAFT HOLDER 1 [SPC]
105 VMA0E22 SUB SHAFT HOLDER 1 [SPC]
106 VMC1590 EARTH SPRING 1 [SPC]
107 VMC1592 SPRING 1 [SPC]
108 VMC1593 SPRING 1 [SPC]
109 VMD3801 TRAVERSE BASE 1 [SPC]
110 VMD3802 MOTOR COVER 1 [SPC]
111 VMG1282 DAMPER 3 [SPC]
112 VMS6730 MAIN SHAFT 1 [SPC]
113 VXJ0232 SUB SHAFT UNIT 1 [SPC]
114 VXJ0233 DRIVE SHAFT UNIT 1 [SPC]
115 VED0447 OPTICAL PICK-UP 1
[SPC]
116 VMC1594 SPRING 1 [SPC]
117 VMC1591 SPRING 1 [SPC]
118 VMD3803 NUT PLATE 1 [SPC]
119 XQN14+C2 SCREW 2 [SPC]
120 XQN17+CG45 SCREW 7 [SPC]
121 XXE26C4 SCREW 2 [SPC]
122 RMZ0561 EMC SHEET 1 [SPC]
A1 N2QAHC000007 REMOTE CONTROL UNITS 1 [SPC](PP)
A1 N2QAHC000008 REMOTE CONTROL UNITS 1 [SPC](EB/EG)
A1-1 NTR114172005 BATTERY COVER 1 [SPC]
A2 RJA0053-2X AC CORD 1
[SPC](EB)
A2 RJA0019-1X AC CORD 1
[SPC](EG)
A3 RQT5898-D OPERATING INSTRUCTIONS 1 <IA>[SPC](EG)
A3 RQT5900-B OPERATING INSTRUCTIONS 1 <IB>[SPC](EB/EG)
A3 RQT5899-E OPERATING INSTRUCTIONS 1 <IC>[SPC](EG)
A3 RQT5897-Y OPERATING INSTRUCTIONS 1 <ID>[SPC](PP)
A5 N0JEEJ000001 AC ADAPTOR 1
[SPC](EB/EG)
Page
3
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

A5 N0JZEH000001 AC ADAPTOR 1
[SPC](PP)
A7 RJL3X001X15 A/V CORD 1 [SPC]
C1002 ECUVNC105KBN 16V 1U 1 F1J1C105A091 [SPC]
C1005 ECUVNC105KBN 16V 1U 1 F1J1C105A091 [SPC]
C1007 ECJ1XB1H471K 50V 470P 1 ECUX1H471KBV [SPC]
C1008 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C1010 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C1011 ECUX1H221JCV 50V 220P 1 [SPC]
C1012 ECUVNC105KBN 16V 1U 1 F1J1C105A091 [SPC]
C1014 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C1015 ECUVNC105KBN 16V 1U 1 F1J1C105A091 [SPC]
C1016 ECUVNJ105KBV 6.3V 1U 1 F1H0J105A002 [SPC]
C1017 RCST1CY106RG 16V 10U 1 F3F1C1060002 [SPC]
C1018 ECUX1H181JCV 50V 180P 1 [SPC]
C1021,22 ECUVNC333KBV 16V 0.033U 2 F1H1C333A071 [SPC]
C1023 ECUVNC105KBN 16V 1U 1 F1J1C105A091 [SPC]
C1024 ECUX1H221JCV 50V 220P 1 [SPC]
C1025-28 ECUX1H102KBV 50V 1000P 4 [SPC]
C1029,30 ECUX1H221JCV 50V 220P 2 [SPC]
C1031 ECUVNC105KBN 16V 1U 1 F1J1C105A091 [SPC]
C1032 ECUV1A335KBN 10V 3.3U 1 F1J1A335A005 [SPC]
C1035-37 RCST1AX476RG 10V 47U 3 F3G1A4760002 [SPC]
C1038 ECUVNC105KBN 16V 1U 1 F1J1C105A091 [SPC]
C1039 ECUV1A335KBN 10V 3.3U 1 F1J1A335A005 [SPC]
C1042 RCST1CX226RG 16V 22U 1 F3G1C2260001 [SPC]
C1043,44 ECUVNC105KBN 16V 1U 2 F1J1C105A091 [SPC]
C1045 RCST1CX226RG 16V 22U 1 F3G1C2260001 [SPC]
C1046 ECUV1A335KBN 10V 3.3U 1 F1J1A335A005 [SPC]
C1048,49 RCST1CX226RG 16V 22U 2 F3G1C2260001 [SPC]
C1053,54 ECUVNC105KBN 16V 1U 2 F1J1C105A091 [SPC]
C1055,56 ECUV1A335KBN 10V 3.3U 2 F1J1A335A005 [SPC]
C1057 ECUVNC105ZFN 25V 1U 1 F1J1C105A063 [SPC]
C1058 RCST1VC685RG 35V 6.8U 1 F3H1V6850002 [SPC]
C1059 RCST1EC106RG 25V 10U 1 F3H1E1060005 [SPC]
C1063 ECUV1C106KBP 16V 10U 1 F1L1C106A011 [SPC]
C1069 ECUX1H181JCV 50V 180P 1 [SPC]
C1070 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C1071 ECUVNC473KBV 16V 0.047U 1 F1H1C473A071 [SPC]
C1072 ECUV1H331JCV 50V 330P 1 F1H1H331A004 [SPC]
C1073 RCST1AX476RG 10V 47U 1 F3G1A4760002 [SPC]
C1081 ECUV1A335KBN 10V 3.3U 1 F1J1A335A005 [SPC]
C1402 ECUX1H102KBV 50V 1000P 1 [SPC]
C1403 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C1406 ECUV1C106KBP 16V 10U 1 F1L1C106A011 [SPC]
C1407,08 ECUVNH103KBV 50V 0.01U 2 F1H1H103A748 [SPC]
C1409 VCE0216C330 10V 33U 1 [SPC]
Page
4
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

C1411 ECUV1C106KBP 16V 10U 1 F1L1C106A011 [SPC]
C1413 ECUV1A224KBV 10V 0.22U 1 F1H1A224A001 [SPC]
C1414 ECUVNC104KBV 16V 0.1U 1 [SPC]
C1415 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C1416 ECUV1H391JCV 50V 390P 1 F1H1H391A004 [SPC]
C1417 ECUV1A224KBV 10V 0.22U 1 F1H1A224A001 [SPC]
C1418 ECUVNC333KBV 16V 0.033U 1 F1H1C333A071 [SPC]
C1419 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C1420,21 ECUVNC105KBN 16V 1U 2 F1J1C105A091 [SPC]
C1422 ECUV1C106KBP 16V 10U 1 F1L1C106A011 [SPC]
C1601 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C1602 ECUX1H102KBV 50V 1000P 1 [SPC]
C1603 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C2001 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C2003 ECUV1H331JCV 50V 330P 1 F1H1H331A004 [SPC]
C2004,05 ECUV1H121JCV 50V 120P 2 [SPC]
C2006,07 ECUV1H101JCV 50V 100P 2 F1H1H101A004 [SPC]
C2008 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C2009 ECUVNH102JCV 50V 1000P 1 F1H1H102A737 [SPC]
C2010 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C2011,12 ECUX1H681JCV 50V 680P 2 [SPC]
C2013 ECUX1H682KBV 50V 6800P 1 [SPC]
C2014 ECUX1H681JCV 50V 680P 1 [SPC]
C2015,16 ECUVNC104KBV 16V 0.1U 2 [SPC]
C2017 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C2018 ECUV1H470JCV 50V 47P 1 [SPC]
C2019,20 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C2021 ECUV1A335KBN 10V 3.3U 1 F1J1A335A005 [SPC]
C2022 ECUVNC105ZFN 25V 0.018U 1 F1J1C105A063 [SPC]
C2023 RCST1AC107RG 10V 100U 1 F3H1A1070006 [SPC]
C2024 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C2025 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C2026 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C2027 ECUX1C474KBN 16V 0.47U 1 F1J1C474A091 [SPC]
C2028 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C2029 ECUVNC104KBV 16V 0.1U 1 [SPC]
C2030-37 ECUZNC104ZFV 16V 0.1U 8 F1H1C1040008 [SPC]
C2038,39 RCST1AC107RG 10V 100U 2 F3H1A1070006 [SPC]
C2040 ECUX1H822KBV 50V 8200P 1 [SPC]
C2041 ECUX1C393KBV 16V 0.039U 1 [SPC]
C2042 ECUVNC473KBV 16V 0.047U 1 F1H1C473A071 [SPC]
C2501 RCST1CC476RG 16V 47U 1 F3H1C4760008 [SPC]
C2502 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C2503-08 ECUVNH332KBV 50V 3300P 6 F1H1H332A748 [SPC]
C2511,12 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C2513 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C2514 ECUVNE153KBV 25V 0.015U 1 F1H1E153A050 [SPC]
Page
5
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

C2515 ECUVNC104KBV 16V 0.1U 1 [SPC]
C2516 ECUVNE153KBV 25V 0.015U 1 F1H1E153A050 [SPC]
C2517,18 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C2519 ECUV1H101JCV 50V 100P 1 F1H1H101A004 [SPC]
C2520 ECUVNE153KBV 25V 0.015U 1 F1H1E153A050 [SPC]
C2521 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C3001 RCST1AC107RG 10V 100U 1 F3H1A1070006 [SPC]
C3002 RCST0JD227RG 6.3V 220U 1 F3H0J2270002 [SPC]
C3004 ECUVNA105ZFV 10V 1U 1 F1H1A105A030 [SPC]
C3005,06 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C3007,08 ECUVNA105ZFV 10V 1U 2 F1H1A105A030 [SPC]
C3009-11 ECUZNC104ZFV 16V 0.1U 3 F1H1C1040008 [SPC]
C3012,13 ECUVNA105ZFV 10V 1U 2 F1H1A105A030 [SPC]
C3014,15 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C3016 ECUVNA105ZFV 10V 1U 1 F1H1A105A030 [SPC]
C3017,18 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C3019,20 ECUVNA105ZFV 10V 1U 2 F1H1A105A030 [SPC]
C3021-23 ECUZNC104ZFV 16V 0.1U 3 F1H1C1040008 [SPC]
C3024 ECUVNA105ZFV 10V 1U 1 F1H1A105A030 [SPC]
C3025 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C3026 ECUVNA105ZFV 10V 1U 1 F1H1A105A030 [SPC]
C3027 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C3029 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C3030 ECUVNA105ZFV 10V 1U 1 F1H1A105A030 [SPC]
C3032 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C3034,35 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C3041,42 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C3061-64 ECUZNC104ZFV 16V 0.1U 4 F1H1C1040008 [SPC]
C3065 ECUVNA105ZFV 10V 1U 1 F1H1A105A030 [SPC]
C3066 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C3071-74 ECUZNC104ZFV 16V 0.1U 4 F1H1C1040008 [SPC](EB/EG)
C3075 ECUVNA105ZFV 10V 1U 1 F1H1A105A030 [SPC](EB/EG)
C3076 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC](EB/EG)
C3080 RCST1AC107RG 10V 100U 1 F3H1A1070006 [SPC]
C3081,82 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C3083,84 ECUVNJ105KBV 6.3V 1U 2 F1H0J105A002 [SPC]
C3201 ECUVNC104KBV 16V 0.1U 1 [SPC]
C3202 ECUX1H103ZFV 50V 0.01U 1 [SPC]
C3203 RCST1CC476RG 16V 47U 1 F3H1C4760008 [SPC]
C3204,05 ECEV0GA471 4V 470U 2 [SPC]
C3206 ECUX1H103ZFV 50V 0.01U 1 [SPC]
C3207 ECUVNC104KBV 16V 0.1U 1 [SPC]
C3209 ECUX1H103ZFV 50V 0.01U 1 [SPC]
C3210 RCST1CX226RG 16V 22U 1 F3G1C2260001 [SPC]
C3211 RCST1AX476RG 10V 47U 1 F3G1A4760002 [SPC]
C3214 ECUX1H150JCV 50V 15P 1 [SPC]
C3215 RCST1CX226RG 16V 22U 1 F3G1C2260001 [SPC]
Page
6
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

C4001 EEVHB1C470 16V 47U 1 [SPC]
C4002 RCST1AY106RC 10V 10U 1 F3F1A1060002 [SPC]
C4003,04 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C4009 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C4015 RCST1AY106RC 10V 10U 1 F3F1A1060002 [SPC]
C4016 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C4018,19 RCST1AX226RC 10V 22U 2 F3G1A226A002 [SPC]
C4042 EEVHB1C470 16V 47U 1 [SPC]
C4043,44 RCST1AX476RG 10V 47U 2 F3G1A4760002 [SPC]
C4045-47 ECUZNC104ZFV 16V 0.1U 3 F1H1C1040008 [SPC]
C4048,49 RCST1AY106RC 10V 10U 2 F3F1A1060002 [SPC]
C4050 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C4051 RCST1CX226RG 16V 22U 1 F3G1C2260001 [SPC]
C4052 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C4053,54 RCST1AY106RC 10V 10U 2 F3F1A1060002 [SPC]
C4055-58 ECUV1H470JCV 50V 47P 4 [SPC]
C4063,64 ECUVNJ105KBV 6.3V 1U 2 F1H0J105A002 [SPC]
C4065,66 ECUV1H101JCV 50V 100P 2 F1H1H101A004 [SPC]
C4068 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C4069,70 ECUVNC104KBV 16V 0.1U 2 [SPC]
C4079 RCST1CX226RG 16V 22U 1 F3G1C2260001 [SPC]
C4080 ECUVNC104KBV 16V 0.1U 1 [SPC]
C4085 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C4086 ECUVNC104KBV 16V 0.1U 1 [SPC]
C4087 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C4090 ECUX1H103ZFV 50V 0.01U 1 [SPC]
C4093 ECUM1H103KBN 50V 0.01U 1 [SPC]
C5001,02 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C5003 RCST1CC476RG 16V 47U 1 F3H1C4760008 [SPC]
C5004 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C5005 RCST1CC476RG 16V 47U 1 F3H1C4760008 [SPC]
C5007 ECUX1H221JCV 50V 220P 1 [SPC]
C5008 RCST1AX476RG 10V 47U 1 F3G1A4760002 [SPC]
C5010 ECUV1H470JCV 50V 47P 1 [SPC]
C5011-13 ECUZNC104ZFV 16V 0.1U 3 F1H1C1040008 [SPC]
C5016 ECUVNC104KBV 16V 0.1U 1 [SPC]
C5017,18 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C5025 ECUX1H221JCV 50V 220P 1 [SPC]
C5026 RCST1CC476RG 16V 47U 1 F3H1C4760008 [SPC]
C5027 ECUV1A474KBV 10V 0.47U 1 F1H1A474A025 [SPC]
C5028 ECUX1H390JCV 50V 39P 1 [SPC]
C5029 ECUVNH102JCV 50V 1000P 1 F1H1H102A737 [SPC]
C5030 ECUV1H101JCV 50V 100P 1 F1H1H101A004 [SPC]
C5031 ECUX1H221JCV 50V 220P 1 [SPC]
C5032 ECUVNC104KBV 16V 0.1U 1 [SPC]
C5034 ECUV1A474KBV 10V 0.47U 1 F1H1A474A025 [SPC]
C5035 ECUM1H182JCN 50V 1800P 1 [SPC]
Page
7
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

C5036 ECUVNC104KBV 16V 0.1U 1 [SPC]
C5039 ECUVNC104KBV 16V 0.1U 1 [SPC]
C5042 ECUX1H180JCV 50V 18P 1 [SPC]
C5050,51 RCST1CY106RG 16V 10U 2 F3F1C1060002 [SPC]
C5052 ECUVNC105KBN 16V 1U 1 F1J1C105A091 [SPC]
C6001 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C6002 ECUVNA105KBN 10V 1U 1 F1J1A105A003 [SPC]
C6003 RCST1AX476RG 10V 47U 1 F3G1A4760002 [SPC]
C6004,05 ECUVNA105KBN 10V 1U 2 F1J1A105A003 [SPC]
C6006 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C6010 RCST1CY106RG 16V 10U 1 F3F1C1060002 [SPC]
C6011 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C6012,13 RCST1CY106RG 16V 10U 2 F3F1C1060002 [SPC]
C6201 RCST1AX476RG 10V 47U 1 F3G1A4760002 [SPC]
C6202-08 ECUZNC104ZFV 16V 0.1U 7 F1H1C1040008 [SPC]
C6301 ECUV1H101JCV 50V 100P 1 F1H1H101A004 [SPC]
C6302 ECUVNC104KBV 16V 0.1U 1 [SPC]
C6303,04 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C6501 RCST1AX476RG 10V 47U 1 F3G1A4760002 [SPC]
C6502,03 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C6504 RCST1CY106RG 16V 10U 1 F3F1C1060002 [SPC]
C6511-13 ECUZNC104ZFV 16V 0.1U 3 F1H1C1040008 [SPC]
C6514 ECUX1H180JCV 50V 18P 1 [SPC]
C6515 ECUX1H120JCV 50V 12P 1 [SPC]
C6516,17 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C6521 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C6531 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C6551 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C6553 RCST1CY106RG 16V 10U 1 F3F1C1060002 [SPC]
C7001,02 RCST0JX107RG 6.3V 100U 2 F3G0J1070002 [SPC]
C7003,04 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C7006 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C7011-26 ECUZNC104ZFV 16V 0.1U 16 F1H1C1040008 [SPC]
C8001,02 ECUV1A224KBV 10V 0.22U 2 F1H1A224A001 [SPC]
C8004 ECUX1H030DCV 50V 3P 1 [SPC]
C8005 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C8006 ECUX1C474KBN 16V 0.47U 1 F1J1C474A091 [SPC]
C8007 ECUVNC104KBV 16V 0.1U 1 [SPC]
C8008 ECUVNC473KBV 16V 0.047U 1 F1H1C473A071 [SPC]
C8009 ECUX1H180JCV 50V 18P 1 [SPC](PP)
C8009 ECUX1H390JCV 50V 39P 1 [SPC](EB/EG)
C8010 ECUX1H180JCV 50V 18P 1 [SPC](PP)
C8011 ECST1AY335Z 10V 3.3U 1 ECST1AY335R [SPC]
C8012 ECUX1H682KBV 50V 6800P 1 [SPC]
C8013,14 ECUVNH103KBV 50V 0.01U 2 F1H1H103A748 [SPC]
C8028 VCS0JU336 6.3V 33U 1 [SPC]
C8029 ECST1AY106Z 10V 10U 1 ECST1AY106R [SPC]
Page
8
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

C8030 ECUVNA105KBN 10V 1U 1 F1J1A105A003 [SPC]
C8031 ECUV1H221KBV 50V 220P 1 F1H1H2210001 [SPC]
C8034,35 ECUVNA105KBN 10V 1U 2 F1J1A105A003 [SPC]
C8036 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C8037 ECUV1A224KBV 10V 0.22U 1 F1H1A224A001 [SPC]
C8039,40 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C8041 ERJ3GEY0R00 1/16W 0 1 [SPC]
C8043 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C8101-09 ECUVNH103KBV 50V 0.01U 9 F1H1H103A748 [SPC]
C8110 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC](PP)
C8111,12 ECUVNH103KBV 50V 0.01U 2 F1H1H103A748 [SPC]
C8201 ECUVNA105KBN 10V 1U 1 F1J1A105A003 [SPC]
C8202-11 ECUV1H470JCV 50V 47P 10 [SPC]
C8213 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C8215 ECUVNC105ZFN 16V 1U 1 F1J1C105A063 [SPC]
C8217 ECUVNC105ZFN 16V 1U 1 F1J1C105A063 [SPC]
C8218 ECST1AY106Z 10V 10U 1 ECST1AY106R [SPC]
C8219 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C8220 ECST0JY106Z 6.3V 10U 1 [SPC]
C8221 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C8222 ECUV1H121JCV 50V 120P 1 [SPC]
C8224,25 ECUZNC104ZFV 16V 0.1U 2 F1H1C1040008 [SPC]
C8230 ECUX1H821KBV 50V 820P 1 [SPC]
C8231,32 ECUX1H221JCV 50V 220P 2 [SPC]
C8234 ECUX1H221JCV 50V 220P 1 [SPC](EB/EG)
C8234 ECUX1H821KBV 50V 820P 1 [SPC](PP)
C8235 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC](EB/EG)
C8236 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC](EB/EG)
C8402 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C8404 ECST1AY106Z 10V 10U 1 ECST1AY106R [SPC]
C8405 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C8406 ECUV1H271KBV 50V 270P 1 F1H1H271A009 [SPC]
C8407 ECUVNC225KBM 16V 2.2U 1 F1K1C2250005 [SPC]
C8409 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C8601 ECUVNC105KBN 16V 1U 1 F1J1C105A091 [SPC]
C8602 ECUX1H102KBV 50V 1000P 1 [SPC]
C8604 ECUVNC104KBV 16V 0.1U 1 [SPC](PP)
C8604 ECUVNJ105KBV 6.3V 1U 1 F1H0J105A002 [SPC](EB/EG)
C8605 ECUV1H561KBV 50V 560P 1 F1H1H561A013 [SPC]
C8606 ECUVNC105ZFN 16V 1U 1 F1J1C105A063 [SPC]
C8607 ECUVNJ105KBV 6.3V 1U 1 F1H0J105A002 [SPC]
C8801 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C8802 ECUVNC105ZFN 16V 1U 1 F1J1C105A063 [SPC]
C8803 RCST1CX226RG 16V 22U 1 F3G1C2260001 [SPC]
C8804 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C8805 ECUVNC105ZFN 16V 1U 1 F1J1C105A063 [SPC]
C8806 VCS0JU336 6.3V 33U 1 [SPC]
Page
9
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

C8807 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC]
C8808 RCST1AX476RG 10V 47U 1 F3G1A4760002 [SPC]
C8809 ECUVNC105ZFN 16V 1U 1 F1J1C105A063 [SPC]
C8810,11 ECUV1H470JCV 50V 47P 2 [SPC]
C8819-23 ECUVNH103KBV 50V 0.01U 5 F1H1H103A748 [SPC]
C8826-29 ECUVNH103KBV 50V 0.01U 4 F1H1H103A748 [SPC]
C8840 EEFCD1B220R 22U 1 [SPC]
C8841 ECUZNC104ZFV 16V 0.1U 1 F1H1C1040008 [SPC]
C8901 ECUX1H681JCV 50V 680P 1 [SPC](EB/EG)
C8902 ECRKN030G61 C.CAPACITOR 1 [SPC](EB/EG)
C8903 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC](EB/EG)
C8904 ECUX1H390JCV 50V 39P 1 [SPC](EB/EG)
C8905 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC](EB/EG)
C8906 ECUX1H820JCV 50V 82P 1 [SPC](EB/EG)
C8907 ECUVNH103KBV 50V 0.01U 1 F1H1H103A748 [SPC](EB/EG)
D1004 MA728-TX DIODE 1 MA2J72800L [SPC]
D1005 SB05-05CP DIODE 1 B0JCCF000001 [SPC]
D1006 MA728-TX DIODE 1 MA2J72800L [SPC]
D1011,12 RB051L40TE25 DIODE 2 B0JCPE000016 [SPC]
D1013,14 M1FM3 DIODE 2 B0JCMD000008 [SPC]
D1401,02 SFPA-73V DIODE 2 B0JCPD000003 [SPC]
D1405 M1FM3 DIODE 1 B0JCMD000008 [SPC]
D1406 SFPA-73V DIODE 1 B0JCPD000003 [SPC]
D1407 MA3033-H DIODE 1 [SPC]
D1408 MA3047M DIODE 1 MAZ30470M [SPC]
D1409 MA3100L DIODE 1 [SPC]
D1410 MA111-TX DIODE 1 MA2J11100L [SPC]
D4001,02 MA111-TX DIODE 2 MA2J11100L [SPC]
D4003 MA142WATX DIODE 1 MA3J142D0L [SPC]
D4004 MA111-TX DIODE 1 MA2J11100L [SPC]
D4008 MA142WATX DIODE 1 MA3J142D0L [SPC]
D4009 MA111-TX DIODE 1 MA2J11100L [SPC]
D6001,02 LN1271RAL DIODE 2 LN1271RALTRP [SPC]
D6003-08 MA111-TX DIODE 6 MA2J11100L [SPC]
D6009 MA3062WA DIODE 1 MAZ3062D [SPC]
D6010 MA111-TX DIODE 1 MA2J11100L [SPC]
D6011,12 MA8051HTX DIODE 2 [SPC]
D6013,14 MA728-TX DIODE 2 MA2J72800L [SPC]
D6301 MA728-TX DIODE 1 MA2J72800L [SPC]
D8001 MA133 DIODE 1 MA3S133 [SPC]
D8201 MA745WAGTX DIODE 1 [SPC]
D8202 MA77 DIODE 1 MA2Z077 [SPC]
D8401 MA133 DIODE 1 MA3S133 [SPC]
D8402 MA132WA DIODE 1 MA3S132D [SPC]
D8601 MA338 DIODE 1 MA2X338 [SPC]
Page
10
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

FP1001 VJS4047C026 CONNECTOR (FEMALE) 26P 1 K1MN26A00026 [SPC]
FP1002 VJS2907B012 CONNECTOR (FEMALE) 12P 1 [SPC]
FP1403 VJS2907B012 CONNECTOR (FEMALE) 12P 1 [SPC]
FP2501 VJS3319B020 CONNECTOR (FEMALE) 20P 1 [SPC]
FP5001 VJS3320B035 CONNECTOR (FEMALE) 35P 1 [SPC]
FP5002 VJP4004C003W CONNECTOR (MALE) 3P 1 K1KA03A00153 [SPC]
FP6001 RJS2A6136 CONNECTOR (FEMALE) 36P 1 [SPC]
FP8001 VJS4012B024 CONNECTOR (FEMALE) 24P 1 [SPC]
FP8002 VJS3791B006 CONNECTOR (FEMALE) 6P 1 [SPC]
FP8003,04 VJP4002B002W CONNECTOR (FEMALE) 2P 2 [SPC]
FP8005 VJS3791B030 CONNECTOR (FEMALE) 30P 1 [SPC]
IC1001 BA9737KV IC 1 [SPC]
IC1002 MB3800PFVEF IC 1 C0DAAZZ00018 [SPC]
IC1003 C0CBAAB00020 IC 1 [SPC]
IC1401 MB3832APF IC 1 [SPC]
IC1402 XP132A1545SR IC 1 [SPC]
IC1405 XP132A1545SR IC 1 [SPC]
IC2001 MN67706EB IC 1 [SPC]
IC2501 AN8497SA IC 1 [SPC]
IC2502 NBC3904 IC 1 [SPC]
IC3001 MN677533MP IC 1 [SPC]
IC3061 MNX7160BT1 IC 1 MNX7160BT10 [SPC]
IC3071 MNX7160BT1 IC 1 MNX7160BT10 [SPC](EB/EG)
IC3201 TK15430VTL IC 1 C1AB00001308 [SPC]
IC4005 NJM3404AV IC 1 C0ABBA000076 [SPC]
IC4006 TK17040MTL IC 1 C0ABBA000099 [SPC]
IC4007 TK17030MTL IC 1 C0ABBA000098 [SPC]
IC4008 PCM1746E IC 1 [SPC]
IC4010 LM4863MT IC 1 [SPC]
IC4011 NJM3404AV IC 1 C0ABBA000076 [SPC]
IC5001 AN8707FH IC 1 [SPC]
IC5004 TC7S08FU IC 1 C0JBAA000203 [SPC]
IC5005 RN5RZ33BA IC 1 [SPC]
IC6001 MN101C439BC IC 1 [SPC]
IC6002 XC61CN2702NR IC 1 [SPC]
IC6003 RCDRS-52 IC 1 B3RZB0000004 [SPC]
IC6005 TK71550SCL IC 1 C0CBADB00014 [SPC]
IC6006 TK71533SCL IC 1 C0DBCGB00001 [SPC]
IC6201 MN102H60GFE IC 1 [SPC]
IC6301 PST596JNR IC 1 C0EBE0000070 [SPC]
IC6302 VUB8011T010 IC 1 [SPC]
IC6303 AT25020NSI27 IC 1 [SPC]
IC6501 BU2285FV IC 1 C1DB00000425 [SPC]
IC6521 AHC1GU04HDCK IC 1 C0JBAB000356 [SPC]
IC6531 AHC1GU04HDCK IC 1 C0JBAB000356 [SPC]
IC6551 TK71533SCL IC 1 C0DBCGB00001 [SPC]
Page
11
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

IC7001 MN103S19BGB IC 1 [SPC]
IC8001 IR3Y29AM IC 1 C1AA00000578 [SPC]
IC8002 TC4W53FU IC 1 C0JBAR000226 [SPC]
IC8003 BU4053BCFV IC 1 C0JBAS000079 [SPC]
IC8004 M62332FP IC 1 [SPC]
IC8201 T200G02F0002 IC 1 C1ZBZ0001462 [SPC]
IC8202 TC7W14FU IC 1 [SPC]
IC8205 TVHC221AFTEL IC 1 C0JBAM000039 [SPC](EB/EG)
IC8403 TA75W558FU IC 1 [SPC]
IC8404 TC7W14FU IC 1 [SPC]
IC8405 TC7ST04FU IC 1 [SPC]
IC8602 NJM2904V IC 1 C0ABBA000084 [SPC]
IC8801 AN78L05M IC 1 [SPC]
IC8802 TK71533SCL IC 1 C0DBCGB00001 [SPC]
J1402 VEK8922 BATTERY TERMINAL 1 [SPC]
J1601 VJJ0605 DC INLET 1 [SPC]
J3201 VJJ0687 JACK(S-VIDEO) 1 [SPC]
J3202 VJJ0689 JACK(VIDEO) 1 [SPC]
J4001 JFJ8100 JACK(AUDIO) 1 [SPC]
J4004 VJJ0686 JACK(HEADPHONE) 1 [SPC]
K2002 ERJ3GEY0R00 1/16W 0 1 [SPC]
K3001 ERJ3GEY0R00 1/16W 0 1 [SPC]
K3071 ERJ3GEY0R00 1/16W 0 1 [SPC](EB/EG)
K3299 VMC1467 EARTH ANGLE 1 [SPC]
K5299 VMC1467 EARTH ANGLE 1 [SPC]
K6301 ERJ3GEY0R00 1/16W 0 1 [SPC]
L1001 VLQ0914M2R0T COIL 1 G1C2R0M00001 [SPC]
L1002 VLQ0914M150T COIL 1 G1C150M00009 [SPC]
L1003 VLQ0914M4R3T COIL 1 G1C4R3M00001 [SPC]
L1004,05 VLQ0915M4R7T COIL 2 G1C4R7M00019 [SPC]
L1006 VLQ0914M150T COIL 1 G1C150M00009 [SPC]
L1007 VLQ0915M4R7T COIL 1 G1C4R7M00019 [SPC]
L1008,09 VLQ0914M220T COIL 2 G1C220M00028 [SPC]
L1010 VLQ0855K220 COIL 1 [SPC]
L1011 VLQ0855K100T COIL 1 G1C100K00020 [SPC]
L1012 VLQ0855K220 COIL 1 [SPC]
L1013 VLQ0915M4R7T COIL 1 G1C4R7M00019 [SPC]
L1014 ELJEA100KF COIL 1 [SPC]
L1015 ERJ14Y0R00 1/4W 0 1 [SPC]
L1402 VLQ0914M4R3T COIL 1 G1C4R3M00001 [SPC]
L1601 VLQ0849 COIL 1 G0B200H00005 [SPC]
L2001-03 ELJEA100KF COIL 3 [SPC]
L2501 VLQ0780K470 COIL 47UH 1 G1C470KA0004 [SPC]
L2502,03 VLQ0780K100 COIL 10UH 2 G1C100KA0004 [SPC]
Page
12
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

L2504 VLQ0780K470 COIL 47UH 1 G1C470KA0004 [SPC]
L2505,06 VLQ0780K100 COIL 10UH 2 G1C100KA0004 [SPC]
L2507 ERJ8GEY0R00V 1/8W 0 1 [SPC]
L3081 ELJEA100KF COIL 1 [SPC]
L3201 ELJEA470KF COIL 1 [SPC]
L3204 VLQ0780K470 COIL 47UH 1 G1C470KA0004 [SPC]
L4001 ELJEA101KF COIL 1 [SPC]
L4002 EXC3BB601H COIL 1 [SPC]
L4005 VLQ0865M220 COIL 22UH 1 G1C220M00026 [SPC]
L5001 ELJEA100KF COIL 1 [SPC]
L5003 ELJEA100KF COIL 1 [SPC]
L5005,06 ELJEA100KF COIL 2 [SPC]
L6201 ERJ14Y0R00 1/4W 0 1 [SPC]
L6501,02 ELJFC220KB COIL 2 [SPC]
L7001,02 ELJEA100KF COIL 2 [SPC]
L8001 VLQ0426J330 COIL 33UH 1 G1C330J00005 [SPC](EB/EG)
L8001 VLQ0426J560 COIL 56UH 1 G1C560J00001 [SPC](PP)
L8201 VLQ0464K100 COIL 10UH 1 G1C100K00025 [SPC]
L8205 VLQ0464K100 COIL 10UH 1 G1C100K00025 [SPC]
L8602 VLQ0426J1R5 COIL 1.5UH 1 G1C1R5J00007 [SPC]
L8603 ERJ6GEY0R00V 1/10W 0 1 [SPC]
L8801 VLQ0464K100 COIL 10UH 1 G1C100K00025 [SPC]
L8802 ERJ6GEYJ220 1/10W 22 1 [SPC]
L8803,04 VLQ0464K100 COIL 10UH 2 G1C100K00025 [SPC]
L8901 VLQ0426J220 COIL 22UH 1 G1C220J00007 [SPC](EB/EG)
LB1004 JALBK2HS470T COIL 1 G1CYYYZ00003 [SPC]
LB1006-15 EXC3BB601H COIL 10 [SPC]
LB1016 VLP0155-T COIL 1 J0JCC0000119 [SPC]
LB1401 ERJ6GEY0R00V 1/10W 0 1 [SPC]
LB3001 ERJ3GEYJ101 1/16W 100 1 D0GB101JA002 [SPC]
LB3201,02 EXC3BB102H COIL 2 [SPC]
LB3203 EXC3BB601H COIL 1 [SPC]
LB4001,02 VLQ0865M220 COIL 22UH 2 G1C220M00026 [SPC]
LB4007,08 VLQ0865M220 COIL 22UH 2 G1C220M00026 [SPC]
LB4009 ERJ3GEY0R00 1/16W 0 1 [SPC]
LB4010 VLP0155-T COIL 1 J0JCC0000119 [SPC]
LB5001,02 EXC3BB601H COIL 2 [SPC]
LB5003-05 VLP0155-T COIL 3 J0JCC0000119 [SPC]
LB5006-12 EXC3BB601H COIL 7 [SPC]
LB5013 VLP0155-T COIL 1 J0JCC0000119 [SPC]
LB5014-17 EXC3BB601H COIL 4 [SPC]
LB6001,02 VLP0155-T COIL 2 J0JCC0000119 [SPC]
LB6201 EXC3BB601H COIL 1 [SPC]
LB6501 VLF1149A182 COIL 1800UH 1 J0JBC0000007 [SPC]
LB6502,03 VLP0155-T COIL 2 J0JCC0000119 [SPC]
LB6504 VLF1149A182 COIL 1800UH 1 J0JBC0000007 [SPC]
Page
13
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html

LB6505 EXC3BB601H COIL 1 [SPC]
LB6506 VLF1149A182 COIL 1800UH 1 J0JBC0000007 [SPC]
LB6507,08 EXC3BB601H COIL 2 [SPC]
LB6510,11 VLF1149A182 COIL 1800UH 2 J0JBC0000007 [SPC]
LB6520,21 EXC3BB601H COIL 2 [SPC]
LB6522 VLF1149A182 COIL 1800UH 1 J0JBC0000007 [SPC]
LB6531 EXC3BB601H COIL 1 [SPC]
LB6532 VLF1149A182 COIL 1800UH 1 J0JBC0000007 [SPC]
LB6533 EXC3BB601H COIL 1 [SPC]
LB6551 VLF1149A182 COIL 1800UH 1 J0JBC0000007 [SPC]
LB8201 VLP0155-T COIL 1 J0JCC0000119 [SPC]
LB8202-04 EXC3BB601H COIL 3 [SPC]
LB8205-18 VLP0155-T COIL 14 J0JCC0000119 [SPC]
LB8801-13 VLP0155-T COIL 13 J0JCC0000119 [SPC]
P1402 VJP4379 CONNECTOR(FEMALE) 2P 1 [SPC]
P1601 VJP4379 CONNECTOR(FEMALE) 2P 1 [SPC]
PC1 RPK1567 PACKING CASE 1 [SPC](EB/EG)
PC1 RPK1565 PACKING CASE 1 [SPC](PP)
PC2 RPQF0225 ACCESSORY CASE 1 [SPC]
PC3 RPQ1179 PAD 1 [SPC]
PR1402 VSF0233F40 FUSE 1 [SPC]
PR1601 VSF0233F31 FUSE 1
K5H312300002 [SPC]
PS6201 VJS4047A010 CONNECTOR (FEMALE) 10P 1 [SPC]
Q1001-04 2SA2012 TRANSISTOR 4 [SPC]
Q1005 2SD1624-STTD TRANSISTOR 1 B1ABPF000001 [SPC]
Q1006 CPH3106 TRANSISTOR 1 [SPC]
Q1008-11 2SK2858-T1 TRANSISTOR 4 [SPC]
Q1401,02 2SK1958T1 TRANSISTOR 2 B1CFHA000001 [SPC]
Q3202 2SB1218A TRANSISTOR 1 [SPC]
Q3203 2SD1328QRS TRANSISTOR 1 [SPC]
Q4001,02 2SD1328QRS TRANSISTOR 2 [SPC]
Q4007,08 2SD1328QRS TRANSISTOR 2 [SPC]
Q5002,03 2SB1115-T TRANSISTOR 2 B1BDBF000004 [SPC]
Q6003,04 2SB710AQRSTX TRANSISTOR 2 [SPC]
Q8002 2SD2216STX TRANSISTOR 1 2SD22160SL [SPC]
Q8004 2SD2216STX TRANSISTOR 1 2SD22160SL [SPC]
Q8101 2SD2216STX TRANSISTOR 1 2SD22160SL [SPC]
Q8201,02 2SD2216STX TRANSISTOR 2 2SD22160SL [SPC]
Q8401 2SB1462STX TRANSISTOR 1 2SB14620SL [SPC]
Q8402 2SD2216STX TRANSISTOR 1 2SD22160SL [SPC]
Q8406 XP4601 TRANSISTOR 1 XP04601 [SPC]
Q8901 2SB1462STX TRANSISTOR 1 2SB14620SL [SPC](EB/EG)
Page
14
of
23
4/24/2008
http://tsn.pstc.panasonic.com/viewing/NAEU/DVD
-
LV70/SIMP/s0400000000p.html
