Philips PD7001B User manual

www.philips.com/welcome
PD7001B
User manual
Always there to help you
Register your product and get support at
Question?
Contact
Philips
Question?
Contact
Philips

1EN
Contents
1 Important 3
Safety and notice 3
Safety 3
Compliance 4
Care of the environment 5
Copyright 6
Warranty 7
2 Your portable DVD player 8
Introduction 8
What's in the box 8
Overview of the main unit 9
3 Get started 11
Charge power 11
Switch on/off 13
Select OSD language 14
4 Play discs 15
Play options 15
Connect additional equipment 18
5 Settings 20

2EN
6 Product information 21
7 Troubleshooting 23

3EN
1 Important
Safety and notice
Read and understand all instructions before you use this product. If damage is
caused by failure to follow the instructions, the warranty does not apply.
Safety

Use only power supplies listed in the user manual.
The product shall not be exposed to dripping or splashing.

lighted candles).
Batteries (battery pack or batteries installed) shall not be exposed to excessive

Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
Where the plug of the Direct Plug-in Adapter is used as the disconnect device, the
disconnect device shall remain readily operable.

other unsafe operation.

4EN
Warning
 Never remove the casing of this product.
 Never lubricate any part of this product.
 Never place this product on other electrical equipment.
 
 Never look into the laser beam inside this product.
 Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the
product from the power.
 Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
Hearing safety
A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille
de l’utilisateur.
Warning
 To prevent possible hearing damage, do not listen at high volume levels for long periods.
The maximum output voltage of the player is not greater than 150 mV.
Compliance

5EN
This product complies with the radio interference requirements of the European
Community.
This apparatus includes this label:
Note
 The type plate is located on the bottom of the product.
Care of the environment
Environmental information
All unnecessary packaging has been omitted.We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
regarding the disposal of packaging materials, and old equipment.
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that
the product is covered by the European Directive 2002/96/EC.

6EN
Please inform yourself about the local separate collection system for electrical and
electronic products.
Please act according to your local rules and do not dispose of your old products
with your normal household waste. Correct disposal of your old product helps to
prevent potential negative consequences for the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC,
which cannot be disposed with normal household waste.Please inform yourself
about the local rules on separate collection of batteries because correct disposal
helps to prevent negative consequences for the environmental and human health.
Always bring your product to a professional to remove the built-in battery.
Copyright
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.

7EN



supplies accordingly.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.







setup menu. Go to vod.divx.com for more information on how to complete your
registration.
Warranty
 
damage to the product and will void your warranty.
 Use the product and accessories only as intended by the manufacturer.The
caution sign printed on the back of the product indicates risk of electric
shock.
 Never remove the cover of the product. Always contact Philips Customer
Support for service or repairs.
 
assembly procedures not recommended or authorized in this manual shall
void the warranty.

8EN
2 Your portable DVD player

the support that Philips offers, register your product at www.philips.com/welcome.
Introduction


 
 
 Audio CD
 MP3 CD
 Divx
 
What's in the box
Check and identify the contents of your package:
 
 AC power adaptor, ASUC12E-090080 (Philips)
 Car adaptor
 Short user manual
 Safety and warranty sheet

9EN
Overview of the main unit
a POWER
 
AUDIO
 
 
SUBTITLE
 
DISC MENU
 
 
 
menu.
h
d
e
f
c
b
g
i
j
a

10 EN
 Stops disc play.
 Accesses options relating to the current activity or selection.
 Accesses or exits the setup menu.
,
 Skips to the previous or next title, chapter, or track.
b 9-12V DC IN
 Power supply socket.
c
 
d AV OUT
 
e VOLUME
 Increases or decreases volume.
f RESET
 When the player hangs up, press it with a ball-point pen or similar tool
to reset the player.
g , , ,
 Navigates menus.
,
 Searches backward/forward at different speeds.
/OK
 
 Starts, pauses or resumes disc play.
h CHR/
 Charging indicator/Power indicator.
i OPEN
 Opens the disc compartment.
j Display panel

11EN
3 Get started
Caution
 Use the controls only as stated in this user manual.
 Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of your
player.The model number and serial number are on the bottom of your player.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________

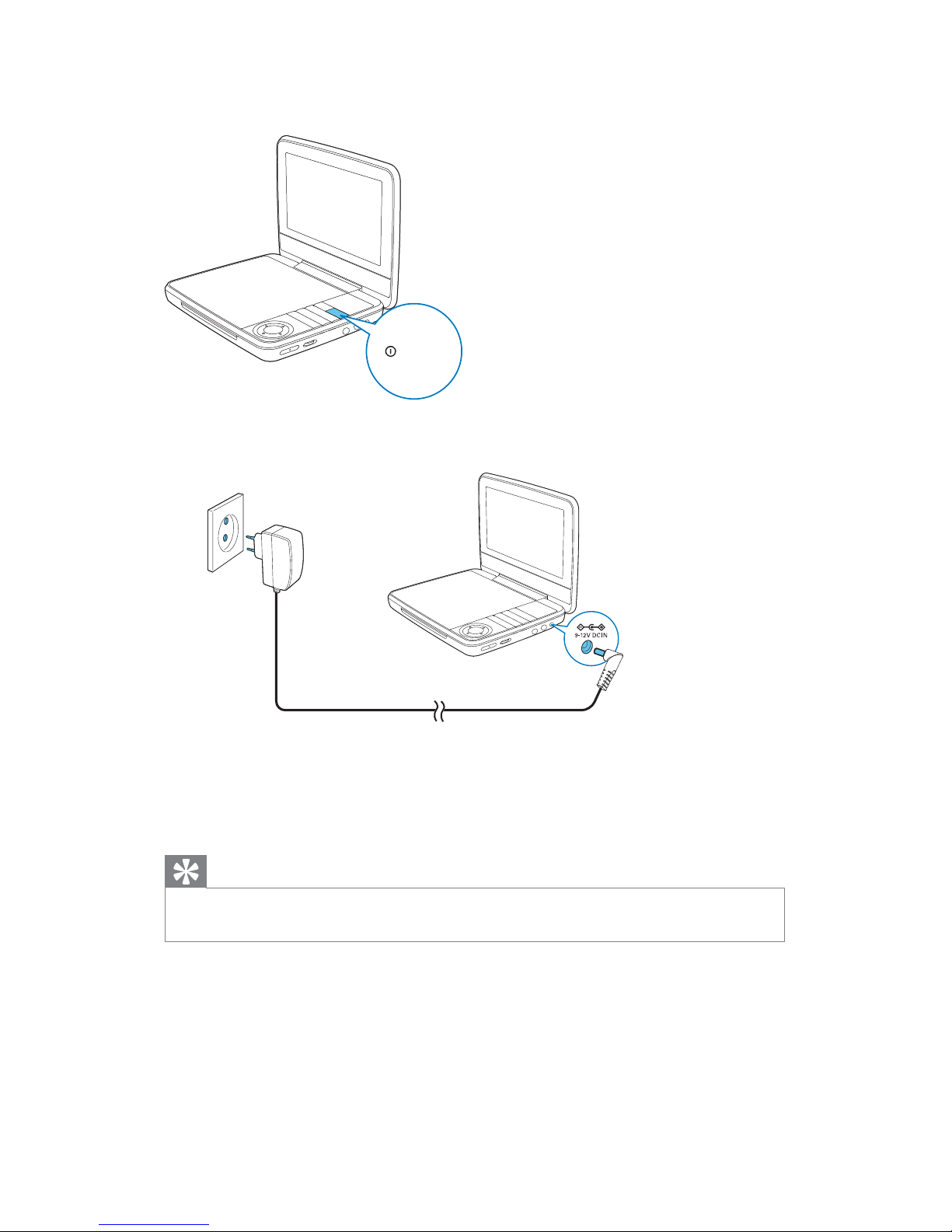

Charge power
Charge through the AC adaptor
Caution
 Risk of product damage. Ensure that the power supply voltage corresponds to the voltage printed
on the bottom of the player.
 Use only the supplied adaptors to charge the battery.
 You can only charge the player when it is powered off.
1 Press to switch off the player.

12 EN
2 Connect the supplied AC adaptor to the player and the AC outlet.
» The CHR indicator turns on (red).
» When the battery is fully charged, the CHR indicator turns off.
Tip
 To maximize battery life, recharge the battery immediately once the battery is fully discharged. If
you do not use the player for a long time, recharge the battery once every two months.
Power

13EN
Charge through car adaptor
Connect the supplied car adaptor to the player and car cigarette lighter.
Switch on/off
1 Press to switch on the player.
» The power indicator turns on (green).
2 To switch off the player, press .
» The power indicator turns off.
Power

14 EN
Select OSD language
You can choose a different language for the on-screen display text.
1 Press .
» The options menu is displayed.
2 Select [Setup] > [General] > [Language].
3 Press / to select an option.
4 Press /OK
5 Press to exit.

15EN
4 Play discs
1 Slide OPEN on the player.
2 Insert the disc with label side facing up.
3 Push down to close the disc compartment.
» Play starts automatically. If not, press /OK.
 If a menu is displayed, select an item, then press /OK to start play.
 To pause, press /OK. Press again to resume play.
 To stop, press twice.
 To select the previous/next item, press or .
 To start search within video/audio, press or once or more.
Play options
Select subtitle language

1 Press .
» The option menu is displayed.
2 Select [Subtitles] and press /OK
3 Press / to select a subtitle.
4 Press /OK
Select an audio language

1 Press .
» The option menu is displayed.
2 Select [Audio language] and press /OK
3 Press / to select an audio language.

16 EN
4 Press /OK
Repeat
During play, you can select different repeat options.
1 Press .
» The option menu is displayed.
2 Press to select [Repeat] and press /OK.
» The repeat options is displayed.

 [Repeat A]: the start of the section to repeat
 [Repeat B]: the end of the section to repeat
 [Repeat Chapter]: repeat the current chapter
 [Repeat Title]: repeat the current title or track
 [Repeat all]: repeat all titles on the disc
 [Repeat Off]: switch off the repeat mode

 [Repeat A]: the start of the section to repeat
 [Repeat B]: the end of the section to repeat
 [Repeat 1]: repeat the current track
 [Repeat all]: repeat all tracks on the disc
 [Repeat Off]: switch off the repeat mode

 [Repeat 1]: repeat the current track
 [Repeat Folder]: repeat all the tracks in current folder
 [Off]: switch off the repeat mode
3 Select an option and press /OK
4 Press to exit.
Tip
 

17EN
Random play
You can play tracks in random order on audio CDs or MP3 CDs.
1 Press .
» The option menu is displayed.
2 Select  and press /OK.
3 Select [On] or [Off], then press /OK
4 Press to exit.
Zoom

CDs.
1 Press .
» The option menu is displayed.
2 Select [Zoom & Pan] and press /OK.
3 Press /OK repeatedly to zoom in and out.
4 When the video image or picture is enlarged, press
, , , to pan through it.
Display play information
You can view the play information during play.
1 Press .
» The option menu is displayed.
2 Press to select [Display] and press /OK
» 

Select an audio mode

1 Press .
» The option menu is displayed.

18 EN
2 Select [ Audio] and press /OK.
» The audio mode options are displayed.
3 Press / to select an audio channel.
4 Press /OK
Select a view angle

1 Press .
» The option menu is displayed.
2 Select [Angle] and press /OK
3 Press / to select an angle.
4 Press /OK
Connect additional equipment

Caution
 Turn off your player before you connect it to any additional equipment.
L
R
VIDEO IN
not supplied
