3EN
Contents
1 Important 5
Safety and notice 5
Safety 5
Compliance 6
Care of the environment 7
Copyright 8
Warranty 9
2 Your portable DVD player 10
What's in the box 10
Overview of the main unit 11
3 Get started 13
Charge power 13
Switch on/off 15
Select OSD language 15
4 Use your player 16
Play discs 16
Set the main unit 18
5 Use more of your player 20
Play games 20
English
PD7010_12_UM_Book1_V2.0.indb 3 8/24/2012 10:04:00 AM

4EN
6 Product information 21
7 Troubleshooting 22
PD7010_12_UM_Book1_V2.0.indb 4 8/24/2012 10:04:00 AM

5EN
1 Important
Safety and notice
Read and understand all instructions before you use this product. If damage is
caused by failure to follow the instructions, the warranty does not apply.
Safety
Only use attachments/accessories specied by the manufacturer.
The product shall not be exposed to dripping or splashing.
Do not place any sources of danger on the product (e.g. liquid lled objects,
lighted candles).
Batteries (battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
Modication of the product could result in hazardous radiation of EMC or
other unsafe operation.
Warning
•Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
English
PD7010_12_UM_Book1_V2.0.indb 5 8/24/2012 10:04:00 AM

6EN
Warning
•Never remove the casing of this product.
•Never lubricate any part of this product.
•Never place this product on other electrical equipment.
•Keep this product away from direct sunlight, naked ames or heat.
•Never look into the laser beam inside this product.
•Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the
product from the power.
Hearing safety
A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille
de l’utilisateur.
Warning
•To prevent possible hearing damage, do not listen at high volume levels for long periods.
The maximum output voltage of the player is not greater than 150 mV.
Compliance
This product complies with the radio interference requirements of the European
Community.
PD7010_12_UM_Book1_V2.0.indb 6 8/24/2012 10:04:01 AM

7EN
This apparatus includes this label:
Note
•The type plate is located on the bottom of the product.
Care of the environment
Environmental information
All unnecessary packaging has been omitted.We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
regarding the disposal of packaging materials, and old equipment.
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that
the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and
electronic products.
English
PD7010_12_UM_Book1_V2.0.indb 7 8/24/2012 10:04:01 AM

8EN
Please act according to your local rules and do not dispose of your old products
with your normal household waste. Correct disposal of your old product helps to
prevent potential negative consequences for the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC,
which cannot be disposed with normal household waste.Please inform yourself
about the local rules on separate collection of batteries because correct disposal
helps to prevent negative consequences for the environmental and human health.
Always bring your product to a professional to remove the built-in battery.
Copyright
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
PD7010_12_UM_Book1_V2.0.indb 8 8/24/2012 10:04:02 AM

9EN
Specications are subject to change without notice. Trademarks are the property
of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves
the right to change products at any time without being obliged to adjust earlier
supplies accordingly.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX.LLC, a
subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays
DivX video. Visit divx.com for more information and software tools to convert
your les into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete your
registration.
Warranty
• Never attempt to repair the product, this could lead to the risk of injury,
damage to the product and will void your warranty.
• Use the product and accessories only as intended by the manufacturer.The
caution sign printed on the back of the product indicates risk of electric
shock.
• Never remove the cover of the product.Always contact Philips Customer
Support for service or repairs.
• Any operation expressly prohibited in this manual, or any adjustments and
assembly procedures not recommended or authorized in this manual shall
void the warranty.
English
PD7010_12_UM_Book1_V2.0.indb 9 8/24/2012 10:04:03 AM

10 EN
2 Your portable DVD player
You can play the following discs on the DVD player (including CD-R, CD-RW,
DVD±R and DVD±RW):
• DVD-Video
• Video CD
• Audio CD
• MP3 CD
• DivX
• Discs with JPEG les
What's in the box
Check and identify the contents of your package:
• 1 x Portable DVD player
• 1 x AC power adaptor,ASUC12E-090080 (Philips)
• 1 x Car adaptor
• 1 x Mounting bag
• 1 x Game pad and 2 AAA batteries
• 1 x Game disc
• 1 x User Manual
PD7010_12_UM_Book1_V2.0.indb 10 8/24/2012 10:04:03 AM

11EN

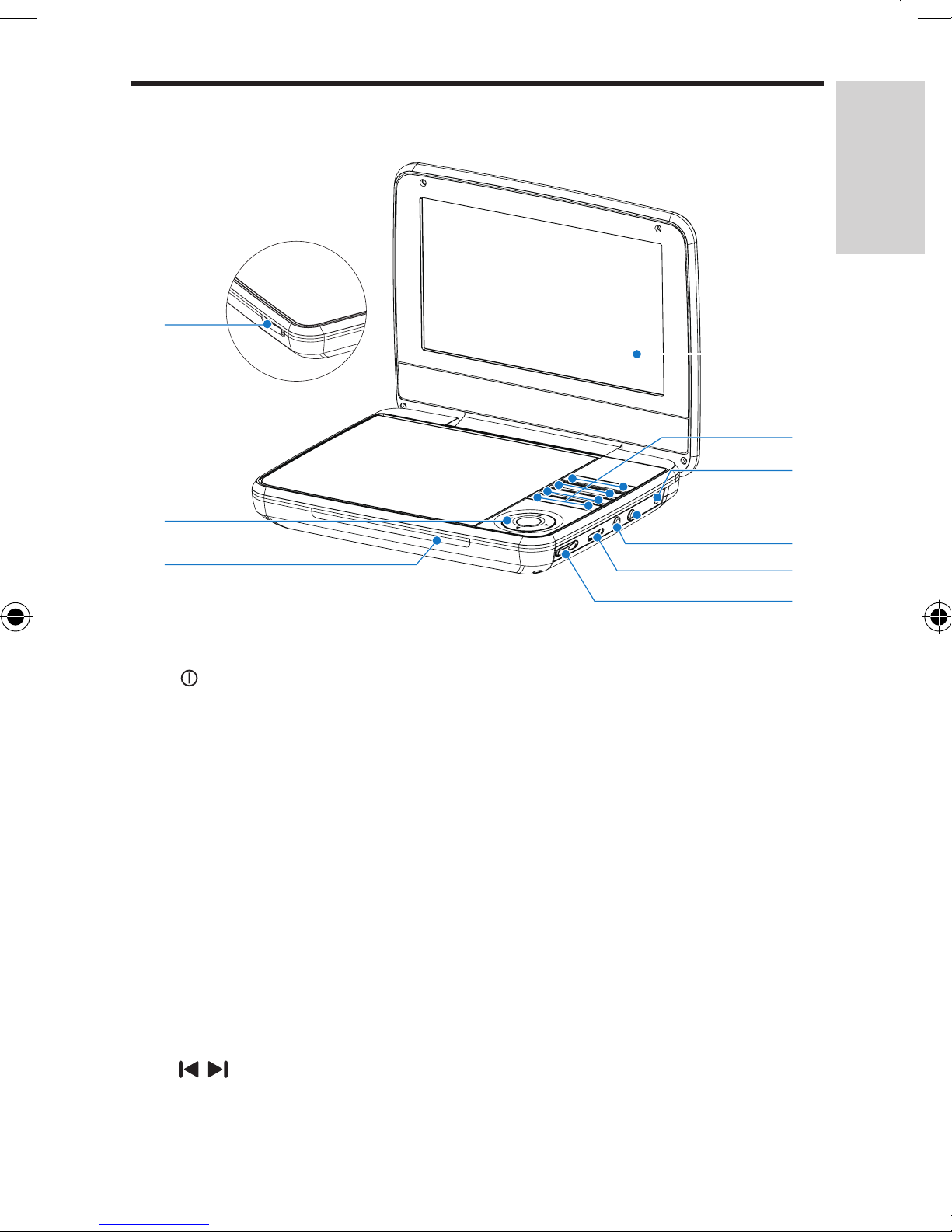

Overview of the main unit
a
• Turns on/off DVD player.
SETUP
• Accesses or exits the setup menu.
SUBTITLE
• Selects DVD subtitle language.
OPTIONS
• Views the options menu.
STOP
• Stops disc play.
DISC MENU
• For DVD, accesses or exits disc menu.
• For VCD, turns on or off PBC (Playback Control) mode.
• For VCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
,
• Skips to the previous or next title, chapter, or track.
j
a
b
d
e
f
c
i
g
h
English
PD7010_12_UM_Book1_V2.0.indb 11 8/24/2012 10:04:04 AM

12 EN
b DC IN
• Power supply socket.
c
• Headphone jack.
d AV OUT
• Audio/video output jack.
e VOLUME
• Increases or decreases volume.
f RESET
• When the player hangs up, press it with a ball-point pen or similar tool
to reset the player.
g CHR/
• Charging indicator/Power indicator.
h , , ,
• Navigates menus.
,
• Searches backward/forward at different speeds.
/OK
• Conrms an entry or selection.
• Starts, pauses or resumes disc play.
i OPEN
• Opens the disc compartment.
j Display panel
PD7010_12_UM_Book1_V2.0.indb 12 8/24/2012 10:04:06 AM

13EN
3 Get started
Caution
•Use the controls only as stated in this user manual.
•Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of your
player.The model number and serial number are on the bottom of your player.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge power

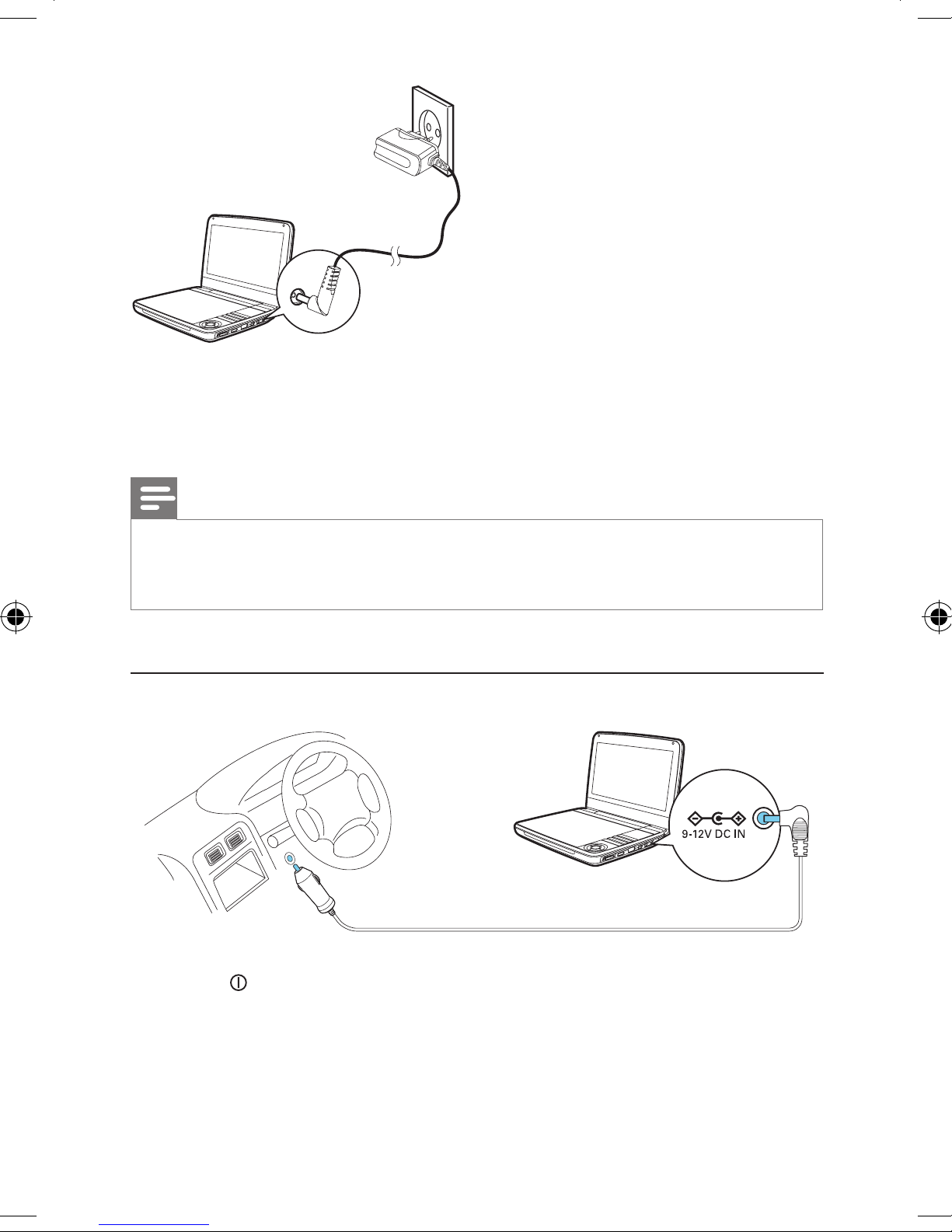

Charge through the AC adaptor
1 Press to switch off the player.
2 Connect the supplied AC adaptor to the player and to the AC outlet.
English
PD7010_12_UM_Book1_V2.0.indb 13 8/24/2012 10:04:06 AM

14 EN
» The CHR indicator turns on (red).
» When the battery is fully charged, the CHR indicator turns off.
Note
•You can only charge the player when it is in power-off mode.
•To maximize battery life, recharge the battery immediately once the battery is fully discharged. If
you do not use the player for a long time, recharge the battery once every two months.
Charge through the car adaptor
1 Press to switch off the player.
2 Use the supplied car adaptor to connect the player to the cigarette lighter
socket in your car.
PD7010_12_UM_Book1_V2.0.indb 14 8/24/2012 10:04:07 AM

15EN

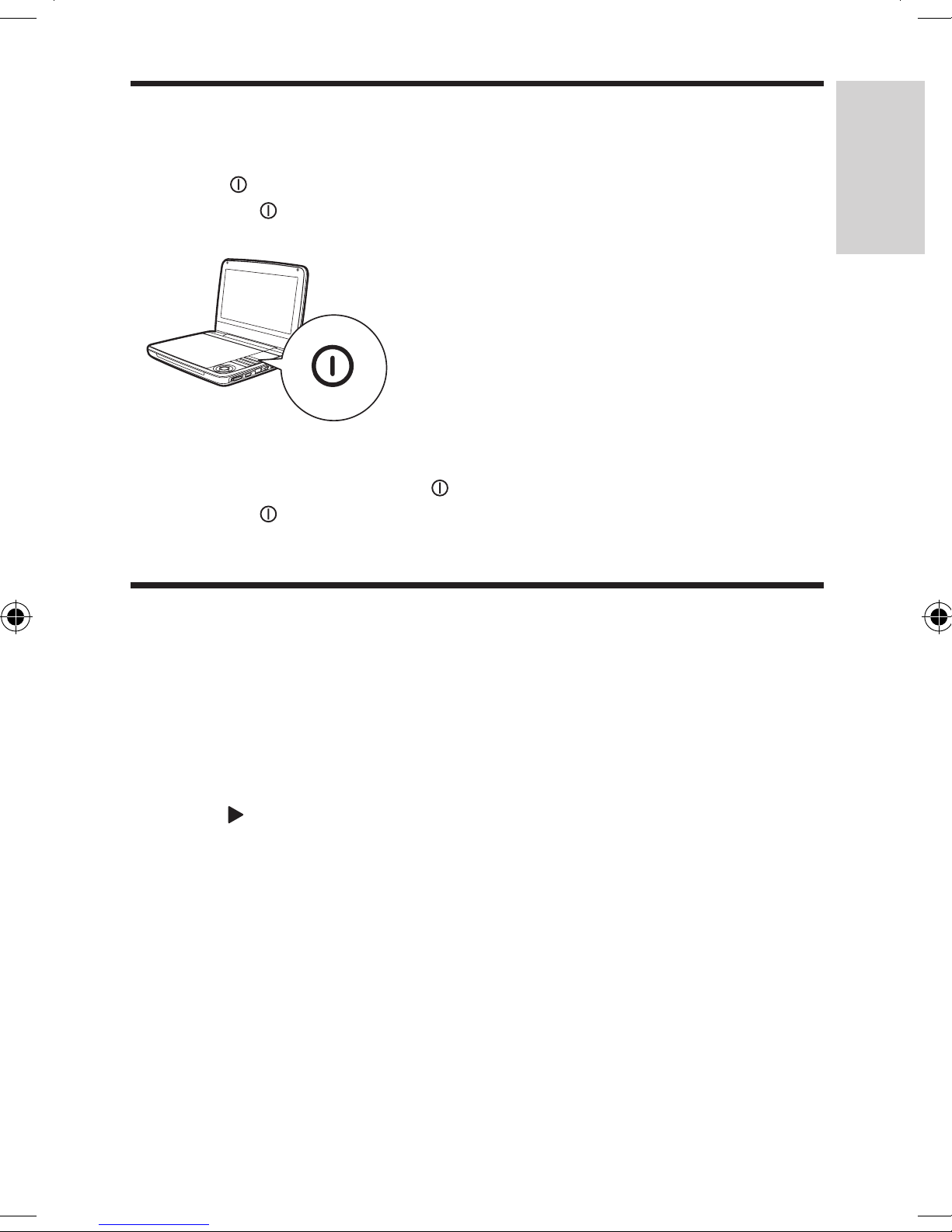

Switch on/off
1 Press to switch on the player.
» The indicator turns on (green).
2 To switch off the player, press .
» The indicator turns off.
Select OSD language
You can choose a different language for the on-screen display text.
1 Press SETUP.
» The setup menu appears.
2 Select [General] > [Language].
3 Press to select an option.
4 Press OK to conrm.
5 Press SETUP to exit.
English
PD7010_12_UM_Book1_V2.0.indb 15 8/24/2012 10:04:07 AM

16 EN
4 Use your player
Play discs
1 Slide OPEN on the player.
2 Insert the disc with label side facing up.
3 Push down to close the disc compartment.
» Play starts automatically. If not, press /OK.
• If a menu appears, select an item, then press /OK to start play.
• To pause, press /OK. Press again to resume play.
• To stop, press STOP twice.
• To select the previous/next item, press or .
• To start search within video/audio, press or once or more.
Play options
Select subtitle language
For DVDs that contain two or more subtitle languages.
• During play, press SUBTITLE repeatedly until the language is selected.
Select audio language
For DVDs that contain two or more audio languages.
1 Press OPTIONS.
» The setup menu is displayed.
2 Select [Audio language], then press /OK.
3 Press / to select a language.
4 Press /OK to conrm.
Repeat
During play, you can select different repeat options.
1 Press OPTIONS.
» The option menu is displayed.
PD7010_12_UM_Book1_V2.0.indb 16 8/24/2012 10:04:08 AM

17EN
2 Select [Repeat] and press /OK.
» The repeat options are displayed.
For DVD
• [Repeat A]: the start of the section to repeat
• [Repeat B]: the end of the section to repeat
• [Repeat Chapter]: repeat the current chapter
• [Repeat Title]: repeat the current title or track
• [Repeat all]: repeat all titles on the disc
• [Repeat Off]: switch off the repeat mode
For VCD
• [Repeat A]: the start of the section to repeat
• [Repeat B]: the end of the section to repeat
• [Repeat 1]: repeat the current track
• [Repeat all]: repeat all tracks on the disc
• [Repeat Off]: switch off the repeat mode
For MP3/CD/DivX
• [Repeat 1]: repeat the current track
• [Repeat Folder]: repeat all the tracks in current folder
• [Off]: switch off the repeat mode
3 Select an option, then press /OK to conrm.
Tip
•For VCDs, if PBC is on, you cannot repeat items.
Random play
For audio CDs and MP3 CDs, you can play all tracks in random order.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Shufe All] and press /OK.
3 Select [On] or [Off].
4 Press /OK to conrm.
Zoom
For DVDs, VCDs and JPEG CDs, you can zoom in and out for video images or
pictures.
English
PD7010_12_UM_Book1_V2.0.indb 17 8/24/2012 10:04:08 AM

18 EN
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Zoom & Pan] and press /OK.
3 Press /OK repeatedly to zoom in and out.
4 When the video image or picture is enlarged, press
, , , to pan through it.
Display play information
For DVDs and VCDs, you can view the play information during play.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Display] and press /OK to conrm.
» For DVDs, title number, chapter number and elapsed play time is
displayed. For VCDs, track number and elapsed play time is displayed.
Select audio mode
When you play VCDs, you can select an audio mode.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Audio], then press /OK.
3 Press / to select audio channel: [Stereo], [Left-mono] or [Right-mono].
Rotate pictures
For JPEG CDs only.While the JPEG is displayed:
• Press to ip up/down.
• Press to ip left/right.
Set the main unit
To maximize your play experience, use SETUP to ne tune your settings.
1 Press SETUP.
» The setup menu is displayed.
2 Use navigation keys to select an option and press /OK to conrm.
PD7010_12_UM_Book1_V2.0.indb 18 8/24/2012 10:04:08 AM

19EN
[General]
[Language] Select on-screen display language
[PBC settings] Set playback control function on/off.
[Power save] Set power saving mode.
[DivX (VOD)] Get DivX registration code.
[DivX subtitles] Select DivX subtitle language.
[Parental(DVD)] Select parental options.
[Set password] Change existing password (3308 by default).
[Factory settings] Restore factory settings.
[Video]
[LCD Display] Set screen display aspect ratio.
[TV standard] Set video output format to TV system.
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[ Audio]
[Dolby] Set Dolby output.
[Version] Check the version information.
3 Press to go back to the previous menu.
4 Press SETUP to exit.
English
PD7010_12_UM_Book1_V2.0.indb 19 8/24/2012 10:04:09 AM

20 EN
5 Use more of your player
Play games
You can play games on this player.
1 Load the supplied game disc into the player.
» The game list is displayed.
2 Press / on the player to select a game and press /OK to start
playing.
• For details about game play, see the supplied game instruction.
PD7010_12_UM_Book1_V2.0.indb 20 8/24/2012 10:04:09 AM

21EN
6 Product information
Note
•Product information is subject to change without prior notice.
Dimensions 195 x 38 x 153 mm
Weight 0.71 kg
AC power adaptor ASUC12E-090080 (Philips)
Power supply Input: 100-240V~ 50/60Hz
Output: DC 9V 0.8A
Power consumption 9 W
Operating temperature
range
0-45°C
Laser wavelength 650 nm
Video output
Format PAL & NTSC
Output level 1Vp - p ± 20%
Load impedance 75
Audio line out
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
Audio distortion + noise -80 (1KHz)
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio 80 dB
Channel separation 80 dB
Dynamic range 80 dB
English
PD7010_12_UM_Book1_V2.0.indb 21 8/24/2012 10:04:10 AM
