Philips PD9016/05 User manual

© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
PD9016_05_UM_V2.0
Meet Philips at the Internet
http://www.philips.com/welcome
PD9016_05_UM_V2.0.indd 29 2010-11-30 9:28:27

Register your product and get support at
www.philips.com/welcome
PD9016
EN User manual
PD9016_05_UM_V2.0.indd 1 2010-11-30 9:28:28

3
English
EN
Contents
1 Important 4
Important safety instructions 4
Notice 6
2 Your portable DVD player 9
Introduction 9
What’s in the box 9
Overview of the main unit 10
3 Get started 12
Preparation 12
Connect a main unit as the second screen 13
Connect power 13
4 Use your player 15
Turn on 15
Select OSD language 15
Play discs 15
Play options 16
5 Adjust settings 17
Set the main unit 17
6 Use more of your player 18
Connect additional equipment 18
Connect power from household source 18
7 Product information 20
8 Troubleshooting 21
PD9016_05_UM_V2.0.indd 3 2010-11-30 9:28:28

4
1 Important
Important safety instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
iFor countries with a polarized mains, do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug
does not t into your outlet, consult an electrician for replacement
of the obsolete outlet.
Caution: To prevent electric shock, match the wide blade of the plug
to the wide slot, fully insert.
jProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
k Only use attachments/accessories specied by the manufacturer.
l Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
EN
PD9016_05_UM_V2.0.indd 4 2010-11-30 9:28:28

5
mUnplug this apparatus during lightning storms or when unused for
long periods of time.
n Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g. liquid
lled objects, lighted candles).
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked ames or heat. •
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
English
EN
PD9016_05_UM_V2.0.indd 5 2010-11-30 9:28:28

6
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a trafc
hazard and is illegal in many areas.
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Notice
Any changes or modications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
EN
PD9016_05_UM_V2.0.indd 6 2010-11-30 9:28:29

7
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical
and electronic products. The correct disposal of your old product helps
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
The making of unauthorized copies of copy-protected material, including
computer programs, les, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
English
EN
PD9016_05_UM_V2.0.indd 7 2010-11-30 9:28:29

8
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
This item incorporates copy protection technology that is protected by
U.S. patents and other intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
This apparatus includes this label:
EN
PD9016_05_UM_V2.0.indd 8 2010-11-30 9:28:30

9
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benet
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-
RW, DVD±R and DVD±RW):
DVD-Video•
Video CD•
Audio CD•
MP3 CD•
Discs with JPEG les•
What’s in the box
Check and identify the contents of your package:
Main unit x 2•
AC power adaptor x 2, DSA-9PFB-09 FUK 090100•
Car adaptor x 1•
AV cable x 2•
Fastening strap x 2•
User Manual x 1•
English
EN
PD9016_05_UM_V2.0.indd 9 2010-11-30 9:28:30

10

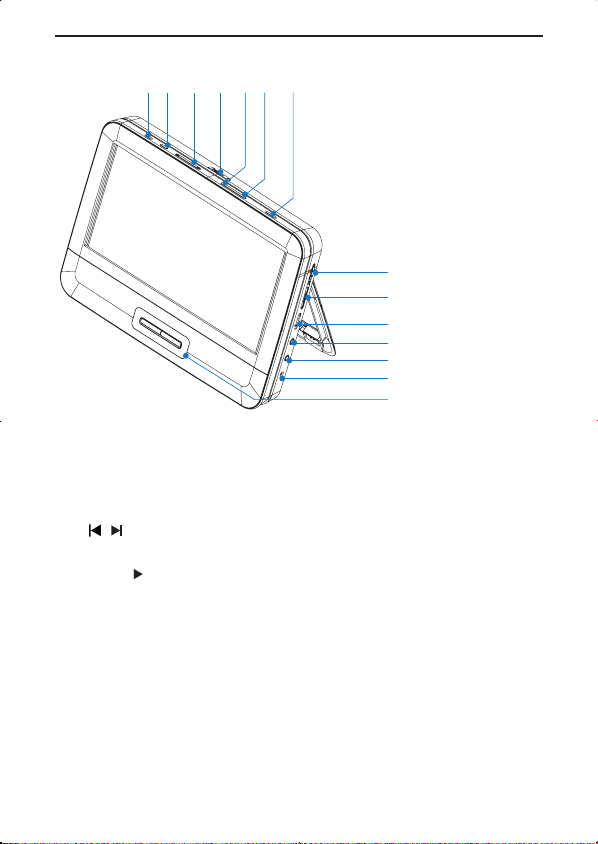

Overview of the main unit
a BRIGHTNESS
Adjusts screen brightness.•
b SETUP
Accesses or exits the setup menu.•
c,
Skips to the previous or next title, chapter, or track.•
dOPEN
Opens the disc compartment.•
e DISC MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
f OPTIONS
Accesses options relating to the current activity or selection.•
a
h
i
j
k
l
m
n
b c d e f g
EN
PD9016_05_UM_V2.0.indd 10 2010-11-30 9:28:31

11
gAV MODE
Turns off the front panel display when the player is connected•
to TV.
hDVD/AV IN
Switch to DVD/AV IN mode.•
iON/OFF
Turns on/off DVD player.•
jVOL +/-
Increases or decreases volume.•
k
Headphone jack.•
lAV OUT
Audio/video output jack.•
mDC IN
Power supply socket.•
n, , ,
Navigates menus.•
,
Searches backward/forward at different speeds.•
/OK
Conrms an entry or selection.•
Starts, pauses or resumes disc play.•
Stops disc play.•
English
EN
PD9016_05_UM_V2.0.indd 11 2010-11-30 9:28:32

12
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your apparatus.The model number and serial number are on the back of the
apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Preparation
To use the players in a car, attach the main units to the back of the front seat
headrests.
1Pull the strap through the loops on the back of the main unit.
2Hold the buckle with the marked arrow facing you, then attach the
buckle to the strap.
3Position the main unit at the back of the headrest, then fasten the
buckle.
4Pull the strap to secure the main unit to the headrest.
To attach the other unit, repeat the above steps.•
EN
PD9016_05_UM_V2.0.indd 12 2010-11-30 9:28:32

13
Connect a main unit as the second screen
Caution
Turn off the main units before you connect a main unit as the second screen.•
1Connect the supplied AV cable to the AV OUT jacks on the main
units.
2Slide the DVD/AV IN switch on a main unit to AV IN.

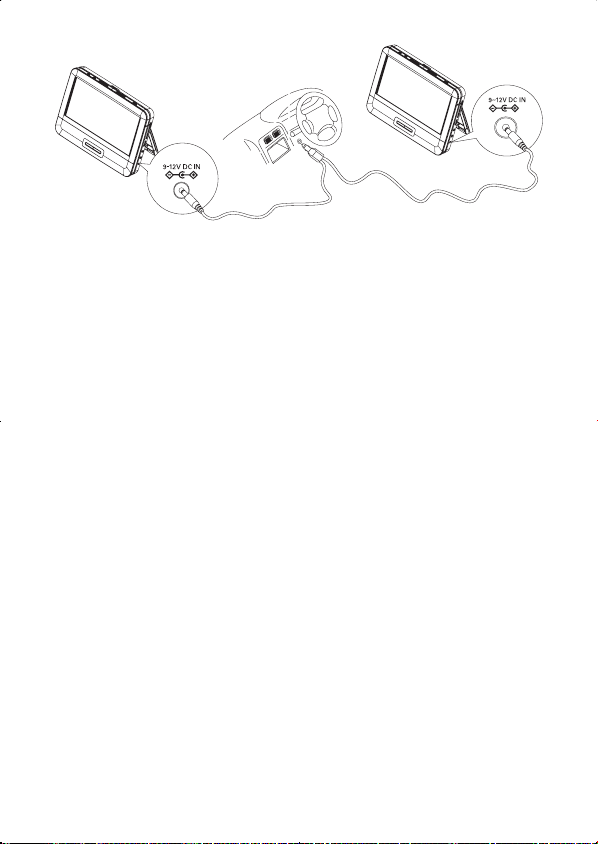

Connect power
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage pointed on the back or the underside of the player.
Risk of electric shock! When you unplug the AC adapter, always pull the plug from•
the socket. Never pull the cable.
English
EN
PD9016_05_UM_V2.0.indd 13 2010-11-30 9:28:33

14
1Connect one end of the double-connector end of the AC cable to
the DC IN jacks on the main units.
2Connect the one-connector end to the car cigarette lighter socket.
EN
PD9016_05_UM_V2.0.indd 14 2010-11-30 9:28:33

15
4 Use your player
Turn on
1Slide the POWER ON/OFF switch on the main units to the ON
position.
Select OSD language
You can choose a diffrent language for the on-screen display text.
1Slide the DVD/AV IN switch to DVD.
2Press SETUP.
The setup menu appears.»
3Select [General Setup] > [OSD Language].
4Press to select an option.
5Press /OK to conrm.
6Press SETUP to exit.
Play discs
1Slide the DVD/AV IN switch to DVD.
2Slide OPEN on the main unit.
3Insert the disc with label side facing you.
4Push down to close the disc compartment.
Play starts automatically. If not, press»/OK.
If a menu appears, select an item, then press»/OK to start play.
To pause, press»/OK. Press again to resume play.
To stop, press»twice.
Screen saver
Resume
OSD Language English
Français
Deutsch
Español
English
EN
PD9016_05_UM_V2.0.indd 15 2010-11-30 9:28:34

16
To select the previous/next item, press»or .
To start search within video/audio, press»or once or more.
Play options
1During play, press OPTIONS to select some play options.
For DVD
• [Audio]
• [Subtitle]
• [Angle]
• [Repeat AB]
• [Repeat]
• [Time Disp.]
For VCD
• [Audio]
• [Repeat AB]
• [Repeat]
• [Time Disp.]
For audio CDs
• [Repeat One]
• [Repeat All]
• [Repeat Off]
For JPEG CDs
• [Repeat]
2Follow the on-screen instructions.
EN
PD9016_05_UM_V2.0.indd 16 2010-11-30 9:28:34

17
5 Adjust settings
Set the main unit
To maximize your play experience, use SETUP to ne tune your settings.
1In DVD mode, press SETUP.
The setup menu is displayed.»
2Press to select an option and press /OK to conrm.
[General Setup]
[OSD Language] Select on-screen display language.
[Screen Saver] Activate/deactivate screen saver.
[Resume] Select whether to start play from the
point where it was last stopped.
[Video Setup]
[Screen Display] Select display ratio.
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[Preferences]
[Audio] Select audio language.
[Subtitle] Select subtitle language.
[Disc Menu] Select disc menu language.
[Parental Control] Select parental level.
[Password] Change password (3308 by default).
[Version Info] Check the version information.
[Default] Restore original settings.
3Press to go back to previous menu level.
4Press SETUP to exit.
English
EN
PD9016_05_UM_V2.0.indd 17 2010-11-30 9:28:34

18
6 Use more of your player
Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.•
You can connect the player to a TV or an amplier to enjoy DVDs or
Karaoke.
Match the color of the AV cables (the AV cable connected to TV is not
supplied) with the jacks: the yellow cable is for the yellow video jack, the red/
white cable is for the red/white audio jacks.
Connect power from household source
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage pointed on the back or the underside of the player.
Risk of electric shock! When you unplug the AC adaptor, always pull the plug from•
the socket. Never pull the cable.
TV
not supplied
EN
PD9016_05_UM_V2.0.indd 18 2010-11-30 9:28:34

19
1Connect the AC adaptor to:
the• DC IN jack on the main unit.
the power outlet.•
English
EN
PD9016_05_UM_V2.0.indd 19 2010-11-30 9:28:35

20
7 Product information
Note
Product information is subject to change without prior notice.•
Dimensions
- Main unit (each) 240 x 183 x 38 mm
Weight
- Main unit (each) 2 kg
Power supply Input: 100-240V~ 50/60Hz
Output: DC 9V 1A
Power consumption 9 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
Video output
Format PAL & NTSC
Output level 1Vp - p ± 20%
Load impedance 75
Audio line out
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
Audio distortion + noise -80 (1KHz)
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio 80 dB
Channel separation 80 dB
Dynamic range 80 dB
EN
PD9016_05_UM_V2.0.indd 20 2010-11-30 9:28:35
