3EN

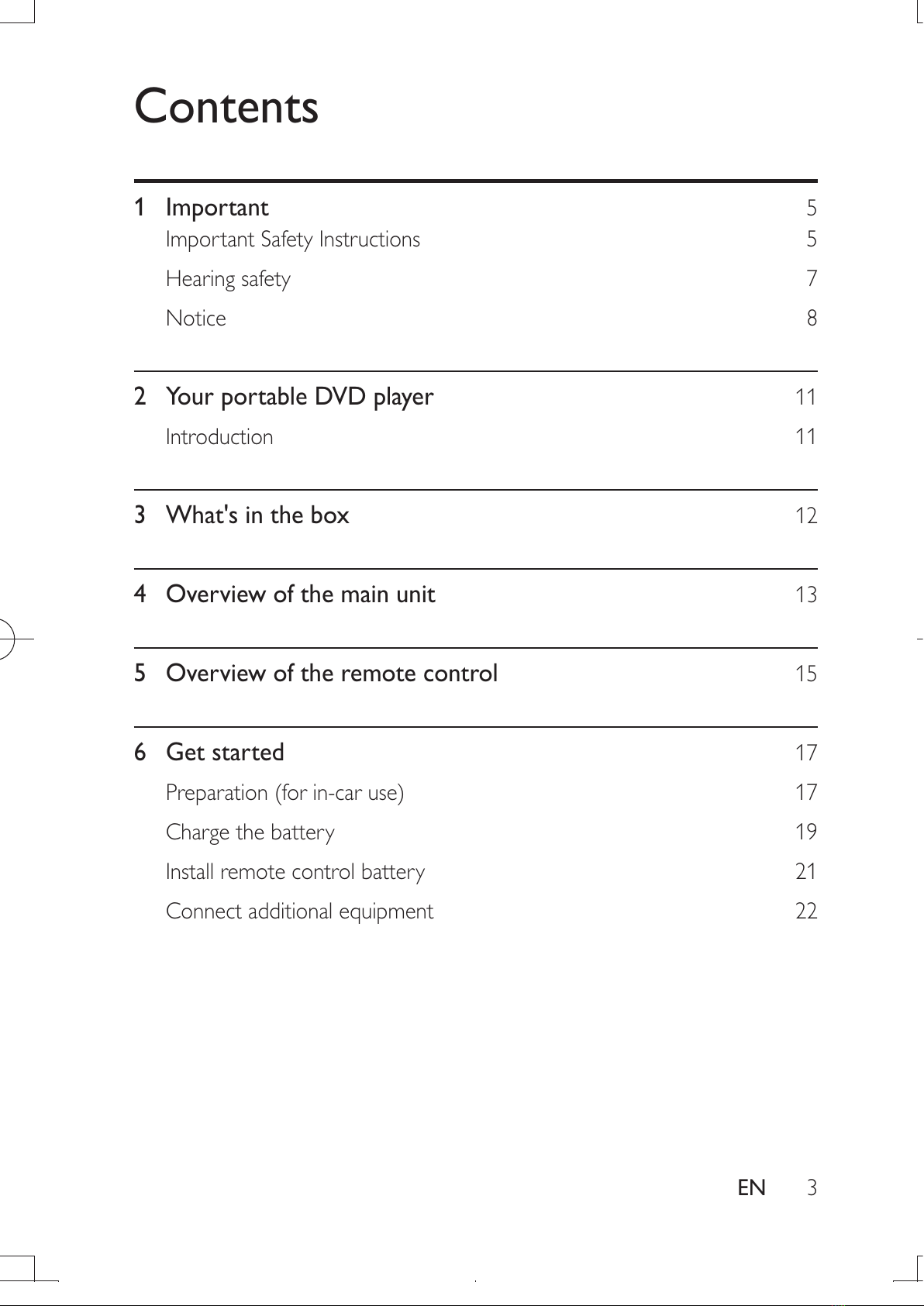

Contents
1 Important 5
Important Safety Instructions 5
Hearing safety 7
Notice 8
2 Your portable DVD player 11
Introduction 11
3 What's in the box 12
4 Overview of the main unit 13
5 Overview of the remote control 15
6 Get started 17
Preparation (for in-car use) 17
Charge the battery 19
Install remote control battery 21
Connect additional equipment 22
PD9030_05_UM_V1.0.indb 3 2012/3/2 10:27:47
All manuals and user guides at all-guides.com

4EN
7 Use your player 23
Turn on 23
Select OSD language 23
Play discs 24
Play from USB 24
Play options 25
Adjust brightness of screen backlight 25
8 Adjust settings 26
9 Product information 27
10 Troubleshooting 28
PD9030_05_UM_V1.0.indb 4 2012/3/2 10:27:47
All manuals and user guides at all-guides.com

5EN

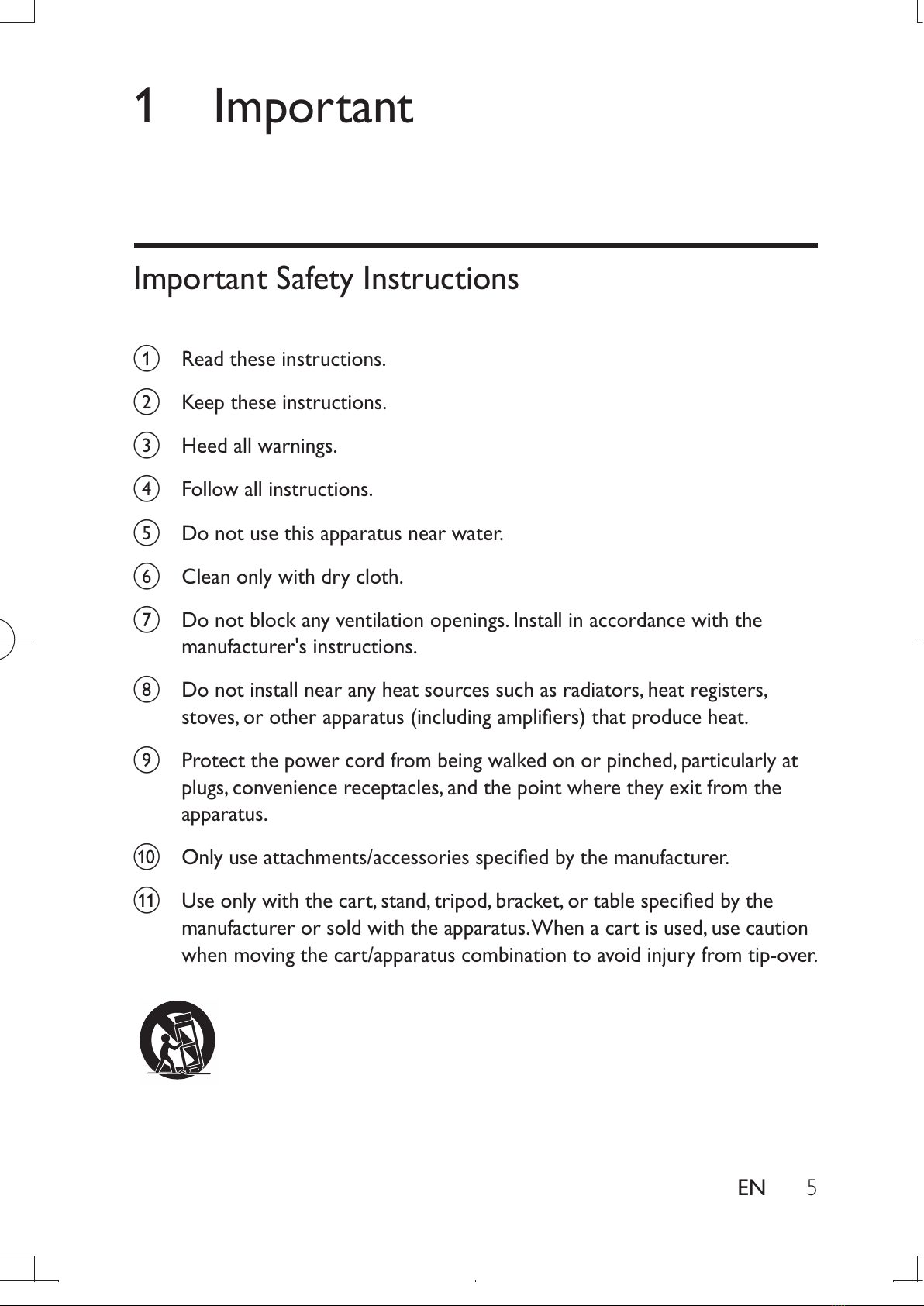

1 Important
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
h Do not install near any heat sources such as radiators, heat registers,

i Protect the power cord from being walked on or pinched, particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
j 
k 
manufacturer or sold with the apparatus.When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
PD9030_05_UM_V1.0.indb 5 2012/3/2 10:27:48
All manuals and user guides at all-guides.com

6EN
l Unplug this apparatus during lightning storms or when unused for long
periods of time.
m 
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
n Battery usage CAUTION – To prevent battery leakage which may result in
bodily injury, property damage, or damage to the unit:
 Install all batteries correctly, + and - as marked on the unit.
 Do not mix batteries (old and new or carbon and alkaline, etc.).
 Remove batteries when the unit is not used for a long time.
o Apparatus shall not be exposed to dripping or splashing.
p 

Caution
 Use of controls or adjustments or performance of procedures other than herein may result in
hazardous radiation exposure or other unsafe operation.
Warning
 Never remove the casing of this apparatus.
 Never lubricate any part of this apparatus.
 Never place this apparatus on other electrical equipment.
 
 Never look into the laser beam inside this apparatus.
 Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this
apparatus from the power.
PD9030_05_UM_V1.0.indb 6 2012/3/2 10:27:48
All manuals and user guides at all-guides.com

7EN

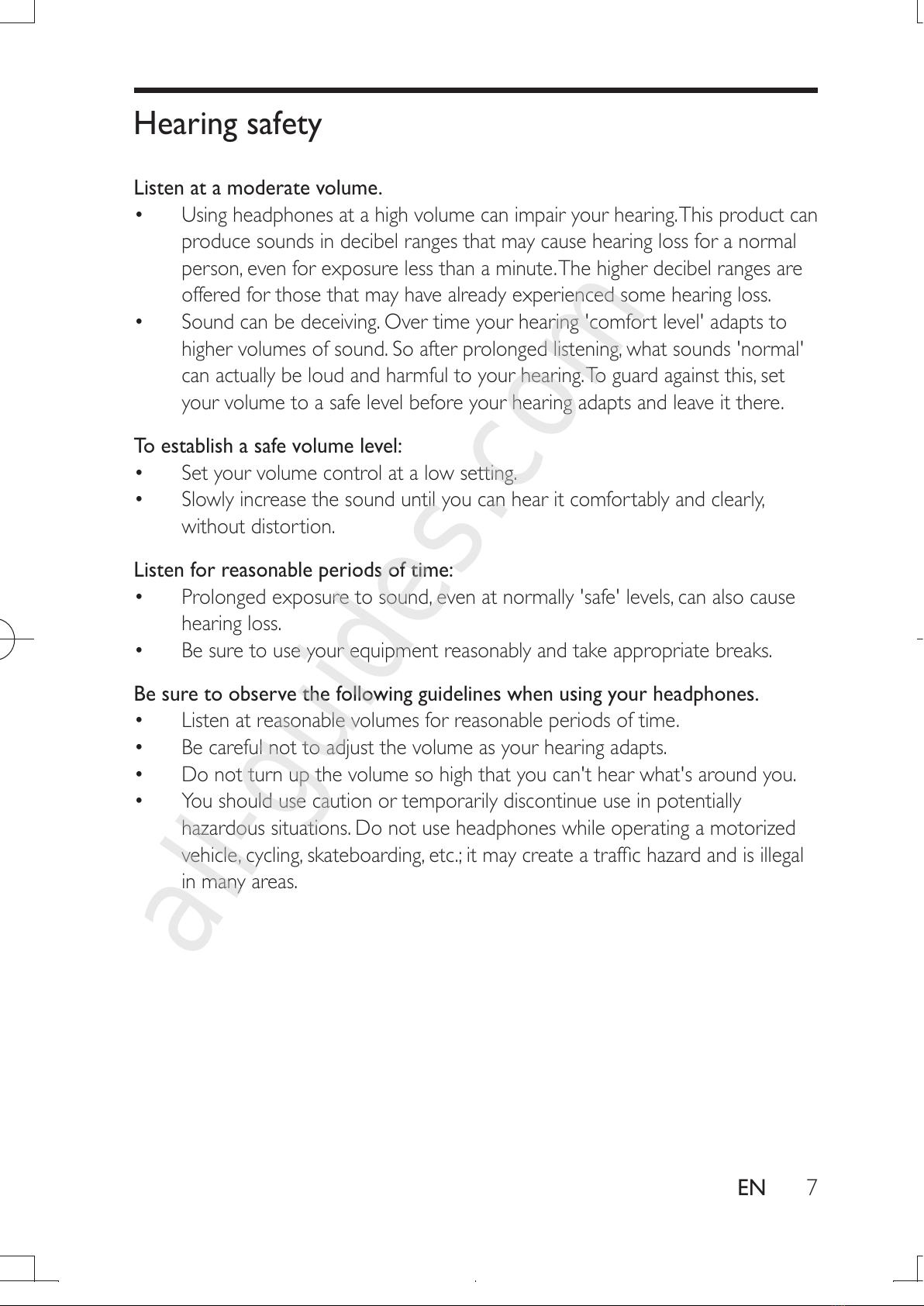

Hearing safety
Listen at a moderate volume.
 Using headphones at a high volume can impair your hearing.This product can
produce sounds in decibel ranges that may cause hearing loss for a normal
person, even for exposure less than a minute.The higher decibel ranges are
offered for those that may have already experienced some hearing loss.
 Sound can be deceiving. Over time your hearing 'comfort level' adapts to
higher volumes of sound. So after prolonged listening, what sounds 'normal'
can actually be loud and harmful to your hearing.To guard against this, set
your volume to a safe level before your hearing adapts and leave it there.
To establish a safe volume level:
 Set your volume control at a low setting.
 Slowly increase the sound until you can hear it comfortably and clearly,
without distortion.
Listen for reasonable periods of time:
 Prolonged exposure to sound, even at normally 'safe' levels, can also cause
hearing loss.
 Be sure to use your equipment reasonably and take appropriate breaks.
Be sure to observe the following guidelines when using your headphones.
 Listen at reasonable volumes for reasonable periods of time.
 Be careful not to adjust the volume as your hearing adapts.
 Do not turn up the volume so high that you can't hear what's around you.
 You should use caution or temporarily discontinue use in potentially
hazardous situations. Do not use headphones while operating a motorized

in many areas.
PD9030_05_UM_V1.0.indb 7 2012/3/2 10:27:48
All manuals and user guides at all-guides.com
all-guides.com

8EN

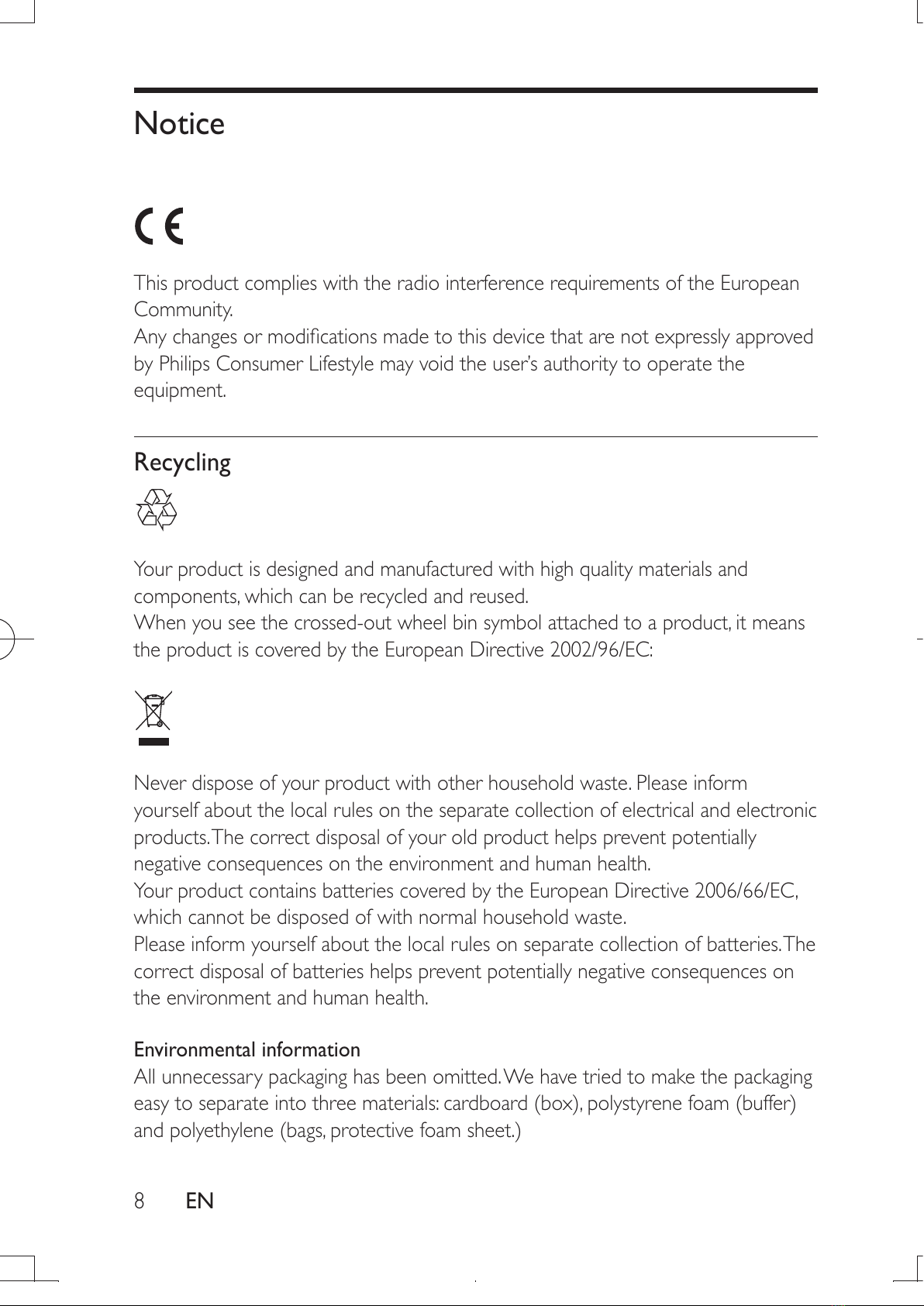

Notice
This product complies with the radio interference requirements of the European
Community.

by Philips Consumer Lifestyle may void the user’s authority to operate the
equipment.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it means
the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical and electronic
products.The correct disposal of your old product helps prevent potentially
negative consequences on the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC,
which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of batteries.The
correct disposal of batteries helps prevent potentially negative consequences on
the environment and human health.
Environmental information
All unnecessary packaging has been omitted.We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
PD9030_05_UM_V1.0.indb 8 2012/3/2 10:27:48
All manuals and user guides at all-guides.com

9EN

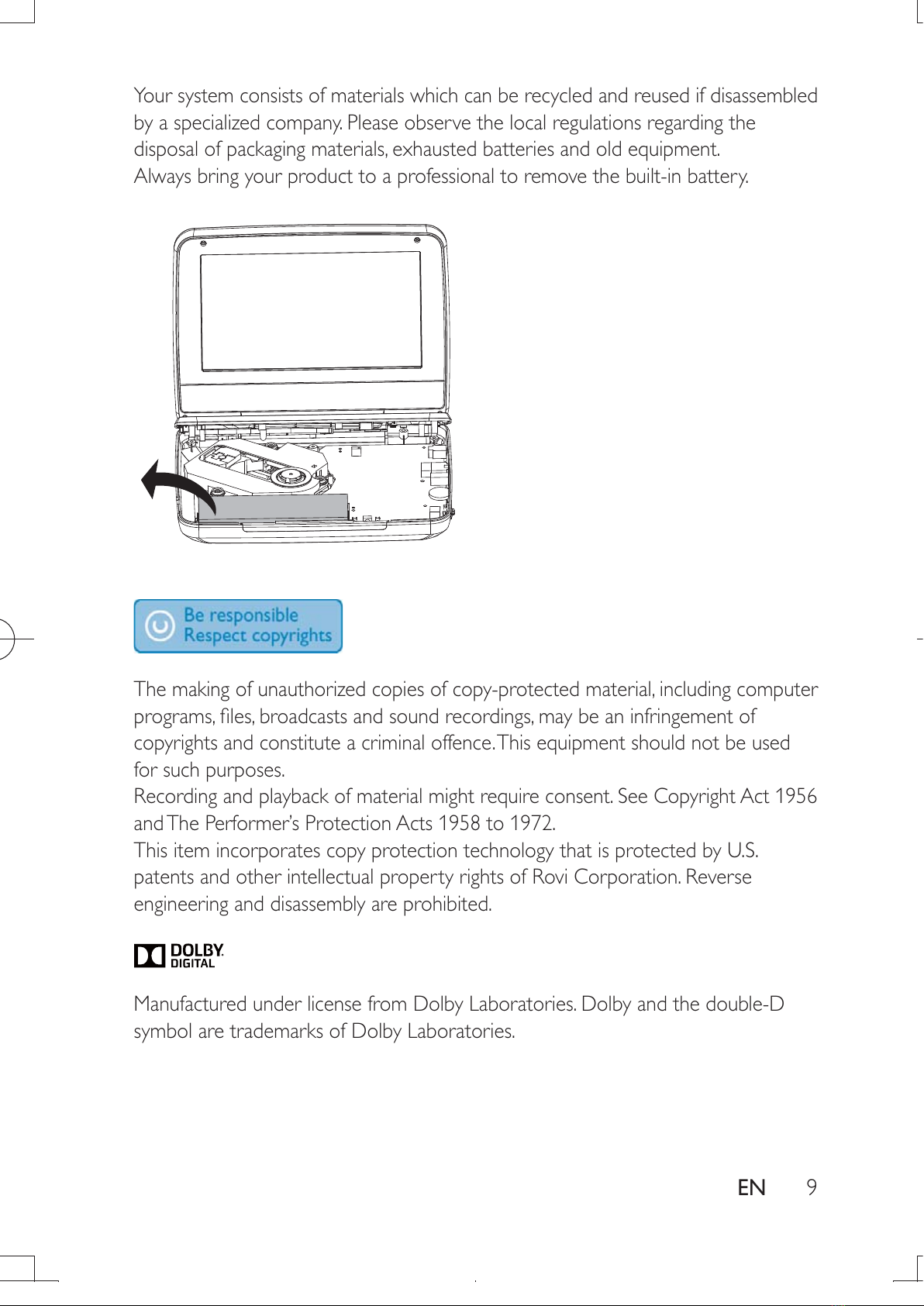

Your system consists of materials which can be recycled and reused if disassembled
by a specialized company. Please observe the local regulations regarding the
disposal of packaging materials, exhausted batteries and old equipment.
Always bring your product to a professional to remove the built-in battery.
The making of unauthorized copies of copy-protected material, including computer

copyrights and constitute a criminal offence.This equipment should not be used
for such purposes.
Recording and playback of material might require consent. See Copyright Act 1956
and The Performer’s Protection Acts 1958 to 1972.
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
PD9030_05_UM_V1.0.indb 9 2012/3/2 10:27:49
All manuals and user guides at all-guides.com

10 EN

are used under license.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc.This is



registered in order to play purchased DivXVideo-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete your
registration.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
This apparatus includes this label:
PD9030_05_UM_V1.0.indb 10 2012/3/2 10:27:49
All manuals and user guides at all-guides.com

11EN
2 Your portable DVD player

the support that Philips offers, register your product at www.philips.com/support.
Introduction
Your portable DVD player plays digital video discs that conform to the universal
DVD Video standard.With it, you can play movies with true cinema picture quality
and stereo or multi-channel sound (depending on disc and playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that are
not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-RW,
DVD±R and DVD±RW):
 DVD-Video
 Video CD
 Audio CD
 MP3 CD
 DivX
 
PD9030_05_UM_V1.0.indb 11 2012/3/2 10:27:49
All manuals and user guides at all-guides.com

12 EN
3 What's in the box
Check and identify the contents of your package:
 Portable DVD player
 Remote control
 AC power adaptor, AY5808/05 or DSA-9PFB-09 FUK090100
 Car adaptor
 AV cable
 Car mounting bracket
 User manual
PD9030_05_UM_V1.0.indb 12 2012/3/2 10:27:49
All manuals and user guides at all-guides.com
all-guides.com

13EN
4 Overview of the main unit
a Display panel
b OPTIONS
 Accesses options relating to the current activity or selection.
c SOURCE
 Switches between DVD and USB.
d SUBTITLE
 Selects DVD subtitle language.
e SETUP
 Accesses or exits the setup menu.
f DC IN
 Power supply socket.
a
e
c
b
d
f
g
h
i
j
k
o
p
l
m
n
q
PD9030_05_UM_V1.0.indb 13 2012/3/2 10:27:50
All manuals and user guides at all-guides.com

14 EN

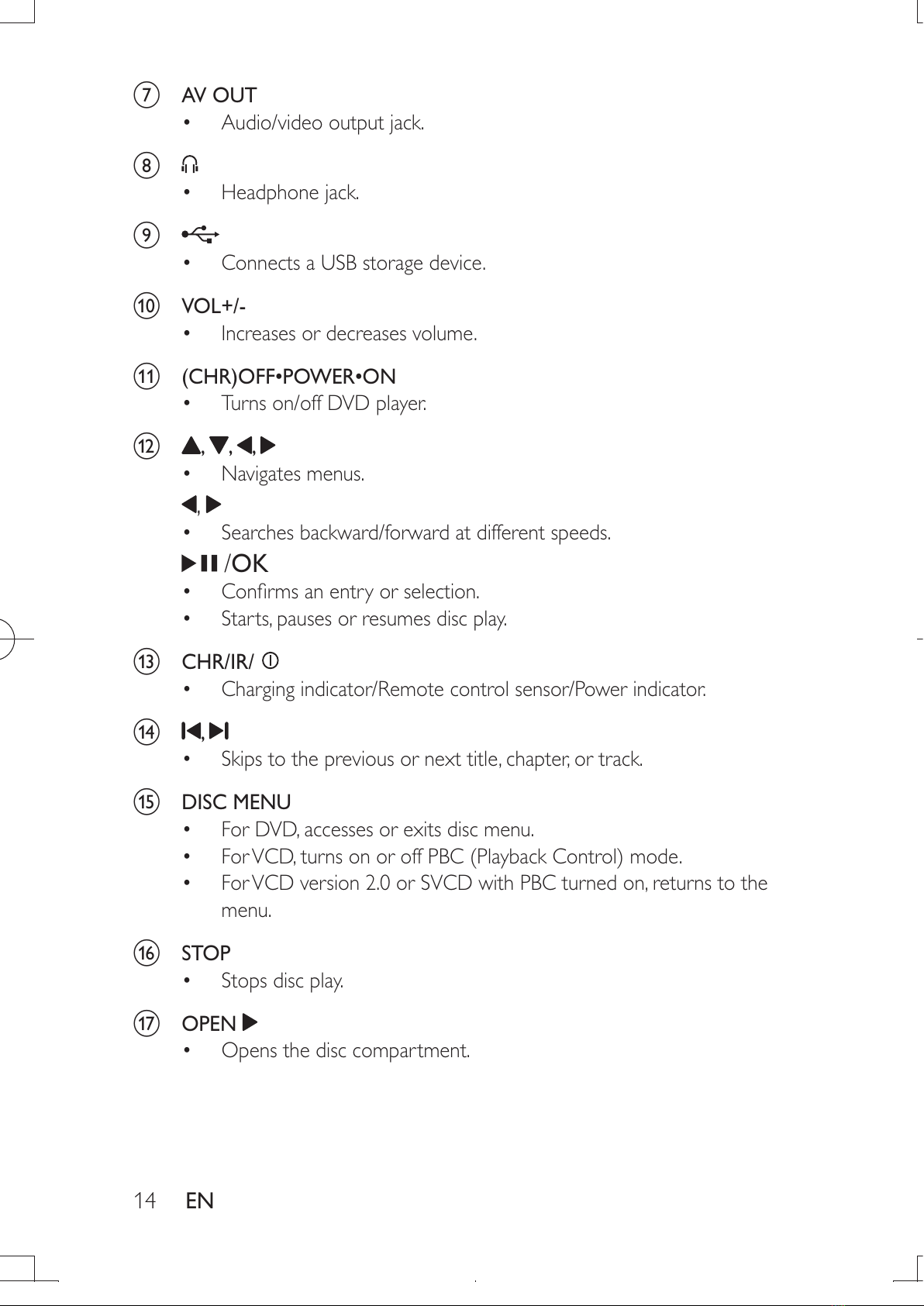

g AV OUT
 Audio/video output jack.
h
 Headphone jack.
i
 Connects a USB storage device.
j VOL+/-
 Increases or decreases volume.
k 
 Turns on/off DVD player.
l , , ,
 Navigates menus.
,
 Searches backward/forward at different speeds.
/OK
 
 Starts, pauses or resumes disc play.
m CHR/IR/
 Charging indicator/Remote control sensor/Power indicator.
n ,
 Skips to the previous or next title, chapter, or track.
o DISC MENU
 For DVD, accesses or exits disc menu.
 For VCD, turns on or off PBC (Playback Control) mode.
 For VCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
p STOP
 Stops disc play.
q OPEN
 Opens the disc compartment.
PD9030_05_UM_V1.0.indb 14 2012/3/2 10:27:51
All manuals and user guides at all-guides.com

15EN

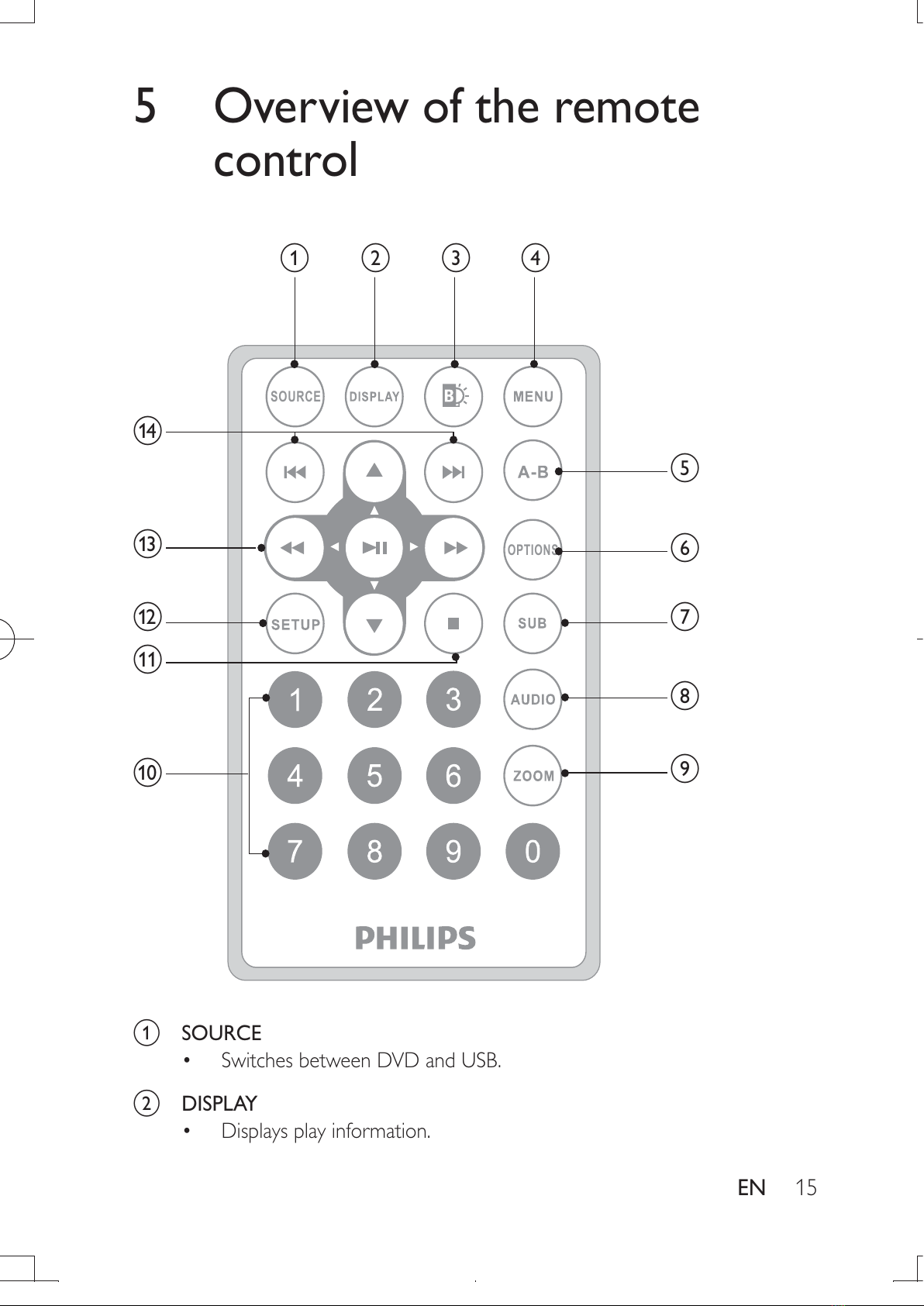

5 Overview of the remote
control
a SOURCE
 Switches between DVD and USB.
b DISPLAY
 Displays play information.
j
k
l
m
n
g
i
abcd
h
OPTIONS
SOURCE
f
e
PD9030_05_UM_V1.0.indb 15 2012/3/2 10:27:51
All manuals and user guides at all-guides.com

16 EN
c
 Adjusts brightness of the screen backlight.
d MENU
 For DVD, accesses or exits disc menu.
 For VCD, turns on or off PBC (Playback Control) mode.
 For VCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
 
e A-B
 Marks the section for repeat play.
f OPTIONS
 Accesses options relating to the current activity or selection.
g SUB
 Selects a DVD subtitle language.
h AUDIO
 For DVD, selects an audio language.
 For VCD, selects an audio mode.
i ZOOM
 Zooms into a video scene or picture.
j 0-9
 Inputs numbers.
k
 Stops disc play.
l SETUP
 Accesses or exits the setup menu.
m , , ,
 Navigates menus.
,
 Searches backward/forward at different speeds.
/OK
 
 Starts, pauses or resumes disc play.
n /
 Skips to the previous or next title, chapter, or track.
PD9030_05_UM_V1.0.indb 16 2012/3/2 10:27:52
All manuals and user guides at all-guides.com

17EN
6 Get started
Caution
 Use the controls only as stated in this user manual.
 Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of your
player.The model number and serial number are on the bottom of your player.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________

Warning
 Remove the mounting kit and the DVD player from the seat when the DVD player is not in use.
To use the player in a car, attach the player to the back of the front seat headrest.
A. DVD player fastening screw node
B.Viewing angle adjustment node
C. Buckle release button
D. Headrest mount bracket
1 Fix the headrest mount bracket on to the front seat headrest.
A
DCB
PD9030_05_UM_V1.0.indb 17 2012/3/2 10:27:53
All manuals and user guides at all-guides.com
all-guides.com

18 EN

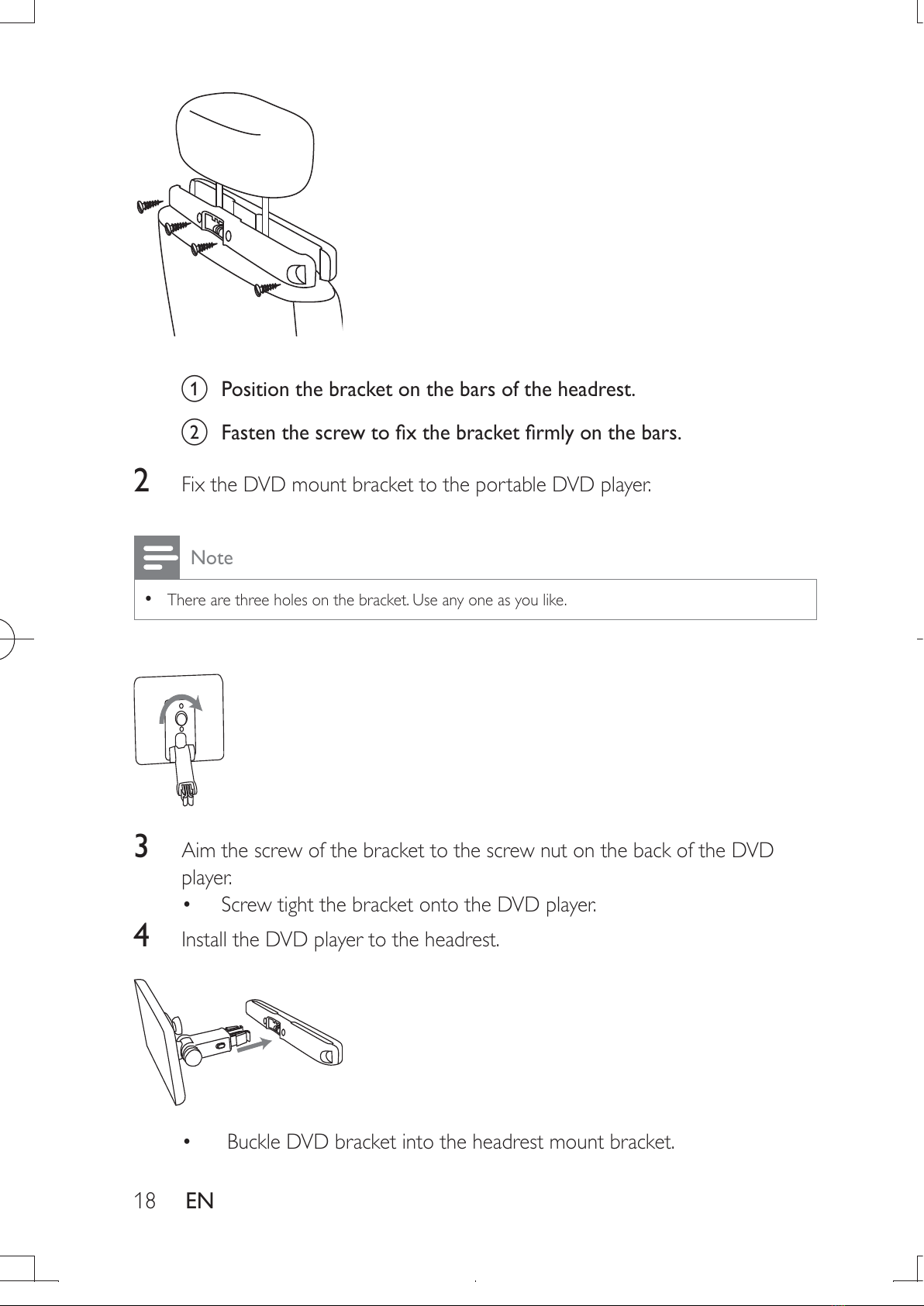

a Position the bracket on the bars of the headrest.
b 
2 Fix the DVD mount bracket to the portable DVD player.
Note
 There are three holes on the bracket. Use any one as you like.
3 Aim the screw of the bracket to the screw nut on the back of the DVD
player.
 Screw tight the bracket onto the DVD player.
4 Install the DVD player to the headrest.
 Buckle DVD bracket into the headrest mount bracket.
PD9030_05_UM_V1.0.indb 18 2012/3/2 10:27:53
All manuals and user guides at all-guides.com

19EN

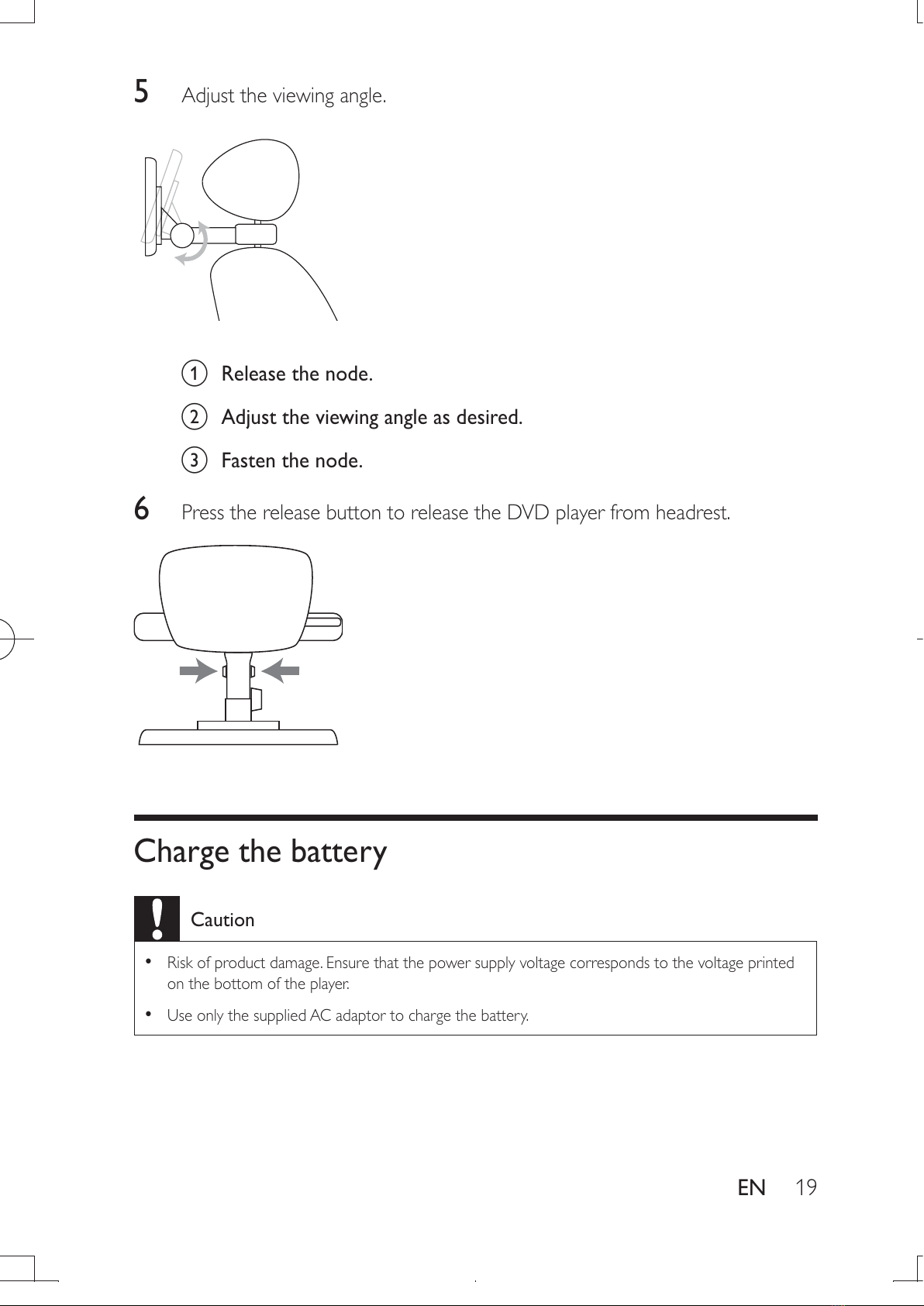

5 Adjust the viewing angle.
a Release the node.
b Adjust the viewing angle as desired.
c Fasten the node.
6 Press the release button to release the DVD player from headrest.
Charge the battery
Caution
 Risk of product damage. Ensure that the power supply voltage corresponds to the voltage printed
on the bottom of the player.
 Use only the supplied AC adaptor to charge the battery.
PD9030_05_UM_V1.0.indb 19 2012/3/2 10:27:54
All manuals and user guides at all-guides.com

20 EN
Note
 The type plate is located on the bottom of the player.
To fast charge the battery,
1 Slide the  switch to OFF position.
2 Connect the supplied AC adaptor to the player and to the AC outlet.
» The CHR indicator turns on (red).
» When the battery is fully charged, the CHR indicator turns off.
You can also charge the battery during playback.
1 To charge the battery, connect the supplied AC adaptor to the player and to
the AC outlet.
PD9030_05_UM_V1.0.indb 20 2012/3/2 10:27:54
All manuals and user guides at all-guides.com

21EN

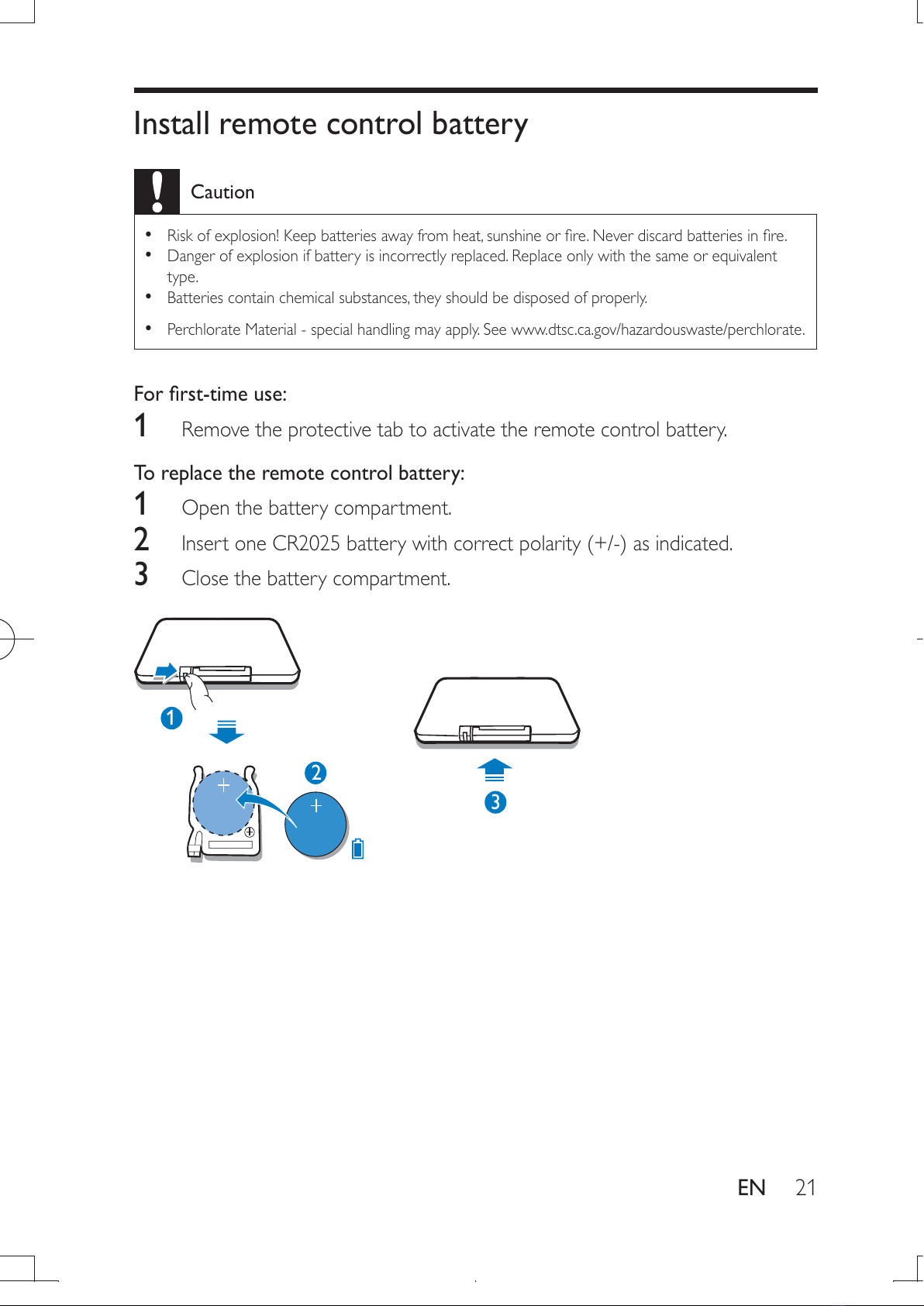

Install remote control battery
Caution
 
 Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent
type.
 Batteries contain chemical substances, they should be disposed of properly.
 Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

1 Remove the protective tab to activate the remote control battery.
To replace the remote control battery:
1 Open the battery compartment.
2 Insert one CR2025 battery with correct polarity (+/-) as indicated.
3 Close the battery compartment.
1
2
3
PD9030_05_UM_V1.0.indb 21 2012/3/2 10:27:54
All manuals and user guides at all-guides.com
