Philips PD9060/05 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
PD9060
PD9060_05_UM_V1.0.indd Sec3:1PD9060_05_UM_V1.0.indd Sec3:1 2010-2-1 13:39:252010-2-1 13:39:25

Contents
1 Important 4
Important Safety Instructions 4
Notice 7
2 Your portable DVD player 9
Introduction 9
What’s in the box 10
Overview of the main unit 11
Overview of the remote control 13
3 Get started 15

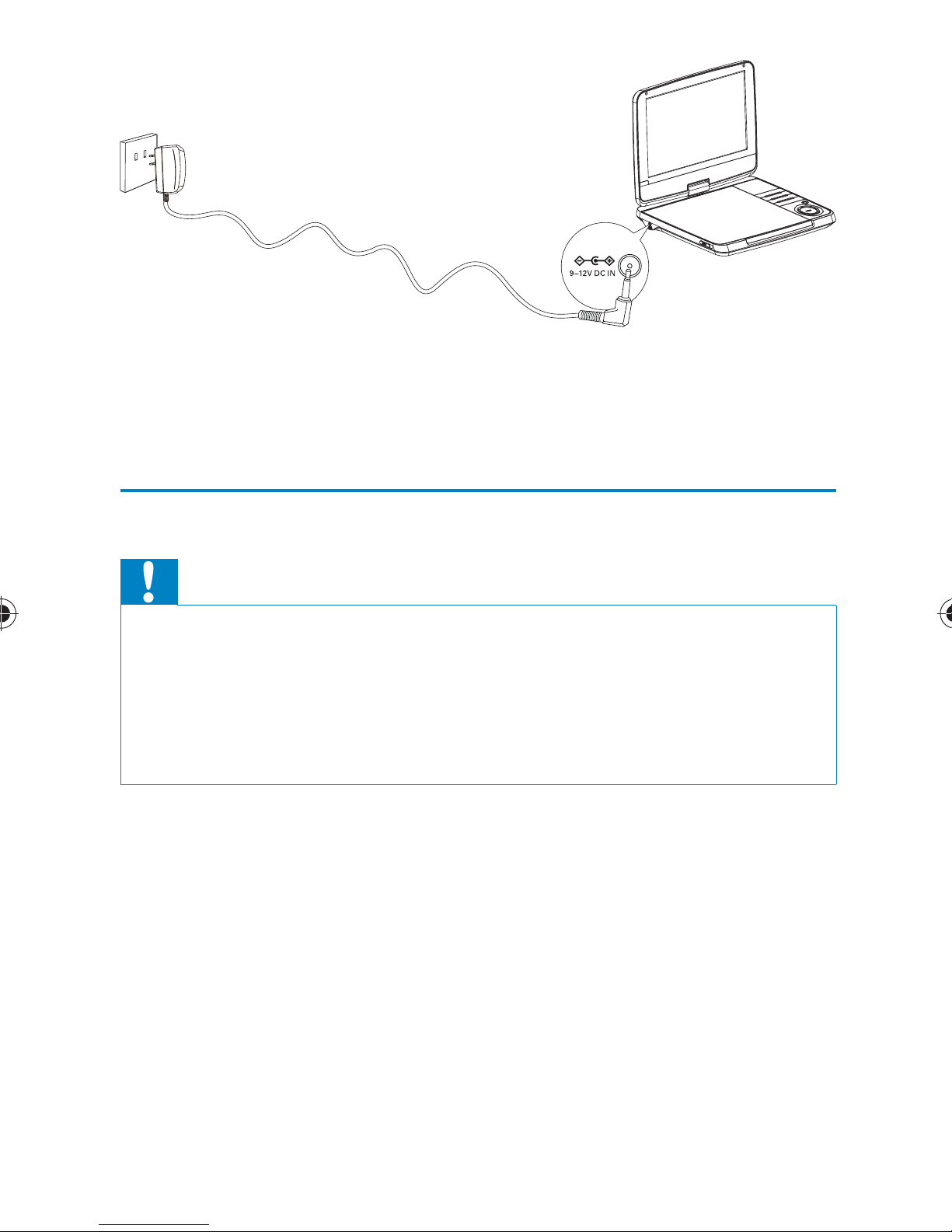

Charge the battery 15
Install remote control battery 16

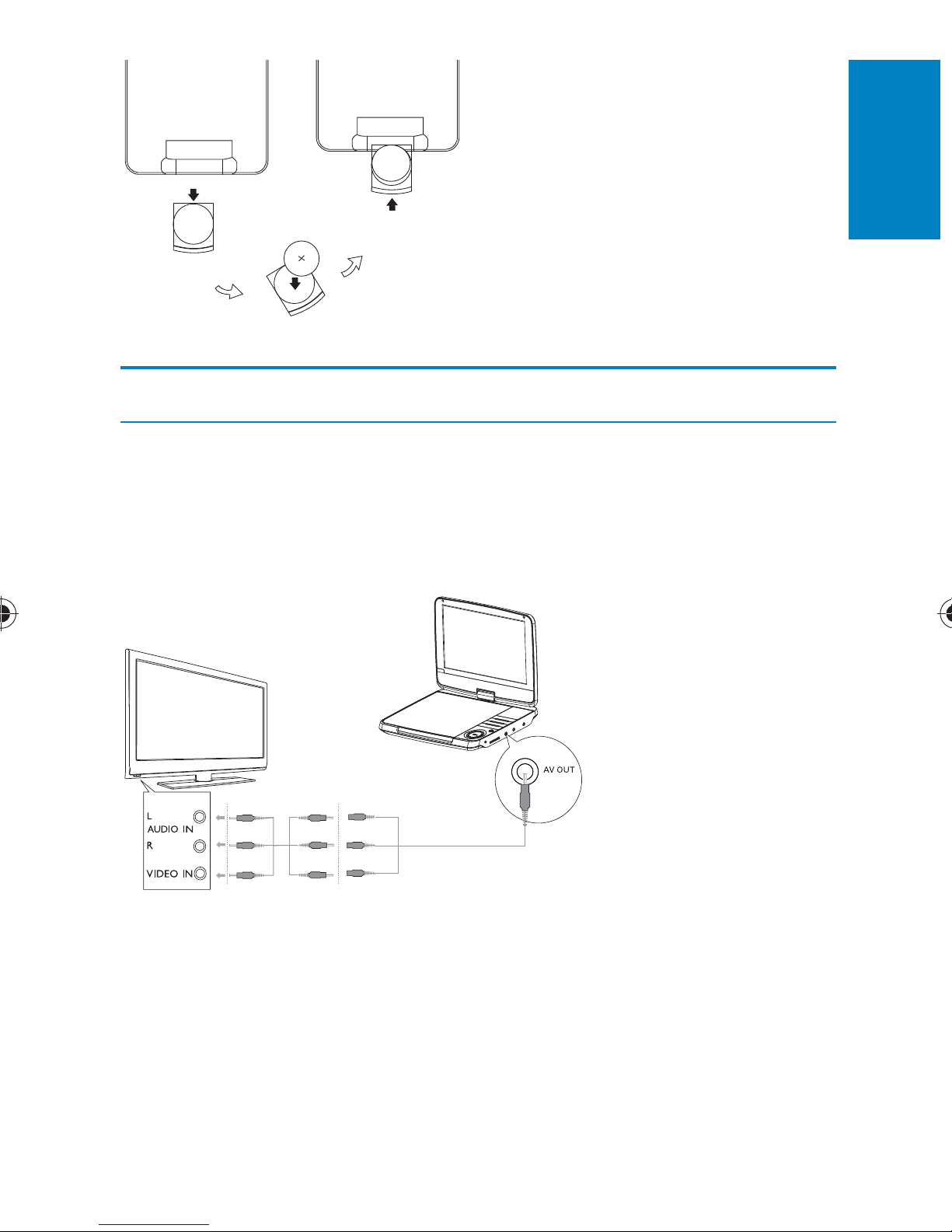

Connect additional equipment 17
4 Use your player 19
Turn on 19
Select OSD language 19
Play discs 19
Play options 19
Play from SD card 20
5 Adjust settings 21
6 Product information 23
7 Troubleshooting 24
English
3EN
PD9060_05_UM_V1.0.indd Sec1:3PD9060_05_UM_V1.0.indd Sec1:3 2010-2-1 13:39:322010-2-1 13:39:32

4
1 Important
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
i For countries with a polarized mains, do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
Caution: To prevent electric shock, match the wide blade of the plug
to the wide slot, fully insert.
j Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
k Only use attachments/accessories specified by the manufacturer.
EN
PD9060_05_UM_V1.0.indd Sec1:4PD9060_05_UM_V1.0.indd Sec1:4 2010-2-1 13:39:322010-2-1 13:39:32

5
l Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
m Unplug this apparatus during lightning storms or when unused for
long periods of time.
n Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
o Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
p Apparatus shall not be exposed to dripping or splashing.
q Do not place any sources of danger on the apparatus (e.g. liquid
filled objects, lighted candles).
r This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org.
s Where the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
English
EN
PD9060_05_UM_V1.0.indd Sec1:5PD9060_05_UM_V1.0.indd Sec1:5 2010-2-1 13:39:322010-2-1 13:39:32

6
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked flames or heat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
EN
PD9060_05_UM_V1.0.indd Sec1:6PD9060_05_UM_V1.0.indd Sec1:6 2010-2-1 13:39:332010-2-1 13:39:33

7
Be sure to observe the following guidelines when using your
headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Caution
Use of controls or adjustments or performance of procedures other than herein may•
result in hazardous radiation exposure or other unsafe operation.
Notice
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
English
EN
PD9060_05_UM_V1.0.indd Sec1:7PD9060_05_UM_V1.0.indd Sec1:7 2010-2-1 13:39:332010-2-1 13:39:33

8
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical
and electronic products. The correct disposal of your old product helps
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
EN
PD9060_05_UM_V1.0.indd Sec1:8PD9060_05_UM_V1.0.indd Sec1:8 2010-2-1 13:39:332010-2-1 13:39:33

9
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
“DivX, DivX” Certified, and associated logos are trademarks of DivX, Inc.
and are used under license.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright
Act 1956 and The performer’s Protection Acts 1958 to 1972.
This apparatus includes this label:
English
EN
PD9060_05_UM_V1.0.indd Sec1:9PD9060_05_UM_V1.0.indd Sec1:9 2010-2-1 13:39:342010-2-1 13:39:34

10
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R,
CD-RW, DVD±R and DVD±RW):
DVD-Video•
Video CD•
Audio CD•
MP3 CD•
DivX•
Discs/SD card with JPEG files•
What’s in the box
Check and identify the contents of your package:
Portable DVD player•
Remote control•
AC power adaptor, DSA-15P-12 EU 090135 (DVE)•
Car adaptor•
AV cable•
Stand•
Car-mount•
User Manual•
Quick Start Guide•
EN
PD9060_05_UM_V1.0.indd Sec1:10PD9060_05_UM_V1.0.indd Sec1:10 2010-2-1 13:39:352010-2-1 13:39:35

11
Overview of the main unit
a Display panel
b SOURCE
Switches between DVD and SD.•
c
Stops disc play.•
d SETUP
Accesses or exits the setup menu.•
e
Headphone jack•
f AV OUT
Selects video output format to TV system.•
g SD
SD card slot•
p
k
o
j
i
n
m
l
a
d
c
b
f
g
h
e
q
English
EN
PD9060_05_UM_V1.0.indd Sec1:11PD9060_05_UM_V1.0.indd Sec1:11 2010-2-1 13:39:352010-2-1 13:39:35

12
h Auto brightness sensor
Automatically adjust the screen backlight according to•
environment that provides the optimum comfort for your eyes.
i POWER
Turns on/off DVD player.•
j
, , ,
Navigates menus.•
,
Searches backward/forward at different speeds.•
/OK
Confirms an entry or selection.•
Starts, pauses or resumes disc play.•
k CHR/
Charging indicator/Power indicator•
l
,
Skips to the previous or next title, chapter, or track.•
m DISC MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
n - VOL +
Increases or decreases volume.•
o IR
Remote control sensor•
p OPEN
Opens the disc compartment.•
q DC IN
Power supply socket•
EN
PD9060_05_UM_V1.0.indd Sec1:12PD9060_05_UM_V1.0.indd Sec1:12 2010-2-1 13:39:362010-2-1 13:39:36

13
Overview of the remote control
a SETTING
Accesses or exits the setup menu.•
b
, , ,
Navigates menus.•
,
Searches backward/forward at different speeds.•
Rotates pictures anti-clockwise/clockwise.•
Searches•
English
EN
PD9060_05_UM_V1.0.indd Sec1:13PD9060_05_UM_V1.0.indd Sec1:13 2010-2-1 13:39:372010-2-1 13:39:37

14
/OK
Confirms an entry or selection.•
Starts, pauses or resumes disc play.•
c
,
Skips to the previous or next title, chapter, or track.•
d
Mutes or restores volume.•
e
Stops disc play.•
f - VOL +
Increases or decreases volume.•
g 0-9
Numeric keypad•
h ZOOM
Zooms in or out.•
i INFO
Displays play information.•
j REPEAT
Repeats a chapter/track/title.•
k SUBTITLE
Selects DVD subtitle language.•
l AUDIO
For DVD, selects an audio language.•
For VCD, selects an audio mode.•
m DISC MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
n SOURCE
Switches between DVD and SD.•
EN
PD9060_05_UM_V1.0.indd Sec1:14PD9060_05_UM_V1.0.indd Sec1:14 2010-2-1 13:39:382010-2-1 13:39:38

15
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your player.The model number and serial number are on the bottom of your
player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge the battery
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
Note
The type plate is located on the bottom of the player.•
You can only charge the player when it is in power-off mode.•
1 Press POWER to turn off the player.
2 Connect the supplied AC adaptor to the player and to the AC outlet.
English
EN
PD9060_05_UM_V1.0.indd Sec1:15PD9060_05_UM_V1.0.indd Sec1:15 2010-2-1 13:39:392010-2-1 13:39:39

16
The charge indicator turns on.When the player is not in use, it will»
take about 8 hours to fully charge it. However, when in use, it will
take more than 16 hours to fully charge it.
When the battery is fully charged, the charge indicator turns off.»
Install remote control battery
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard•
batteries in fire.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
•
equivalent type.
Batteries contain chemical substances, they should be disposed of properly.
•
Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/•
hazardouswaste/perchlorate.
For first-time use:
1 Remove the protective tab to activate the remote control battery.
To replace the remote control battery:
1 Open the battery compartment.
2 Insert 1 CR2025 battery with correct polarity (+/-) as indicated.
3 Close the battery compartment.
EN
PD9060_05_UM_V1.0.indd Sec1:16PD9060_05_UM_V1.0.indd Sec1:16 2010-2-1 13:39:392010-2-1 13:39:39

17
Connect additional equipment
Connect a TV
You can connect the player to a TV to enjoy DVD.
Match the color of the AV cables (not supplied) with the jacks: the•
yellow cable is for the yellow video jack, the red/white cable is for the
red/white audio jacks.
TV
English
EN
PD9060_05_UM_V1.0.indd Sec1:17PD9060_05_UM_V1.0.indd Sec1:17 2010-2-1 13:39:402010-2-1 13:39:40

18
Connect an SD card
Connect the SD card to the SD CARD jack.
Photo display
1
2
3
4
5
EN
PD9060_05_UM_V1.0.indd Sec1:18PD9060_05_UM_V1.0.indd Sec1:18 2010-2-1 13:39:402010-2-1 13:39:40

19
4 Use your player
Turn on
Press POWER.
The»POWER indicator turns on.
Select OSD language
You can choose a different language for the on-screen display text.
1 Press SETTING.
The setup menu appears.»
2 Select [Language] > [On Screen Display].
3 Press to select an option.
4 Press OK to confirm.
5 Press SETTING to exit.
Play discs
1 Slide OPEN on the player.
2 Insert the disc with label side facing up.
3 Push down to close the disc compartment.
Play starts automatically. If not, press»/OK.
If a menu appears, select an item, then press• /OK to start play.
To pause, press• /OK. Press again to resume play.
To stop, press• twice.
To select the previous/next item, press• or .
To start search within video/audio, press• or once or more.
Play options
Select audio language
For DVDs that contain two or more audio languages.
During play, press• AUDIO repeatedly until the language is selected.
English
EN
PD9060_05_UM_V1.0.indd Sec1:19PD9060_05_UM_V1.0.indd Sec1:19 2010-2-1 13:39:422010-2-1 13:39:42

20
Select subtitle language
For DVDs that contain two or more subtitle languages.
During play, press• SUBTITLE repeatedly until the language is
selected.
Repeat
During play, press• REPEAT repeatedly to repeat a chapter/track/title.
Tip
For VCDs, if PBC is on, you cannot repeat items.•
Zoom
For DVDs, VCDs and JPEG CDs, you can zoom in and out for video
images or pictures.
1 Press ZOOM repeatedly to zoom in and out.
2 When the video image or picture is enlarged, press , , , to
pan through it.
Select audio mode
When you play VCDs, you can select an audio mode.
Press• AUDIO repeatedly to select audio channel: [L/R], [L/L], or
[R/R].
Rotate pictures
For JPEG CDs only. While the JPEG is displayed:
Press• / to rotate anti-clockwise/clockwise.
Play from SD card
1 Insert an SD card into the SD card slot.
2 Press SOURCE.
The home menu appears.»
EN
PD9060_05_UM_V1.0.indd Sec1:20PD9060_05_UM_V1.0.indd Sec1:20 2010-2-1 13:39:432010-2-1 13:39:43

21
To view photos:
1 Select [Photos] from the home menu.
Thumbnail previews of the photos stored in the card are displayed.»
2 Press /OK.
A slideshow of the stored photos starts from the photo selected.»
To listen to music or view videos:
1 Select [Music]/[Videos] from the home menu.
2 Select a folder/file, then press /OK.
The file is played.»
Tip
Alternatively, you can select• from the main menu and find your files in folder view.
English
EN
PD9060_05_UM_V1.0.indd Sec1:21PD9060_05_UM_V1.0.indd Sec1:21 2010-2-1 13:39:442010-2-1 13:39:44
