Philips PET100/12 User manual

PET100
Register your product and get support at
www.philips.com/welcome
User Manual
Mini DVD player

2
1
5
6
7
!
1
2
3
4
8
0
9

3
2
1
3
5
7
9
!
@
$^
#
0
6
2
4
8
%

4
1 Safety and maintenance
2 Your Portable DVD
Player
2.1 Unpacking
2.2 Placement
2.3 Playable disc formats
2.3.1 DVD-Video
2.3.2 Video CD
2.3.3 Audio CD / Mp3
2.3.4 Picture CD
3 Overview
3.1 Main unit controls
3.2 Remote Control
4 Preparation
4.1 Connect AC adaptor
4.2 Connect to TV
4.3 Power up the remote control
5 Adjust system setup
6 Play discs
6.1 Play DVD disc
6.2 Playback VCD or Super (S)
VCD
6.3 Playback Audio CD or MP3-
CD
6.4 Playback Picture-CD
7 Troubleshooting
8 Technology Information
English
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register
your product at www.philips.com/welcome.
Contents

5
1 Safety and maintenance
Do not disassemble the unit for laser rays are dangerous to eyes. Any•
service should be done by qualified service personnel.
Unplug the AC adaptor to cut the power if liquid or objects get inside•
the unit.
Take care not to drop the unit or subject it to strong shocks, which•
may cause malfunction.
Do not expose to excessive heat caused by heating equipment or•
direct sunlight.
This product is not waterproof: do not allow your player to be•
submersed in water. Water entering the player may cause major
damage.
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations.
Do not use headphones while operating a motorized vehicle, cycling,•
skateboarding, etc.; it may create a traffic hazard and is illegal in many
areas.
Important (for models with by-packed headphones): Philips guarantees•
compliance with the maximum sound power of its audio players as
determined by relevant regulatory bodies only with the original model
of provided headphones. In case this one needs replacement, we
recommend that you contact your retailer to order a model identical
to that of the original provided by Philips.
Traffic safety: do not use while driving or cycling as you may cause an•
accident.
When the player is in use for a long period of time, the surface will be•
heated. This is normal.

6
Handling discs
Do not attach paper or tape to the disc.•
Keep the disc away from direct sunlight or heat sources.•
Store the disc in a disc case after playback.•
To clean, wipe the disc outwards from the center with a soft, lint-free•
clean cloth.
Do not use any cleaning agents containing alcohol, ammonia, benzene,•
or abrasives as these may harm the player.
Apparatus shall not be exposed to dripping or splashing. Do not place•
any sources of danger on the apparatus (e.g. liquid filled objects ,
lighted candles)
Do not touch the lens!•
This player includes this label
The type plate is located on the bottom of the set
Copyright information
The making of unauthorized copies of copy-protected material, including
computer programmes, files, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Disposal of your old product
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product, it means the product is covered by the European
Directive 2002/96/EC.

7
Please be informed about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your old
product with your normal household waste. The correct disposal of your
old product will help prevent potential negative consequences to the
environment and human health.
2 Your Portable DVD Player
Your portable DVD player plays digital video discs conforming to
the universal DVD Video standard. With it, you will be able to enjoy
full-length movies with true cinema picture quality, and stereo or
multichannel sound (depending on the disc and on your playback set-up).
The unique features of DVD-Video, such as selection of soundtrack and
subtitle languages, and of different camera angles (again depending on the
disc), are all included.
2.1 Unpacking
First check and identify the contents of your package, as listed below:
Mini DVD player • Remote Control (AY5513)•
User manual • Scart AV cable•
AC power adaptor(12V,AY4195) •
2.2 Placement
Place the player on a firm, flat surface.•
Keep away from domestic heating equipment and direct sunlight.•
If the player cannot read CDs/DVDs correctly, try using a commonly•
available cleaning CD/DVD to clean the lens before taking the player
to be repaired. Other cleaning methods may destroy the lens.
Always keep the disc door closed to avoid dust on the lens.•
The lens may cloud over when the player is suddenly moved from•
cold to warm surroundings. It is then not possible to play a CD/
DVD. Leave the player in a warm environment until the moisture
evaporates.

8
2.3 Playable disc formats
In addition to DVD-Video disc, you will also be able to play all Video
CDs, CDs, CDR, CDRW,DVD±R and DVR±RW.
2.3.1 DVD-Video
Depending on the material on the disc (a movie, video clips, a drama
series, etc.) these discs may have one or more Titles, and each Title may
have one or more Chapters. To make access easy and convenient, your
player lets you move between Titles, and also between Chapters.
2.3.2 Video CD
Depending on the material on the disc (a movie, video clips, a drama
series, etc.) these discs may have one or more Tracks, and tracks may
have one or more indexes, convenient, your player lets you move
between tracks and between indexes.
2.3.3 Audio CD / MP3
Audio CDs /Mp3 contain music tracks only .You can play them in the
conventional way through a stereo system using the keys on the remote
control and/or main unit, or via the TV using the On Screen Display (OSD).
Music bought from on-line music stores are not supported because they
are secured by Digital Rights Management protection (DRM).
2.3.4 Picture CD
This device only supports picture file with the extension of .jpg.
3 Overview
3.1 Main unit controls (see figure 1)
1
3 , 4Up/down cursor
2
5,6 Skip to previous/next chapter, track or title
32; Start playback or pause
4Menu Enter disc content menu or exit
59Stop playback

9
6Setup Enter system setup menu or exit
7Power Turn the power on or off
8Open Open the disc door to insert or remove disc
9AV out Audio/Video output
0IR power Power and remote sensor indicator
!Dc in Power supply socket
3.2 Remote Control (see figure 2)
1SET UP Enter the system setup menu or exit
2DVD MENU Return to the DVD menu
3Navigation key Up/down/left/right
4OK Confirm a selection
5OSD View the playback status
6TITLE Return to the Title menu of DVD disc
7
∞ Skip to previous chapter track
§Skip to next chapter track
8
2; Start playback or pause
9MUTE Cut sound out
0 9Stop playback
!Number Keypad (0-9) Input the password or select the track
@SUBTITLE Select subtitle language for DVD disc
#AUDIO Select audio language for DVD disc
$RETURN Return to PBC menu for VCD disc
%A-B Repeat playback
^ZOOM Zoom in or out picture
4 Preparation
4.1 Connect AC adaptor
Connect the supplied adaptor to the set and to a AC power outlet.

10

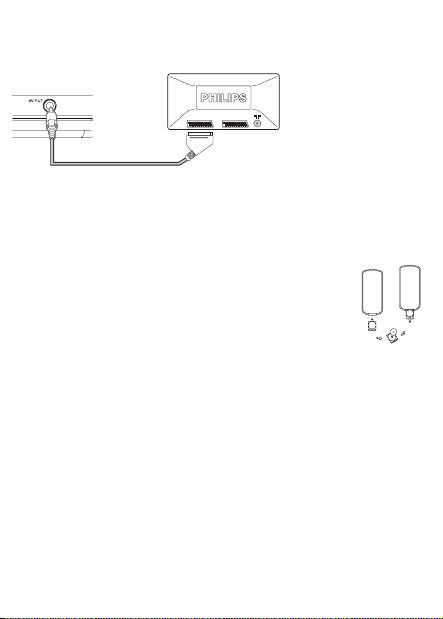

4.2 Connect to TV
To enjoy the DVD player, you need to connect it to a TV.
SCART
4.3 Power up the remote control
For first-time use:
Remove the protective tab to activate the remote control battery.
To replace the remote control battery
Open the battery compartment.1
Insert one CR2025 3V lithium battery with correct 2
polarity (+/-) as indicated.
Close the battery compartment.3

11
CAUTION
Batter•ies contain chemical substances, so they should be disposed
of properly.
Batteries shall not be exposed to excessive heat such as sunshine,•
fire or the like.
Danger of explosion if battery is incorrectly replaced. Replace only•
with the same or equivalent type.
Incorrect use of batteries can cause electrolyte leakage and will•
corrode the compartment or cause the batteries to burst.
Remove the batteries if the set is not to be used for a long time.•
Per-chlorate Material – special handling may apply.•
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
5 Adjust system setup
Press1 SETUP.
List of features is shown.•
Use2 12to highlight your selection.
Use3 3412to highlight your desired setting
The SETUP menu includes:
General

12
TV display: Set screen display aspect ratio.
OSD Lang: Set On Screen Display (OSD) languages.
PBC: Set PBC (Playback control) menu on or off.
Screen Saver: Set screen saver on or off.

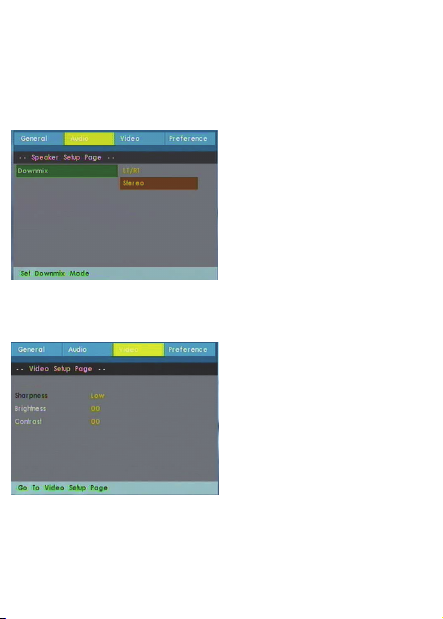

Audio
Set the digital output format
Dobly (Downmix): LT/RT
Stereo
Video
Sharpness: Adjust color of the screen.
Brightness: Adjust brightness of the screen.
Contrast: Adjust contrast of the screen.

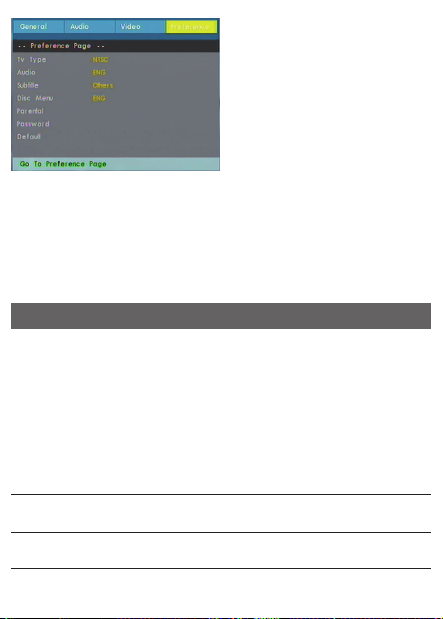

Preference

13
TV type: Set video output format.
Audio: Set audio language
Subtitle: Set subtitle language
Disc Menu: Set disc menu language
Parental: Set parental options
Password: Change password (default: 9999)
Default: Restore factory settings
6 Play discs
6.1 Play DVD disc
Connect the DVD player to a1 TV .
Power on the DVD player and the TV.2
Open the disc door and insert a DVD disc. The player will start to3
play the disc automatically.
Use4 3412to select an item from the DVD disc menu, such as play
now, select languages and subtitle, then press OK to start play.
The following functions are available during playback:
Pause To pause playback, press 2;. You can resume
playback by pressing 2; again
Previous/Next Briefly press ∞or §repeatedly to skip to previous
or next chapter or track.
Fast backward/ Keep pressing ∞or §to initiate fast backward/

14
Fast forward forward searching. When 2x is shown on screen, press
∞or §briefly to change speed to 4x, 8x, 16x, 32x
or to resume normal playback. You may also press 2;
to resume normal playback.
Stop Press 9to stop playback
Subtitle To change subtitle language, press SUBTITLE.
OSD Briefly press OSD to view the playback status
Language You can change audio language by pressing AUDIO.
Note: Some VCDs only contain 2 languages for
selection.
Zoom You can press ZOOM to zoom in the screen, and
then use 3412to pan the screen. This function is
only available for playbacks DVD video and Jpeg file.
A-B Repeat You can set loop repeat by: 1) press A-B to set the
starting point; 2) press A-B again to set the ending
point. Then, the player plays the loop repeatedly.
Press A-B to cancel the loop layback. This function is
only available for playbacks DVD,CD,MP3.
Note: Depends on different type of discs and different playback status,
some functions may be disabled.
6.2 Playback VCD or Super (S)VCD
Connect the player to a1 TV
Power on the DVD player and the TV.2
Open the disc door and insert a VCD disc. The player will start to3
play the disc automatically.
Refer to the table in chapter 6.1 for different playback options.4

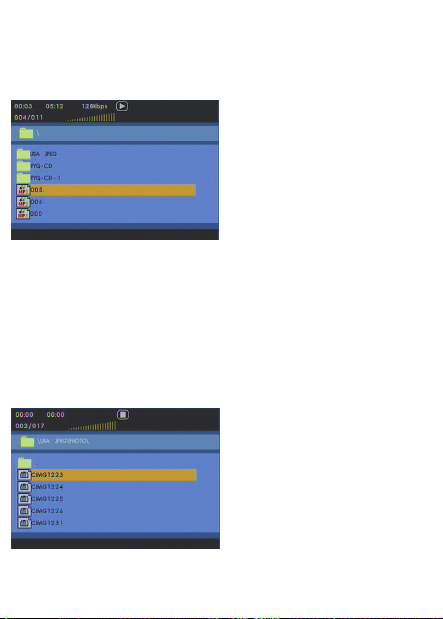

6.3 Playback Audio CD or MP3-CD
1Connect the player to a TV
2Power on the DVD player and the TV.

15
3Open the disc door and insert an audio CD or MP3 CD disc.
The set will start to play the disc automatically.•
4Use 3412to select folder/track to be played.
5. Refer to the table in chapter 6.1 for different playback options.
6.4 Playback Picture-CD
The player can only read pictures in JPEG format.
1Connect the player to a TV
2Power on the DVD player and the TV.
3Open the disc door and insert a picture disc.
The set will start to play the disc automatically.•
4Use 3412to select preferred folder and JPEG file to be played.
5Refer to the table in chapter 6.1 for different playback options.

16
7 Troubleshooting
If you encounter problems when using this DVD player, check the
following points before requesting for service. If the problem remains
unsolved, go to the Philips web site (www.Philips.com/support), or
contact Philips (see Contact information). When you contact Philips,
ensure that your player is nearby and the model number and serial
number are available.
To Keep the warranty valid, never try to repair the DVD player by
yourself.
Problem Solution
No picture Ensure the DVD player is correctly•
connected with the TV.
Disc can’t be played Ensure label side of the disc is facing•
upward.
Clean the disc. And check if the disc is•
defective by trying another disc.
The player does
not respond to the
remote control
Aim the remote control directly at the•
sensor on the front of the player.
Avoid all obstacles that may interfere with•
the signal path.
Inspect or replace the battery.•
Distorted or B/W
picture with DVD
Use only discs formatted according to the•
TV-set used (PAL/NTSC).
Player feels warm
When the player is in
use for a long period
of time, the surface
will be heated.
This is normal.•

17
Problem Solution
No power Check if both plugs of the mains cord are•
properly connected.
Check if there is power at the AC outlet by•
plugging in another appliance.
Distorted picture Check the disc for fingerprints and clean•
with a soft cloth, wiping from centre to edge.
Sometimes a small amount of picture•
distortion may appear. This is not a
malfunction.
Completely distorted
picture / no colour in
The NTSC/PAL setting may be wrong.•
Match your TV’s setting with the player’s
setting.
Disc can’t be played Ensure the disc label is upwards and clean•
the disc.
Check if the disc is defective by trying•
another disc. the brightness in the SETUP
menu

18
8 Technology Information
Dimensions 157 mm x 32 mm x 151 mm
Weight 0.35 kg
Power supply AC/DC adaptor
Input: 100–240V~ 50–60 Hz
Output: 12,0VDC 1,0A
Power Consumption 10 W
Operating temperature range 0 - 50°C (32 - 122°F)
Laser wavelength 650 nm
Video system NTSC / PAL / AUTO
PHILIPS reserves the right to make design and specification
changes for product improvement without prior notice.
Modifications not authorized by the manufacturer may void
users authority to operate this device.
All rights reserved.
Copyright information
The making of unauthorized copies of copy-protected material, including
computer programmes, files, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.

19

Meet Philips at the Internet
http://www.philips.com
Printed in China WK813
PET100
