Philips PET1046 User manual

PET1046
Portable DVD player
Register your product and get support at
www.philips.com/welcome
User manual
PET1046_EN 3/6/09 17:45 Page 1

1
PET1046_EN 3/6/09 17:45 Page 2

PET1046_EN 3/6/09 17:45 Page 3

2
PET1046_EN 3/6/09 17:45 Page 4

English
1Control elements
and functional compo-
nents
1.1 Main unit controls
1.2 Disc door
1.3 Front of player
1.4 Bottom of the player
1.5 Right of player
1.6 Remote Control
2 Introduction
2.1 Your portable DVD player
2.2 Unpacking
2.3 Placement
2.4 Playable disc formats
2.4.1 DVD-Video
2.4.2 Video CD
2.4.3 Audio CD/MP3 CD/ WMA
CD
2.4.4 CD with JPEG files
2.4.5 DivX video discs
2.4.6 About SD Memory Card
2.5 Zero Bright DotTM
2.6 Compatibility of the USB
connection on this
portable DVD player:
2.6.1 Music:
2.6.2 Picture:
2.6.3 Video (vary with models):
3General information
4Charging the units
4.1 Charge the DVD player
4.2 Powering your remote
control
5Start up
5.1 Setup
5.2 Playback DVD
5.3 Playback VCD
5.4 Playback Super (S)-VCD
5.5 Playback Music CD
5.6 Playback Music
MP3/WMA-CD
5.7 Playback Picture-CD
5.8 Playback from
USB/SD(SDHC)
5.9 TV & Radio
5.9.1 Antenna connection
5.9.2 Setup TV & Radio chan-
nels
5.9.3 Enjoy TV programs
5.9.4 Settings
5.9.5 Manage channels
5.9.6 Electronic program
guide (EPG)
5.9.7 List
6Addition Functions
6.1 DISPLAY Menu
6.2 Connection
Content
PET1046_EN 3/6/09 17:45 Page 5

6.2.1 Headphone
6.2.2 TV
6.2.3 AV input
6.2.4 USB
6.2.5 Coaxial
6.2.6 SD/SDHC card slot
6.2.7 Component Video and S Video
6.2.8 TV antenna
7Troubleshooting
8Technical data
1Control elements and functional components

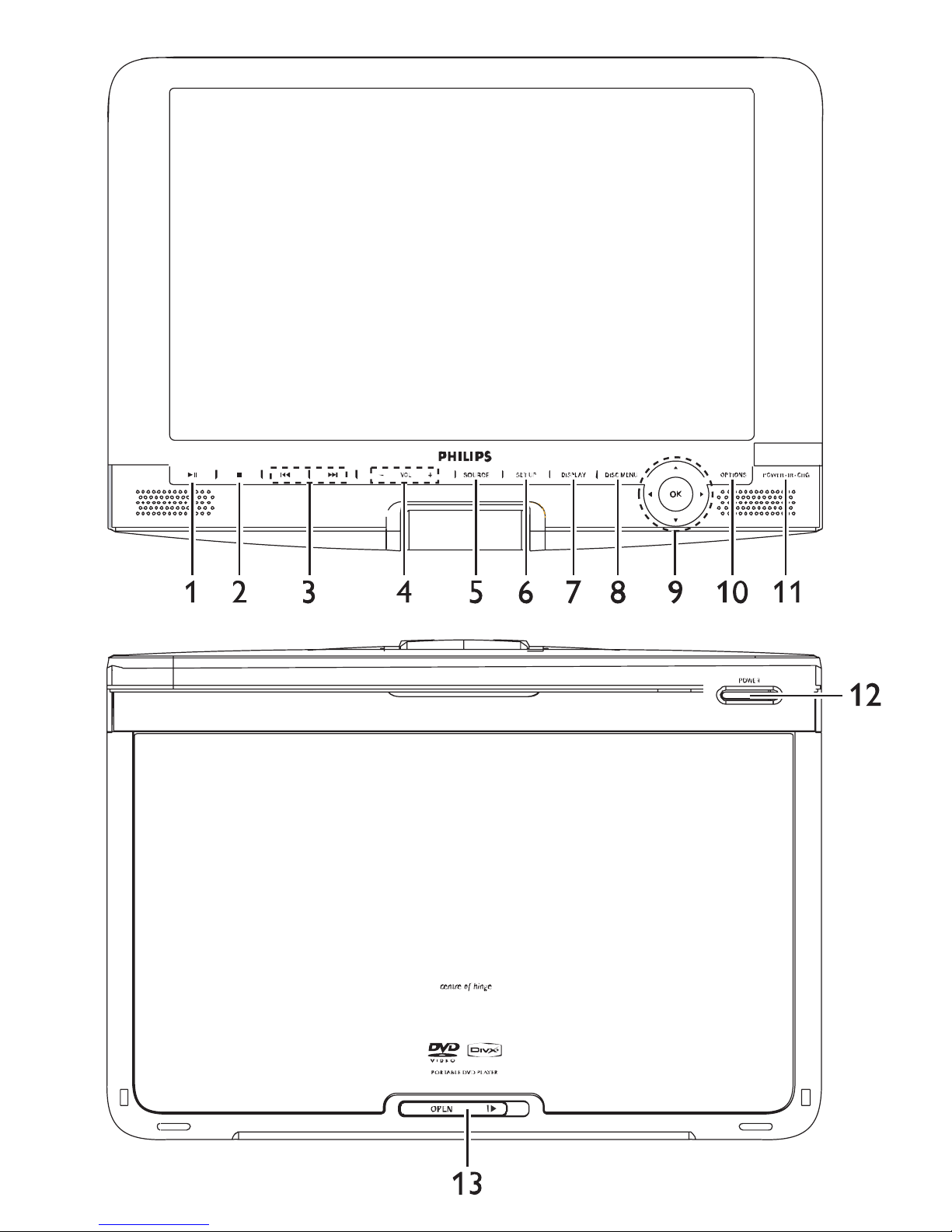

1.1 Main unit controls (see figure 1)
12; Start / pause / resume playback
29Press once to stop playback and store the stop
position. Press twice to stop playback completely.
3J( / )K previous/next track or fast search backward/forward
4
- VOL + Volume control
5 SOURCE Switch among TV, DVD and other sources.
6 SETUP Enter SETUP menu
7 DISPLAY Adjust the display value of the system
8 DISC MENU Display MENU page
93,4,1,2Up / down / left / right cursor
OK Confirm selection
10 OPTIONS Access additional functions
11 POWER•IR•CHG
Power / Remote sensor / charging indicator
1.2 Disc door (see figure 1)
12 POWER Switch the player on / off
13 OPEN Open disc door to insert or remove disc
1.3 Front of player (see figure 1)

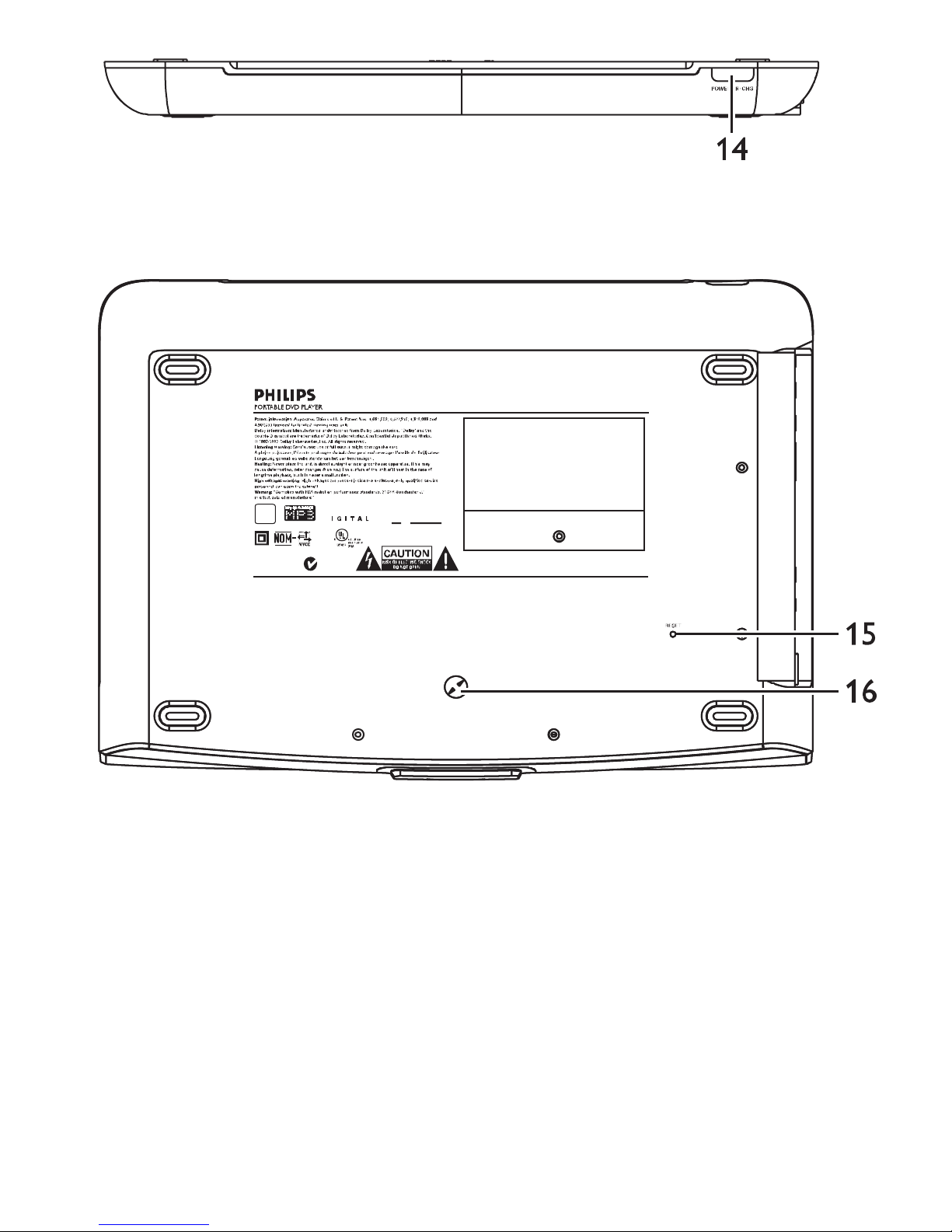

14 POWER•IR•CHG
Power / Remote sensor / charging indicator
1.4 Bottom of the player (see figure 1)
15 RESET Reset the player when it is hanged up
16 Car mounting screw hole
PET1046_EN 3/6/09 17:45 Page 6

1.5 Right of player (see figure 1)
17 pHeadphones jack
18 AV OUT Audio/Video output
19 AV IN Audio video input
20 USB USB connector
21 SD/SDHC CARD
Insert SD/SDHC card
22 S VIDEO/COMP.VIDEO
S video output or component video output
23 COAXIAL Digital audio output
24 DC IN 9V Power supply socket
25 ANTENNA Connection to antenna plug

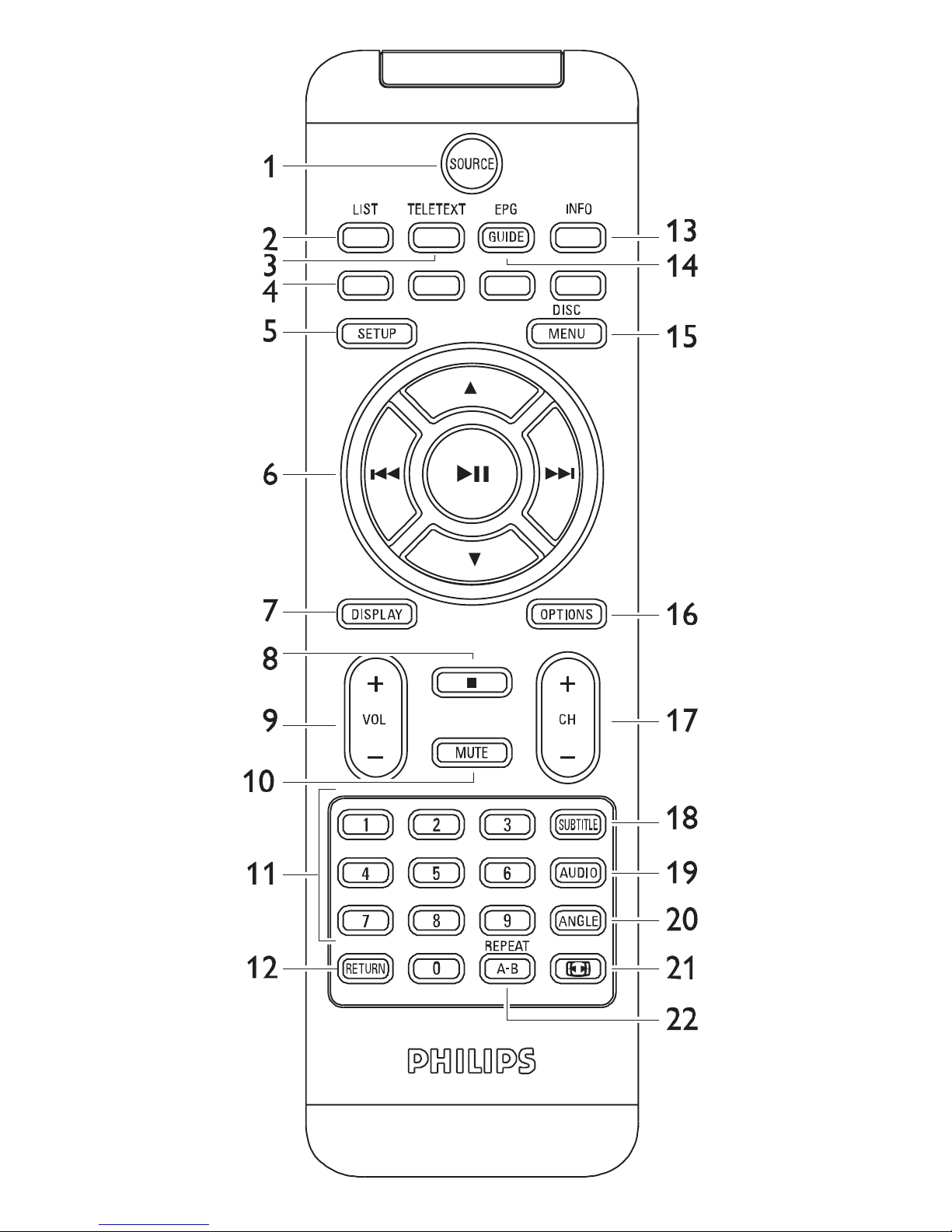

1.6 Remote Control (see figure 2)
1 SOURCE Switch between DVD > Component > TV > Radio
> USB > AV-in
2 LIST View channels
3 TELETEXT Activate TELETEXT
4Direct access to the items
Coloured areas are displayed at the bottom of the
screen.The 4 coloured keys are used to access the
items or corresponding pages.The coloured areas
flash when the item or the page is not yet available.
5 SETUP Enter SETUP menu
62; OK or play/pause
3/ 4Up/down navigation key / Channel control
J( / )K Left/right navigation key or previous/next track
or fast search backward/forward
7 DISPLAY Adjust the display value of the system
89Press once to stop playback
9+VOL - Volume control
10 MUTE Muting player volume
11 0 - 9Numeric keypad
PET1046_EN 3/6/09 17:45 Page 7

2 Introduction
CAUTION Use of controls or adjustments or performance
of procedures other than herein may result in hazardous radia-
tion exposure or other unsafe operation.
12 RETURN For VCD menu page
13 INFO List program information
14 EPG Activate Electronic program guide
15 DISC MENU Display the DVD disc menu
16 OPTIONS Access additional functions
17 + CH- Channel control
18 SUBTITLE Subtitle language selector
19 AUDIO Audio language selector
20 ANGLE Selects DVD camera angle
21 To adjust the screen of 16:9 or 4:3
22 A - B To r epeat or loop a sequence in a title
2.1 Your portable DVD player
Your portable DVD player plays digital video discs conforming to
the universal DVD Video standard.With it, you will be able to enjoy
full-length movies with true cinema picture quality, and stereo or
multichannel sound (depending on the disc and on your playback
set-up).
The unique features of DVD-Video, such as selection of soundtrack
and subtitle languages, and of different camera angles (again depend-
ing on the disc), are all included.
What’s more, parental lock lets you decide which discs your chil-
dren will be able to see.You will find your player remarkably easy
to use with the On-Screen Display and player display in combina-
tion with the remote control.
2.2 Unpacking
First check and identify the contents of your package, as listed below:
PET1046_EN 3/6/09 17:45 Page 8

•Portable DVD player • Remote Control (AY5506)
•Car adaptor (12V) • User manual
•AC power adaptor (AY4117) • Audio/video cable
•Antenna • Component cable
•Svideo cable • Travel bag
2.3 Placement
•Place the player on a firm, flat surface.
•Keep away from domestic heating equipment and direct sunlight.
•If the player cannot read CDs/DVDs correctly, try using a com-
monly available cleaning CD/DVD to clean the lens before taking
the player to be repaired. Other cleaning methods may destroy
the lens.
•Always keep the disc door closed to avoid dust on the lens.
•The lens may cloud over when the player is suddenly moved
from cold to warm surroundings. It is then not possible to play a
CD/DVD. Leave the player in a warm environment until the
moisture evaporates.
2.4 Playable disc formats
In addition to DVD-Video disc, you will also be able to play all
Video CDs, CDs, CDR, CDRW,DVD±R and DVR±RW.
2.4.1 DVD-Video
Depending on the material on the disc (a movie, video clips, a
drama series, etc.) these discs may have one or more
Titles, and each Title may have one or more Chapters.To
make access easy and convenient, your player lets you move
between Titles, and also between Chapters.
2.4.2 Video CD
Depending on the material on the disc (a movie, video
clips, a drama series, etc.) these discs may have one or
more Tracks, and tracks may have one or more indexes,
as indicated on the disc case.To make access easy and convenient,
your player lets you move between tracks and between indexes.
PET1046_EN 3/6/09 17:45 Page 9

2.4.3 Audio CD / MP3 CD / WMA CD
Audio CDs / MP3 CD / WMA CD contain music tracks
only.You can play them in the conventional way
through a stereo system using the keys on the
remote control and/or main unit, or via the TV
using the On Screen Display (OSD).
2.4.4 CD with JPEG files
You can also view JPEG still photos on this player.
2.4.5 DivX video discs
DivX is a popular media technology created by DivX, Inc.
DivX media files contain highly compressed video with
high visual quality that maintains a relatively samll file size. DivX
files can also include advanced media features like menus, subtitles,
and alternate audio tracks. Many DivX media files are available for
download online, and you can create your own using your personal
content and easy-to-use tools from DivX.com.
Offical DivX® Certified product. Plays all versions of DivX® video
(including DivX® 6) with standard playback of DivX® media files.
2.4.6 About SD Memory Card
SD Memory Card is a slim and compact bridge media link-
ing various kinds of digital equipment through its easy connectivity.
The card's control circuitry allows data to be read and written (in
its protection area) only when appropriate external devices are
detected. Using decoder software, an SD Memory
Card-compatible device can play music, video clips and more with-
out a drive mechanism like those in CD and DVD players.
2.5 Zero Bright DotTM
Enjoy highest-quality images that are free from annoying
blank spots on the LCD screen. LCD displays commonly
have imperfections, termed as 'bright dots' by the LCD industry.A
limited number of bright dots were once considered an inevitable
side effect of LCD mass production.With Philips' strict quality con-
PET1046_EN 3/6/09 17:45 Page 10

trol procedures used in our Portable DVD Players, our LCD dis-
plays are produced with zero tolerance for bright dots. Select
Portable DVD Players come with Philips Zero Bright DotTM Policy
to guarantee optimal screen quality.
Warranty service varies from region to region. Contact your local
Philips representative for more detailed information.
2.6 Compatibility of the USB connection on this
portable DVD player:
This portable DVD player supports most USB Mass storage
devices (MSD) that are compliant to the USB MSD stan-
dards.
—Most common Mass storage class devices are flash drives, mem-
ory sticks, jump drives and etc.
—If you see a "Disc Drive" show up on your computer after you
plugged the mass storage device into your computer, most likely it
is MSD compliant and it will work with this portable DVD player.
If your Mass storage device required a battery / power source. Please
make sure you have a fresh battery in it or charge the USB device
first and then plug it into the portable DVD player again.
2.6.1 Music:
•This device only supports unprotected music with the following
file extension:
.mp3
.wma (vary with model)
•Music bought from on-line music stores are not supported
because they are secured by Digital Rights Management protec-
tion (DRM).
2.6.2 Picture:
•This device only support picture file with the following file
extension:
.jpg
PET1046_EN 3/6/09 17:45 Page 11

Please always use supplied AC/DC adaptor
3General information
No Direct connection can be made from computer
USB port to the portable DVD player even you have
either or both mp3 or wma files in your computer.
2.6.3 Video (vary with models):
•This device support DivX video files.The following file
extension is:
.divx, .dix
Power Sources
This unit operates on a supplied AC adaptor, car adapter, or a
rechargeable battery pack.
•Make sure that the input voltage of the AC adaptor is in line
with the local voltage. Otherwise, the AC adaptor and unit may
be damaged.
•Do not touch the AC adaptor with wet hands to prevent elec-
tric shock.
•When connecting with car power (cigarette lighter) adaptor, be
sure the input voltage of the adaptor is identical with car voltage.
•Unplug the AC adaptor from the outlet when the unit is not
used for long periods of time.
•Hold the plug to disconnect the AC adaptor. Do not pull the
power cord.
Safety and maintenance
•Do not disassemble the unit for laser rays are dangerous to eyes.
Any service should be done by qualified service personnel.
•Unplug the AC adaptor to cut the power if liquid or objects get
inside the unit.
PET1046_EN 3/6/09 17:45 Page 12

•Take care not to drop the unit or subject it to strong shocks,
which may cause malfunction.
Hearing Safety
Listen at a moderate volume.
•Using headphones at a high volume can impair your
hearing.This product can produce sounds in decibel
ranges that may cause hearing loss for a normal per-
son, even for exposure less than a minute.The higher
decibel ranges are offered for those that may have already expe-
rienced some hearing loss.
•Sound can be deceiving. Over time your hearing “comfort level”
adapts to higher volumes of sound. So after prolonged listening,
what sounds “normal” can actually be loud and harmful to your
hearing.To guard against this, set your volume to a safe level
before your hearing adapts and leave it there.
To establish a safe volume level:
•Set your volume control at a low setting.
•Slowly increase the sound until you can hear it comfortably and
clearly, without distortion.
Listen for reasonable periods of time:
•Prolonged exposure to sound, even at normally “safe” levels, can
also cause hearing loss.
•Be sure to use your equipment reasonably and take appropriate
breaks.
Be sure to observe the following guidelines when using
your headphones.
•Listen at reasonable volumes for reasonable periods of time.
•Be careful not to adjust the volume as your hearing adapts.
•Do not turn up the volume so high that you can’t hear what’s
around you.
•You should use caution or temporarily discontinue use in poten-
tially hazardous situations.
PET1046_EN 3/6/09 17:45 Page 13

•Do not use headphones while operating a motorized vehicle,
cycling, skateboarding, etc.; it may create a traffic hazard and is
illegal in many areas.
•Important (for models with by-packed headphones): Philips guar-
antees compliance with the maximum sound power of its audio
players as determined by relevant regulatory bodies only with
the original model of provided headphones. In case this one
needs replacement, we recommend that you contact your retail-
er to order a model identical to that of the original provided by
Philips.
•Traffic safety: do not use while driving or cycling as you may
cause an accident.
•Do not expose to excessive heat caused by heating equipment
or direct sunlight.
•This product is not waterproof: do not allow your player to be
submersed in water.Water entering the player may cause major
damage.
•Do not use any cleaning agents containing alcohol, ammonia,
benzene, or abrasives as these may harm the player.
•Apparatus shall not be exposed to dripping or splashing. Do not
place any sources of danger on the appartus (e.g. liquid filled
objects,lighted candles)
•Do not touch the lens!
When the player is in use for a long period of time, the sur-
face will be heated.This is normal.
Handling discs
•Do not attach paper or tape to the disc.
•Keep the disc away from direct sunlight or heat sources.
•Store the disc in a disc case after playback.
•To clean, wipe the disc outwards from the center with a soft,
lint-free clean cloth.
PET1046_EN 3/6/09 17:45 Page 14

On handling the LCD screen
The LCD is manufactured using high precision
technology.You may, however, see tiny black points
that continuously appear on the LCD.This is a
normal result of the manufacturing process and
does not indicate a malfunction.
Environmental information
We have reduced the packaging to its minimum and made it easy to
separate into mono materials: cardboard, PS, PE and PET.
Your set consists of material which can be recycled if disassembled
by a specialized company. Please observe the local regulations to
dispose of packaging, exhausted batteries and old equipment.
Copyright information
DivX, DivX Certified, and associated logos are trademarks of DivX,
Inc. and are used under license.”
All other brand and product names are trademarks of their respec-
tive companies or organizations.
Unauthorized duplication of any recordings downloaded from the
internet or made from CDs / VCDs / DVDs is a violation of copy-
right laws and international treaties.
The Windows Media and the Windows logo are registered trade-
marks of Microsoft Corporation in the United States and/or other
countries.
4Charging the units

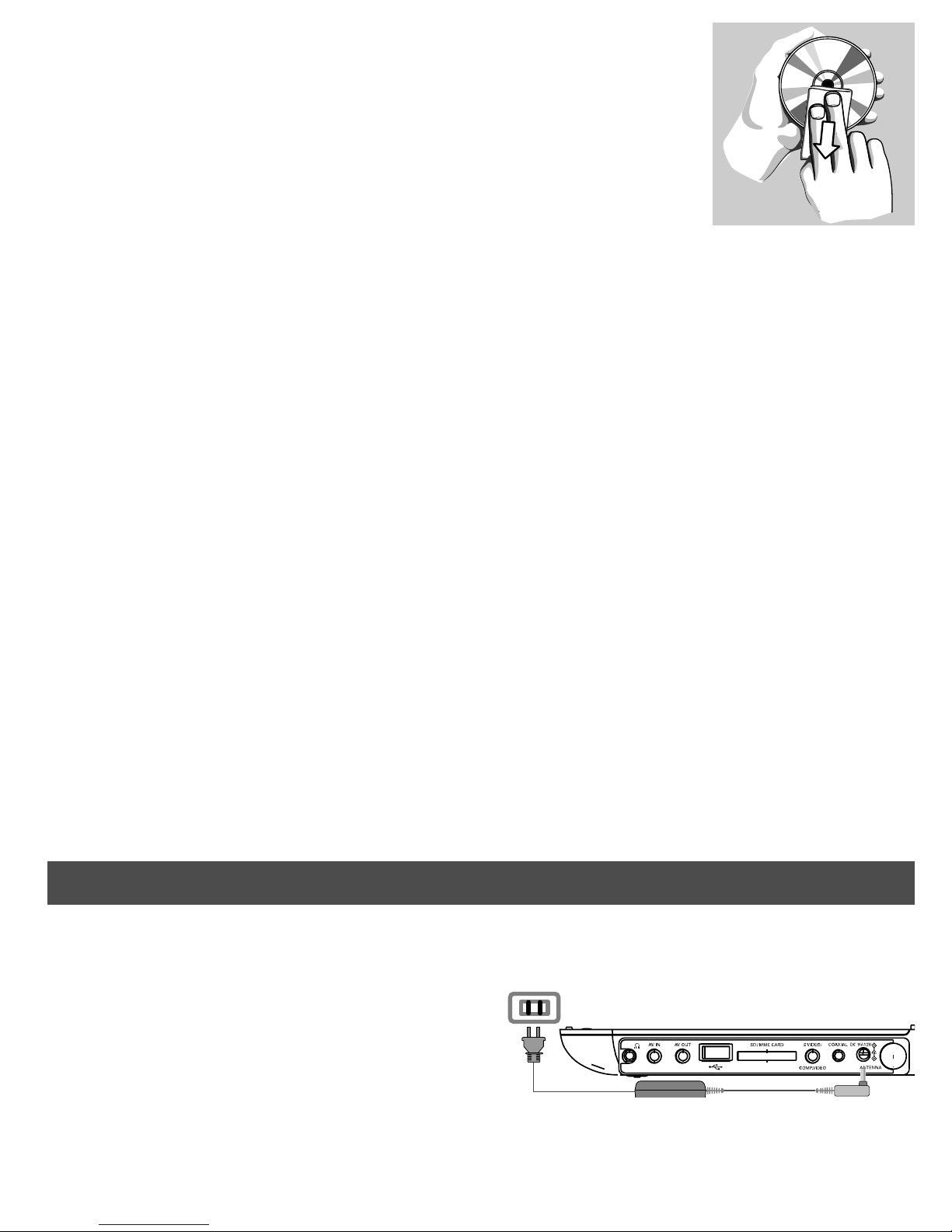

4.1 Charge the DVD player
Plug in the AC/DC adaptor
• The RED LED indicates that
charging is in progress.When the
set is not in use, it will take about
5 hours to fully charge it. However, when in use, it will take more
than 12 hours to fully charge it.*
PET1046_EN 3/6/09 17:45 Page 15

•The RED LED will turn off when the set is fully charged.Whe n
the low battery icon appears on the screen, please charge the player.
* Rechargeable batteries have a limited number of charge cycles
and may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.
4.2 Powering your remote control
1Open the battery compartment. Remove the pro-
tective plastic tab (first time use only).
2Insert 1 x lithium 3V battery, type CR2025, then
close the compartment.
CAUTION
•Batteries contain chemical substances, so they should be
disposed of properly.
•Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
•Incorrect use of batteries can cause electrolyte leakage and
will corrode the compartment or cause the batteries to
burst.
•Perchlorate Material – special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
PET1046_EN 3/6/09 17:45 Page 16

5.1 Setup
1Press SETUP.A list of features is shown.
2Use 3/ 4to highlight your selection.
3Use J( or )K to enter a sub-menu
4Use the navigation keys to highlight your desired setting and
press OK to confirm.
5The SETUP menu includes:
General
Language Set On Screen Display (OSD) languages.
PBC settings Set Playback Control function ON/OFF.This fea-
ture is available for Super VCD.
Power save Set power saving mode.
DivX (VOD) Get the DivX (Video-On-Demand) code.
DVD Parental Set parental options
Set password Change password (default: 9999).
Factory settings Restore factory settings.
Video
TV Display Set screen display aspect ratio.
TV Standard Set video output format to TV system.
Mpeg 4 subtitle Select subtitle language for Mpeg 4 video, e.g.
DivX video.
5Start up
PET1046_EN 3/6/09 17:45 Page 17

Audio
Dolby Set Dolby output.
Digital (SPDIF) Set digital output format.
TV & Radio
Channel setup set channel.
Country set specific country.
Time Zone set specific time zone.
DTTV Parental Set parental options.
Photo Slideshow
Slideshow Freq. select intervals for JPEG play.
Slidehsow Effect select slideshow effect for JPEG play.
5.2 Playback DVD
1Briefly press POWER on the main control of the player to
switch on the set.
2Open the disc door and insert the disc.
3The player will start to play the disc automatically.
4Use navigation keys 1,2,3,4to select an item from the DVD
disc menu, such as play now, select languages and subtitle.
5The following functions are available during playback:
Pause Press 2; to pause playback.You can resume
playback by pressing 2; again
Previous/Next Briefly press J( or )K once or several times to
select your desired chapters
Fast backward / Fast forward
Keep pressing J( or )K to search in fast speed,
2X, 4X… Then, press 2; to resume normal
playback
Volume Control
Press VOL +/- briefly or repeatedly to increase
PET1046_EN 3/6/09 17:45 Page 18

or decrease the sound volume
Stop Briefly press 9to stop playback
Subtitle Change subtitle display.The function is available
by pressing either the SUBTITLE or
OPTIONS key
Language Change language.The function is available by
pressing either the AUDIO or OPTIONS key
Angle Change the viewing angle provided in the DVD
disc.The function is available by pressing the
ANGLE key.
Zoom Zoom in the screen, and then use the navigation
keys to pan the screen.The function is available
by pressing the OPTIONS key to select
ZOOM mode
A-B Repeat Set repeat loop playback. Press A-B to set the
starting point and press A-B again to set the end-
ing point.Then, the player will repeat the loop
playback. Press A-B to cancel the loop playback
5.3 Playback VCD
1Briefly press POWER on the main control of the player to
switch on the set.
2Open the disc door and insert the disc.
3The set will start to play the disc automatically.
4The following functions are available during playback:
Pause Press 2; to pause playback.You can resume
playback by pressing 2; again
Previous/Next Briefly press J( or )K once or several times to
select your desired track
Fast backward / Fast forward
Keep pressing J( or )K to search in fast speed,
2X, 4X or 8X.Then, press 2; to resume normal
playback
PET1046_EN 3/6/09 17:45 Page 19

Volume Control
Press VOL +/- briefly or repeatedly to increase
or decrease the sound volume
Stop Briefly press 9to stop playback
Audio Some VCDs only contain 2 languages for selec-
tion.You can change the language using this func-
tion.The function is available by pressing either
the AUDIO or OPTIONS key
Zoom Zoom in the screen, and then use the navigation
keys to pan the screen.The function is available
by pressing the OPTIONS key to select
ZOOM mode
A-B Repeat Set repeat loop playback. Press A-B to set the
starting point and press A-B again to set the
ending point.Then, the player will repeat the
loop playback. Press A-B to cancel the loop
playback
5.4 Playback Super (S)-VCD
(Super) Video CDs may feature PBC (Play Back Control).This
allows you to play the video CDs interactively, following the menu
on the display.
1Briefly press POWER on the main control of the player to
switch on the set.
2Open the disc door and insert the disc.
If PBC is on, the disc index menu will appear on the screen.
3Use numeric keypad 0-9 to input your selection or select a play
option.
4Press RETURN on the remote control to return to the previ-
ous menu.
5To turn Playback Control mode on/off, please go to SETUP and
select PBC settings.
PET1046_EN 3/6/09 17:45 Page 20
