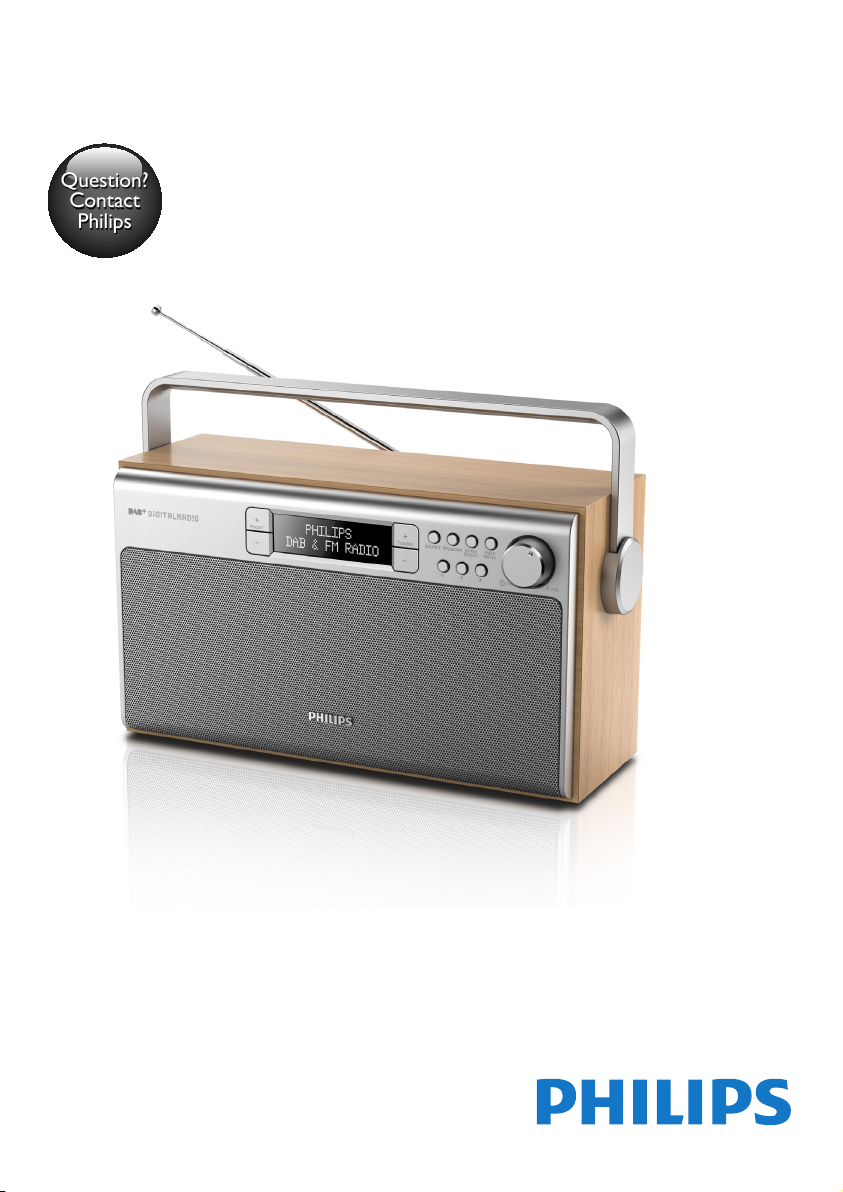

Philips AE5220/12 User manual

www.philips.com/support
User manual
Always there to help you
Register your product and get support at
AE5220
Question?
Contact
Philips

1EN
Contents
1 Important 2
Safety 2
Notice 2
2 Your FM/DAB radio 4
Introduction 4
About DAB 4
What's in the box 4
Overview of the main unit 5
3 Get started 6
Prepare FM/DAB antenna 6
Connect power 6
Turn on 7
Adjust the volume level 7
4 Listen to radio 8
Listen to DAB radio 8
Listen to FM radio 9
Use system menu in FM/DAB mode 10
5 Product information 12
Amplier 12
Tuner 12
Speakers 12
General information 12
6 Troubleshooting 13

2EN
1 Important
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
h Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including ampliers) that
produce heat.
i Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
j Only use attachments/accessories
specied by the manufacturer.
k Unplug this apparatus during lightning
storms or when unused for long periods
of time.
l Refer all servicing to qualied service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
m Battery usage CAUTION – To prevent
battery leakage which may result in bodily
injury, property damage, or damage to
the unit:
• Install all batteries correctly, + and - as
marked on the unit.
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Remove batteries when the unit is not
used for a long time.
n Apparatus shall not be exposed to
dripping or splashing.
o Do not place any sources of danger on
the apparatus (e.g. liquid lled objects,
lighted candles).
p Use only power supplies listed in the user
manual.
q Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Warning
• Never remove the casing of this unit.
• Never lubricate any part of this unit.
• Placethisunitonaat,hardandstablesurface.
• Never place this unit on other electrical equipment.
• Only use this unit indoors. Keep this unit away from
water,moistureandliquid-lledobjects.
• Keepthisunitawayfromdirectsunlight,nakedames
or heat.
Notice
Hereby, Gibson Innovations declares that this
product is in compliance with the essential
requirements and other relevant provisions
ofDirective2014/53/EU.Youcanndthe
Declaration of Conformity on www.philips.com/
support.
Anychangesormodicationsmadetothis
device that are not expressly approved by

3EN
Gibson Innovations may void the user’s
authority to operate the equipment.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2012/19/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
Your product contains batteries covered by the
European Directive 2013/56/EC, which cannot
be disposed with normal household waste.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
consequences for the environmental and
human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Note
• The type plate is located on the back of the unit.

4EN
2 Your FM/DAB
radio
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfromthe
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this unit, you can enjoy both FM radio and
Digital Audio Broadcasting (DAB) radio.
About DAB
About Digital Audio Broadcasting (DAB)
DAB digital radio is a new way of broadcasting
radio via a network of terrestrial transmitters.
It provides listeners with more choice and
information delivered in crystal clear, crackle-
free sound quality.
– The technology allows the receiver to lock on
tothestrongestsignalitcannd.
– With DAB digital stations there are no
frequencies to remember, and sets are tuned
by station name, so there's no returning on the
move.
What is a multiplex?
Digital radio operation is made up of a single
block of frequencies called a multiplex. Each
multiplex works within a frequency spectrum,
such as Band III for DAB broadcasts.
DAB BROADCASTERS AND DLS
Each DAB broadcaster (or multiplex operator)
also provides text and audio data services.
Some programmes are supported by Dynamic
Label Segments (DLS).This is data which you
can read as scrolling text on your DAB radio
display. Some stations transmit the latest news,
travel, and weather, what's on now and next,
website addresses and phone numbers.
For more information on digital radio coverage
and services, please visit: www.drdb.org.
What's in the box
Check and identify the contents of your
package:
• Main unit
• AC power adapter
• Short user manual

5EN
Overview of the main unit
a PRESET +/-
• Select a preset radio station
b Display panel
• Display the current status.
c TUNING +/-
• Tune to a FM station.
• Navigate a DAB station list.
• Navigate an FM/DAB menu.
d SOURCE
• Select a sound source: DAB or FM
radio.
e PROGRAM
• Store radio stations manually.
f SCAN/SELECT
• Scan/store radio stations automatically.
• ConrmDABstationselection.
• Conrmmenuselection.
g INFO/MENU
• Display DAB/RDS station information.
• (Press and hold) enter the DAB menu.
h /VOL +/-
• Turn on or off the unit.
• Adjust volume.
i Preset 1, 2, 3
• Store/directly access preset 1, 2, or 3.
abcdefgj
h
i
k
l
j FM/DAB antenna
• Improve FM/DAB reception.
k Battery compartment door
l DC input socket
• Connect power through the supplied
AC/DC adapter.

6EN
3 Get started
Caution
• Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus.The
model number and serial number are on the
back of the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Prepare FM/DAB antenna
For optimal reception, fully extend and adjust
the position of the FM/DAB antenna.
Tip
• Position the antenna as far away as possible from your
TV or other radiation source to prevent interference.
Connect power
You can use this radio player on AC power or
battery power.
Battery Life (Approx. hours)
When using FM DAB
R14 (size C) 25 25
Option 1:AC power
Caution
• Risk of product damage! Make sure that the power
supply voltage corresponds to the voltage printed on
the back or the underside of the product.
• Risk of electric shock! When you unplug the AC
adapter, always pull the plug from the socket. Never
pull the cord.
• UseonlytheACadapterspeciedbythemanufacturer
or sold with this unit.
Note
• The type plate is located on the back of the unit.
1 Connect one end of the AC adapter to the
DC input socket on the main unit.
2 Connect the other end of the AC adapter
to the wall outlet.

7EN
Option 2: Battery power
Caution
• Batteries (battery pack or batteries installed) shall not
beexposedtoexcessiveheatsuchassunshine,reor
the like.
• Danger of explosion if battery is incorrectly replaced.
Replace only with the same equivalent type.
• Do not mix batteries (old and new or carbon and
alkaline, etc.).
• Remove batteries if they are exhausted or if the unit is
not to be used for a long time.
1 Open the battery compartment at the
back of the unit.
2 Insert four R14/UM-2/C size batteries
(not supplied) with correct polarity
(+/-) as indicated, then close the battery
compartment.
» The unit is ready to operate.
Caution
• A 'Battery low' message is shown when the battery
power is low. Replace batteries or connect to AC
power to ensure normal operation.
Note
• Batteries contain chemical substances, so they should
be disposed of properly.
Turn on
• Rotate /VOL +/- clockwise until you
hear a click to turn on the unit.
» The unit switches to the last selected
source.
» Forrst-timeuse,theunitshowsa
welcome message and switches to
DAB mode to start automatic scanning
for available DAB stations.
To turn off the unit:
• Rotate /VOL +/- anticlockwise until you
hear a click.
Adjust the volume level
• During radio broadcast, rotate /VOL
+/- clockwise/anticlockwise to increase/
decrease the volume level.

8EN
4 Listen to radio
Listen to DAB radio
Tune to DAB radio stations
Note
• Make sure that the antenna is fulled extended.
1 Press SOURCE repeatedly to select DAB
radio.
» [Full SCAN] (full scan) is displayed.
2 Press SCAN/SELECT to start full scan.
» The unit stores all the DAB radio
stations automatically and then
broadcaststherstavailablestation.
» The station list is memorized in the
unit. Next time when you turn on the
unit, the station scan does not take
place.
» If no DAB station is found, [No DAB
Station] (no DAB station) appears,
then [FULL SCAN] (full scan) is
displayed.
To tune to a station from the available station
list:
• In DAB mode, press TUNING +/- to
navigate through the available DAB
stations.
Store DAB radio stations
automatically
Note
• New stations and services will be added in the DAB
broadcast.To make new DAB stations and services
available, perform full scan regularly.
• In DAB mode, press SCAN/SELECT.
» The unit scans all the available DAB
radiostationsandbroadcaststherst
available station.
Tip
• No DAB radio station is stored to presets during this
process.
Store DAB radio stations manually
Note
• You can store a maximum of 20 preset DAB radio
stations.
1 Tune to a DAB radio station.
2 Press PROGRAM to activate programming
mode.
3 Press PRESET +/- repeatedly to select a
preset number.
4 Press PROGRAMtoconrm.
5 Repeat steps 1 to 4 to store other DAB
stations.
Note
• At step 2, you can also press and hold preset key 1, 2
or 3 to save the current station to the corresponding
position directly.
• To remove a preset DAB radio station, store another
station in its place.
Select a preset DAB radio station
In DAB mode,
• to select a preset number 1 - 3, press
the numeric key 1- 3 directly;
• to select any preset number, press
PRESET +/- repeatedly.

9EN
Show DAB information
• During DAB radio broadcast, press
INFO/MENU repeatedly to scroll through
the following information (if available):
» Station name
» Dynamic Label Segment (DLS)
» Signal strength
» Program type (PTY)
» Ensemble Name
» Channel and frequency
» Signal error rate
» Bit rate and audio status
» Time
» Date
Use DAB menu
1 In DAB mode, press and hold
INFO/MENU to access the DAB menu.
2 Press TUNING +/- to scroll through the
menu options:
• [Full scan]: scan all the available DAB
radio stations.
• [Manual tune]: tunetoaspecic
channel/frequency manually and add it
to the station list.
• [Prune]: Remove all the invalid stations
from the station list.
• [DRC Options]: add or remove
a degree of compensation for the
differences in the dynamic range
between radio stations.
• [System]: Adjust system settings.
3 To select an option, press SCAN/SELECT.
4 Repeat steps 2 - 3 if any sub-option is
available under an option.
[System]
• [Time]: set time; select 24H or 12H
mode; and set time synchronization.
• [Factory Reset]: reset all the settings
to factory default.
• [Software Upgrade]: update software
if available.
• [SW version]: know the software
version of the unit.
• [Backlight] (only applicable to products
with serial numbers containing AJPC,
AJPD or AJPE): select from the
following options: Always On, Off - 1
min and Off - 5 mins.
Tip
• Select [System] > [Time] > [Auto Sync] > [DAB]
to set time synchronization.The clock radio will
synchronize time with DAB signal.
Note
• If no button is pressed within 10 seconds, the menu
exits.
Listen to FM radio
Tune to FM radio
1 Press SOURCE repeatedly to select FM
radio.
2 Press TUNING +/- to tune to a radio
station.
3 Press and hold TUNING +/- to tune to
the next strongest radio station.
Store FM radio stations automatically
Note
• You can store up to 20 FM radio stations.
• In FM tuner mode, press SCAN/SELECT.
» The unit stores all the available FM
radiostationsandbroadcaststherst
station.

10 EN
Store FM radio stations manually
1 Tune to an FM radio station.
2 Press PROGRAM to activate programming
mode.
3 Press PRESET +/- repeatedly to select a
preset number.
4 Press PROGRAMtoconrm.
5 Repeat steps 1 - 4 to store more FM
stations.
Tip
• At step 2, you can also press and hold preset key 1, 2
or 3 to save the current station to the corresponding
position directly.
• To overwrite a preset station, store another station in
its place.
Select a preset FM radio station
In FM tuner mode,
• to select a preset number 1 - 3, press
the numeric key 1- 3 directly;
• to select any preset number, press
PRESET +/- repeatedly.
Use FM menu
1 In FM mode, press and hod INFO/MENU
to access the FM menu.
2 Press TUNING +/- to scroll the menu
options:
• [Scan setting]
• [Stereo setting]
• [System]
3 To select an option, press SCAN/SELECT.
4 Repeat steps 2-3 if any sub-option is
available under an option.
Scan setting
• [Strong stations only]: scan stations
with strong signals only.
• [All stations]: scan all the available
radio stations.
Stereo setting
• [Stereo allowed]: select stereo
broadcast.
• [Forced mono]: select mono
broadcast.
Tip
• During FM broadcast, you can also press and hold
SCAN/SELECT to switch between stereo and mono
broadcast.
Show RDS information
RDS (Radio Data System) is a service
that allows FM stations to show additional
information.
If you listen to an FM station with RDS signal, a
RDS icon and the station name are displayed.
1 Tune to a RDS station.
2 Press INFO/MENU repeatedly to scroll
through the following information (if
available):
» Radio test (No radio)
» PTY
» Station freq (No name)
» Stereo/MONO
» TIME
» DATE
Use system menu in FM/DAB
mode
Reset all the settings
1 In DAB/FM mode, press and hold
INFO/MENU.
2 Press TUNING +/- until [System]
(system)is displayed.
3 Press SCAN/SELECTtoconrm.
» [Factory Reset] (factory reset) is
displayed.

11EN
4 Press SCAN/SELECT again.
» [No] [Yes] is displayed.
5 Press TUNING +/- to select [Yes] or
[No], then press SCAN/SELECT to
conrm.
» [Yes]: reset all the settings to factory
default.
» [No]: cancel.
Know the software version
1 Enter the system setting menu.
2 Press TUNING +/- until [SW version]
(Software version) is displayed.
3 Press SCAN/SELECTtoconrm.
» The software version of the unit is
displayed.

12 EN
5 Product
information
Note
• Product information is subject to change without prior
notice.
Amplier
Maximum Output
Power
6 W
Frequency Response 40 - 20000 Hz, ±3dB
Tuner
Tuning Range FM: 87.5 - 108MHz
Tuning grid (FM) 50 KHz
Sensitivity
- Mono, 26dB S/N
Ratio
- Stereo, 46dB S/N
Ratio
< 22dBf
< 43dBf
Search Selectivity < 28dBf
Total Harmonic Dis-
tortion
< 2%
Signal to Noise Ratio > 55 dB
DAB
Frequency Range
Band III
(174~240MHz)
Speakers
Speaker Impedance 4 ohm
Speaker Driver 3 inch full range
Sensitivity 86 ± 3dB/m/W
General information
AC/DC adapter (Input) 100-240V~, 50/60 Hz
(Output) DC 5.5V 1.0A
(Model number) /12:
TPA107-55055-EU(F);
/10:
TPA107-55055-UK(F)
Operation Power
Consumption
2.87 W
Dimensions
- Main Unit (W x H
x D)
286 x 155 x 152 mm
Weight
- Main Unit 1.39 kg

13EN
6 Troubleshooting
Warning
• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome).When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
• Ensure that the power plug is connected
properly.
• Ensure that there is power at the AC
Mains.
• Ensure that the batteries are inserted
correctly.
• If a 'Low Battery' message appears on the
screen, replace the batteries or use the AC
power instead.
No sound
•Adjust the volume.
No response from the unit
•Take out the batteries and turn on the unit
again.
•Disconnect and reconnect the AC power
plug, then turn on the unit again.
Poor radio reception
•Increase the distance between the unit and
yourTV or other radiation sources.
•Fully extend the antenna.

Copyright © 2014 Gibson Innovations Limited. Revised Edition © 2017
This product has been manufactured by, and is sold under the responsibility of Gibson Innovations Ltd., and
Gibson Innovations Ltd. is the warrantor in relation to this product.
Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used
under license.
AE5220_12_UM_V5.0
