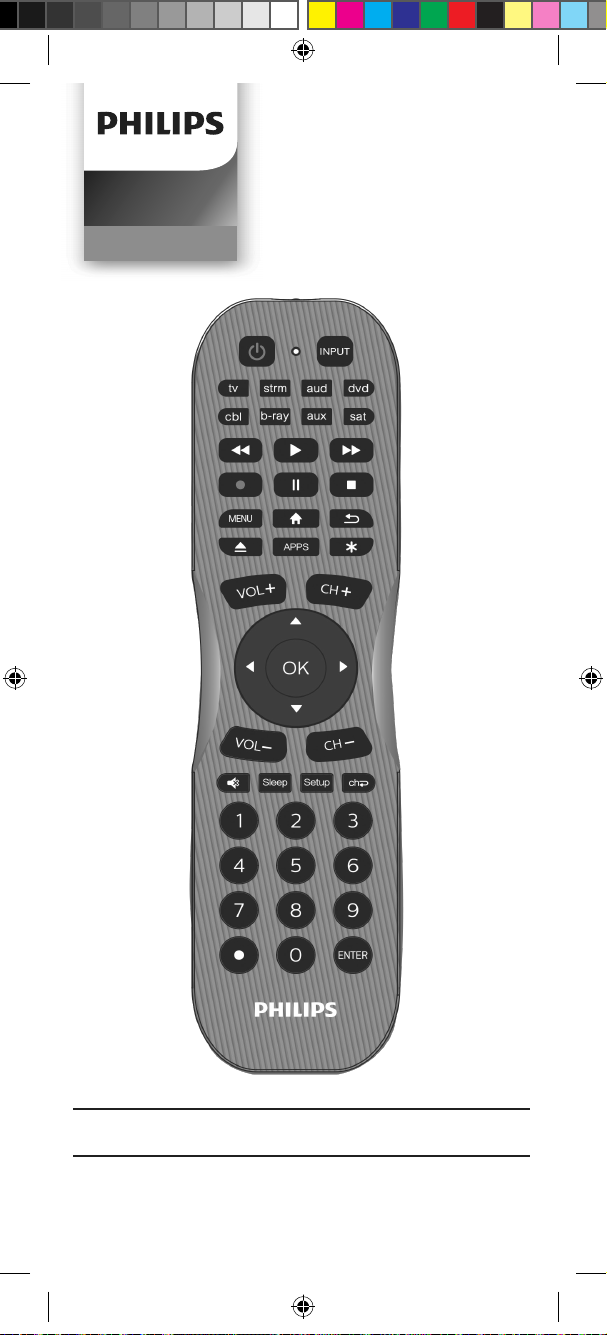

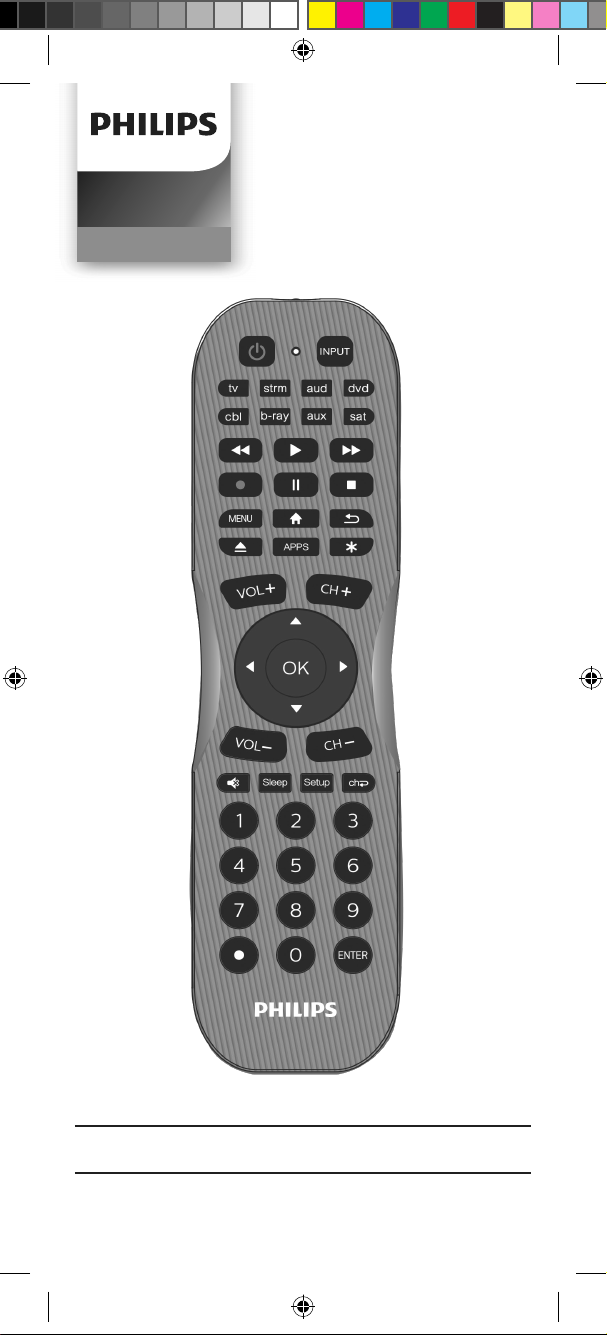

Philips SRP8121G/27 User manual

v1 5/21
Audio/Video
SRP8121G/27
User manual
SRP8121G_27 EnSp manual v1.indd 1SRP8121G_27 EnSp manual v1.indd 1 5/24/21 6:21 PM5/24/21 6:21 PM

2
Setup......................................................................... 3
Button Functions ....................................................4
Programming Your Remote ...................................6
Direct Code Entry ..............................................6
Auto Code Search.............................................. 7
Controlling Combo Devices .............................9
Using Your Remote ............................................... 10
Primary Audio Control .................................... 10
Code Identication........................................... 11
Reset to Factory Settings................................ 11
Troubleshooting.....................................................12
Warranty..................................................................13
FCC Statement ...................................................... 14
Congratulations on your purchase of this Philips
branded Universal Remote Control. This remote
is capable of operating thousands of audio/
video devices including TVs, Blu-ray™/DVD
players, streaming media players, sound bars,
cable receivers and more!
Table of Contents
Scan this code to
watch a video on how
to set up this remote
www.byjasco.com/remote
SRP8121G_27 EnSp manual v1.indd 2SRP8121G_27 EnSp manual v1.indd 2 5/24/21 6:21 PM5/24/21 6:21 PM

3
Your universal remote requires two (2) AA
batteries (not included). Alkaline batteries are
recommended.
Battery Installation
1. On the back of the remote, pull down on
the textured surface and slide battery cover
downward to remove.
2. Match the (+) and (-) marks on the batteries
to the (+) and (-) marks inside the battery
compartment, then insert two (2) AA
batteries. Be sure to use fresh batteries.
3. Position battery cover slightly below opening
and push upward to lock into place.
NOTE:If your remote stops operating properly,
replace the batteries with new ones.
Battery Precautions
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-
zinc), or rechargeable (Ni-Cd, Ni-MH, etc.)
batteries.
• Always remove old, weak or worn-out
batteries promptly and recycle or dispose of
them in accordance with local and national
regulations.
Battery Saver
Your remote automatically turns o if the
buttons are depressed more than 8 seconds.
This will save your batteries should your remote
get stuck in a place where the buttons remain
depressed (e.g., between the sofa cushions).
Code Saver
You have up to 10 minutes to change the
batteries in your remote without losing the
codes you have programmed.
Setup
SRP8121G_27 EnSp manual v1.indd 3SRP8121G_27 EnSp manual v1.indd 3 5/24/21 6:21 PM5/24/21 6:21 PM

4
Button Functions
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
7
9
14
3
4
10
5
6
1
88
11
12
2
11
13
11 16
11 17 11 18
15
SRP8121G_27 EnSp manual v1.indd 4SRP8121G_27 EnSp manual v1.indd 4 5/24/21 6:21 PM5/24/21 6:21 PM

5
Button Functions
1. Power - Turns devices ON/OFF
2. tv, strm, aud, dvd, cbl, b-ray, aux, sat - Selects
the device to control
3. Record, play, stop, rewind, fast forward, pause
4. Menu - Displays the on-screen menu
5. DVD/Blu-ray™open/close - Open/close a
player, or List features on cable/satellite
receivers
6. Streaming App Hotkey - Access top apps like
Netix®, Amazon®Prime, Hulu®and more
7. Input - Selects video inputs
8. Home/Guide - Easily access features on
streaming devices, or Guide on cable/satellite
receivers
9. Channel up/down
10. Volume up/down
11. Ok/up/down/left/right - Navigate and select
menu items for the controlled device
12. Sleep - Sleep timer
13. Mute - Mutes sound
14. Setup - Used to program the remote
15. Last channel - Returns to the previously
selected channel
16. Numbers - Enter numbers for direct channel
selection
17. Dot (•) - Use to select digital channels, e.g., 4.1
18. Enter key (Some devices require Enter to be
pressed after channel selection)
SRP8121G_27 EnSp manual v1.indd 5SRP8121G_27 EnSp manual v1.indd 5 5/24/21 6:21 PM5/24/21 6:21 PM

6
Programming Your Remote
Your remote is designed to control multiple
audio/video devices. To use, you will need to
program the remote for your devices. There are
two dierent methods you can use to program
the remote, Direct Code Entry or Auto Code
Search.
• The Direct Code Entry method is the
recommended approach, as it is the simplest
and quickest process in most cases.
• The Auto Code Search method searches
through all the codes in the remote to nd a
code for your device.
NOTE:This remote comes preprogrammed for
Roku®boxes and Samsung TVs. Press tv for
Samsung TVs and strm for Roku boxes.
Direct Code Entry (Recommended)
1. Locate the Code List included
with your remote. Find the section
for the type of device you wish
to control, (for example tv, strm,
aud, etc). Locate the brand of your
device and circle all the remote
codes for the brand.
2. Press and hold down the Setup
button on the remote until the red
light on the remote control turns
on. Release the Setup button.
The red light will remain on.
NOTE: The red light will either be a
small light at the top of the remote or
the power ON/OFF button.
3. Press and release the device button
on the remote for the type of device
you wish to control, (for example
tv, strm, aud, etc). The red light will
blink once and remain on.
NOTE:Any of the device buttons
on the remote can be programmed
to control any of your devices. For
example, you can use the aux device
button on the remote to control a
satellite receiver, digital converter
box, streaming media player or any
device category in the Code List.
123
456
789
0
ENTER
INPUT
Sleep
Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
SRP8121G_27 EnSp manual v1.indd 6SRP8121G_27 EnSp manual v1.indd 6 5/24/21 6:21 PM5/24/21 6:21 PM

7
Programming Your Remote
4. Use the number buttons on the
remote to enter the rst 4-digit
remote code you circled in the
Code List in Step 1. The red light
will turn o after entering the
fourth digit.
5. Point the remote at the device.
Test the buttons on the remote to
see if the device responds as you
would expect. If the buttons do not
operate the device, return to Step
2 above and use the next code that
you circled for that device.
6. Repeat steps 1 – 5 for each
device you wish to control.
Programming Notes
• Some codes may operate only a few functions
of your device. There may be another code in
the Code List that controls more functions.
Test other codes in the Code List for more
functionality.
• If you do not nd a remote code that works
your device or there are no codes in the
Code List for your device, use the Auto Code
Search method in the next section to program
your remote.
• For combination devices such as a TV/DVD
combo or TV/VCR combo, you may have to
enter a code for each device.
• Write down the remote codes used to
program the remote for future reference.
Auto Code Search
The Auto Code Search is a process where you can
search through all the codes stored in the remote
to nd a code for your device. It is recommended
that you read through all the steps below to
familiarize yourself with the Auto Code Search
before starting the process.
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
SRP8121G_27 EnSp manual v1.indd 7SRP8121G_27 EnSp manual v1.indd 7 5/24/21 6:21 PM5/24/21 6:21 PM

8
Programming Your Remote
1. Manually turn on the device you
wish to control.
NOTE:The Auto Code Search process
cannot be used for devices without
power ON/OFF capability. Use the
Direct Code Entry method in these
cases.
2. Press and hold down the Setup
button on the remote until the red
light on the remote control turns on.
Release the Setup button. The red
light will remain on.
NOTE:The red light will either be a
small light at the top of the remote or
the power ON/OFF button.
3. Press and release the device button
on the remote for the type of device
you wish to control, (for example
tv, strm, aud, etc). The red light will
blink once and remain on.
4. With the remote pointed at the
device, press and release the Power
button on the remote. The remote
will send 10 dierent codes to the
device. The red light will blink once
for each code and remain on after
sending the 10 codes.
Did the device turn o?
• If YES, go to Step 5.
• If NO, repeat Step 4 to test the
next 10 codes.
5. Manually turn the device back on.
6. With the remote pointed at the
device, press and release the
VOL+ button. The remote will re-
send the rst code of the 10 codes
from Step 4. The red light will blink
once and remain on.
Did the device turn o?
• If YES, you have found a code for
the device. Press and release the
same device button you pressed
in Step 3. This will store the code
in the remote. Go to Step 7.
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep
Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
SRP8121G_27 EnSp manual v1.indd 8SRP8121G_27 EnSp manual v1.indd 8 5/24/21 6:21 PM5/24/21 6:21 PM

9
Programming Your Remote
• If NO, continue to press and
release the VOL+ button until
the device turns o to test the
other 9 codes from Step 4. Be
sure to wait approximately 3
seconds after each VOL+ button
press to allow the device time
to respond to the code. When
the device turns o, you have
found a code for your device.
Press and release the same
device button pressed in Step
3. This will store the code in the
remote. Go to Step 7.
NOTE:
• The VOL- button can be used to
go backwards through each batch
of 10 codes.
• The red indicator light will ash 2
times after testing the rst or last
code in each batch of 10.
7. Use the remote to turn the device
back on. Test the buttons on
the remote to see if the device
responds as you would expect.
If the buttons do not operate the
device, return to Step 2 and repeat
this process to search for a better
code to operate the device.
8. Repeat this process for each
device you wish to control.
Controlling Combo Devices
Some combo devices (e.g. TV/VCR, TV/DVD,
DVD/VCR, etc.) will require you to set up two
dierent device buttons to control both parts
of the combo device. For example, if you have
a TV/DVD combo, you may need to set up one
code under the tv button to control the TV
and a separate code under the b-ray button
to control the DVD.
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
SRP8121G_27 EnSp manual v1.indd 9SRP8121G_27 EnSp manual v1.indd 9 5/24/21 6:21 PM5/24/21 6:21 PM

10
Using Your Remote
Primary Audio Control
The Primary Audio Control feature allows you to
select a single device that the volume buttons
always control. For example, the remote can be
in TV mode while the volume buttons control
the volume on your audio receiver or sound bar
instead of your TV.
Enabling the Primary Audio Control
1. Press and hold down the Setup
button on the remote until the red
light on the remote control turns
on. Release the Setup button.
The red light will remain on.
2. Press and release the device
button (tv, aud, etc.) on the remote
for the device you wish to control
the volume.
3. Press and release the Mute
button.
4. Press and release the VOL+
button. The red light will blink
twice and turn o.
Disabling the Primary Audio Control
1. Press and hold down the Setup
button on the remote until the red
light on the remote control turns
on. Release the Setup button. The
red light will remain on.
2. Press and release the device
button (tv, aud, etc.) programmed
to control the Primary Audio
Control feature.
3. Press and release the Mute
button.
4. Press and release the VOL-
button. The red light will blink
twice and turn o.
123
456
789
0
ENTER
INPUT
Sleep
Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep
Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
123
456
789
0
ENTER
INPUT
Sleep Setup
APPS
MENU
ch
OK
CH–
CH+
VOL–
VOL+
SRP8121G_27 EnSp manual v1.indd 10SRP8121G_27 EnSp manual v1.indd 10 5/24/21 6:21 PM5/24/21 6:21 PM
